USER MANUAL LCDBP13E Logik

Two LOGIK portable radio devices with analog dials and speaker stands (no visible text or symbols on the devices themselves)

LCDBP13E
LCDBB13E

Contents

GB

Unpacking....11

Product Overview....12

Top View 12

Front View....12

Cassette Control Panel....13

CD Control Panel 13

Rear View....14

Power Source 15

Batteries Power....15

Mains Power....16

Connecting Auxiliary Equipment....17

Using Earphones.... 17

General Operation....18

Switching the Unit On/Off and Selecting the Function....18

Adjusting the Volume and Sound....18

Radio Reception....18

For Better Reception....18

Compatible Disc Types 18

Playing a CD 19

Selecting a Different Track....19

Finding a Passage within a Track....19

Programming Track Numbers 20

Erasing a Program....20

Repeat Mode 20

Cassette Recorder....21

Cassette Playback 21

Fast Forwarding/Rewinding....21

General Information on Cassette Recording....21

Maintenance 22

Recording from the Radio....22

Recording from a CD 22

Hints and Tips....24

Specifications....25

Innhold

NO

Unpacking....26

Produktoversikt....27

Sett ovenfra....27

Sett forfra 27

Spoling fort forover/bakover 36

- Read all the instructions carefully before using the unit and keep them for future reference.300

- Retain the manual. If you pass the unit onto a third party make sure to include this manual.

- Check that the voltage marked on the rating label matches your mains voltage.

Damage

- Please inspect the unit for damage after unpacking.

- Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adapter and consult your dealer.

Location of Unit

- The unit must be placed on a flat stable surface and not subjected to vibrations.

- Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.

- The mains socket must be located near the unit and should be easily accessible.

• This unit is designed for indoor use only.

Temperature

- Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric fires.

- Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

- To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.

- If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.

- A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.

- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

- Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.

- Unplug the unit from the mains socket during a lightning storm.

- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Cable

- Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the working of the unit, and cause a distorted sound.

Earphones

- Listening to loud sounds for prolonged periods of time may permanently damage your hearing.

- Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.

Batteries

- Batteries used in the unit are easily swallowed by young children and this is dangerous.

- Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.

- Please dispose of batteries correctly by following the guidance in this manual.

- Do not expose the battery to direct sunlight or sources of excessive heat.

Supervision

• Children should be supervised to ensure that they do not play with the unit.

- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Class 1 Laser Product

- This unit utilises a laser. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Before moving the unit, ensure the disc tray is empty.

• Always remove the disc when the unit is not in use.

- Failure to do so will risk severely damaging the disc and the unit.

- Do not stack devices; heat from other devices may affect the performance of the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain

any user-serviceable parts. Please leave all maintenance work to qualified personnel. - Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

- Ensure to unplug the unit from the power supply before cleaning.

- Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.

- Do not use liquids to clean the unit.

Congratulations on the purchase of your new Logik CD Player.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features offered. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a stylized electronic device casing with no text or symbols

The Main Unit

Mains Cable x 1

LOGIK LCD screen / LCD screen

Instruction Manual x 1

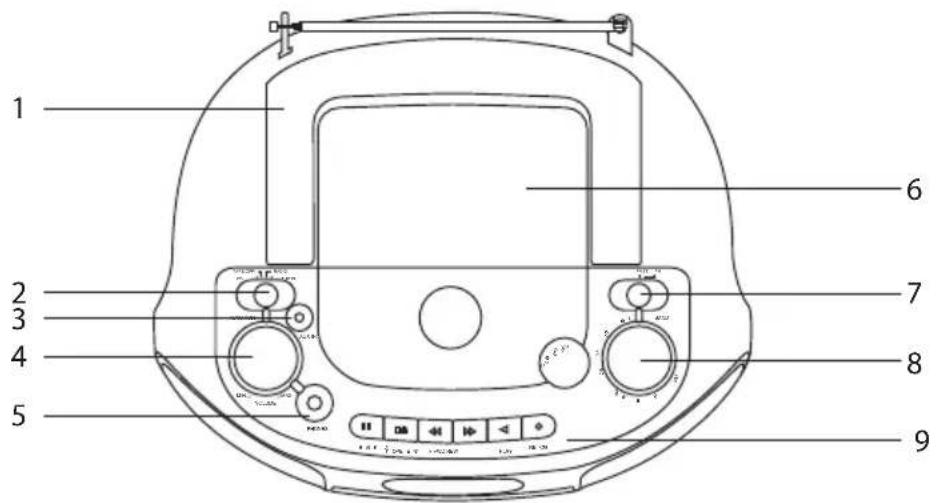

Top View

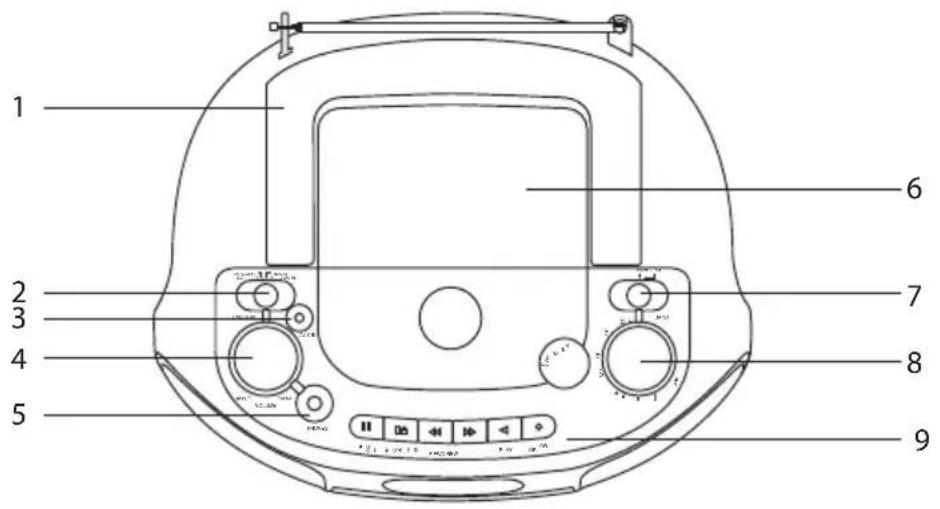

1 2 3 4 5 6 7 8 9

1. Handle
2. FUNCTION Selector

Switches between the CD, TAPE (OFF), RADIO and AUX IN modes.

1. AUX IN Socket
2. VOLUME Control

Adjusts the volume.

1. Phones Socket

2. CD Door

3. BAND Selector

Switches between FM ST. and FM Stereo modes.

1. TUNING Control
   Tunes into a FM radio station.
2. CassetteControl Panel

Front View

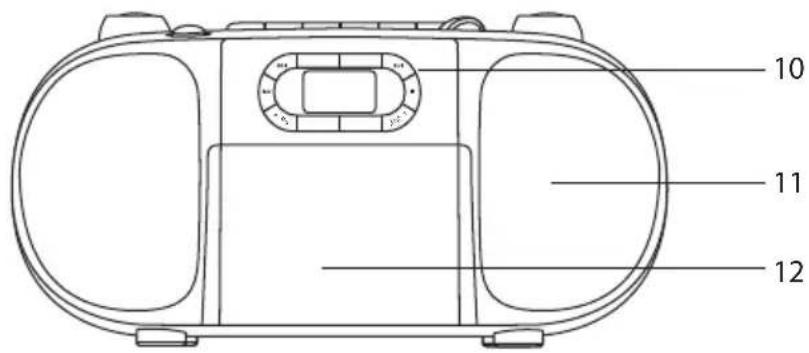

10 11 12

1. CD Control Panel

2. Speakers

3. Cassette Door

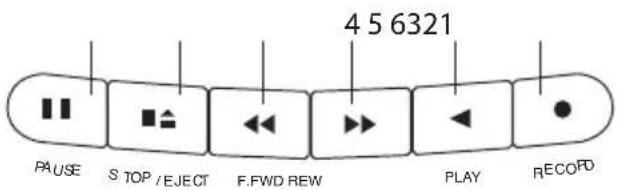

4 5 6321 PAUSE S TOP /EJECT F.FWD REW PLAY RECOFD

1. PIAUSE Button

Pauses playback.

1. STOP/EJECT Button

Stops playback.

Opens the cassette door.

1. F.FED Button

Fast forwards playback.

1. REW Button

Fast reverses playback.

1. ◀ PLAY Button

Plays back cassette.

1. RECORD Button

Records to cassette.

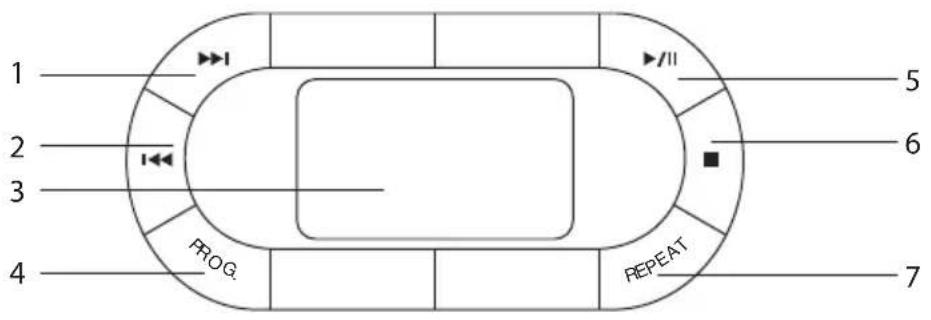

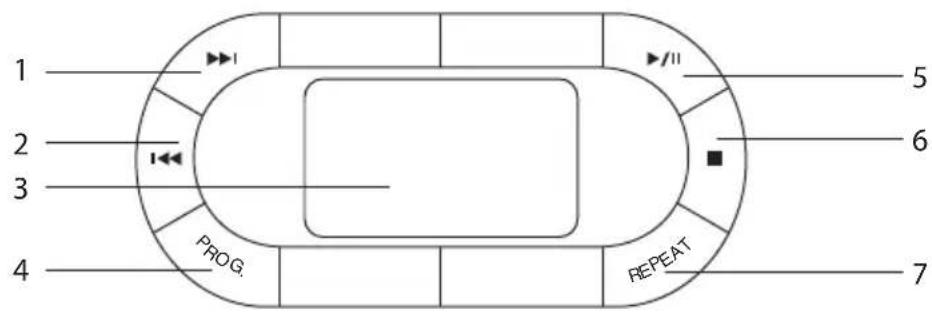

CD Control Panel

1 2 3 4 PROG. REPEAT 5 6 7

1. ➤️ NEXT Button

Skips forwards to the next track.

Fast forwards the current track.

1. BACK Button

Skips backwards to the beginning of the track or to the previous track.

Fast reverses the current track.

1. Display Window

2. PROG. Button

Programme tracks for playback in a specified order.

1. ▶II PLAY/PAUSE Button

Plays / Pauses / Resumes playback.

1. ■ STOP Button

Stops playback.

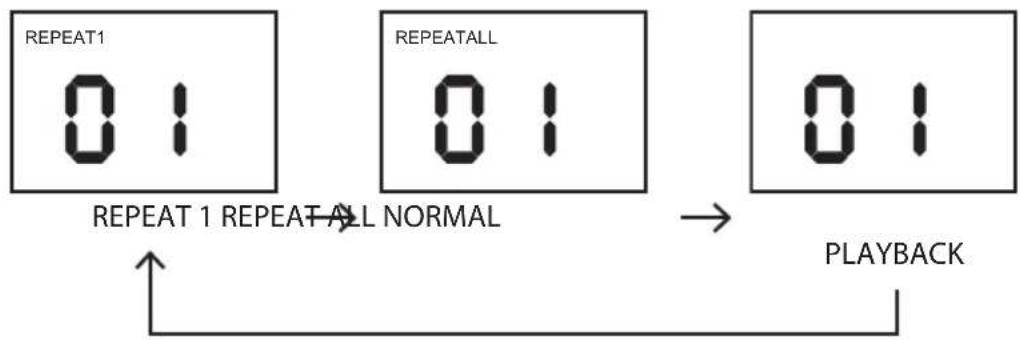

1. REPEAT Button

Repeats a CD track or music file.

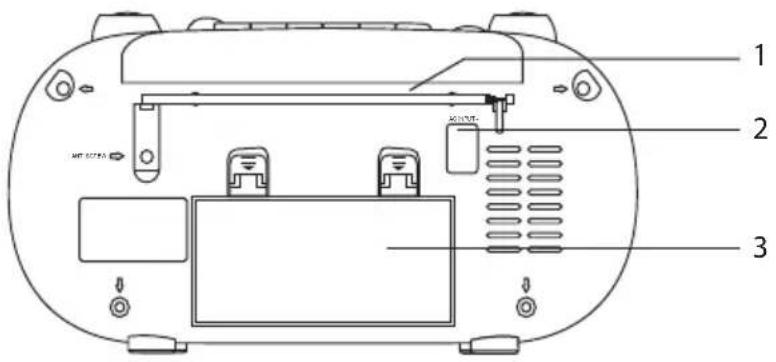

1 2 3

1. FM Aerial

2. Battery Compartment

3. AC INPUT\~

Connects the mains cable to the mains socket.

Whenever convenient, use the mains cable if you want to conserve battery life. Make sure you remove the plug from the unit and mains socket before inserting batteries.

Batteries Power

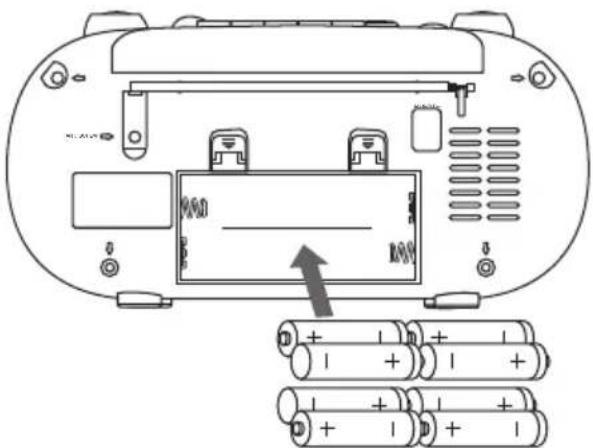

1. Open the battery door and insert 8 batteries, type C (not included) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.

2. Replace the battery door making sure the batteries are firmly and correctly in place. The unit is now ready to use.

Diagram of a device rear panel with battery pack and indicator lights, showing internal components and an arrow pointing to a display (no text or symbols present)

Handling the Batteries

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment.
• Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them in accordance with local regulations.

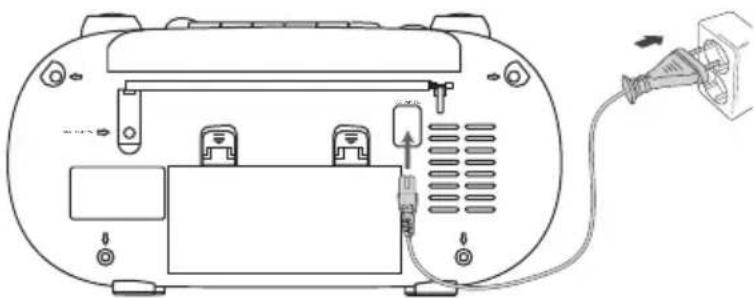

Mains Power

Always check you have completely switched off the unit, before you change or disconnect the power supply.

1. Check if the power voltage, as shown on the rating label located on the bottom of the unit, corresponds to your local power supply. If it does not, consult your dealer or service centre.
2. Connect the mains cable to the AC INPUT\~ socket and the mains socket. The unit is now connected and ready for use.
3. To switch the unit off completely, remove the mains cable from the mains socket.
4. Install the unit near a mains socket where the mains plug can be easily reached.

Line drawing of a device rear panel with connectors and a cable inserted, showing internal components and wiring (no text or symbols)

Disconnect the mains cable from the mains socket to protect your unit during thunderstorms. Children could seriously injure themselves as the free end of the cable may still be live if only the connector is removed from the mains socket at the back of the unit.

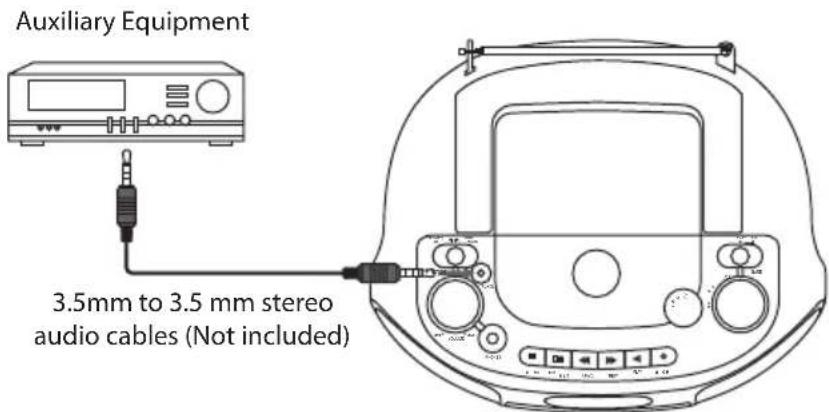

Connecting Auxiliary Equipment

GB

Use a 3.5mm to 3.5mm stereo audio cable (not included) to connect auxiliary equipment to the main unit's AUX IN socket.

Auxiliary Equipment 3.5mm to 3.5 mm stereo audio cables (Not included)

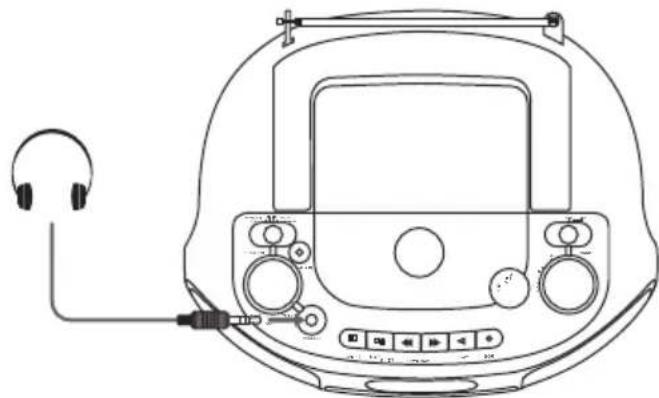

Using Earphones

Turn down the volume before connecting the earphones. Slowly raise the volume with the earphones on until you reach your desired volume. When earphones are connected, the speaker is automatically disabled.

Line drawing of a portable electronic device with headphones and control panel (no text or symbols)

Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods.

Switching the Unit On/Off and Selecting the Function

1. To switch on and select your operation source, adjust the FUNCTION selector to CD, TAPE (OFF), Radio or AUX IN.
2. To switch off the unit, adjust the FUNCTION selector to TAPE (OFF) position.

• To avoid unnecessary energy consumption, always adjust the FUNCTION selector to TAPE (OFF) after using the unit.
• If the unit is idle for 15 minutes, it will automatically switch to Power Saving mode. Press the ▶ II PLAY/PAUSE button to resume.

Adjusting the Volume and Sound

Adjust the sound with the VOLUME control.

Radio Reception

1. Adjust the FUNCTION selector to Radio.
2. Set the BAND selector to FM mode for MONO reception.
3. Set the BAND selector to FM ST. mode for STEREO reception.
4. Turn the TUNING control to tune into a station.

For Better Reception

FM - This unit has a FM aerial located at the back of the main unit. This rod should be extended and rotated for better reception.

Compatible Disc Types

Disc Types Disc Logo Recorded Content
CD-R (CD Recordable) AUDIO
CD-RW (CD-Rewritable)		AUDIO
AUDIO-CD (Compact Disc Digital Audio)		AUDIO

• This CD player plays Audio Discs including CD-Recordables (CD-R) and CD-Rewritables (CD-RW).
• MP3, CD-ROM, CD-I, CDV, VCD, DVD or computer CDs cannot be played back by this this unit.

CDs encoded with copyright protection technologies by some record companies may be unplayable by this unit.

1. Adjust the FUNCTION selector to CD.
2. Open the CD door, and insert a CD with the printed side facing up, then press the CD door gently to close. The total number of the tracks in the disc will be shown on the display window.

- If the disc is loading, the display window will flash " --".

- If there is no disc inside, the display window will show "no".

- If the CD door is not closed, the display window will show "--".

1. Press the ▶I PLAY/PAUSE button to start playback, the first track will be played. The display window will also display the number of the currently playing track.
2. To pause playback, press the PLAY/PAUSE button. The "▶" and current track will flash continuously on the display window. To resume, press the ▶PLAY/PAUSE button again.
3. To stop CD playback, press the ■ STOP button.

Total Track 17

Two dark oval shapes on a white background, no text or symbols present

0:1

01

Selecting a Different Track

- Press the I◄◄ BACK or ►► NEXT buttons once or repeatedly until the desired track number appears in the display.

Finding a Passage within a Track

1. During playback, press and hold the!←← BACK or ►→I NEXT buttons. The CD will be played at high speed.
2. When you recognise the passage you want, release the BACK or NEXT buttons to resume normal playback.

Programming Track Numbers

You may store up to 20 tracks in the desired sequence. Be sure to press the ■ STOP button before use to ensure no prior programme has been set.

1. In stop mode, press the PROG. button to activate programming. "00" and "PROG" indicators will flash on the display.
2. Press the BACK or NEXT button to select your desired track number.
3. Press the PROG. button to store the desired track number.
4. Repeat steps 2 and 3 to enter additional tracks into the program memory. When the memory is full, all programmed tracks will show on the display.
5. To play your programmed tracks, press the ▶II PLAY/PAUSE button. The "PROG" indicator will show on the display.

00 PROG-

To view the number of total programmed tracks, press the ◀ BACK or ▶ NEXT buttons.

Erasing a Program

In stop mode, you can erase the contents of the memory by opening the CD door or switching the FUNCTION selector to another mode. The "PROG" indicator will disappear.

Repeat Mode

You can play the current track or the whole disc repeatedly with program mode.

• During playback, press the REPEAT button once to repeat the single track. The "REPEAT 1" indicator will illuminate.
• Press the REPEAT button twice to repeat the whole disc. The "REPEAT ALL" indicator will illuminate.
• To return to normal playback, press the REPEAT button repeatedly until the "REPEAT" indicator disappears.

Cassette Playback

1. Adjust the FUNCTION selector to TAPE (OFF).
2. Press the ■ button to open the cassette compartment door, and insert a cassette and close the cassette compartment door.
3. Press the ◀ button to start playback.
4. To pause playback, press the II button. To resume, press the button again.
5. To stop the tape, press the ▪button.

Fast Forwarding/Rewinding

1. Press the buttons until you reach your desired passage.
2. Press the ■ button to stop fast forwarding/rewinding.

• The buttons automatically release at the end of a cassette and the unit is switched off (unless the II button is pressed.)
• During fast forwarding/rewinding, the buttons will not be released at the end of a cassette. To switch off the unit, make sure the cassette buttons are all released by pressing the ▪ button.

General Information on Cassette Recording

• Recording is permissible in so far as copyright or other rights of third parties are not infringed.
• This deck is not suitable for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The best recording level is set automatically. Adjusting the VOLUME control will not affect the recording in progress.
  • No recording will take place in the first 7 seconds and last 7 seconds of the cassette.
• To protect a cassette from accidental erasure, place the cassette in front of you and break off the left lab.
• Recording on this side is no longer possible. To record over this side again, cover the tab with some adhesive tape.

GB

Recording from the Radio

1. Tune into the desired radio station.
2. Press the ■ button on the cassette control panel to open the cassette door.
3. Insert a suitable cassette into the cassette compartment and close the cassette door.
4. Press the ● button and the ◀ button on the cassette control panel at the same time to start recording.
5. To pause the recording, press the II button on the cassette control panel. To resume recording, press theII button again.
6. To stop recording, press the ■▲button for cassette on the cassette control panel.

Recording from a CD

1. Slide the FUNCTION selector to CD.
2. Insert the CD you want to record from.
3. Insert a suitable cassette into the cassette compartment and close the cassette door.
4. Press the ● button and the ◀ button on the cassette control panel at the same time to start recording.
5. To pause the recording, press the ▶II PLAY/PAUSE button on the CD control panel. The recording level is set automatically.
6. To stop recording, press the ■ button on the cassette control panel.

Maintenance

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
- Do not spray an aerosol at or near the unit.

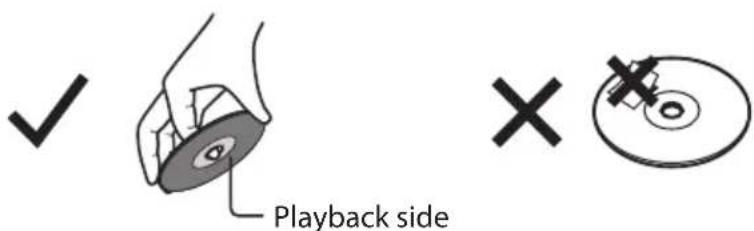

Handling Discs

• Do not touch the playback side of the disc.
• Do not attach paper or tape to the disc.

Playback side ×

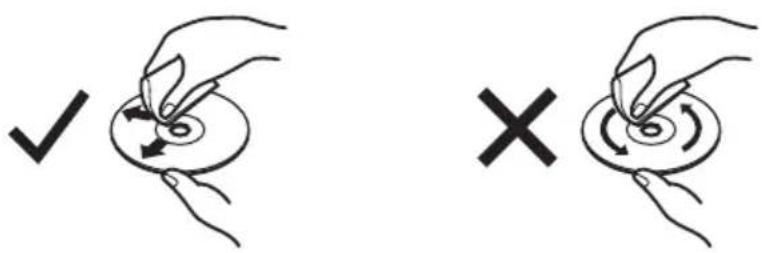

Cleaning Discs

- Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. Always keep the disc clean.

Diagram showing two hand gestures: checkmark and cross, indicating correct and incorrect states of a circular motion.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray. They may damage the disc.

Storing Discs

• Do not store discs in places subjected to direct sunlight or near heat sources.
• Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier.
• Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping.

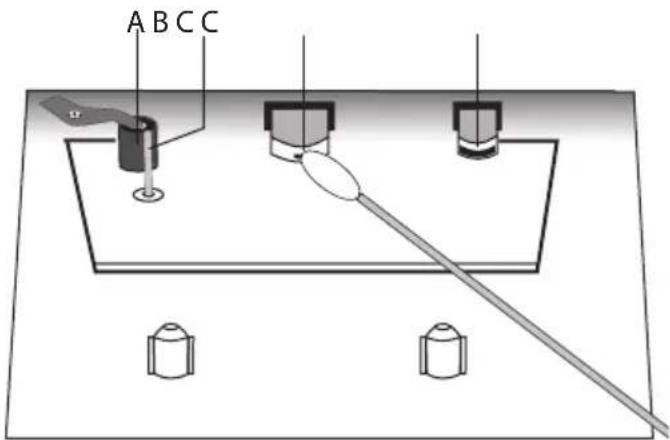

Cleaning the Tape Deck

Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean the deck.

1. Press the ■▲button to open the cassette compartment.
2. Press the ◀ button and clean the rubber pressure rollers (A).
3. Press the II button and clean magnetic heads (C) and Capstan (B).
4. After cleaning, press the ▪button.

A B C C

Cleaning of the heads can also be done by playing a cleaning cassette through once.

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

PROBLEM CAUSE / SOLUTION
No sound / power •	Volume not adjusted. Adjust the volume.Mains cable not securely connected. Connect the mains cable properly.Batteries dead/incorrectly inserted. Insert (fresh) batteries correctly.CD contains non-audio files. Press the I buttons once or more to skip to a CD audio track, instead of the data file.Ensure the function selector is switched to the correct work.TAPE(OFF) is also the OFF mode which no cassette is playing.
CD display does not function properly / No reaction to operation of any of the controls	Electrostatic discharge. Switch off and unplug the unit.Reconnect after a few seconds.No CD inserted. Insert a CD.CD badly scratched or dirty. Replace or clean the CD, see Maintenance.Laser lens steamed up. Wait until lens has cleared.CD-R / CD-RW is blank or not finalized. Use a finalized CD-R / CD-RW or a suitable CD Audio disc only.Make sure the CD is not encoded with Copyright protection technologies, as some do not conform to the Compact Disc standard.Switch the FUNCTION selector to the TAPE (OFF) position, then switch it back to either the CD or FM Stereo position again.
The CD skips tracks •	CD damaged or dirty. Replace or clean CD.Program is active. Quit program mode.A CD badly scratched or dirty may result in improper operation.
Poor Cassette Sound Quality	Dust and dirt on the heads, etc. Clean deck parts, see Maintenance.Use of incompatible cassette types (METAL or CHROME). Only use NORMAL (IECI) for recording.
Recording does not work	Cassette tab(s) may be broken. Apply adhesive tape over the missing tab space.
Poor FM reception •	Make sure FM aerial wire is fully extended.Electrical interference in your home can cause poor reception.Move the unit away from them (especially those with motors and transformers).
Model LCDBB13E / LCDBP13E
Power Requirement	Mains: AC 230-240V ~50HzBattery: 12V (8 x “Type C”, not included)
Power Consumption 15W
Frequency Range FM 88–108	MHz
Output Power (RMS) 2 x 1.0W
Speakers 8 Ohms
Dimensions (W x D x H) 237(L) x 295(W) x 147(H) mm
Weight 1.86 kg

Features and specifications are subject to change without prior notice.

NO

Line drawing of a mechanical device with no text or symbols

Hovedenheten

Strømledning × 1

LOGIK L.COM/INTech / L.COM/INTech

Bruksanvisning × 1

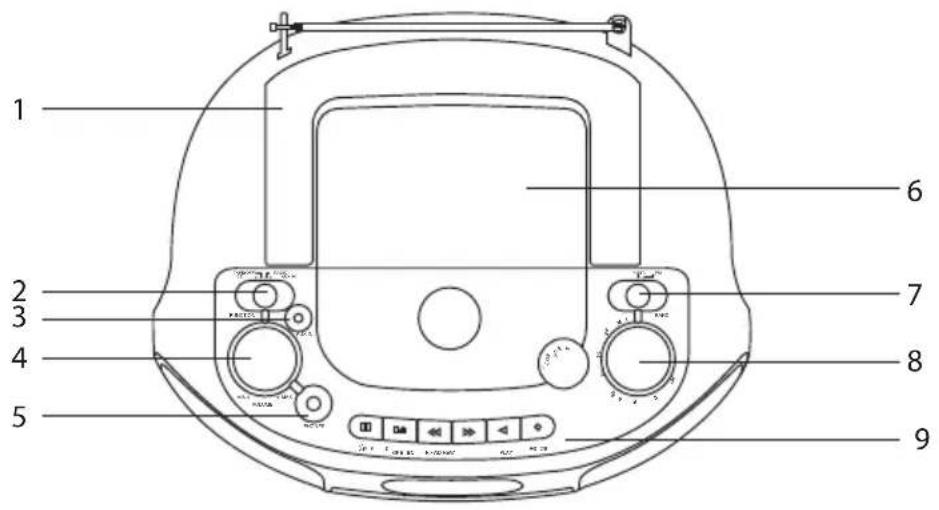

Sett ovenfra

1 2 3 4 5 6 7 8 9

1 2 3 4 PROG REPEAT 5 6 7

1. ▶▶|NESTE-knapp

5. ▶II SPILL/PAUSE-knapp

2. VEKSELSTR∅MINNTAK

Diagram of a device rear panel with battery pack and indicator lights, showing internal components and an arrow pointing to a display (no text or symbols present)

Line drawing of a device rear panel with connectors and a cable inserted, showing internal components and wiring (no text or symbols)

Line drawing of a portable electronic device with headphones and control panel (no text or symbols)

Two black rounded rectangular shapes on a white background, no text or symbols present.

01

0 1

Velge et annet spor

- PROG- 00

Spoling fort forover/bakover

1. Trykk på -kappene til du när ønsket passasje.
2. Trykk på ■ knappen for å stoppe spolingen fort forover/bakover.

Diagram showing two hand-drawn circular buttons with check and cross symbols, indicating correct and incorrect states of a process.

Top-down schematic of a vehicle or device casing with internal compartments and a central circular component (no text or symbols)

Huvudenheten

Strömkabel x 1

LOGK LCOM/LOCOM6

Bruksanvisning x 1

Vy ovanifrån

1 2 3 4 5 6 7 8 9

1. Handtag
2. FUNKTIONSväljare

1 2 3 4 PROG. 5 6 7 REPEAT ▶/II

1. NÄSTA-knapp

Technical diagram of a device rear panel with labeled components in Chinese

1. FM-antenn

2. Batterifack

3. AC INPUT\~

- Ansluter nätsladden till eluttaget.

Diagram of a device rear panel with battery arrangement and indicator lights, showing internal components and an arrow pointing to a display screen.

Line drawing of a device rear panel with connectors and a cable inserted, showing internal components and wiring (no text or symbols)

Line drawing of a portable electronic device with headphones and control knobs (no text or symbols)

Two black oval shapes on a white background, no text or symbols present

01

0:1

Diagram showing two hand-drawn circular buttons with check and cross symbols, indicating correct and incorrect states of a process.

Line drawing of a mechanical device casing with no text or symbols

Laite

Illustration of a coiled cable or wire with a plug inserted (no text or symbols)

Virtakaapeli x 1

LOGIK L.COM/ER / LO.COM/ER

Käyttöopas x 1

Näkymä päältä

1 2 3 4 5 6 7 8 9

1. Kahva
2. TOIMINTO-valitsin

6. ● TALLENNA-painike

• Tallentaa kasetille.

CD-ohjauspaneeli

1 2 3 4 PROG REPEAT 5 6 7

1. SEURAAVA-painike

5. ▶TOISTA/TAUKO-painike

Diagram of a device rear panel with battery pack and indicator lights, showing internal components and battery arrangement (no text or symbols)

Line drawing of a device rear panel with connectors and a cable inserted, showing internal components and wiring (no text or symbols)

Line drawing of a portable electronic device with headphones and control panel (no text or symbols)

Two black rounded rectangular shapes on a white background (no text or symbols)

01

0 1

- PROG- 00

Diagram showing two hand-drawn circular buttons with check and cross symbols, indicating correct and incorrect states of a process.

Line drawing of a stylized electronic device casing with no text or symbols

Hovedenheden

EI-ledning x 1

LOGIK LCD screen / LCD screen LOGIK 1200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 LOGIK 1200000000000000000 LOGIK 12567888888888888888888888888888888888888888888888888888888888888888888888888888

Diagram of a device rear panel with battery arrangement and indicator lights, showing internal components and battery stack.

Line drawing of a device rear panel with cable and plug, showing internal components and wiring (no text or symbols)

Line drawing of a CD driver's head panel with headphones connected to the speaker (no text or symbols)

Diagram showing two hand-drawn circular buttons with check and cross symbols, indicating correct and incorrect states of a process.

Line drawing of a mechanical device with no visible text or symbols

Hlavní jednotka

Napájecí kabel x 1

LOGIK LCDMEN / LODMPER

Návod k obsluze x 1

Pohled shora

1 2 3 4 5 6 7 8 9

Diagram of an electronic device rear panel with battery pack and indicator lights, showing internal components and battery arrangement.

Manipulace s bateriemi

Line drawing of a device rear panel with connectors and a cable, showing internal components and wiring (no text or symbols)

Line drawing of a portable electronic device with headphones and control knobs (no text or symbols)

Two black rounded rectangular shapes on a white background, no text or symbols present.

01

0 :

- PROG- 00

Přehrávání kazety

Diagram showing two hand-drawn circular buttons with checkmark and cross symbols, indicating correct and incorrect states of a process.

Top-down schematic of a device casing with front, side, and top views (no text or symbols)

Hlavné zariadenie

Sietový kábel, 1 ks

LOGIK LICEMIEN / LICEMIEN

1 2 3 4 PROG. 5 6 7 REPEAT ▶/II

1. Tlačidlo ▶▶▶ Dalšia

Diagram of an electronic device rear panel with battery arrangement and indicator lights, showing internal components and a directional arrow.

Manipulácia s batériami

Line drawing of a portable electronic device with ports, cables, and a cable outlet (no text or symbols)

SK

Line drawing of a portable electronic device with earphones and control panel (no text or symbols)

Diagram showing two hand-drawn circular buttons with check and cross symbols, indicating correct and incorrect states of a process.

• Ak sa vám mäkkou handričkou nedá utriet' prach, disk zlahka vyutierajte s mierne namočenou handričkou a dokončite suchou handričkou.
• Nepožívajte žiadne rozpúšťadlá ako je riedidlo, benzín, komerčne dostupné čistiace prostriedky alebo antistatický sprej. Tieto chemikálie môžu poškodit disk.

Ukladanie diskov

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
