Product Type	Built-in gas hob
Brand	Whirlpool
Model	AKM 526/IR
Number of Burners	4
Burner Configuration	1 Rapid, 2 Semi-rapid, 1 Auxiliary
Total Thermal Flow Rate	7.30 kW
Gas Type	G20 (20 mbar) / G30/G31 (30 mbar)
Electrical Supply	230 V ~ 50 Hz
Hob Dimensions (W x D)	590 mm x 510 mm
Cutout Dimensions (W x D)	560 mm x 480 mm
Worktop Thickness Compatibility	20 - 50 mm
Ignition Type	Electric ignition with safety device
Safety Features	Flame failure safety device (thermocouple)
Gas Connection	Rigid copper/steel or stainless steel hose (max 2 m)
Cleaning Method	Warm water and neutral detergent; non-abrasive
Removable Parts	Grids, burner caps, burners
Certification	CE compliant with Gas Directive 2009/142/EC, Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC
Energy Efficiency	Meets eco-design requirements of EU Reg. 66/2014

Frequently Asked Questions - AKM 526/IR WHIRLPOOL

How do I ignite a burner on the Whirlpool AKM 526/IR?

Turn the knob anticlockwise to the maximum flame setting, press it against the control panel to ignite, and hold for 5-10 seconds after ignition to activate the safety device.

What should I do if the burner does not stay lit?

Ensure the knob was pressed long enough (5-10 sec) to warm the thermocouple. Check that burner openings near the thermocouple are not clogged and that the thermocouple tip is clean.

Can I convert the hob to use a different gas type?

Yes, a qualified technician must replace the injectors according to the injector table and adjust the minimum gas setting. Use appropriate pressure regulators.

What are the required clearances for installation?

The hob fits a worktop 20-50 mm thick. Minimum distance from wall cabinets: if distance A between cabinets is 600-680 mm, height B must be at least 520 mm; if A is larger than hob width, B must be at least 400 mm.

How do I clean the hob surface?

Use warm water and a neutral detergent. Wipe spills immediately. For stainless steel, use a soft cloth and specific cleaners. Avoid abrasive or chlorine-based products.

How do I clean the burner parts?

Remove grids, burner caps, and burners. Wash by hand with warm water and non-abrasive detergent. Ensure burner openings are not clogged. Rinse and dry thoroughly before reassembling.

What type of pans should I use?

Use flat-bottomed pans with a diameter matching the burner: Rapid (24-26 cm), Semi-rapid (16-24 cm), Auxiliary (8-14 cm). Do not use cast iron griddles, heat diffusers, or multiple burners for one pan.

What should I do if I smell gas?

Do not try to light any appliance. Do not touch electrical switches or use phones. Immediately call your gas supplier from a neighbor's phone. If unreachable, call the fire department.

Is the hob suitable for use with an oven underneath?

Yes, but only if the oven is a Whirlpool model with a cooling system. Otherwise, install a separator panel at least 20 mm below the hob.

How do I replace the power cable?

The cable must be replaced by a qualified electrician with a cable of identical characteristics (type H05V2V2-F 90°C or H05RR-F). Do not use extension cords.

USER MANUAL AKM 526/IR WHIRLPOOL

DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY

TYTO POKYNY SI USCHOVEJTE

INSTALACE

Technical illustration of a pipe fitting with labeled parts A and B (no text or symbols beyond labels)

PŘIPOJENÍ K ELEKTRICKÉ SÍTI

VAROVÁNÍ

SEŘÍZENÍ MINIMÁLNÍHO NASTAVENÍ PLYNOVÝCH VENTILŮ

CZ ODKAZ NA MÍSTNÍ PŘEDPISY

Technical illustration of a pipe fitting with labeled parts A and B (no text or symbols present)

ELEKTRICKÉ PRÍPOJKY

VAROVANIE

VAROVANIE

UPRAVENIE MINIMÁLNEHO NASTAVENIA PLYNOVÝCH KOHÚTOV

ODKAZY NA VNÚTROŠTÁTNE PREDPISY

Technical illustration of a pipe fitting with labeled parts A and B (no text or symbols beyond labels)

Illustration of hands holding a closed book, next to a circular icon with a hand gesture (no text or symbols)

Technical diagram of a pipe fitting showing two views (A and B) with no text or symbols

СВЪРЗВАНЕ КЪМ ЕЛЕКТРИЧЕСКАТА МРЕЖАо

ПРЕДУПРЕЖДЕНИЕ

BG

СПРАВКА ЗА МЕСТНАТА НОРМАТИВНА УРЕДБА

Technical illustration of a pipe fitting with labeled parts A and B (no text or symbols beyond labels)

Illustration of hands holding a stack of papers with a circular icon showing a hand gesture (no text or symbols)

REGLAREA POZITIEI DE MINIM A ROBINETELOR

RO REFERINTE PRIVIND REGLEMENTĂRILE LOCALE

IMPORTANT SAFETY INSTRUCTIONS

These instructions shall also be available on website: www.whirlpool.eu

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

This manual and the appliance itself provide important safety messages, to be read and observed at all times.

This is the safety alert symbol, pertaining to safety, which alerts users to potential hazards to themselves and others.

All safety messages will follow the safety alert symbol and either the terms:

DANGER

Indicates a hazardous situation which, if not avoided, will cause serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could cause serious injury.

All Safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

• The appliance must be disconnected from the power supply before carrying out any installation work.
• Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual.

WARNING

If the information in this manual is not followed exactly, a fire or explosion may result causing property damage or injury.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance.

What to do if you smell gas:

• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas supplier.
• Use appliance in well ventilated rooms only.

The electrical and gas connections must comply with local regulations.

• When the hob is installed, provide a multi-pole circuit breaker with a contact separation of at least 3 mm, that provides full disconnection.
  • Regulations require that the appliance is grounded.
• The power cable must be long enough for connecting the appliance, once fitted in its housing, to the power supply.
• Use only flexible or rigid metal hose for gas connection.
• If necessary, the electrical power cable must be replaced exclusively with a power cable having identical characteristics to the original supplied by manufacturer (type H05V2V2-F 90°C or H05RR-F). This operation must be performed by a qualified electrician.
• The manufacturer cannot be held responsible for any injury to persons or animals or damage to property arising from failure to comply with these requirements.
• Do not use multiple plug adapters or extension cords.
• Do not pull the power supply cord in order to unplug the appliance.
• The electrical components must not be accessible to the user after installation.
• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
• This hob (class 3) is designed solely for private household use for cooking food. Do not use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the hob. The manufacturer declines all responsibility for inappropriate use or incorrect setting of the controls.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or with lack of experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.
• Young children should be kept away from the appliance and supervised to ensure that they do not play with it.
• The use of a gas appliance produces heat and humidity in the room. Make sure the room is well-ventilated, or install an extractor hood with exhaust duct.
• In case of prolonged use, additional ventilation may be necessary (by opening a window or increasing the hood extraction speed).
  • After use, make sure the knobs are in off position and close the main gas supply cock or the gas cylinder valve.

• Overheated oils and fats catch fire easily. Always remain vigilant when cooking foods rich in fat, oil or alcohol (e.g. rum, cognac, wine).
- Keep the packaging materials out of the reach of children.
- Before cleaning or maintenance wait for hob to cool down.

SAVE THESE INSTRUCTIONS

INSTALLATION

After unpacking the hob, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. These instructions are only valid for the countries whose symbols is given on the data plate (under the hob).

TECHNICAL INFORMATION FOR THE INSTALLER

• This product can be embedded in a worktop 20 to 50mm thick.
• If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening in the work surface. This panel, that has to close completely the cutout in order to avoid any contact with the bottom part of the hob, must be positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case less than 20 mm from the bottom of the hob. In the case that you intend to install an oven beneath the hob, make sure that it is manufactured by Whirlpool and equipped with a cooling system. The manufacturer declines all liability if another brand oven is installed beneath the hob.
  • Before installation, make sure that:
• the local gas delivery conditions (nature and pressure) are compatible with the settings of the hob (see the rating plate and injector table);
• the outer surfaces of the furniture or appliances adjacent to the hob are heat resistant according to local regulations;
• this appliance is not connected to a fume exhaust device. It shall be installed in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.
• combustion products are discharged outdoors through specific hoods or wall and/or window mounted electrical fans.

GAS CONNECTION

WARNING

This operation must be performed by a qualified technician.

• The gas supply system must comply with local regulations.
• You can find specific local regulations for some countries in the paragraph "Reference to Local Regulations". If no information concerning your Country is given, please ask details to your Installer.
• The connection of the hob to the gas pipe network or gas cylinder must be made by means of a rigid copper or steel pipe with fittings complying with local regulations, or by means of a continuous-surface stainless steel hose complying with local regulations. Interpose gasket (B) in the elbow connection. The maximum length of the hose is 2 m.
• FOR BELGIUM ONLY: It is necessary to replace the elbow connection (A) on the appliance, with the one supplied (if present).

Technical illustration of a pipe fitting with labeled parts A and B (no text or symbols present)

IMPORTANT: if a stainless steel hose is used, it must be installed so as not to touch any mobile part of the furniture. It must pass through an area where there are no obstructions and where it is possible to inspect it on all its length.

- After connection to the gas supply, check for leaks with soapy water. Light up the burners and turn the knobs from max position 0 to minimum position 0 to check flame stability.

ELECTRICAL CONNECTION

WARNING

This operation must be performed by a qualified technician.

WARNING

• The electrical connections must comply with local regulations.
  • The earthing of this appliance is compulsory by law.
• Do not use an extension cord.

IMPORTANT: the data relevant to the voltage and power absorption are indicated on the rating plate.

ASSEMBLY

After having cleaned the perimeter surface, apply the supplied gasket to the hob as shown in the figure.

Illustration of hands holding a closed book with a circular icon showing a hand gesture (no text or symbols)

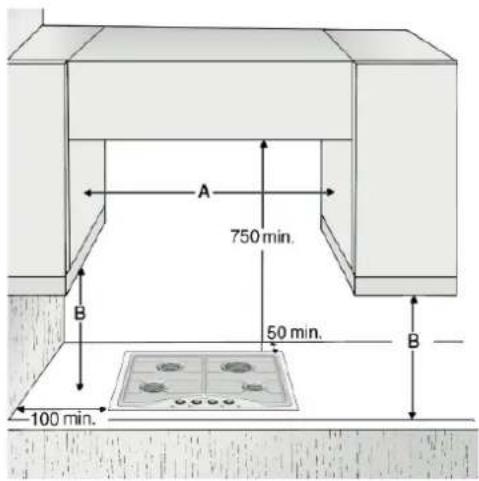

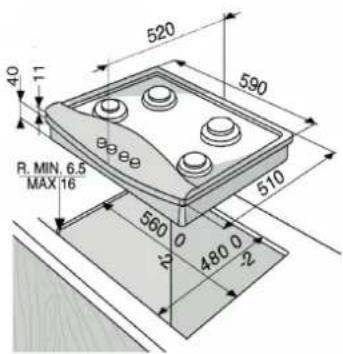

Position the hob in the worktop opening made respecting the dimensions indicated in the Instruction.

NOTE: the power supply cable must be long enough to permit its upward extraction.

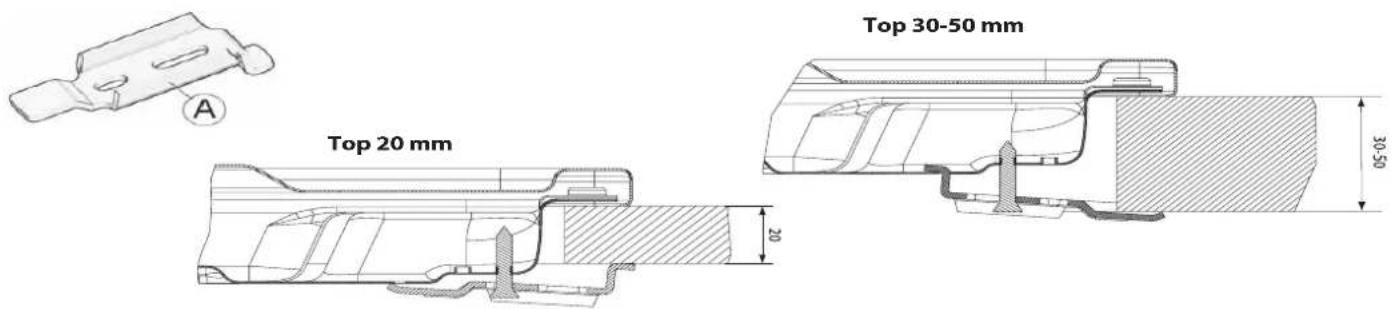

To secure the hob, use the brackets (A) provided with it. Fit the brackets into the relevant bores shown by the arrow and fasten them by means of their screws in accordance with the thickness of the worktop (see the following figures).

ADJUSTMENT TO DIFFERENT TYPES OF GAS

WARNING

This operation must be performed by a qualified technician.

If the appliance is intended to operate with a different gas from the gas type stated on the rating plate and information label on the top of the hob, change the injectors. Remove the information label and keep it with the instructions booklet.

Use pressure regulators suitable for the gas pressure indicated in the Instruction.

• The gas nozzles must be changed by After Sales Service or a qualified technician.
• Nozzles not supplied with the appliance must be ordered from After Sales Service.
• Adjust the minimum setting of the taps.

NOTE: when liquid petroleum gas is used (G30/G31), the minimum gas setting screw must be tightened as far as it will go.

IMPORTANT: should you experience difficulty in turning the burners knobs, please contact the After Sales Service for the replacement of the burner tap if found to be faulty.

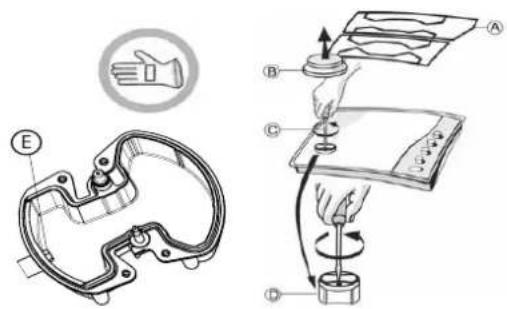

REPLACING THE INJECTORS (see the injector table in the Instruction)

• Remove grids (A).
• Extract burners (B).
• Using a socket spanner of the appropriate size unscrew the injector (C), unscrew the injector to be replaced.
• Replace it with the injector suitable for the new type of gas.
  • Re-assemble the injector in (D).
  • If you have a multiple crown burner use side spanner to replace the injector (E).

Before installing the hob, remember to affix the gas calibration plate supplied with the injectors in such a way that it covers the existing information relating to gas calibration.

ADJUSTING MINIMUM GAS SETTING OF TAPS

To ensure that the minimum setting is correctly adjusted, remove the knob and proceed as follows:

- tighten screw to reduce the flame height (-);

- loosen screw to increase the flame height (+)

The adjustment must be performed with the tap in minimum gas setting position (small flame) 0.

• The primary air of the burners does not need to be adjusted.

- At this stage, light up the burners and turn the knobs from max position to minimum position to check flame stability.

Upon completion of adjustment, reseal using sealing wax or an equivalent material.

Ensure that the installation and gas connections are performed by a qualified technician, following the manufacturer's instructions and in compliance with current local safety regulations.

AFTER-SALES SERVICE

Before calling the After-Sales Service, make sure you can give the following information:

- type of fault or problem;

- exact model (written on the label affixed to the instruction/warranty);

- service number that follows the word SERVICE on the rating plate under the hob and on the label affixed to instruction/warranty;

- your complete address and phone number.

If any repairs are required, please contact an authorised After-Sales Service, as indicated in the warranty.

SERVICE

0000 000 00000

TROUBLESHOOTING GUIDE

If the hob will not operate correctly, before calling the After-Sales Service, refer to the Troubleshooting Guide to determine the problem.

1. The burner fails to ignite or the flame is not even

Check that:

• The gas or electrical supplies are not shut off and especially that the gas supply tap is open.
  • The gas cylinder (liquid gas) is not empty.
• The burner openings are not clogged.
  • The plug end is not dirty.
• All the burner parts have been positioned correctly.

• There are no draughts near the hob.

2. The burner does not stay lit

Check that:

• When lighting the burner, the knob has been pressed for enough time to activate the protection device.
• The burner openings are not clogged near the thermocouple.
  • The end of the safety device is not dirty.
• The minimum gas setting is correct (see relevant paragraph).

3. The containers are not stable

Check that:

• The bottom of the container is perfectly flat
- The container is centered on the burner.

- The grids have not been exchanged or positioned incorrectly.

If after the above checks the fault still occurs, get in touch with the nearest After Sales Service.

CLEANING THE HOB SURFACE

WARNING

Disconnect power before servicing.

• All the enamelled and glass parts should be cleaned with warm water and neutral solution.
• Stainless steel surfaces may be stained by calcareous water or aggressive detergents if left in contact for too long. Any food spills (water, sauce, coffee, etc.) should be wiped away before they dry.
• Clean with warm water and neutral detergent, and then dry with a soft cloth or chamois. Remove baked-on dirt with specific cleaners for stainless steel surfaces.

NOTE: clean stainless steel only with soft cloth or sponge.

- Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.

- Do not use steam cleaning appliances.

- Do not use flammable products.

- Do not leave acid or alkaline substances, such as vinegar, mustard, salt, sugar or lemon juice on the hob.

CLEANING THE HOB PARTS

• Grids, burner caps and burners can be removed to be cleaned.
• Clean them by hand with warm water and non-abrasive detergent, removing any food residues and checking that none of the burner openings is clogged.
• Rinse and dry
• Refit burners and burner caps correctly in the respective housings.
• When replacing the grids, make sure that the panstand area is aligned with the burner.
• Models equipped with electrical ignition plugs and safety device require thorough cleaning of the plug end in order to ensure correct operation. Check these items frequently, and if necessary, clean them with a damp cloth. Any baked-on food should be removed with a toothpick or needle.

NOTE: to avoid damaging the electric ignition device, do not use it when the burners are not in their housing.

DECLARATION OF CONFORMITY C €

• This hob has been designed, constructed and marketed in compliance with:
• safety requirements of "Gas" Directive 2009/142/EC (ex: EEC 90/396);
• safety objectives of the "Low Voltage" Directive 2006/95/EC (which replaces 73/23/EEC and subsequent amendments);
• protection requirements of EEC Directive "EMC" 2004/108/EC;
• This appliance meets the eco design requirements of European regulation n. 66/2014, in conformity to the european standard EN 30-2-1.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing material

The packing material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Scrapping the product:

• This appliance is marked in compliance with European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• The symbol ☒ on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

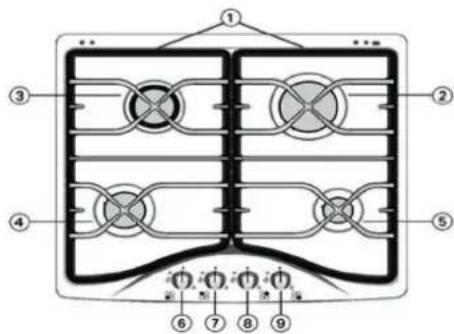

PRODUCT DESCRIPTION

1. Removable panstand grids

Symbols

1. Semi-rapid burner

Large flame

1. Semi-rapid burner

Small flame

1. Auxiliary burner

Star

6-9. Control knobs

desolc paTelcric dedahSrenru

Maximum opening/delivery

Minimum opening or reduced delivery

Electric ignition

The symbols 📄 are indicating which cooking field this knob activates.

Note: your hob aesthetics can be slightly different from the drawing.

PRATICAL ADVICE FOR USING THE BURNERS

This hob has burners of different diameters. For better burner performance, please stick to the following rules:

- Use pots and pans with bottoms the same width as that of the burners or slightly larger (see table on the right).

Only use flat-bottomed pots and pans.

Use the correct amount of water for cooking foods and keep the pot covered.

Make sure pots on the grates do not protrude beyond the edge of the hob.

IMPORTANT: improper use of the grids can result in damage to the hob: do not position the grids upside down or slide them across the hob.

Do not use:

• Cast iron griddles, ollar stones, terracotta pots and pans.
• Heat diffusers such as metal mesh, or any other types.
• Two burners simultaneously for one receptacle (e.g. fish kettle).

Burner	Pot ∅
Rapid	From 24 to 26
Semi-rapid	From 16 to 24
Auxiliary	From 8 to 14

HOW TO USE THE HOB

WARNING

Do not let the burner flame extend beyond the edge of the pan.

IMPORTANT: WHEN THE HOB IS IN USE, THE ENTIRE HOB AREA MAY BECOME HOT.

• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting.
- Press the knob against the control panel to ignite the burner.
- After the burner has ignited, keep the knob pressed for about 5-10 seconds to allow proper device operation. This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden draught, an interruption in the gas delivery, boiling over of liquids, etc.).
- The knob must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not remain lit, wait at least one minute before trying to light it again. In the event of the burners flames being accidentally extinguished, turn off the burner control and do not attempt to reignite it for at least one minute.

NOTE: should particular local conditions of the delivered gas make the ignition of burner difficult, it is advisable to repeat the operation with the knob turned to small flame setting.

The burner might go out when the knob is released. This means that the safety device has not warmed up enough. In this case, repeat the operations described above.

DIMENSIONS OF COOKING HOB AND WORKTOP (mm)

NOTE: If the distance "A" between the wall cabinets is between 600 mm and 680 mm, the height "B" must be a minimum of 520 mm. if the distance "A" between the wall cabinets is greater than the width of the hob, the height "B" must be a minimum of 400 mm. In case of installation of a hood above the hob, please refer to the hood instructions for the correct distance.

Type of gas used	Model configuration 4 BURNERS	Rated thermal flow rate (kW)	Total rated consumption	Air required ( m^3 ) for burning 1 m^3 of gas
G20 20 mbar	1 R - 2 SR - 1 AUX	7.30	715 l/h	9.52
G30/G31 30 mbar	1 R - 2 SR - 1 AUX	7.30	545 g/h	30.94

ELECTRIC SUPPLY: 230 V \~ 50 Hz
