Product Type	Gas Cooker (Hob)
Brand	Gorenje
Model	GT76AB1
Number of Burners	5
Burner Configuration	Ultra Rapid (3100 W), Rapid (2800 W), Semirapid Right Front (1400 W), Semirapid Left Back (1750 W), Auxiliary (1000 W)
Gas Types	Natural Gas (G20) at 20 mbar, LPG (G30/G31) at 28-30 mbar
Total Heat Input (Natural Gas)	10.05 kW
Total Heat Input (LPG)	731 g/h
Electrical Supply	220-240 V ~, 50/60 Hz
Ignition	Automatic electric ignition with spark
Safety Features	Flame failure device on all burners, child lock (recommended supervision)
Pan Supports	Enamelled steel, one per burner
Cutout Dimensions (Width x Depth)	553 mm x 473 mm
Minimum Clearance Above Worktop	100 mm (4F) or 175 mm (5F) depending on configuration
Installation Class	Class 3 (built-in)
Material	Enamelled steel (pan supports and burner caps), glass (top surface optional)
Cleaning Instructions	Hand wash with lukewarm soapy water; avoid abrasive powders; do not wash while hot
Maintenance	Replace injectors for gas conversion, grease taps if stiff, check burner slots for blockages
Accessories Included	Injectors for gas conversion, burner caps, pan supports
Compliance	EU Directives 90/396, 93/68, 2004/108/EC, 2006/95/EC
Warranty	Standard manufacturer warranty (check local terms)

Frequently Asked Questions - GT76AB1 GORENJE

How do I light the burners?

Push and turn the knob anticlockwise to the full-on position (large flame), then depress the knob for automatic ignition. For burners with flame failure device, keep the knob depressed for about 10 seconds after ignition.

What gas pressure should I use?

Natural gas (G20) requires 20 mbar. LPG (G30/G31) requires 28-30 mbar. Check the data label on the appliance for exact specifications.

Can I use the hob during a power outage?

Yes, you can manually ignite the burners using a match or lighter. Turn the knob to the full-on position and hold a flame near the burner.

How do I clean the hob?

Always disconnect from gas and electricity. Wash the pan supports, burner caps, and burner heads with lukewarm soapy water. Rinse and dry thoroughly. Never use abrasive powders or wash while hot.

What pan sizes are recommended?

Ultra rapid burner: 24-26 cm; Rapid: 20-22 cm; Semirapid: 16-18 cm; Auxiliary: 10-14 cm. Use flat-bottomed pans with lids for efficiency.

How do I convert the hob to a different gas type?

Replace the injectors with the correct ones for the new gas type. The injectors are located under the burner heads. After replacement, adjust the reduced rate setting as described in the manual. Always contact a qualified technician.

What should I do if a burner fails to ignite?

Check that the burner slots are not blocked. Ensure the gas supply is on. If using LPG, verify the bottle is not empty. If the igniter does not spark, clean the spark plug area. For persistent issues, call technical support.

Is the hob safe for children?

The hob gets hot during use. Supervise children closely. Do not allow children to operate the appliance. After use, the surfaces remain hot for a while.

What ventilation is required?

The room must have adequate ventilation. A permanent air inlet of at least 100 cm² is required. Use a hood or window fan to remove combustion fumes. The room volume should be at least 20 m³.

Where can I find spare parts?

Genuine spare parts are available from Gorenje After Sales Service Centers and authorized retailers. Provide the model number (GT76AB1) and serial number when ordering.

USER MANUAL GT76AB1 GORENJE

Black gas stove with four fuses and a small heat sink (no text or symbols visible)

gorenje

Simple line drawing of a circle with a star and four circles below, no text or symbols present.

FIG. 1

Line drawings of two cooking pots with steamers, no text or symbols present

FIG. 2

USO

Note:

FIG. 3 FIG. 4 FIG. 5

PULIZIA

ATTENZIONE:

MISURE DA RISPETTARE (in mm)

	A B	C D E
4F (60)	553	473	63.5	63.5	100 min.
5F (70)	553	473	63.5	63.5	175 min.

FIG. 7 FIG. 8

Isometric line drawing of a kitchen appliance with four gas stove covers and a cabinet (no text or symbols)

IT

INSTALLAZIONE

REGOLAZIONI

Close-up of a kitchen tool on a stovetop with a knob, showing mechanical components and motion indicators (no text or symbols visible)

FIG. 12

TRASFORMAZIONI

10) SOSTITUZIONE UGELLI

FIG. 13

IT

MANUTENZIONE

Σ Qn Gas Naturale = 6.95 kW

Σ Qn GPL = 505 g/h

TENSIONE = 220 - 240 V\~

FREQUENZA = 50/60 Hz

5 FUOCHI

CATEGORIA = II_2H3 +

Instructions for the installation and advice for the maintenance

GT64AB1 - GT76AB1

Instructions Manual

GT64AB1 - GT76AB1

Black gas stove with four fuses and a small heating element on a flat base (no text or symbols visible)

gorenje

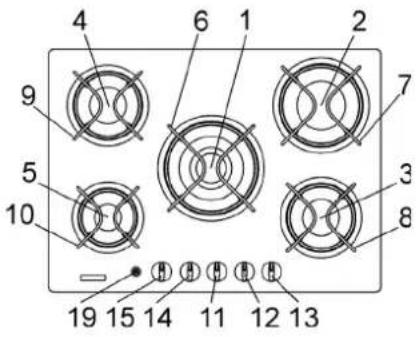

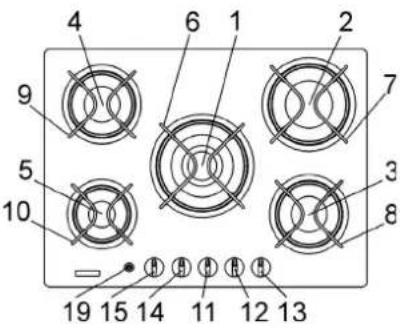

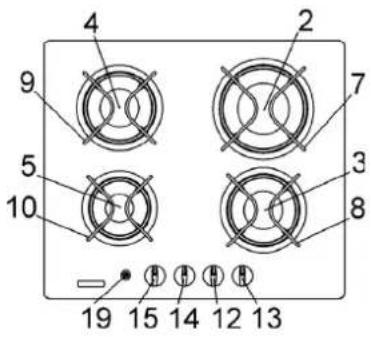

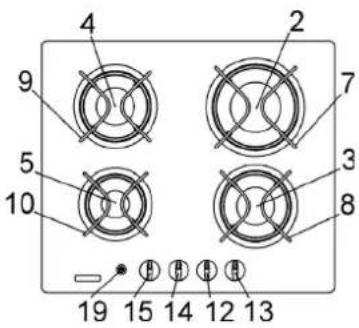

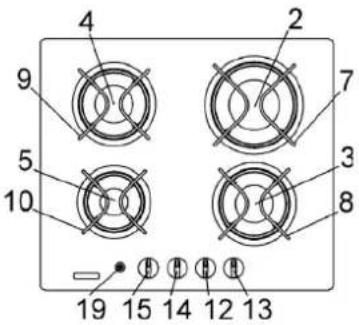

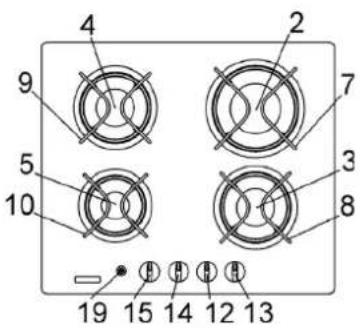

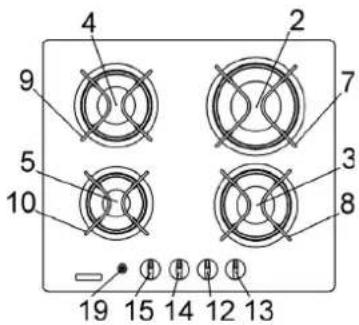

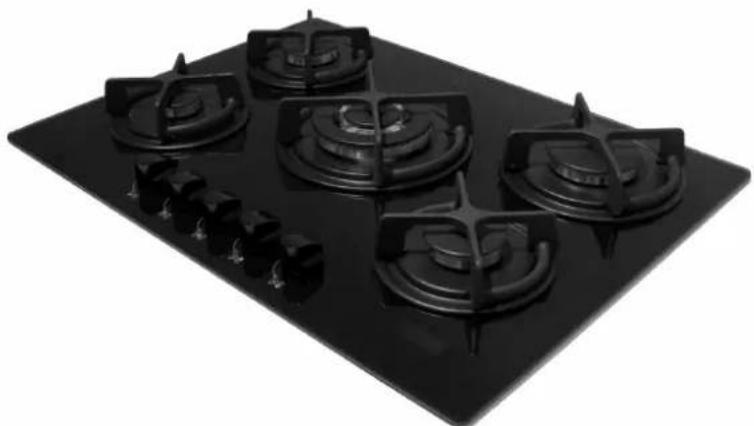

DESCRIPTION OF THE HOT PLATES

TYPE.: GT64AB1	TYPE.: GT76AB1

1 Ultra rapid gas burner of 3100 W
2 Rapid gas burner of 2800 W
3 Semirapid gas burner right front of 1400 W
4 Semirapid gas burner left back of 1750 W
5 Auxiliary gas burner of 1000 W
6 Enamelled steel pan support for ultra rapid burner
7 Enamelled steel pan support for rapid burner
8 Enamelled steel pan support for right front burner
9 Enamelled steel pan support for left back burner
10 Enamelled steel pan support for auxiliary burner
11 Burner n° 1 control knob
12 Burner n° 2 control knob
13 Burner n° 3 control knob
14 Burner n° 4 control knob
15 Burner n° 5 control knob
19 Electric ignition button

Attention: this appliance has been manufactured for domestic use only and it employment by private person.

1) BURNERS

A diagram is screen-printed above each knob on the front panel. This diagram indicates to which burner the knob in question corresponds. After having opened the gas mains or gas bottle tap, light the burners as described below:

- automatic electrical ignition

Push and turn the knob corresponding to the required burner in an anticlockwise direction until it reaches the full on position (large flame fig. 1), then depress the knob.

- Lighting burners equipped with flame failure device

The knobs of burners equipped with flame failure device must be turned in an anticlockwise direction until they reach the full on position (large flame fig. 1) and come to a stop. Now depress the knob in question and repeat the previously indicated operations.

Keep the knob depressed for about 10 seconds once the burner has ignited.

HOW TO USE THE BURNERS

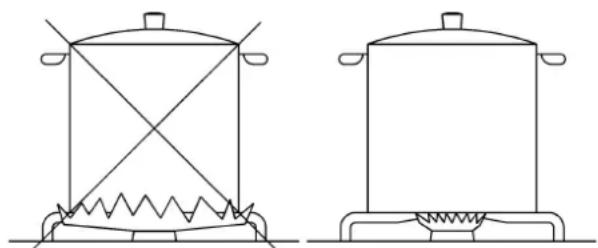

Bear in mind the following indications in order to achieve maximum efficiency with the least possible gas consumption:

• use adequate pans for each burner (consult the following table and fig. 2).
• When the pan comes to the boil, set the knob to the reduced rate position (small flame fig. 1).
• Always place a lid on the pans.

Burners Power ratings Pan ∅ in cm

Ultra rapid 3100 24 ÷ 26

Rapid 2800 20 ÷ 22

Semirapid right front 1400 16 ÷ 18

Semirapid left back 1750 16 ÷ 18

Auxiliary 1000 10 ÷ 14

WARNINGS:

• burners with flame failure device may only be ignited when the relative knob has been set to the Full on position (large flame fig. 1).
• Matches can be used to ignite the burners in a blackout.
• Never leave the appliance unattended when the burners are being used. Make sure there are no children in the near vicinity. Particularly make sure that the pan handles are correctly positioned and keep a chek on foods requiring oil and grease to cook since these products can easily catch fire.
• The machine must not be used by people (including children) with impaired mental or physical capacities, or without experience of using electrical devices, unless supervised or instructed by an expert adult responsible for their care and safety. Children should not be allowed to play with the equipment.
• Never use aerosols near the appliance when it is operating.
• If the built-in hot plate has a lid, any spilt food should be immediately removed from this before it is opened. If the appliance has a glass lid, this could shatter when the hot plate becomes hot. Always switch off all the burners before closing the lid.

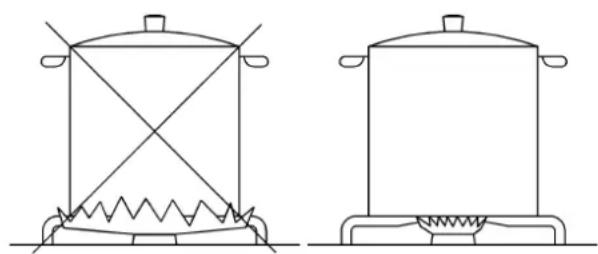

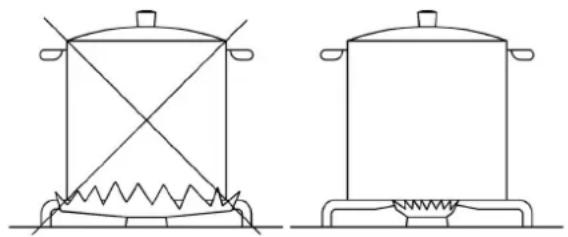

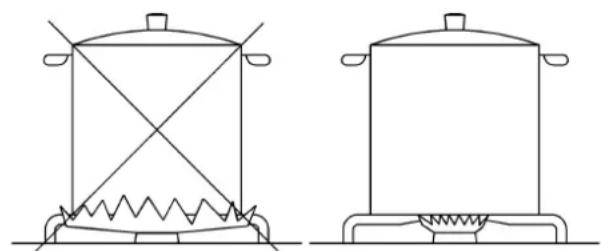

• Containers wider than the unit are recommended.

Simple line drawing of a circle with a star and four circles below, no text or symbols present.

FIG. 1

Line drawings of two cooking pots with heating elements, no text or symbols present

FIG. 2

USE

Notes:

Use of a gas cooking appliance produces heat and moisture in the room in which it is installed.

The room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).

Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved by opening a window or by increasing the power of the mechanical exhausting system if installed.

(*) AIR INLET: SEE INSTALLATION CHAPTER (PARAGRAPHS 5 AND 6)

FIG. 3 FIG. 4 FIG. 5

CLEANING

IMPORTANT:

always disconnect the appliance from the gas and electricity mains before carrying out any cleaning operation.

2) HOT PLATE

Periodically wash the crystal hot plate, the enamelled stell pan support, the enamelled burner caps "C" and the burner heads "M" (see fig. 6) with lukewarm soapy water. Following this, all parts should be thoroughly rinsed and dried. Never wash them while they are still warm and never use abrasive powders. Do not allow vinegar, coffee, milk, salted water, lemon or tomato juice from remaining in contact with the enamelled surfaces for long periods of time.

WARNINGS:

Comply with the following instructions, before remounting the parts:

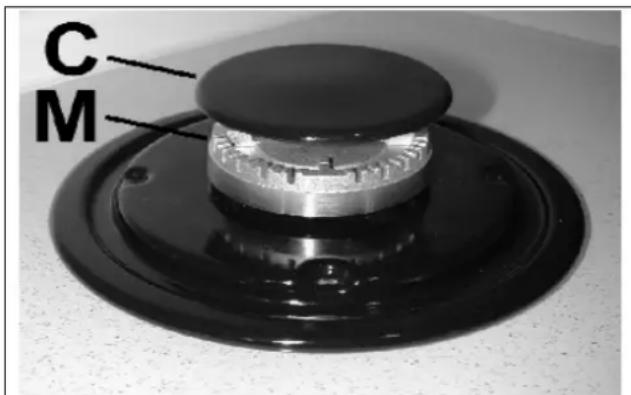

- check that burner head slots "M" (fig. 6) have not become clogged by foreign bodies.

• Check that enamelled burner cap "C"(fig. 6) have correctly positioned on the burner head. It must be steady.
• Do not force the taps if they are difficult open or close. Contact the technical assistance service for repairs.
• Don't use steam jets for the equipment cleaning.

FIG. 6

INSTALLATION

TECHNICAL INFORMATION FOR THE INSTALLER

Installation, adjustments of controls and maintenance must only be carried out by a qualified engineer.

Incorrect installation may cause damage to persons, animals or property for which the Manufacturer shall not be considered responsible.

During the life of the system, the automatic safety or regulating devices on the appliance may only be modified by the manufacturer or by his duly authorized dealer.

3) INSTALLING THE HOT PLATE

Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. In case of doubt, do not use the appliance and contact qualified personnel.

Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children's reach since they could become potential sources of danger.

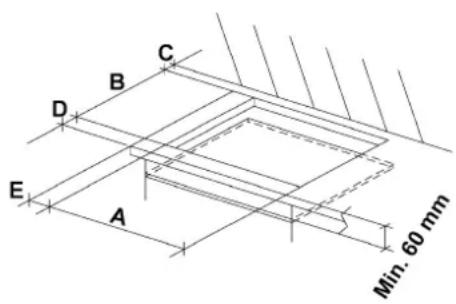

The measurements of the opening made in the top of the modular cabinet and into which the hot plate will be installed are indicated in either fig. 7. Always comply with the measurements given for the hole into which the appliance will be recessed (see fig. 7 - 8).

The appliance belongs to class 3 and is therefore subject to all the provisions established by the provisions governing such appliances.

COMPLY WITH THE DIMENSIONS (mm)

	A B	C D E
4F (60)	553	473	63.5	63.5	100 min.
5F (70)	553	473	63.5	63.5	175 min.

FIG. 7 FIG. 8

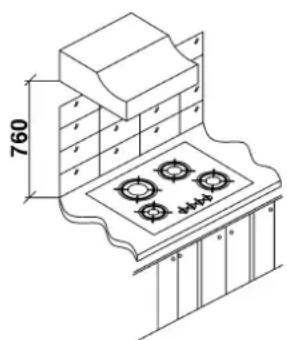

Isometric line drawing of a kitchen appliance with a stove and cabinetry (no text or symbols)

INSTALLATION

4) FIXING THE HOT PLATE

The hot plate has a special seal which prevents liquid from getting into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal:

• take off all the movable parts of the hob.
• detach the seals from their backing, checking that the transparent protection still adheres to the seal itself.

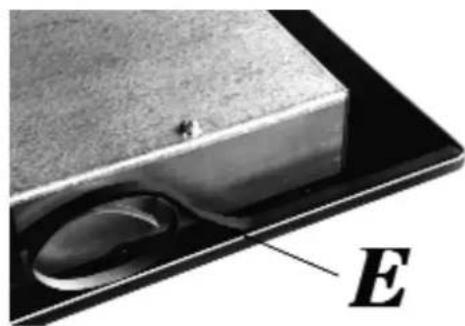

• Overturn the hot plate and correctly position seal "E" (fig. 9) under the edge of the hot plate itself, so that the outer side of the seal perfectly matches the outer edge of the hot plate. The ends of the strips must fit together without overlapping.

• Evenly and securely fix the seal to the hot plate, pressing into place with the fingers and remove the strip of protective paper from the seal and set the plate into the hole made in the cabinet.

• Fix the hob with the proper brackets and fit the prominent part into the porthole on the bottom; turn the screw "F" until the bracket "G" stick on the top (fig. 10).
• In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 60 mm from the top (see fig. 7).

Close-up of a metallic object with a circular indentation and a labeled point E (no text or symbols beyond the label)

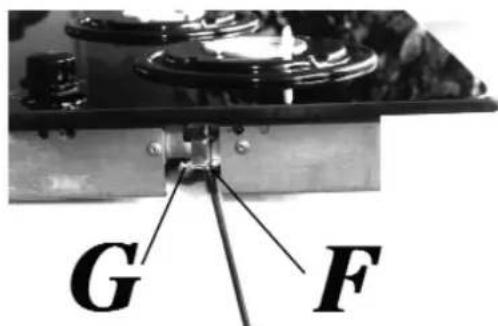

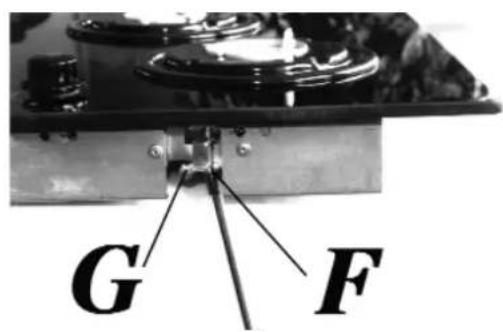

FIG. 9 FIG. 10

INSTALLATION

IMPORTANT INSTALLATION SPECIFICATIONS

The installer should note that the appliance that side walls should be no higher than the hot plate itself. Furthermore, the rear wall, the surfaces surrounding and adjacent to the appliance must be able to withstand an overtemperature of 65K.

The adhesive used to stick the plastic laminate to the cabinet must be able to withstand a temperature of not less than 150^ C otherwise the laminate could come unstuck.

The appliance must be installed in compliance with the provisions in force.

This appliance is not connected to a device able to dispose of the combustion fumes. It must therefore be connected in compliance with the above mentioned installation standards. Particular care should be paid to the following provisions governing ventilation and aeration.

5) ROOM VENTILATION

It is essential to ensure that the room in which the appliance is installed is permanently ventilated in order to allow the appliance itself to operate correctly. the necessary amount of air is that required for regular gas combustion and ventilation of the relative room, the volume of which must not be less than 20 m ^3 . Air must naturally flow through permanent openings in the walls of the room in question. These openings must vent the fumes outdoors and their section must be at least 100 cm ^2 (see fig. 3). Construction of the openings must ensure that the openings themselves may never be blocked. Indirect ventilation by air drawn from an adjacent room is also permitted, in strict compliance with the provisions in force.

CAUTION: if the burners of the cooking top are without safety thermocouple, the ventilation outlet must have a minimum 200 cm ^2 section.

6) LOCATION AND AERATION

Gas cooking appliances must always dispose of their combustion fumes through hoods. These must be connected to flues, chimneys or straight outside. If it is not possible to install a hood, an electric fan can be installed on a window or on a wall facing outside (see fig. 4). This must be activated at the same time as the appliance (see fig. 5), so long as the specifications in the provisions in force are strictly complied with.

INSTALLATION

7) GAS CONNECTION

Before connecting the appliance, check that the values on the data label affixed to the underside of the hot plate correspond to those of the gas and electricity mains in the home.

A label on the appliance indicates the regulating conditions: type of gas and working pressure. Gas connection must comply with the pertinent standards and provisions in force.

When gas is supplied through ducts, the appliance must be connected to the gas supply system:

o with a rigid steel pipe. The joints of this pipe must consist of threaded fittings conforming to the standards.
o With copper pipe. The joints of this pipe must consist of unions with mechanical seals.
o With seamless flexible stainless steel pipe. The length of this pipe must be 2 meters at most and the seals must comply with the standards.

When the gas is supplied by a bottle, the appliance must be fuelled by a pressure governor conforming to the provisions in force and must be connected:

o with a copper pipe. The joints of this pipe must consist of unions with mechanical seals.
o With seamless flexible stainless steel pipe. The length of this pipe must be 2 meters at most and the seals must comply with the standards. It is advisable to apply the special adapter to the flexible pipe. This is easily available from the shops and facilitates connection with the hose nipple of the pressure governor on the bottle.
o With rubber hose pipe in compliance with standards. The diameter of this hose pipe must be 8 mm and its length must be no less than 400 mm and no more than 1500 mm. It must be firmly fixed to the hose nipple by means of the safety clamp specified by standards.

At the connection end, verify the gasproof using a soap solution, never a flame.

WARNINGS:

Remember that the gas inlet union on the appliance is a 1/2" gas parallel male type in compliance with EN 10226 standards.

Installation of stainless steel pipe and rubber hose pipe must ensure that it is never able to touch mobile parts of the built-in cabinet (eg. drawers).

Furthermore, it must not pass through compartments that could be used for storage purposes.

When using a rubber hose pipe, it is essential to comply with the following instructions:

• no part of the pipe must be able to touch parts the temperature of which exceeds 65K.
• The pipe must not be pulled or twisted, throttled or tightly bent.
• It must not come into contact with sharp edges or corners.
• It must be easy to inspect the entire pipe length in order to check its state of wear.
• The pipe must be replaced within the date stamped on the pipe itself.
• The appliance complies with the provisions of the following EEC Directives:

90/396 + 93/68 regarding gas safety.

INSTALLATION

The electrical connections of the appliance must be carried out in compliance with the provisions and standards in force.

- Before connecting the appliance, check that the socket or system has an efficient earth connection in compliance with the provisions and standards in force. The manufacturer declines all responsibility for failing to comply with these provisions.

When the appliance is connected to the electricity main by a socket:

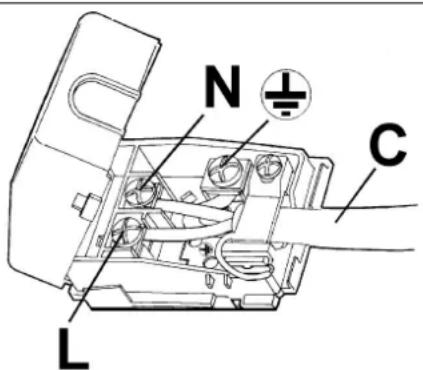

- fit a standard plug "C" suited to the load indicated on the data label to the cable. Fit the wires following figure 11, taking care of respecting the following correspondences:

letter L (live) = brown wire;

letter N (neutral) = blue wire;

earth symbol = green - yellow wire.

• The power supply cable must be positioned so that no part of it is able to reach an overtemperature of 65K.
• Never use reductions, adapters of shunts for connection since these could create false contacts and lead to dangerous overheating.
• The outlet must be accessible after the built-in.

When the appliance is connected straight to the electricity main:

• Install an omnipolar circuit-breaker between the appliance and the electricity main. This circuit-breaker should be sized according to the load rating of the appliance and possess a minimum 3 mm gap between its contacts.
• Remember that the earth wire must not be interrupted by the circuit-breaker.
• Alternatively, the electrical connection may also be protected by a high sensitivity differential circuit-breaker.

You are strongly advised to fix the relative yellow-green earth wire to an efficient earthing system.

WARNINGS:

All our appliances are designed and manufactured in compliance with European standards EN 60 335-1, EN 60 335-2-6 and EN 60 335-2-102 plus the relative amendments. The appliance complies with the provisions of the following EEC Directives:

- CEE 2004/108/CE regarding to electromagnetic compatibility.

- CEE 2006/95 regarding electrical safety.

FIG. 11

ADJUSTMENTS

Always disconnect the appliance from the electricity main before making any adjustments. All seals must be replaced by the technician at the end of any adjustments or regulations. Our burners do not require primary air adjustment.

9) TAPS

"Reduced rate" adjustment:

• switch on the burner and turn the relative knob to the "Reduced rate" position (small flame fig. 1).

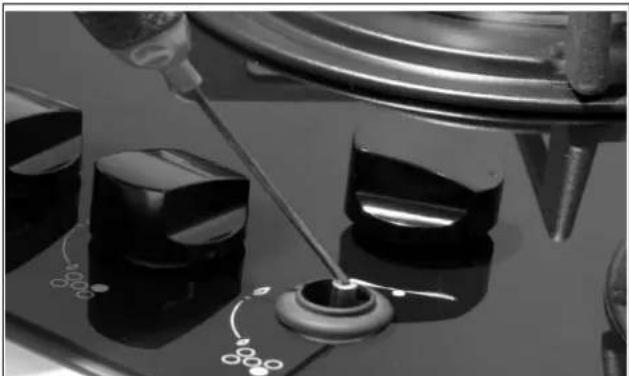

• Remove knob (fig. 12) of the tap, which is simply pressed on to its rod.
• Insert a small screwdriver into hole (fig. 12) and

turn the throttle screw to the right or left until the burner flame has been adequately regulated to the "Reduced rate" position.

Check that the flame does not go out when the knob is sharply switched from the "Full on" to the "Reduced rate" position.

It is understood that only burners operating with G20 gas should be subjected to the above mentioned adjustments. The screw must be fully locked when the burners operate with G30 or G31 gas (turn clockwise).

Close-up of a mechanical component with a tool inserted, showing no visible text or symbols.

FIG. 12

CONVERSIONS

10) REPLACING THE INJECTORS

The burners can be adapted to different types of gas by mounting injectors suited to the type of gas in question. To do this, first remove the burner tops using a wrench "B". Now unscrew injector "A" (see fig. 13) and fit a injector corresponding to the utilized type of gas in its place.

It is advisable to strongly tighten the injector in place.

After the injectors have been replaced, the burners must be regulated as explained in

paragraphs 9. The technician must reset any seals on the regulating or pre-regulating devices. The envelope with the injectors and the labels can be included in the kit, or at disposal to the authorized customer Service Centre.

For the sake of convenience, the nominal rate table also lists the heat inputs of the burners, the diameter of the injectors and the working pressures of the various types of gas.

BURNER ARRANGEMENT ON THE HOT PLATE

TABLE

BURNERS		GAS	NORMAL PRESSURE mbar	NORMAL RATE		INJECTOR DIAMETER 1/100 mm	NOMINAL HEAT INPUT (W)
N°	DESCRIPTION			g/h	l/h		Min.	Max
1	ULTRA RAPID	G 30 - BUTANE 28 - G 31 - PROPANE 37 G 20 - NATURAL 20	30 225 90 1400 222 90 1400 295	3100 3100 295	121	Y 1400 3100
2	RAPID	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 20 4 83 37 200 83 20		750 2800 750 2800 267	117 Y	750	2800
3	SEMIRAPID RIGHT FRONT	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 102 58 37 100 58 20		500 1400 500 1400 133	85 Y	500	1400
4	SEMIRAPID LEFT BACK	G 30 - BUTANE 28 - G 31 - PROPANE G 20 - NATURAL	30 127 68 37 20	500 125	1750 68 167	98 Z	500 500	1750 1750
5	AUXILIARY	G 30 - BUTANE G 31 - PROPANE G 20 - NATURAL	28 - 30 37 20	73 71	95	51 51 75 X	400 400 400	1000 1000 1000

FIG. 13

SERVICING

Always disconnect the appliance from the electricity and gas mains before proceeding with any servicing operation.

11) REPLACING HOT PLATE PARTS

When parts housed within the hot plate need replacing, it is first necessary to remove the hot plate itself from the cabinet, to overturn it, unscrew screws "V" and to remove part "T" (see fig. 14). After having carried out the above listed operations, the burners (fig. 15), taps (fig. 16) and electrical components can all be replaced (fig. 17). It is advisable to change seal "D" whenever a tap is replaced to ensure a perfect tightness.

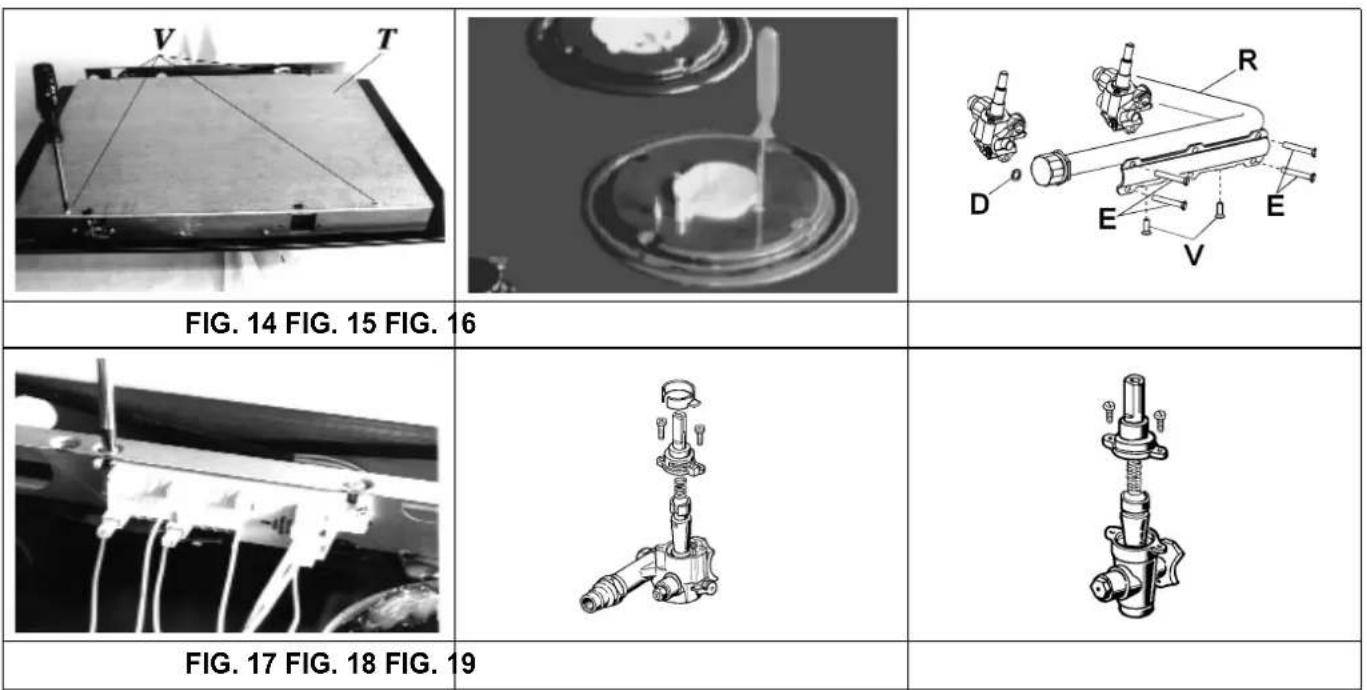

Greasing the taps (see fig. 18 - 19)

If a tap becomes stiff to operate, it must be immediately greased in compliance with the following instructions:

• Remove the tap.
• Clean the cone and its housing using a cloth soaked in diluent.
• Lightly spread the cone with the relative grease.
• Fit the cone back in place, operate it several times and then remove it again. Eliminate any excess grease and check that the gas ducts have not become clogged.
• Fit all parts back in place, complying with the demounting order in reverse.
• The tight closure test must be done using a foamy liquid.

To facilitate the servicing technician's task, here is a chart with the types and sections of the powering cables and the ratings of the electrical components.

SERVICING

CABLE TYPES AND SECTIONS

TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY
Gas hot plate H05 RR - F Section 3 x 0.75 mm	2

ATTENTION!!!

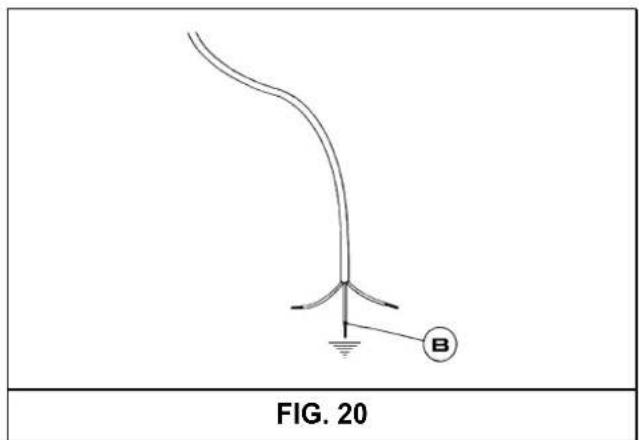

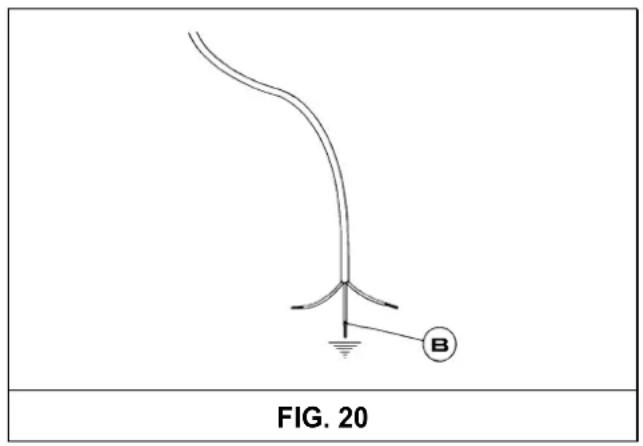

If the power supply cable is replaced, the installer should leave the ground wire longer than the phase conductors (fig. 20) and comply with the recommendations given in paragraph 8.

TECHNICAL DATA ON THE DATA LABEL

4 BURNERS

CATEGORY: II_2H3 +

BUTANE = 28 - 30 mbar

PROPANE = 37 mbar

NATURAL = 20 mbar

Σ Qn Gas Natural = 6.95 kW

Σ Qn LPG = 505 g/h

Voltage = 220 - 240 V \~

Frequency = 50/60 Hz

5 BURNERS

CATEGORY: II_2H3+

BUTANE = 28 - 30 mbar

PROPANE = 37 mbar

NATURAL = 20 mbar

Σ Qn Gas Natural = 10.05 kW

Σ Qn LPG = 731 g/h

Voltage = 220 - 240 V \~

Frequency = 50/60 Hz

TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION

This appliance must be installed in compliance with the current provisions in force and only used in rooms equipped with adequate ventilation. Consult the instruction manual before proceeding with installation or use of the appliance. For another type of gas, operate as described in the directions for the installation and use.This household appliance is adjusted to work at:GBSpotřebič musi byt instalovan pouze autorizovaným pracovnikem. Tento spotřebič musi byt instalovan v souladu s platnýni předpisy a jeho použitise pripoučti pouze v dobré větraném prostoru. Před instalovaním a použivánim spotřebiče se seznante s návodem.Tento spotřebič je nastaven na propran-butan a vstupní přetlak:CZSpotrebič musi byt inštalovány iba autorizovaným pracovnikom. Tento spotřebič musi byt inštalovaný v súlade s platnýni predpismi a može byt použity iba v dobre větranom priestore. Pred inštaláciou a použivanim spotrebiča si pozone prečitaje návod.Tento spotrebič je nastavený na zemnýplyn h a vstupný pretlak:SKC	Oquesto apparecchio puň essere installato e funzionare solo in locali permanentemente ventiláb secondo le norme UNI 7128e7131.Per colegare ala rete d distribuzione del gas usare tubi metallici rigidi o tubi metallid flessibi conformi alla norma UNI EN14800.Consultare il libretto d’istruzioni prima d’installare questo apparecchio.Ouesto apparecchio č regolato per funzionarea:ITSpotrebič musi byt inštalovány iba autorizovaným pracovnikom. Tento spotrebič musi byt inštalovaný v súlade s platnýni predpismi a može byt použity iba v dobre větranom priestore. Pred inštaláciou a použivanim spotrebiča si pozone prečitaje návod.Tento spotrebič je nastavený na zemnýplyn h a vstupný pretlak:SKC		Acest aparat poate fi instalat si functiona doar in locuri permanent ventilate , asa cum prevad normele în vigoare.Pentru a conecta aparatul la reteusa de gaz, trebuie sa folositi tubuni metalice rigide sau tuburi metalice flexible, in conformitate cu dispozitiile normativului în vigoare.Acest aparat este reglat sa functioneze pentru:ROBu chiaz yúrűrlükteki yönemelikiere uygun olarak ve sadece iyi havalandrirlims yerlerde tahsis edilmelir. Bu chiaz kumadan veya kullanmadan önce talimatlari okuyunuz.Farki tipte gaziar için, kullanma klevuzunda belistilen aplkamlamara basvuruuz.Bu chiaz apagidatipi belirtlen gaz ile çalışmasi için ayarlanmıştır:TR
G20 -“p” 20 mbar 2H

TECHNICAL ASSISTANCE AND SPARE PARTS

Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances.

Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.

For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs or adjustments are required, specifying the type of fault and the model of the appliance in your possession.

Please also note that genuine spare parts are only available from our After Sales Service Centers and authorized retail outlets.

The above data are printed on the data label put on the inferior part of the appliance and on the packing label.

The above informations give to the technical assistant the possibility to get fit spare parts and a heaven-sent intervention. We suggest to fill the table below.

MARK:

MODEL:

SERIES:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Black gas stove with four fuses and a small heat sink on the base (no text or symbols visible)

gorenje

POPIS VARNÝCH DOSIEK

TYPY: GT64AB1	TYPY: GT76AB1

Simple line drawing of a circle with a star and four small circles below, no text or symbols present.

OBR. 1

Line drawings of two cooking pots with diagonal bracing and a wavy base (no text or symbols)

OBR. 2

SK

POUŽÍVANIE

POZNÁMKY:

OBR. 3 OBR. 4 OBR. 5

ČISTENIE

POZOR:

INŠTALÁCIA

TECHNICKÉ POKYNY PRE PRACOVNÍKOV

VYKONÁVAJÚCICH INSTALÁCIU

Isometric line drawing of a kitchen appliance with four fans and a stove on a counter (no text or symbols)

OBR. 8

SK

INŠTALÁCIA

4) UPEVNENIE VARNEJ DOSKY

Close-up of a mechanical component with a tool and circular features on a reflective surface (no visible text or symbols)

OBR. 12

TRANSFORMÁCIE

10) VÝMENA DÝZ

OBR. 13

ÚDRŽBA

Black gas stove with four fuses and a star-shaped base (no text or symbols visible)

gorenje

POPIS VARNÝCH DESEK

TYP: GT64AB1	TYP: GT76AB1

Simple line drawing of a circle with a star and four circles below, no text or symbols present.

OBR. 1

Simple line drawing of a cooking pot with a wavy base and two handles (no text or symbols)

Line drawing of a cooking pot on a stove (no text or symbols)

OBR. 2

CZ

POUŽITÍ

Poznámka:

INSTALACE

TECHNICKÉ POZNÁMKY VĚNOVANÉ INSTALATÉRŮM

Isometric line drawing of a kitchen appliance with four burners and a 760mm height dimension (no text or symbols)

INSTALACE

4) PŘIPEVNĚNÍ DESKY

Close-up of a metallic object with a curved surface and a labeled point E (no text or symbols on the object itself)

OBR. 9 OBR. 10

INSTALACE

DŮLEŽITÁ NAŘÍZENÍ PRO INSTALACI

Close-up of a mechanical component with a tool inserted, showing no visible text or symbols.

OBR. 12

PŘEMĚNA NA JINÝ DRUH PLYNU

10) VÝMĚNA TRYSEK

OBR. 13

ÚDRŽBA

Black gas stove with four fuses and three heat sinks (no text or symbols visible)

gorenje

OCAKLARIN TANIMLAMASI

TÝPLER: GT64AB1	TÝPLER: GT76AB1

Simple line drawing of a circle with a star and curved arrow, surrounded by circles and dots (no text or symbols)

ŞEKİL 1

Line drawings of a two-wheeled boiler with heating elements and a side-mounted platform (no text or symbols)

ŞEKİL 2

KULLANIM

Notlar:

Isometric line drawing of a kitchen appliance with a stove and cabinet (no text or symbols)

ŞEKİL 8

MONTAJ

4) PLAKANIN SABİTLENMESİ

Close-up of a metallic object with a curved indentation and labeled point E (no text or symbols beyond label)

ŞEKİL 9 ŞEKİL 10

MONTAJ

ÖNEMLÝ MONTAJ UYGULAMALARI

Close-up of mechanical components on a reflective surface, possibly a knob or dial, with no visible text or symbols.

ŞEKİL12

ÇEVÝRMELER

ŞEKİL 13

TR

SERVÝS

$$ G 3 0 - B \ddot {U} T A N = 3 0 m b a r $$

$$ G 3 1 - P R O P A N = 3 0 \text { mbar } $$

$$ G 2 0 - D O G A L G A Z = 2 0 \text { mbar } $$

$$ G 3 0 - B \ddot {U} T A N = 3 0 m b a r $$

$$ G 3 1 - P R O P A N = 3 0 \text { mbar } $$

$$ G 2 0 - D O G A L G A Z = 2 0 \text { mbar } $$

This appliance must be installed in compliance with the current provisions in force and only used in rooms equipped with adequate ventilation. Consult the instruction manual before proceeding with installation or use of the appliance. For another type of gas, operate as described in the directions for the installation and use.

This household appliance is adjusted to work at:

Black gas stove with four fuses and a small heat sink, no visible text or symbols

gorenje

DESCRIEREA PLITELOR DE GATIT

TYP: GT64AB1	TYP: GT76AB1

1. Arzator cu tripla coroana de 3100 W
2. Arzator rapid de 2800 W
3. Arzator semirapid redus dreapta fata de 1400 W
4. Arzator semirapid stanga spate de 1750 W
5. Arzator auxiliar de 1000 W
6. Grilaj arzator cu tripla coroana
7. Grilaj arzator rapid
8. Grilaj arzator semirapid redus dreapta fata
9. Grilaj arzator semirapid stanga spate
10. Grilaj arzator auxiliar
11. Buton comanda arzator nr. 1
12. Buton comanda arzator nr. 2
13. Buton comanda arzator nr. 3
14. Buton comanda arzator nr. 4
15. Buton comanda arzator nr. 5
16. Buton aprindere electric

Isometric line drawing of a kitchen appliance with four fans and a stove (no text or symbols)

FIG. 8

INSTALLAZIONE

4) FIXAREA PLITEI

Close-up of a metallic object with a circular indentation and a labeled point E (no text or symbols on the object itself)

FIG. 9

FIG. 10

INSTALAREA APARATULUI

RECOMANDĂRI IMPORTANTE PENTRU INSTALARE

Close-up of a mechanical component with a tool interacting with a central knob, no visible text or symbols

FIG. 12

TRANSFORMĂRI

Close-up of a glass dish with a spoon and a small bowl, possibly a dessert or food item (no visible text or symbols)

FIG. 14 FIG. 15 FIG. 16

Close-up of a mechanical assembly with wires and components, no visible text or symbols

FIG. 18
FIG. 19

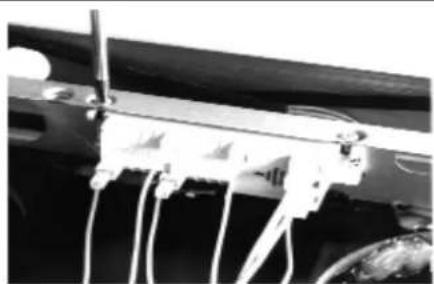

FIG. 17

INTRETINERE

TIPURILE SI SECTIUNILE CABLURILOR DE ALIMENTARE

TIPUL TIPUL ALIMENTAREPLITEI CABLULUI MONOFAZICA
Plita cu gaz H05 RR - F Section 3 X	0.75 mm

ATENTIE !!!

In cazul inlocuirii cablului de alimentare, instalatorul va trebui sa tina conductorul de impamantare cat mai departe de conductorii de faza (fig. 20) si in plus sa respecte avertismentele de la paragraful 8.

DATE TEHNICE PENTRU REGLAREA APARATELOR ELECTRO-CASNICE ALIMENTATE CU GAZ

4 ARZĂTOARE

$$ \text { C A T E G O R I A } = \mathrm{II} _ {2 \mathrm{H} 3 \mathrm{B} / \mathrm{P}} $$

$$ \begin{array}{l} G 3 0 - B U T A N = 3 0 \mathrm{mbar} \ G 3 1 - P R O P A N = 3 0 \mathrm{mbar} \ G 2 0 - G A Z N A T U R A L = 2 0 \mathrm{mbar} \ \end{array} $$

$$ \begin{array}{l} \Sigma \text { Qn Gas Naturale } = 6. 9 5 \mathrm{kW} \ \Sigma \mathrm{QnGPL} = 5 0 5 \mathrm{g/h} \ \end{array} $$

$$ \text { Tensiune } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ \text { Frecvență } = 5 0 / 6 0 \mathrm{Hz} $$

5 ARZĂTOARE

$$ \text { C A T E G O R I A } = \mathrm{I} _ {2 \mathrm{H} 3 \mathrm{B} / \mathrm{P}} $$

$$ \begin{array}{l} G 3 0 - B U T A N = 3 0 \mathrm{mbar} \ G 3 1 - P R O P A N = 3 0 \mathrm{mbar} \ G 2 0 - G A Z N A T U R A L = 2 0 \mathrm{mbar} \ \end{array} $$

$$ \begin{array}{l} \Sigma \text { Qn Gas Naturale } = 1 0. 0 5 \mathrm{kW} \ \Sigma \mathrm{QnGPL} = 7 3 1 \mathrm{g/h} \ \end{array} $$

$$ \text { Tensiune } = 2 2 0 - 2 4 0 \mathrm{V} \sim $$

$$ \text { Frecvență } = 5 0 / 6 0 \mathrm{Hz} $$

DATE TEHNICE PRIVIND REGLAREA ALIMENTĂRII CU GAZ A APARATULUI

This appliance must be installed in compliance with the current provisions in force and only used in rooms equipped with adequate ventilation. Consult the instruction manual before proceeding with installation or use of the appliance. For another type of gas, operate as described in the directions for the installation and use.This household appliance is adjusted to work at:GB	Questo apparecchio puñ essere installato e funzionare solo in locali permanentemente ventilati secondo le norme UNI 7129e 7131.Per collegare alla rete d distribuzione del gas usare tubi metallici rigidi o tubi metallici flessibili conformi alla norma UNI EN14800.Consultare il libretto distruzioni prima d'installare questo apparecchio.Questo apparecchio č regolato per funzionare a:IT	Acest aparat poate fi instalat si functiona doar in locuri permanent ventilate , asa cum prevad normele în vigoare.Pentru a conecta aparatul la reteaua de gaz, trebuie sa folositi tuburi metalice rigide sau tuburi metalice flexible,in conformitate cu dispozitiile normativului în vigoare.Acest aparat este reglat sa functionezepentru:RO
Spotřebič musi být instalován pouze autorizovaným pracovníkem. Tento spotřebič musi být instalován v souladu s platnými předpisy a jeho použití se připoušti pouze v dobře větraném prostoru. Před instalováním a použiváním spotřebiče se seznamte s návodem.Tento spotřebič je nastaven na propan-butan avstu pni přetlak:CZ	Spotrebič musí byť ištaloványí iba autorizovaným pracovníkom. Tento spotrebič musí byť ištalovanyí v súlade s platným predpismia može byť použitý iba v dobre vetranom priestore. Pred in štaláciou a použivanim spotrebiča si pozome prečítajte návod.Tento spotrebič je nastavený na zemný plyn h a vstupný pretlak:SK	Bu cihaz yürürlükteki yönelmeliklere uygun olarak ve sadece iyi havalandirilmiş yerlerde tahs sedilmelidir. Bu cihazi kurmadan veya kullanmadan önce talimatları okuyunuz.Farklı tipte gazlar için, kullanma kulavuzunda belirtilen açıklamalara başvurunuz.Bu cihaz aşağıda tipi belirtilen gaz ile çalışması için ayarlanmıştır:TR
G20 -"p" 20 mbar 2H COD 00366750- 0408

ASISTENTA TEHNICA SI PIESE DE SCHIMB
