Product Type	Electric Stick Mixer (Hand Blender) with Accessories
Brand / Model	Eta / Fisso
Power Input	400 W (typical for model)
Voltage	220-240 V (as per type label)
Container Capacity (Chopping)	600 ml
Container Capacity (Mixing)	600 ml
Dimensions (Approx.)	Drive unit: 20 x 5 x 5 cm; with accessories: 40 x 15 x 15 cm
Weight (Approx.)	1.0 kg (including accessories)
Functions	Mixing, Blending, Whisking, Chopping, Pureeing
Speed Control	2 speeds (I and II) with electronic revolution regulation (1-5)
Safety Features	Safety switch (push to operate), automatic stop when released, sharp blade warnings
Accessories Included	Mixing adapter (B), beater (C, C1), chopping container (E) with lid (D), mixing container (F), sickle-shaped knife (G)
Material	Plastic body, stainless steel blades
Dishwasher Safe Parts	Yes: beater (C, C1), containers (E, F), sickle-shaped knife (G). No: mixing adapter (B) and drive unit (A)
Cleaning Drive Unit	Wipe with damp cloth; do not immerse in water
Maximum Liquid Fill	400 ml (when using mixing container with immersion blender)
Maximum Food Temperature	80 °C (do not process hotter foods)
Spare Parts / Repairability	Replacement parts available from Eta service; professional repair required for internal issues
Warranty	Limited warranty (valid in Czech Republic and Slovak Republic; check local conditions)
Usage	Household use only; not for commercial purposes

Frequently Asked Questions - Fisso Eta

How should I clean the drive unit of my Eta Fisso stick mixer?

Never immerse the drive unit in water or wash it under running water. Clean it with a soft, damp cloth and a little detergent, ensuring no water gets inside.

Can I process hot liquids with the immersion blender?

Do not process food at temperatures exceeding 80 °C. Let hot liquids cool before blending to avoid burns and damage.

Which accessories are dishwasher safe?

The beater (C, C1), chopping container (E), mixing container (F), and sickle-shaped knife (G) are dishwasher safe. The mixing adapter (B) and drive unit (A) must be hand washed.

What is the maximum liquid volume when using the mixing container?

Do not fill more than 400 ml of liquid in the mixing container when using the immersion blender to prevent overflowing.

Can I crush ice or very hard ingredients with the sickle-shaped knife?

No, very hard ingredients like ice cubes, coffee beans, nutmeg, or almonds will blunt the blade quickly. Soak hard ingredients like legumes before processing.

How do I change the speed of the mixer?

The safety switch (A1) has two speeds: I (low) and II (high). When using speed I, you can fine-tune the speed by turning the electronic revolution regulator (A4) from 1 to 5.

Is it safe to leave the appliance unattended while in use?

No, always unplug the appliance from the power supply if you leave it unattended. Never let children use it without supervision.

What should I do if the appliance stops working?

Check if the plug is inserted correctly and the socket is live. If it still does not work, contact a qualified service center for repair. Do not attempt to open the drive unit yourself.

Can I use the chopping container or mixing container in a microwave?

Yes, both containers (E and F) are suitable for use in a microwave oven.

How should I store the appliance after use?

Clean all parts thoroughly, dry them, and store in a dry, dust-free place out of reach of children. Do not wind the power cord around the appliance.

USER MANUAL Fisso Eta

Electric stick mixer with appliances • INSTRUCTIONS FOR USE GB 15-20

Elektromos botmixer tartozékokkal • KEZELÉSI ÚTMUTATÓ H 21-26

Illustration showing a hand holding a pipette with a droplet above, and a magnified view of the droplet being lifted (no text or symbols)

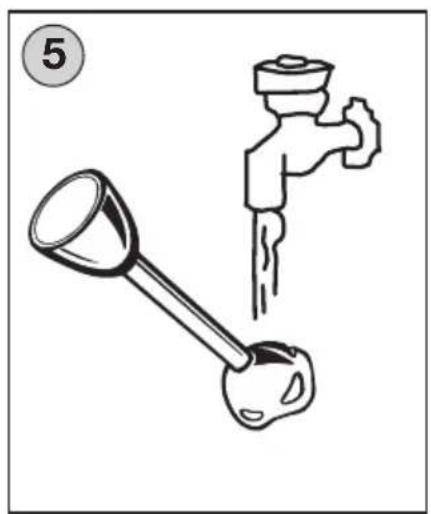

Illustration of a faucet and a bulb with liquid, no text or symbols present

I. BEZPEČNOSTNÍ UPOZORNĚNÍ

- Before the first use, read all the instructions for use carefully, look at the picture and keep the instructions for later use. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket.

- The product is intended for use in households only and for similar use (not for commercial use)!

- The appliance is not intended for use by people (including children) whose physical, sensual or mental inability or lack of experience and knowledge prevents safe use of the appliance if they are not supervised or if they have not been instructed regarding the use of the appliance by a person responsible for their safety. Children should be supervised to make sure they will not be playing with the appliance.

- Do not insert the plug to or take it out of a socket with wet hands and do not pull the power cord!

- Never immerse the drive unit into water or wash it in running water!

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.

- Check before every connecting of the appliance to power supply if you do not push the switch in the off position and after completing work always disconnect the appliance from power supply.

- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e. g. heater, stove, grill, etc.) and wet surfaces (e. q. sinks, wash basins, etc.)

- Use the appliance designed for this type only. Using another appliance can represent a risk for the operator.

- Do not insert the appliance into anybody holes.

- Do not switch on the appliance without substances put in!

- Do not remove the appliance if the drive unit is in operation!

- Make sure that the power supply cable does not get between the rotating parts of the accessories.

- The work adapters cannot be exchanged when the drive unit is in operation for safety reasons.

– Before you take the appliance out, let the rotating parts stop completely.

- Before emptying the chopping container, first remove the sickle-shaped knife.

- When handling the sickle-shaped knife, be very careful, especially when removing it from the chopping container, when emptying the container and while cleaning. The knife is very sharp!

- Be very careful when handling the immersion mixer, the knife is very sharp!

- When mixing, blending, whisking liquids, never put in more liquid than 400 ml and process the liquids only in the mixing container (Fig. 1 - position F).

- Do not process food at temperature exceeding about 80 °C.

- Never insert e.g. fingers, fork, knife, spatula or spoon into the rotating parts of the appliance and the accessories.

• Before replacement of accessories or accessible parts that are moving when the appliance is used, before assembly and disassembly, before cleaning or maintenance, switch off the appliance and remove it from the electric power by unplugging the power cord from the electric socket!
• Always unplug the appliance from power supply if you leave it unattended.
• Do not let children use the appliance without supervision!
• If the processed food starts to stick to the appliance (e.g. on knives, the beater, the container or the lid), switch off the appliance and clean the accessories carefully (e.g. using a spatula).
• Store the appliance after cleaning at a dry, dustfree and safe place, out of reach of children and incapacitated people.
• Do not wind the power cord around the appliance; this will extend its life.
• The power cord must not be damaged with sharp or hot objects, open fire; it must not be sunk into water or bent over sharp edges.
• If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance for any other purpose than for that described in these instructions for use!
• The producer does not undertake any responsibility for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury by knife edge, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A - drive unit

A1 - safety switch A3 - hanging loop

A2 - power cord A4 - electronic revolutions regulation

B - mixing adapter

C - beater

C1 - gear

D - container lid

E - chopping container

E1 - central shaft

F - mixing container

G - sickle-shaped knife

III. PREPARATION FOR USE

Remove all the packing material and take out the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, wash the parts that will be in contact with food in hot water with detergent, rinse thoroughly with clean water and wipe it dry.

Safety switch (A1)

- ●- speed I

- ●●- speed II

The motor is working until the switch is pushed.

Electronic revolutions regulation (A4)

By turning the regulator from 1 to 5 you can continuously change the speed of the motor revolutions.

You can regulate the revolutions only when you choose speed I.

Mounting and removal of the mixing adapter (B)

Slide mixing adapter B to drive unit A, then fix it by turning it (Fig. 2). Remove the adapter in the opposite direction.

Mounting and removal of beater (C, C1)

Slide the shaft of beater C to gear C1, then slide the gear to drive unit A and fix it by turning it (Fig. 3). Remove the adapter in the opposite direction.

Chopping container (E) and lid (D)

Set lid D on container E so that the blocking pressed holes on its edge snap directly in the blocking protrusions in the container. When you take the lid out, use the opposite direction.

IV. USING ACCESSORIES

Please consider the following tips for preparing food as examples and inspiration, the purpose of which is not to provide instructions, but to show various possibilities of preparing food. The times of food preparation (processing) are only approximate and they range from seconds to minutes. Choose the amount of the processed food so that the maximum volume of the containers marked with the gauge line is not exceeded. Bigger amount of processed food has to be divided into several doses and the volume of the containers has to be checked regularly.

We recommend stopping work from time to time, switching off the appliance and removing possible food that was stuck onto the mixing/whisking adapter, the sickle-shaped knife, the containers or the lid (see par. I. SAFETY WARNING).

After finishing work, disconnect the appliance from power supply by taking the connector of power cord A2 out of the electric socket. Containers E/F are suitable for use in a microwave oven.

Mixing adapter (B)

Be careful, knife edges are very sharp! The mixer is intended for mixing juices, milk shakes, milk, sauces, soups, mayonnaise, children's and dietary food, for making purée, etc.

You can use speed I or II for processing.

Hold stick mixer A in your hand and put mixing adapter B into container F filled with food.

By pushing switch A1 you will start the drive unit. When working, move the mixer in the container to process the food thoroughly. Food is processed in about

10 seconds to 2 minutes. After finishing work, release the switch, remove the adapter from the container and clean it. The longer you process food, the smoother the result will be.

Recommendation

- It is recommended to cut tough ingredients into small pieces. Do not process very hard materials (e.g. ice cubes, etc.). The knife would be blunt soon.

• Hard ingredients (e.g. legumes, soya beans, etc.) should be soaked in water before processing.
• The longer you process the food with the mixer, the smoother the result will be.
• In the case of liquids that create foam (e.g. milk), never fill container F up to the "MAX" gauge mark to prevent overflowing.
• If you are not satisfied with the result, switch off the appliance, mix the ingredients with spatula, take some part of the ingredients or add a little liquid.

Beater (C, C1)

It is intended for whisking eggs, egg whites, whipping cream, creams, puddings, runny dough and similar food. Do not use the beater for whisking tough dough!

You can use speed I or II for processing.

Hold stick mixer A in your hand and put beater C into container F filled with food. Start the beater by pushing switch A1. When working, move the beater in the container to process the food thoroughly. Food is processed in about 10 seconds to 2 minutes. After finishing work, release the switch, remove the beater from the container and clean it.

Recommendation

When beating egg whites, use eggs of room temperature! If beating is not optimal, make sure that the beater is not greasy, or add a little lemon juice or salt. Cool down cream and whipping cream to at least 6 °C.

Sickle-shaped knife (E)

Be careful, knife edges are very sharp! Do not use the knife for processing any dough! The knife is intended for chopping (mincing), mixing, blending all kinds of tough food (e.g. fruit, vegetables, nuts, almonds, deboned meat, tendons and skin or for preparing purée).

Use speed II for processing.

Hold knife G at the upper plastic part, remove the protective lid and put it in container E so that it is inserted on the central shaft E1 (Fig. 4). Put food into the container. Put lid D on the container so that the protrusions on the container snap into the pressed holes. Set on the drive unit A in the same way. By pushing switch A1 you will start the drive unit.

Food will be processed in about 10 seconds to 2 minutes. After finishing work, remove the knife in the opposite direction.

The longer you process food, the smoother the result will be.

Recommendation

• Before processing, cut bigger pieces of food into cubes of about 3 × 3 × 3 cm.
• Never crush very hard ingredients with the sickle-shaped knife, such as coffee beans, nutmeg, nuts, almonds, ice cubes, etc.! The knife would be blunt soon.
• Hard ingredients (e.g. legumes, soya beans, etc.) should be soaked in water before processing.
• The longer you process the food, the smoother the result will be.
• If you chop hard cheese or chocolate, work for a short time. It is because the ingredients are heated excessively by chopping, they become softer and they can become lumpy.

V. MAINTENANCE

Unplug the appliance from power supply by taking the plug of the power cord out of a socket! Do not use rough and aggressive detergents!

Clean drive unit A, gear C1 and lid D with soft and wet cloth with a little detergent. Make sure that water does not get inside the appliance! Wash the accessories in hot water with detergent right after use, rinse it in clean water and wipe till dry (you can also wash accessories C, E, F, G in a dishwasher - but not mixer B). The end piece with the shaft of mixer B must not be immersed during cleaning (Fig. 5).

Be very careful when cleaning mixing adapter B and sickle-shaped knife G. Make sure that the cutting edges of the accessories are not in contact with hard objects that make them blunt and thus they reduce their effectiveness.

Some food can color the accessories in some way. But this does not affect the function of the appliance and it is not a reason for a claim. This coloring usually disappears after some time. Never dry plastic moldings over a heat source (e.g. heater, electric/gas stove).

VI. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and in this way it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service!

Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VII. TECHNICAL DATA

Voltage (V) specified on the type label

Input (W) specified on the type label

Container volume - chopping (ml) 600

- mixing (ml) 600

The product has received EC declaration of conformity according to Act as amended.

The product matches the requirements of the below statutory order as amended.

- Committee Regulation No. 2006/95/EC as amended, setting the technical requirements of the electrical appliance as low.

– Committee Regulation No. 2004/108/EC as amended, setting the technical requirements of products in terms of their electromagnetic kompatibility.

The product is in conformity with the European Parliament and European Committee Regulation No. 1935/2004/EC re. Materials and objects designed for contact with food.

The manufacturer reserves the right for any insignificant deviations from the standard finished product which do not have any effect on the functioning of the product.

HOUSEHOLD USE ONLY.

DO NOT IMMERSE IN WATER.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

MANUFACTURER: ETA a.s., Poličská 444, 539 01 Hlinsko, Czech Republic.
