USER MANUAL 005990000 Eta
Pyré mixér
eta 0059
NÁVOD K OBSLUZE
I. BEZPEČNOSTNÍ UPOZORNĚNÍ
- Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according.
- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
- Do not insert or take out the plug to or from a socket with wet hands and do not pull the power cord!
- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
- This appliance must not be used by children. Keep the device and its supply cord out of reach of children. The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must play with the appliance.
- Never immerse the drive unit into water or wash it in running water!
- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e. g. heater, stove, grill, etc.), and wet surfaces (e. g. sinks, wash basins, etc.)
- This product was designed for hand mixing of food in pots, pans etc. after they have been taken off the stove. Do not use it in any other way or for any other purpose.
- Do not mix in a pot that is still on the stove because the supply cord may be damaged by heat.
- Although the rotary knife is plastic and does not rotate at high speed, do not put your hands or fingers in it if the appliance is connected to electricity. Although the plastic mixing blade may seem safe, it is very powerful. Never touch it if it is rotating.
- Make sure that hair or loose clothes do not get into the mixer to avoid risk of them tangling into the mixing blade.
- Use the appliance designed for this type only. Using another appliance can represent a risk for the operator.
- Do not insert the appliance into any body holes.
- Do not remove the appliance if the drive unit is in operation!
- Make sure that the power supply cable does not get between the rotating parts of the accessories.
- Before you remove the appliance or the drive unit from the container, let the rotating parts stop completely.
- Do not let children use the appliance without supervision!
- Do not process food at temperature exceeding about 80^ .
- Before replacement of appliances or accessible parts that are moving when the appliance is used, before assembly and disassembly, before cleaning or maintenance, switch off the appliance and remove it from the electric power by unplugging the power cord from the electric socket!
- Always unplug the appliance from power supply if you leave it unattended.
- Never insert e.g. fingers, fork, knife, spatula, spoon into rotating parts of the appliance.
- If the processed food starts to stick to the appliance (e.g. the shaft or the dish), switch off the appliance and clean the accessories carefully (e.g. using a spatula).
- Check the condition of the power cord of the appliance regularly.
- Make sure that the power cord does not hang over the edge of the working table where children could reach it.
- Do not wind the power cord around the appliance; this will extend its life.
- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
- If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.
- If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.
- Never use the appliance for any other purpose than for that described in these instructions for use!
- The producer does not undertake any responsibility for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

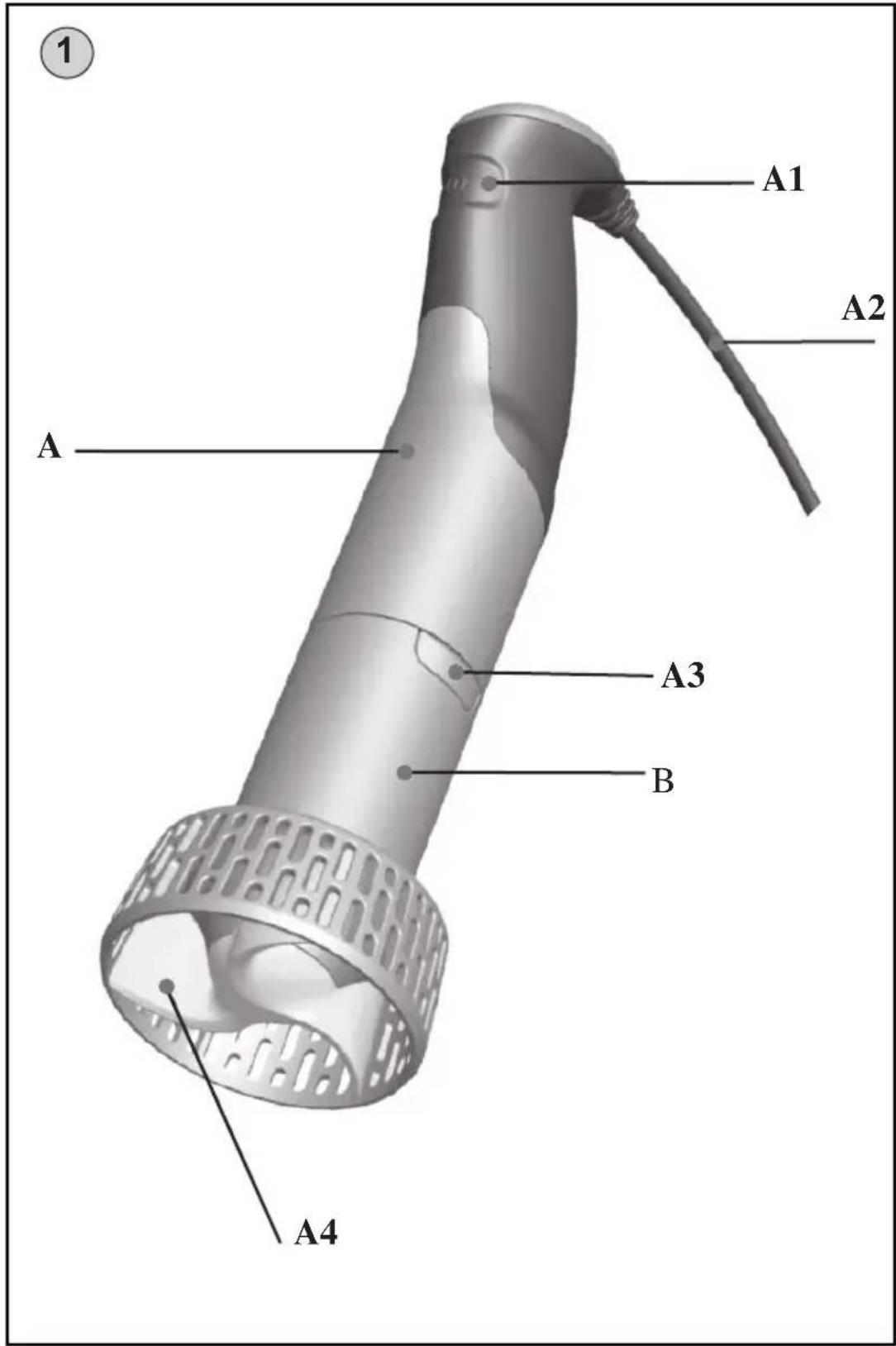

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)
A - Mixer body
A1 – switch button ON/OFF
A2 – supply cord
A3 – release buttons
A4 - mixing blade
B - Mixing attachment
III. PREPARATION AND USE OF THE APPLIANCE AND ACCESSORIES
Remove all the packing material and take out the drive unit and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, wash the parts that will be in contact with food in hot water with a detergent, rinse them thoroughly with clean water and wipe till dry, or let them dry.

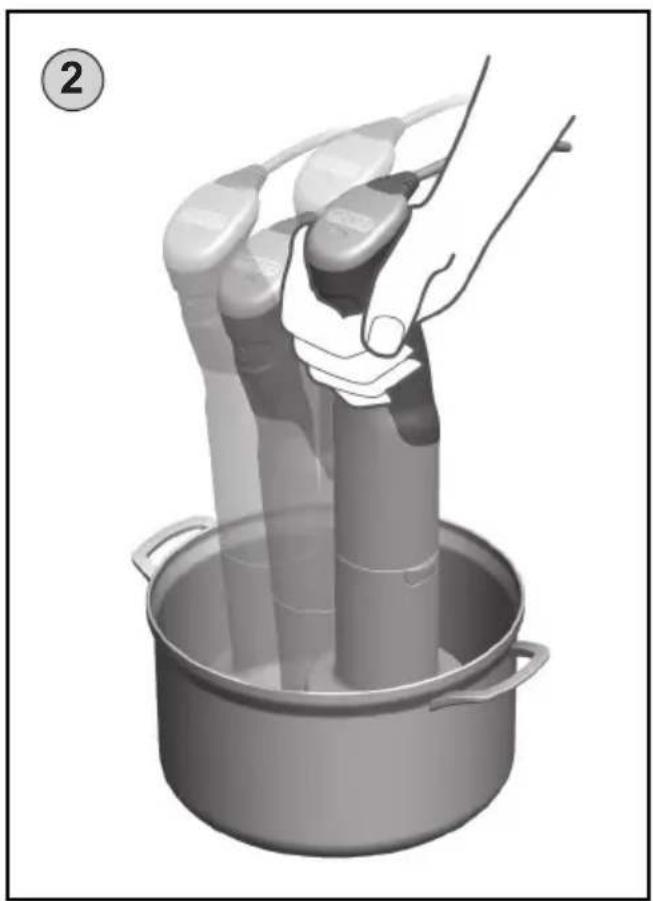

Use of the masher
About mashing Potatoes
Mashed potato is a crushed mixture of cooked potato with added milk, cream, butter, and herbs to taste. Importantly, the potato needs to be crushed so that the starch grains remain relatively intact. If the starch grains are ruptured by either over-cooking or aggressive blending, they release amilose which imparts an unacceptable ,glue' like texture. The masha uses an extrusion process rather than a cutting or blending action so that the starch grains remain intact.
Cooking is important
Peel and cut the required amount of potato into approx. 2.5cm cubes. Race in cool water, and heat to boiling. Boi gently until the pieces offer little resistance to a knife. This takes 15-20 minutes. Cutting the potatoes into smaller pieces, and heating the water from cold, allows the potatoes to cook through evenly. Larger pieces placed in hot water tend to be overcooked on the outside by the time the inside is cooked. Overcooking the outside breaks down the starch grains, releasing amilose which results in a glue like consistency when mashed.
Recipe
Cook 1kg of potatoes following the instructions above. Add desired quantity of mik, cream, butter, and seasoning, then process for approximately 20 seconds to a smooth, consistent mash. Depending on the type of potatoes and the desired consistency you may choose to add the milk, cream and butter at various stages of mashing.
Other Ingredients
The mixer can also be used with a variety of other vegetables, such as pumpkin, sweet potato, parsnips or carrots. Simply cook and then mash to a perfectly smooth consistency. Mixed vegetable combinations are now easy to prepare and great for the kids.
We recommend interrupting work at times, turning the appliance off and removing ingredients which have stuck to the B attachment (see I. SAFETY PRECAUTION). Unplug the appliance from the el. power by pulling the supply cord plug A2 from the outlet.
IV. MAINTENANCE
Unplug the appliance before each maintenance by pulling the supply cord plug from the el. socket! Do not use any rough an abrasive cleaning agents!

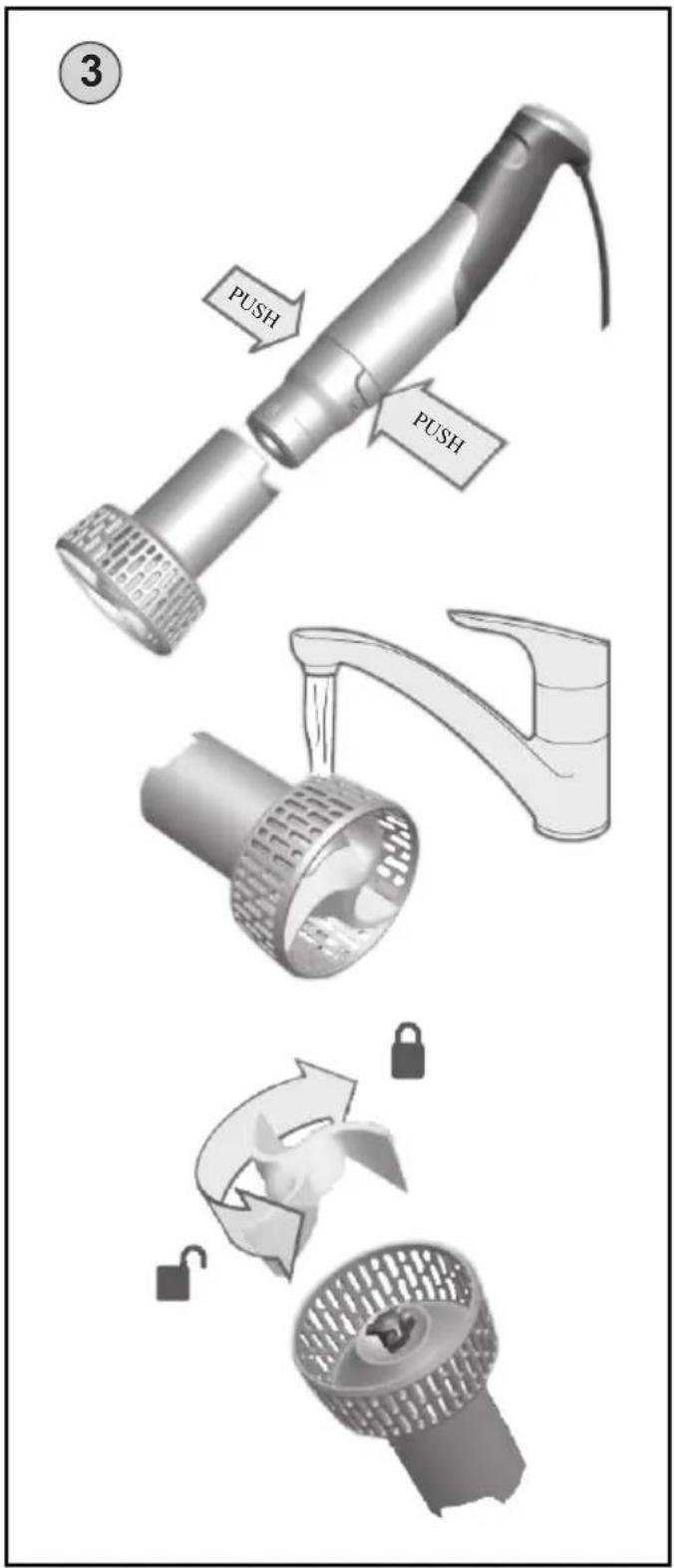

For disassembling the appliance proceed followingly (pic. 3):
- Press release buttons A3 on both sides of the mixer body. The mixing attachment B will detach from the masher body A.
- If you wish to remove the attachment blade A4, turn it anti-clockwise.
- Proceed reversely for assembling.
Clean the propulsion unit A with a soft damp cloth and soap. Make sure water does not get inside the inner parts. er parts. Wash all other accessories immediately after use in hot water with soap, rinse with clean water and wipe dry (you may use a dish-washer – but not for the masher A). The end with the masher shaft B must not be immersed when cleaning. Food residues on the attachment B may be removed by rotating the mashing head on the edge of the utensil
Some food can colour the accessories in some way. But this does not affect the function of the appliance and it is not a reason for a claim. This colouring usually disappears in some time. Never dry plastic moldings over a heat source (e.g. heater, stove, radiator).
Store the appliance after cleaning at a dry, dustfree and safe place, out of reach of children and incapacitated people.
V. ENVIRONMENTAL PROTECTION
If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.
More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service!
Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!
VI. TECHNICAL DATA
Voltage (V) specified on the type label
Input (W) specified on the type label
Weight of drive unit (kg) about 0,73
The product has received EC declaration of conformity according to Act as amended. The product matches the requirements of the below statutory order as amended.
– Committee Regulation No. 2006/95/EC as amended, setting the technical requirements of the electrical appliance as low.
– Committee Regulation No. 2004/108/EC as amended, setting the technical requirements of products in terms of their electromagnetic compatibility
The product is in conformity with the European Parliament and European Committee Regulation No. 1935/2004/EC re. Materials and objects designed for contact with food.
The manufacturer reserves the right for any insignificant deviations from the standard finished product which do not have any effect on the functioning of the product.
HOUSEHOLD USE ONLY.
DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.
TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM
BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
Guarantee certificate is valid only for Czech Republic and Slovak Republic.
