USER MANUAL H-8082 Uline

3/4" Wrench 7/8" Wrench 1" Wrench

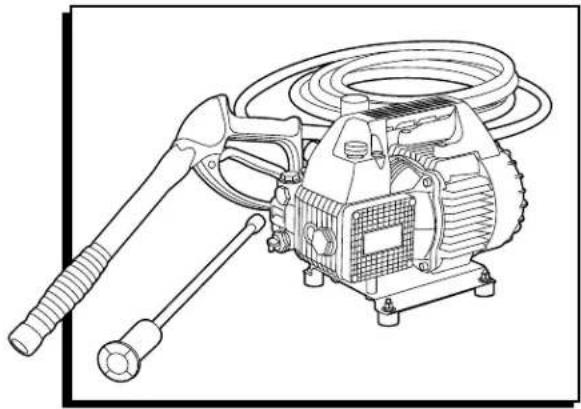

Line drawing of a mechanical pump or pressure vessel with hoses and a coiled hose (no text or symbols)

SAFETY

STOP

IMPORTANT! Using extension cords is not recommended.

- If using extension cord: Cords 50' or less should be 12 gauge. Cords longer than 50' should be 10 gauge.

ASSEMBLY

VENTED OIL CAP

1. Remove red unvented shipping cap as shown. (See Figure 1)

Technical line drawing of a mechanical assembly with no visible text or symbols

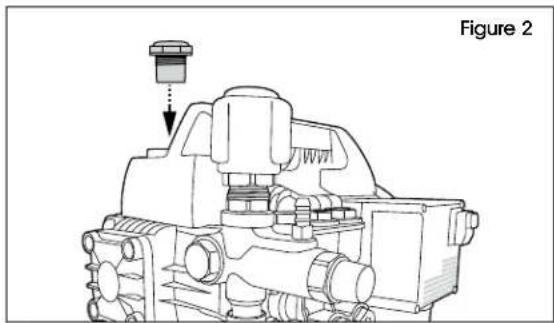

1. Replace with yellow vented oil cap found in accessory bag. (See Figure 2)

Technical line drawing of a mechanical assembly with a component labeled 'Figure 2' (no text or symbols on the diagram itself)

QUICK CONNECT

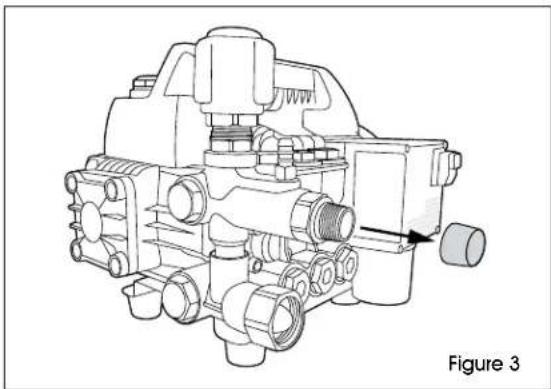

1. Remove red cap from outlet as shown. (See Figure 3)

Technical line drawing of a mechanical assembly, possibly a valve or pump component, with no visible text or symbols.

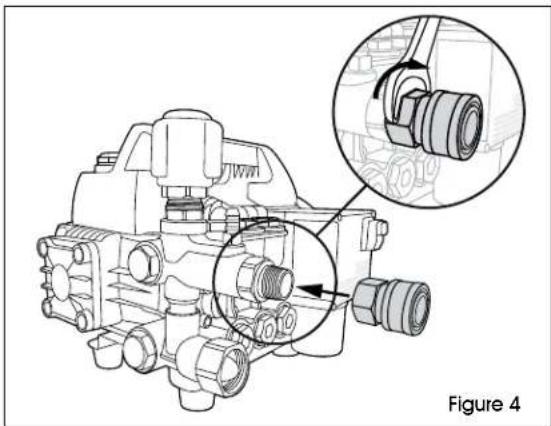

1. Screw on quick connect adapter found in accessory bag. Tighten with 1" wrench. (See Figure 4)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

QUICK ASSEMBLY GUIDE CONTINUED

GUN/HOSE ASSEMBLY

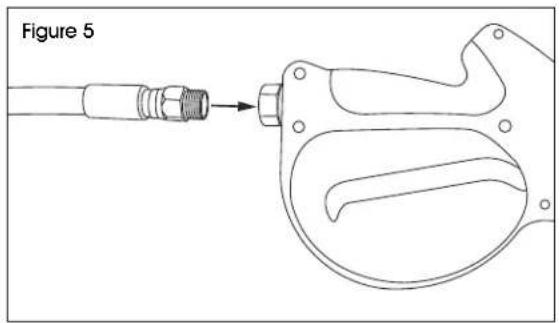

1. Screw gun and hose threads together by hand-turning clockwise until hand-tight. Hose threads already have pipe-sealing tape applied to them. (See Figure 5)

Figure 5

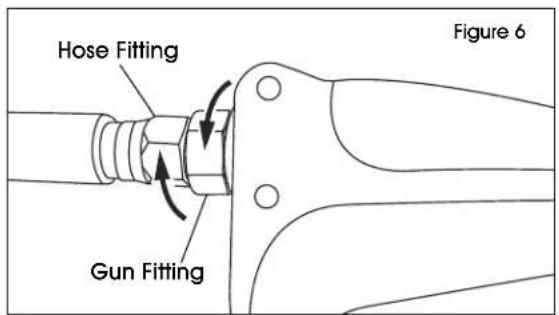

1. Use 3/4" wrench on the hose fitting. Use a 7/8" wrench on the gun fitting. Tighten clockwise until snug. (See Figure 6)

Hose Fitting Gun Fitting Figure 6

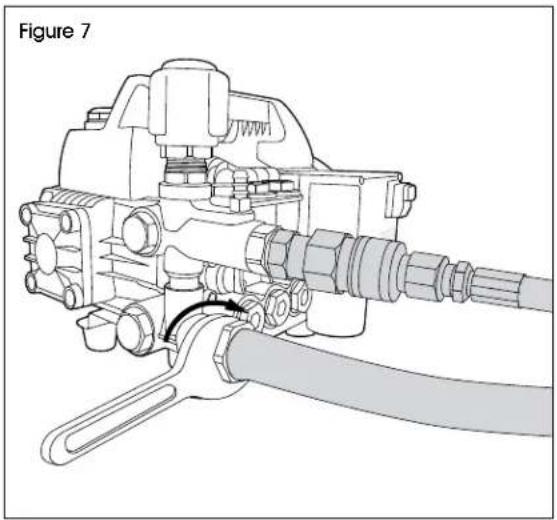

1. Attach hose to quick connect adapter and attach garden hose to inlet with a wrench. (See Figure 7)

IMPORTANT! Purge the line of air by squeezing and holding the trigger before turning pressure washer on.

Technical line drawing of a mechanical device with hoses and components, labeled as Figure 7 (no text or symbols on the diagram itself)

WARNING! Using extension cord is not recommended. If one must be used:

• Extension cords 50' or less should be 12 GAUGE.
• Extension cords more than 50' should be 10 GAUGE.

OPERATING ISSUE

Motor does not turn on or shuts off.	No power.	Check electrical fuse or circuit breaker.
	Power interruption.	Reset GFCI.
	Clogged nozzle.	Clean out nozzle of any debris.
Low or no pressure.	Kinks in hose.	Check for kinks in hose and release.
	Nozzle is set at low pressure.	Adjust pressure spray setting. For high-pressure spray, pull adjustable collar toward the gun handle.
Detergent will not siphon.	Detergent hose not submerged into solution.	Make sure hose is submerged.
	Nozzle not in "soap" position.	Push adjustable collar forward.
	Too many high-pressure hose extensions used.	Use only one hose extension at a time.

ULINE

H-8082

Technical line drawing of a mechanical pump or oil shaver with hoses and housing (no text or symbols)

SEGURIDAD

Technical line drawing of a mechanical pump assembly (no text or symbols)

Technical line drawing of a mechanical pump or compressor device with hoses and housing (no text or symbols)

SÉCURITÉ

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a bolt and arrow indicator (no text or symbols)

CONNEXION RAPIDE

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

GUIDE DE MONTAGE RAPIDE SUITE

ASSEMBLAGE PISTOLET/TUYAU

Technical line drawing of a mechanical device with hoses and components, labeled as Figure 7 (no text or symbols on the diagram itself)

DÉPANNAGE
