Note: This product is only suitable for well insulated spaces or occasional use.

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

86mm 112mm 86mm Halter 1 Halter 2

Two-panel image showing a metal bracket and a close-up of a metallic cylindrical component, both without any visible text or symbols.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 16

Product Data Sheet 17

Function Keys 18

Installation 18

Commissioning and Operation 20

Device Control by Smartphone 21

Cleaning and Care 22

Disposal Considerations 23

Declaration of Conformity 23

TECHNICAL DATA

Item number 10035063
Voltage 220 – 240 V
Frequency 50/ 60 Hz
Performance 850 W
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	20 dBm

SAFETY INSTRUCTIONS

- Do not use the appliance until it is securely fixed as described in this manual.

- Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

- If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

- The fireplace heater must not be positioned directly under the power socket.

- Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.

- Do not leave the appliance unattended during use.

- Do not leave the appliance unattended whilst connected to the mains supply.

- Keep out of reach of children and do not allow them to operate this appliance.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician.

- Improper repairs may place user at serious risk.

- Do not run the mains cable under carpets, rugs, etc.

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Never immerse the product in water or any other liquid for any reasons.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance outdoors.

- Do not use if you have wet hands.

- Never use the appliance on or near hot surfaces.

- Do not operate with a damaged cord.

- Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

- Do not clean the appliance with abrasive chemicals.

- Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

- This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

Model identifier(s): 10035063
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	0,85	kW manual	manual heat charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	0,85	kW manual	manual heat charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	0,85	kW electronic	electronic heat charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW			Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0,0008	kW Two or more manual stages, no room temperature control			no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option no
					with adaptive start control	yes
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

FUNCTION KEYS

Control panel

1

1 Control panel
2 On/off button
3 Parental control
4 Timer button
5 Mode button
6 Raise temperature
7 Reduce temperature

INSTALLATION

Wall installation

The unit must be installed at least 15 cm above the floor and at a minimum distance of 50 cm from the ceiling. Four fixed retaining screws (M8) are located at the rear of the unit body.

The following accessories are included in the delivery:

8 Mounting bracket9 Wall spacer10 Washer11 Fastening nut12 Dowels13 Screw 4*35 mm

Wall mounting

1. Drill two holes (diameter < 8 mm) on each side of the wall and insert a plastic dowel into each hole Then fix the brackets with the 4 x 35 mm screws (the distance between the holes should be as shown below).

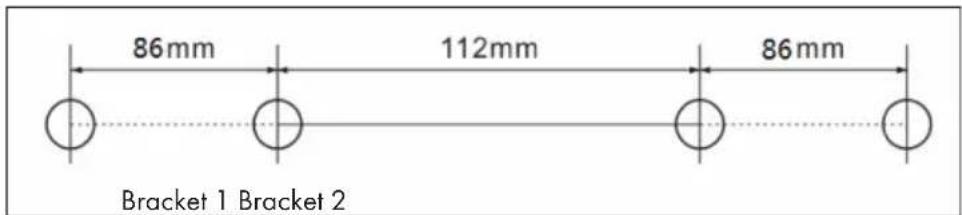

86mm 112mm 86mm Bracket 1 Bracket 2

1. Insert the top row of retaining screws into the bracket and fix it with the nuts and washers (see figure 1).

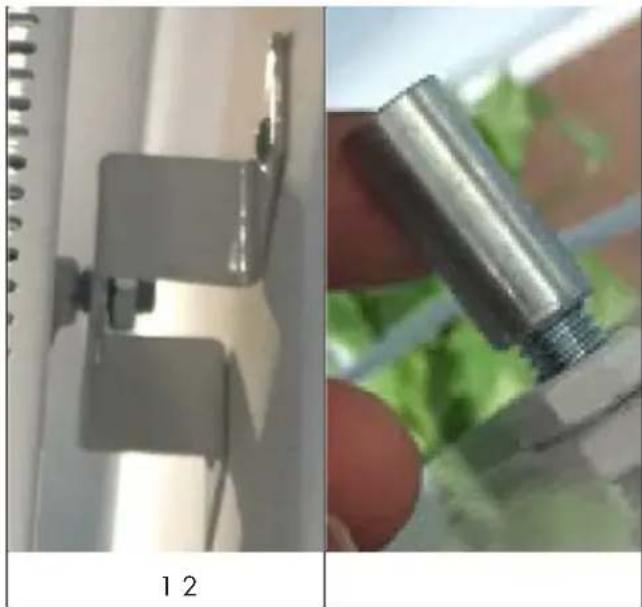

2. The spacers are screwed onto the upper row of retaining screws at the bottom and can be adjusted accordingly (see figure 2).

Two-panel image showing a metal clamp and a close-up of a metallic cylindrical object with a threaded end, both without any visible text or symbols.

COMMISSIONING AND OPERATION

The heating plate can be used with 220 - 240 V \~ 50/60 Hz. Insert the power plug of the appliance into the power outlet, turn on the power switch. You can now use the appliance both via the control panel and with the remote control.

Turn on

First, set the power switch of the device, which is located on the side of the device, to the "I" position. Press the button to set the function. The upper part of the control panel displays the room temperature. The unit will now run at a low power level.

Mode

Press the Mode button to adjust the power.

Temperature adjustment

Press the buttons to set the desired temperature in the range 5 ^ - 40 ^ . The temperature display remains illuminated for a longer period of time.

Timer

Press the timer button to set the timer. You can set the time until the automatic switch-off. You can select a period between 1 - 24 hours. The remaining time until power off is displayed on the screen.

Parental lock

If you press and hold the parental control button for 3 seconds, the symbol appears on the screen. All buttons are now deactivated. You can deactivate the parental control in the same way.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

• Is the device plugged in?
• Is the WiFi feature of my phone enabled?
- Is the WiFi function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WLAN password been entered correctly?
- Are the router, Klarstein device and smartphone in the immediate vicinity during the connection attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings.

Note: For further help, follow the instructions in the app when setting up the connection.

CLEANING AND CARE

• Always unplug the appliance from the power outlet and allow it to cool down completely before cleaning and servicing the appliance.
• Clean the air vents regularly.
• Never use aggressive or abrasive cleaning agents for cleaning.
• Clean the outer cover with a soft, damp cloth. Do not allow any liquid to penetrate the heater!
• Never use alcohol, petrol, abrasive cleaners, furniture polish or coarse brushes to clean the heater. This may cause damage or wear to the surface of the heater.
• If you do not use the heater for a long time, remove the batteries from the remote control (to prevent corrosion) and store the remote control in a safe place.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Hot Spot Crystal Reflect Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035063

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Hot Spot Crystal Reflect Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035063
