Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 28

Safety Instructions 29

Installation Instruction 32

Product Description 33

Operation Model 10046890 35

Operation Model 10046891 36

Power Saving Tips 37

Bottle Loading Plan 40

Loading 41

Cleaning and Care 42

Problems and Solutions 44

Disposal Considerations 46

Manufacturer & Importer (UK) 46

TECHNICAL DATA

Item number 10046890 10046891
Power supply	220-240 V ~ 50/60 Hz
Rated bottle capacity 114 bottles 155 bottles
Storage volume 238 L 313 L
Annual energy consumption (kWh/year)	92 97
Climate class N/ST
Dimensions (HxWxD) (mm) 550 x 585 x 1	1277 595 x 705 x 1360
Installation type freestanding

Note

Rated energy consumption is based on standard test results. Actual power consumption depends on ambient temperature, the set temperature, the door opening/closing, the number of bottles loaded etc.

The rated energy consumption is obtained according to the standard test when the appliance does not turn on the internal light.

SAFETY INSTRUCTIONS

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

To avoid contamination of drinks, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note: This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

WARNING

When using, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Special notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
  • This appliance is not suitable for freezing food.
• The racks were pre-set to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.

Special notes on the shelves

• The shelves have been pre-set to allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
• We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.

SN	Extended temperate	This cooling unit is intended for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23 °C to 25 °C .

INSTALLATION INSTRUCTION

Before using your appliance

To ensure proper electrical connection, follow the recommendations given in the present manual.

• Unpack the appliance and visually check that it is not damaged. Do not connect a damaged appliance. Inform your retailer or point of sale of any damage. In such a case, keep the packaging.
• It is recommended that the appliance be allowed to settle for at least 4 hours before connecting the electrical power supply, so that the compressor fluid feed is correct.

- Proper air circulation is necessary to avoid overheating. To ensure sufficient ventilation, observe the installation recommendations provided.

- In order to avoid fire risk, wherever possible, ensure that the appliance is not in contact with walls or with any hot element (compressor, condenser). Observe the installation recommendations.

- The appliance should not be placed close to radiators or cooking hot plates or gas rings.

- Check that electrical sockets remain accessible when the appliance is installed.

- Before connecting the appliance to the electrical socket, leave it in position for 24 hours. This will reduce the possibility of malfunction of the refrigeration circuit due to transport.

- Clean the inside using a soft cloth and lukewarm water.

Installation

• This device should be placed in a dry room with good ventilation.
• Provide adequate ventilation and do not block the ventilation slots of the unit to prevent overheating.
• Place the unit in a location that is stable enough to support the weight of a filled refrigerator. To ensure the refrigerator is level, adjust the height on the refrigerator feet.
• To have the lowest possible energy consumption, do not place the appliance in the source of heat sources (heater, stove, etc.) and do not expose it to direct sunlight. Also, avoid placing the device in a very cold room.
• Insert the power plug of the device into an outlet that is easily accessible to you. If you have any questions regarding grounding and/or power consumption, please contact Customer Service or a qualified electrician directly.

Note: Make sure that the on/off switch of the device and the socket to which it was connected are still easily accessible after the device has been installed.

PRODUCT DESCRIPTION

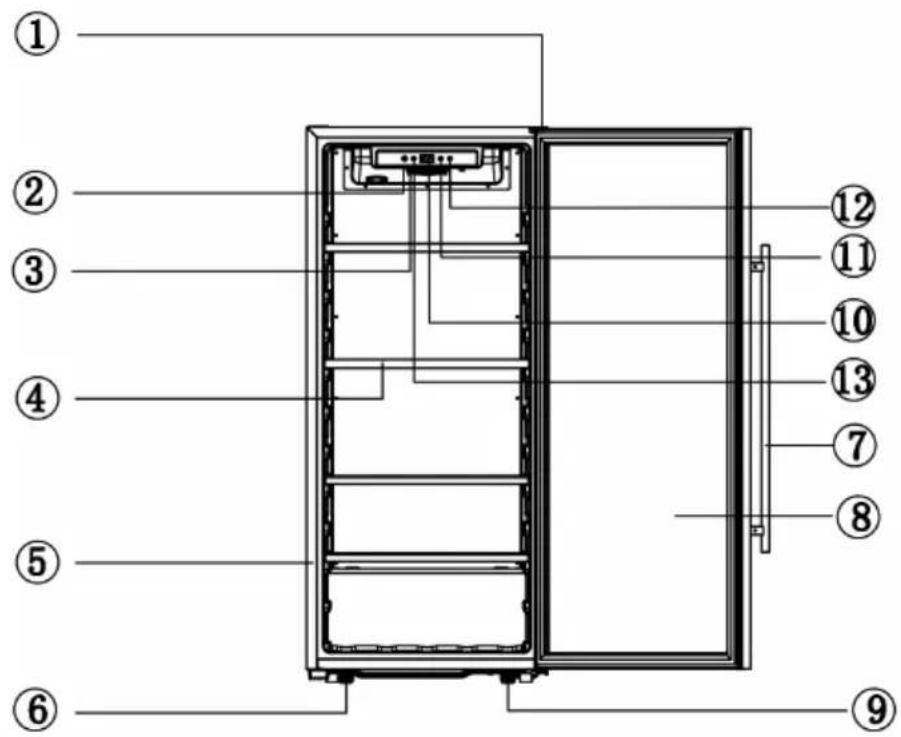

10046890

Labeled diagram of a refrigerator interior with numbered components for identification

1 Upper hinge
2 LED light
3 Fan
4 Wooden shelf
5 Metal housing
6 Adjustable feet
7 Handle
8 Door glass
9 Lower hinge
10 Temperature display
11 Temperature up key
12 Temperature down key
13 Light key

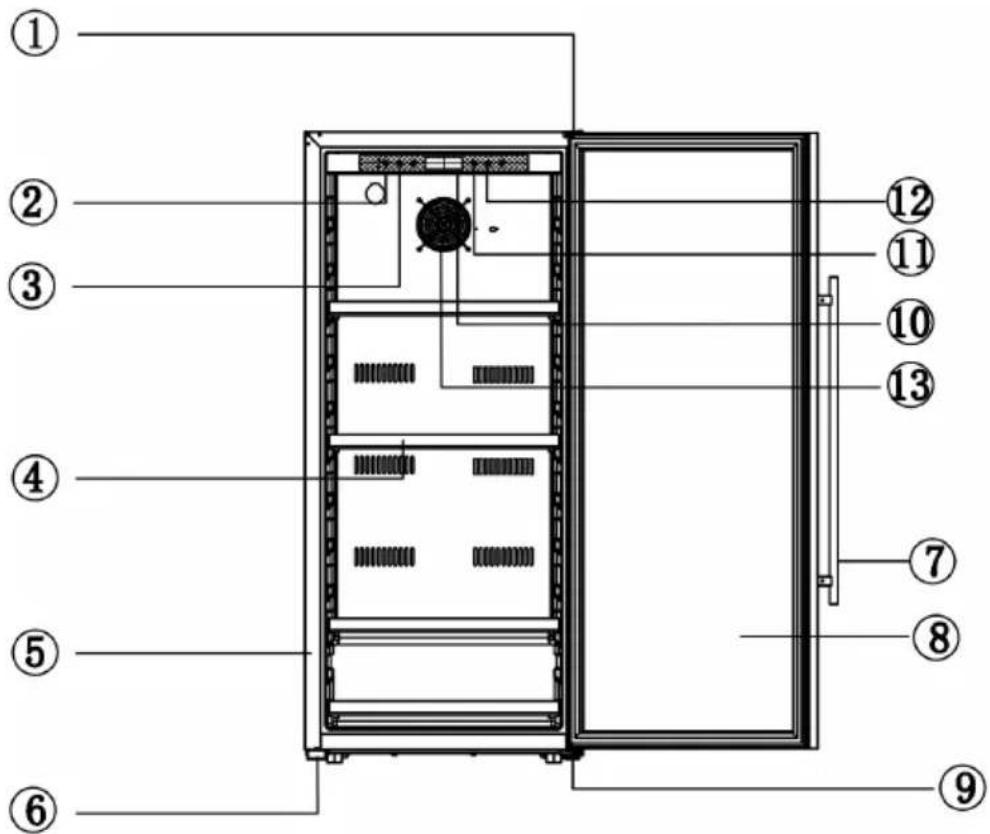

10046891

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments and parts.

1 Upper hinge
2 LED light cover
3 LED light
4 Wooden shelf
5 Metal housing
6 Adjustable feet
7 Handle
8 Door glass
9 Lower hinge
10 Temperature display
11 Temperature up key
12 Temperature down key
13 Fan

	Power On/Off	Press the power switch to turn on the appliance. To turn off the appliance, press and hold the power switch for 3 seconds.
	Light Control Press	Press the light switch to turn the interior light on or off.
	Temperature Display	Press the temperature adjustment buttons simultaneously to switch the temperature display between Celsius and Fahrenheit.
	Setting the Temperature	Use the ^or Buttons to set the desired temperature. Each press increases or decreases the temperature by 1°C.

Important Notice: After setting the desired temperature, the display will continue to show the current temperature inside the fridge. This temperature will change gradually until it stabilizes at the selected setting.

	On/Off Button	Press and hold for 2 seconds to turn the appliance on or off.
	Temperature UP key	Press to increase the temperature after pressing the temperature select key.
	Temperature DOWN key	Press to decrease the temperature after pressing the temperature select key.
	Celsius/Fahrenheit display change	Press and hold both temperature adjustment keys for 3 seconds to switch the temperature display between Celsius and Fahrenheit.
	Select lighting mode.	Press and hold the lighting button for 3 seconds to choose between two lighting modes1.Light Controlled by Door: The light turns on automatically when the door is opened and turns off when the door is closed.2.Light Remains On Mode: The light stays on even when the door is closed.
	Lighting On Mode.	When the LCD screen shows this pictogram, the light will remain on continuously.
	Lighting On/Off Mode.	When the LCD screen shows this pictogram, the light will be controlled by the door—turning on when the door is opened and off when it is closed. This is the default lighting mode.

Memory function

In case of a power cut, the appliance will automatically save the set temperature. After power recovery, it will run at the temperature set before the power cut.

POWER SAVING TIPS

To limit the energy consumption of your appliance:

• Install it in an appropriate place (see "Installing your appliance").
- Leave the doors open as little time as possible.
- Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.
- The shelves placed in manufacturer mode is the most efficient use of energy for this refrigerating appliance. Use the shelves provided by manufacturer, never block the holes on the shelves or use other type of shelves not authorized by manufacturer which may cause poor cooling or increase the energy consumption.

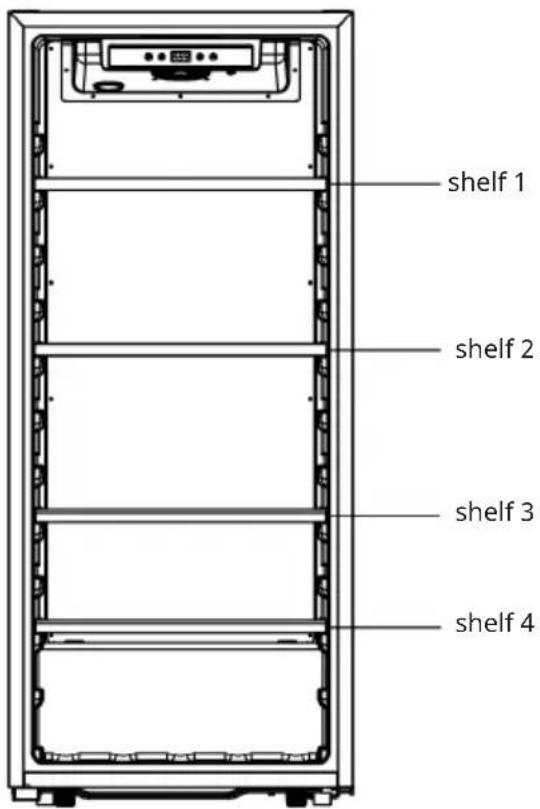

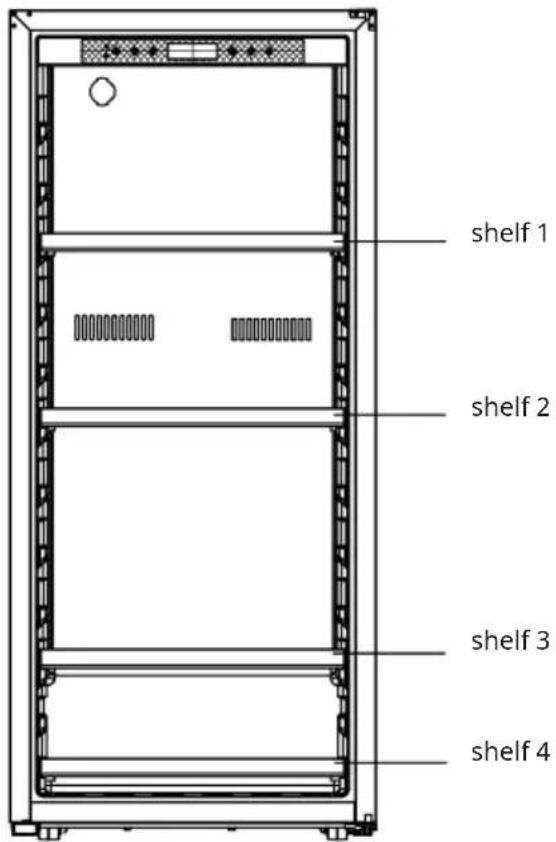

- Shelf layout recommendation: The following layout of your appliance's shelves is recommended so that energy is used most efficiently.

10046890

shelf 1 shelf 2 shelf 3 shelf 4

10046891

shelf 1 shelf 2 shelf 3 shelf 4

For wine storage, it is recommended to set the appliance at 12°C.

This temperature can be adjusted according to the type of wine stored.

Setting the temperature above 12^ C will reduce the energy consumption of the appliance.

Setting the temperature below 12^ C will increase the energy consumption of the appliance.

The temperature inside the appliance can be influenced by many factors:

• Ambient temperature
  • Frequency of door open
  • The location of the appliance
  • Amount of the stored wine bottles

Slight changes in temperature are normal.

Shelf

• To prevent damage to the door seal, make sure that the door is fully open before pulling out the shelves to add or removed bottles.
• For easier access to the contents of the shelves, slide the shelf out for around one third of the way. The shelves are fitted with a stop to prevent the bottles falling out.
  • The shelf can be cleaned with a soft towel.

Announced bottle load capacity

Advertised bottle capacity is measured according to EN62552 standard. This standard is calculated with 75cl traditional Bordeaux type bottles. Any other type of bottles format will considerably reduce the storage capacity. The maximum capacity is calculated with a defined number of shelves which vary according to the bottles.

Lock and unlock

There is a security lock on the door, follow below instruction to lock and unlock:

• To lock the door, insert the key and rotate by 360°clockwise, until the latch completely stick out.
• To unlock, insert the key and rotate by 360^ anticlockwise, until the latch retract retract.

Simple diagram showing concentric circles with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a square object with concentric circles and a small protrusion at the bottom (no text or symbols)

BOTTLE LOADING PLAN

Bottle loading plan

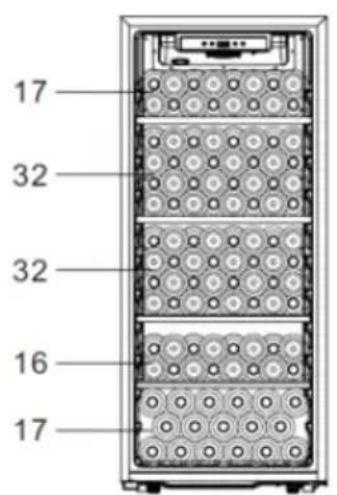

10046890

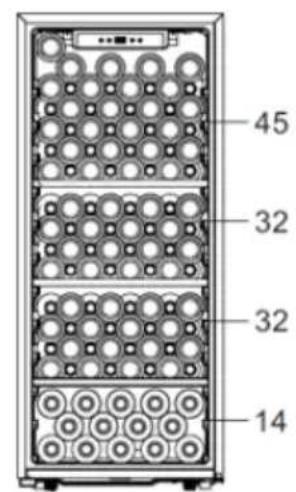

Bottle loading quantity may change according to shelf quantity. You can manage the shelves based on your needs to store wine bottles. Below are examples of bottle loading plan with the current configuration of 123 with 4 shelves, and a maximum capacity of 123 bottles with 3 shelves.

17 32 32 16 17

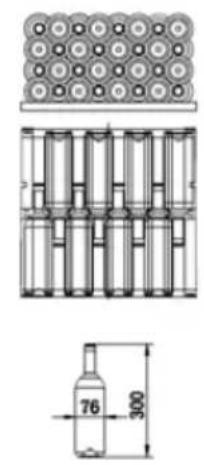

Technical diagram showing a multi-layered cylindrical structure with top and bottom views, including a 76x300 dimension label.

45 32 32 14

Total 123 bottles Total 114 bottles

Bottle loading quantity may change according to shelf quantity. You can manage the shelves based on your needs to store wine bottles. Below are examples of bottle loading plan with the current configuration of 155 with 5 shelves, and a maximum capacity of 155 bottles with 3 shelves.

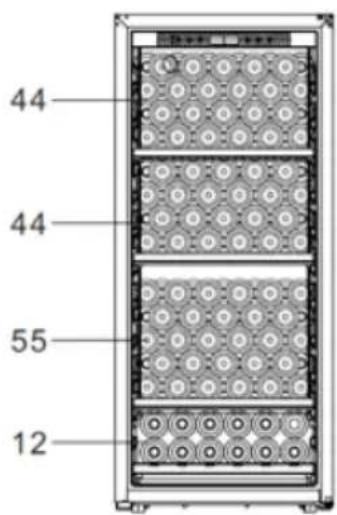

44 44 55 12

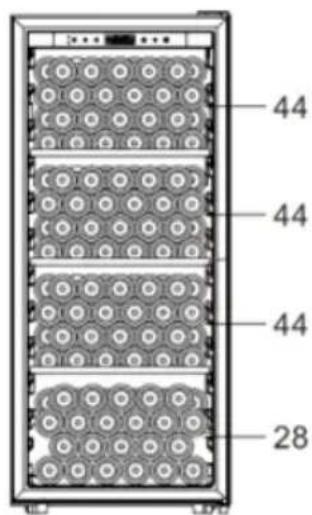

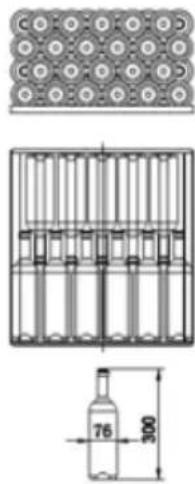

Technical diagram showing a container with internal compartments and a bottle labeled with dimensions 76 and 300.

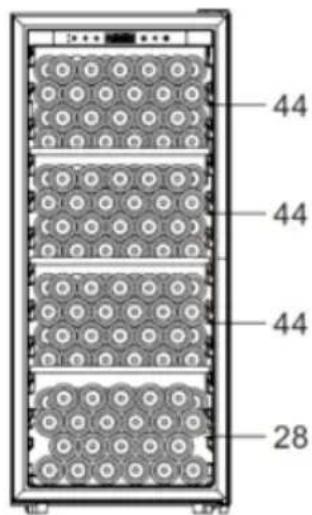

44 44 44 28

Total 155 bottles Total 160 bottles

LOADING

The maximum recommended loading quantities for bottles are given as guidelines and are indicative only; they provide a quick estimate of the size of the appliance (similar to the capacity of a refrigerator expressed in litres).

They correspond to tests conducted with a standard bottle: the standard "75 cl light Bordeaux" bottle - standards apply the geographical origin of each bottle shape (Bordeaux, Burgundy, Provence, etc.) and a type (traditional, heavy, light, flute, etc.), each with its own diameter and height.

In reality and in extreme cases, you could store more bottles by stacking the same type of bottle without using shelves, but a varied cellar comprises a wide variety of bottles and the practical aspect of everyday cellar management limits its capacity. You will therefore probably load the appliance a little less than the recommended maximum.

Examples of serving temperatures

Opinions vary, and the ambient temperature too, but many people agree on the following:

Prestigious Bordeaux wines - Reds 16-17 °C

Prestigious Burgundy wines - Reds 15-16 °C

Prestigious dry white vintages 14-16 °C

Light, young, fruity reds 11-12 °C

Provence rosés, primeur wines 10-12 °C

Dry whites and vin de pays reds 10-12 °C

Vin de pays whites 8-10 °C

Champagnes 7-8 °C

Sweet wines 6 °C

Anti-vibration system

The appliance compressor is equipped with special dampers(silent-blocks) and the inner space is insulated from the body by a thick layer of polyurethane foam. These characteristics prevent the transmission of vibration to wines.

Defrosting

The defrosting of the appliance is done automatically, no manual operation is needed.

CLEANING AND CARE

• Before cleaning your appliance (something to be done regularly), disconnect it by removing the plug or by pulling the fuse on the circuit.
• Before using your appliance for the first time and regularly after that, we recommend that you clean the inside and outside (front, sides and top) with warm water mixed with a gentle cleaning product. Rinse with clean water and allow to dry before reconnecting. Do not use solvents or abrasives.
• When the appliance is switched on for the first time, there may be a residual odour. In that case, run the appliance empty for a few hours at the coldest possible temperature. The cold will kills any odours.
• Wash the plastic coating on the steel shelves with a mild detergent solution.

Storaging your wine cooler

If you will not be using your appliance for short periods, leave the control panel with its usual settings.

During an extended shutdown:

•

• Remove all bottles from the appliance
• Unplug the appliance
  • Thoroughly clean the inside and outside of the appliance
• Leave the door open to prevent condensation, unpleasant odours and mould.

What to do in the event of a power cut

Most power cuts are resolved within a short time. A power cut of 1 or 2 hours will not affect the temperature in your cellar. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

• If the appliance is disconnected or if there is a power cut, you must wait three to five minutes before re-starting. If you try to re-start before this time, the compressor will only re-start after 3 to 5 minutes (if the temperature requires).
• When switching on for the first time or following a prolonged shutdown, it is possible that when re-starting, the temperatures selected and those displayed are not the same. This is normal. It will take a few hours before they stabilise.

If you need to move your wine cooler

1. First, disconnect your appliance.
2. Remove all bottles and secure any loose parts.
3. To avoid damaging the levelling screws on the feet, screw them tightly into the base.
4. Move the appliance in an upright position (preferably) or note the direction in which the appliance may be laid down by looking at its packaging.

PROBLEMS AND SOLUTIONS

WARNING! Danger of electric shock

Unplug the appliance before carrying out any maintenance or repair work.

You can solve many simple problems with your wine cooler yourself, thus avoiding having to contact your after-sales department. Try the following suggestions:

Problems Possible Causes
Appliance is not running • Appliance is not plugged in• Appliance is not turned on• Check if voltage of the installation• Check the circuit breaker or if fuse has blown.
Appliance is not cold enough • The external temperature is high.• A large quantity of bottles has been put into the cellar.• The appliance is opened frequently.The door is not properly closed.• The cellar has not been correctly set.
The compressor starts and stops frequently	• The appliance is not plugged in• The fuse has blown• LED lights are not broken• The light switch is off.
LED lights do not operate • The appliance is not plugged in• The fuse has blown• LED lights are not broken• The light switch is off.
Vibration Check and ensure that the appliance is level
The appliance makes a lot of noise	• A noise resembling circulating water is produced by the coolant gas and this is normal.• At the end of a cooling cycle, you can hear the noise of water circulating.• Expansion and contraction of the internal walls may cause a cracking sound.• The appliance is not level• Check if fan is in good condition.
The door does not close properly	The appliance is not level.The door seal is dirty or damaged.The shelves are not positioned correctly.A part of the contents is preventing the door from closing.
LED display is not working properly	Control panel failedPower PCB has brokenThe appliance is not plugged inThe probe is not working.

In the event of a breakdown

Despite the care we take during production, a breakdown can never be totally ruled out. Before contacting your retailer's after-sales department, please check that:

• the appliance is properly plugged in;
• there is not a power cut in progress;
- the breakdown is not one of those described in the table at the end of this manual.

If the mains cable supplied is damaged, it must be replaced by the manufacturer, a centre approved by the brand or by the retailer. In all cases, it must be replaced by qualified personnel, so as to avoid any risk of injury.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. [e-mail]

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Klarstein

Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE

Model identifier: 10046890

Type of refrigerating appliance:

Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes	Other refrigerating appli-ance:	No

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1 277		Total volume (dm3 or l) 238
	Width 550
	Depth 585
EEI 100 Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW) 37			Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		92	Climate class:	temperate, subtropical
Minimum ambient temperature (oC), for which the refrigerating appliance is suitable 16			Maximum ambient temperature (oC), for which the refrigerating appliance is suitable	38
Winter setting No

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (oC)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

E-Mail-Adresse: [e-mail]

Telefonnummer: [phone]

Anschrift:

Wallstraße 16

10179 berlin

Deutschland

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Klarstein

Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE

Model identifier: 10046891

Type of refrigerating appliance:

Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes	Other refrigerating appli-ance:	No

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1360Width 595Depth 705	Total volume (dm^3 or l) 313
EEI 99 Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)	38	Airborne acoustical noise emission class
Annual energy consumption (kWh/a)	97 Climate class:	subtropical, tropical
Minimum ambient temperature ( ^ C ), for which the refrigerating appliance is suitable	16	Maximum ambient temperature ( ^ C ), for which the refrigerating appliance is suitable
Winter setting	No

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-

Wine storage Yes 313,0 12 - A
Cellar No ----
Fresh food No ----
Chill No ----
0-star or ice-making No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment ----
For wine storage appliances
Number of standard wine bottles		160
Light source parameters:
Type of light source		-
Energy efficiency class		-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 04/01/2025.

EPREL registration number: 2209536

https://eprel.ec.europa.eu/qr/2209536

Supplier: Chal -Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179 berlin

Germany

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 52

Labeled diagram of a refrigerator interior with numbered components for identification

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments and parts.

clayette 1 clayette 2 clayette 3 clayette 4

10046891

clayette 1 clayette 2 clayette 3 étagère 4

Simple diagram showing concentric circles with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a square object with concentric circles and a small protrusion at the bottom (no text or symbols)

PLAN DE CHARGEMENT DES BOUTEILLES

Technical diagram showing a grid-patterned structure above a container with internal compartments, and a bottle labeled with dimensions 76 and 300.

44 44 44 28

Total 155 bouteilles Total 160 bouteilles

CHARGEMENT

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Nom: Customer service

Site web: https://www.elektronik-star.de/lnfo/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Wallstraße 16

10179 berlin

Allemagne

Nom: Customer service

Site web: https://www.elektronik-star.de/Info/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Wallstraße 16

10179 berlin

Allemagne

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 76

Labeled diagram of a refrigerator interior with numbered components for identification

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments and parts.

Simple diagram showing concentric circles with a curved arrow indicating rotation (no text or symbols)

Simple concentric circle diagram with no text or symbols

Technical diagram showing a container with internal compartments and a bottle labeled with dimensions 76 and 300.

44 44 44 28

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Nome: Customer service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Nome: Customer service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 100

Labeled diagram of a refrigerator interior with numbered components for identification

1 Bisagra superior

2 Luz LED

3 Ventilador

4 Estante de madera

5 Carcasa metálica

6 Patas ajustables

7 Tirador

8 Puerta de cristal

9 Bisagra inferior

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments and parts.

Simple diagram showing concentric circles with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a square object with concentric circles and a small protrusion at the bottom (no text or symbols)

PLAN DE CARGA DE BOTELLAS

Technical diagram showing a grid of circular components above a container with internal compartments, and a bottle labeled with dimensions 76 and 300.

44 44 44 28

Total 155 botellas Total 160 botellas

CARGA

Symbol of a trash bin with crossed x and y axes, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
