USER MANUAL BeerBelly 21 Klarstein

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

DELEGIERTE VERORDNUNG (EU) 2019/2016 DER KOMMISSION

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 18

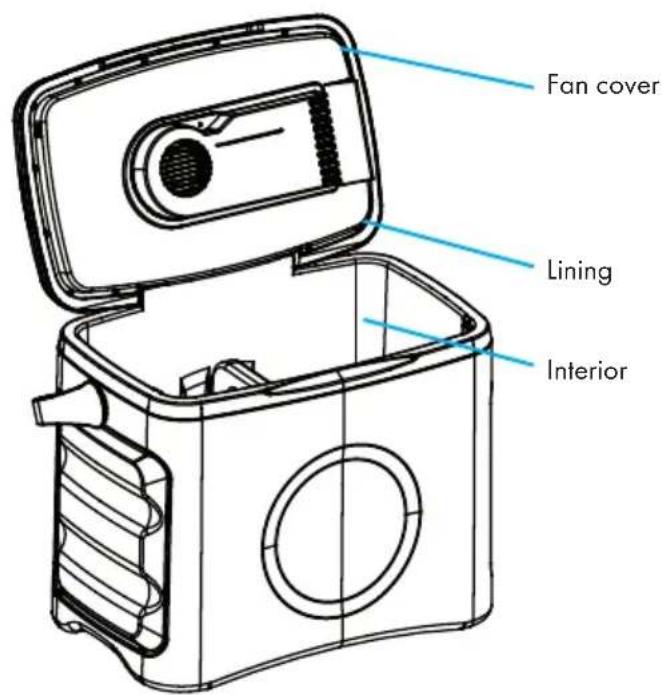

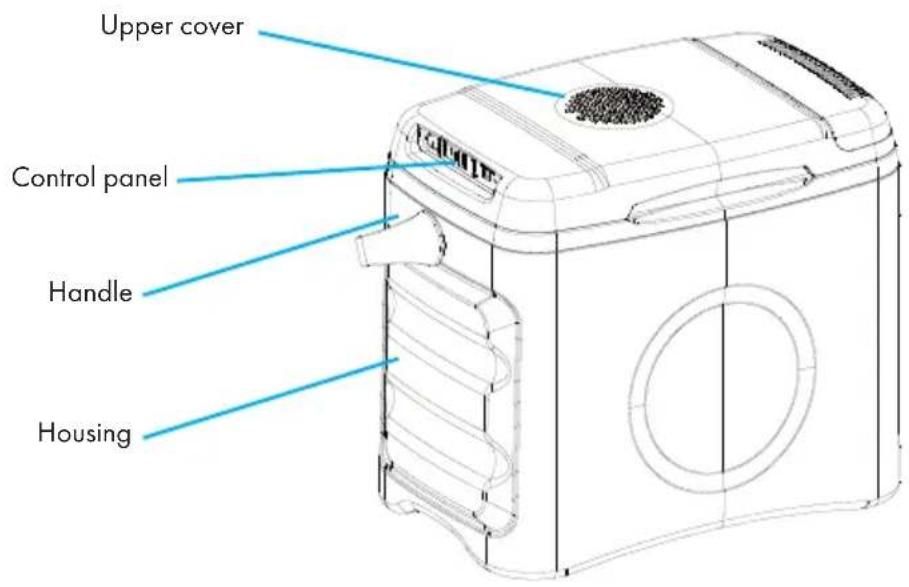

Product Description 19

Funcionality and Use 20

Cleaning and Care 21

Common Usage Problems and Solutions 22

Disposal Considerations 23

Manufacturer & Importer (UK) 23

Product Information Sheet 24

Product Information Sheet 26

TECHNICAL DATA

Item number 10035547 10035548 10035549 10035550
Power supply	AC: 220-240 V ~ 50/60 HzDC: 12 V=USB: 5V=
Rated power 55 W
Volume 21 L29 L

SAFETY INSTRUCTIONS

• Read all instructions before using.
• Remove all packing material and carefully check your cooler box to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
• Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Do not connect or disconnect the electric plug when your hands are wet.
• Place the cooler box on a dry and horizontal surface.
• To ensure proper ventilation for the cooler box, make sure the cooler box is at least 15cm away on either side so as to allow correct ventilation on the appliance. Do not place the cooler box near an oven, radiator, or other source of heat.
• Never put the cooler box under the sunlight.
• The cooler box must be installed in an area protected from the elements, such wind, rain, water spray or drips.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
• To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.
• Unplug the appliance after using or before cleaning.
• Please keep the instruction manual.
• Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• When not in use, turn the switch to "OFF" and pull off the plug.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• This refrigerating appliance is not suitable for freezing foodstuffs

FUNCTIONALITY AND USE

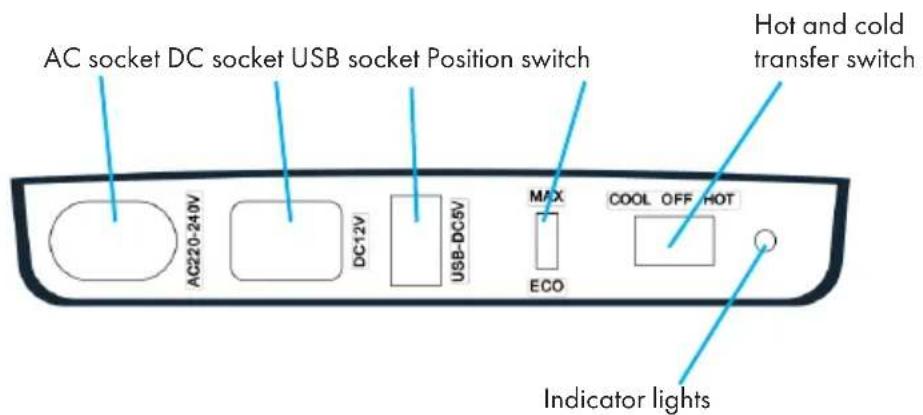

Functions

1. The AC socket is connected with household power supply.
2. The DC socket is connected with safe low voltage DC12 V. If the voltage is too low or too high, the machine will stop automatically to protect the automobile battery. It is recommended that the minimum input voltage is higher than 10.7 V and the maximum input voltage is lower than 15 V.
3. USB socket is connected with 5V safe low voltage.
4. There are two modes of cooling and heating under the three kinds of power supply. After the power is plugged in, the switch is turned to cool, the cooler box starts to cool, the indicator light is green, and the switch is turned to hot, the cooler box starts heating, and the indicator light is red.
5. When using AC socket these two positions can be adjusted.

a. the ambient temperature is relatively high, it is recommended to apply "Max gear" for rapid cooling.
b. In case of refrigeration to a relatively low temperature, or in case of heat preservation, it is recommended to apply "Eco" for heat preservation, so that food or articles need to be kept from being too cold and energy saving can be achieved simultaneously.
c. If you're outdoors, I recommend you use the "USB "voltage, DC5V Safe Low voltage.

1. If your machine is working for a long time, it is recommended that you use MAX cooling to the target temperature and use ECO mode for insulation to save energy.

Performance

1. Whole machine power: MAX position power of 55 W.

2. Under the environment of 25.5^ ± 0.5^ , the temperature difference between the middle and lower parts of the box can reach more than 20^ at "Max" position. In "Eco" position, the temperature difference between the middle and lower parts of the box can reach more than 10^ .

3. Under the environment of 25.5^ ± 0.5^ , the heating temperature of the middle and lower parts of the box can be maintained at 65^ ± 5^ . In Eco position, the temperature in the middle and lower part of the box can be maintained at about 30^ .

4. The portable power source with capacity of 10000mAh can be used for 3-4 hours.

Operation

1. Take the product out of the package and place it on a horizontal surface.
2. Before the first use, open the upper cover and place in a ventilated place for 1-2 hours.
3. Please use the standard power cord, cigarette lighter or USB cord.

CLEANING AND CARE

Caution: Risk of electric shock

The plug must be removed before cleaning to avoid electric shock.

• Do not use corrosive acid or alkaline solution for cleaning, such as diluent, volatile oil, alcohol, decontamination powder, etc. the plastic and coating parts will change color and deterioratet.
• Do not wash the machine body directly with water to avoid machine failure.
  Always clean the dirt around the interior of the cavity to avoid peculiar smell.

COMMON USAGE PROBLEMS AND SOLUTIONS

Common problem Failure	cause Suggested solutions
The machine does not start after the power cord is plugged in and the switch is turned on.	1. The voltage is too low. 2. No electricity.	1. Shut down the machine and restart it when the voltage is stable. 2. Call the service hotline.
When plugged in and switched on, it can be cooled and heated, but the fan does not turn.	Cooling fan failure. Replace the fan.
The temperature inside the box increases under the refrigeration mode.	Internal cooling chip installed in reverse.	Call the service hotline.
When plugged in and switched on, the fan rotates, but does not cool or heat.	Refrigeration chip fault. Call the service hotline.
Does not work when using the cigarette lighting machine.	The plug is not connected properly.	Insert the plug as required
Plug in the switch can work normally, the indicator light is not on.	Control panel indicator light is out of order.	Call the service hotline.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

COMMISSION DELEGATED REGULATION (EU) 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10035547, 100035548
Type of refrigerating appliance:
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating appliance: No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 360		Total volume (dm3 or l)		21
	Width	430
	Depth	290
EEI		80	Energy efficiency class		D
Airborne acoustical noise emissions (dB(A) re 1 pW)		26 Airborne	acoustical noise emission class		A
Annual energy consumption (kWh/a)		60.59	Climate class:		extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		32
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	Yes	21	17	-	M
Wine storage	No	-	-	-	-
Cellar No - - -
Fresh food No - - -
Chill No - - -
0-star or icemaking	No	----
1-star No - - -
2-star No - - -
3-star No - - -
4-star No - - -
2-star section No - - -
Variable temperature compartment	--------
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:			-
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: https://www.klarstein.de/

COMMISSION DELEGATED REGULATION (EU) 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10035549, 100035550
Type of refrigerating appliance:
Low-noise appliance: Yes Design type: freestanding
Wine storage appliance: No Other refrigerating appliance			No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 440		Total volume (dm3 or l)		29
	Width	430
	Depth	275
EEI		125	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		26 Airborne acoustical noise emission class			A
Annual energy consumption (kWh/a)		94.9	Climate class:		extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		32
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	Yes	29	17	-	M
Wine storage	No	-	-	-	-
Cellar No - - -
Fresh food No - - -
Chill No - - -
0-star or icemaking	No	----
1-star No - - -
2-star No - - -
3-star No - - -
4-star No - - -
2-star section No - - -
Variable temperature compartment	--------
Light source parameters:
Type of light source
Energy efficiency class
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: https://www.klarstein.de/
