Type de produit	Thermoelectric refrigerator
Modèle	10005400
Marque	Klarstein
Capacité nette (litres)	21, 24, 28, 32, 36, 40, 42 (varies by model)
Dimensions (mm)	385x450x370 to 401x440x550 (depends on capacity)
Poids net (kg)	9 to 13.2
Alimentation	220-240 V / 120 V, 50-60 Hz
Puissance nominale (W)	50 to 70
Type de refroidissement	Thermoelectric (heat pipe), automatic defrost
Consommation énergétique	Low operating cost, environmentally friendly (no CFC)
Installation	Requires ventilation: 200 cm³ opening, 20 mm side gap, 50 mm bottom gap
Température ambiante recommandée	20-25°C; power off if below 10°C
Porte réversible	Yes, hinge can be changed from right to left
Éclairage intérieur	LED (replaceable, if burned out)
Nettoyage	Automatic defrost, no manual defrost needed
Sécurité	If leakage (refrigerant), switch off, ventilate, call service; must be earthed
Certifications	CCC, CB, CE, EMC & LVD
Fabricant	CHAL-TEC Vertriebs- + Handels GmbH, Berlin, Germany
Notice disponible	Free PDF download in multiple languages

Frequently Asked Questions - 10005400 Klarstein

What is the recommended ambient temperature for optimal performance?

The refrigerator performs best at ambient temperatures between 20-25°C. It is advised to power off the unit if the ambient temperature falls below 10°C.

How long should I wait after plugging in before storing beverages?

Allow the refrigerator to cool down for 2-3 hours before placing beverages inside.

Can I reverse the door opening direction?

Yes, the door hinge can be changed. The kit includes a left hinge cover, two left hinges, and self-screws. Follow the manual's instructions for swapping from right to left.

What are the ventilation requirements for installing this refrigerator?

A ventilation opening of at least 200 cm³ is required. Keep a 20 mm gap from the side walls and 50 mm at the bottom for air circulation.

What should I do if I smell refrigerant leakage?

Immediately switch off the refrigerator, thoroughly ventilate the room, and contact the after-sales service department.

Why is my refrigerator not cooling enough?

Possible causes: room temperature too hot, door opened too often, door not fully closed, temperature control not set correctly, door gasket not sealing, or insufficient ventilation. Check these factors.

Does the refrigerator need manual defrosting?

No, it features an automatic defrosting system, so no manual defrosting is required.

How do I change the interior light if it fails?

The LED light may have burned out. Check if the unit is plugged in and the circuit breaker is not tripped. If still not working, the LED requires replacement.

What are the energy saving tips for this refrigerator?

Place the fridge in a cool area away from heat sources and direct sunlight. Avoid overloading, reduce door openings, and close the door promptly. Heat-pipe technology is energy-efficient and environmentally friendly.

Is the refrigerator compatible with a sliding hinge for built-in installation?

Yes, the manual describes installation with a sliding hinge. Leave 1-2 mm gap between the cabinet door and surroundings, 6-8 mm between cabinet and fridge door, and max 40 mm hinge distance.

USER MANUAL 10005400 Klarstein

Black KLAR STEIN refrigerator with white label on front (no visible text or symbols beyond branding)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

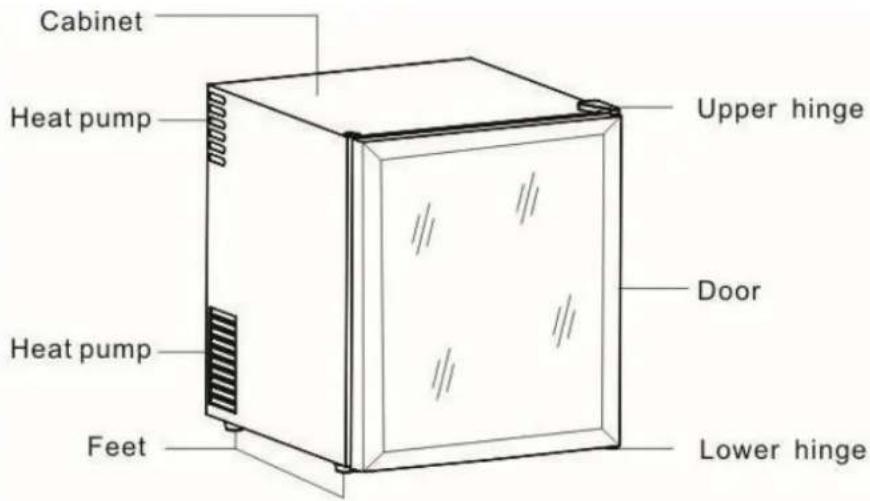

Model with glass door:

Instruction for users

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide suitable stand.

Very important

• The refrigerator will have better performance at ambient of 20-25 degree; We suggest the refrigerator be powered off if the ambient temperature is lower than 10 degree.
• After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the refrigerator compartment.
• Ventilation is very important for this kind thermoelectric refrigerator; The inside PCB will be broken easily if the ventilation is bad; It will also reduce the life of the refrigerator.
• If leakage occurs (which can be easily detected due to the unpleasant smell), please
  A: Switch off the refrigerator immediately
  B: Ventilate the room thoroughly
  C: Call for the after sales service department
  • The refrigerator applies automatic defrosting system, so there is no need to defrost it manually.

Power supply

• The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating:
• Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket;

Installation Instruction

When install a Heat pipe Refrigerator, ventilation should be considered seriously, please refer to the following:

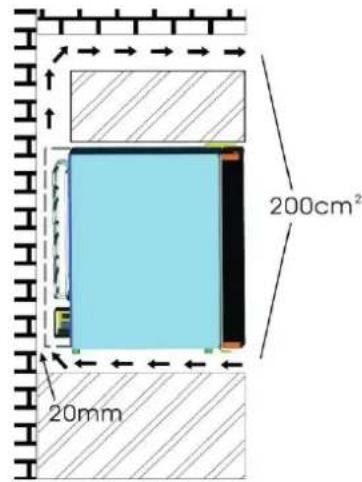

1. there should be left at least 200~cm^3 for ventilation
2. the distance between wall and refrigerator side should be at least 20mm

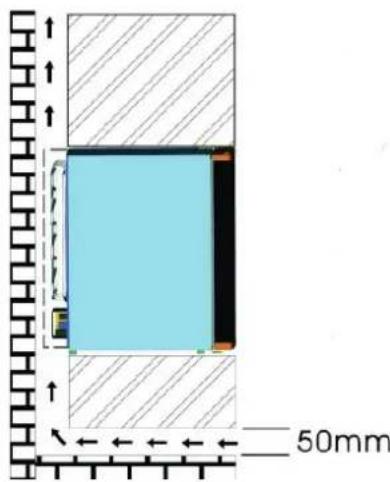

3. the bottom should be left at least 50mm for air flowing
4. air passing through must not be preheated
5. entire cooling system should be considered in the ventilation

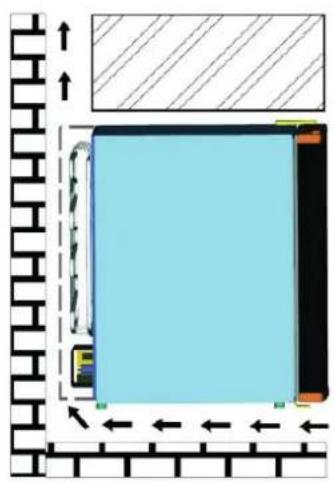

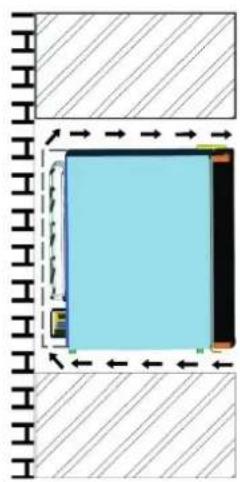

6. the following four pictures show four installation ways:

Diagram of a mechanical or architectural component with directional arrows and hatched top section (no text or symbols)

Diagram showing a square object with arrows indicating direction, surrounded by diagonal hatching (no text or symbols)

Instruction of the Sliding Hinge

1. Use two self-screws to fix the sliding hinge.
2. After checking the suitable distance, use two self-screws to fix the bottom feet respectively.

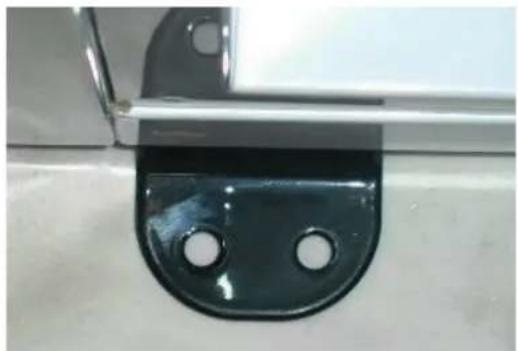

Close-up of a black plastic mechanical component with two circular holes (no text or symbols visible)

Close-up of a black metal bracket with two circular holes, mounted on a white surface (no text or symbols visible)

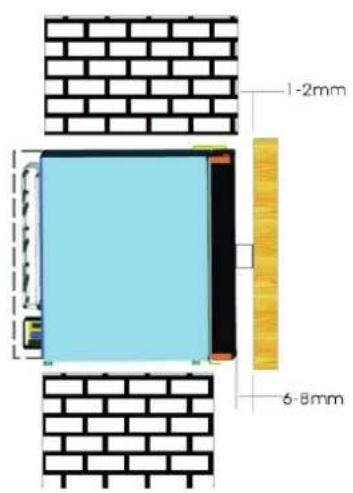

1. If the refrigerator is closed, there should be have a distance of 1-2mm between the wooden cabinet door and the surrounding.
2. There must be left a distance of 6-8mm between the wooden cabinet and the refrigerator door.

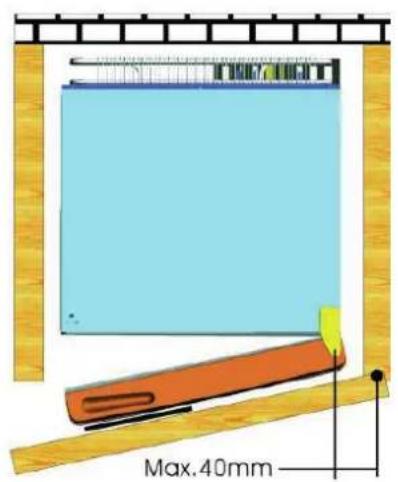

3. The maximum distance between the refrigerator's and the cabinet's hinge is about 40mm.

Changing the Swing Hinge

1. Pull out the three screws from right hinge.
2. Remove the hinge (upper and lower) away, find the following in the carton:

One left hinge cover

Two left hinges (up one and low one)

Three self-screws

1. Install the door in suitable position with left hinges, use three self-screws to fix them. Then put on the left hinge cover.

Installation of the lock & key

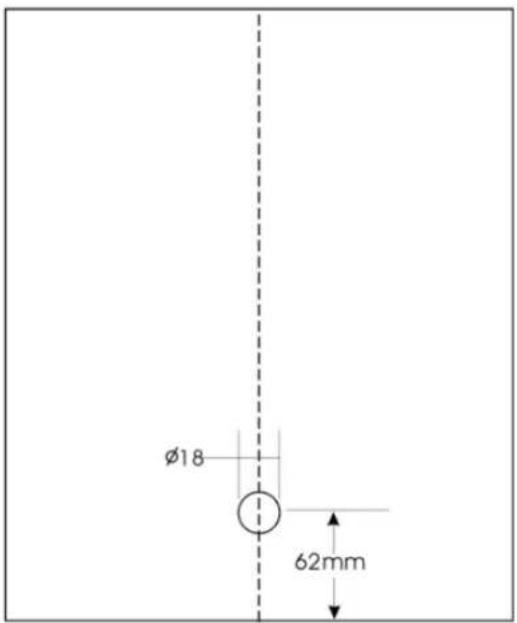

1. The diameter of the lock hole is: 18mm
2. The distance between the bottom edge and the middle of the lock hole is: 62mm

Trouble Shooting Guide

PROBLEM POSSIBLE	CAUSE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Refrigerator is not cold enough.	The room temperature is hotter than normal.The door is opened too often.The door is not closed completely.The temperature control is not set correctly. The door gasket does not seal properly.The refrigerator does not have the correct clearances. Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse. The LED light has burned out.
Vibrations. Check to assure	that the refrigerator is level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

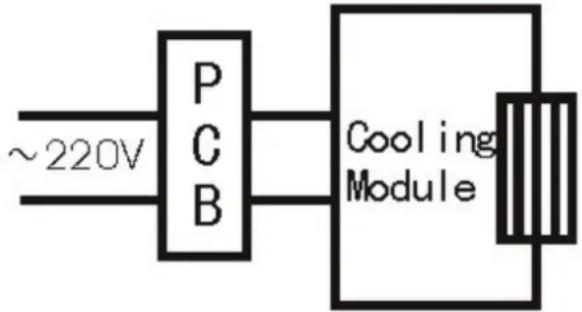

Electric Diagram

Electric Diagram

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
  • Overloading the refrigerator forces the thermoelectric cooling system to run longer.
• Reduce door openings and extended searches, remove as many item as needed at one time, and close the door as soon as possible.
• One characteristic of heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.
• Heat-pipe technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.

Specification Table

Net Capacity (liters)	21	24	28
Voltage (V)	220-240 / 120
Frequency (Hz)	50-60
Rated Power (W)	50	60	62
Dimension (mm)	385x450x370	380x380x470	380x380x470
Packing (mm)	420x480x400	460x430x520	460x430x520
Net Weight (kg)	12	9	9.5
Gross Weight (kg)	13	10	10.5
Approval	CCC/ CB/ CE/ EMC & LVD

32	36	40	42
220-240 / 120
50-60
64	66	70	70
380x445x470	380x445x470	401x440x550	401x440x550
430x520x522	430x520x522	460x495x585	460x495x585
11	11.5	13	13.2
12	12.5	15	14.2
CCC/ CB/ CE/ EMC & LVD

Technical specifications

The manufacturer of this product is CHAL-TEC Vertriebs- + Handels GmbH, Wallstraße 16, 10179 Berlin.

This product complies with the requirements of the directives

2004/108/EC (EMC)

2006/95/EC (LVD)

2011/65/EU (RoHS)

Electric and electronic equipment and included batteries contains materials, componentsans substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed ou trash can symbol, seen here. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

CHAL-TEC Vertriebs- + Handels GmbH; Wallstraße 16; 10179 Berlin, Germany
