Product Type	Refrigerator
Brand	Klarstein
Model	KS50-A
Net Capacity	Approx. 50 litres
Climate Class	N/ST (temperate/subtropical)
Dimensions (H x W x D)	Approx. 50 x 44 x 47 cm
Net Weight	Approx. 18 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	Approx. 100-150 kWh/year
Noise Level	Approx. 42 dB(A)
Number of Doors	1
Freezer Compartment	Small compartment, capacity 3-5 litres
Defrost Type	Manual
Main Features	Adjustable cooling, mechanical thermostat, door shelf, vegetable drawer
Interior Light	Incandescent bulb (E14)
Refrigerant	R600a
Maintenance and Cleaning	Clean the interior with a damp cloth and mild soap, defrost regularly
Safety	Do not immerse in water, use on a stable surface, respect ventilation distances
Spare Parts and Repairability	Contact Klarstein after-sales service or a certified professional
Warranty	2 years (subject to legal conditions)

Frequently Asked Questions - KS50-A Klarstein

How to adjust the temperature of the Klarstein KS50-A refrigerator?

The thermostat is located inside the refrigerator, usually on the side or at the top. Turn the knob from 1 (warmest) to 5 (coldest). The recommended setting is 3.

How to defrost the freezer compartment?

Unplug the appliance, remove the food, leave the door open to melt the ice. Do not use sharp tools. Clean the interior with a damp cloth after defrosting.

What to do if the refrigerator is not cooling enough?

Check that the thermostat is set correctly, the door closes properly, the rear ventilation is not obstructed, and the condenser is not dirty. If the problem persists, contact customer service.

What is the power consumption of this model?

The Klarstein KS50-A consumes about 100-150 kWh per year, depending on usage. It is energy class F or G (according to current regulations).

Can I install the appliance in an unheated garage?

The climate class is N/ST, meaning it works correctly between 16°C and 38°C. Below 10°C, the refrigerator may no longer cool properly.

How to clean the interior of the refrigerator?

Unplug the appliance, remove the food and shelves. Wash the surfaces with warm water and a mild detergent. Rinse and dry thoroughly. Do not use abrasive products.

Is the door reversible?

Yes, the door opening direction can be reversed. Follow the instructions in the manual: remove the hinge, take off the door, and reattach the hinge on the other side.

How much food can I store?

The net capacity is about 50 litres, which can store groceries for a single person or a modest couple. The freezer compartment is suitable for a few ice cubes or frozen foods.

What to do in case of a power outage?

Do not open the door unnecessarily. Food stays cold for about 4 to 6 hours. If the outage lasts longer, check the condition of the food and consume perishables quickly.

Where can I find spare parts for this refrigerator?

Contact Klarstein after-sales service or an authorized dealer. You can also search for parts on specialized sites like Spareka or Adepem.

USER MANUAL KS50-A Klarstein

KLARSTEIN

www.klarstein.com

INHALTSVERZEICHNIS

Technische Daten 3

TÜRANSCHLAG DREHEN

Diagram showing two vertical metal components with holes and a rightward arrow indicating transformation (no text or symbols)

Hinweise:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Großbritannien

Produktdatenblatt

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861771

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Deutschland

https://eprel.ec.europa.eu/qr/1861771

Website:

Website: https://www.elektronik-star.de/lnfo/Impressum/

Phone: [phone]

Produktdatenblatt

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861773

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Deutschland

https://eprel.ec.europa.eu/qr/1861773

Website:

Website: https://www.elektronik-star.de/Info/Impressum/

Phone: [phone]

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Technical Data 27

Safety Instructions 28

Device Overview 31

Installation and setup 32

Reverse Door 34

Operation 36

Care and Maintenance 39

Troubleshooting 41

Disposal Considerations 42

Manufacturer & importer (UK) 42

TECHNICAL DATA

Article number 100459	28/10045929
Power supply 220-240	V - 50 Hz
Volume 46 L

SAFETY INSTRUCTIONS

Advice for the safety of children and vulnerable people

• This device can be used by children aged from 8 years and above and people with limited physical, sensory or mental abilities or a lack of experience and knowledge only if they are supervised during use or have received instruction in the safe use of the device and understand the hazards involved.
  • Children aged 3 to 8 may fill refrigerators with food and remove food.
• Make sure that children do not play with the device.
• Cleaning and maintenance of the device may be carried out by children only if they are at least 8 years old and are supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When disposing of the appliance, unplug it from the mains outlet, cut off the power cord and remove the door. This prevents playing children from injuring themselves on the device, being hit or locking themselves in it.
• If this appliance is replacing an older appliance with a spring lock and latch on the door or lid, render the spring lock and latch unusable before discarding the old appliance. This prevents children from locking themselves in and suffocating.

General Instructions

• Keep ventilation openings in the device housing or in the built-in closet free of obstacles.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use other electrical devices, such as ice machines, inside refrigerators unless approved for this purpose by the manufacturer.
• If there is a light bulb in the device, do not touch it. If left on for a long period of time, it can become very hot. The light bulb supplied with this device is a special lamp that must only be used with the supplied device. This bulb is not suitable for household lighting. Do not use the device without the light bulb.
• When setting up the device, make sure that the power cord is not pinched or damaged.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• During the transportation and installation of the unit, be careful not to damage any refrigerant cycle components.
• Avoid open flames and sources of ignition in the vicinity of the device.
• Ventilate the room in which the device is located thoroughly and regularly.
• It is dangerous to modify this product in any way. Any damage to the cord can cause a short circuit, fire, or electric shock.

• All electrical components such as the plug, power cord and compressor may only be replaced by a certified service centre or by qualified service personnel.

• The power cord must not be extended.

• Make sure that the mains plug is not crushed or damaged. A crushed or damaged mains plug can overheat and cause a fire.
• Make sure that you can access the mains plug of the device at all times.
• Do not pull on the mains cord.
• If the outlet is loose, do not insert the power cord. There is a risk of electric shock or fire.
• This refrigerator appliance requires a standard 220–240 V AC, 50 Hz electrical outlet with grounding.
• This unit is heavy. Be careful when moving it.
• Do not touch the freezer compartment when your hands are damp or wet as this may cause abrasions or cold burns.
• Do not place the device in direct sunlight.

• This appliance is intended for use in households and similar environments. These include:

• Staff kitchens in shops, offices and other work environments

• Farms, hotels, motels and other residential establishments
• Guest houses that offer breakfast (Bed & Breakfasts)
• Catering and similar non-retail applications

This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

Instructions for daily use

• Do not put hot food in the appliance.
• Do not place food directly against the back wall.
• Frozen food must not be refrozen after it has been thawed.
• Store packaged frozen foods according to the frozen food manufacturer's instructions.
• Do not place fizzy drinks in the freezer compartment as the pressure generated could cause them to explode and damage the appliance.
• Open the door as infrequently as possible.
• Do not leave the door open too long.
• Do not set the thermostat too low.
• To reduce energy consumption, leave all accessories such as drawers, shelves or trays in the appliance.

Notes on cleaning and maintenance

• Before cleaning or servicing the appliance, switch it off and disconnect the power cord from the wall socket.
• Do not clean the device with metal objects. Do not use sharp objects to remove the frost from the device. Use a plastic scraper.
• All electrical work required to service the unit should be performed by a qualified electrician or competent person.

WARNING

When using, during maintenance and when disposing of the device, pay attention to the left symbol located on the back or on the compressor of the device. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Climate Range

The information about the climate range of the appliance is provided on the rating plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

SN Low This cooling unit is designed for use at ambient temperatures from 10 °C to 32 °C.

N Moderate This cooling unit is designed for use at ambient temperatures from 16 °C to 32 °C.

ST Subtropical This cooling unit is designed for use at ambient temperatures from 16 °C to 38 °C.

T Tropical This cooling unit is designed for use at ambient temperatures from 16 °C to 43 °C.

Note: Given the limit values of the ambient temperature range for the climate classes for which the refrigerating appliance is designed and the fact that the internal temperatures could be affected by such factors as location of the refrigerating appliance, ambient temperature and the frequency of door opening, the setting of any temperature control device might have to be varied to allow for these factors, if appropriate.

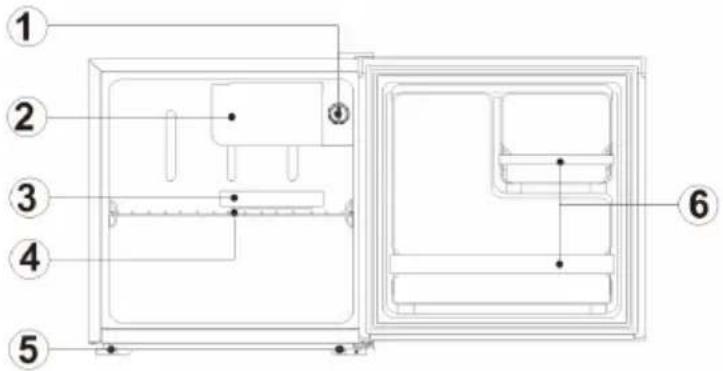

DEVICE OVERVIEW

Article: 10045928; 10045929

No. Description

1 Thermostat Knob

2 Chill door

3 Drip tray

4 Shelf

5 Adjustable front feet

6 Plastic retaining

INSTALLATION AND SETUP

Before first use

- When choosing a location for your fridge/freezer, make sure that the floor is level and firm and that the room is well ventilated.

- Avoid placing the fridge near a heat source such as a cooker, boiler or radiator.

- Avoid placing the fridge in an outbuilding or solarium where it will be exposed to direct sunlight.

- If you place your fridge in an outbuilding such as a garage or annexe, make sure that the fridge is placed above the damp course, otherwise condensation will form on the fridge cabinet.

- The refrigerator gives off heat to the environment when it is in operation. Therefore, there should be at least 30 mm of free space on the top, more than 100 mm on both sides and more than 50 mm on the back of the refrigerator.

- Cleaning before use: Wipe the inside of the fridge with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the fridge. The external parts of the fridge can be cleaned with wax polish. Electric parts of the refrigerator can only be wiped by dry cloth.

- Check that you have a socket which is compatible with the plug supplied with the fridge before plugging in.

- Do not switch on until four hours after moving the fridge. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

- Before storing foods in your fridge, turn the fridge on and wait for 24 hours, to make sure it is working properly and to allow the fridge to fail to the correct temperature.

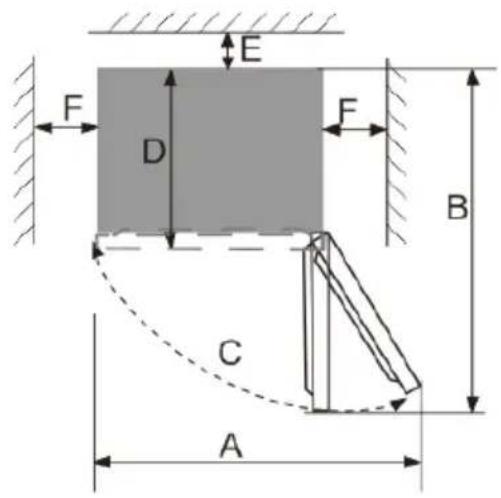

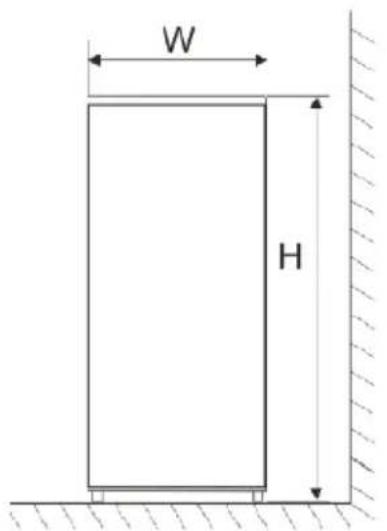

Dimensions in mm

W D H A	B °C E F
470 447	496 800 874	130±5 50	100

Fig. 1

Fig. 2
Note: Figures 1 and 2 are for reference only.

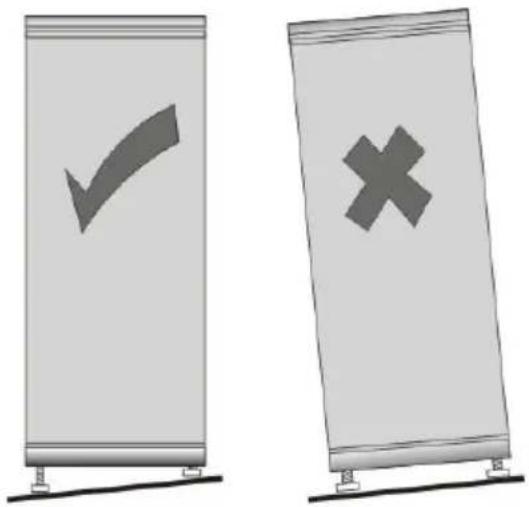

Levelling the fridge

If the Fridge is not level, the door and magnetic seal alignment will be affected and may cause you Fridge to work incorrectly. Once the Fridge is placed in its final location, adjust the leveling feet at the front by turning them.

REVERSE DOOR

1. Make sure that your refrigerator is unplugged.

2. Remove the hinge cover and top hinge from the top right side of the cabinet. Remove the screw hole cover from the top left of the cabinet.

1. Remove the refrigerator compartment door from the cabinet.

2. Remove the screws that secure the lower hinge of the right side of the cabinet, then remove the hinge. Remove the adjustable foot that the left.

1. Remove the adjustable foot on the lower hinge shaft, and remove the washer and nut.

1. Turn the lower hinge by 180^ .

Two identical mechanical components with circular holes and a black dot at the base, connected by an arrow (no text or symbols)

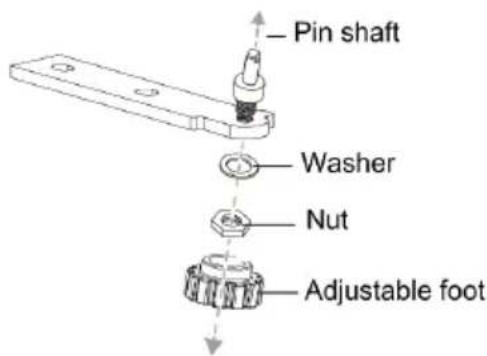

1. Fit the washer and nut into the hole on the pin shaft, then fit the adjustable foot.

8. Install the lower hinge on the left side of the cabinet. Install the adjustable foot at the right.
9. Remove the screw securing the door stop to the bottom right of the refrigerator compartment door, then remove the door stop and fit it to the bottom left.
10. Install the refrigerator compartment door.
11. Move the door bushing from the top right of the fridge door to the top left of the door. And move the left hole cover to the right side.
12. Secure the top hinge to the top left of the cabinet using the three screws you removed earlier. Before tightening the upper hinge screws, make sure that the top of the door is level with the cabinet and that the rubber seal provides a good seal.

OPERATION

Temperature Control

The temperature of the appliance can be adjusted by turning the thermostat dial.

The thermostat can be set between 1 and 7.

• 1 is the warmest setting.
- 7 is the coldest setting.
- Set the dial to OFF to turn off the cooling function.
- Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 4.

- In summer, when the ambient temperature is high, it is recommended to set the temperature to 3–4 to maintain the refrigerator and freezer temperatures and reduce the continuous running time of the refrigerator; in winter, when the ambient temperature is low, it is recommended to set the temperature to 5–6 to avoid frequent start/stop of the refrigerator.

Notes: The temperatures may vary due to compressor cycles and outside conditions.

First operation

• Plug in the device and turn the thermostat knob to the position „4“.
• Open the door 30 minutes later and if the temperature inside the fridge has dropped significantly, it shows that the fridge system is working well. If the fridge has been running for a while, the temperature regulator will automatically adjust the temperature after the door is opened.

Storage of food

• Cooked food can be placed in the fridge to keep fresh after it has cooled to room temperature. Egg and bottle trays for eggs, butter, milk and bottled drinks, etc. are included.
• Food should be stored in adequate space rather than too close together.
• Food to be stored should be wrapped in clean plastic film or fresh food paper and then spread over several frames to avoid contamination and loss of water and odour mixture.
• Cool hot food to room temperature before storing, otherwise electricity consumption will increase and frost will form inside.
• Cooked meats should always be stored on a shelf above raw meats to avoid cross-contamination. Keep raw meats or fish on a plate large enough to

collect juices and cover with cling film or foil.

• Leave space around food to allow cold air to circulate around the fridge, ensuring all parts of the fridge are kept cool. To prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.
• Allow pre-cooked food to cool before putting it in the fridge. This will help prevent the internal temperature of the fridge from rising.
• To prevent cold air escaping, try to limit the number of times you open the door. When you return from shopping, sort the food you want to keep in your fridge before opening the door. Only open the door to put food in or take food out.

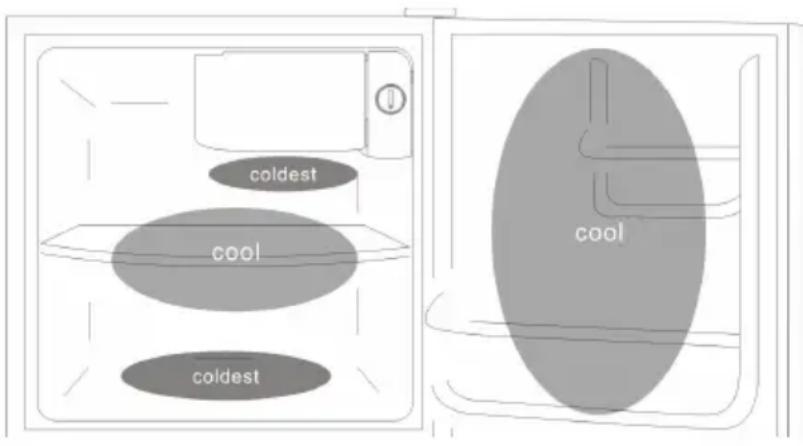

Storage locations

Cool area

This is the place to store foods that will keep for longer if they are kept in a cool place:

- Milk, eggs, yoghurt, fruit juices, hard cheeses such as cheddar, opened jars and bottles of salad dressings, sauces and jams, fats such as butter, margarine, low-fat spreads, cooking fats and lard.

Coldest area

This is where food that needs to be kept cold to be safe should be stored:

- Raw and uncooked foods should always be wrapped. Pre-cooked chilled foods, e.g. ready meals, meat pies, soft cheeses.

• Pre-cooked meat, e.g. ham
- Prepared salads (including pre-packaged mixed green salads, rice, potato salad, etc.)
- Desserts, e.g. fromage frais, home-made dishes and leftovers or cream cakes.

Notes:

• Always wrap and store raw meat, poultry and fish on the bottom shelf.
- Do not leave food out for too long. This will prevent it from dripping onto or touching other food.

• Do not store flammable gases or liquids in the fridge.
• For recommended food storage time, refer to the information given on your food packaging.

Advice on how to save energy

• Place the refrigerator in the coolest part of the room, out of direct sunlight and away from heating ducts or registers. Do not place the refrigerator near heat-generating appliances such as a cooker, oven or dishwasher.
• Do not leave the door open for longer than necessary, and do not place hot food inside the refrigerator.
• Organise the fridge to reduce the number of door openings. Take out as many items as you need at one time and close the door as soon as possible.
• Close the refrigerator door properly to avoid increased energy consumption and the formation of excess ice and/or condensation inside.
• Constant circulation of cold air maintains a uniform temperature inside the refrigerator. For this reason, it is important to distribute the food properly to facilitate the flow of air.
• Cover food and wipe containers dry before placing them in the fridge. This will reduce the build-up of moisture inside the appliance.
• During long absences (e.g. holidays), it is advisable to unplug the refrigerator, remove all the food and clean it. The door should be left slightly open to prevent mould and unpleasant odours. This will not affect the refrigerator when it is reconnected.
• During short absences (e.g. holidays), the refrigerator can be left on. However, remember that there may be longer power cuts while you are away.

CARE AND MAINTENANCE

Cleaning the unit inside

• Defrost the appliance.
- Clean the inside of the fridge with a weak solution of bicarbonate of soda.
- Rinse with warm water using a damp sponge or cloth and wipe dry.
- Wash the baskets in warm, soapy water and ensure they are completely dry before returning them to the fridge.

Cleaning the unit outside

• Use a standard non-abrasive detergent diluted in warm water to clean the outside of the fridge.
• The condenser grille at the back of the fridge and adjacent components can be vacuumed using a soft brush attachment.
• Do not use abrasive cleaners, scouring pads or solvents to clean any part of the fridge.

Location

- Do not place your fridge near a heat source such as a cooker, boiler or radiator. Also avoid direct sunlight in outbuildings or conservatories.

Levelling the fridge

• Make sure the fridge is level.
- Use the swivel levelling feet on the front.
- If the fridge is not level, the alignment of the doors and magnetic seals will be affected and your fridge may not function properly.
- Do not switch on the fridge for 4 hours after moving it to a new location. This will allow time for the coolant to settle.
- Don't cover or block the appliance's vents or grilles.

Vacation time

• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all the food and clean the fridge.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
• Exercise extreme caution around children. The unit should not be accessible to children.
• Leave the fridge running for holidays of less than three weeks.
• If the appliance is not to be used for several months, remove all food and unplug the power cord. Thoroughly clean and dry the interior. To prevent odours and mould growth, leave the door slightly ajar: if necessary, block it or have the door removed.

Servicing

• This product should be serviced by an authorized engineer and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself.
• Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was made.
• If the appliance is not to be used for a long period, unplug the appliance, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant odours.
• If you need change the knob, please set to the position "off". The knob can be easily disassembled.

Changing the lamp

• The LED lamp is used by the refrigerator for lighting, which features low power consumption and long service life.
• In case of any abnormality, please contact after-sales personnel for service visit.
• The LED lamps should only be replaced by after-sales personnel.
• Lamp type: Inside light.

TROUBLESHOOTING

Problem Possible cause and solution
The appliance is not working	It is not plugged in. Re-plug.
	Breakers or fuses could be blown. Open the door and check whether the lamp is lit.
	No electricity or power failure. Check whether there is a power or mains failure.
	Check if the refrigerator is installed in a place like balconies, garages, storage rooms or other places, where the ambient temperature is below 10 °C. Install the refrigerator in a sheltered place where the ambient temperature is above 10°C. If the refrigerator is installed in a place where the temperature is too low, the internal cooling system may not function properly.
Abnormal noise	The device is not level. Adjust refrigerator's adjustable feet.
	The refrigerator touches the wall. Place it away from the wall.
Poor refrigerating efficiency	Hot food or too much food placed in the fridge. Only put food in the fridge when it has cooled down.
	The door is opened too often. Do not open the door more often than necessary.
	A food clip is stuck in the seal of the door. Remove the clip and close the door.
	The fridge is placed in direct sunlight or near a furnace or stove. Remove the refrigerator from the heatsource.
	Check whether the fridge is well ventilated. Increase the distance to ensure sufficient ventilation
	Check whether the temperature setting is too high. Set the appropriate temperature.
Peculiar smell inside	Check if soiled food is inside the refrigerator. Throw away spoiled food.
	Check if you need to clean the refrigerator. Clean the refrigerator.
	Strong-smelling food was not packaged. Pack strong-smelling foods.

If the above descriptions are inapplicable to troubleshooting, do not disassemble and repair it yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. This product should be serviced by an authorized engineer and only genuine spare parts should be used.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE
Model identifier: 10045928
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No		Other refrigerating appli-ance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 496
	Width 470		Total volume (dm3 or l) 46
	Depth 447
EEI 100 Energy efficiency class		E
Airborne acoustical noise emis-sions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		80	Climate class:	temperate, subtropi-cal
Minimum ambient tempera-ture (oC), for which the refrigerating appliance is suitable		16	Maximum ambient tem-perature (oC), for which the refrigerating appliance is suitable	38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol-ume (dm3 or l)	Recommended temperature setting for opti-mised food storage (oC) These set-tings shall not con-tradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-

Page 1/2

Wine storage No - - - -
Cellar No - - - -
Fresh food Yes 46,0 4 - M
Chill No - - - -
0-star or ice-making No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - - -
Variable temperature compartment	- - - - -

Light source parameters:

Type of light source	-
Energy efficiency class	-

Minimum duration of the guarantee offered by the manufacturer: 24 months

Additional information:

Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861771

https://eprel.ec.europa.eu/qr/1861771

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179 berlin

Germany

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances

Supplier's name or trade mark: Klarstein

Supplier's address: Customer service, Wallstraße 16, 10179 berlin, DE

Model identifier: 10045929

Type of refrigerating appliance:

Low-noise appliance: No Design type: freestanding

Wine storage appliance: No

Other refrigerating appli- ance:

Yes

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 496		Total volume (dm3 or l) 46
	Width 470
	Depth 447
EEI 100 Energy efficiency class E
Airborne acoustical noise emissions (dB(A) re 1 pW) 39			Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		80	Climate class:	temperate, subtropical
Minimum ambient temperature (oC), for which the refrigerating appliance is suitable 16			Maximum ambient temperature (oC), for which the refrigerating appliance is suitable	38
Winter setting No

Compartment Parameters:

Compartment parameters and values

Compartment type	Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-

Wine storage No ----
Cellar No ----
Fresh food Yes 46,0 4 - M
Chill No ----
0-star or ice-making No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----

Light source parameters:

Type of light source	-
Energy efficiency class	-

Minimum duration of the guarantee offered by the manufacturer: 24 months

Additional information:

Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861773

Supplier: Chal-Tec GmbH (Authorised representative)

https://eprel.ec.europa.eu/qr/1861773

Customer care service:

Website:

Name: Customer service

Website: https://www.elektronik-star.de/Info/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179 berlin

Germany

Estimado cliente:

ÍNDICE

Datos técnicos 47

Núm. Descripción

1 Thermostatregler

2 Kühlfachtür

3 Bandeja de goteo

4 Einlegeboden

5 Verstellbare Vorderfüße

6 Asa de plástico

Diagram showing two vertical metal components with circular holes and a black dot at the base, connected by an arrow (no text or symbols)

Notas:

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Gran Bretaña

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861771

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Alemania

https://eprel.ec.europa.eu/qr/1861771

Website:

Website: https://www.elektronik-star.de/lnfo/Impressum/

Phone: [phone]

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861773

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Alemania

https://eprel.ec.europa.eu/qr/1861773

Website:

Website: https://www.elektronik-star.de/lnfo/Impressum/

Phone: [phone]

Cher client, chère cliente,

SOMMAIRE

Fiche technique 71

CHANGEMENT DU SENS DE FERMETURE

Diagram showing two identical mechanical components with holes and a central shaft, connected by an arrow indicating transformation (no text or symbols present)

Remarques :

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

Grande-Bretagne

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861771

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Allemagne

https://eprel.ec.europa.eu/qr/1861771

Website:

Website: https://www.elektronik-star.de/Info/Impressum/

Phone: [phone]

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861773

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Allemagne

https://eprel.ec.europa.eu/qr/1861773

Website:

Website: https://www.elektronik-star.de/lnfo/Impressum/

Phone: [phone]

Gentile cliente,

INDICE

Dati tecnici 95

CAMBIARE IL VERSO DI APERTURA DELLO SPORTELLO

Two identical mechanical components with circular holes and a central dot, connected by an arrow indicating transformation (no text or symbols)

Nota:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861771

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Germania

https://eprel.ec.europa.eu/qr/1861771

Website:

Website: https://www.elektronik-star.de/Info/Impressum/

Phone: [phone]

Model placed on the Union market from 01/02/2024

EPREL registration number: 1861773

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179 berlin

Germania

https://eprel.ec.europa.eu/qr/1861773

Website:

Website: https://www.elektronik-star.de/lnfo/Impressum/

Phone: [phone]

KLARSTEIN
