WSBWM1-B2 - Speaker SANUS - Free user manual and instructions

USER MANUAL WSBWM1-B2 SANUS

Technical line drawing of a mechanical assembly with mounting bracket and housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

WE'RE HERE TO HELP

If you have any questions along the way, our install experts are standing by to help.

Call us at: US: [phone]

EMEA: [phone]

UK: [phone]

Or, chat at: US: SANUS.com/chatSP

IMPORTANT SAFETY INSTRUCTIONS

READ ENTIRE MANUAL PRIOR TO USE. SAVE THESE INSTRUCTIONS.

Before getting started, let's make sure this product is perfect for you!

▲ CAUTION: To avoid potential personal injuries and property damage:

• Please read through these instructions completely to be sure you're comfortable with this easy install process.
  . This product is designed for use with wood studs, solid concrete and concrete block walls, and drywall only.
  Do not use this product for any purpose not explicitly specified by manufacturer.
  . Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

Weight Limit

DO NOT EXCEED

20 lbs. (9.07 kg)

Tools Needed

Drywall Install

Drill Bit

Wood Stud Install

Drill Bit

Concrete Install

13/32 in. (10 mm) Concrete

DIMENSIONS

WALL PLATE

5.98in [151.8mm] 0.83in [21.1mm] 2.21in [56.1mm] 1.50in [38mm]

7.24in [183.8mm] 2.72in [69.1mm]

SIDE VIEW - EXTENDED

5.65m [143.5mm]

SOUNDBAR INTERFACE

TOP VIEW - RETRACTED

TOP VIEW - EXTENDED

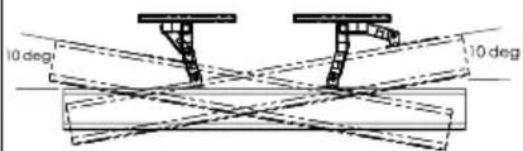

10 deg 10 deg

SIDE VIEW RETRACTED

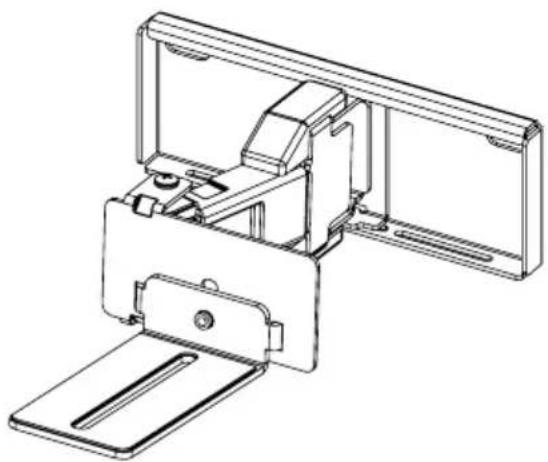

FULLY ASSEMBLED MOUNT

SUPPLIED PARTS AND HARDWARE

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, DO NOT return the damaged item to your dealer; Contact Sanus (See back page).

Never use damaged parts!

NOTE: Not all hardware included in this kit will be used.

Simple line drawing of a rectangular box with four corner slots and two circular cutouts (no text or symbols)

Wall Plate

1 (qty. 2)

08 Screw

2 (qty. 4)

Washer (#8 Screw)

3 (qty. 4)

Fischer Doutec 10

Fischer Doutec 10 Drywall/Concrete Anchor

4 (qty. 4)

Technical line drawing of a mechanical component with mounting holes and housing (no text or symbols)

Left Soundbar Bracket

5 (qty. 1)

Technical line drawing of a mechanical or electrical component with mounting holes and housing (no text or symbols)

Right Soundbar Bracket

6 (qty. 1)

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

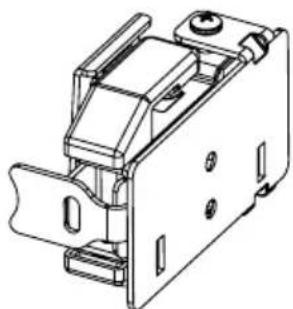

Under Mounting Bracket

7 (qty. 2)

M5 X 8mm Screw

8 (qty. 2)

M4 Screw

9 (qty. 2)

M4 Short Screw

(M4 X 10 mm)

M5 Short Screw

(M5 × 10 mm)

M6 Screw

(M6 X 16 mm)

Soundbar Screws

(Only one size fits your Soundbar)

10 (qty. 2 each)

M4 Long Screw

(M4 X 16 mm)

M5 Long Screw

(M5 X 16 mm)

1/4-20 Screw

Washer

11 (qty. 2)

Spacer

12 (qty. 4)

Short Keyhole Screw

13 (qty. 2)

Long Keyhole Screw

14 (qty. 2)

Keyhole Nut

15 (qty: 2)

1 WIDTH LOCATION

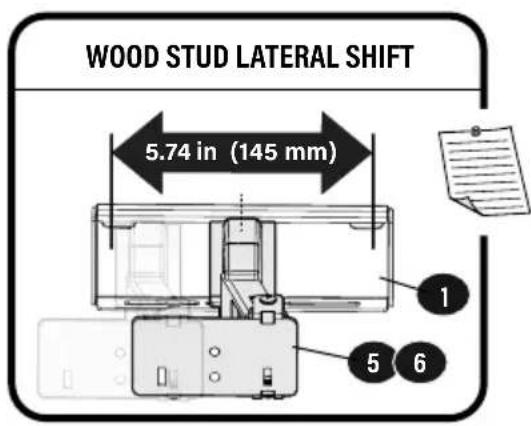

WOOD STUD LATERAL SHIFT 5.74 in (145 mm) 1 5 6

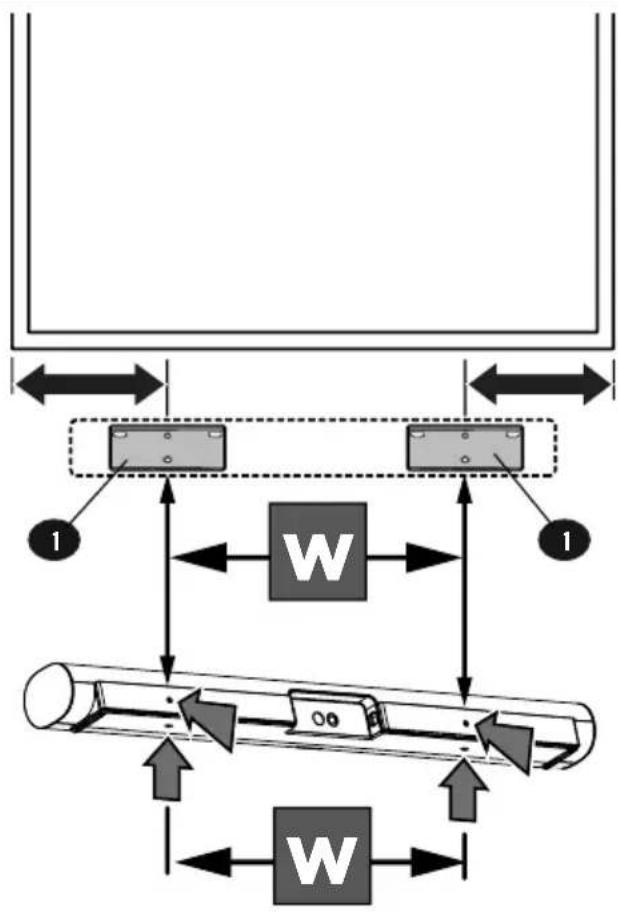

The width W between the center of the wall plates 1 should match the width of the space between the soundbar mounting holes.


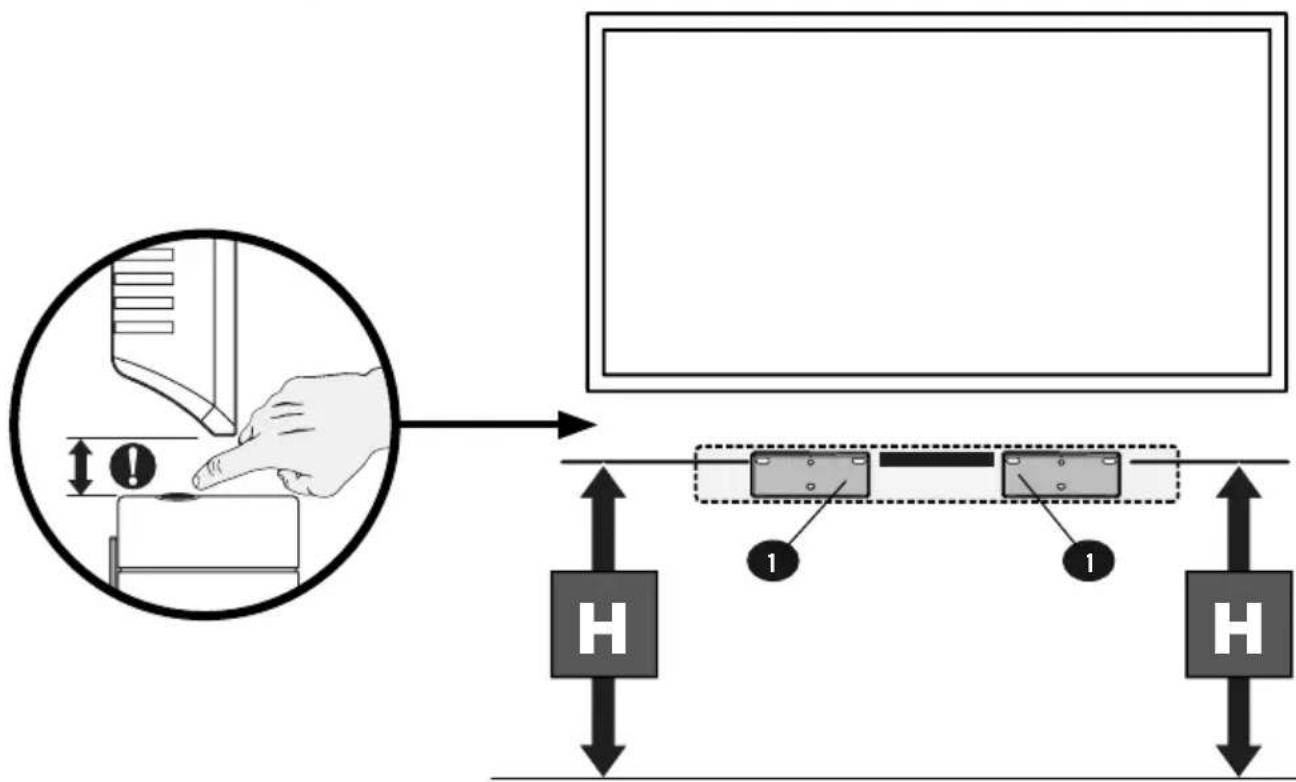

2 HEIGHT LOCATION

Diagram illustrating a hand operating a computer monitor with labeled components and directional arrows indicating movement or control.

IMPORTANT

Wall plates

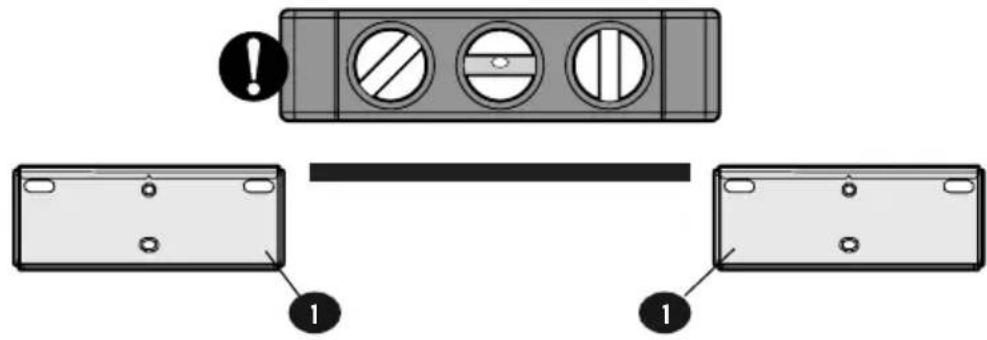

1 MUST be placed at equal heights.

Diagram showing a device panel with warning symbols and labeled parts, including a warning icon and numbered annotations.

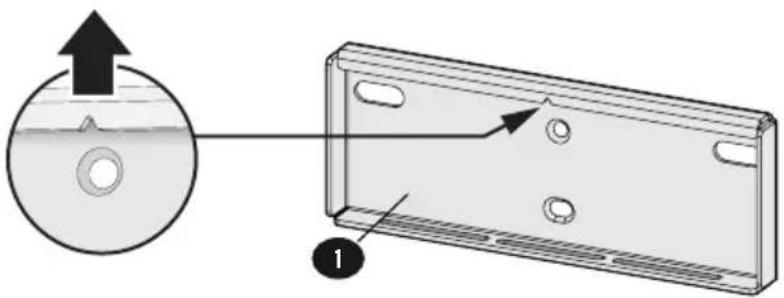

Note the orientation

of Wall plates 1.

Diagram showing a CD or DVD disc with an arrow pointing to a rectangular panel, labeled with number 1.

Use anchors 4

for drywall or concrete only.

DO NOT USE

with wood studs.

Pure mechanical diagram of a lever with a labeled component (no text or symbols)

Follow the step for your wall type:

Simple line drawing of a wooden block with visible grain and texture (no text or symbols)

For WOOD STUD

Go to STEP 2A on PAGE 6

Diagram of a curved road or pipeline segment between two vertical buildings (no text or symbols)

For DRYWALL ONLY, or UNSURE of stud location

Go to STEP 2B on PAGE 7

Simple line drawing of stacked bricks (no text or symbols)

For CONCRETE Block / Solid Concrete

Go to STEP 2C on PAGE 9

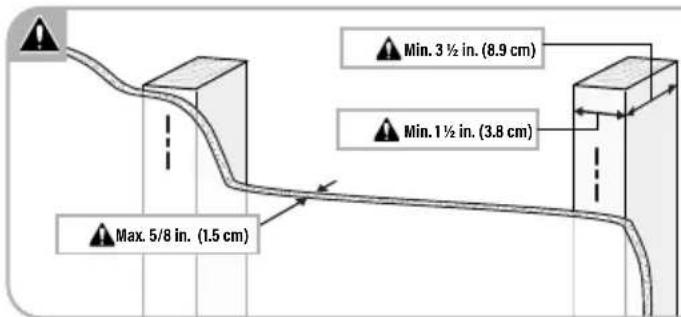

▲ CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall must not exceed 5/8 in. (1.5 cm)
- Minimum wood stud size: nominal 2 x 4 in. (5.1 x 10.2 cm) actual 1 12 x 3 12 in. (3.8 x 8.9 cm)
• Stud centers must be verified

Max. 5/8 in. (1.5 cm) Min. 3 ½ in. (8.9 cm) Min. 1 ½ in. (3.8 cm)

NOTE: This installation is for mounting wall plate to a confirmed wooden stud.

See Step 2B for drywall installation without a confirmed wooden stud.

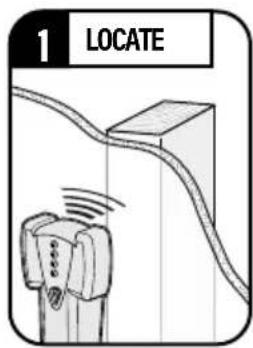

1 LOCATE

2 VERIFY

3 MARK

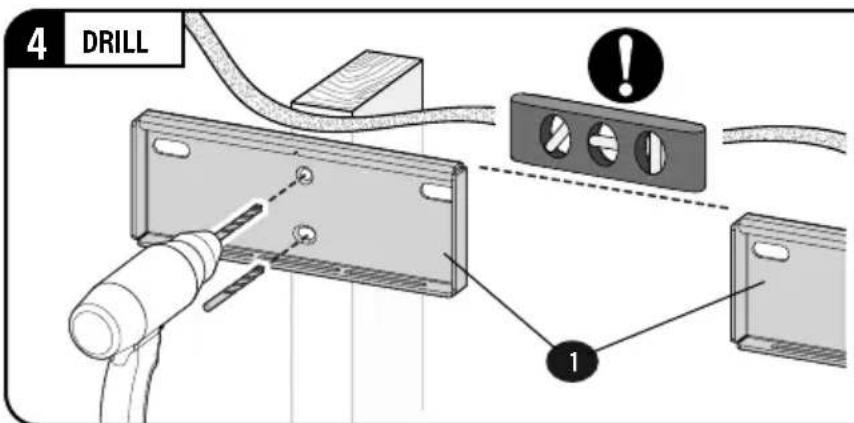

4 DRILL 1

Use wall plates 1 as a guide. Drill 1/8 in. (3 mm) holes to a depth of 2 inches.

2 in. (51 mm) 1/8 in. (3 mm)

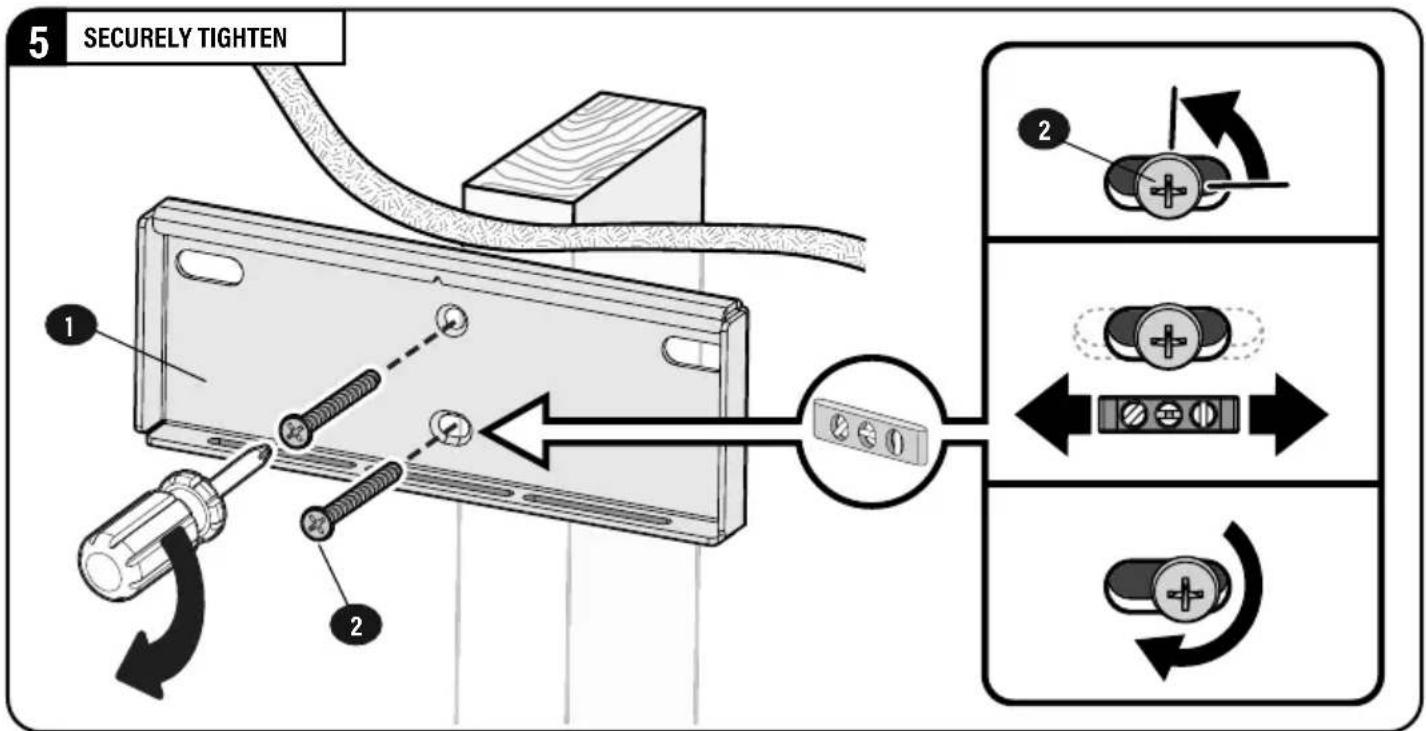

5 SECURELY TIGHTEN 1 2 2

▲ CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall must not exceed 1/2 in. (1.2 cm).

- IMPORTANT: Ensure wall plates 1 are level before drilling.

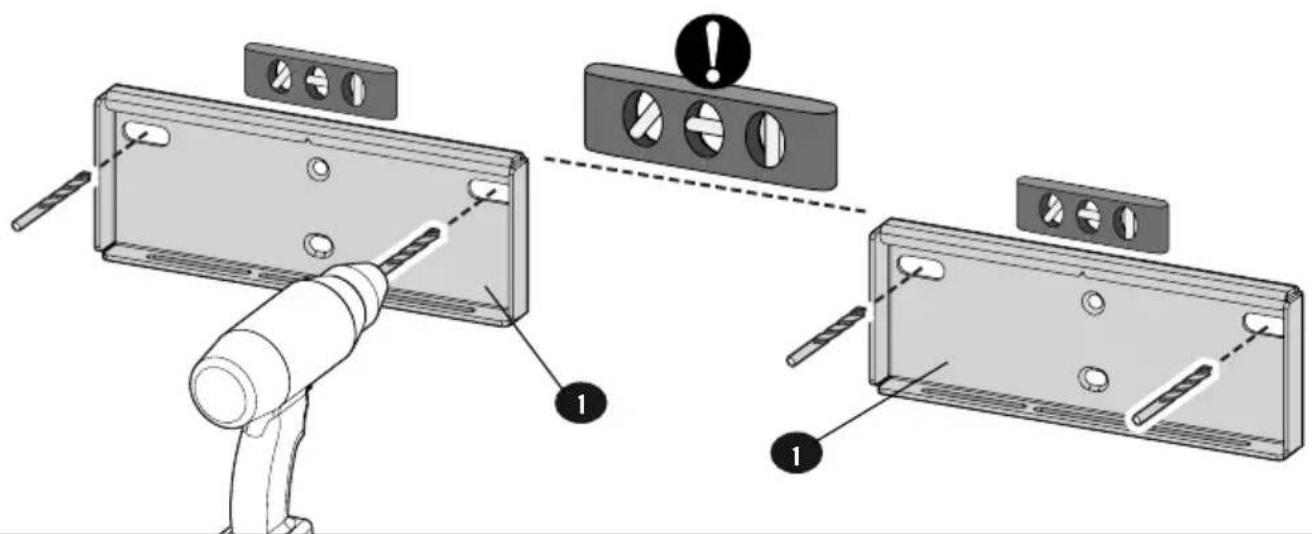

1 DRILL PILOT HOLES

Use wall plates 1 as a guide.

Drill 1/8 in. (3 mm) pilot holes to verify your wall.

Technical diagram showing assembly steps of a device panel with labeled components and warning indicators

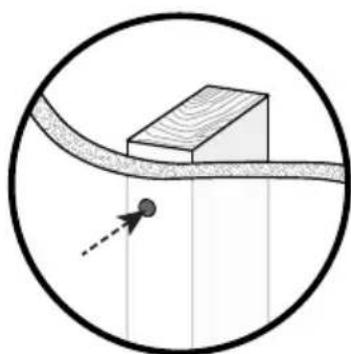

2 VERIFY WALL

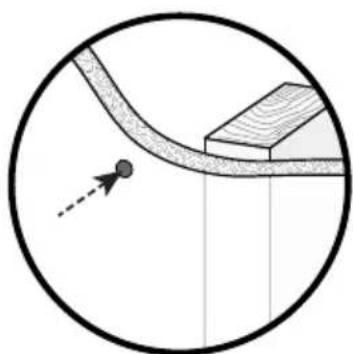

If pilot hole

is located

ON A STUD,

proceed to

Step 5 on PAGE 8.

Simple line drawing of a rectangular block on a curved surface with a dashed arrow pointing to it, enclosed in a circle (no text or symbols)

If pilot hole is located in DRYWALL ONLY,

proceed to

Step 3 below.

Diagram showing a curved pipe with a dashed arrow pointing to a small object, enclosed in a circle (no text or symbols)

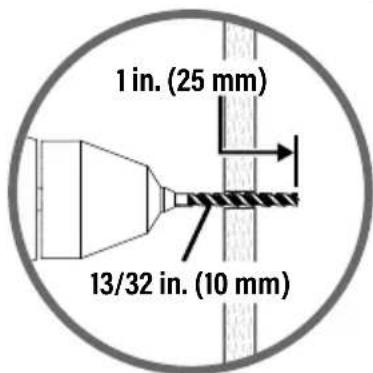

3 DRILL DRYWALL

Drill 13/32 in. (10 mm) holes in pilot holes

located in drywall.

Simple line drawing of a handheld electric drill (no text or symbols)

1 in. (25 mm) 13/32 in. (10 mm)

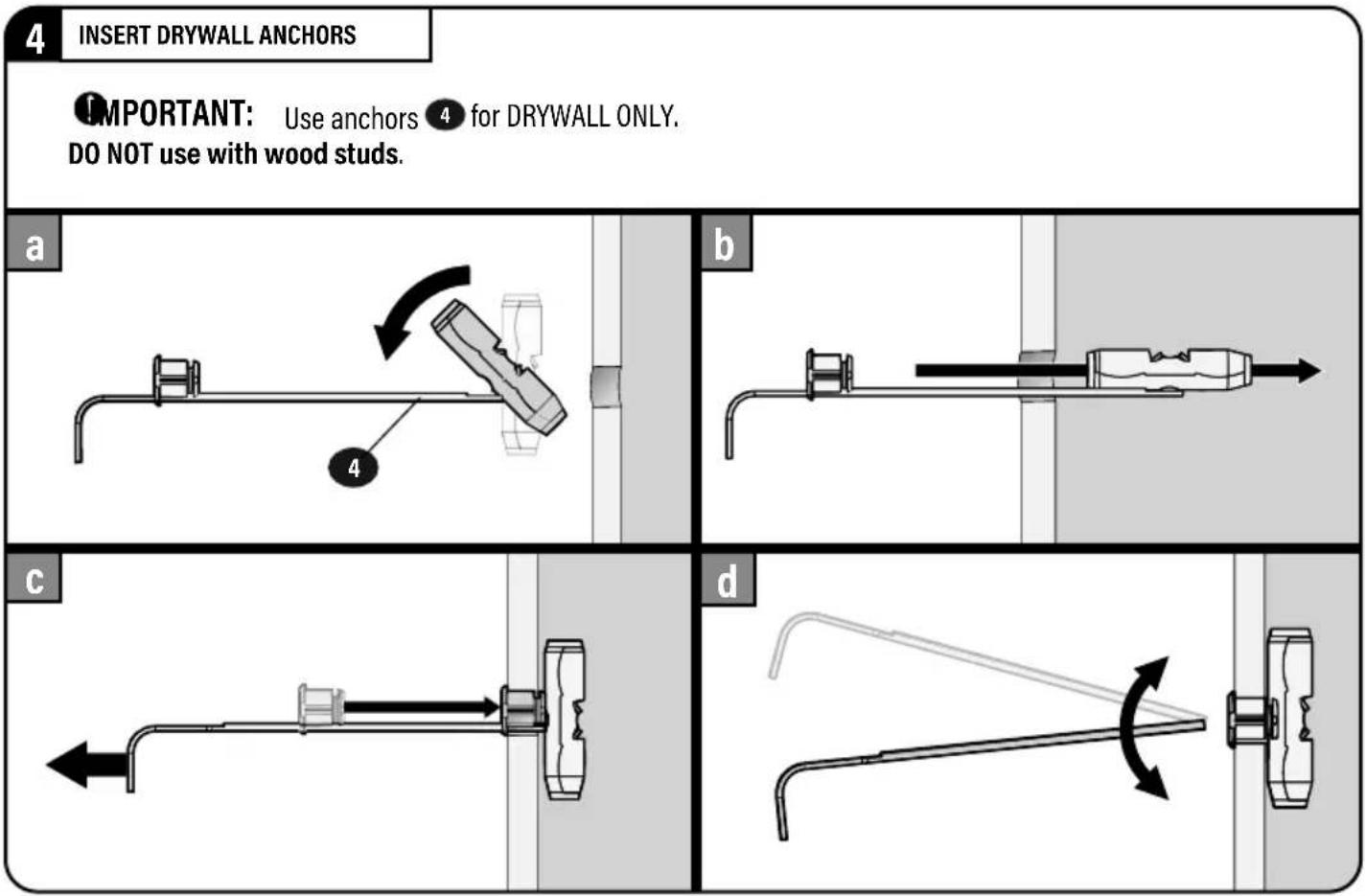

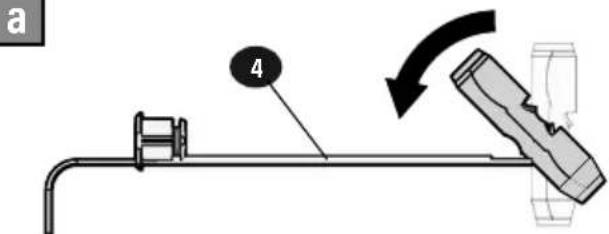

4 INSERT DRYWALL ANCHORS IMPORTANT: Use anchors 4 for DRYWALL ONLY. DO NOT use with wood studs. a b c d

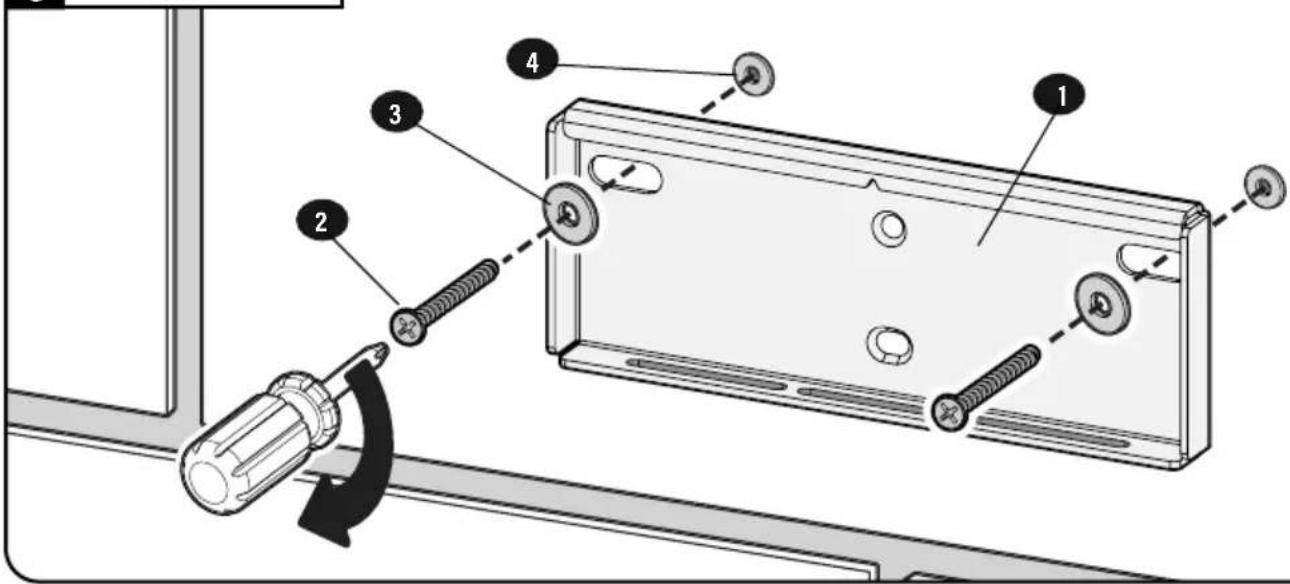

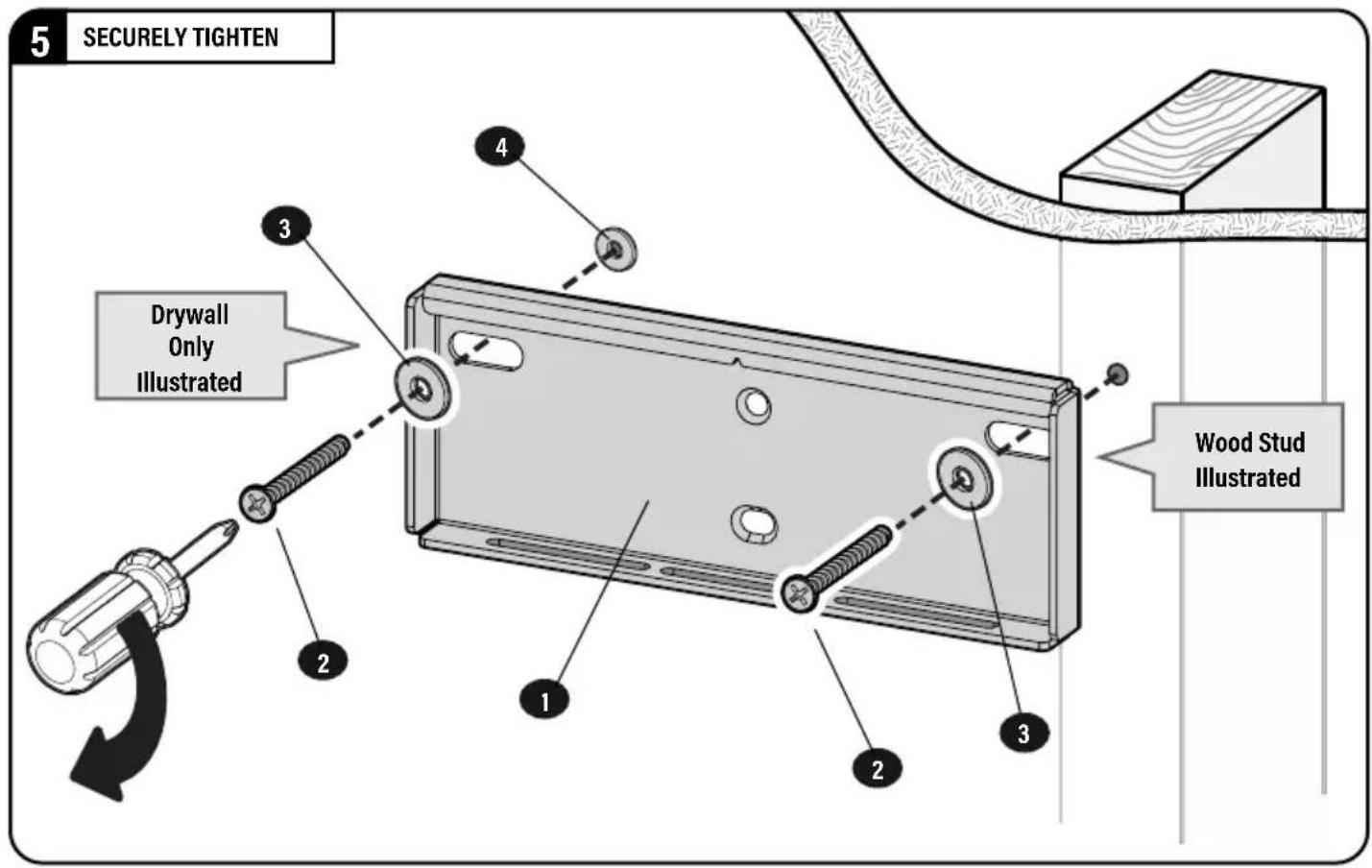

5 SECURELY TIGHTEN Drywall Only Illustrated Wood Stud Illustrated

CAUTION: Avoid

potential personal injury or property damage!

● Minimum solid concrete thickness: 8 in. (20.3 cm)
● Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
IMPORTANT: Ensure wall plates 1 are level before drilling.

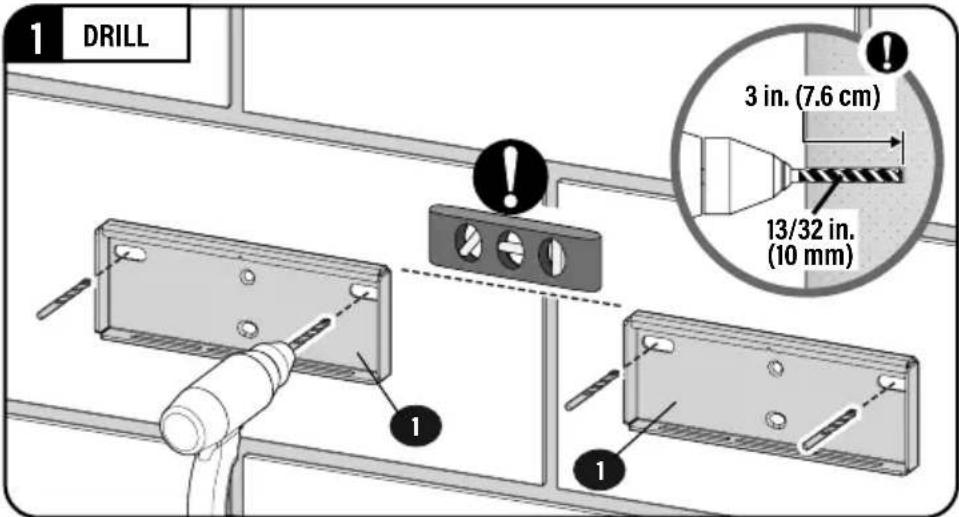

1 DRILL 3 in. (7.6 cm) 13/32 in. (10 mm) 1

2 INSERT CONCRETE ANCHORS

a 4

b

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

d

Diagram showing a mechanical component with rotational motion indicated by arrows (no text or symbols)

3 SECURELY TIGHTEN

Technical diagram showing a mechanical assembly with numbered components and a tool interacting with a component.

STEP 3

ATTACH SOUNDBAR TO SOUNDBAR MOUNTS

Look at the mounting holes on the BACK or BOTTOM of your soundbar to determine your install method 3A, 3B or 3C.

3A, 3B 3C

STEP 3A: (PAGE 10) Back-mount Holes with THREADED INSERTS

STEP 3B: (PAGE 10) Back-mount Holes with KEY HOLE SLOTS

STEP 3C: (PAGE 10) Bottom-mount Holes

3A

BACK-MOUNTED SCREWS

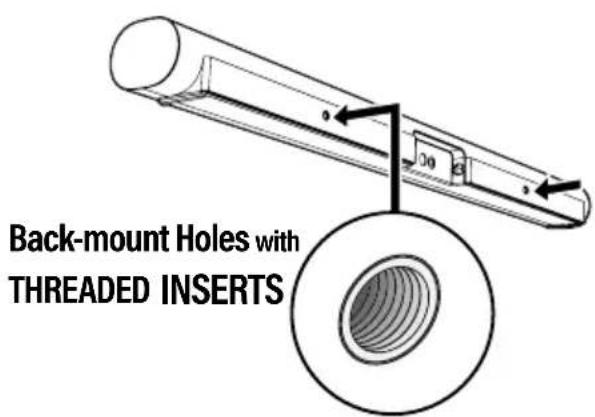

Back-mount Holes with THREADED INSERTS

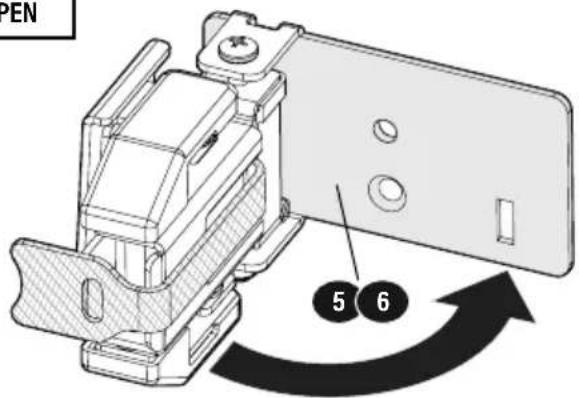

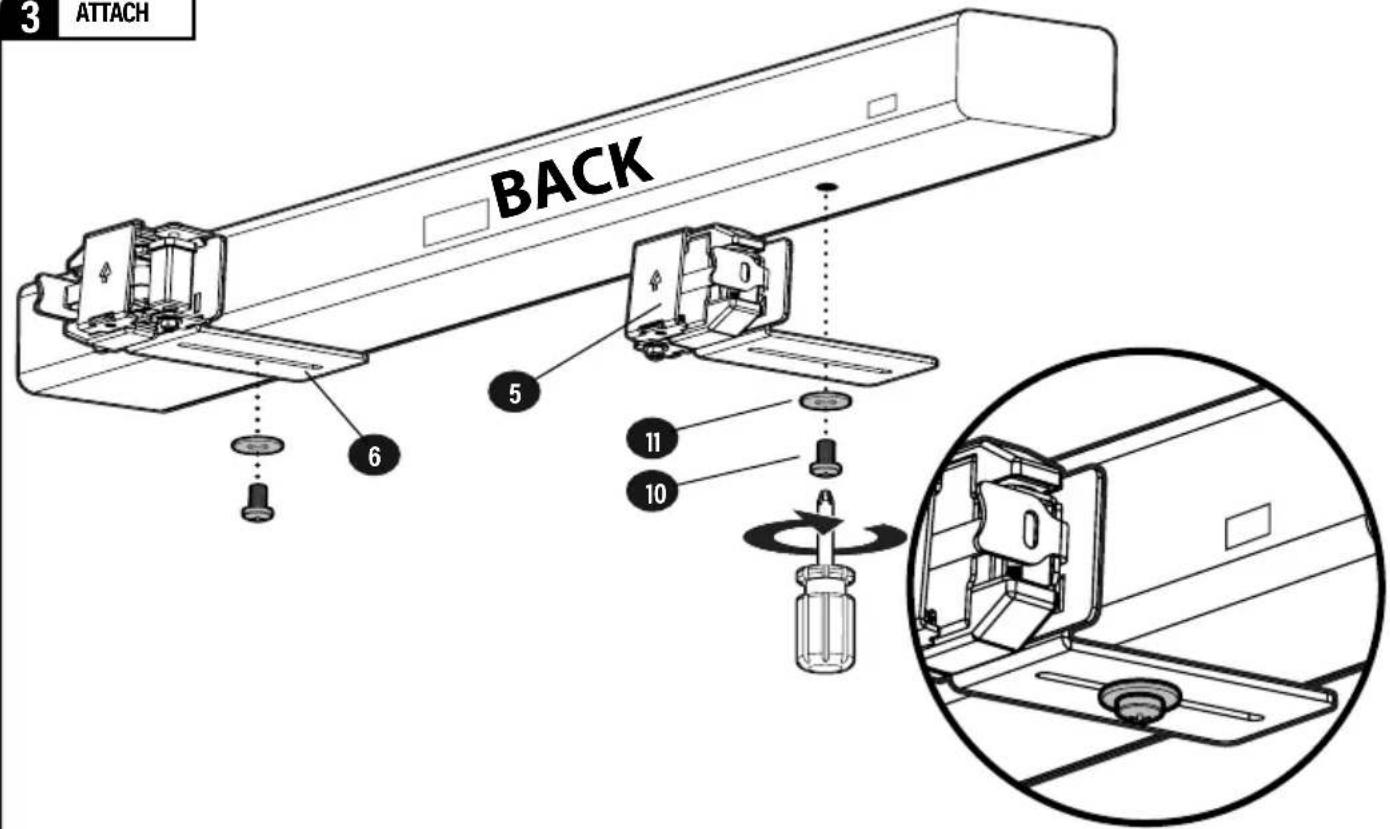

1 OPEN

OPEN 5 6

2

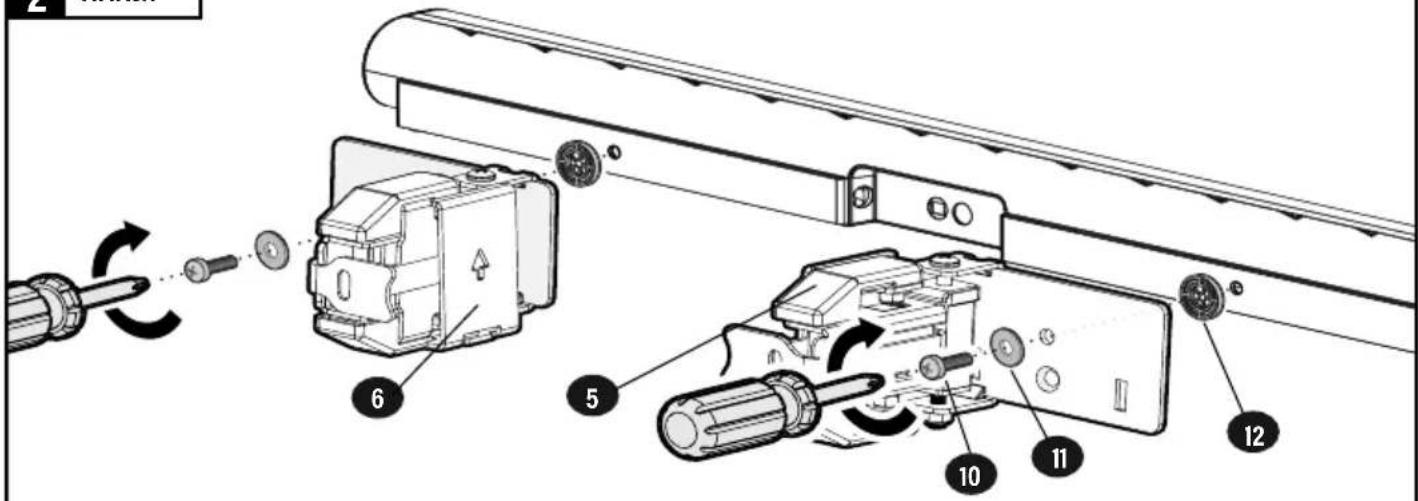

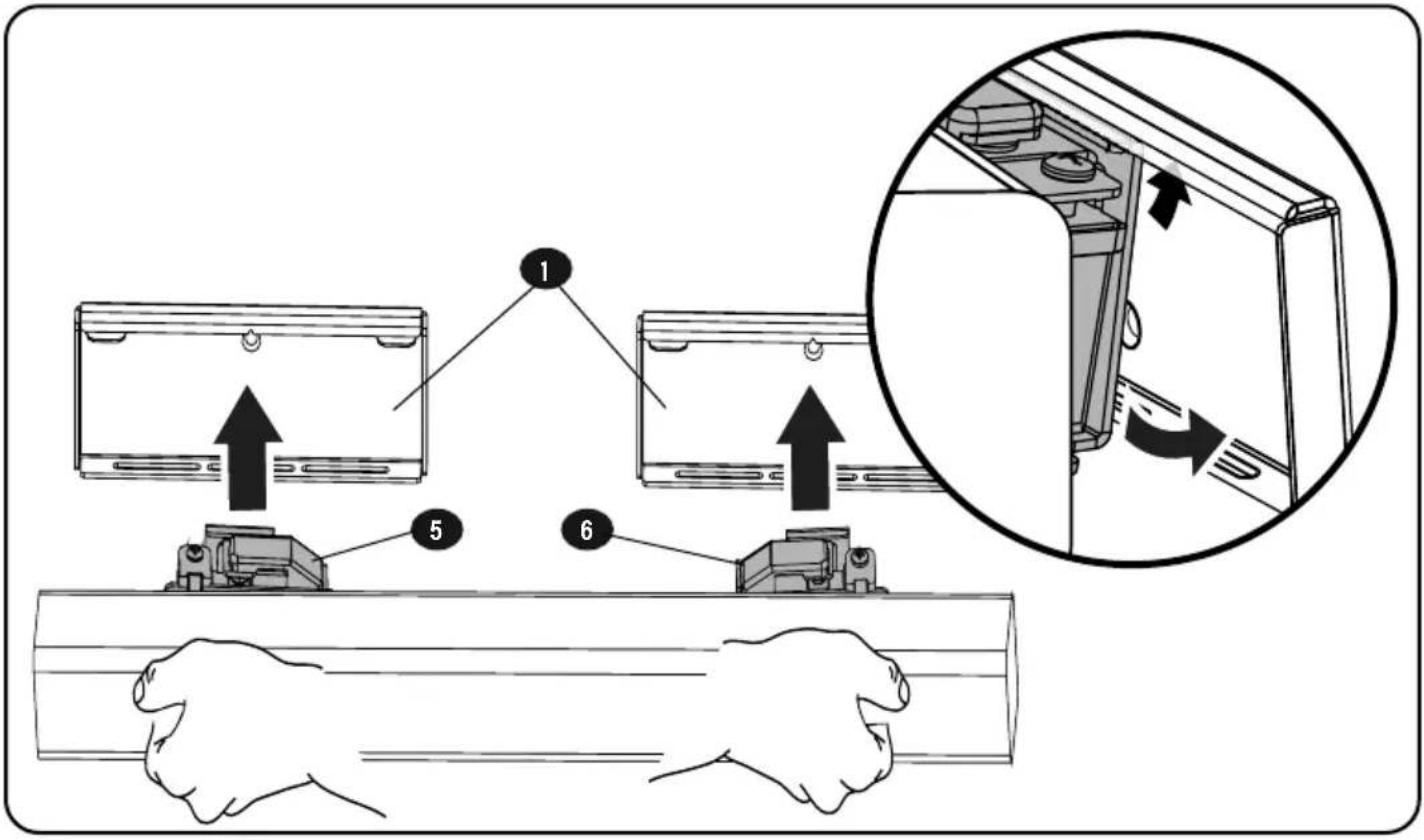

ATTACH

Technical diagram showing exploded view of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

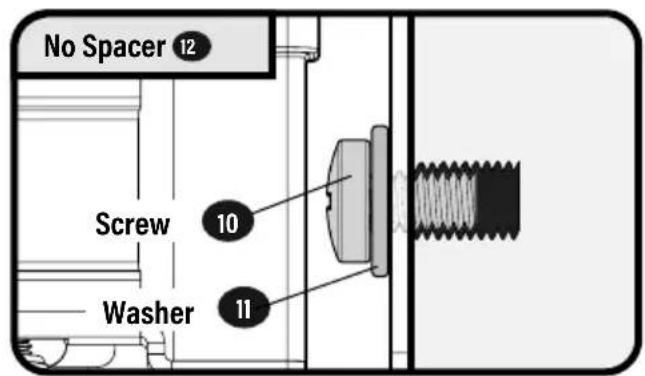

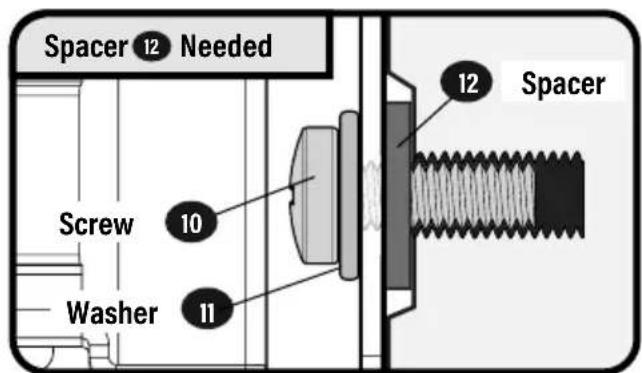

No Spacer 12 Screw 10 Washer 11

Spacer 12 Needed Screw 10 Washer 11 12 Spacer

3B

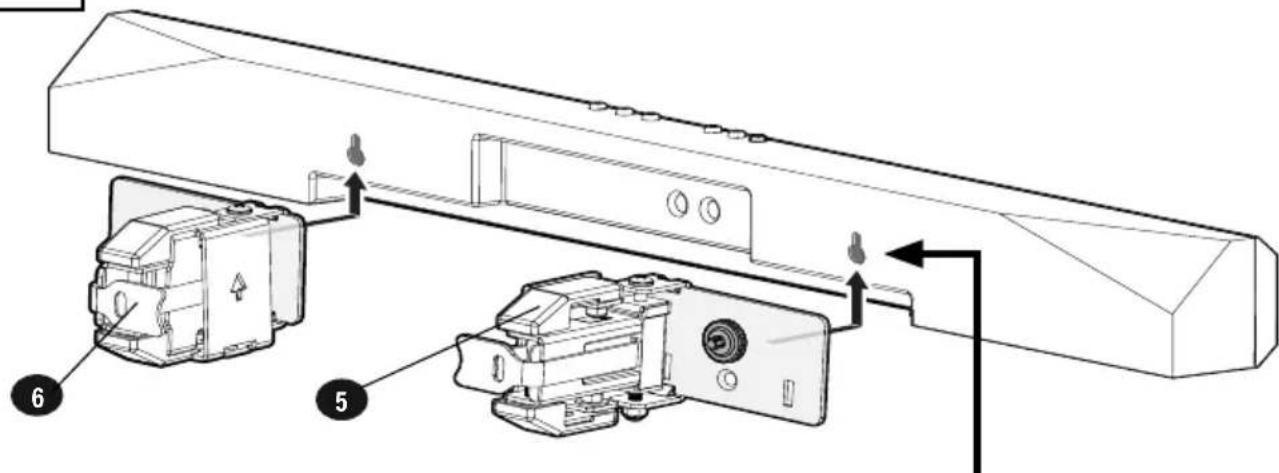

BACK-MOUNTED KEYHOLE SCREWS

Back-mount Holes with KEY HOLE SLOTS

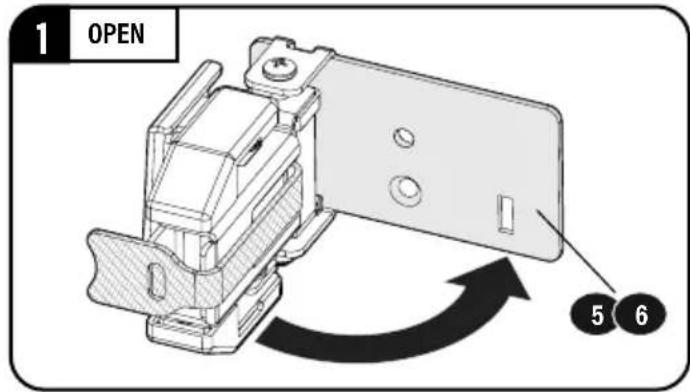

1 OPEN

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating rotation or movement.

2 ASSEMBLE

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

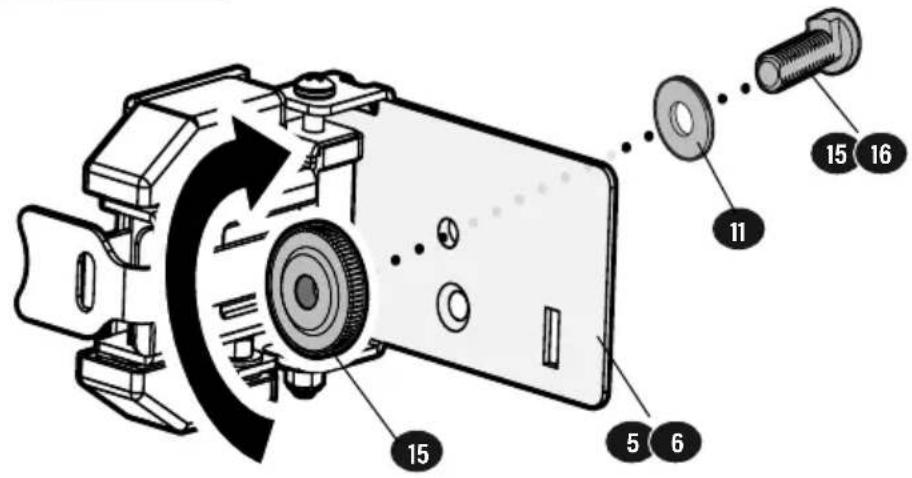

11 15 15 16

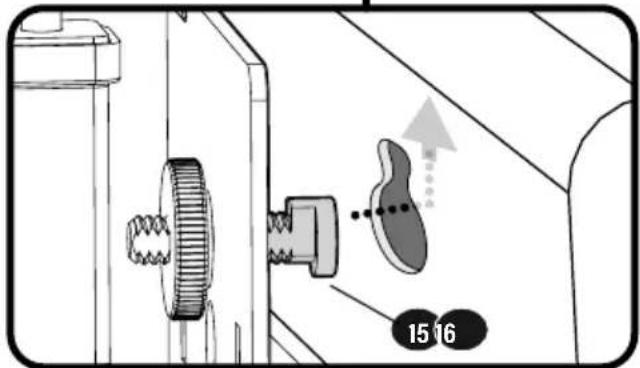

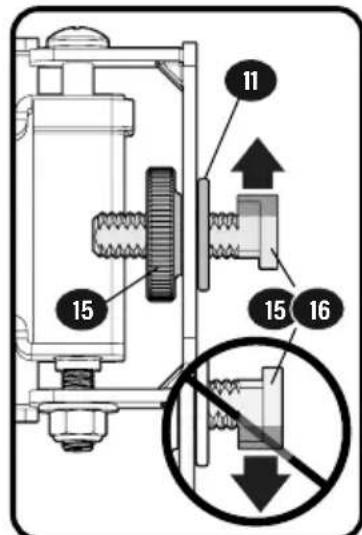

3 ATTACH

Technical diagram showing exploded view of a mechanical assembly with labeled components 5 and 6

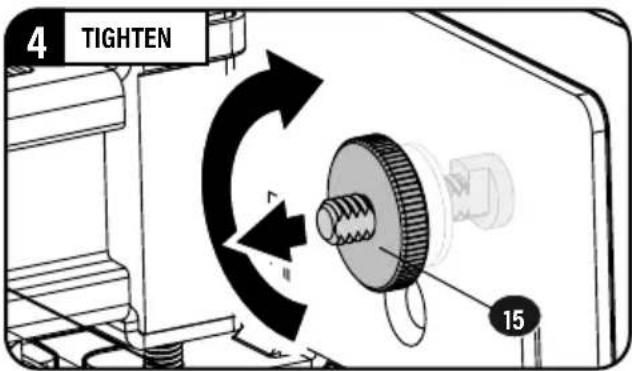

4 TIGHTEN 15

15 16

3C
BOTTOM-MOUNTED SCREWS

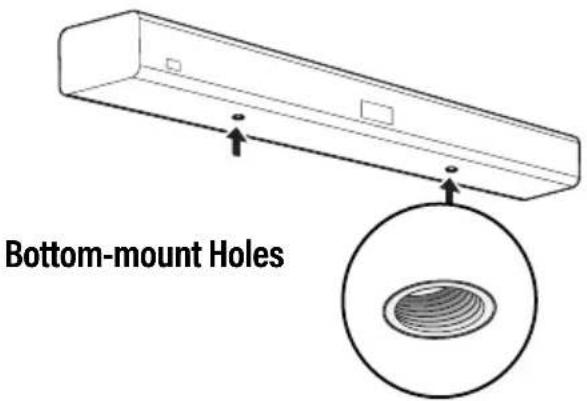

Bottom-mount Holes

1 OPEN 5 6

2 ASSEMBLE

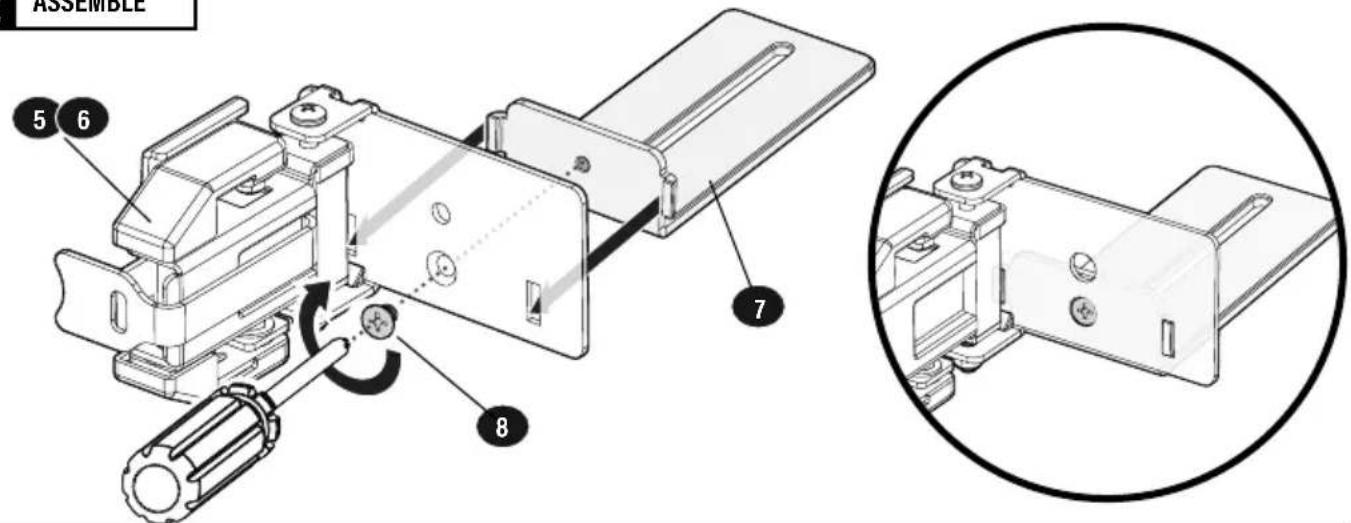

ASSEMBLE 5 6 7 8

3 ATTACH

3 ATTACH BACK 5 6 11 10

Diagram illustrating the process of installing or adjusting a wall-mounted air conditioner panel, with numbered components and an inset showing the internal mechanism.

STEP 5

SECURE SOUNDBAR

IMPORTANT:

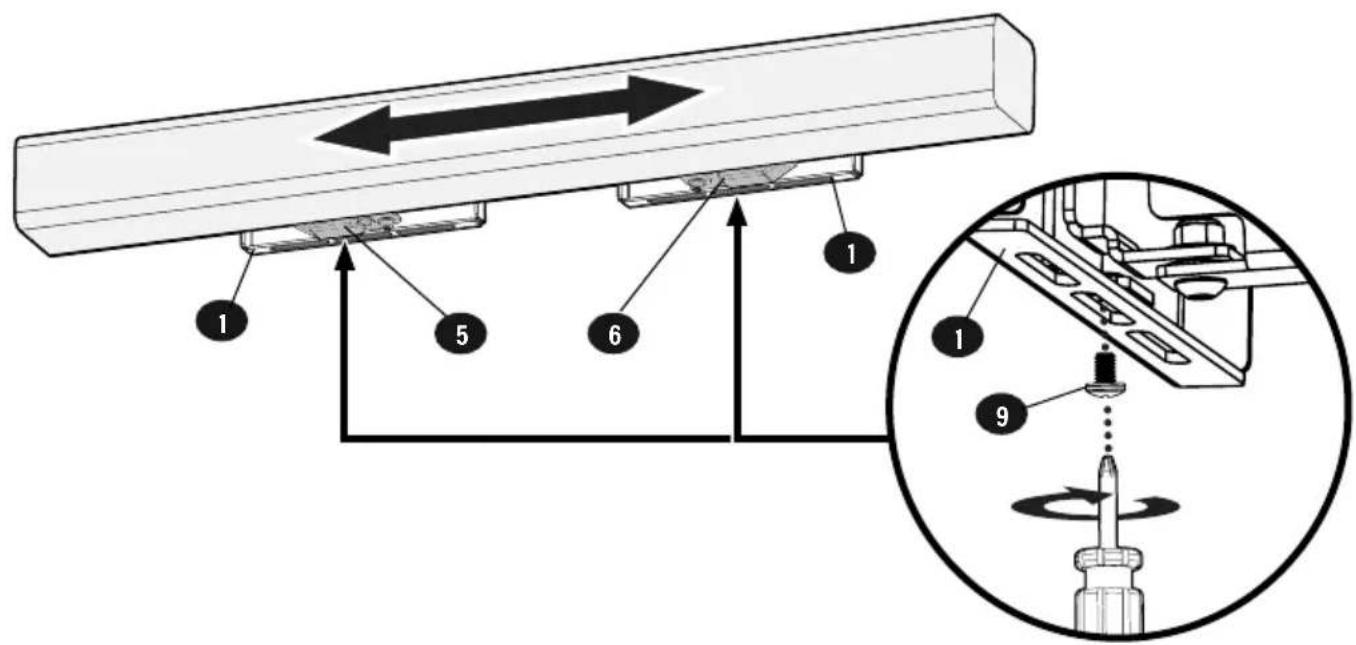

Soundbar mounts 5 / 6 must stay centered on wall plates 1 for drywall installation.

Technical diagram showing a mechanical assembly with numbered components and a magnified view of the component being threaded.

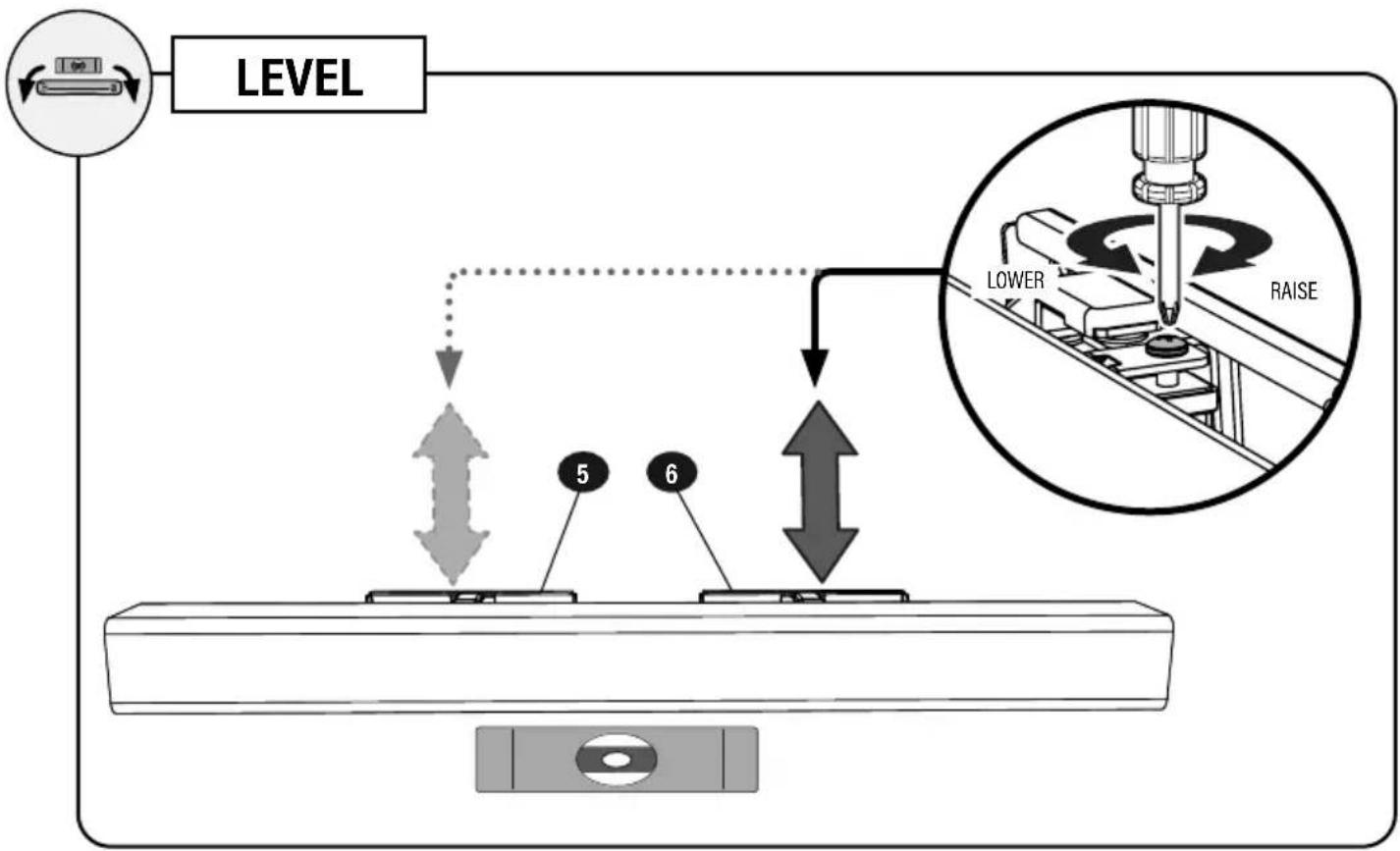

ADJUSTMENTS


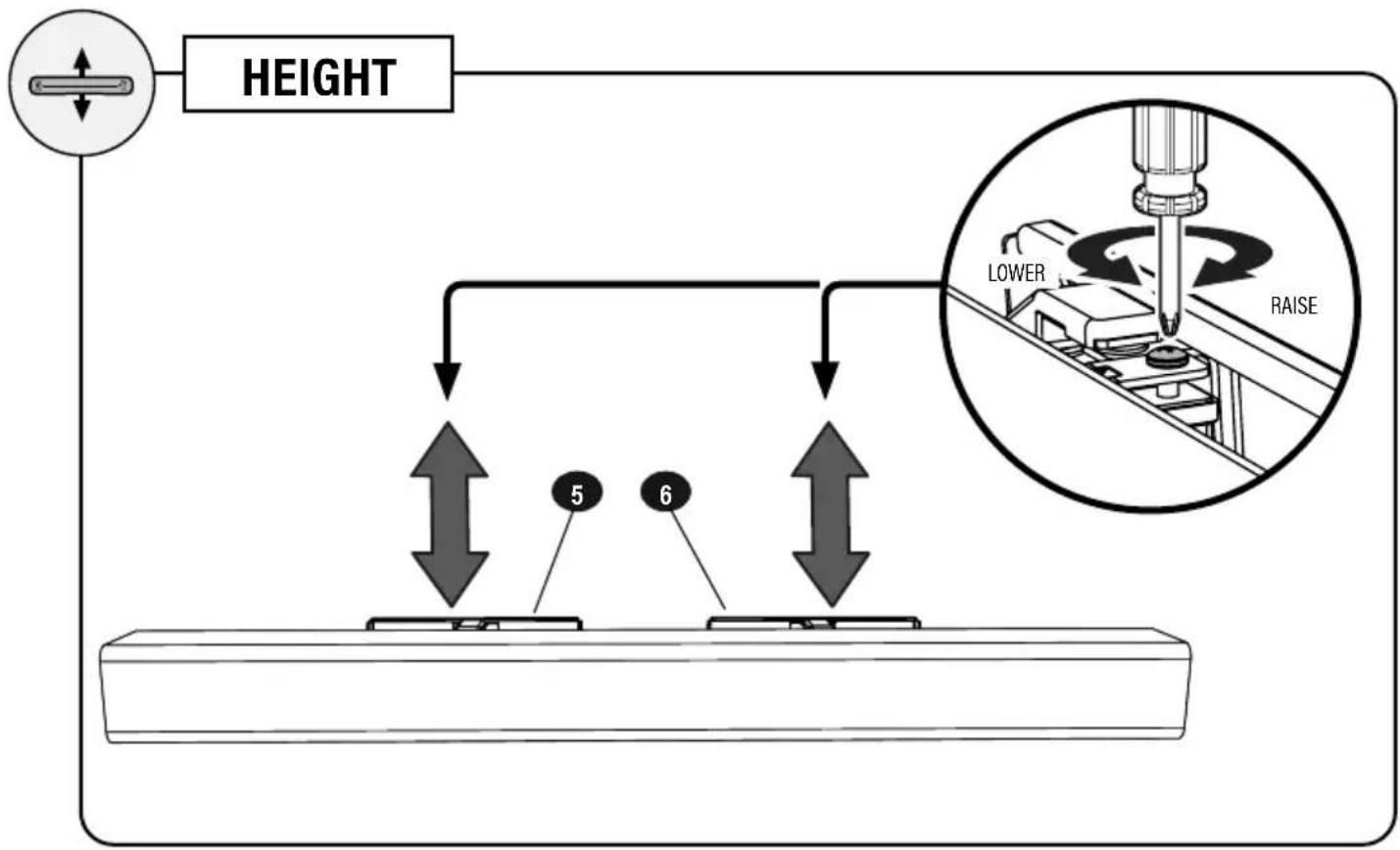

HEIGHT 5 6 LOWER RAISE

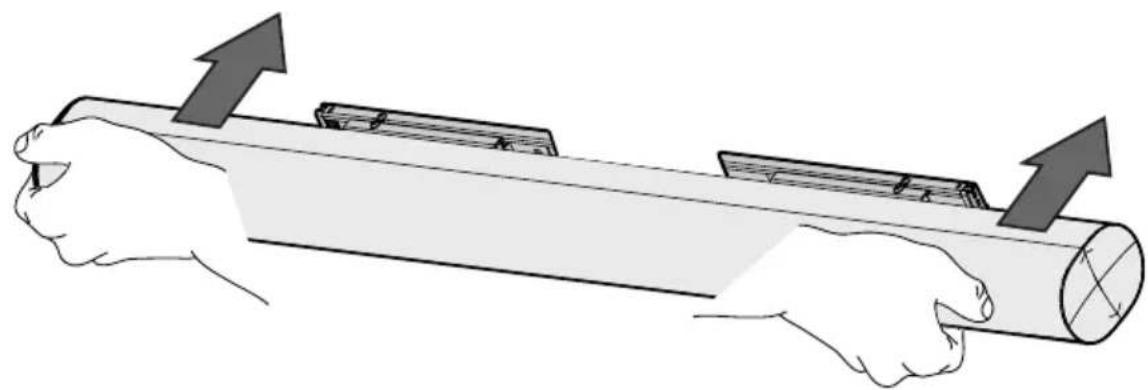

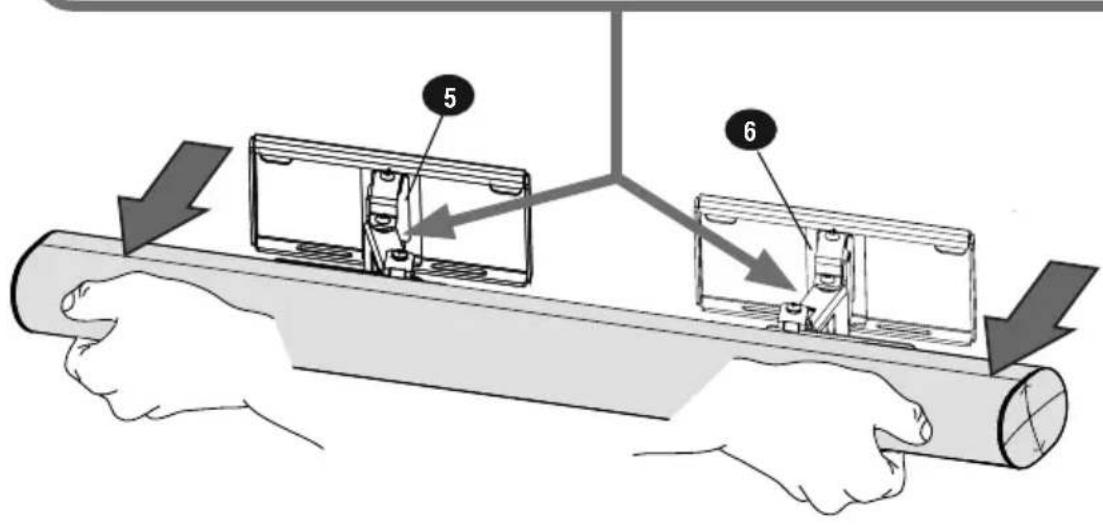

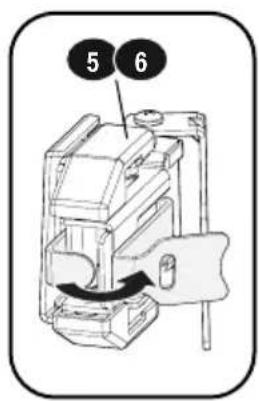

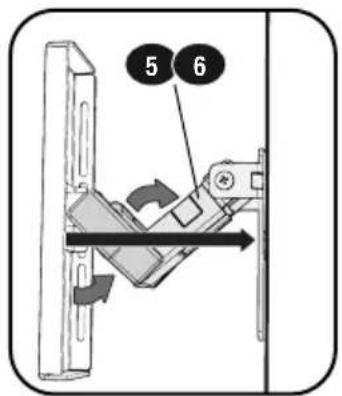

EXTEND and RETRACT

NOTE: Remove the hook and loop teners around the soundbar mounts FORE extending the soundbar.

The fasteners were intended to keep the soundbar mounts stationary during installation.

TIP: Use these fasteners for able management.

5 6

5 6

CAUTION: Avoid potential personal injury or property damage!

The brackets contain potential pinch points during operation. Keep fingers away from pinch points when retracting the brackets.

Diagram illustrating a mechanical assembly with labeled components and directional arrows indicating movement or force.

Illustration of two hands pulling a cylindrical object with upward arrows indicating motion (no text or symbols)

1. BREEDTE W 2. HOOGTE H

BLADZIJDE 4

STAP 2 DE SOUNDBARBEUGEL AAN DE MUUR BEVESTIGEN

BLADZIJDE 5

BELANGRIJK:

1. BREDDEN W 2. HÖJD H.

SIDAN 4

STEG 2 FÄST LJUDSPELARFÄSTEN PÅ VÄGGEN

SIDAN 5

VIKTIGT:

Betongblock/Solidbetonginstallation → SIDAN 9

2A

Betongblock/Solidbetonginstallation

SIDAN 9

Thank you for choosing Sanus! Please take a moment to let us know how we did:

Legrand AV Inc.

6436 City West Parkway

Eden Prairie, MN 55344 USA

US: [phone]

SANUS.com

Legrand AV Netherlands B.V.

Franklinstraat 14, 6003 DK Weert Netherlands

EMEA: [phone]

UK: [phone]

SANUS.com

Authorized Representative for the UK

Starline Holding Technology Ltd. Unit C Island Road Reading RG2 ORP UK
