USER MANUAL WSWME31 SANUS
We’re ready to help!2 CAUTION: Avoid potential personal injuries and property damage!
Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker. Please read through these instructions completely to be sure you’re comfortable with this easy install process. Do not use this product for any purpose not explicitly specified by manufacturer. Manufacturer is not responsible for damage or injury caused by incorrect assembly or use. The wall must be capable of supporting five times the weight of the speaker and mount combined.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at +1 (800) 359-5520 (EMEA: +31 (0) 495 580 852; UK: +44 (0) 800 056 2853). 10 lbs. (4.5 kg) Speaker Weight Limit
Tools Needed Wood Stud InstallConcrete Install Awl Pencil LevelStud FinderScrewdriverDrill BitElectric DrillDrill Bit3/8 in.(10 mm)Masonry3/8 in.(10 mm)1/8 in.(3 mm) Wood Drywall InstallDrill Bit This mount is designed to support only Sonos® Era 300™ speakers. Before getting started, let’s make sure this product is perfect for you!

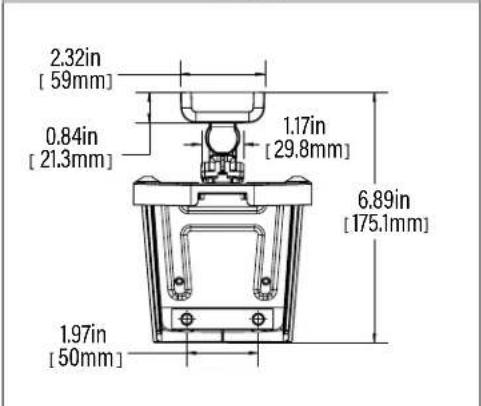

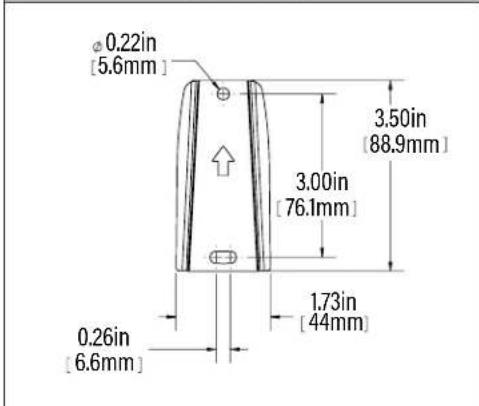

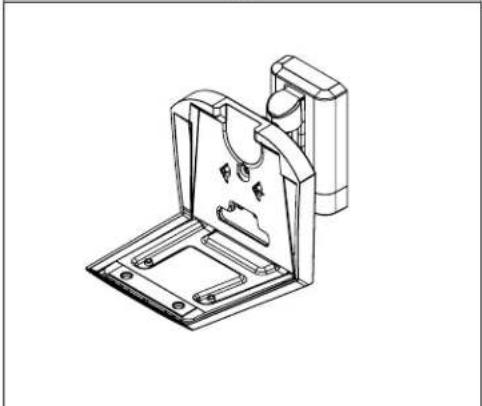

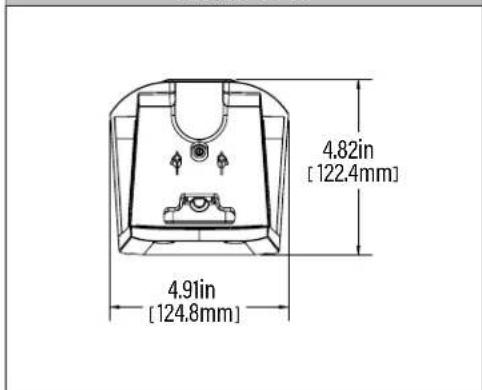

1.73in 44mm 0.22in 5.6mm 3.50in 88.9mm Dimensions4 Supplied Parts and Hardware

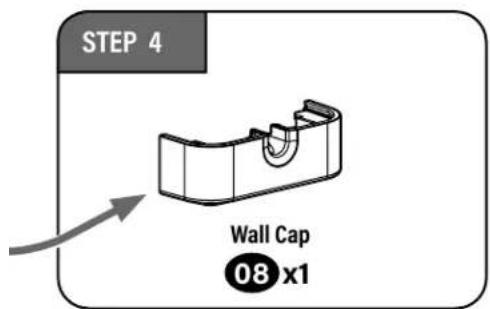

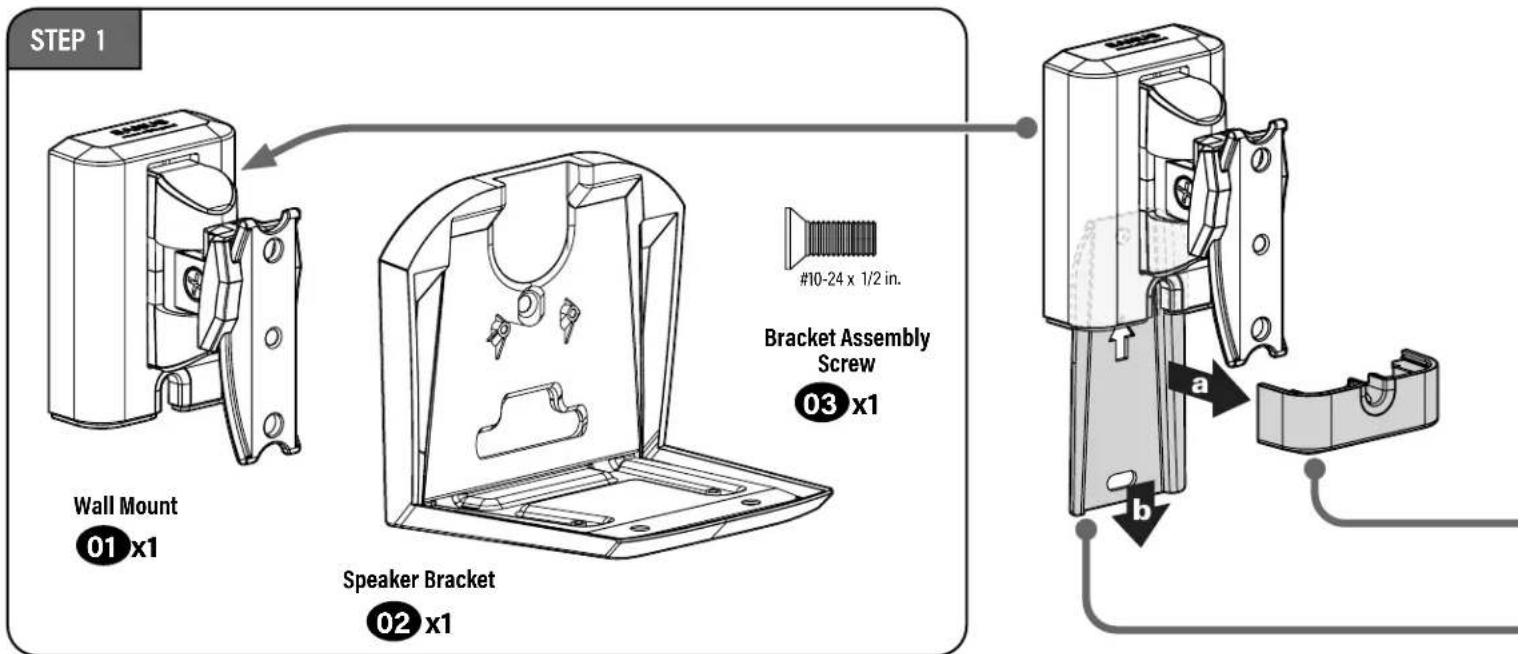

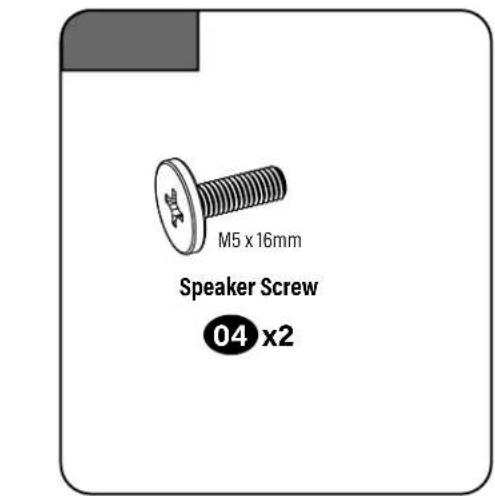

STEP 1 Wall Mount Speaker Bracket Bracket Assembly Screw 01 x1 02 x1 03 x1 Quantities shown are for one speaker mount. NOTE: Not all hardware included will be used.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!5

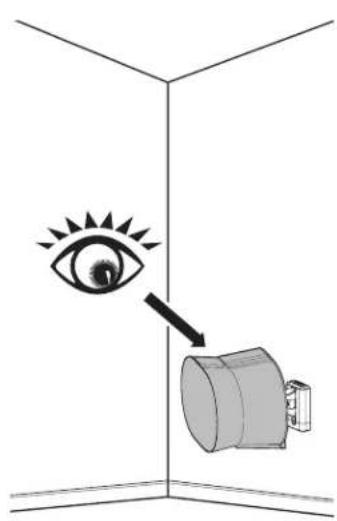

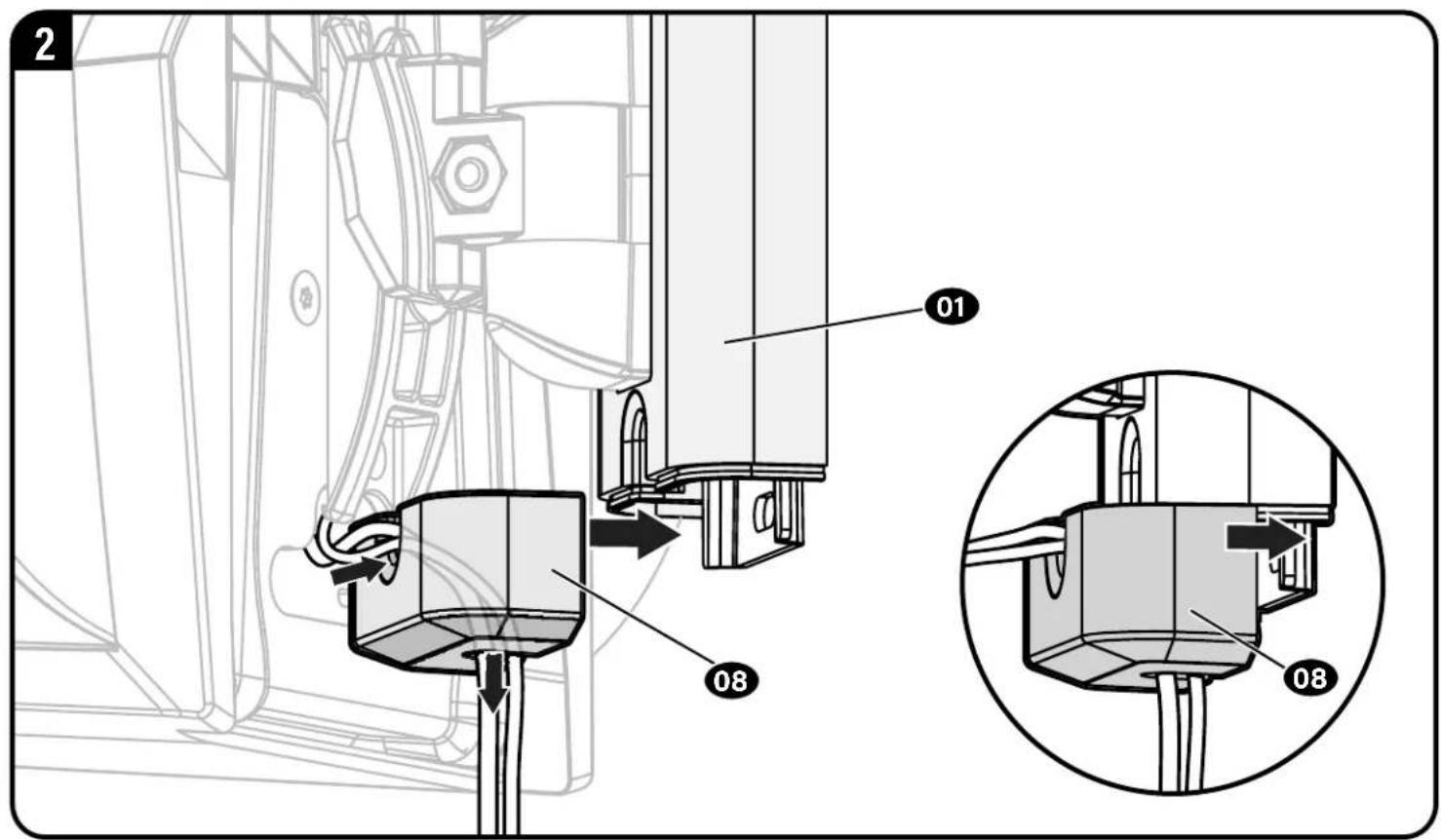

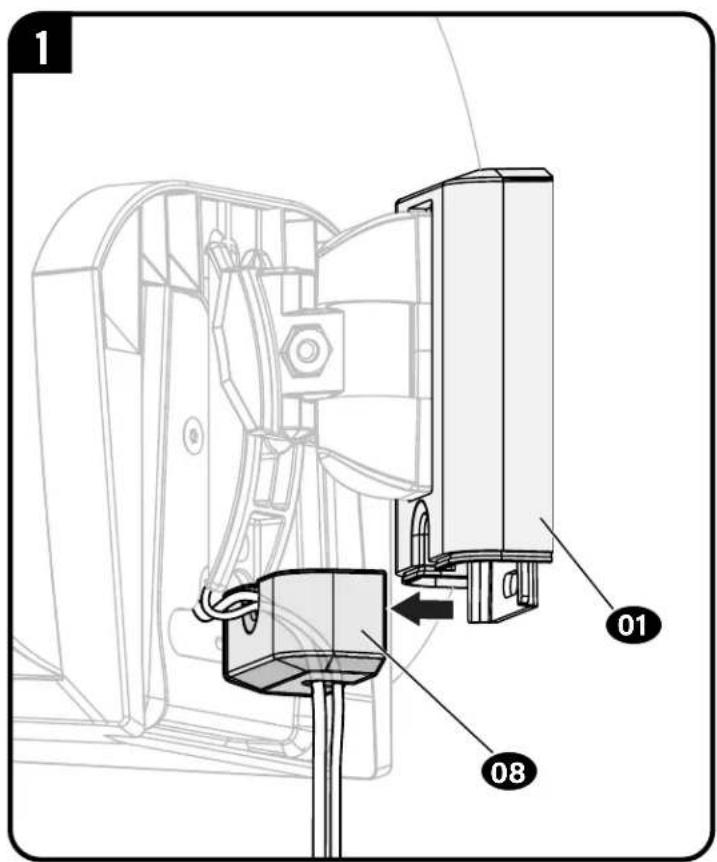

ABOVE Eye Level Installation (Speaker Upside Down)8 Attach Speaker to Bracket STEP 2

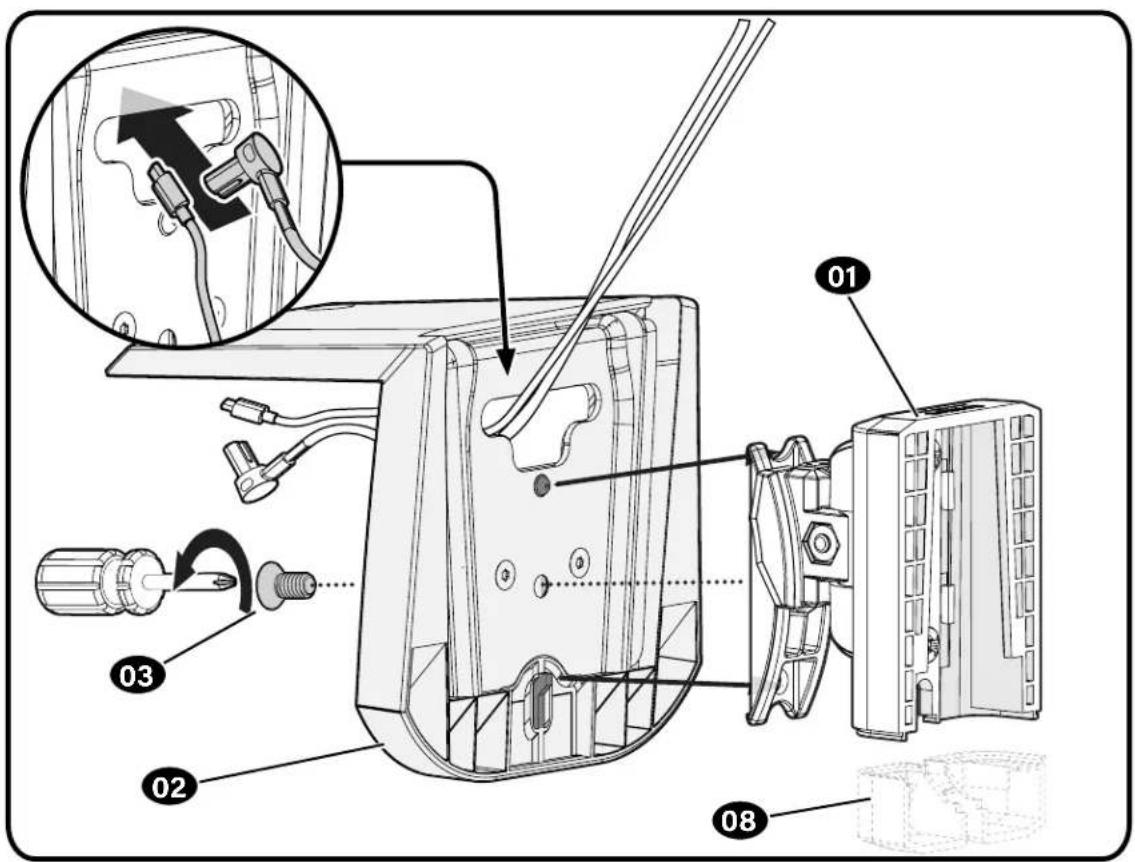

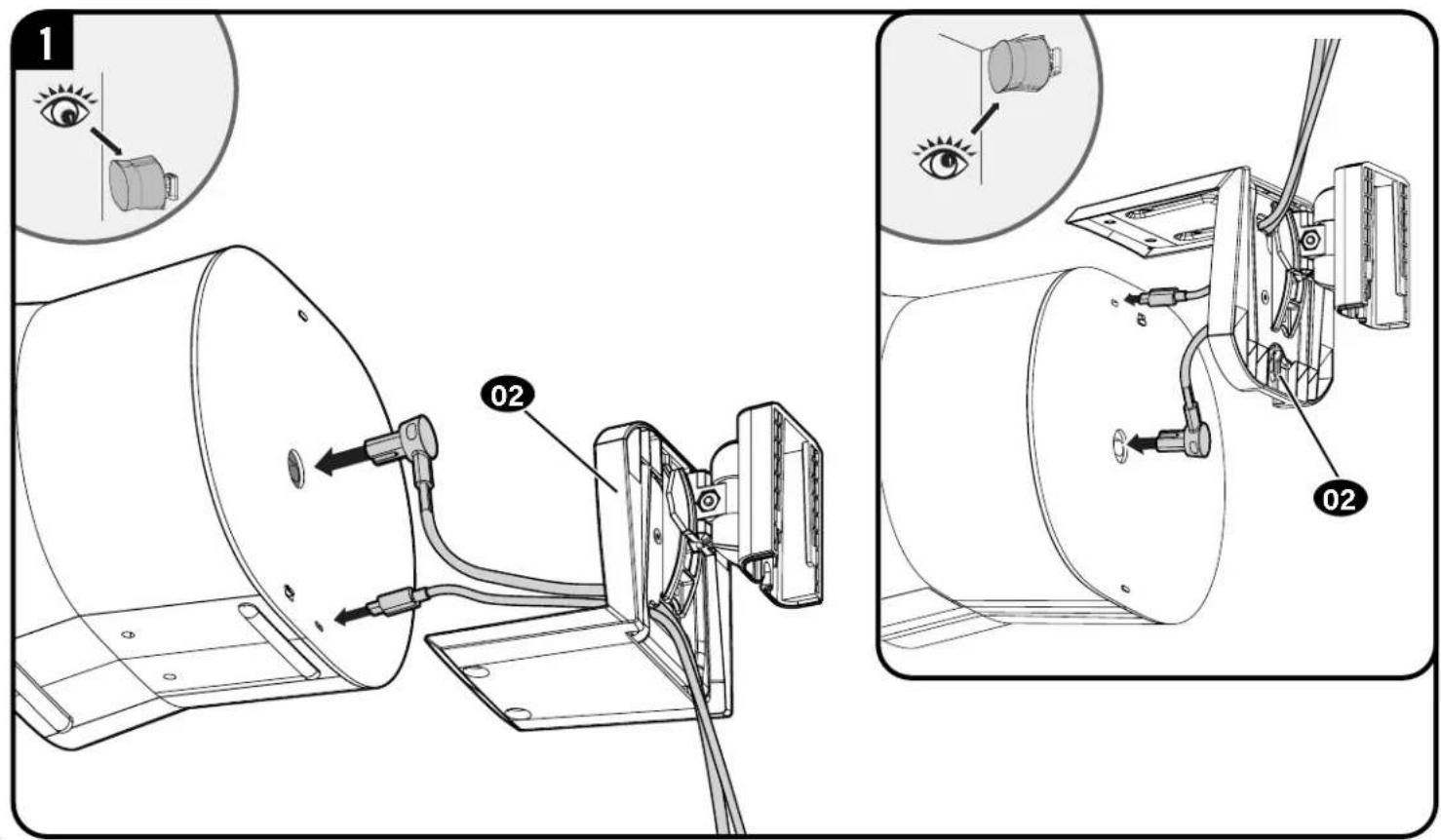

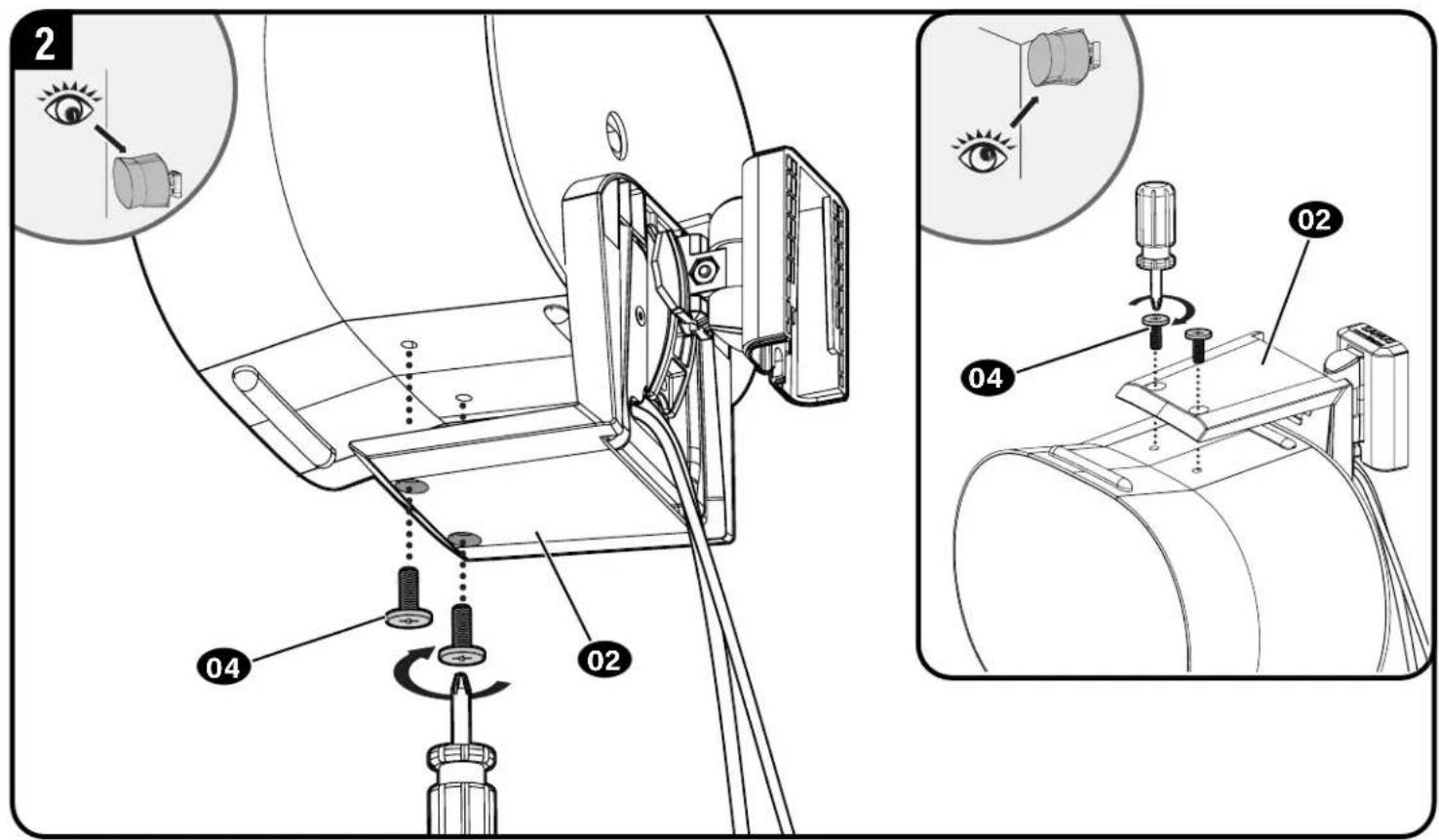

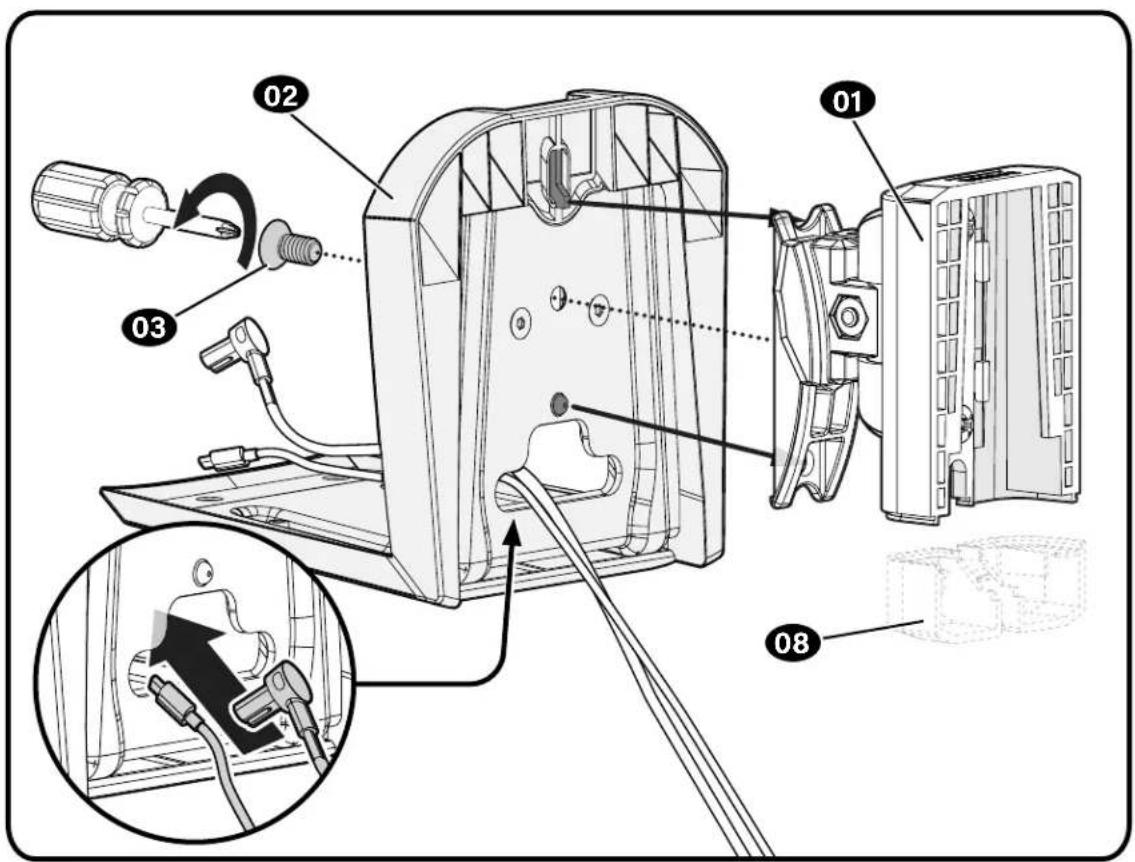

Attach Speaker to Bracket

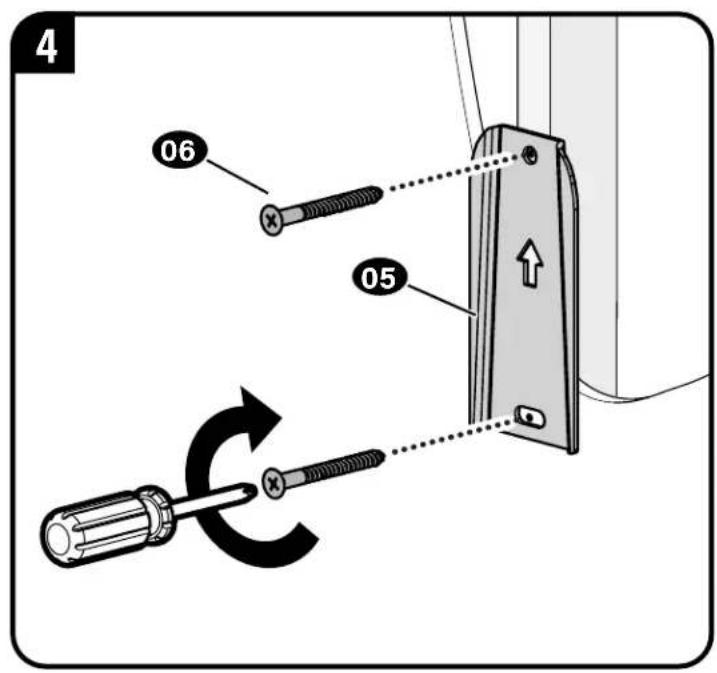

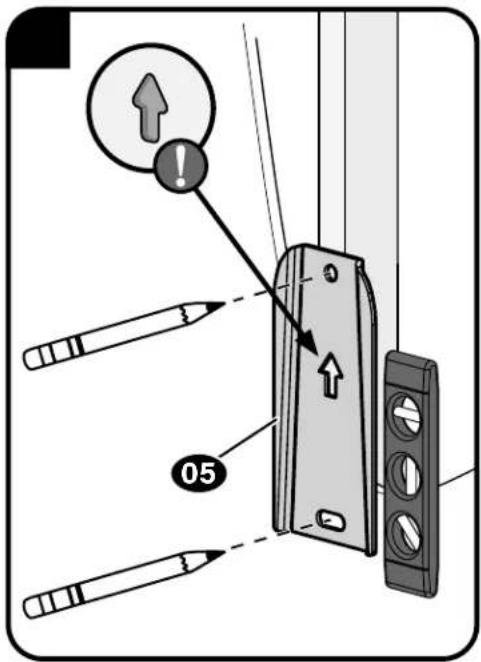

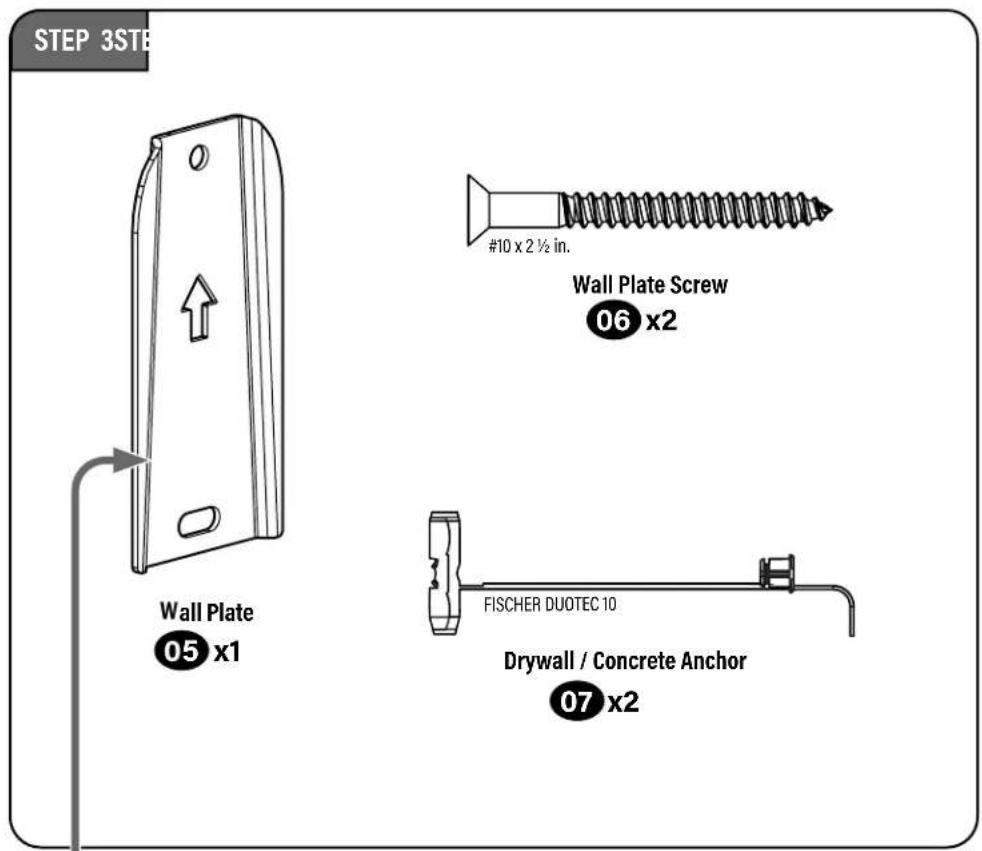

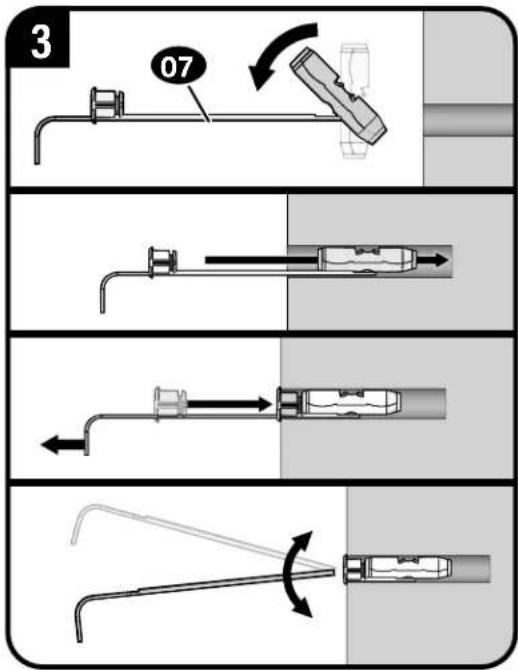

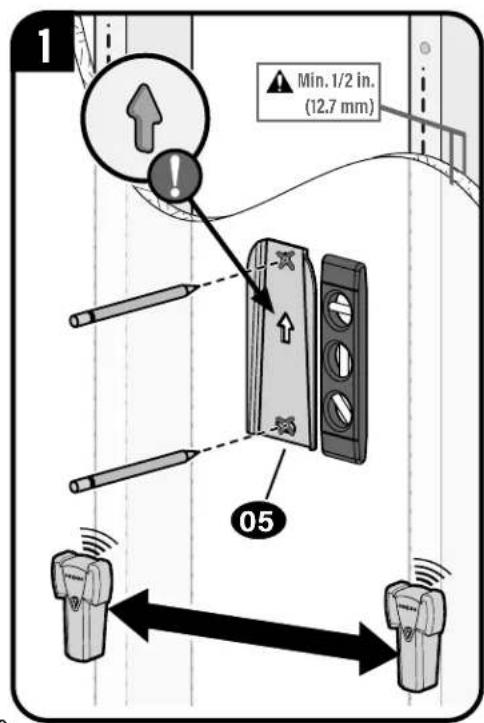

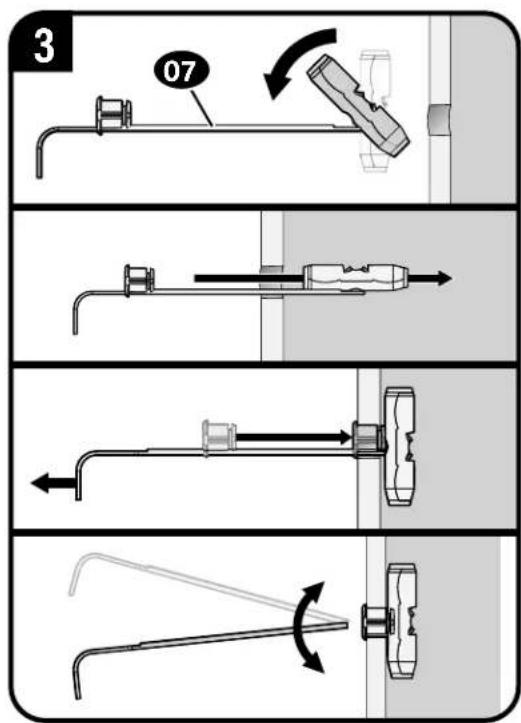

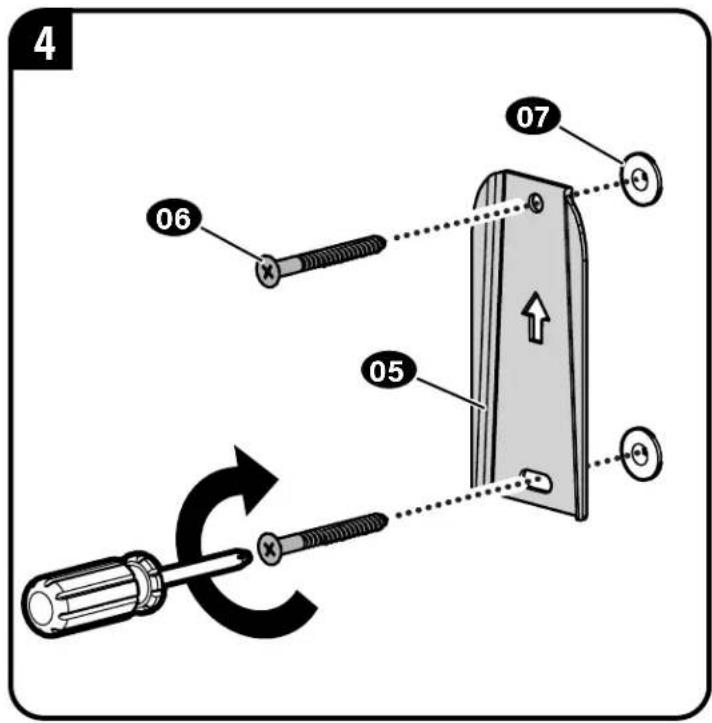

CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not be less than 1/2 in. (12.7 mm) Min. 1/2 in. (12.7 mm) STEP 3-A Drywall Only InstallationAttach Wall Plate to Wall
3/8 in. (10 mm) 1 in. (2.5 cm)
DO NOT use power tools for this step. Both screws
MUST BE firmly tightened to prevent unwanted movement of the wall plate

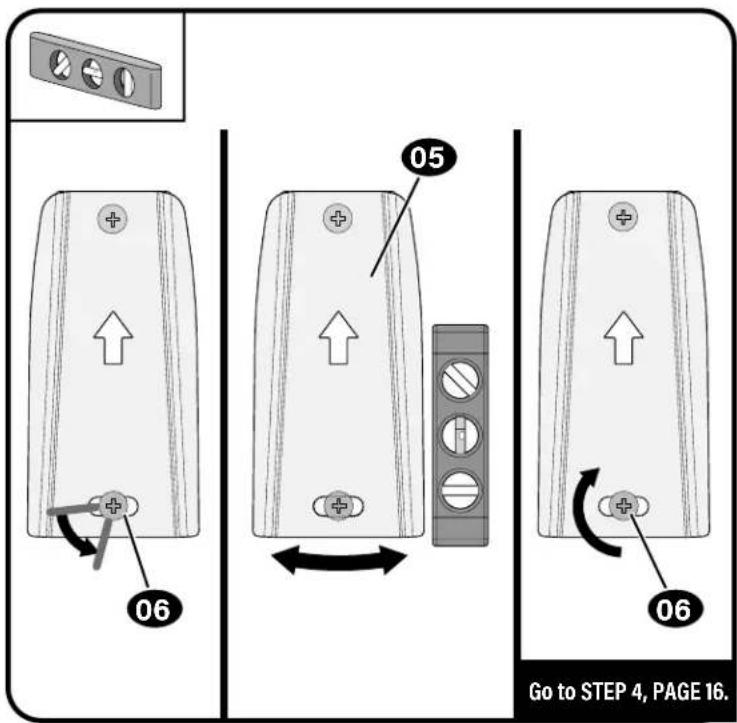

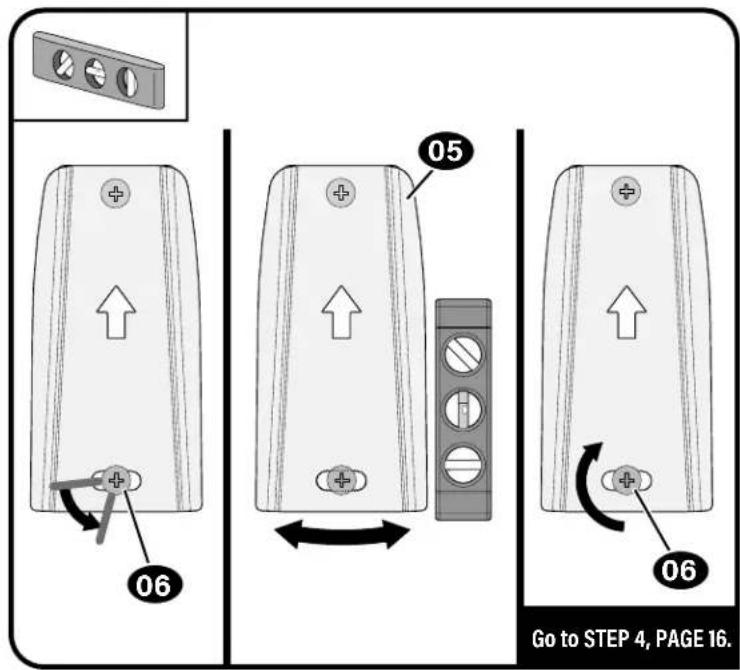

Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.
CAUTION: Avoid potential personal injury or property damage!

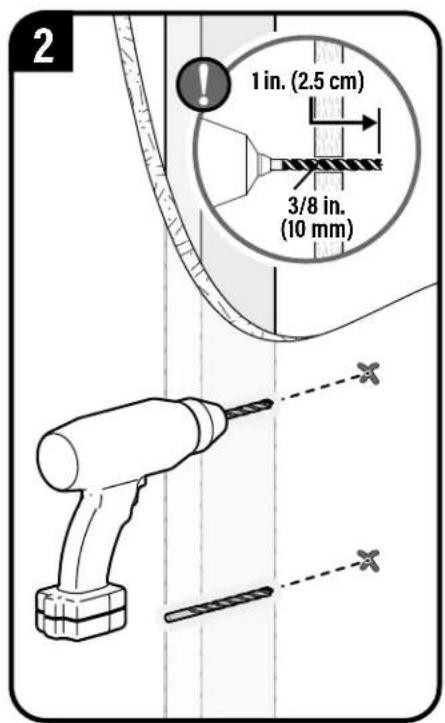

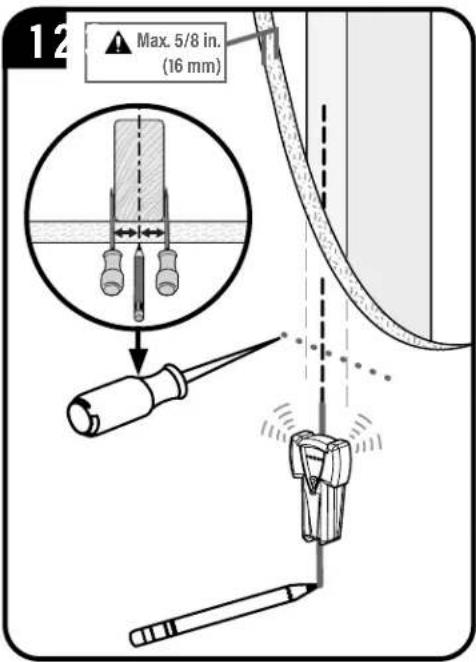

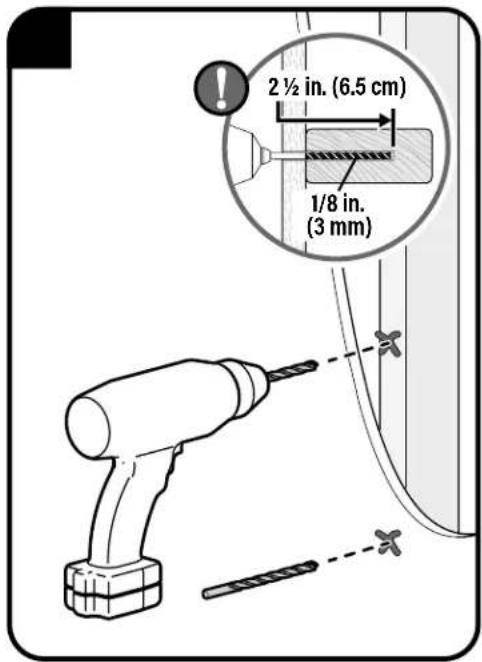

● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ● Stud center must be verified Max. 5/8 in. (16 mm) CAUTION: Avoid potential personal injury or property damage!
DO NOT use power tools for this step. Both screws
MUST BE firmly tightened to prevent unwanted movement of the wall plate
Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.
CAUTION: Avoid potential personal injury or property damage!

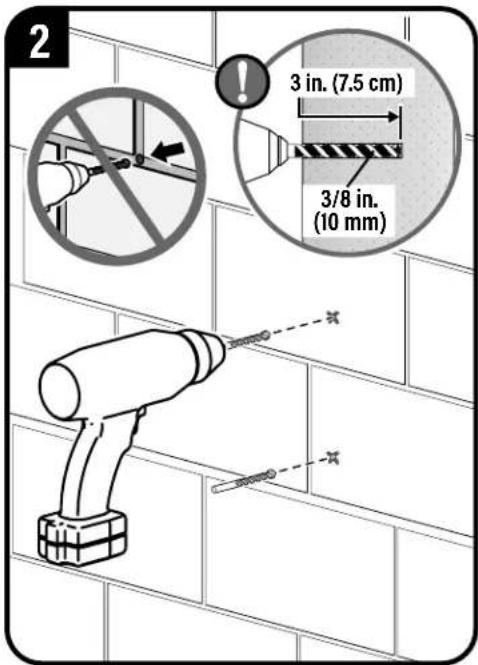

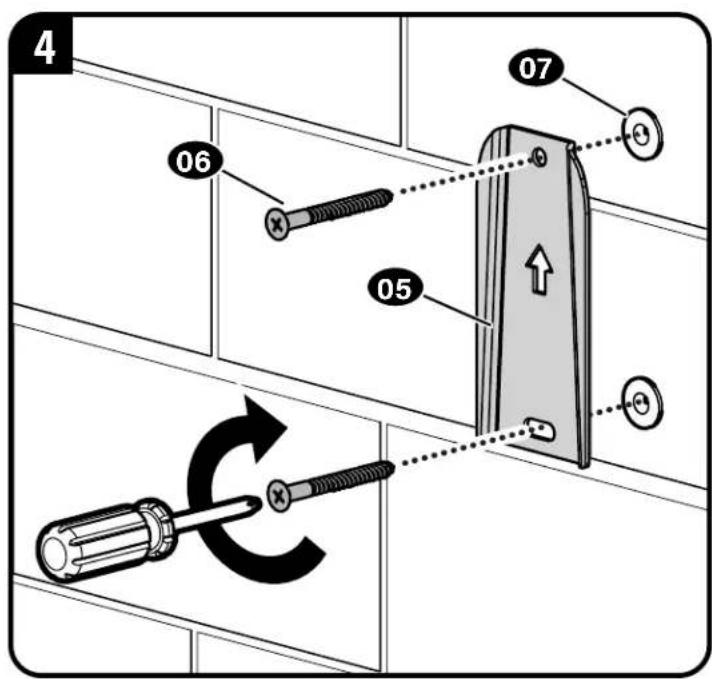

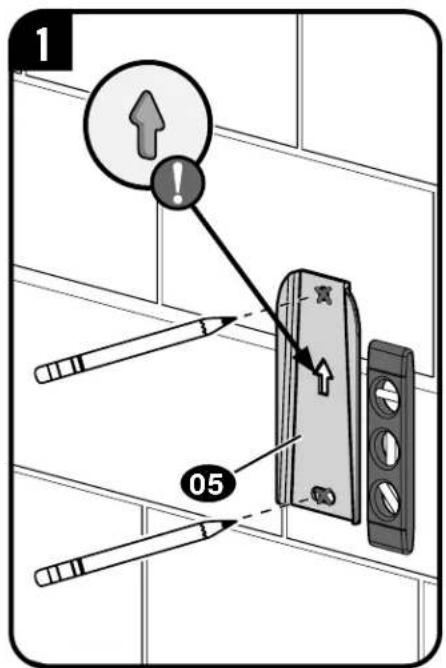

directly onto the concrete surface (no wall covering) ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm) CAUTION: Avoid potential personal injury or property damage!
3/8 in. (10 mm) 3 in. (7.5 cm)
DO NOT use power tools for this step. Both screws
MUST BE firmly tightened to prevent unwanted movement of the wall plate
Ensure the wall plate is securely fastened to the wall before continuing on to the next step, but DO NOT overtighten the screws.
CAUTION: Avoid potential personal injury or property damage!

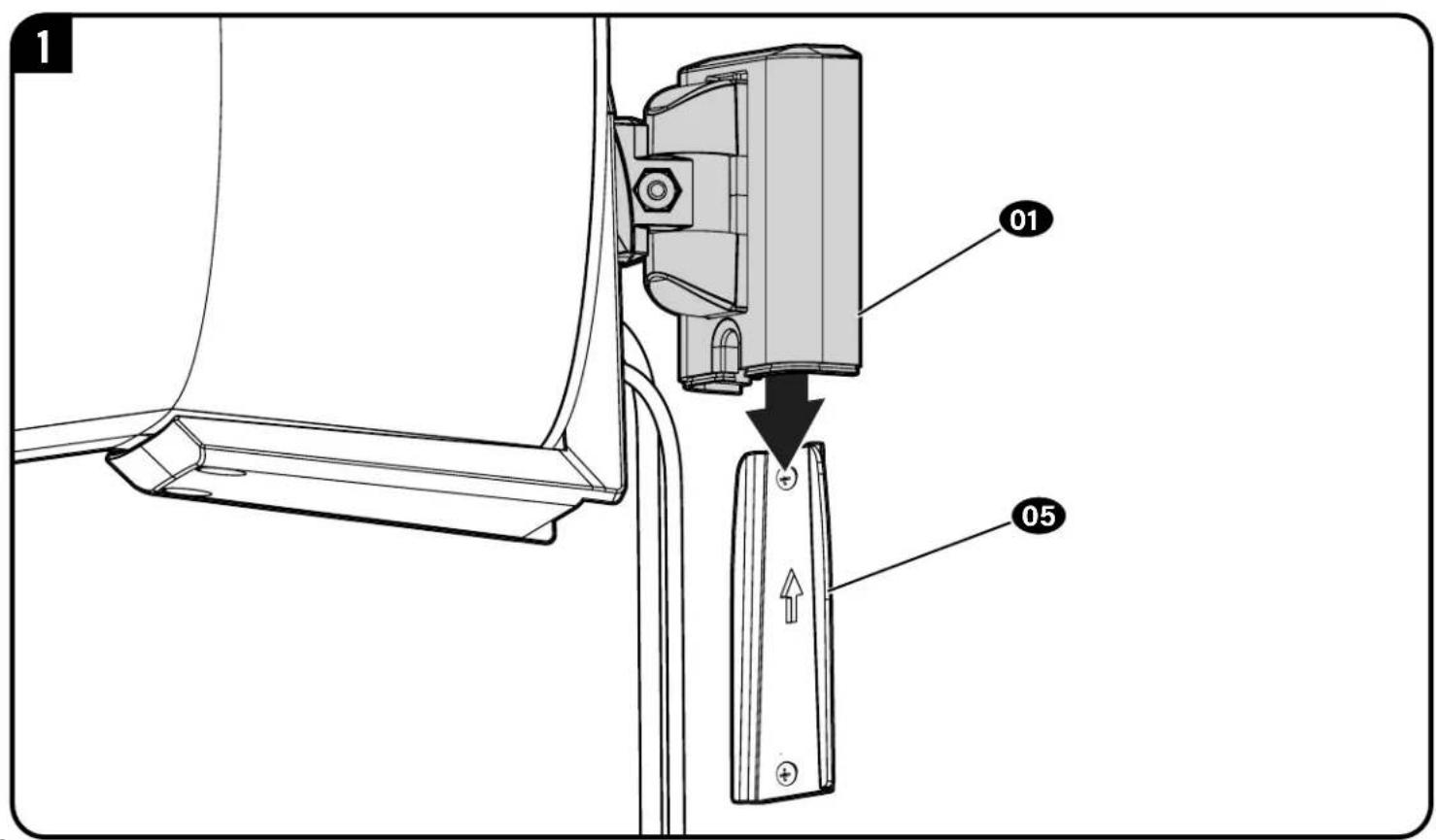

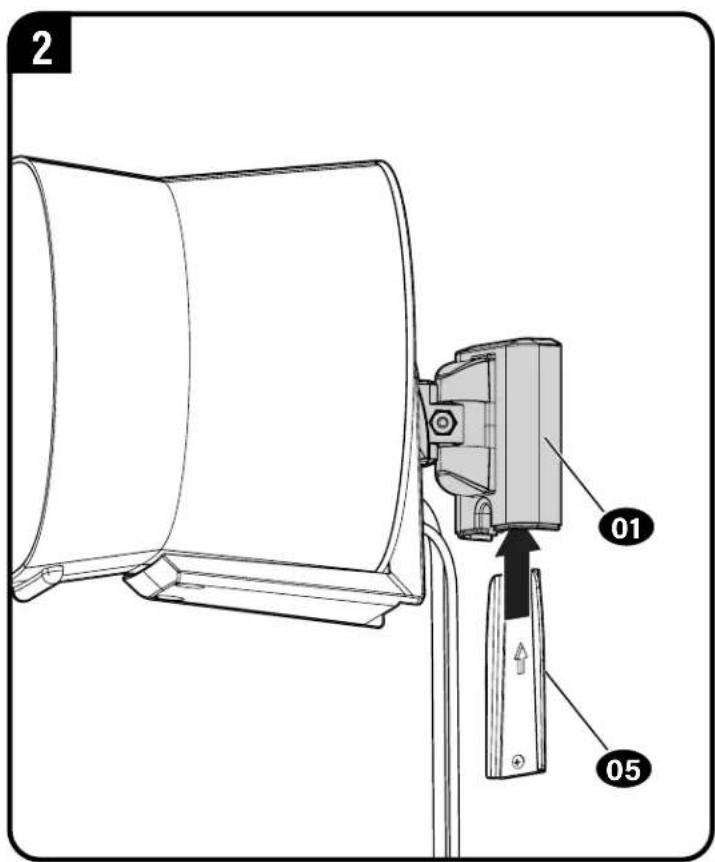

Mount Assembly to Wall Plate STEP 4
Mount Assembly to Wall Plate

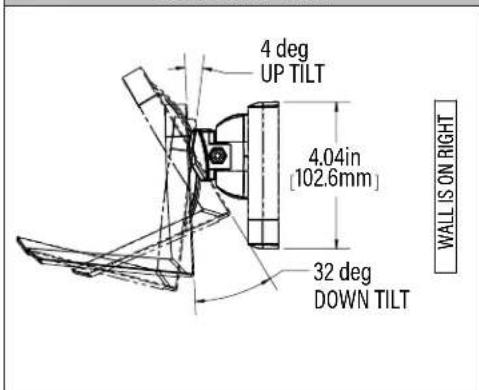

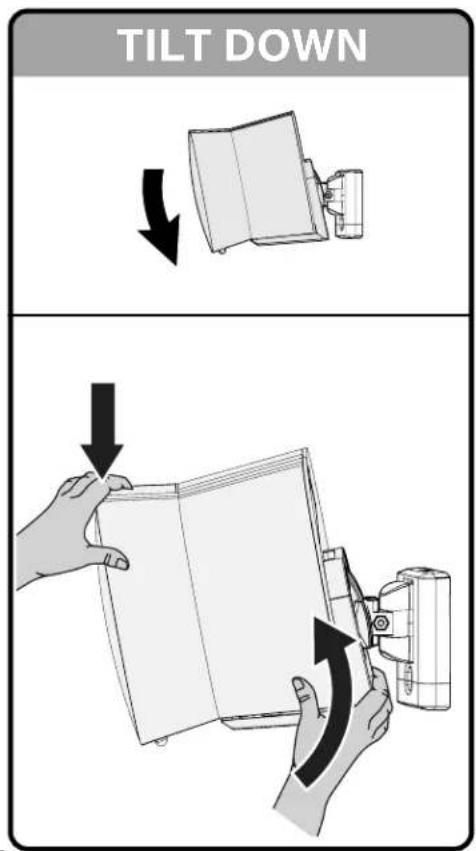

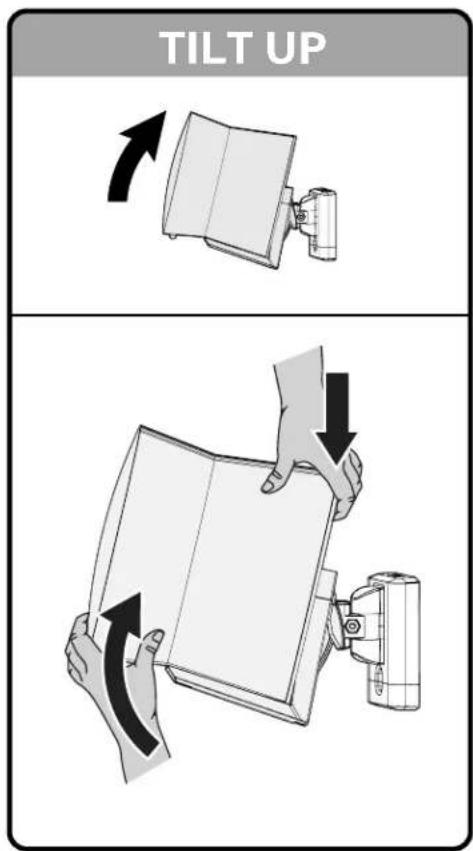

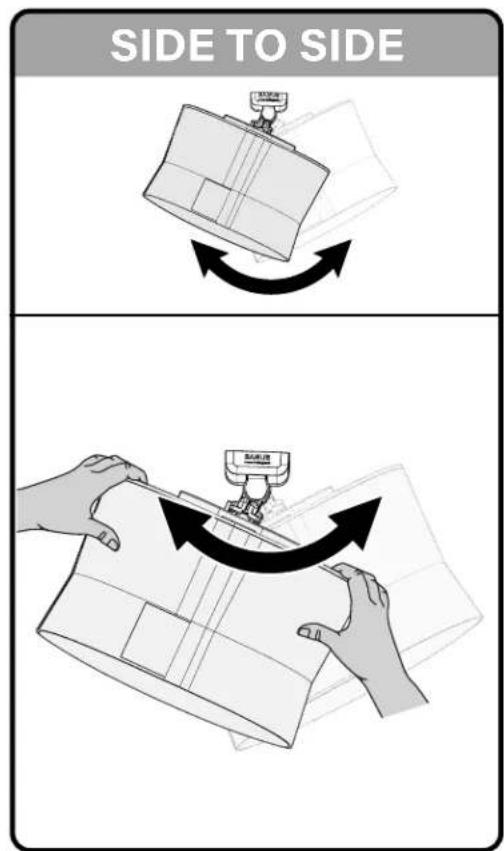

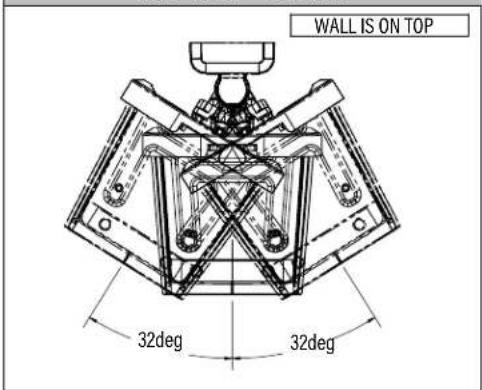

Adjustments TILT DOWN TILT UP
