USER MANUAL MOD-80 MPM

Yellow and black vacuum cleaner with a funnel-shaped dust collector (no visible text or symbols)

cz NÁVOD K ORSI U7E 3
DE BEDIENUNGSANLEITUNG 9
EN USER MANUAL 16
FR MANUEL DE L'UTILISATEUR 22
IT MANUALE D'USO 29
PL INSTRUKCIA OBSLUGI 35
SK POUŽIVATELSKA PRIRUČKA 41
UA ПОСІБНИК КОРИСТУВАЧА 47

MPM and S.A.

Labeled diagram of a yellow industrial vacuum cleaner with numbered parts for identification and assembly reference.

Dry and wet vacuuming Paper filter bag to protect

the filter (longer filter life)

Aluminium sectional pipe 20 L water tank

Assorted cleaning and cleaning tools including a yellow cylindrical object, black tool, spray bottle, and plastic bag (no visible text or symbols)

Equipment: HEPA filter / sponge filter / paper filter bag / floor and carpet nozzle / crevice attachment / large washing attachment / small washing attachment

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

• Read the instructions carefully before use.
• Always unplug when the appliance is not in use or before cleaning it.
• Check that the power supply parameters on the unit's nameplate match those of your mains supply.
• Do not hang the cable on sharp edges or allow it to come into contact with hot surfaces.
• Never pull on the cable to disconnect the device from the power source.
• Never leave the vacuum cleaner switched on unattended.
• Take special care when children are near the device.
• Do not attempt to use the vacuum cleaner if you suspect any technical fault.
• Never use a device, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre.
• Use of accessories not recommended by the manufacturer may cause damage to the device, personal injury or fire.
• Take extra care when operating the vacuum cleaner on stairs.
• Do not immerse the device, cord or plug in water or other liquids; the power cord and plug must always be dry.
• Do not use the vacuum cleaner to pick up flammable and corrosive liquids, solvents, matches, ashes, cigarette butts, oils, sharp objects, etc. This can damage the device or even cause fire! Do not vacuum near flammable liquids or substances either!
• Keep the vacuum cleaner away from all heat sources (radiators, cookers, etc.) due to its plastic housing.
• Do not block the vacuum cleaner inlet and outlet openings!
• The device is intended for domestic use only.
• This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Unsupervised children should not perform cleaning and maintenance on the equipment.
  -The device is not a toy and should not be used as such by children.

• Keep the device and its cord out of reach of children under 8 years of age.

• Do not vacuum people or pets, and take particular care not to bring the nozzle close to your eyes or ears.

• Switch off the device and disconnect its power supply before the replacement.
• Do not vacuum without filters or if they are damaged.
• Check the pipes and nozzles – remove debris inside.
• For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).
• Do not hold or connect the device with wet hands.
• Do not use the device for purposes other than those for which it was intended.
• Always ensure that all parts of the device are correctly fitted before starting work.
• The equipment is not designed to operate using external timers or a separate remote control.
  -WARNING! Do not allow children to play with the film. Danger of suffocation!

ELECTROSTATICS

Vacuuming certain surfaces in low humidity conditions may cause the unit to become slightly electrified. This is a natural phenomenon, which does not damage the device and is not a defect. In order to minimise this phenomenon, it is recommended to discharge the device by frequently touching metal objects in the room with the pipe, increase the air humidity in the room, use generally available anti-electrostatic agents.

DESCRIPTION OF THE APPLIANCE

1. Top cover
2. Carrying handle with a cord storage hook
3. Power plug storage slot
4. Accessory storage compartment
5. Power on / off switch
6. Outlet socket for the detergent hose
7. Water feed button
8. Air exhaust
9. Power cable
10. Socket for the detergent hose inlet
11. Hose with a mesh filter and a nut
12. Detergent container
13. Container
14. Tank clamps

15. Air suction inlet

16. Base with accessory storage compartment

17. Small rolling wheels
18. Large plastic wheels
19. Float chamber
20. HEPA filter
21. Sponge filter
22. Suction hose with detergent feed hose
23. Aluminium tubes
24. Floor and carpet head
25. Large washing attachment
26. Small washing attachment
27. Crevice attachment
28. Paper dirt bag

ASSEMBLY AND DISASSEMBLY OF ALUMINIUM TUBES

1. Connect the aluminium tube to the suction hose handle and properly attach the detergent feed hose (Fig. 1).
2. Connect the two aluminium tubes, as shown here (Fig. 2).
3. Connect the washing attachment to the aluminium tube and connect the liquid supply hose to the socket (Fig. 3).
4. Press the plastic button on the aluminium tube by hand to disconnect it (Fig. 4).
5. Also press the plastic button on the aluminium tube to disconnect both ends of the tube (Fig. 5).
6. Remove the cleaning attachment from the aluminium tube and disconnect the detergent feed hose from the socket (Fig. 6).

ASSEMBLY AND USE OF THE VACUUM CLEANER

1. Ensure the power cord is disconnected from the power socket (Fig. 1).
2. Loosen the tank clamps, lift the top cover, and remove all accessories from the tank.
3. Place the cover on the tank, first installing the appropriate filter (Fig. 2):
4. For dry vacuuming, install the HEPA filter onto the float chamber by pressing the filter against the top cover, and attach the paper dust bag to the internal air intake.
5. For wet vacuuming or water collection, place the foam filter on the vacuum's float chamber, ensuring that the filter completely covers the entire float chamber.
6. Close the clamps on both sides of the tank, insert the suction hose into the air intake and tighten it clockwise, and insert the detergent feed hose into the detergent hose outlet socket. Connect the aluminium tube to the suction hose handle, properly attach the detergent feed hose, and attach the selected accessory. Check that they have been installed correctly (Fig. 3). CAUTION! The hose for feeding the detergent enters the appropriate outlet socket "click" ensures the proper mount. Press the white button for dismantling it.
7. Install the detergent container, fill it with water and detergent in proportions according to the detergent manufacturer's instructions, then insert the hose with the mesh filter into the container and screw the cap on clockwise. Connect the hose to the detergent hose inlet socket. Check whether it has been properly installed (Fig. 4).
8. Connect the power cord to the mains (Fig. 5).
9. For dry vacuuming, press the power switch - the appliance will start operating (Fig 6).
10. For wet vacuuming or water collection, press the water feed button – the attachment will start spraying the liquid (Fig. 7). When the power switch is pressed, the dirty water will be suctioned into the tank. When the tank is full, the safety valve will block further suction. After finishing, turn off the appliance, unplug it, and empty the tank.

WARNING! When vacuuming wet, do not pour water into the tank! This container will gradually fill with water during the process of its collection.

When cleaning carpets, use a low-sudsing cleaning agent and add the appropriate anti-foam evenly, otherwise the air outlet may cause foam to escape!

It is recommended to empty the container frequently during intensive washing / liquids collecting works, in order to prevent a liquid level in the container exceeding critical levels and creating the possibility of producing foam from the air outlet.

When the dust container is full or the safety valve is blocked, the sound of the motor becomes louder. At this point, the vacuum cleaner should be immediately turned off and container emptied.

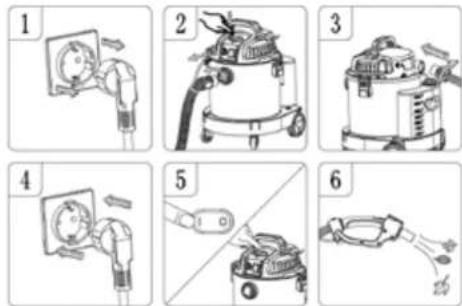

BLOWER OPERATION

CAUTION! Always wear safety goggles when using the blower. CAUTION! Do not allow debris to be blown onto people standing nearby. Wear a dust mask if blowing produces dust that might be inhaled.

1. Ensure the power cord is disconnected from the power source (Fig. 1).
2. Unscrew and remove the suction hose from the container by turning it counterclockwise (Fig 2).
3. Insert the suction hose into the air outlet at the back of the container and tighten it by turning it clockwise (Fig. 3).
4. Connect the power cord to the mains (Fig. 4).
5. Blowing can be started by pressing the power switch (Fig. 5).
6. Direct the suction hose at leaves or other debris (Fig.6).

CLEANING AND MAINTENANCE

1. Each time, prior to start any maintenance or cleaning activities, turn off the device and remove the plug from the socket.
2. After using the device, empty, clean and dry the tank as well as the detergent container. Moisture and contamination may cause unpleasant odours to develop inside the container and tank.

FILTER CLEANING

a. To maintain filters efficiency, a periodical check-in is required.
b. If the dust being sucked is very fine, the HEPA filter may need to be cleaned more often or replaced with a new one.
c. Wash the sponge filter and the HEPA filter with warm water without using detergent (Fig. 1, Fig. 2).
d. Cleaned filters should be allowed to dry completely before reuse (Fig. 3).

CAUTION! Do not put the filter in the dishwasher, washing machine, tumble dryer, oven, microwave oven or open fire.

1. Stop using the device immediately if any unusual vibration, noise or smell is experienced, and perform maintenance.

CAUTION! To achieve the best possible performance, clean the filters and the container after each use.

CAUTION! Do not assembly wet filters – risk of damage to the vacuum cleaner. CAUTION! Each time, prior to any maintenance or cleaning activities, turn off the appliance and remove the plug from the socket. Do not submerge the appliance into water! CAUTION! Do not use sharp objects, abrasive polishes, solvents or other strong chemicals for cleaning since their use may cause damage to the appliance.

TECHNICAL DATA

Technical specifications are

given on the product nameplate.

Length of mains cable: 4.10 m

CAUTION! MPM agd S.A. reserves the right to technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
