MOD-1000 - Vacuum Cleaner MPM - Free user manual and instructions

Brand	MPM
Model	MOD-1000
Product Type	Pet Hair Vacuum Cleaner with Grooming Functions
Power Supply	Mains (refer to rating plate); Trimmer: 2 x AA 1.5 V batteries (not included)
Power Cord Length	2.30 m
Dust Container Capacity	14 L
Working Modes	Silent, Standard, Strong
Filtration System	4-stage: Plastic pre-filter, Circular metal filter, Circular sponge filter, Circular HEPA filter
Warm Air Function	Yes – for drying pet fur
Included Accessories	Grooming (combing) brush, Paw and claw brush/Material cleaning brush, Undercoat removal brush, Drying nozzle/Slotted nozzle, Electric trimmer with 4 comb heads (3 mm, 6 mm, 9 mm, 12 mm)
Safety Features	Overheat protection, auto shut-off, residual current device recommended
Usage	Only for pet hair grooming; not for wet surfaces, combustible liquids, or sharp objects
Maintenance	Clean filters and dust container after each use; do not immerse in water; do not use abrasive cleaners

Frequently Asked Questions - MOD-1000 MPM

How do I assemble the vacuum cleaner for grooming?

Insert the suction hose into the air outlet (or inlet) and twist clockwise. Then attach the desired grooming accessory to the other end of the hose. Ensure all components are securely connected before use.

What batteries does the electric trimmer use?

The trimmer requires 2 x AA 1.5 V batteries. Batteries are not included with the MOD-1000. Do not mix old and new batteries or different types.

How do I clean the filters?

Remove the hair container and filter assembly. Wash the plastic pre-filter, circular metal filter, circular sponge filter, and circular HEPA filter with warm water without detergent. Let them dry completely before reuse. Do not put filters in dishwasher or microwave.

Can I use the vacuum cleaner to pick up water or liquids?

No, the device is not designed for wet surfaces. Do not suck up water, combustible liquids, ash, cigarette butts, oils, or sharp objects as it may damage the device or cause fire.

How do I adjust the suction power?

Turn the power knob to select one of three modes: Silent, Standard, or Strong. For initial use, start with Silent mode to help your pet get accustomed.

What is the warm air button for?

The warm air button activates a drying function. Connect the suction hose to the air outlet, attach the drying nozzle, and press the button to blow warm air for drying your pet's fur.

How do I change the trimmer comb heads?

Press the head release button on the trimmer to remove the pick-up head. Then snap on the desired comb head (3, 6, 9, or 12 mm). Adjust the blade height using the 3-stage slider if needed.

What should I do if the vacuum loses suction power?

First, check and empty the hair container. If still weak, check the filters for clogging and clean them. Also inspect the suction hose for blockages. Overheating protection may also cause shut-off; let it cool for about 60 minutes.

How do I clean the trimmer?

Wipe the housing with a damp cloth. Push out the blade and rinse it gently under running water. Dry the blade before reinstalling. Wash the shearing heads in warm water with mild detergent and dry completely. Never immerse the razor blades fully.

Is the device safe for pets?

Yes, when used as directed. Always use gentle motions and do not press too hard. Avoid sensitive areas like eyes and ears. The device has overheat protection. Supervise children when using near pets. The undercoat brush has a sharp edge; handle with care.

USER MANUAL MOD-1000 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Exterior view of a white MPa air purifier with attached hose and handle (no visible text or symbols)

MPM and S.A.

Comprehensive pet care kit with special vacuum cleaner and fur drying function

Three working modes: Silent, Standard, Strong

4-stage filtration system

Hair container 14 L

Electric trimmer Battery powered 2x AA 15V (batteries not included)

Convenient carrying handle and cord winding space

SAFETY INSTRUCTIONS

-Read the instructions carefully before use.
-Do not handle the device with wet hands.
-Take special care when children are near the device.
- The device is used for grooming pet hair. Do not use the device for purposes other than those for which it was intended.
- Do not use the device to suck up combustible liquids, ash, cigarette butts, oils and sharp objects, etc. This can damage the device or even cause fire!
- Exercise caution. Do not direct the air intake/exhaust components of the device directly towards sensitive areas, e.g. eyes, ears, intimate areas, etc.
-Do not use the razor to cut wet hair.
-The trimmer is only used for trimming the hair.
-Be careful when cutting sensitive areas.
- Do not immerse the device, cable or charger in water or other liquids.
-Do not leave the device unattended during operation.

- Always remove the plug from the mains socket when not in use or before cleaning.

-Check the housing regularly for damage.

- Never use a damaged device, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre.

-Do not use the device outdoors.

- Do not hang the power cable on sharp edges or allow it to come into contact with hot surfaces.

- Do not place the device neither on hot surfaces, nor in close proximity of other electric devices, e.g. cookers, burners, ovens, etc.

-The device should be put on a dry, flat and stable surface.

-The device is intended for domestic use only.

-Always ensure that all parts of the device are correctly fitted before starting work.

- Use of accessories not recommended by the manufacturer may cause damage to the device, fire or personal injury.

- This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack

of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Unsupervised children should not perform cleaning and maintenance of the equipment.

- The device is not a toy and should not be used as such by children.

- Keep the device and its cord out of reach of children under 8 years of age.

- Do not pull the plug out of the power socket by pulling the cord.

- The equipment is not designed to operate using external timers or a separate remote control.

-Do not connect the plug to the power socket with wet hands.

- Check that the power parameters on the device's rating plate correspond to the parameters of your power supply network.

-Clean the filters and empty the hair container regularly.

-CAUTION! Before starting cleaning and maintenance works, disconnect the device from the power supply network and wait until it cools down completely after work. Do not submerge the device into water!

- CAUTION! Do not use sharp objects, abrasive polishes, solvents or other strong chemicals for cleaning since their use may cause damages to the device.

- The device is not waterproof - make sure that the device, cable, power supply are always kept dry.

-The air outlet and air inlet openings must not be covered!

- For additional protection, it is advisable to install a residual current device (RCD) with a rated residual current not exceeding 30mA in the electrical circuit that supplies the bathroom. A specialist electrician should be consulted in this regard.

- When using the device in the bathroom, disconnect it from the power source after use, as the proximity of water is constituted a hazard, even when the device is turned off.

- WARNING! Do not allow children to play with the film. Danger of suffocation!

-CAUTION! Batteries contain substances that can cause environmental pollution. Do not dispose of the used battery with ordinary household waste.

• Do not expose the battery to fire, extreme temperatures, water, moisture or prolonged exposure to sunlight.
• Do not store the battery together with metal objects, e.g. paper clips, nails, coins, etc., or intentionally short-circuit the negative and positive terminals – risk of ignition, explosion.

- Do not allow a situation to develop which may result in deformation of the battery, e.g. significant shocks, vibrations, mechanical pressure, etc. – Batteries must not be used if they are damaged (mechanical damage, substance leakage, etc.).

-If a battery leak occurs, do not touch the leaking substance.

WARNING! Do not use this device near bathtubs, showers, swimming pools and similar water tanks!

-For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

DEVICE DESCRIPTION

1. Power knob and speed control:
   a. ON/OFF
   b. Silent mode
   c. Standard mode
   d. Strong mode
2. Warm air button
3. Air exhaust
4. Power cable
5. Power cord winding location
6. Parking place for the suction hose
7. Carrying handle
8. Hair container release button
9. Hair container
10. Air intake
11. Plastic pre-filter
12. Circular metal filter
13. Circular sponge filter

14. Circular Hepa filter

15. Suction hose

16. Grooming (combing) brush
17. Paw and claw brush/Material cleaning brush
18. Brush for removal of undercoat
19. Drying nozzle/ Slotted nozzle
20. Electric trimmer
    a. On/Off slider
    b. 3-stage blade height adjustment slider
    c. Battery cover
    d. Battery location
    e. Pick-up head release button
    f. Pick-up head
    g. 3 mm head
    h. 6 mm head
    i. 9 mm head
    j. 12 mm head

CAUTION! The trimmer is powered by 2 x AA 1.5V batteries. Batteries are not supplied with the MOD-1000.

ASSEMBLY OF THE DEVICE

1. Unpack the device and remove all fillers, stickers and bags.
2. Check that the hair container and all filters are correctly fitted. You will find a detailed description of the assembly and disassembly of these components in the chapter "FILTERS CLEANING".
3. Pressing down, insert the end of the suction hose (15) into the air outlet (3) or air inlet (10) and twist clockwise until you feel resistance. To remove the suction hose (15), proceed in reverse.
4. Connect the other side of the suction hose (15) to the appropriate equipment (16), (17), (18), (19), (20) depending on your pet's grooming needs.

USING THE DEVICE

1. Before switching on the vacuum cleaner, unfold the power cord (4) to the appropriate length and insert the plug into the mains socket.
2. Turn the power knob to the ON position (1a) to switch on the vacuum cleaner.
3. During the operation of the device, select the optimal suction power with the suction power regulator knob (1). Three modes are available: Silent, Standard and Strong. Gently run the brush through your pet's hair in an even motion. When using it for the first time, we suggest starting in Silent mode (1b).
4. The device is equipped with a dryer function. Connect the suction hose to the air outlet (3), fit the drying nozzle (19) and press the button (2) to activate the warm air mode.
5. Keep the dust container level under regular control (9). The overfilling of the container will result in the weakening of the suction power and the fast soiling of the filters.

CAUTION! If you sense a loss of suction power in the vacuum cleaner then clean the hair container and/or unblock the suction hose.

CAUTION! The device is equipped with overheating protection. If it switches off after prolonged operation, leave it to cool down for about 60 minutes.

1. To optimally position the device after use, use the suction hose parking space (6) in the horizontal position located on the side of the vacuum cleaner next to the hair container (9).

2. To coil up the power cable (4), wrap it in the space provided for winding up the power cable (5).

Technical line drawing of a vacuum cleaner with attached device, shown from two views: top view shows internal components, bottom view shows external casing (no text or symbols)

CAUTION! Vacuuming certain surfaces in low humidity conditions may cause the device to become slightly electrified. This is a natural phenomenon, which does not damage the device and is not a defect. In order to minimise this phenomenon, it is recommended to: discharge the device by frequently touching metal objects in the room with the pipe, increase the air humidity in the room, use generally available anti-electrostatic agents.

DESCRIPTION OF ACCESSORIES

GROOMING (COMBING) BRUSH

The brush is used to brush the pet hair along with dust and dirt. At the same time, it has a combing function to make the hair smoother and fluffier.

PAW AND CLAW BRUSH/MATERIAL CLEANING BRUSH

The brush is used to remove dirt from paws and claws of animals and to remove hair from upholstery and clothes.

Illustration showing a hand washing a jacket and cleaning a cloth (no text or symbols)

BRUSH FOR REMOVAL OF UNDERCOAT

The brush is used to quickly and easily remove dead pet hair.

CAUTION! Pay attention to the sharp edge and position during use. The head should not be pressed too hard to avoid irritating the animal's skin.

DRYING NOZZLE/ SLOTTED NOZZLE

The nozzle can be used as a pet hair dryer and to pick up hair on furniture and in hard-to-reach places.

ELECTRIC TRIMMER

BATTERY INSTALLATION/REMOVAL

Before using the trimmer for the first time, fit 2 x AA 1.5V batteries into the device.

CAUTION! 2 x AA 1.5V batteries are not supplied with the device.

To fit the batteries in the clipper, remove the pick-up head (20f) using the head release button (20e), then remove the battery cover (20c) and fit 2 x AA 1.5V batteries. When installing the batteries, pay attention to the correct installation and the polarity of the cell. Do not combine batteries of different types or new and used batteries. When removing the battery, proceed in reverse.

CAUTION! Do not discard used batteries with your municipal waste. Only discard them in proper pick-up points or at the store. Do not place the battery in fire.

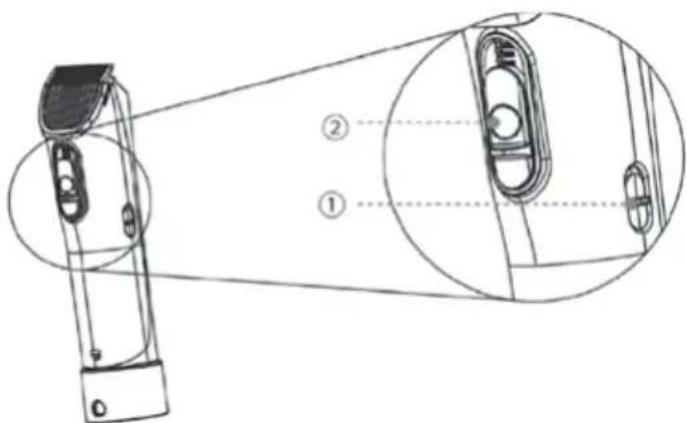

USING AN ELECTRIC TRIMMER

The clipper is used to trim the pet hair. Using the pick-up head (20f), the hair will be drawn straight into the hair container. The trimmer can be used with a vacuum cleaner or separately.

1. Switch the clipper on with the on/off slider (20a) on the side of the device.
2. Move the 3-stage blade height adjustment slider (20b) up or down to adjust the distance of the cutting blade.

1. The heads (20g, 20h, 20i, 20j) can be used to trim your pet's coat depending on the length of hair you want to leave.

Technical line drawing of a hairbrush with a labeled component (no text or symbols beyond the number 6)

3 mm

6 mm

9 mm

12 mm

CLEANING AND MAINTENANCE

1. Each time, prior to start any maintenance or cleaning activities, turn off the device and remove the plug from the socket.
2. After using the device, press the hair container release button (8) and then remove it. Use the key to remove the filter assembly and discard the hair. Wash and dry the hair container (9). Moisture and contamination may cause unpleasant odours to develop inside the container and tank.

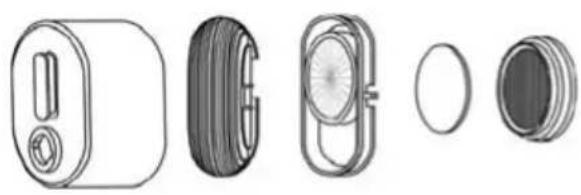

FILTER CLEANING

a. To maintain filters efficiency, a periodical check-in is required.
b. Wash the plastic pre-filter (11), circular metal filter (12), circular sponge filter (13) and circular Hepa filter (14) with warm water without detergent.

Exploded view diagram of a mechanical component showing internal parts (no text or symbols)

Illustration showing a hand cleaning a faucet and collecting coins from a table (no text or symbols)

c. Cleaned filters should be allowed to dry completely before reuse.

CAUTION! Do not put the filter in the dishwasher, washing machine, tumble dryer, oven, microwave.

1. Stop using the device immediately if any unusual vibration, noise or smell is experienced, and perform maintenance.
2. If the suction opening is blocked, stop using the device immediately. Remove the hair container (9), clean the air inlet and filters.

CAUTION! To achieve the best possible performance, clean the filters and the hair container after each use.

CAUTION! Do not assembly wet filters – risk of damage to the vacuum cleaner.

CAUTION! Each time, prior to any maintenance or cleaning activities, turn off the device and remove the plug from the socket. Do not submerge the device into water!

CAUTION! Do not use sharp objects, abrasive polishes, solvents or other strong chemicals for cleaning since their use may cause damages to the device.

TRIMMER CLEANING

1. Clean the housing of the device with a damp cloth and then wipe dry.
2. Push out the blade located on the front of the razor with your hand. Clean the blade area, while rinsing the blade gently under running water. Dry blade before installation.

CAUTION! Never immerse the razor blades completely in water.

1. Wash the shearing heads in warm water with mild detergent and allow to dry completely.

TECHNICAL DATA

Technical specifications are given on the product nameplate. Length of mains cable: 2,30m

CAUTION! MPM agd S.A. reserves the right to technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

Proper removal of product (batteries and//or accumulators)

The icon with a crossed out trash can indicate that accumulators/batteries are subject to selective collection and recycling. Pursuant to Directive 2006/66/WE, batteries and/or accumulators must not be thrown away together with other waste coming from households after their service life comes to an end. To prevent possible damage to the environment or human health resulting from uncontrolled

waste disposal, accumulators/batteries should be collected, disposed of or recycled in accordance with applicable laws. A used battery should be placed in a special container at separate collection points for this type of waste.

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA

Technical line drawing of a vacuum cleaner with attached device, shown from three views: top-left, side-left, and right (no text or symbols)

Illustration showing a hand using a hairdryer to clean a jacket, and a close-up of hands cleaning a textured surface (no text or symbols)

SZCZOTKA DO USUWANIA PODSZERSTKA

Line drawing of a hand using a tool to clean or wash the surface of a faucet (no text or symbols)

Technical line drawing of a vacuum cleaner with attached hose and cover, shown from three different angles (no text or symbols)

Illustration of a hand using a hairdryer to clean a jacket, with no text or symbols present.

Close-up of hands holding a small object, possibly a tool or device, in grayscale (no visible text or symbols)

Illustration of a cat, a hand holding a brush, and a hairdryer (no text or symbols)

Exploded view diagram of a mechanical component showing internal parts (no text or symbols)

Illustration showing a hand using a faucet to clean a surface with three circular objects nearby (no text or symbols)
