Product Type	Canister vacuum cleaner
Brand	MPM
Model	MOD-12
Dust Bag Capacity	3.5 liters
Filtration	HEPA 13 filter, motor filter
Power Cord Length	4.5 meters
Operating Reach	7.5 meters
Suction Power Control	Adjustable (on hose and body)
Cord Reel	Yes, with button
Dust Bag Full Indicator	Red light indicator
Telescopic Wand	Metal, with locking button
Accessories	Carpet & floor brush, crevice tool, upholstery nozzle with dusting brush
Weight	Approximately 5.5 kg (12 lbs)
Dimensions (LxWxH)	Approximately 40 x 30 x 25 cm
Power Supply	230-240 V AC, 50 Hz
Power Consumption	1600 W (typical for this class)
Noise Level	Approximately 78 dB(A)
Safety Features	Overheat protection, child safety lock (if applicable)
Maintenance	Clean/replace HEPA filter, wash motor filter, empty dust bag
Warranty	Standard 2 years (check local regulations)

Frequently Asked Questions - MOD-12 MPM

How do I assemble the vacuum cleaner?

Insert the hose connection into the port until it clicks. Connect the telescopic wand to the hose handle, then attach the desired tool. Adjust the wand length by pressing the blocking button.

How do I use the suction power control?

Use the slider on the hose handle (or on the body) to adjust suction. It is recommended to set to MIN before turning on.

How do I rewind the power cord?

Press the cord reel button with one hand while gently guiding the cord with the other to prevent rapid movement.

When should I replace the dust bag?

Replace when the dust bag full indicator turns red or when suction drops. The textile bag can be emptied and reused.

How do I clean the HEPA filter?

Do not wash the HEPA filter. Remove it and gently tap to remove dust, or replace if damaged. Clean the motor filter (wash with water and dry) once a month.

What should I do if the vacuum overheats?

If the housing becomes very hot, turn off and unplug immediately. Check for clogged filters or full dust bag. If problem persists, contact service.

Can I vacuum liquids with this vacuum?

No, this vacuum is for dry surfaces only. Do not vacuum flammable liquids, hot ashes, or sharp objects.

How do I store the vacuum cleaner?

Use the storage clip on the back to park the brush and wand vertically. The cord can be wound around the body if no auto-rewind.

What accessories are included?

The package includes a carpet and floor brush, telescopic crevice tool, and small upholstery nozzle with dusting brush.

How do I clean the upholstery nozzle?

Remove the dusting brush if attached, and wipe the nozzle with a damp cloth. Do not use harsh chemicals.

USER MANUAL MOD-12 MPM

Exterior view of a simple vacuum cleaner with black and orange casing (no text or symbols visible)

ODKURZACZ MOD-12

ELEKTROSTATYKA

Read carefully this manual before using the appliance.

Always remove the plug from the power outlet when not used, or before cleaning the appliance.

Before the first use check if mains voltage conform with vacuum cleaner.

Do not hang the power cord over sharp edges and do not allow the power cord to touch hot surfaces.

Do not pull the cord to unplug the appliance.

Do not leave the operating vacuum cleaner unattended.

- Close supervision is necessary when using the appliance near children.

Do not allow the vacuum cleaner to go over the power cord in case it can damage its insulation.

Do not try to use the vacuum cleaner if you suspect any technical damage.

Do not use the appliance, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Take extreme caution when cleaning the stairs.

Do not immerse the appliance, its cord and plug in water or any other liquids, keep it dry at all times.

Do not use the vacuum cleaner to collect flammable and corrosive liquids, solvents, matches, ash, cigarette ends, oil, sharp items etc. It can cause damage or even fire! Do not vacuum-clean near flammable liquids and substances!

Because of the vacuum cleaner plastic housing keep the appliance away from any heat sources (heaters, stoves etc.)

Do not cover the vacuum cleaner outlet and inlet!

This vacuum cleaner is designed for domestic use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

- Store the appliance and its cord out of reach of children under 8 years of age.

Do not vacuum-clean people or animals, take special care not to move suction nozzles near eyes and ears.

Turn off and disconnect the appliance from supply circuit before replacing accessories.

Do not vacuum without bag, filters and in case of damage.

Check the hose, wand and suction nozzles and remove any litter from them.

Use the vacuum cleaner only indoors and on dry surfaces. Dry the washed carpets before vacuum-cleaning.

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

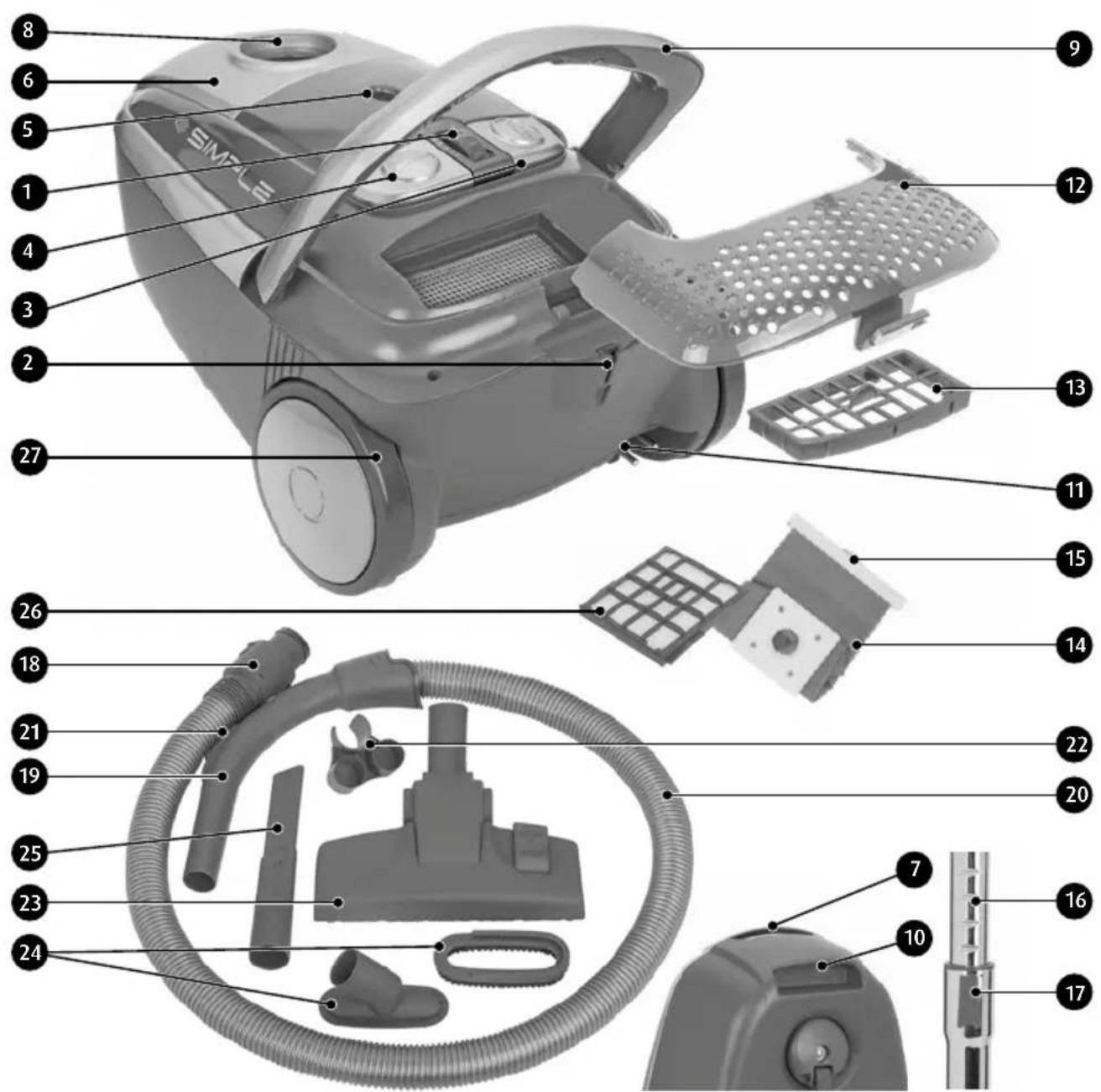

DESCRIPTION OF THE APPLIANCE

1. Suction power adjustment
2. Storage clip
3. Cord reel button
4. On/Off switch
5. Dust bag filling level indicator
6. Upper lid
7. Upper lid opening button
8. Suction hose port
9. Movable carrying handle
10. Carrying handle
11. Power cord
12. Filter cover
13. Filter HEPA 13

14. Textile dust bag (3.5 l)

15. Dust bag latch

16. Metal telescopic wand
17. Telescopic wand blocking button
18. Suction hose connection
19. Hose handle
20. Suction hose
21. Suction power control
22. Accessories holder
23. Carpet and floor brush
24. Small upholstery nozzle with dusting brush
25. Telescopic crevice tool
26. Motor filter
27. Rubber wheels

ELECTROSTATICS

Cleaning some surfaces at low air humidity may cause slight electrification of the appliance. It is a natural phenomenon which do not damage the appliance and is not its defect. In order to minimize this phenomenon it is advised to:

discharge the appliance by frequently touching metal objects with the wand,
increasing air humidity in the room,
using ordinary antistatic agents,

APPLIANCE ASSEMBLY

1. Insert the hose connection ⑱ into the hose connection port ⑧. You will hear a click when it is blocked. In order to disassemble, press the release button on the connection and remove the hose from the connection port.
2. Connect the telescopic wand 16 to the handle 19 at the other end of the suction hose. Attach one of the suction tools to the end of the telescopic wand. Crevice tool 25 and small upholstery nozzle with dusting brush 24 are placed in the special accessories holder 22 on the hose handle 19 Extend the telescopic wand to the preferred length by pressing the blocking button 17 and then release the button. The wand will be blocked in the chosen position.

USING THE APPLIANCE

1. Before turning on the vacuum cleaner pull out the power cord ⑪ to the preferred length and plug it into the socket. Yellow mark on the power cord indicates the optimal length. Do not pull out the cord beyond the red mark! At pulling out the cord do not press the cord reel button ③.
2. Press the ON/OFF switch ④ to turn on the vacuum cleaner.
3. In order to reel the power cord, press the cord reel button ③ with one hand and hold back the cord with the other hand to avoid rapid movement which may cause damage.

Note! It is recommended to set the suction power control ① to MIN before turning on the vacuum cleaner!

When at work, you can regulate the suction power by moving the suction power control back or forth to a suitable position. Dust bag filling level indicator light turns red when the suction hose is clogged or the dust bag is full. You need to replace the dust bag or remove the clogging from the suction hose. You can regulate suction power by means of suction power control 21. Move it slightly to reduce the suction power.

1. After finishing work use the storage clip 2 on the back of the appliance to put it in optimal position. Put the back rail of the carpet and floor brush, together with the suction hose and the telescopic wand, on the storage clip. Clip for storing the vacuum cleaner in vertical position is located at the bottom of the appliance. The appliance has two handles designed to facilitate carrying it. The movable handle is located in its upper part, and the other is a hollow in the housing, below the suction power connection port.

ACCESORIES:

CARPET AND FLOOR BRUSH

Designed for cleaning flat surfaces. It has wheels for moving in places difficult to reach, and flexible joint connecting it with the suction hose, which makes it possible to guide it at different angles. Press the button (switching to the brush mode) and a row of stiff short bristles with a rubber pad will come out, which allows to clean hard floor.

TELESCOPIC CREVICE TOOL

Used to clean places difficult to reach, such as room corners, near and below furniture, and in bends and crevices. It is also perfect for cleaning computer keyboards, drawers, radiators or window frames.

SMALL UPHOLSTERY NOZZLE WITH DUSTING BRUSH

Designed for collecting dust and dirt from flat surfaces, furniture, upholstery and mattresses. Its small size is useful when dusting places difficult to reach, where the carpet and floor brush cannot access. Put the dusting brush on the nozzle to create a tool for cleaning shutters, furniture, soft surfaces, such as car or chair upholstery, creases in soft furniture, such as pouffes, sofas, couches or particularly delicate items, as lampshades.

In order to empty the dust bag unplug the appliance, detach the suction hose 20 by pressing the buttons on both sides of the connection 18, press the button 7 to open the upper lid 6 remove the dust bag by grasping it at the plastic collar, with inlet facing upward, take off the latch 15 from the bottom of the bag and remove litter. Do this over a trash bin.

CLEANING AND REPLACING FILTERS

Normal operation of the vacuum cleaner requires periodic replacing or cleaning of the motor filter at the dust bag side and the filter at the air outlet. Unplug the appliance and pull out the suction hose.

1. In order to clean the outlet filter ⑬ lift the handle ⑨, press the filter cover blocking button and disassemble the cover ⑫ by carefully pulling it from the housing. Take the filter out of the vacuum cleaner. Thoroughly clean the insert of the HEPA filler. Make sure the HEPA

filter insert is dry before putting it back into place. Before closing the lid (12) make sure that the HEPA filter insert is properly positioned. Clean the insert once a month (depending on frequency of use). If the filter is too dirty or damaged, replace it with a new one. Do not wash the HEPA filter.

1. In order to clean the motor filter, open the upper lid of the vacuum cleaner by pressing the ⑦ button, take out the bag and carefully pull out the filter frame upwards. Remove the filter from the frame, wash it under running water with detergent and dry thoroughly.

CLEANING AND MAINTENANCE

1. Once in a while, wipe the external surface of the vacuum cleaner with a wet cloth. It helps to keep the appliance in good condition.
2. Do not clean the appliance using strong cleaning agents (solvents) or acute materials, which can cause permanent damage to the housing.
3. Clean filters and dust bag as indicated above.

TROUBLESHOOTING

Types of failure: Possible causes: Guidelines:
front lid is not closed no dust bag or incorrectly placed place the dust bag correctly
vacuum cleaner housing overheat	slight overheating of the vacuum cleaner housing is natural, but in case of strong overheat immediately turn off the appliance and contact service centre
	heavily contaminated filters clean or replace filters
low suction power	dust bag is full replace dust bag or empty textile dust bag
	clogged hose or telescopic wand remove any items blocking hose or wand

Technical parameters are indicated on the product nameplate.

Length of power cord: 4.5 m

Reach of vacuum cleaner: 7.5m

Note! MPM agd S.A. reserves its right to modify the technical data.

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of

Environmental Protection. Do not dispose the device with other municipal waste
