HEA 700

DE	HanderdbohrerOriginalbetriebsanleitung	3
GB	Hand earth augerTranslation of original instruction manual	10
FR	Tarière manuelleTraduction des instructions d'origine	15

1

1 2 3 4

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Observe all safety instructions before use.
	Warning - Read the operating manual to reduce the risk of injury.
	Always wear non-slip safety shoes with cut protection when using the product.
	Wear safety gloves!

Table of contents: Page:

1. Introduction.... 12
2. Product description (Fig. 1)....12
3. Scope of delivery 12
4. Proper use 12
5. General safety instructions.... 13
6. Residual risks 13
7. Technical data.... 13
8. Unpacking....13
9. Assembly 14
10. Operation.... 14
11. Cleaning.... 14
12. Storage 14
13. Maintenance 14
14. Disposal and recycling.... 14

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use

Note:

The operating manual is part of this product. It includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product. In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country. Familiarise yourself with all operating and safety instructions before using the product. Only operate the product as described and for the specified areas of application. Keep the operating manual in a good place and hand over all documents when passing the product on to third parties.

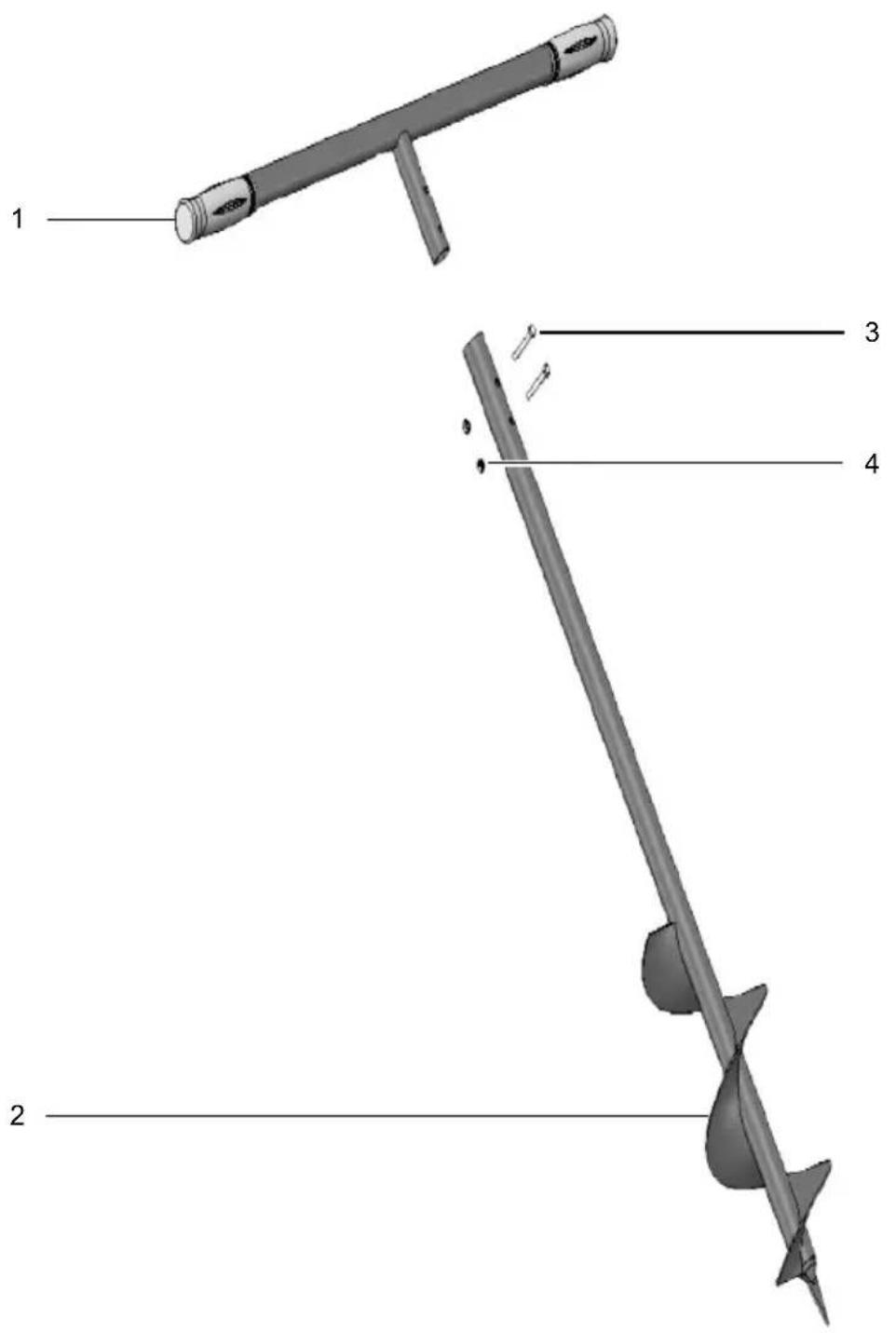

2. Product description (Fig. 1)

1. Handle
2. Drill
3. Hexagonal bolts M6
4. M6 nut

3. Scope of delivery

Item Quantity Designation

1 1x Handle

2 1x Drill

3 2x Hexagonal bolt M6

4 2x M6 nut

1x Operating manual

4. Proper use

The auger is designed for digging planting holes, pergolas and fences on light soil. The auger is only suitable to a limited extent for use on hard, stony and rooted soil.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

5. General safety instructions

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this product.

Save all warnings and instructions for future reference.

• Always keep the work area clean and orderly. Unorganised work areas increase the risk of accidents and injuries.
- Watch out for dangerous tripping hazards in the area where you are working.
- Keep the product firmly with both hands on the handles.
• Always ensure a safe footing. When using the product in high places, make sure that there are no persons underneath.
- Before operating the product, make sure that there are no hidden objects, such as an electrical cable, water pipe or gas pipe, in the floor. Otherwise the product may come into contact with it and cause a gas leak.

- Use personal protective equipment. Wear suitable protective clothing such as sturdy shoes (safety shoes), close-fitting clothing and work gloves.

6. Residual risks

The product has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.

7. Technical data

Dimensions (LxWxH) 1040x700x150 mm

Drill diameter 150 mm

Weight 3.7 kg

Subject to technical changes!

8. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly

1. Place the handle (1) on a workbench.
2. Insert the drill (2) into the holder of the handle (1). Make sure that all two through-holes are aligned.
3. Insert the hexagon head screws (3) through the holes and tighten them using the nuts (4) and an SW10 spanner (not included).

10. Operation

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

1. Always hold the product perpendicular to the floor surface.
2. When drilling, turn the auger clockwise until you can either turn no further or the auger helix is completely filled with soil.
3. The work is made easier if you pull the auger out of the hole regularly, remove the soil from the auger helix and only then continue.

11. Cleaning

• We recommend that you clean the product directly after every use.
- Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the interior of the product.

12. Storage

Store the product in a dark, dry and frost-free place that is inaccessible to children.

The optimum storage temperature lies between 5 and 30 °C.

Store the product in its original packaging. Cover the product to protect it from dust or moisture. Store the operating manual with the product.

13. Maintenance

The product is maintenance-free.

14. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.
