Product type	Drywall sander
Brand	Scheppach
Model	DWS225BT
Weight	3.8 kg
Power consumption	710 W
Rated voltage	230-240 V ~
Rated frequency	50 Hz
No-load speed (variable)	800 - 1800 min⁻¹
Abrasive disc diameter	215 mm
Spindle thread	M14
Protection class	II (double insulation)
Sound pressure level (LpA)	91.3 dB
Sound power level (LWA)	99.3 dB
Sound uncertainty K	3 dB
Vibrations (grinding with abrasive sheet)	2.28 m/s²
Vibration uncertainty K	1.5 m/s²
Dust extraction system	Yes, with hose and adapter included
Grinding head	Flexible with brush attachment
Speed regulator	Yes, adjustment wheel
Continuous operation function	Yes, with lock button
LED indicator	Yes, integrated
Power supply	Mains with power cable
Wear parts	Carbon brushes, grinding disc, brush head, abrasive disc
Repairability	Repairs by qualified specialist only
Delivery contents	Sander, suction hose, 2 adapters, 6 abrasive discs, pin, instruction manual

Frequently Asked Questions - DWS225BT SCHEPPACH

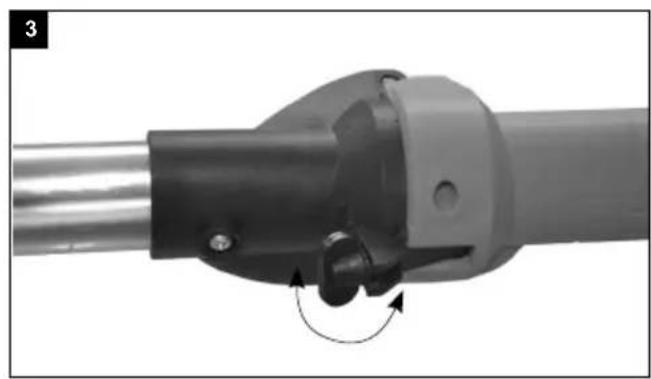

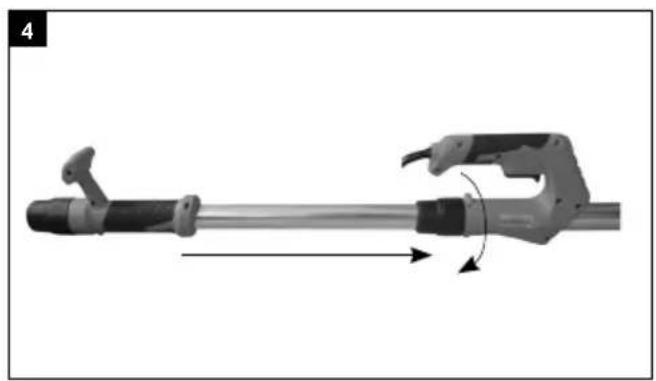

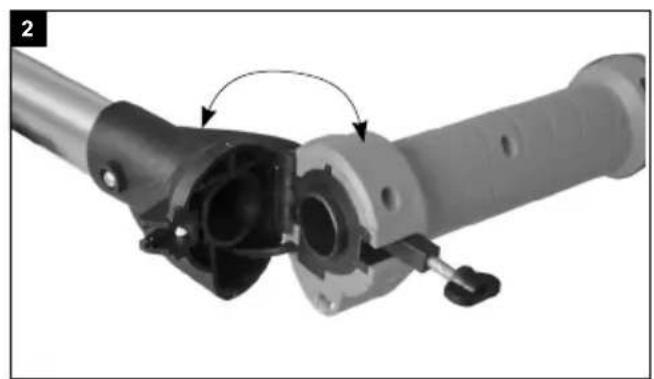

How to assemble the DWS225BT sander?

Fold the front part onto the back part and tighten the nut. Insert the auxiliary handle at the end of the machine, adjust the length, then tighten the nut.

How to choose the right abrasive paper grit?

Use a coarse grit (low number) for roughing and a fine grit (high number) for finishing. Start with the coarsest grit and finish with the finest.

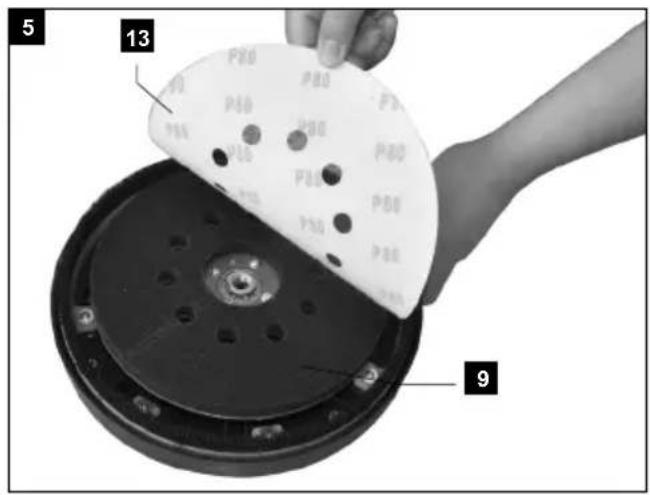

How to install the abrasive disc?

Use the Velcro strip on the sanding pad. Align the abrasive disc and apply even pressure to secure it.

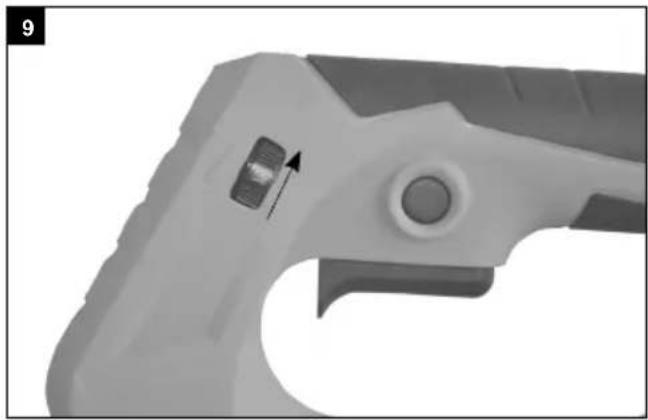

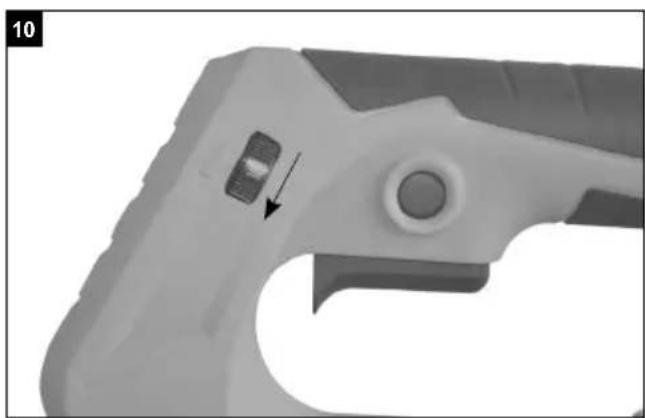

How to adjust the rotation speed?

Turn the speed adjustment wheel: to the right to reduce speed, to the left to increase it. Use low speed for rough work and high speed for fine work.

The sander does not start, what should I do?

Check the power supply by plugging in another device. Inspect the power cable and connector. If the problem persists, have the device checked by a qualified electrician.

How to clean and maintain the sander?

Unplug the device. Clean the ventilation openings and housing with a clean cloth or compressed air (max. 3 bar). Do not use solvents. Replace wear parts if necessary.

What protective equipment should I wear?

Always wear safety glasses, a dust mask, and hearing protection. Work in suitable clothing and keep long hair tied back.

Can I use the sander for sanding wet surfaces?

No, this device is designed only for dry sanding. Wet sanding is prohibited and may cause electric shock.

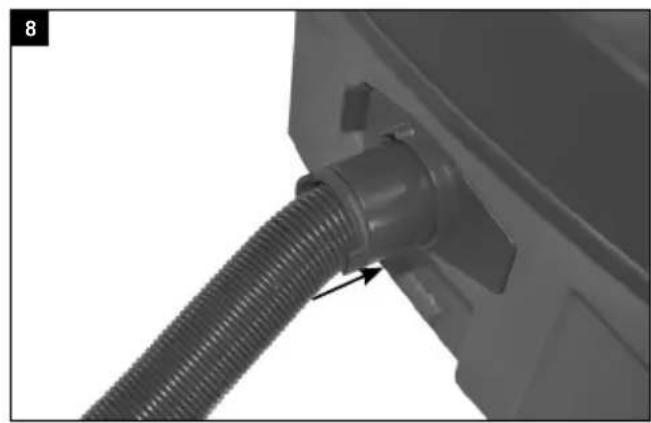

How to connect the dust extraction?

Insert the hose end into the provided adapter and lock it by turning to the right. Connect the adapter to a suitable vacuum cleaner. Ensure the vacuum cleaner is compatible with a power tool.

What to do in case of uneven sanding results?

Check the condition of the auxiliary tool: replace the abrasive disc if worn. Also check the sanding pad and brush attachment. Ensure you apply even pressure and move the sander regularly.

USER MANUAL DWS225BT SCHEPPACH

Close-up of a mechanical tool with coiled spring and handle, mounted on a circular base (no visible text or symbols)

DWS225BT

DE	Wand- und DeckenschleiferOriginalbetriebsanleitung	4
GB	Wall and ceiling sanderOriginal operating manual	19
FR	Ponceuse de murs et plafondsMode d'emploi original	31

Mechanical assembly diagram showing a shaft and housing with directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a rotating shaft and housing component (no text or symbols)

Mechanical device with lever and handle mechanism, showing motion direction (no text or symbols)

Close-up of a mechanical component with a threaded pipe fitting, no visible text or symbols

Close-up of a mechanical component with a button and arrow indicator (no text or symbols)

Close-up of a mechanical component with a small inset showing a button and arrow (no text or symbols visible)

Close-up of a mechanical device with labeled parts (12 and 15), no readable text or symbols beyond labels

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning - Read the operating manual to reduce the risk of injury.		Always work with two hands!
	Wear hearing protection.Exposure to noise can cause hearing loss.		Protection class II
	Wear a dust protection mask.When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!		Wear safety goggles. Sparks created during work or fragments, chippings and dust ejected by the device can case sight loss.
	The product complies with the applicable European directives.		We have marked points in this operating manual that impact your safety with this symbol.
	The product complies with the applicable Serbian directives.

Explanation of the signal words in the operating manual

DANGER

Signal word to indicate an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

ATTENTION

Signal word to indicate a potentially hazardous situation which, if not avoided, could result in product or property damage.

Table of contents: Page:

1. Introduction....21
2. Proper use 21
3. Product description (Fig. 1-12) 21
4. Scope of delivery 22
5. Unpacking....22
6. Technical data.... 22
7. Safety instructions....23
8. Assembly and commissioning....26
9. Operation 27
10. Cleaning, maintenance and repair 28
11. Electrical connection 28
12. Storage and transport.... 29
13. Disposal and recycling....29
14. Trouble shooting 30
15. Declaration of conformity 45

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
• Failure to comply with the operating manual
  • Repairs carried out by third parties, unauthorised specialists
  • Installing and replacing non-original spare parts
• Improper use
• Failures of the electrical system due to failure to observe the national electrical requirements and regulations.

Note:

The operating manual is part of the product and contain important information for safe, proper and economical operation. Please also observe the applicable national regulations. Read all operating and safety instructions carefully before use and only use the product as described. Keep the manual and pass it on when you give the product to someone else.

2. Proper use

The intended use of this product is the sanding of large areas of drywalls with suitable abrasive sheets as a preparation before painting or wallpapering.

This product is neither suited for the preparation of small areas, corners and edges, nor for the removal of wallpaper and the grinding of ceilings and wet grinding.

Do not use the product for cutting or roughing or polishing. Do not use it together with wire brushes. Do not treat asbestos containing materials with this product.

The product may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the product must be familiar with the manual and must be informed about potential dangers.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the product.

The product may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please note that our products were not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the product is used in commercial or industrial applications, or for equivalent work.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

3. Product description (Fig. 1-12)

1. Gripping surface
2. Main handle

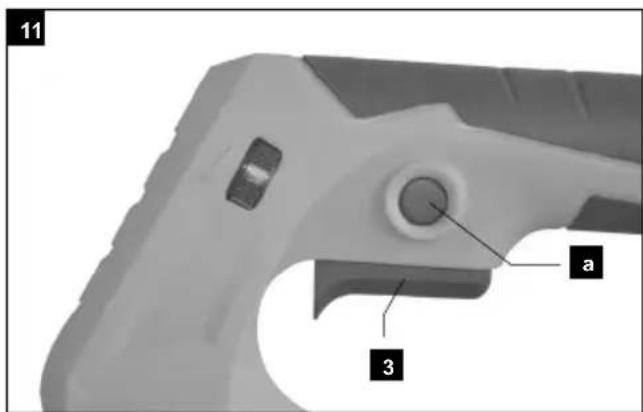

3. On/off switch
   3a. Locking knob
4. Connection pipe with union nut
5. Mains cable
6. Setting wheel for speed preselection
7. Ventilation openings
8. Flexible grinding head
9. Grinding plate
10. Brush edge
11. Vacuum hose
12. Hose adapter
13. Abrasive mesh sanding disc
14. LED light

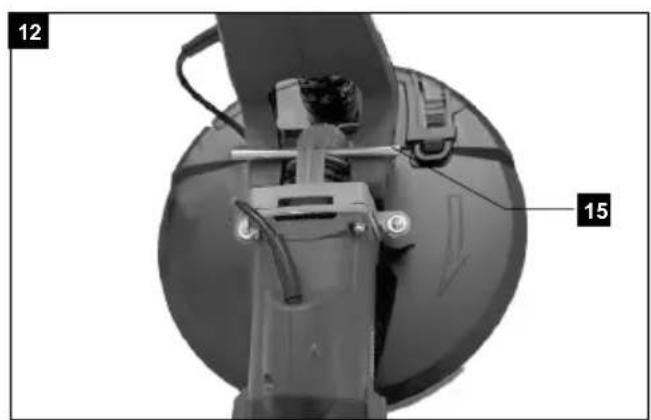

15. Split pin

4. Scope of delivery

Item Quantity Designation

1x	Drywall grinder
11 1x Vacuum hose
12 2x Hose adapter
13 6	Abrasive mesh sanding discs(various grains)
15 1x Split pin
1x Operating manual

5. Unpacking

• Open the packaging and carefully remove the product.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating manual before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

6. Technical data

Rated voltage	230 - 240 ~ V
Nominal frequency	50 Hz
Power consumption	710 W
Nominal speed at no load n_0	800 - 1800 rpm
Spindle size	M14
Sandpaper diameter	215 mm

Protection class II

Weight 3.8 kg

Sound levels
Sound pressure level L_PA	91.3 dB
Sound power level L_WA	99.3 dB
Uncertainty K 3 dB

Hand-arm vibration
when grinding with sandingsheet ah	2.28 m/s2

Uncertainty K 1.5 m/s

2

Subject to technical changes!

Wear hearing protection!

Exposure to noise can cause hearing loss.

Note:

- The noise and vibration values have been determined in accordance with EN 62841-1.

Note: The total vibration emission values specified and the device emissions values specified have been measured in accordance with a standardised test procedure and can be used for comparison of one electric tool with another.

Note: The total vibration emission values specified and the device emissions values specified can also be used for an initial estimation of the load.

Warning: The vibration values and noise emission values can vary from the specified values during the actual use of the power tool, depending on the type and the manner in which the power tool is used, and in particular the type of workpiece being processed.

Warning: It is necessary to determine the safety measures for the protection of the operator based on an assessment of the vibration load during the actual conditions of use (In doing so, all parts of the operating cycle must be taken into account such as times in which the power tool is switched off or times in which it is switched on, but is not running under a load).

7. Safety instructions

⚠ WARNING - Read all safety information, instructions, illustrations and technical data for this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” used in the safety instructions refers to mains-powered power tools (with a mains cable) and battery-powered power tools (without a mains cable).

Work area safety

a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control of the power tool.

Electrical safety

a) The connection plug of the power tool must fit into the socket. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the connection cable away from heat, oil, sharp edges or moving parts of the device. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the power tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting tools or spanners/keys before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust extraction can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of power tools allow you to become complacent and ignore power tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing tool attachments, or storing power tools. Such precautionary measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and tool attachments. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use power tools, insertion tools, etc. according to these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

a) Only have your power tool repaired by qualified specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for all operations - Safety warnings common for grinding, sanding, wire brushing, polishing or abrasive cutting-off operations

a) This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

b) Operations such as grinding, wire brushing, polishing, hole-cutting or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

c) Do not use the power tool for any function for which it is not expressly designed and intended by its manufacturer. Such a modification may result in loss of control and serious personal injury.

d) Do not use a tool attachment that has not been specifically envisaged and determined by the manufacturer for this power tool. Just because you can attach the accessories to your power tool does not guarantee they are safe to use.

e) The maximum speed of the tool attachment used must be at least as high as the maximum speed specified for the power tool. Accessories which rotate faster than the maximum permissible rate can break and throw pieces into the air.

f) The external diameter and thickness of the tool attachment used must comply with the dimensions of the power tool. Incorrectly dimensioned tool attachments cannot be sufficiently shielded or controlled.

g) The dimensions for fastening the tool attachment must match the dimensions of the fasteners of the power tool. Tool attachments which are not precisely attached to the power tool rotate unevenly, vibrate very strongly and can cause a loss of control.

h) Never use damaged tool attachments. Before each use inspect the tool attachment such as grinding discs for chips and cracks, grinding wheel for cracks, tear or excess wear, wire brush for loose or cracked wires. If the power tool or the tool attachment in use is dropped, check to see if it is damaged or use an undamaged accessory tool. When you have checked and inserted the tool attachment, ensure that you and any other people in the vicinity remain outside of the level of the rotating attachment and allow the tool to rotate at maximum speed for one minute. Damaged tool attachments usually break during this test period.

i) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear a dust mask, hearing protection, protective gloves or a special apron that will keep small grinding and material particles away from you.

The eye protection must be capable of stopping flying debris generated by various operations. Dust or breathing masks must filter the dust generated during use. Prolonged exposure to high intensity noise may cause hearing loss.

j) Ensure that other people remain at a safe distance from your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of workpiece or of a broken tool attachment may fly away and cause injury beyond immediate area of operation.

k) When performing work during which the tool attachment can meet with concealed power lines or its own mains cable, only hold the power tool by the insulated gripping surfaces. Contact with a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.

I) Keep the power cord away from any rotating tool attachments. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning tool attachment.

m) Never put the power tool down until the tool attachment being used has come to a complete standstill. The rotating tool attachment can come into contact with the surface and cause you to lose control of the power tool.

n) Do not run the power tool while carrying it at your side. Accidental contact of your clothing with the rotating tool attachment could lead to an injury.

o) Clean the ventilation slits of your power tool regularly. The engine fan draws dust into the housing and a strong accumulation of metal dust can cause electrical hazards.

p) Never use the power tool in the vicinity of inflammable materials. Sparks can ignite such materials.

q) Do not use any tool attachments which require liquid coolant. The use of water or other liquid coolants may lead to an electric shock.

Safety instructions for all applications Kick-back and corresponding safety instructions Kick-back is the sudden reaction resulting from a caught or jammed rotating insert tool, such as a grinding disc, grinding wheel, wire brush, etc. Catching or jamming results in the rotating insert tool stopping abruptly.

As a result, an uncontrolled power tool is accelerated against the direction of rotation of the tool attachment at the blocking point.

For example, if a grinding disc is snagged or pinched by the workpiece, the edge of the disc that is entering into the pinch point can dig into the surface of the material causing the disc to climb out or kick out.

The grinding disc may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of incorrect or deficient use of the power tool.

It can be prevented by suitable precautionary measures, as described in the following.

a) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of a kickback. Always use the additional handle, if available, so that you have the maximum possible control over the kickback force or reaction forces at full speed. By taking adequate precautions, the operator can stay in control of the kickback and reaction forces.

b) Never hold your hand close to a rotating tool attachment. The tool attachment could jump out of your hand if there is a kickback.

c) Avoid having any part of your body in the region in which the power tool is likely to move in event of a kickback. The kickback will force the power tool in the opposite direction to the direction of rotation of the grinding disc at the blockage.

d) Be particularly careful when working in the area of the corners, sharp edges etc. Prevent insert tools from bouncing against the workpiece and getting caught. The rotating tool attachment tends to jam at corners, sharp edges or when it gets caught. This causes a loss of control or kick-back.

e) Do not use the chainsaw blade to cut wood, a segmented diamond cutting wheel with a segment gap over 10 mm or a toothed saw blade. Such tool attachments frequently cause kick-back and loss of control.

Safety instructions for sandpaper grinding

a) Use sanding sheets of the correct size and follow the manufacturer's instructions for the selection of the sanding sheets. Larger sanding sheets extending beyond the grinding wheel present a laceration hazard and may cause snagging, tearing of the sheet or kickback.

Additional safety instructions

a) Connect a vacuum cleaner to the supplied adapter before starting your operations.
b) ATTENTION! Keep away sanding dust from open fire. Dust may be explosive.
c) Always wear safety goggles and a dust protection mask when sanding, in particular during overhead work and when processing critical materials!

When sanding certain materials (e. g. lead paint, certain types of wood and metal) harmful or noxious dust may be generated.

Touching or breathing in such dust may imply risks for the operator or bystanders.

Notes regarding vibration and noise emissions

Keep the noise level and vibration to a minimum!

1. Only use power tools which are free of defects.
2. Maintain and clean the power tool on a regular basis.
3. Adjust your way of working to the power tool.
4. Do not force the power tool.
5. Have your power tool checked if necessary.
6. Switch off the power tool if it is not in use.

Residual risks

Even when this power tool is operated properly, residual risks still remain. The following hazards may arise in connection with the design and construction of this power tool:

a) Damage to health resulting from hand/arm vibration if the device is used over an extended period of time or if it is not properly operated and maintained.
b) Injury and property damage caused by insert tools being flung around and unexpectedly out of/from the power tool due to sudden damage, wear or improper attachment.
c) Burns and cuts if the accessories are touched directly after use and/or with your bare skin.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

8. Assembly and commissioning

8.1 Assembly

1. Fold the front and rear sections together (Fig. 2) and tighten the screw nut. (Fig. 3).
2. Attach the additional handle to the end of the machine, adjust the length and tighten the screw nut at the end of the machine. (Fig. 4)

8.2 Select sandpaper

1. The grain of the sandpaper is indicated on the back. The smaller the number indicated, the coarser the grain.
2. Use coarse grain sandpaper for rough sanding and fine grain sandpaper for finishing. Sandpapers with aluminium oxide, silicon carbide or other synthetic abrasives are recommended.
3. Start with a coarse grain and finish with the finest grain if you have sandpaper with different grains to choose from to achieve a good, smooth sanding result.

8.3 Attaching and replacing sandpaper

Secure the abrasive mesh sanding disc (13) to the grinding plate (9) with the Velcro backing.

1. Align the abrasive mesh sanding disc (13) with the grinding plate (9) and press it on evenly.
2. Pull the abrasive mesh sanding disc (13) off the grinding plate (9) to replace it with a new/different one (Fig. 5).

8.4 Dust extraction

⚠ Warning!

When working on lead-based paint for example, harmful/toxic gases may be produced. These pose a danger both to the user and to persons in the vicinity!

Therefore, only use this power tool with a dust extraction device and additionally protect yourself and other persons in the working area with suitable personal protective equipment!

A large amount of dust is generated when working with this power tool. Dust extraction is very useful to keep your work area clean. A chip extraction system or a hoo-ver can be connected to the suction hose (11), which is connected to the connection for dust extraction.

1. Align the nub on the end of the hose with the vacuum hose adapter (12) (Fig. 3), insert the end and secure it by turning it to the right (Fig. 7).

2. Connect the vacuum cleaner adapter to a suitable dust extraction device such as a hoover (Fig. 8).

Note: Make sure that the vacuum cleaner is suitable for use with an power tool.

8.5 Brush edge

The grinding head of this electric tool is surrounded by a brush edge (10). This offers two advantages:

• The brush edge (10) protrudes beyond the grinding plate (9) and rests first on the surface to be worked on. As a result, the grinding plate is brought parallel to the working surface before the tool attachment comes into contact with the surface to be sanded. This prevents crescent-shaped indentations caused by the edge of the grinding wheel.
• In addition, the brush edge (10) prevents excessive dust formation. The bristles help to contain the dust produced during grinding enabling it to be disposed of by the suction system.
• Make sure that the brush edge (10) is intact each time before starting work with this power tool. Have it replaced if you notice any damage or wear.

8.6 Connection to the power supply

1. Ensure that the power tool is switched off. Always switch the on/off switch (3) in the off position first before connecting it to the power supply.
2. Insert the mains plug into a properly installed socket that meets the appropriate requirements per the technical data.
3. Your power tool is now ready for use.

9. Operation

ATTENTION!

Always make sure the product is fully assembled before commissioning!

Oscillation rate

Before starting work, set the oscillation rate to suit the application. Use a low oscillation rate for coarse grinding work, increase the oscillation rate for fine work.

1. Adjust the oscillation rate by turning the setting wheel (6). Turn to the right to reduce the oscillation rate (Fig. 9).
2. Turn to the left to increase the oscillation rate (Fig. 10).

Switching on/off

Switching on:

Press the ON/OFF switch (3)

Continuous operation: (Fig. 11)

Secure the ON/OFF switch (3) with the locking knob (3a).

Switching off:

Press in the ON/OFF switch (3) briefly.

Note: The tool attachment continues to rotate a little after it has been switched off. Wait until the tool attachment has come to a standstill before putting the power tool down.

Sanding

1. Attach a suitable abrasive mesh sanding disc (13) and select a suitable speed.
2. Hold the power tool securely by the gripping surfaces (1, 2) and switch it on as described.
3. Wait until the tool attachment has reached its full working speed.
4. Guide the grinding plate (9) as parallel as possible to the wall and place it with the brush edge (10) first on the surface to be worked on.
5. Apply some pressure on the grinding head (8) to bring the tool attachment into contact with the surface to be worked.
6. Move the power tool over the surface with even movements.

Note: Do not hold the power tool in one place for too long to avoid uneven sanding results.

1. Lift the grinding plate (9) from the surface to be worked on before switching off the power tool.

2. Wait until the tool attachment has come to a standstill before putting the power tool down.

Sanding a ceiling (Fig. 12)

1. When working on a ceiling area, fix the grinding head in place using the split pin (15) (included in the scope of delivery) as shown in Figure 12.

After use

1. Switch off the power tool as described, disconnect it from the power supply and allow it to cool down.
2. Clean and maintain the power tool as described below and then store it carefully.

10. Cleaning, maintenance and repair

⚠ Warning!

Remove the mains plug from the socket before working on the power tool itself (e.g. transport, set up, modification, cleaning and maintenance work)!

10.1 Cleaning

• Keep protective devices, ventilation openings and the motor housing as free of dust and dirt as possible.
• Wipe the power tool clean with a clean cloth or blow it off with compressed air at low pressure (max. 3 bar).
• Clean the power tool immediately after each use.
• Do not use any cleaning products or solvents as they could attack the plastic parts of the device. Make sure that no water can penetrate the interior of the device.

10.2 Maintenance

Before and after each use, check the power tool and accessories (e.g. tool attachments) for wear and damage. If necessary, replace them with new ones as described in this operating manual. When doing so, observe the technical requirements.

⚠ Warning!

There are no parts which can be serviced by the user within the power tool! Do not open the power tool! Take it to a qualified specialist for further maintenance work!

10.3 Repairs

Replacing the mains connection cable

If the mains connection cable for the electric tool is damaged then it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.

Grinding plate, brush edge

If the grinding plate (9) and the brush edge (10) are damaged or badly worn, have them replaced by a qualified specialist with new ones of the same type.

After repairs or maintenance, make sure that all safety-related parts are installed and are in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables. Wearing parts*: Carbon brushes, grinding wheel, brush head, abrasive mesh sanding disc

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall socket.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

Connection type Y

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

AC motor

• Before commissioning, ensure that the mains voltage matches with the operating voltage on the type plate.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm ^2 .

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
- Motor data - type plate

12. Storage and transport

1. When not in use store the power tool in a dry, well ventilated location out of the reach of children, e.g. on top of a high cupboard or in a locked place.
2. If possible, keep power tool, operating manual and tool attachments, if any, together in the original packaging. In this way you will have all information and parts readily to hand.
3. Always hold the power tool at its gripping surfaces.
4. To avoid transport damages, pack the power tool or use the original packaging.
5. Protect the power tool against vibrations and shocks, in particular during vehicular transport.

13. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
- Owners or users of electrical and electronic devices are legally obliged to return them after use.
- The end user is responsible for deleting their personal data from the old device being disposed of!
- The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

- Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards).
• Points of sale of electrical devices (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

- These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

14. Trouble shooting

Supposed malfunctions, faults or damage are often due to causes that can be rectified by the user. Therefore, check the power electric tool using the table below before contacting a specialist. Faults can be rectified quickly this way in most cases.

Fault Possible cause Remedy
Power tool does not start	Power supply interrupted Check power supply	by connecting another power tool
	Power cord or plug defective Have an electrician check the tool
	Other electrical defect of the power tool Have an electrician check the tool
Power tool does not operate with full power	Extension cable too long and/or cross-section too small	Use extension cable with permissible length and/or adequate cross-section
	Power supply (e.g. generator) voltage is too low	Connect power tool to an appropriate power supply
Poor operation results	Tool attachment worn out Have tool attachment replaced
	Grinding plate worn out Have grinding plate replaced
Considerable dust formation	Brush edge worn out Have brush edge replaced
	Dust extraction not connected/switched on Connect / switch on dust extraction

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Scheppach GmbH, Günzburger Str. 69, 89335 Ichenhausen

DE	EU-KonformitätserklärungÜbersetzung der OriginalkonformitätserklärungWir erklären in alleiniger Verantwortung, dass das hier beschriebene Produkt mit den geltenden Richtlinien und Normen übereinstimmt.		Der hier beschriebene Gegenstand der Erklärung erfüllt die Vorschriften der Richtlinie 2011/65/EU des Europäischen Parlaments und des Rates vom 8. Juni 2011 zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten.*Technische Unterlagen verfügbar bei: **
	Artikelnummer***	Artikelbezeichnung: Wand- und Deckenschleifer DWS225BT		Marke****
GB	EU Declaration of ConformityTranslation of the original Declaration of ConformityWe declare under our sole responsibility that the product described here complies with the applicable directives and standards.		The object of the declaration described here fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.*Technical documentation available at: **
	Item number***	Item designation: Wall and ceiling sander DWS225BT		Brand****
FR	Déclaration UE de conformitéTraduction de la déclaration de conformité originaleNous déclarons, sous notre propre responsabilité, que le produit décrit ici est conforme aux directives et normes en vigueur.		L'appareil décrit ci-dessus dans la déclaration est conforme aux réglementations de la directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 visant à limiter l'utilisation de substances dangereuses dans la fabrication des appareils électriques et électroniques.*Dossier technique auprès de:**
	Référence ***	Désignation de l'article: Ponceuse de murs et plafonds DWS225BT		Marque ****
	***5903804967			****SCHEPPACH

**: Georg KohlerGünzburger Str. 69D-89335 Ichenhauseni.V./Andreas Pecher /Head of Project Managementi.V. Simon Schunk /Division Manager Product CenterIchenhausen, 10.12.2025	☒ 2011/65/EU*☒ 2014/30/EU☐ 2014/29/EU☐ 2014/35/EU☐ 2004/22/EG☐ 2014/68/EU☐ 89/686/EWG_96/58/EG☐ 90/396/EWG☐ 2023/826/EU	☒ 2006/42/EG☐ Annex IVNotified Body:Notified Body No.:Certificate No.:	☐ 2000/14/EG_2005/88/EGNoise:measured L_WA =guaranteed L_WA =☐ Annex V☐ Annex VINotified Body:Notified Body No.:
	☐ 2016/1628/EUEmission No.:
	EN 62841-1:2015+A11:2022; EN IEC 62841-2-3:2021+A11:2021; EN IEC 55014-1:2021;EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
