USER MANUAL Fortino Pro Glatz

Line drawing of a simple outdoor umbrella with a flat top and base (no text or symbols)

EN Installation and operating instructions 18

Technical diagram illustrating the process of cutting tool with labeled parts and a red arrow indicating rotation.

Schirm auspacken

Lieferumfang:

Optional accessories 19

Technical data

19

Safety information 20

Installation and initial operation 22

Use 23

What to do if... 24

Care and maintenance 24

Disassembly 24

Warranty

25

Disposal 25

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the FORTINO Pro / FORTERO Pro / FORTELLO Pro may also be referred to as 'the product' or 'parasol'.

Warning words used

!DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION

Potentially dangerous situation which can result in minor or moderate injuries.

!NOTICE

A situation that can lead to property damage.

19

Welcome

Congratulations on the purchase of your new FORTINO Pro / FORTERO Pro / FORTELLO Pro. You have purchased a high quality parasol. These instructions forms part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your FORTINO Pro / FORTERO Pro / FORTELLO Pro parasol will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

- Base - Ground Socket

- Wall console - Protective cover

- OSYRIION Spot

- Mounting plate (FORTERO Pro / FORTELLO Pro)

Consult your GLATZ dealer about this.

Technical data

	Size [cm]	Base area [ m^2 ]	Closing height [cm]	Passage height [cm]	Overall height [cm]
FORTINO Pro	ø 250	4.4	150	205	277
	ø 300	6.4	139	205	291
	200×200	4.0	135	205	277
	250×250	6.2	115	205	293
FORTERO Pro	ø 350	8.7	133	215	310
	300×300	9.0	106	215	318
	350×350	12.3	82	215	331
	300×200	6.0	125	215	305
	350×250	8.8	104	215	319
FORTELLO Pro	350×350	12.3	96	215	342
	400×400	16	80	215	362
	400×300	12	86	215	334

Details when using the ground socket
BT (FORTINO Pro) or M4 (FORTERO Pro / FORTELLO Pro)

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  • Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the product safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the parasol before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing it. Otherwise, injuries / damage may occur.
• !DANGER Close the parasol when the wind picks up, in stormy weather conditions and / or when snow is falling.
• Observe the specifications concerning the maximum per-

missible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.

• Unattended parasols may not remain opened. Any damage is not covered by the warranty. Always secure closed parasols with a binding belt.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The parasol must be monitored during opening and closing.
• Ensure that the connection of the lower and upper pole is secure. Check the tightness of the screw from time to time and retighten if necessary (8 Nm).
• Check parasol and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled parasols should only be stored lying down.
• When using a fixed floor anchorage, the installation must be performed by specially trained persons in accordance with the separate installation instructions.
• Do no ignite a naked flame in the proximity of, or under, the parasol.

Assembly and commissioning

Diagram illustrating the step-by-step assembly of a mechanical tool, showing disassembly and reassembly with labeled parts and directional arrows.

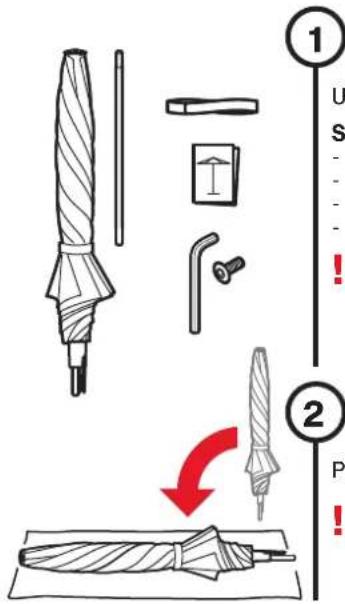

Unpack the shade

Supplied with:

• shade, bottom pole, tie-rope, top
• operating instructions

- Allen key

- fixing screw (only FORTELLO Pro)

! Dispose of packaging materials properly and keep away from children. Do not install defective material. In case of damage, please inform the transport service provider immediately.

-

Placing the parasol down

Carefully place the parasol on a clean, horizontal surface. Work in pairs with FORTERO Pro and FORTELLO Pro and hold the parasol firmly.

3.1

Assembly

1. Insert bottom pole into top pole and tighten screws (8 Nm)

! Ensure that the connection of the lower and upper pole is secure. Check the tightness of the screw from time to time and retighten if necessary (8 Nm).

)

Diagram showing a circular object on a platform with particles in liquid, alongside a vertical list of chemical formulas.

Prepare ground fastening

Place the ground sleeve according to the separate instructions.

Size [cm] [kg] [km/h (Bft.)]	minimum base weight	maximum wind speed*
ø250	40 80 (9)
ø300	55	60 (7)
200 x 200	40 70 (8)
250 x 250	55	55 (7)

FORTERO Pro

* maximum wind speed when it is securely anchored in the ground.

FORTELLO Pro

ø350, 350×250 90 55 (7)
300×300 90 60 (7)
350×350	120 50 (7)
300×200 70	65 (8)
350×350, 400×300 120 80 (9)
400×400 180 70 (8)

5 Se 1. 2. F

Setting up the shade

1. Fix shade in the base

2. FORTINO Pro, FORTERO Pro: tighten the clamp FORTELLO Pro: tighten the full-length mounting screw

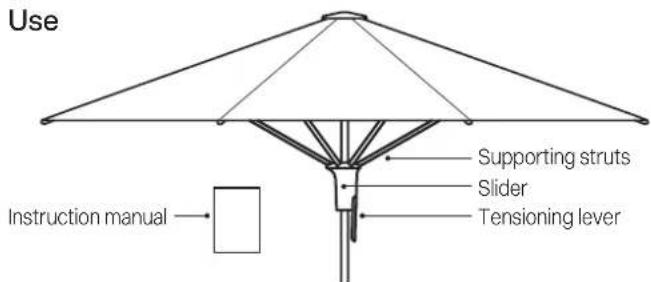

Use Supporting struts Slider Tensioning lever Instruction manual

1

1.4 1.5 1.6

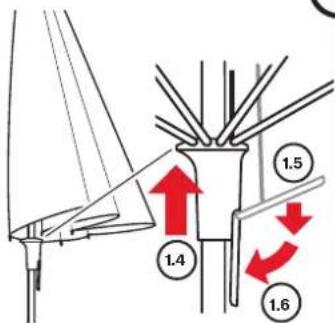

Open sunshade

1. Remove any protective cover

2. Release binding belt

3. Lightly loosen / pull out struts by hand

4. Push the slider up

5. Grasp the tensioning lever, pull down simultaneously and hook into the slider

6. Swing the tensioning lever downwards

! Make sure that the clamping lever is guided down PERPENDICULAR and snapped in all the way.

2.1 2.2 2.3

2

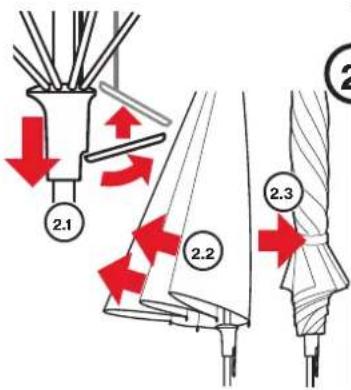

Close shade

1. Release tensioning lever, close shade.

2. Pull out / wrap fabric segments

3. Apply binding belt

4. Apply protective cover if necessary

! Only wrap / pack completely dry parasols.

Handling and maintenance

• Allow the parasol to dry when open to prevent the formation of mould and discolouration.
• A protective sleeve protects the parasol and will extend its service life.
• Exposure to sunlight (UV radiation), weather conditions (wind, rain, snow) and the duration/frequency of use affect the service life of the protective cover, therefore it must be replaced regularly. Storing the parasol and protective cover in a sheltered/dry place over winter further increases their service life.
• Only pull the protective sleeve over the dry parasol when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Clean the parasol cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the parasol is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective parasols can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the parasol if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE PARASOL TOPPLES OVER

1. Close and tie the parasol properly.
2. Dismantle the parasol in reverse mounting direction.
3. Store the parasol in lying position together with all accessories in a dry place.

2524

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the parasol lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
- Inappropriate operation or maintenance of the parasol
• Damage arising from force majeure

The wind guarantee for an open parasol is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several parasols, a minimum distance of 20 cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the parasol and walls.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point. The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.
