USER MANUAL DO7119S DOMO

Blue Domo Efficient Ironing iron iron with visible branding and power rating (no text-heavy elements)

DO7119S

Handleiding Stoomcentrale

Mode d'emploi Fer à repasser avec centrale vapeur

Gebrauchsanleitung Dampfbügelstation

Instruction booklet Steam station

Manual de instrucciones Plancha con Generador de vapor

Istruzioni per l'uso Ferro da stiro con caldaia a vapore

Návod k použití Žehlička s parním generátorem

Návod na použitie Žehlička s parným generátorom

Two simple line icons: a warning triangle with an exclamation mark and an open book with a stack of books (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

3 10 4 2 6 7 Effordless ironing

3D rendered object resembling a transparent container or mechanical part, with no visible text or symbols

9 8

PROBLEEM EN OPLOSSING

Prohibition sign depicting a trash bin crossed with crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a transparent plastic object with a labeled arrow pointing to a feature (no text or symbols on the object itself)

9 8

AVANT LA PREMIÈRE UTILISATION

Prohibition sign with crossed-out trash bin and black rectangle, indicating no waste or disposal

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a transparent plastic object with a labeled arrow pointing to a feature (no text or symbols on the object itself)

Close-up of a dark, glossy, curved object with two numbered annotations (9 and 8) pointing to surface details.

000 1000 Cotton Box Linen LIM x is vol. AN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon (three chasing arrows) inside a rounded square frame, no text or labels present.

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g. electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
· In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Before first use, remove all packaging materials and any promotional stickers.
• Check the power cord and steam hose and straighten them before use.
• Caution: you can get burned by hot metal parts, hot water or hot steam.
  · Empty the water tank after use.
  · Using accessories not recommended by the manufacturer may cause injury or damage to the appliance.
  · Never fill the water tank with hot water, perfumed liquids, starch, fabric softener or other chemical compounds.
• Do not use the appliance if it has been dropped, shows visible signs of damage or is damaged or leaking.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

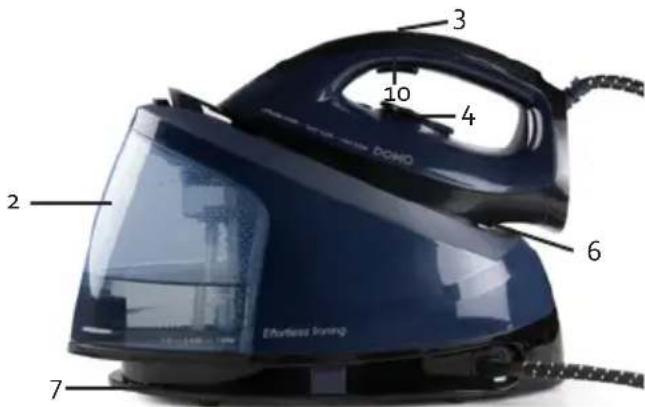

PARTS

1. Filling opening
2. Water tank
3. Temperature indicator light
4. Temperature disc
5. Sole plate
6. Thermal insulation pad
7. Cord storage
8. Iron lock button
9. Iron release button
10. Steam button

3 10 4 2 6 7 Fastbox Dono

Close-up of a transparent plastic object with a labeled section (1), no visible text or symbols on the object itself.

9 8

BEFORE THE FIRST USE

• Remove any stickers and protective film from the soleplate.
• Heat the iron to the maximum temperature and iron over a damp cloth for several minutes to remove any residue from the soleplate.

ATTENTION:

• The appliances are tested briefly each time after production. It is therefore normal for condensation droplets to have formed in the water tank.

• It is normal for a strange smell to be released during initial use. This smell will disappear after a while.

• There may be particles coming out of the ironing soleplate during the first use. This is normal. The particles are not harmful and will disappear after a while.

• While heating up the soleplate, a little steam will automatically come out of the soleplate. This is also normal and will last about 3 seconds.

USE

This steam station offers 2 options: dry ironing or steam ironing. To do this, follow the instructions below. Also carefully read the ironing tips at the bottom of this section before using the appliance.

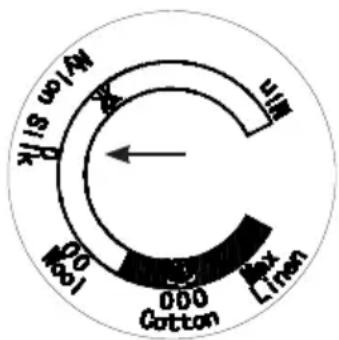

DRY IRONING

1. Place the iron on the thermal insulation pads.
2. Insert the plug into the wall socket. Turn the temperature dial to the desired setting, depending on the type of fabric to be ironed. The iron will start to heat up. The temperature indicator light will start to illuminate.

3. When the temperature indicator light goes back off, the selected temperature has been reached. You can now start ironing.

4. After ironing, place the iron on the thermal insulation pads. Turn the temperature dial back to 'MIN' to switch off the appliance. The temperature indicator light will now turn off. Remove the plug from the wall socket. Let the appliance cool down completely.

Caution: never touch the hot ironing soleplate!

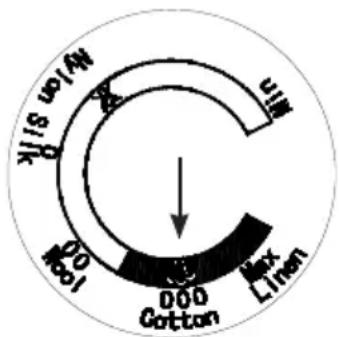

IRONING WITH STEAM

Caution: do not plug in yet.

1. Fill the water tank with water, being careful not to exceed the maximum level (1.2 l). Use only tap water or 50% tap water and 50% demineralised water in case of hard water.
2. Slide the water tank back into the appliance.
3. Place the iron on the thermal insulation pads. Plug the plug into the socket. Turn the temperature dial until it reaches the area where steam can be requested (see symbol on temperature dial), otherwise water droplets will come out of the soleplate due to condensation. The temperature indicator light will start to come on.

Oil 100 Oil 100 Carbon Line U/L Oil 100 U/L

1. When the temperature indicator light goes out again, the appliance has reached the correct temperature.

2. To iron with steam, press the steam button on the inside of the handle of the iron. A continuous flow of steam will come out of the sole. When you release the button, iron again dry, without steam. CAUTION: Never touch the hot iron soleplate! Never direct the steam at people!

3. After ironing, place the iron on the thermal insulation pads. Turn the temperature dial back to 'MIN' to switch off the appliance. The temperature indicator light will now go out. Remove the plug from the wall socket. Allow the appliance to cool down completely.

LOCKING AND UNLOCKING THE IRON ON THE BASE

• Place the iron on the base with the tip of the soleplate under the lock button. Press the lock button to lock the iron on the base. You can now easily move the iron together with the base.
• To release the iron from the base, press the release button. The lock button will come up. You can now take the iron off the base.

IRON DIAL

Use the dial to set the right temperature for the right fabric.

Symbol Fabric Temperature dial
	Synthetic fabric/nylon/silk	70 < T < 120^ ●
	Wool	100 < T < 160^ ● ●
	CottonLinen	140 < T < 210^ ● ● ● 170 < T < 225^ MAX
	This symbol means that the article must not be ironed!

IRONING TIPS

• Always check first if there is a label attached to the garment with instructions for ironing. If so, always follow these instructions.
• The iron heats up faster than it cools down. Therefore, always iron garments that need the lowest temperature first, such as synthetic fabrics.
• If a fabric consists of several types of fibres, always choose the lowest temperature to iron the combination of these fibres.
• Silks and other fabrics that shine should be ironed along the inside.
• Velvet and other fabrics that become shiny quickly should be ironed with light pressure in one direction. Always keep the iron moving.
• Never iron over zips or other metal objects in a garment. This can damage the soleplate. Always iron around such objects.

Attention: when ironing woollen fabrics, the fabric may become shiny. Therefore, turn the garment inside out to iron it.

CLEANING AND MAINTENANCE

• Unplug the appliance and let it cool down before cleaning.
• Wipe off any residue on the ironing sole with a damp cloth or a non-caustic (liquid) cleaning product.
• Note: Do not use chemical, steel, wooden or abrasive products to scrub the soleplate clean.
• Clean the upper part of the iron with a soft, damp cloth.
• Wipe away drips on the steam station and clean the thermal insulation pads with a dry cloth.
• If you do not use the steam station for a long time, pour the water out of the water tank and put the iron on the thermal insulation pads for storage.

ATTENTION: Use only tap water (or 50% tap water and 50% demineralised water in case of hard water) in the steam station. Caution: 100% softened or demineralised water should be avoided! Using a “softener” and/or scented water may cause brown stains, resulting in damage to the steam chamber.

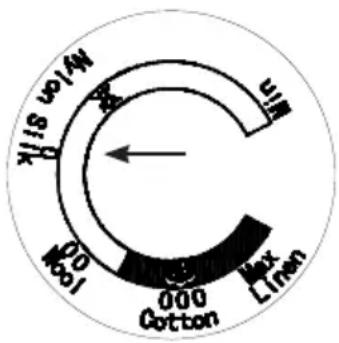

DECALCIFY

Descale the steam station regularly to extend the life of the appliance and to maintain proper operation. To do this, follow the instructions below:

1. Fill half of the water tank with a mixture of 1/3 vinegar and 2/3 water.
2. Plug in and turn the temperature dial to 'dry ironing'.
3. The temperature indicator light will come on to show that the appliance is heating up. Wait for the appliance to heat up and hold the iron over a sink or sink.
4. Now hold down the steam button for one minute so that you produce continuous steam. The appliance will clean itself in this way.

100 1000 Cotton Max L Cotton 5.1M 118 100 51M 118 51M

CAUTION: take care not to come into contact with the hot steam to avoid burns!

1. After this, fill the water tank with water only. Turn the temperature dial to the maximum and wait for the appliance to reach temperature. Repeat this cycle of spraying steam 2 to 3 times, but this time with just water, until the vinegar smell has disappeared.

PROBLEM AND SOLUTION

Problems Possible causes Solutions
The appliance leaks water from the holes in the ironing soleplate.	1. The set temperature is too low.2. The iron is not hot enough.3. You use the steam button too often.	1. Set the temperature dial within the margins of the steam symbol.2. Wait for the light to go out.3. Wait a few seconds before pressing the button again.
Brown liquid comes out of the ironing soleplate.	1. You are using chemical limescale remover.2. There are dust fibres in the sole-plate that have been burnt.3. Your laundry has not been rinsed adequately or you are using starch.4. Demineralised water was used.	1. Do not use limescale remover.2. Clean the sole with a damp sponge.3. Check that your laundry has been sufficiently rinsed.4. Use only tap water or 50/50 tap water/ demineralised water.
The ironing soleplate is dirty or brown .	1. You are using a too high temperature.2. You are using starch.	1. Clean the soleplate with a damp sponge.2. Spray the starch on the inside of the laundry.
No or little steam comes out of the iron.	1. The water tank is empty.2. There is limescale in your appliance.3. The temperature dial is at too low a temperature.	1. Fill the reservoir.2. Descale the appliance.3. Turn the temperature dial within the margins of the steam symbol.
Problems Possible causes	Solutions
The appliance makes a rattling noise.	1. Water is heating up. 1. This is normal.
Steam does not come out of the iron immediately.	1. The soleplate is not yet warm enough.2. You haven’t used the steam button for a long time, so the water has to be pumped through the pipes.	1. Turn the temperature dial within the margins of the steam symbol and wait until the light on the iron is off.2. This takes time. Hold down the steam button.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

3 10 4 2 6 Effortless ironing 7

Close-up of a transparent plastic object with a labeled section '1' (no text or symbols on the object itself)

9 8

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon (three chasing arrows) inside a rounded square frame, no text or labels present.

Close-up of a transparent plastic container with internal structure, labeled with number 1 (no text or symbols on the object itself)

9 8

PRIMA DELL'USO

Prohibition sign depicting a trash bin crossed with a horizontal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

3 10 4 2 6 7 DØNO Effortless ironing

Transparent plastic container with a labeled arrow pointing to a section (no text or symbols on the container itself)

9 8

PŘED PRVNÍM POUŽITÍM

ZAMKNUTÍ A ODEMKNUTÍ ŽEHLIČKY NA ZÁKLADNĚ

MIL 0 100 1000 Cotton uIN MIL 0 Kex Linen

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

3 10 4 2 6 7 Effortless Inning DOMO

Transparent plastic object with a curved handle and internal structure, labeled with number 1 (no text or symbols on the object itself)

9 8

PRED PRVÝM POUŽITÍM

ZAMKNUTIE A ODOMKNUTIE ŽEHLIČKY NA ZÁKLADNE

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
