Product type	Fan heater
Brand	Dimplex
Model	DFH 22
Dimensions (W x H x D)	190 x 230 x 125 mm
Weight	1.12 kg
Power supply	230-240 V ~ 50 Hz
Rated power	2000 W
Minimum power	800 W
Heat levels	2 (800 W and 2000 W) + cold air
Temperature control	Mechanical (rotary thermostat) from 5 to 35 °C
Protection class	II (without protective conductor)
Protection rating	IP21 (protected against solid objects >12.5 mm and vertical water dripping)
Functions	Adjustable thermostat, tilt switch, overload limiter
Maintenance and cleaning	Unplug and let cool; clean exterior with a soft damp cloth; use vacuum to dust interior
Safety	Automatic shut-off in case of tipping or overheating; do not cover; do not use an extension cord
Spare parts and repairability	The power cord must be replaced by an approved professional
Warranty	2 years
Recycling	Do not dispose of with household waste; take to a collection center

Frequently Asked Questions - DFH 22 DIMPLEX

What power levels are available?

The appliance offers two heat levels: 800 W (position I) and 2000 W (position II), as well as a cold air position without heating.

How to set the desired temperature?

Turn the thermostat knob fully to the right, then when the desired room temperature is reached, slowly turn it back to the left until the appliance stops. It will then automatically maintain that temperature.

Can I use an extension cord with this heater?

No, using an extension cord is prohibited as it could overheat and cause a fire. Plug the appliance directly into a wall outlet.

Can the appliance be used in a bathroom?

Yes, thanks to the IP21 protection rating, it is protected against vertical water dripping. However, it should not be installed within reach of a person in a bathtub or shower.

What to do if the appliance turns off automatically?

This may be due to the overload limiter tripping. Cut the power (fuse), let it cool, then eliminate the cause (e.g., blocked air grille). If the problem persists, contact your dealer.

How to clean the heater?

Unplug and let cool. Clean the exterior with a soft damp cloth. For the interior, use a vacuum to remove dust. Do not use scouring powder or wax.

What is the warranty period?

Dimplex provides a 2-year warranty on this product, according to its general conditions.

Can I use an external timer with this heater?

No, to avoid unintentional reset of the temperature limiter, the appliance must not be powered via a timer or switched circuit.

Is the appliance safe for use with children?

Children under 3 years must be kept away. Children aged 3 to 8 can turn on/off under supervision. Surfaces can become very hot, be careful.

How to recycle the appliance at end of life?

Do not throw it away with household waste. Take it to an approved collection center for recycling electrical appliances.

USER MANUAL DFH 22 DIMPLEX

Line drawing of a portable air heater with two rotary buttons and ventilation grilles (no text or symbols)

EN - This product is only suitable for well-insulated rooms or for occasional use.

1. Notes for the user

NOTE

Dear customer,

Keep these instructions in a safe place and pass them on to any future owners.

For safe operation, the device may only be operated in accordance with the information in these operating instructions. Please carefully follow all information provided in these instructions.

ATTENTION!

This device can be used by children aged 8 and over and by persons with limited physical, sensory or mental aptitude, providing they are supervised or have been instructed in the safe use of the device and understand the associated potential dangers. Children must not play with the device. Cleaning and user maintenance may not be carried out by children without supervision.

ATTENTION!

Children younger than 3 years of age must be kept away unless they are supervised constantly.

ATTENTION!

Children between the ages of 3 and 8 may switch the device on and off if they are supervised or have been instructed in the safe use of the device and have understood the resulting dangers, providing that the device is positioned or installed in its normal place of use.

ATTENTION!

Children between the ages of 3 and 8 may not switch on the device, clean the device or carry out maintenance.

ATTENTION!

The heating device carries the symbol shown on the right, which indicates that the heating device must under no circumstances be covered with any objects.

ATTENTION!

Some parts of the device can get very hot and cause burns. Particular caution must be taken with children or vulnerable people.

ATTENTION!

Do not operate the heating device in rooms where highly flammable substances are used (e.g. solvents).

ATTENTION!

Install the device in such a manner that it cannot be touched by a person in the bathtub or under the shower.

ATTENTION!

If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

ATTENTION!

To prevent a hazard due to the protection temperature limiter being reset unintentionally, the device must not be supplied by an external switching facility, such as a time switch, or connected to an electric circuit that is switched on and off regularly by a device.

ATTENTION!

Do not use the device if it is visibly damaged or if the device has been dropped.

ATTENTION!

Do not operate the device near curtains, drapes and other flammable materials!

ATTENTION!

Do not lay the connecting cable across the device. Never commission the device if the device or power cable are damaged.

Danger to life!

ATTENTION!

The socket-outlet must be accessible at all times to enable the mains plug to be disconnected as quickly as possible!

ATTENTION!

Do not use extension cables to connect the heating device, as this could result in fire in the event of overheating!

NOTE

Repairs and corrective measures must only be carried out by a qualified technician.

NOTE

Use device for room heating within enclosed rooms only.

NOTE

Disconnect the power supply in the event of fault or when device is not used for an extended period of time.

2. Installation

ATTENTION!

Do not install the device directly below a wall socket.

ATTENTION!

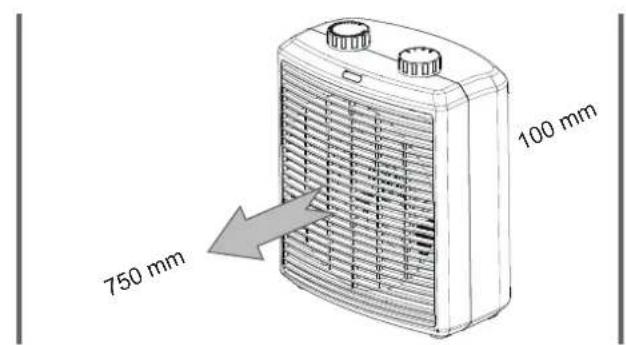

The fan heater may only be used as shown, i.e. on a horizontal, even surface. Use on deep-pile carpets is not permitted. Minimum clearance in the air outlet area: 750 mm.

3. Electrical connection

Only connect the device to the AC voltage power supply as specified on the type plate.

4. Operation

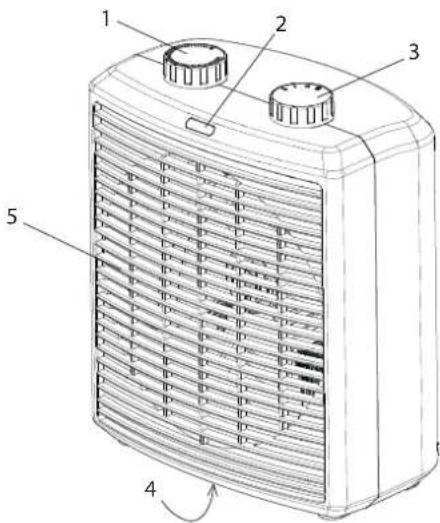

1 Thermostat control rotary knob 4 Safety toggle switch

2 Indicator lamp 5 Air outlet

3 Operating mode rotary knob

Operating mode rotary knob

0 Off

Cold air

I Heating level 1 (800 W)

II Heating level 2 (2000 W)

Thermostat control rotary knob

The room temperature is regulated using the continuously adjustable thermostat.

Turn the thermostat control rotary knob to the right stop at the start (maximum). When the desired room temperature is reached, turn

the thermostat control rotary knob slowly to the left until the device switches off. The device now switches on and off automatically to maintain the desired room temperature. There may be an audible click during this process.

If the thermostat rotary knob is set to the lowest setting i.e. to the extreme left, the thermostat switches the heating device on at an ambient temperature of approx. 5 °C.

Using the operating mode rotary knob, two heating levels and a cold air level can be selected.

In the cold air fan operation, turn the thermostat rotary knob to the right stop (maximum).

The device is equipped with a safety toggle switch. The device switches off automatically if it is not in its correct position.

5. Overload protector

For your safety, the heating device is equipped with an overload protector. If the permissible temperature is exceeded, the heating device switches off automatically.

In this case, the power supply to the heating device should be disconnected (switch off the fuse) to allow the device to cool down sufficiently.

Before recommissioning the device, resolve the reasons (e.g. air grille positioned incorrectly or covered) for the overload protector being triggered.

If the overload protector is repeatedly triggered, decommission the device and contact your electronics retailer.

6. Maintenance

The device must be disconnected from the mains and allowed to cool down before maintenance. Clean the outside of the device using a soft, damp cloth. Do not use scouring powder or furniture polish as this may damage the surface. Dust which gathers inside the device can be removed from the outside using a vacuum cleaner.

7. Warranty

This product is supplied with a two-year warranty according to our terms of guarantee.

8. Recycling

Do not dispose of the device with general household waste. Take the device to the available collection points at the end of its service life.

1. Technical data

Order code		Unit	DFH 22
Connection voltage			1/N/PE230-240 V ~50 Hz
Power consumption kW 2.0
Protection class			II, withoutprotective conductor
Degree of protection IP21
Heating levels 2
Heat output
Nominal heat output	P_nom	kW 2.0
Minimum heat output (guide value)	P_min	kW 0.8
Maximum continuous heat output	P_max,c	kW 2.0
Additional power consumption
At nominal heat output	EI_max	kW 0.0
At minimum heat output	EI_min	kW 0.0
In standby mode	el_SB	kW 0.0
Type of heat output/room temperature control
Mechanical room temperature control		°C 5 - 35
Dimensions W x H x D mm 190 x		230 x 125
Weight kg 1.12
