USER MANUAL BHI65138B GORENJE

QR code image containing encoded data, no visible human-readable text

The product is designed for the extraction of cooking fumes and steam and it is for domestic use only.

Strictly observe the instructions in this manual. No liability shall be accepted for any inconvenience, damage or fire caused to the product as a result of not following the instructions given in this manual.

The device may have different aesthetic features with respect to the illustrations in this handbook, however the operating, maintenance and installation instructions remain the same.

- It is important to keep all the manuals accompanying the product so that they can be consulted at all times. If sold, transferred or moved, make sure it remains with the product. • Read the instructions carefully: they contain important information on installation, operation and safety. • Check the integrity of the product prior to its installation. Otherwise, contact the dealer and do not continue with the installation.

NOTES

* : the items marked with this symbol are optional accessories supplied only with some models or items that cannot be supplied but can be purchased.

■ SAFETY AND REGULATIONS

GENERAL SAFETY

- Do not make electrical or mechanical changes on the product or on the exhaust pipes. • Before doing any cleaning or maintenance work, disconnect the product from the mains power supply by removing the plug or turning off the mains switch. • For all installation and maintenance operations, always wear work gloves. • The product can be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or without experience or the necessary knowledge, as long as they are properly supervised or have been instructed on how to safely use the device and understand the inherent dangers. • Children must be supervised to make sure that they do not play with the product. • Cleaning and maintenance must never be performed by children unless they are properly supervised. • The room must have sufficient ventilation when the product is used at the same time as other appliances burning gas or other fuels. • The product must be cleaned frequently both inside and out (AT LEAST ONCE A MONTH); always follow the instructions given in the maintenance manual. • Failure to comply with the rules indicated for cleaning the product and replacing/cleaning the filters may result in the risk of fire. • It is strictly forbidden to cook food on the flame under the product. • WARNING: • When the hob is on, the accessible parts of the product may become hot. • Do not connect the product to the electrical power supply until the installation is complete.

•The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to adopt for fume extraction. •The extracted air must not be conveyed through the same ducts used to extract the fumes generated by gas combustion or other types of combustion products. •Do not use or leave the product without appropriately installed lamps, as this may result in the risk of electric shock. •The product must NEVER be used without the grille correctly fitted. •The product must NEVER be used as a support surface unless expressly indicated.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

- To replace the lamp, only use the lamp indicated in the maintenance/lighting system section of this manual. • Using a naked flame may damage the filters and cause a fire hazard, and must therefore be avoided under all circumstances. • Extra care must be taken when frying to prevent the oil from overheating and catching fire. • In case of doubt, contact the authorised service centre or similar qualified personnel.

INSTALLATION SAFETY

- Use the fixing screws supplied with the product only if suitable for the surface; otherwise purchase the correct type of screws. •Check for accessories (e.g. bags containing screws, warranty certificates, etc.) inside the product (placed there for transport reasons). If there are any, remove them and keep them safe. • WARNING: Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards. •The exhaust pipe is not supplied and must be purchased. •The diameter of the exhaust pipe must be equivalent to the diameter of the connecting ring. •For installation of the product on the hob, respect the height indicated in the drawings •The minimum distance between the surface of the container supports on the cooker and the lowest part of the range hood must not be less than 50 cm (not less than 65 cm only for Australia and New Zealand) for electric cookers and 65 cm for gas or mixed cookers. •If the installation instructions of the gas cooker specify a greater distance, take it into account.

⚠️ ELECTRICAL CONNECTION SAFETY

- The mains voltage must correspond to the voltage indicated on the label found inside the product. •If it features a plug, connect the product to a socket that complies with current standards, located in an area accessible even after installation. •If it does not feature a

plug (direct connection to the mains) or the plug is not located in an accessible area, even after installation, apply a standard double pole switch that ensures complete disconnection from the mains in category III overvoltage conditions, in accordance with the installation rules.

Warning! The power cable must be replaced by the authorised technical support service or by a person with similar qualifications.

- Attention! Before reconnecting the circuit to the mains power supply and making sure that it is working correctly, always check that the power cable is correctly installed.

Please note! Do not use with a programmer, timer, separate remote control or any other device that activates automatically.

■ RECOMMENDATIONS FOR USE

Recommendations for correct use in order to reduce the impact on the environment: When cooking begins, the device should be turned on at minimum speed, and left on for a few minutes even after cooking is complete. Increase the speed only if there is a large quantity of fumes and steam, using the Booster function only in extreme cases. To keep the odour reduction system running efficiently, replace the carbon filter/s when necessary. To ensure the high performance of the grease filter, clean it when necessary. To improve efficiency and minimise noise, use the maximum duct diameter indicated in this manual.

■ END-OF-LIFE DISPOSAL

This device is marked in compliance with the European Directive 2012/19/EC - UK SI 2013 No.3113, Waste Electrical and Electronic Equipment (WEEE). Make sure that this product is disposed of correctly. The user helps prevent potential negative consequences for the environment and for health.

The symbol on the product or accompanying documentation indicates that this product should not be treated as household waste but should be handed over at a suitable collection point for the recycling of electrical and electronic equipment. Dispose of it in accordance with local regulations for waste disposal. For further information about the treatment, recovery and recycling of this product, please contact your local authority, the collection service for household waste or the shop from where the product was purchased.

REGULATIONS

Equipment designed, tested and manufactured in compliance with safety regulations: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

USE

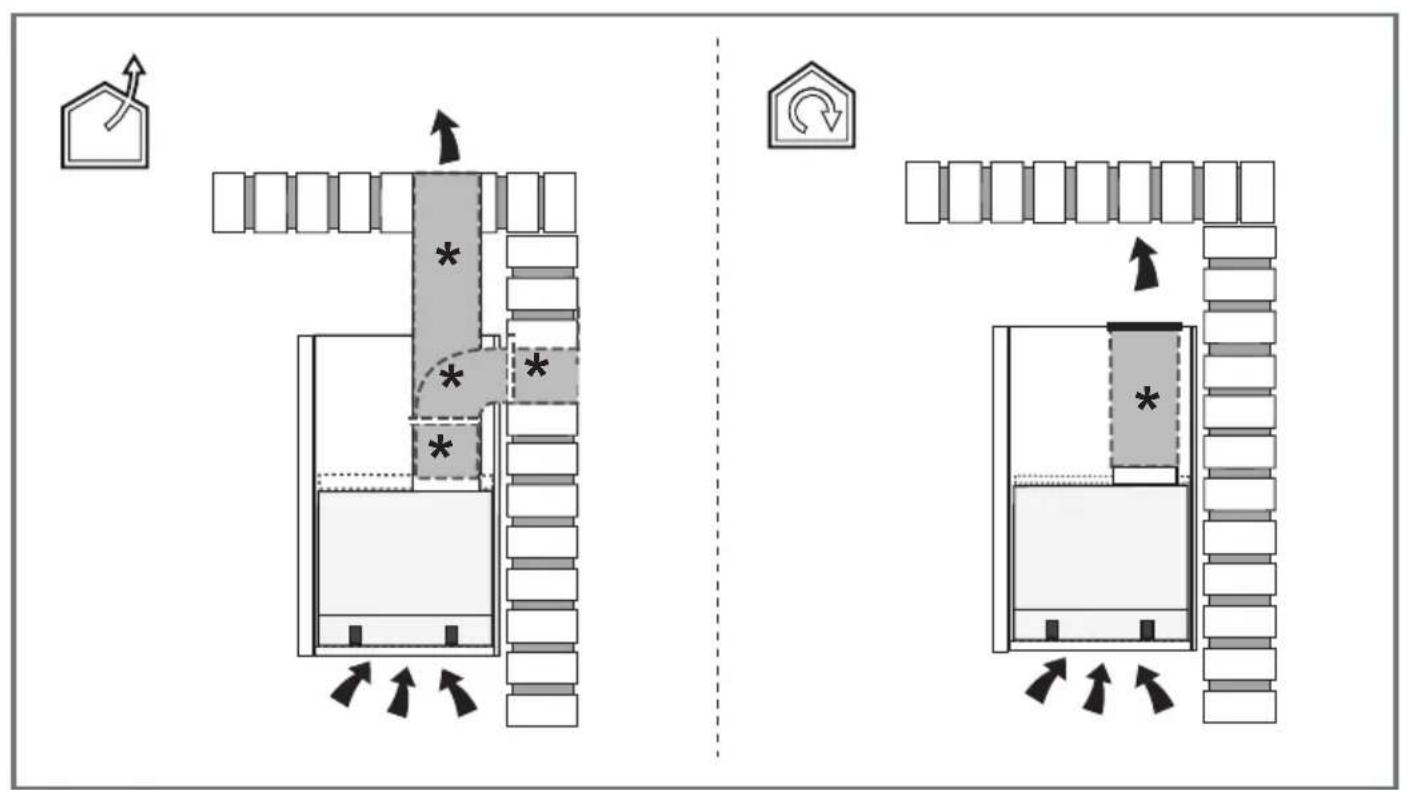

The extraction system can be used in the duct-out version with external evacuation, or in the recirculating version with filtering and internal recirculation.

- Duct-Out Version:

Vapours are evacuated outside through an exhaust pipe attached to the connecting flange.

CAUTION! If the product features one or more carbon filters, they must be removed.

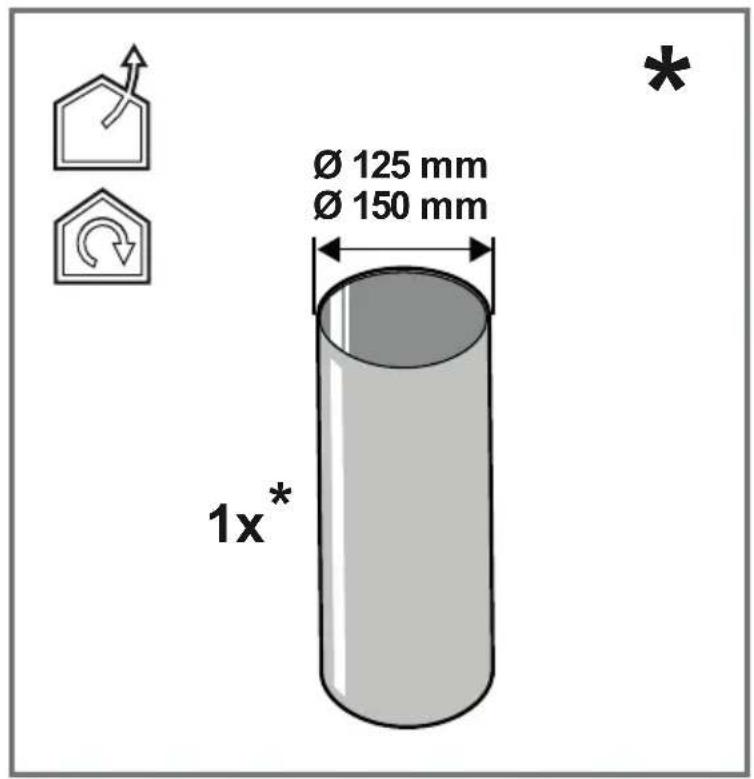

Connect the product to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange).

The use of pipes and outlet holes in the wall with a smaller diameter will reduce the extraction performance and drastically increase the noise level.

All responsibility in this regard is therefore denied.

• Use a ducting pipe with the shortest length necessary.
• Use a ducting pipe with the least number of bends possible (maximum bend angle: 90^ ).
• Avoid drastic changes in the ducting pipe diameter.

Recirculating Version:

The suctioned air will be degreased and deodorised before it is sent back into the room. To use the product in this version, it is necessary to install an additional activated carbon filter system.

■ ASSEMBLY BEFORE INSTALLATION

• Check that the product is the right size for the installation area.

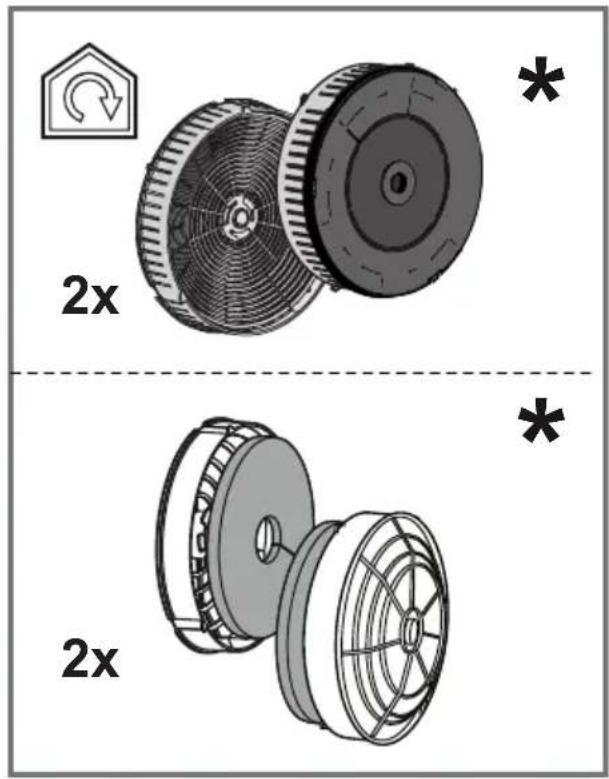

• Remove the activated carbon filter(s) if supplied (see also relevant paragraph).
• It(they) must be reinstalled if the product is used in the filter version.
• If there are panels and/or walls and/or wall units on the sides, make sure that there is enough space to install the product and that it is always possible to access the control panel easily.
• The product is equipped with fixing plugs suitable for most walls/ceilings. However, it is necessary to consult a qualified technician to make sure that the materials are suitable for the type of wall/ceiling. The wall/ceiling must be strong enough to support the weight of the hood.

■ OPERATION

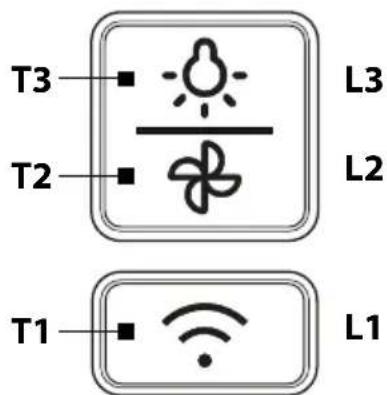

CONTROL PANEL

T3 L3 T2 L2 T1 L1

T1= WiFi and Bluetooth key

Attention! To assist with timing, a beep sounds with each second for every activated Procedure/Configuration.

T2= Suction speed control key (power):1, 2, 3, 4 intensive.

• 1st Speed LED L2 Green
• 2nd Speed LED L2 Yellow
• 3rd Speed LED L2 Blue
• 4th Intensive Speed LED L2 flashes Red

Note: Intensive speed lasts about 5 minutes, after which 3rd Speed is set automatically.

T3 = Light ON/OFF key

Filter saturation indicator

The hood indicates when maintenance is needed for the following filters:

Grease filter alarm (every 40 hours of use approximately):

• T1+T2+T3 ON red for 3 seconds when the motor is switched on.
• T1+T2+T3 ON red for 30 seconds when the motor is switched off.

After performing maintenance on the filters, it is necessary to perform the grease filter saturation reset.

Activated carbon odour filter (roughly every 160 operating hours):

• T1 ON and T2+T3 flashing, red for 3 seconds when the motor is switched on
• T1 ON and T2+T3 flashing, red for 30 seconds when the motor is switched off.

After performing maintenance on the filters, it is necessary to perform the activated carbon odour filter saturation reset.

Reset filter saturation

After performing maintenance on the filters, press and hold keys T1 and T3; LEDs L1, L2 and L3 will flash red briefly and then turn off.

Activation of activated carbon odour filter saturation indicator

This indicator is normally deactivated. To activate it, proceed as follows:

With the hood switched off, press and hold T1 and T2 simultaneously: L1 will light up first, then also L2 and L3, then, when the keys have been released, LEDs L2 and L3 will flash briefly, indicating activation.

Deactivation of carbon filter saturation LED: repeat the operation described above; LEDs L1, L2 and L3 will light up first, at the same time, then only L1, after which, when the keys are released, LEDs L1, L2 and L3 will light up again, indicating deactivation.

■ Additional functions available only with the ConnectLife App.

To activate/deactivate the CLEAN AIR and TIMED AUTOMATIC POWER-OFF (Timer) functions, follow the instructions in the ConnectLife App.

- CLEAN AIR

The CLEAN AIR function allows ventilation of the kitchen for up to 24 hours at the desired speed.

The extraction speed, cycle duration in minutes (in the ON position, the cycle runs for at least 5 minutes up to a maximum of 10 minutes), the pause time in minutes between cycles and the number of hours, can be set using the ConnectLife App..

When the Clean Air function is active, the LED of the set speed flashes slowly.

Once the set time has elapsed, the motor and indicator light turn off.

Attention! The CLEAN AIR function does not work with Intensive Speed active..

- TIMED AUTOMATIC POWER-OFF (Timer)

Via the ConnectLife App., it is possible to set the hood power-off delay for up to 30 minutes.

When the Timer function is active, the LED of the set speed flashes quickly.

Once the set time has elapsed, the motor and indicator lights turn off.

Attention! The TIMED AUTOMATIC POWER-OFF (Timer) function does not work with Intensive Speed active.

■ CONNECTING THE APPLIANCE TO THE CONNECTLIFE APPLICATION

ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife application includes advanced digital services and carefree solutions that allow users to monitor and control appliances, receive notifications from a smartphone, and update software (supported features may vary depending on your appliance and the region/country in which you are located).

To connect your smart device, you need a home Wi-Fi network (only 2.4 GHz networks are supported) and a smartphone equipped with the application ConnectLife.

To download the ConnectLife, application, scan the QR code or search for ConnectLife in your favourite app store.

ConnectLife

QR code image containing encoded data, no visible human-readable text

1. Install the ConnectLife application and create an account.
2. In the ConnectLife application, go to the "Add device" menu and select the appropriate type of device. Then scan the QR code (it can be found on the nameplate of the appliance; you can also enter the AUID/MV number manually).
3. The application then guides you through the entire process of connecting the appliance to your smartphone.
4. After a successful connection, the appliance can be operated remotely via the mobile application.

■ WI-FI MANAGEMENT

A connected appliance allows an external induction hob to be connected. With the connection, the hood will adapt its operation to the cooking parameters of the induction hob. The smart algorithm used in the devices accurately monitors the cooking intensity on the hob and, based on the data detected, selects the power of the hood.

Pairing hood with hob

To initiate the pairing of the hood and induction hob follow steps below. Simultaneously start the pairing process on your induction hob (for details see instruction manual of your hob).

• Switch on the hood.
• Press and hold WiFi key (T1) on hood for 3 seconds to switch on WiFi module.
• Before using the Hob to Hood function for the first time, the hood must be updated using the ConnectLife app.
• Press and hold WiFi key (T1) on hood for 9 seconds to start pairing process.

Unpairing hood from hob

• Switch on the hood.
• Press and hold the WiFi key (T1) for 12 seconds, to un-pair the hood from the hob.

NOTE: The unpairing process will unpair appliance from hob and from the ConnectLife, when performing unpairing process. To reconnect to the hob or ConnectLife, pairing process needs to be repeated. The password and all other settings configured in the ConnectLife App. will be reset and must be reconfigured.

INFORMATION

In case of turning the appliance off, without previously disconnecting from the induction hob, the hood and induction hob will be automatically connected, when you will start your new cooking session.

Wi-Fi status table

LED L1 Wi-Fi Status
White flashing light	Wi-Fi waiting to be paired.
White flashing light	Router credentials for Wi-Fi (Pairing) configuration being entered.
White flashing light	Wi-Fi module not detected.
White steady light	Router and Wi-Fi connected to Cloud
Soft white steady light	Wi-Fi off

■ CONNECTING AN EXTERNAL HOB - "HOB TO HOOD"

A connected appliance allows an external induction hob to be connected. With the connection, the hood will adapt its operation to the cooking parameters of the induction hob. The smart algorithm used in the devices accurately monitors the cooking intensity on the hob and, based on the data detected, selects the power of the hood.

Pairing hood with hob

To initiate the pairing of the hood and induction hob follow steps below. Simultaneously start the pairing process on your induction hob (for details see instruction manual of your hob).

• Switch on the hood.
• Press and hold WiFi key (T7) on hood for 3 seconds to switch on WiFi module.
• Before using the Hob to Hood function for the first time, the hood must be updated using the ConnectLife app.
• Press and hold WiFi key (T7) on hood for 9 seconds to start pairing process.

Unpairing hood from hob

• Switch on the hood.
• Press and hold the WiFi key (T7) for 12 seconds, to un-pair the hood from the hob.

NOTE: The unpairing process will unpair appliance from hob and from the ConnectLife, when performing unpairing process. To reconnect to the hob or ConnectLife, pairing process needs to be repeated. The password and all other settings configured in the ConnectLife App. will be reset and must be reconfigured.

INFORMATION

In case of turning the appliance off, without previously disconnecting from the induction hob, the hood and induction hob will be automatically connected, when you will start your new cooking session.

Bluetooth status table

L7 LED Bluetooth Status
White flashing light	Bluetooth active.
White flashing light	Hood and Hob waiting to be paired.
White flashing light	Searching for the hob.
Orange flashing light	Hood hob connection failed.
White steady light	Hob and hood pairing successful.
Soft white steady light	Bluetooth off.

■ MAINTENANCE WARNINGS

• Cleaning: For cleaning, simply use a cloth moistened with neutral liquid detergents. Do not use cleaning tools or instruments.
• Avoid the use of abrasive products. DO NOT USE ALCOHOL!

For product maintenance, see the images at the end of the installation marked by this symbol.

• Anti-Grease Filter: The metallic anti-grease filter must be cleaned once a month with non-aggressive detergents, manually or in a dishwasher on a short wash at low temperatures. To remove the anti-grease filter, pull the spring release handle.

- The Anti-Grease Filter traps the grease particles produced during cooking. When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

Carbon filter (for filter version only): The cartridge must be replaced at least every four months. It CAN-NOT be washed or regenerated. As indicated in the drawings section: remove the anti-grease filters, apply a carbon filter on each side and attach it to the product. Put the anti-grease filters back in place.

- The carbon filter retains any unpleasant odours produced during cooking. • The saturation of the carbon filter can occur after somewhat prolonged use depending on the type of cooking and how regularly the grease filter is cleaned.

- Washable activated carbon filter (for filter version only):

The carbon filter can be washed every two months (or

when indicated by the filter saturation system - if included in your model). As indicated in the drawing section: remove the grease filter, remove the carbon filter and wash using hot water and suitable detergents or in a dishwasher at 65^ C (if washing in a dishwasher, carry out the complete washing cycle without dishes inside). Remove any excess water without damaging the filter, then place it in the oven for 10 minutes at 100^ C to dry it out completely. Put the anti-grease filters back in place.

Replace the foam layer every 3 years and each time the cloth appears damaged.

meter suction panel (panel maintenance)

Disassembly:

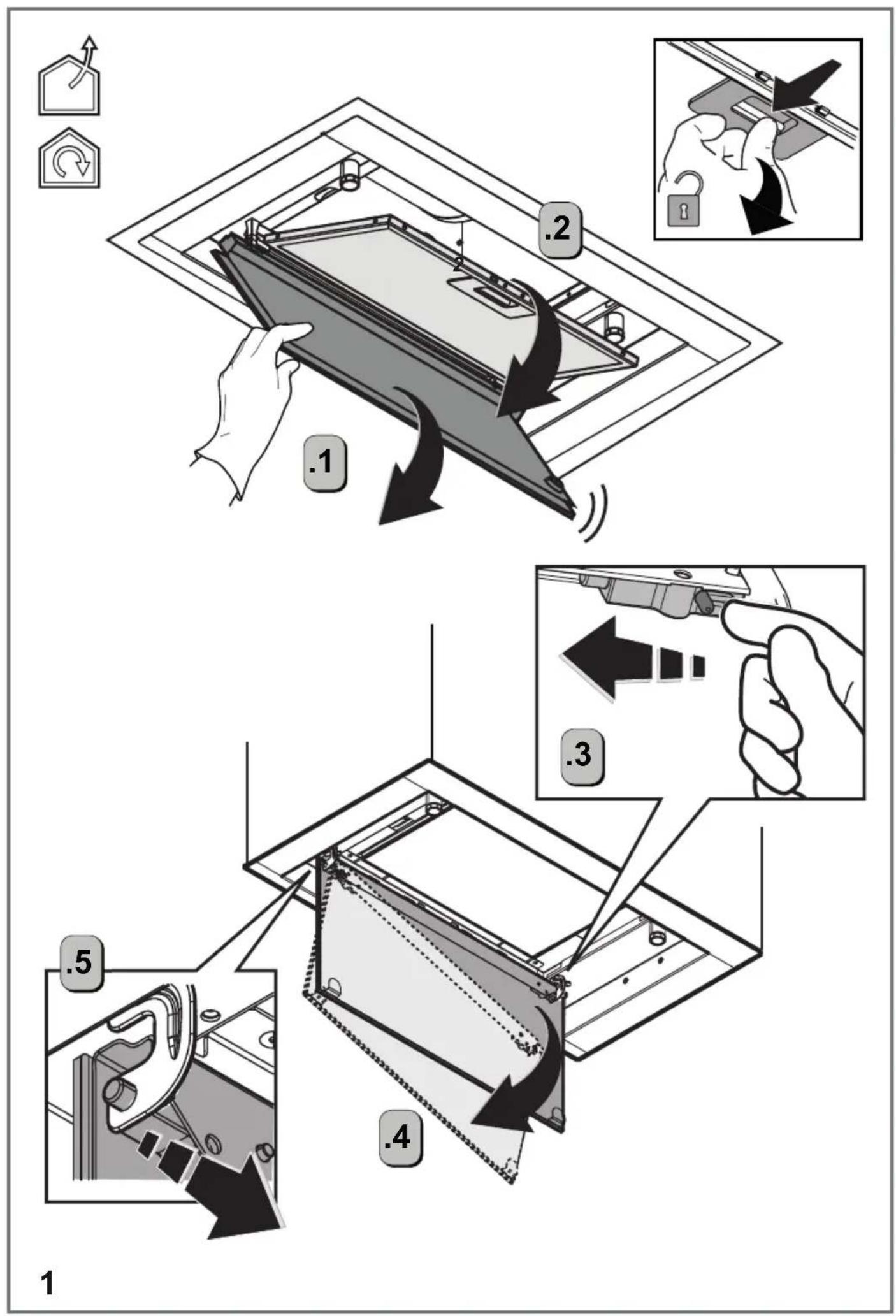

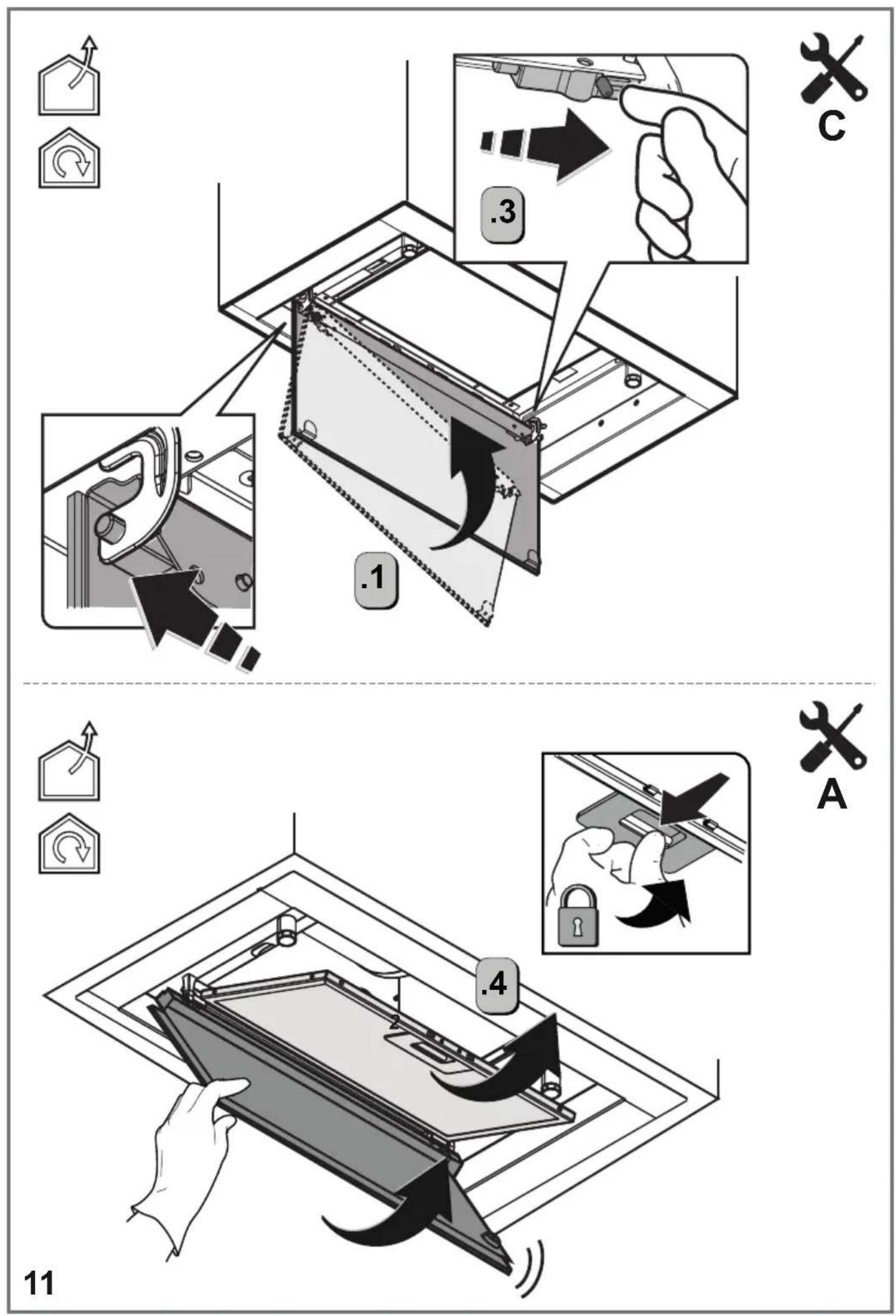

a. firmly pull the panel (FRONT SIDE) downwards b. release it from the rear hinges.

Cleaning: the suction panel must be cleaned manually using non-aggressive detergents.

Assembly: the panel must be hooked at the back and secured at the front (with magnets).

Attention! Always check that the panel is securely fixed in place.

Illumination

• The lighting system is based on LED technology. LEDs provide optimal illumination, last up to 10 times longer than conventional lamps and save 90% of electricity.
  ●Lighting system : The lighting system cannot be replaced by the user, contact Customer Service in case of malfunction.

DE

ConnectLife

ConnectLife

- CLEAN AIR (REN LUFT)

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

- CLEAN AIR (REN LUFT)

■ KOBLE APPARATET TIL CONNECTLIFE-APPEN

ConnectLife

- CLEAN AIR (REN LUFT)

■ TILSLUTNING AF APPARATET TIL CONNECTLIFE-APPLIKATIONEN

ConnectLife

ConnectLife

⚠ BEZPEČNOST INSTALACE

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

ConnectLife

ConnectLife

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

T1= Tipka WiFi in Bluetooth

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1. Instalirajte aplikaciju ConnectLife i izradite račun.

2. U aplikaciji ConnectLife pristupite izborniku „Dodaj uređaj” i odaberite odgovarajuću vrstu uređaja. Zatim skenirajte QR kod (nalazi se na natpisnoj pločici uređaja; možete i ručno unijeti broj AUID/MV).

3. Aplikacija će vas voditi kroz cijeli postupak povezivanja uređaja s pametnim telefonom.

4. Nakon uspješnog povezivanja uređajem se može upravljati daljinski putem mobilne aplikacije.

■ UPRAVLJANJE PUTEM MREŽE WI-FI

Aktiviranje modula Wi-Fi

- CLEAN AIR (AJËR I PASTËR)

ConnectLife

Safety warning illustration showing hazard symbols for human and hand protection, hand gesture, and electrical circuit change.

Diagram illustrating room layout changes with directional arrows and labeled components, including a house icon and a circular symbol.

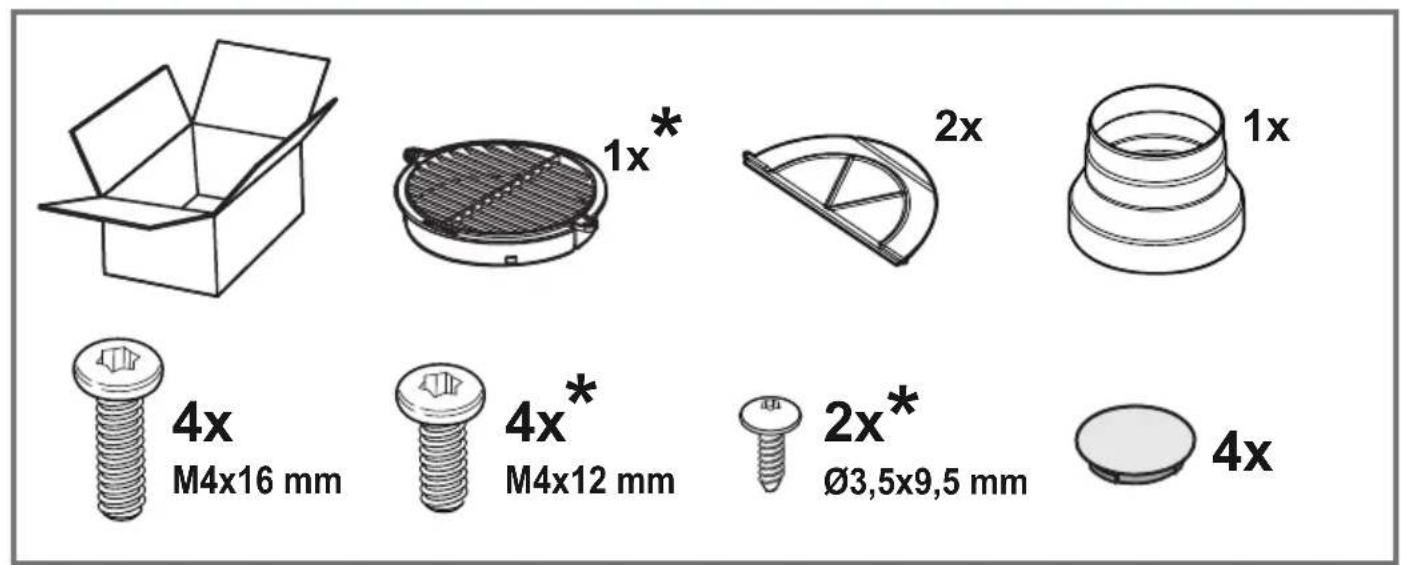

1x* 2x 1x 4x M4x16 mm 4x* M4x12 mm 2x* Ø3,5x9,5 mm 4x

Ø 125 mm Ø 150 mm 1x* *

2x * 2x *

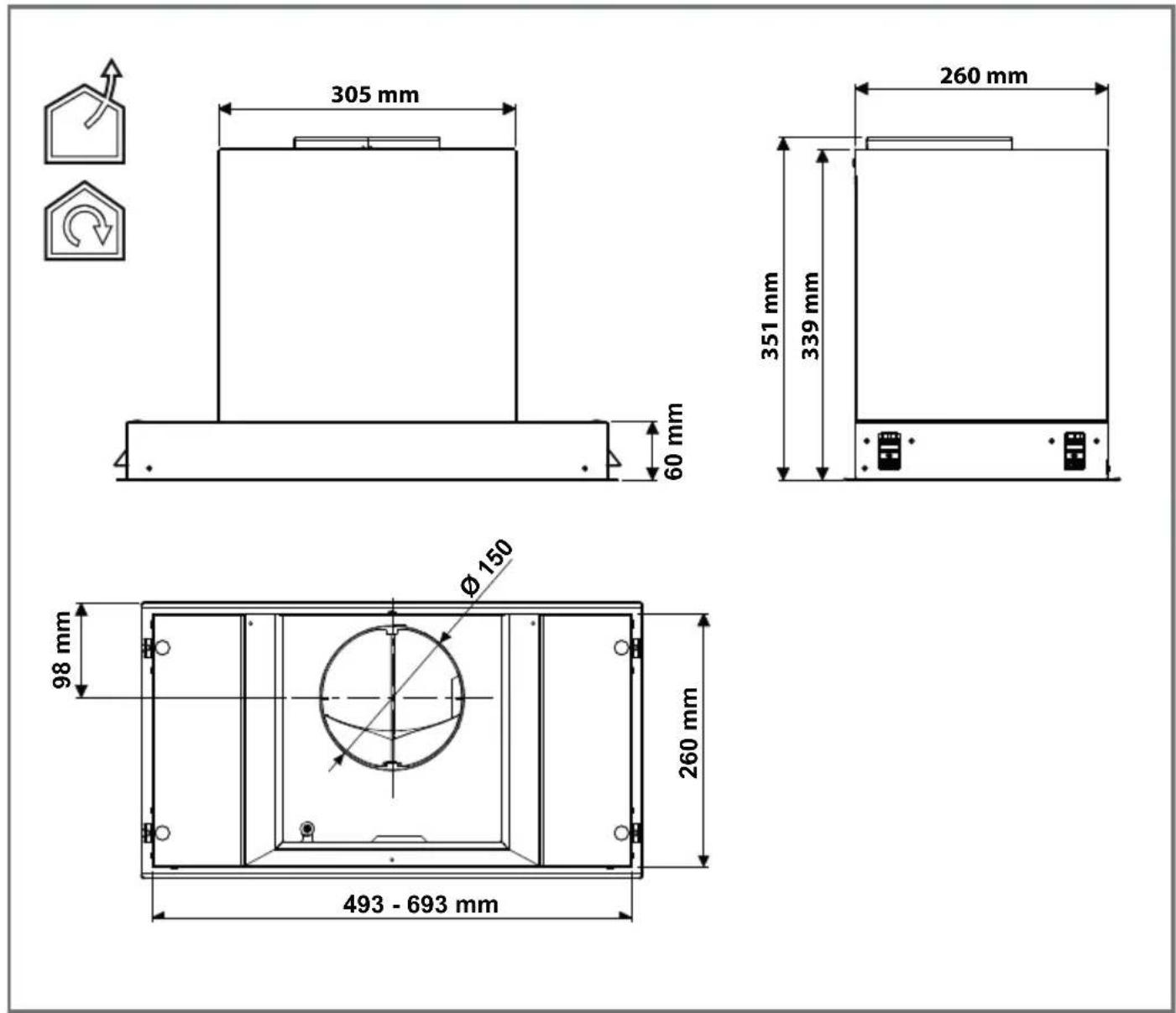

305 mm 60 mm 260 mm 351 mm 339 mm Ø 150 98 mm 260 mm 493 - 693 mm

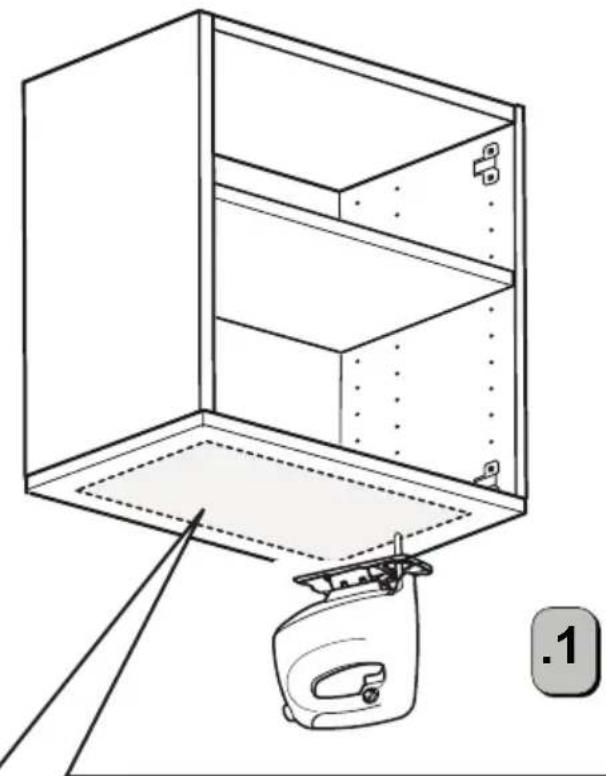

Line drawing of a cabinet with an open shelf and a spray gun, no text or symbols present

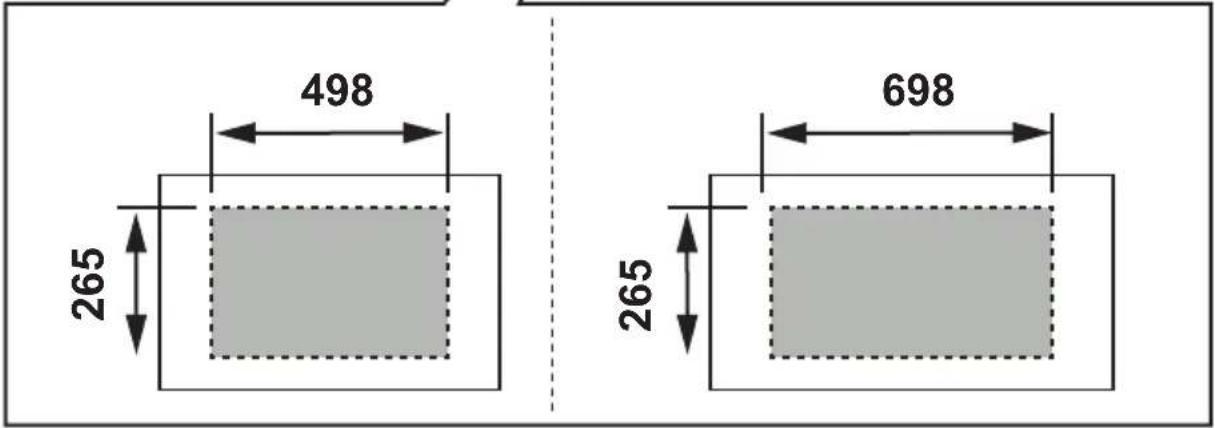

498 265 698 265

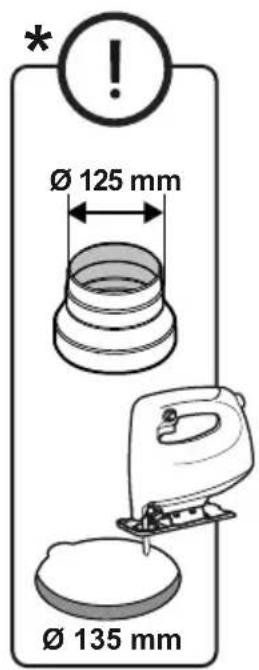

Ø 125 mm Ø 135 mm

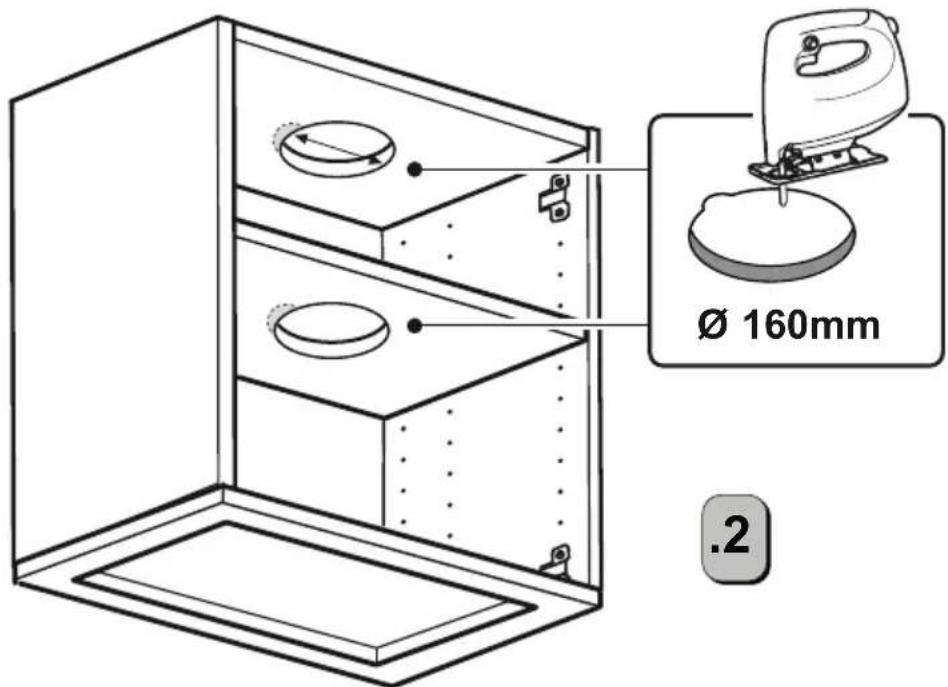

Ø 160mm .2

2

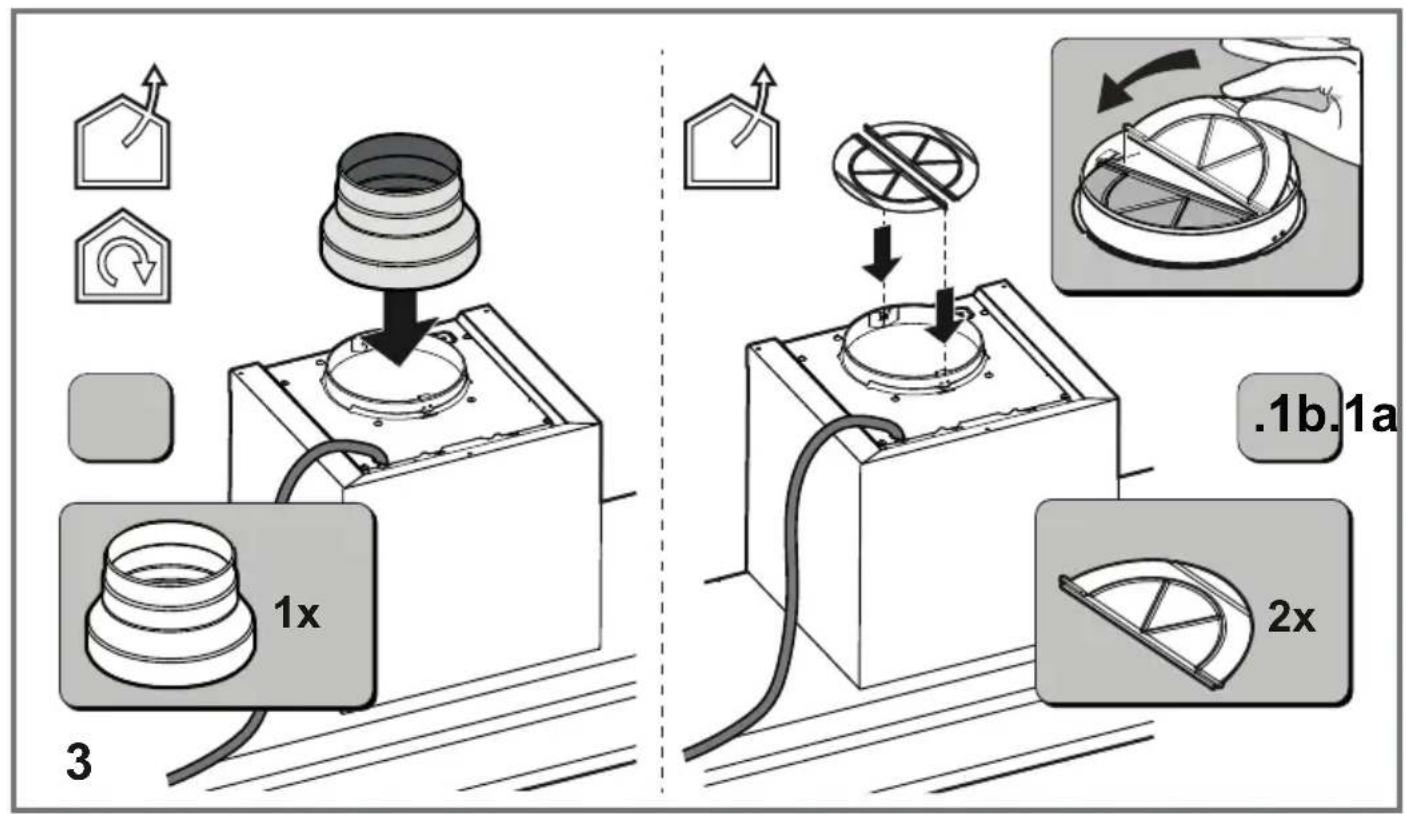

1x 3 .1b.1a 2x

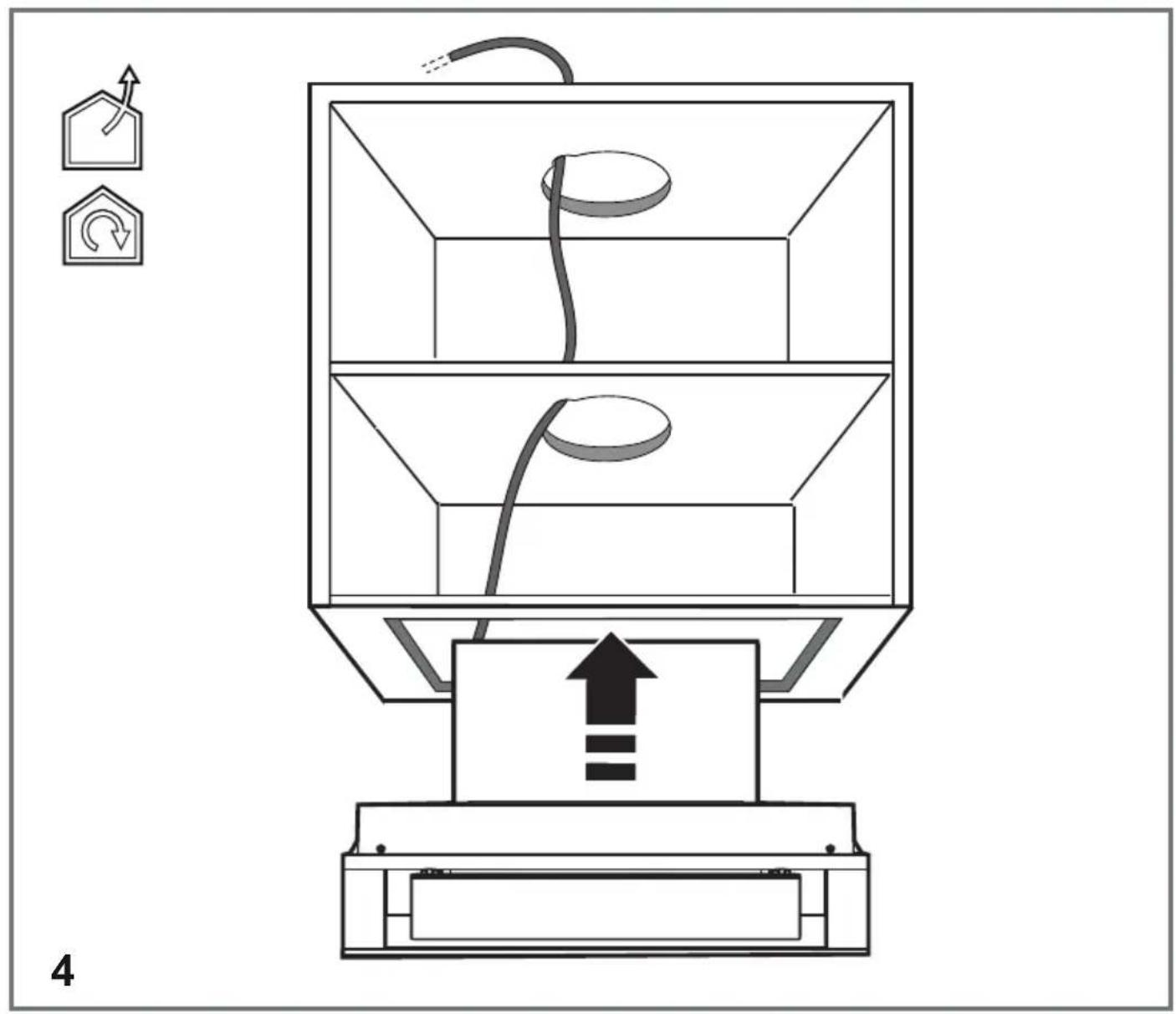

Diagram of a mechanical device with a central rotating arm and two labeled components (no text or symbols present)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or movement.

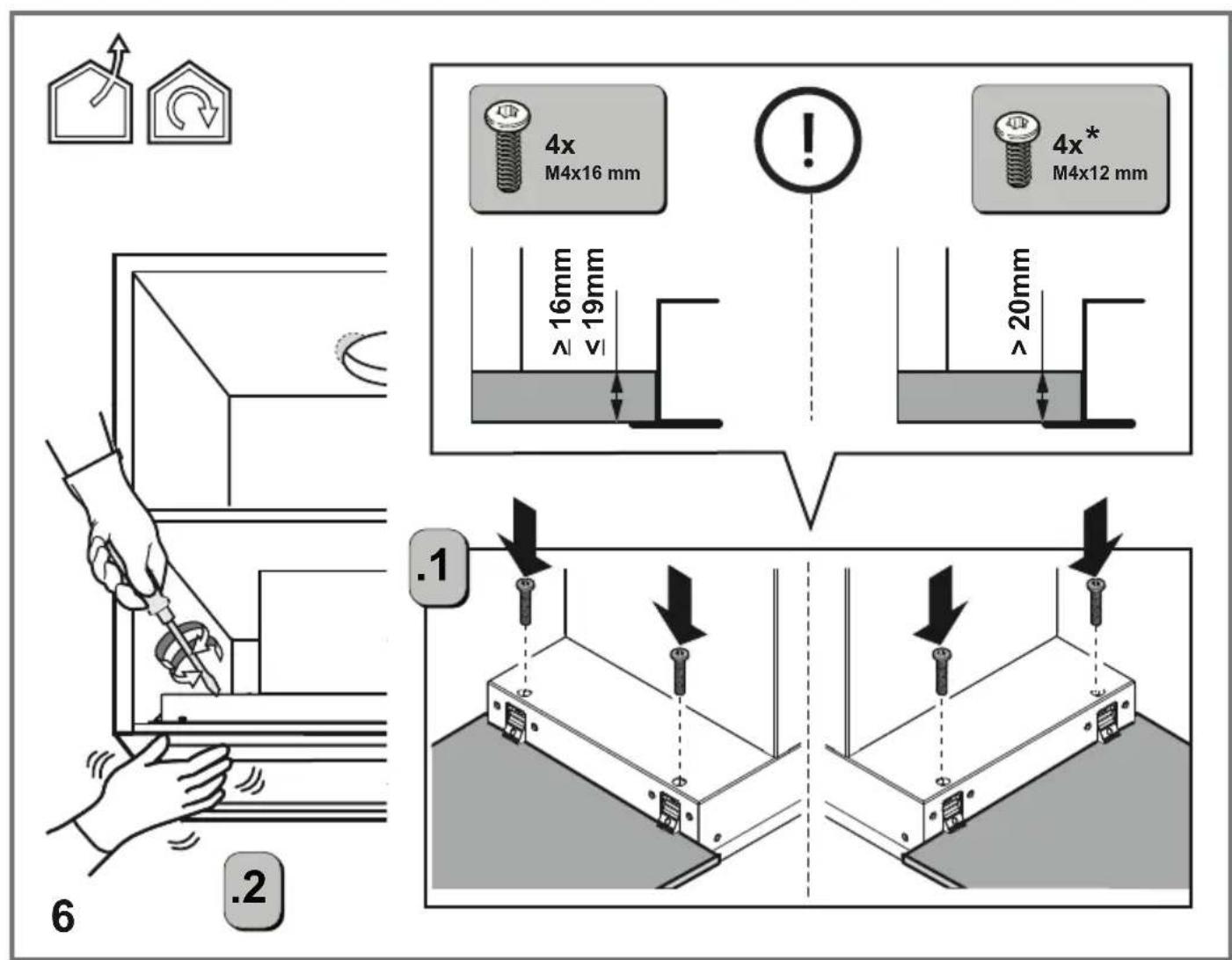

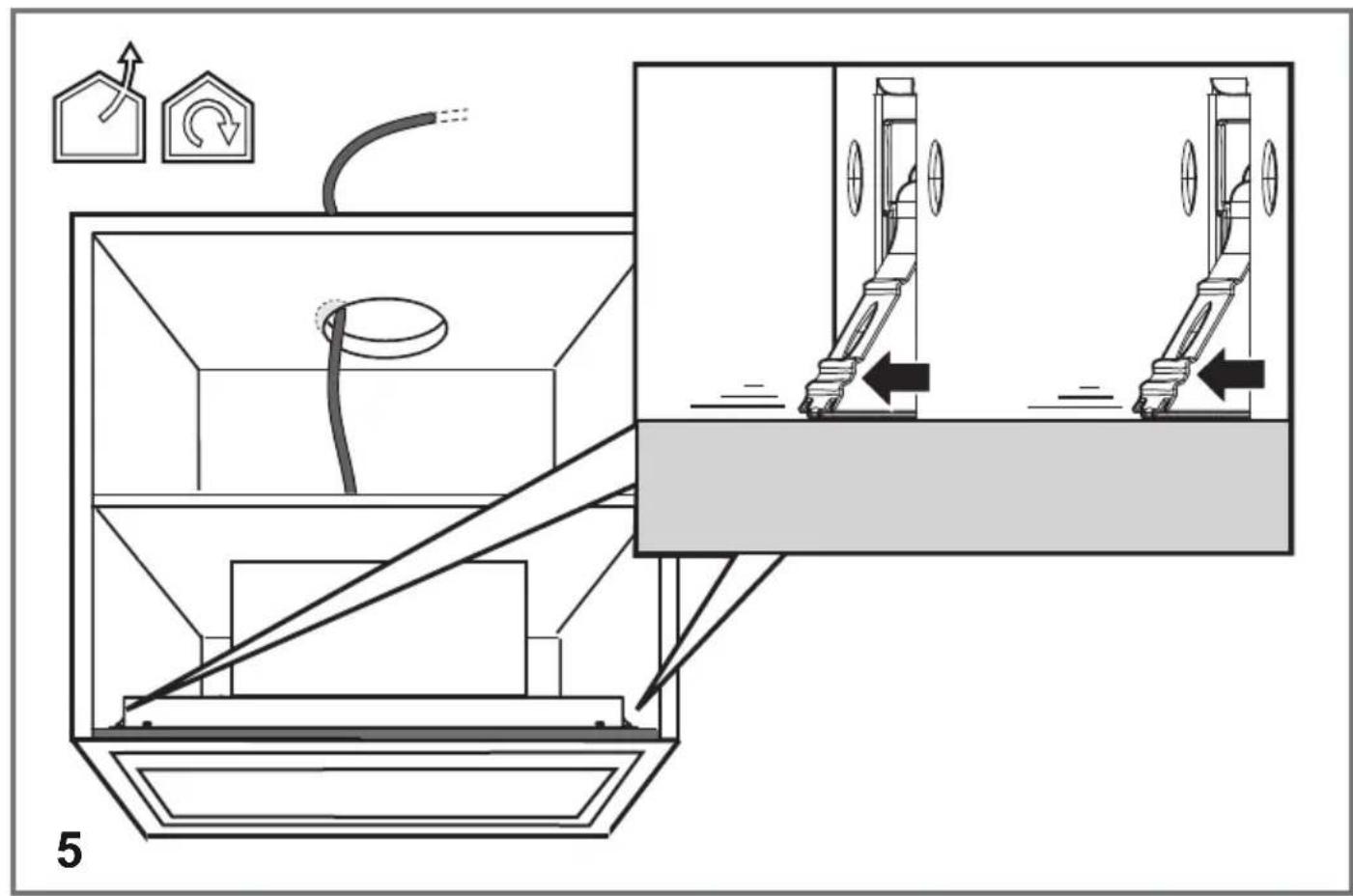

4x M4x16 mm 4x* M4x12 mm 16mm 19mm ≥ 20mm 6 .2 .1

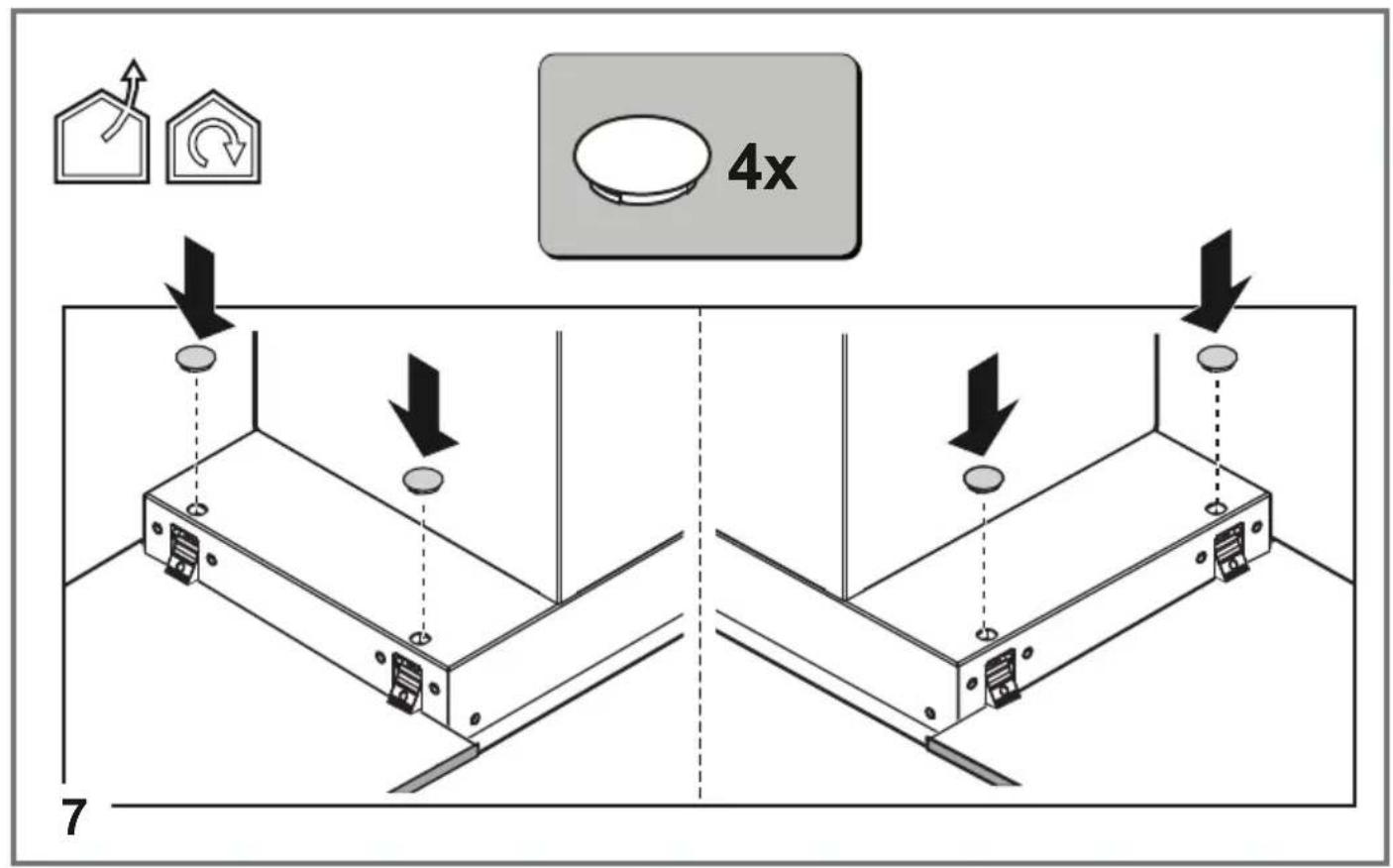

4x 7

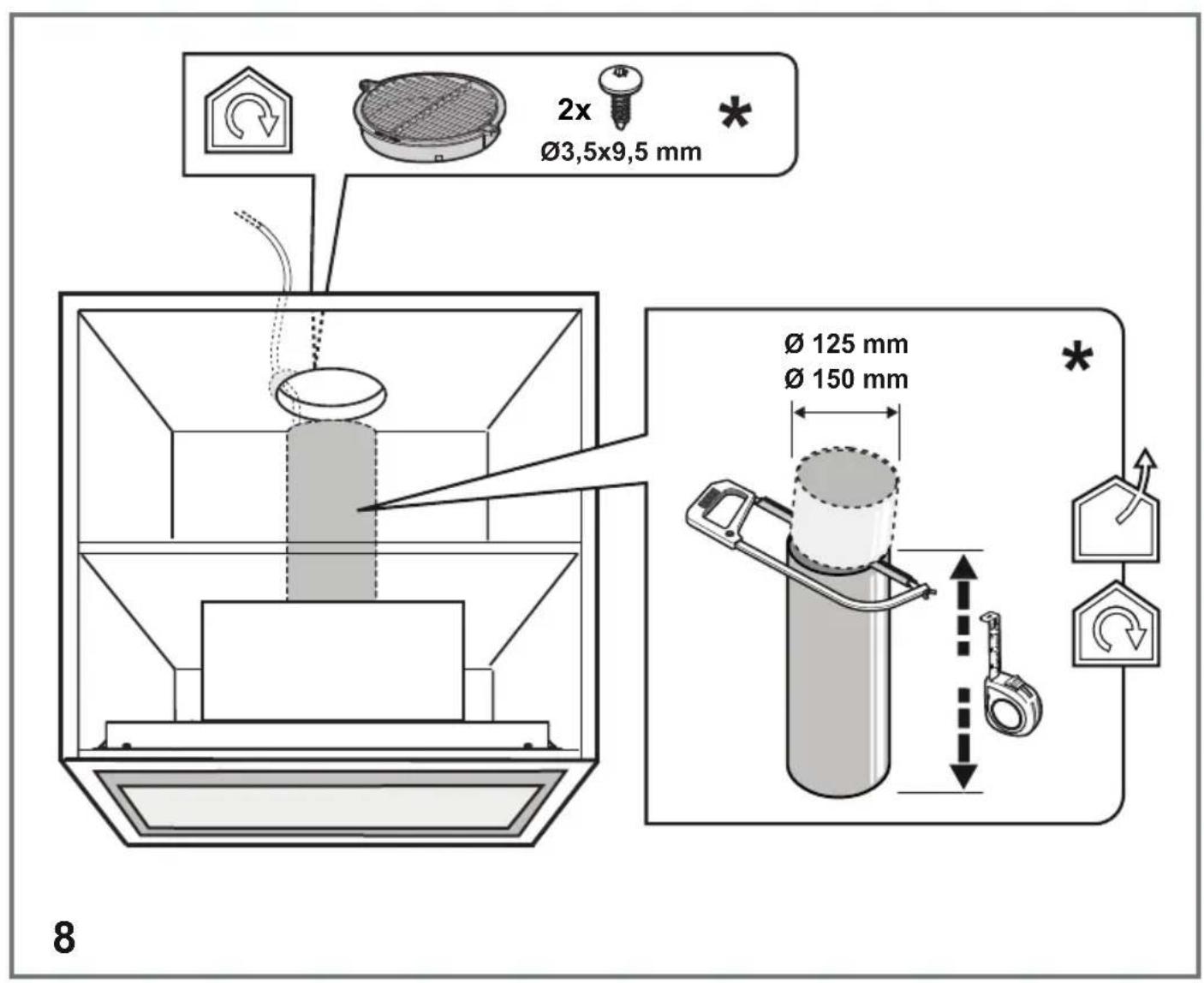

2x Ø3,5x9,5 mm Ø 125 mm Ø 150 mm 8

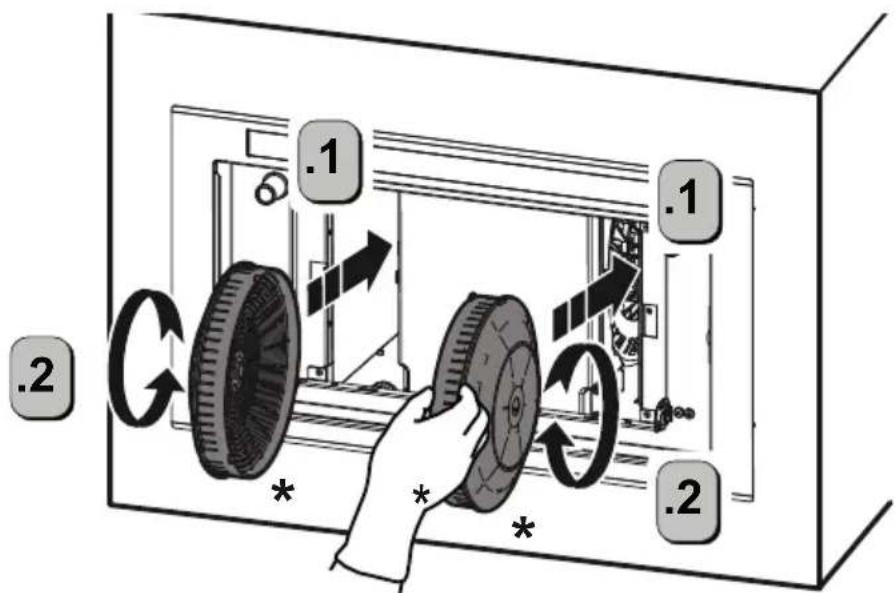

.1 .1 .2 .2 * * *

9*

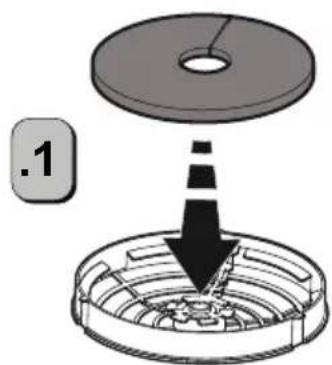

.1

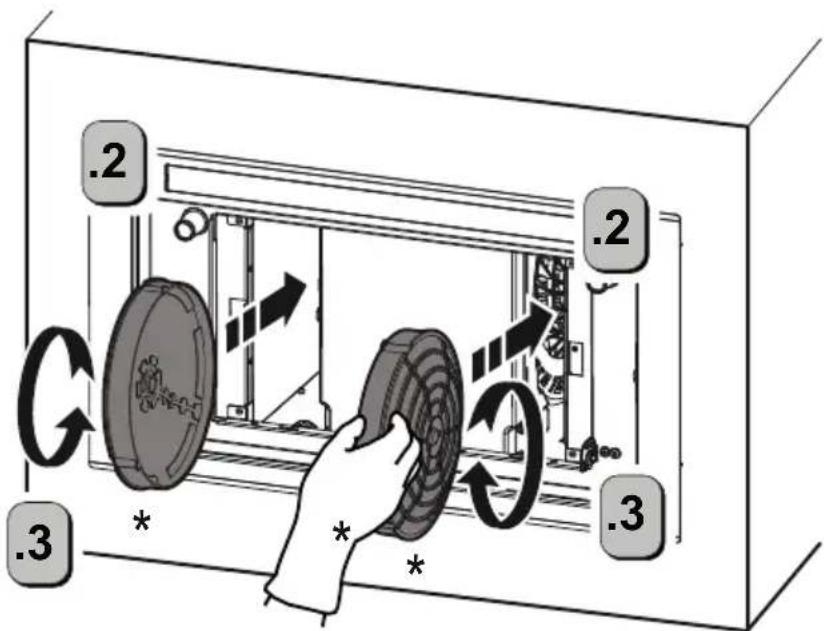

.2 .3 *. * * * .2 .3

10*

2x* ↓ ↓ 12 1

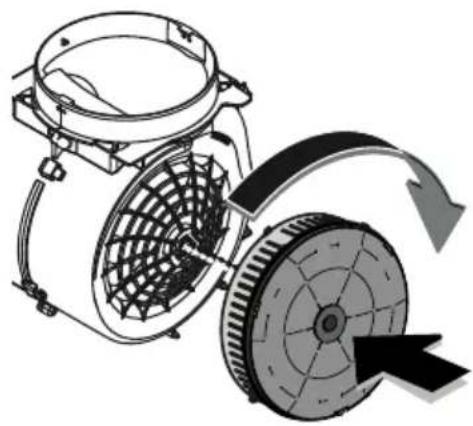

Technical illustration of an electric motor with rotor blades and stator blades, showing internal structure and rotation arrow (no text or symbols)

2x*

12.1


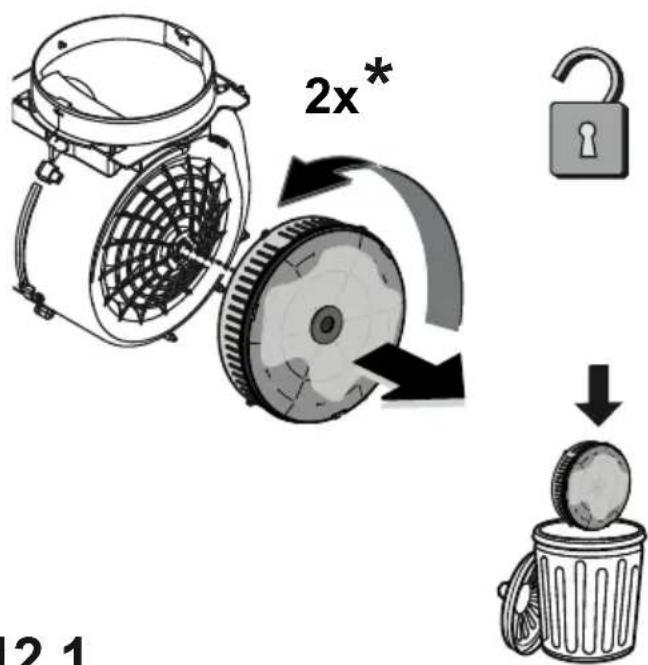

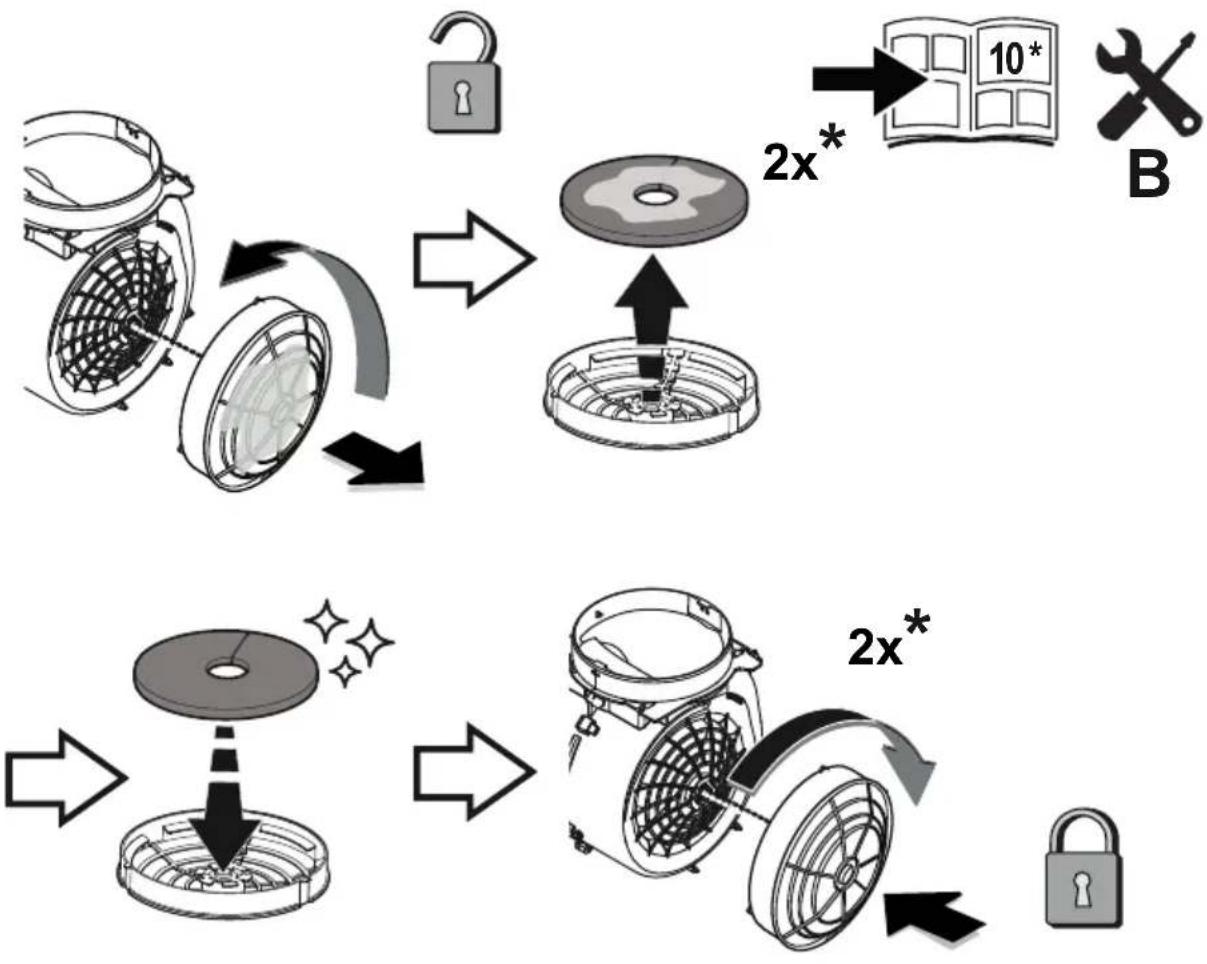

    A["Device with fan blade"] --> B["Lock"]
    B --> C["2x*"]
    C --> D["Open door with 10*"]
    D --> E["B"]
    E --> F["Switch switch"]
    F --> G["2x*"]
    G --> H["Close-up panel with 2x*"]
    H --> I["Final device with lock switch"]

12.2
