NKE 250-315/260-210 - Industrial pump Grundfos - Free user manual and instructions

Brand	Grundfos
Model	NKE 250-315/260-210
Category	Industrial pump
Type	Single-stage inline centrifugal pump
Suction diameter	DN 250 (250 mm)
Discharge diameter	DN 315 (315 mm)
Rated motor power	260 kW
Number of motor poles	2 (3000 rpm at 50 Hz)
Supply voltage	400 V / 690 V, three-phase, 50 Hz
Motor protection rating	IP55
Motor insulation class	F (155 °C)
Rated flow	500 m³/h
Rated head	70 m
Fluid temperature	From -20 °C to +120 °C
Pump body material	Cast iron GG25
Impeller material	Cast iron GG25
Approximate weight	2500 kg
Dimensions (L x W x H)	2000 × 800 × 1200 mm
Flange connection	PN 16 (EN 1092-2)
Main functions	Pumping of clean or slightly contaminated water in distribution networks, heating, air conditioning, irrigation
Maintenance and cleaning	Regularly check alignment, lubricate bearings, clean suction strainer
Safety	Motor thermal protection, overload protection, CE marking
Spare parts and repairability	Mechanical seal, bearings, impeller, wear ring available from Grundfos

Frequently Asked Questions - NKE 250-315/260-210 Grundfos

What does the model NKE 250-315/260-210 mean?

The model indicates: NKE = inline pump series, 250 = suction diameter in mm, 315 = discharge diameter in mm, 260 = motor power in kW, 210 = impeller code or variant.

Can this pump operate with hot water?

Yes, the pump accepts fluids up to 120 °C with suitable seals. For higher temperatures, contact the manufacturer.

What type of mechanical seal is used?

The pump is typically equipped with a Grundfos SIC/SIC mechanical seal for optimal reliability and wear resistance.

How to bleed air before commissioning?

Use the vent plug located at the top of the pump body. Open it slowly to release air until a steady stream of water flows, then close.

What is the recommended supply voltage?

The pump is designed for a three-phase voltage of 400 V or 690 V at 50 Hz. Check the nameplate for star/delta connection.

How to reverse the rotation direction if necessary?

To reverse direction, swap two phases of the power supply. The correct direction is indicated by an arrow on the motor.

What is the recommended maintenance frequency?

It is advised to check bearings and mechanical seal every 5000 hours of operation, and change bearing oil every 2000 hours (if applicable).

Can the pump be installed outdoors?

Yes, thanks to its IP55 protection rating, it resists dust and water jets. However, protect it from frost and direct weather.

What to do in case of leakage at the mechanical seal?

Excessive leakage indicates seal wear. Stop the pump and replace the mechanical seal. Refer to the manual for disassembly procedure.

Where to find spare parts for this pump?

Original Grundfos parts are available from authorized distributors or after-sales service. Use the model number to order.

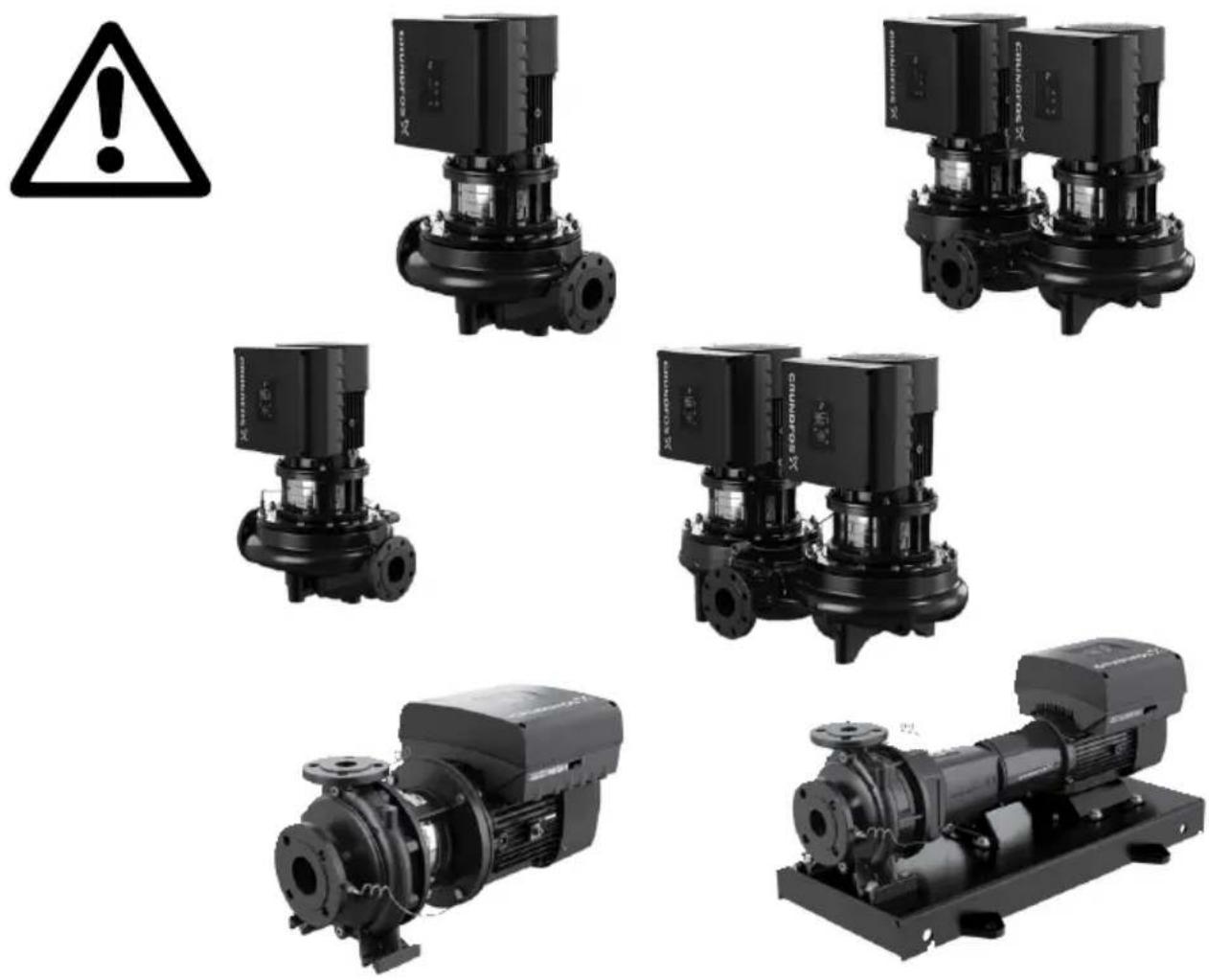

USER MANUAL NKE 250-315/260-210 Grundfos
