USER MANUAL YT-82200 Yato

YATO 35 power tool with black and white base (no visible text or symbols on body)

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

Labeled diagram of a cleaning power tool with numbered parts including a power shaver and cord

Close-up of a mechanical component being adjusted, showing internal parts and a hand holding a tool (no text or symbols visible)

Close-up of hands using tweezers to apply material to a circular sample with holes (no text or symbols visible)

Close-up of a hand holding a white plastic object over a mechanical component (no visible text or symbols)

Person using a power tool on a workbench, no visible text or symbols

Close-up of a hand holding a handheld tool with a grip, showing mechanical components and a small inset view (no text or symbols visible)

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Mains voltage and frequency

Polishing wheel mounting

Diameter of the grinding disk

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

PRODUCT CHARACTERISTICS

A car polisher is a common power tool, II class of insulation, designed mainly for finishing works when processing metal, wooden and plastic surfaces. Polishing is carried out by means of polishing pads mounted on polishing wheel. Correct, reliable and safe operation of the product depends on proper operation, therefore:

Before starting the work with this tool, please read this manual and keep it properly.

Note! Dust generated when grinding some surfaces, can be harmful to health or even toxic.

The above remark concerns, among others grinding of surfaces coated with paints containing lead, some types of wood, some metals (e.g. lead) and materials so while working you should use an effective dust extraction system, dust masks and other skin and respiratory protection measures. The supplier does not assume any liability for damages resulting from failure to follow safety regulations and recommendations specified in this manual.

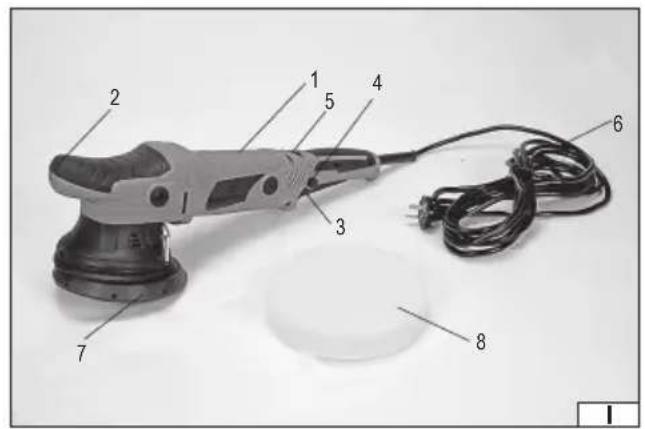

PRODUCT ACCESSORIES

The product is delivered complete and does not require any assembly. Preparation operations have been described later in this manual.

TECHNICAL PARAMETERS

Parameter Measuring unit Value
Type YT-82200
Mains voltage [V~] 220 - 240
Mains frequency [Hz] 50
Rated power [W] 720
Rated rpm [min]	^-1 2100 - 5000
Polishing wheel diameter [mm] 150
Polishing wheel mounting		M8
Weight	[kg]	2.2
Noise level
- acoustic pressure L_pA ± K_pA	[dB(A)]	85.0 ± 3.0
- acoustic power L_mA ± K_pA	[dB(A)]	96.0 ± 3.0
Insulation class		II.
Oscillation level ah ± K	[m/s2]	5.56 ± 1.5
Protection class		IP20

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.

Keep all warnings and instructions for future reference.

The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

EN

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

PREPARATION TO WORK

Note! Unless indicated otherwise, all preparation operations should be carried out with power supply off. Unplug the power cord plug from the mains socket.

Polishing wheel operation

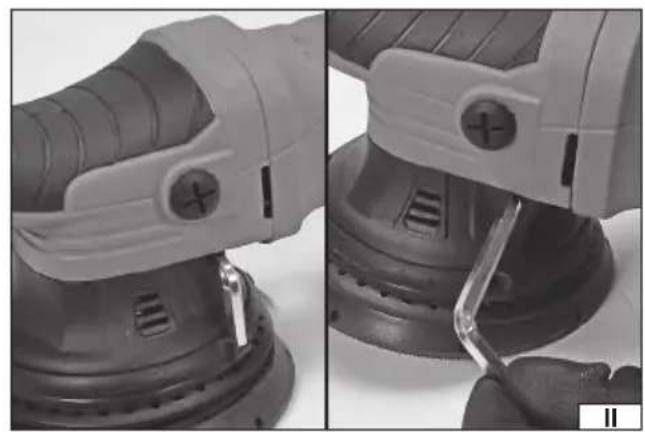

A polishing wheel should be factory mounted to the product. However, if it is not the case, it should be secured by means of a screw. For this purpose, use the key attached to the product (II).

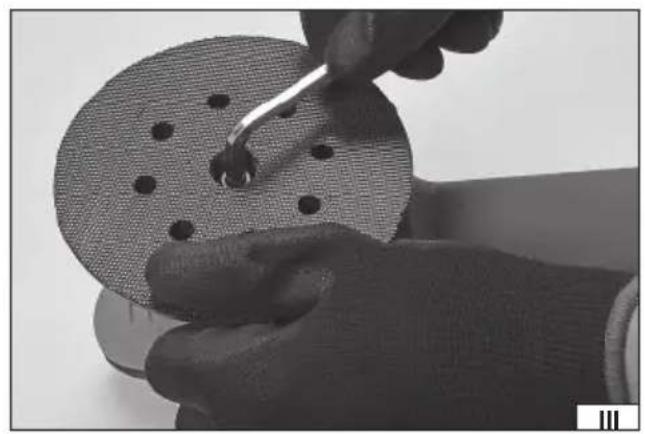

Hold the polishing wheel and tighten the fastening screw (III) firmly and securely.

After each installation and before attaching the polishing pad to the polishing wheel, check the correctness of installation. For this purpose, grasp the polisher in both hands, make sure that the polishing wheel does not touch any object and start the product for approx. 1 minute at the maximum rotational speed set. After the check, disconnect the power plug from the mains socket and check the tightness of the wheel fixing screw.

Each time you finish the work, dismantle the polishing wheel and clean the interior beneath from the dust produced during operation. Cleaning should be done using a duster or a brush with a soft bristle or a stream of compressed air with a pressure of not

EN

more than 0.3 MPa. After the cleaning, the disc should be attached to the product and installation should be checked correctly.

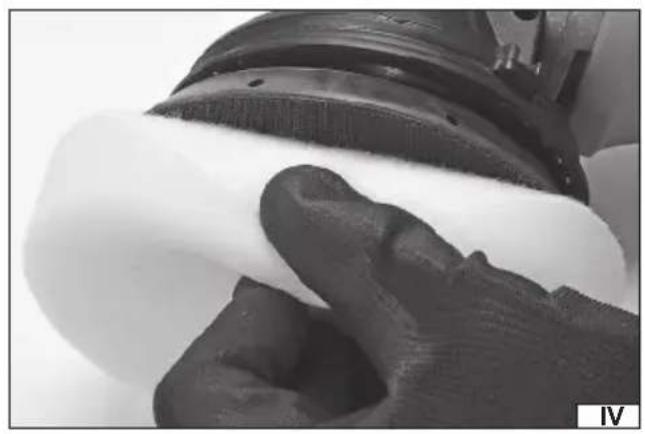

Mounting working pads (IV)

A polishing wheel allows only mounting pads by means of Velcro fastening. It is forbidden to mount other types of pads, e.g. fastened with a string.

Pads should be mounted concentrically on the polishing wheel. Non-centric mounting of a pad can lead to additional oscillations during operation, which consequently may lead to uneven work effect, damage to the polished surface, and in extreme cases even to the destruction of a pad, wheel or surface polished.

If a pad has been fitted with holes to facilitate the removal of dust produced during operation, the pad should be placed in such a way that holes in a pad align with holes in a polishing wheel.

USING POLISHER

Pull out the tool plug from the mains socket!

Before starting the work with the tool make sure that the housing body and connecting cable with a plug are not damaged. If any damage is visible, it is forbidden to connect the device to the mains!

Check that the polishing wheel is not damaged. If any cracks, scratches or other damages are visible, the wheel should be replaced with a new one without any failures.

It is forbidden to work using damaged wheels!

Select the type of polishing pad appropriate to the type of work.

Wear eye protection, hearing protection and work gloves.

Make sure the switch remains in "OFF" position. Then plug the device to a mains socket.

Take the right posture that guarantees your balance and start the polisher by pressing the switch. The switch may be blocked in an ON position. While holding down the switch, press and hold the lock button, and then release the pressure on the switch.

The lock is released by pressing the switch again.

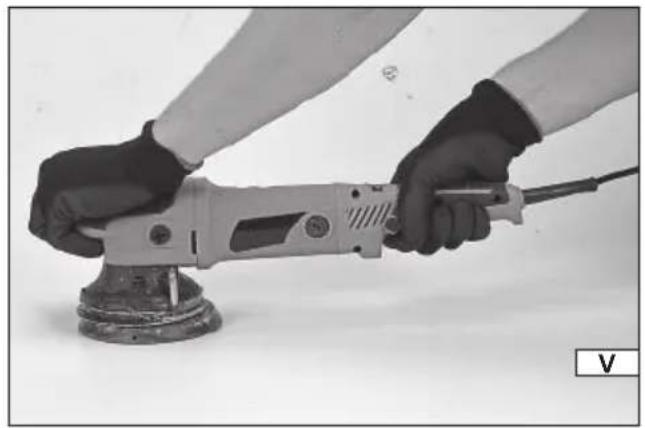

Proceed to work by gently applying the side surface of the working pad to the workpiece (V). During the work, do not exert too much pressure on the work surface. Move the tool smoothly to and from yourself. Observe the effects of work and adjust the rotational speed and pressure of polishing wheel. In the case of using polishing agents, read the documentation provided with them prior to work.

Do not overload the polisher - temperature of outside surfaces can never exceed 60 °C.

After completed work, turn off the tool, remove the plug from the mains socket and carry out the inspection.

After releasing the switch, the wheel rotates for some time. Put aside the polisher only after the wheel has stopped completely.

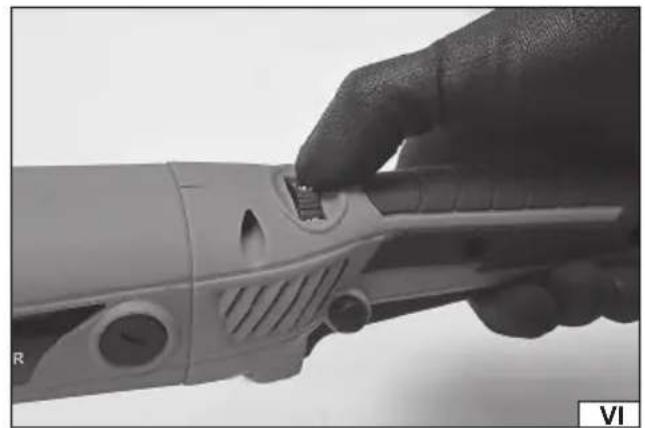

Adjustment of rotational speed (VI)

The polisher has a speed control by means of a rotary controller placed above the switch. It is possible to smoothly adjust the rotational speed within the range specified in the table with technical data. Lower rotation should be applied for initial application of polishing paste, after spreading it on the polished surface, increase the rotational speed. When polishing without a paste, apply high rotational speed.

Additional notes

Declared total value of vibration was measured by means of standardized test method and can be used to compare one tool with the other. Declared total value of vibration can be used in the initial exposure assessment.

Note! Emission of vibration when working with the tool may vary from the declared value, depending on how the tool is used.

Note! It is required to determine safety measures to protect the operator, which are based on the exposure assessment in real conditions of use (including all elements of work cycle, such as for example time when tool is switched off or idling and time of activation).

MAINTENANCE AND OVERHAUL

ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.

PRODUKTBESCHREIBUNG

CARACTERISTIQUES DU PRODUIT

DEKLARACJA ZGODNOŚCI | DECLARATION OF CONFORMITY | DECLARAȚIE DE CONFORMITATE

0225/YT-82200/EC/2025
