| Product type | Cordless polisher |
| Brand | Yato |
| Model | YT-82903 |
| Service voltage | 12 V DC |
| No-load speed | 0 - 2800 rpm (1st speed) / 0 - 8300 rpm (2nd speed) |
| Max. pad diameter | 80 mm |
| Tool holder | 5/16 inch (8 mm) |
| Battery type | Lithium-ion (Li-ion) |
| Battery capacity | 2 Ah |
| Charger | Input 100-240 V AC, 50/60 Hz; Output 12 V DC, 2 A; Rated power 35 W |
| Charging time | 1 hour |
| Weight | 0.7 kg |
| Sound level (acoustic pressure) | 78.6 dB(A) ± 3 dB |
| Sound level (acoustic power) | 89.6 dB(A) ± 3 dB |
| Vibration level | 4.213 m/s² ± 1.5 m/s² |
| Protection class | IP20 |
| Insulation class | III |
| Main functions | Polishing, grinding, sanding |
| Included accessories | Battery, charger, auxiliary handle, polishing pad, sponge polishing pad |
| Maintenance | Clean with compressed air (≤0.3 MPa), brush or dry cloth. Do not use chemicals or cleaning fluids. |
| Safety | Wear safety goggles, hearing protection and gloves. Read the instruction manual before any operation. |
| Repairability | Repairs must be carried out exclusively by an authorized service center with original spare parts. |
| Warranty | Standard warranty period (refer to manufacturer's terms). |
Frequently Asked Questions - YT-82903 Yato
User questions about YT-82903 Yato
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Polisher in PDF format for free! Find your manual YT-82903 - Yato and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YT-82903 by Yato.
USER MANUAL YT-82903 Yato
RO POLISHER CU ACUMULATOR
ES BATERÍA PULIDOR
FR POLISSEUSE SANS FIL
IT LUCIDATRICE A BATTERIA
NL DRAADLOZE POLIJSTMACHINE
PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR
Diameter of the disk
Unlocked on/off switch
Read the operating instruction
Wear protective goggles
Schutzbrille tragen
Wear hearing protectors
Gehörschutz tragen
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
CHARAKTERYSTYKA WYROBU
The cordless polisher is a universal, portable tool which does not require an external power source, designed for DIY enthusiasts to polish and grind surfaces made of different materials with abrasive paper. Its specific advantages will be appreciated by DIY enthusiasts performing various assembly and finishing works. As the proper use of the power tool is a condition for the correct, reliable and safe operation of it, please
Read and keep the entire manual before the first use of the tool.
The manufacturer shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specified in this manual.

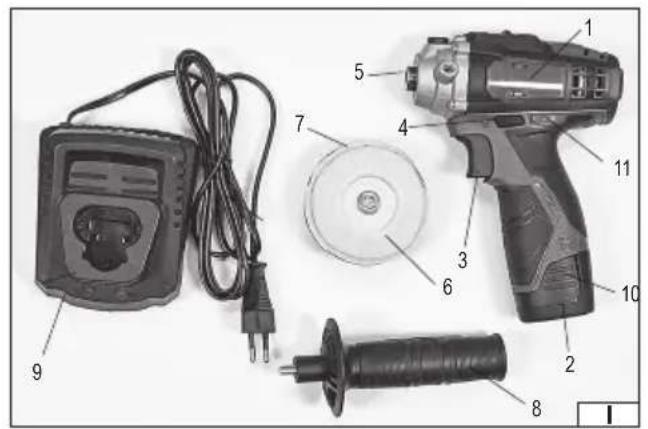

ACCESSORIES
The product is supplied complete and does not require assembly. The product comes with: battery, charging station (charger), additional handle, polishing disc and sponge polishing pad.
TECHNICAL PARAMETERS
| Parameter Units Value | ||
| Catalogue No. YT-82903 | ||
| Operating Voltage [V] 12 DC | ||
| Revolutions (idle speed) [min | ^-1 ] 1: 0 - 2800 / 2: 0 - 8300 | |
| Noise level | ||
| - sound pressure [dB] 78.6 ± 3.0 | ||
| - power L_mA | [dB] 89.6 ± 3.0 | |
| Ingress protection rating IP20 | ||
| Protection class III | ||
| Vibration level [m/s | ^2 ] 4.213 ± 1.5 | |
| Weight | [kg] | 0.7 |
| Tool holder | ["] | 5/16 (8 mm) |
| Maximum grinding disc diameter | [mm] | 80 |
| Battery type | Li-ion | |
| Battery capacity | [Ah] | 2 |
| Charger | ||
| Input voltage | [V] | 100 - 240 |
| Power frequency [Hz] | 50 / 60 | |
| Output voltage | [V] | 12 |
| Output current | [A] | 2 |
| Rated power | [W] | 35 |
| Charging time | [h] | 1 |
GENERAL SAFETY CONDITIONS
NOTE! Get acquainted with all the instructions below. Failure to observe them may lead to an electric shock, fire or injuries. The notion of electric tool used in the instructions applies to all the tools which are powered with electric current, both wire tools and wireless ones.
OBSERVE THE FOLLOWING INSTRUCTIONS
Place of work
The place of work must be properly illuminated and clean. Disorder and poor illumination may be a cause of accidents.
Do not work with electric tools in explosive environments, or those which contain inflammable liquids, gases or vapours.
Electric tools generate sparks, which may cause a fire in case of contact with inflammable gases or vapours.
Do not allow children and outsiders to the place of work. A lack of concentration may result in a loss of control over the tool.
Electric safety
The plug of the power supply cable must fit the mains socket. Do not modify the plug. Do not use any adapters whatsoever in order to adapt the plug to the socket. Unmodified plug which fits the socket reduces the risk of an electric shock.
Avoid contact with grounded surfaces, such as pipes, heaters and refrigerators. Grounding of the body increases the risk of an electric shock.
EN
Do not expose electric tools to precipitation or humidity. Water and humidity which gets into the electric tool increases the risk of an electric shock.
Do not overload the power supply cable. Do not use the power supply cable in order to carry the tool or to connect and disconnect the plug from the mains socket. Avoid contact of the power supply cable with heat, oils, sharp tools and moving elements. Damage to the power supply cable increases the risk of an electric shock.
In case work is realised outside closed areas, it is necessary to use extension cords designed for applications outside closed areas. Using a correct extension cord permits to reduce the risk of an electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RDC) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
Commence work in good physical and psychological conditions. Pay attention to what you do. Do not work if you are tired or under effects of medicines or alcohol. Even a moment's inattention during work may lead to serious injuries.
Always use individual means of protection. Always wear goggles. Using individual means of protection, such as dust-masks, protective shoes, helmets and hearing protections permits to reduce the risk of serious injuries.
Avoid accidental activation of the tool. Make sure the switch is in the OFF position, before you connect the tool to the mains. Holding the tool with a finger on the switch or connecting an electric tool when the switch is in the ON position may lead to serious injuries.
Before you turn an electric tool on remove all the spanners and other tools, which have been used for adjustments. A spanner left on rotating elements of the tool may lead to serious injuries.
Keep your balance. Maintain an appropriate position. It will permit to control the electric tool in case of unpredicted situations during its operation.
Use protective clothes. Do not wear loose clothes or jewellery. Keep your hair, clothes and gloves away from moving elements of the electric tool. Loose clothes, jewellery or long hair may get caught on moving elements of the tool.
Use dust extractors or dust containers, if the tool is equipped with any. Make sure they are properly connected. Using of dust extractors permits to reduce the risk of serious injuries.
Safety precautions while using the electric tool
Before the battery is installed, make sure the switch is off. Installation of the battery when the switch is on may lead to accidents. Use solely the charger recommended by the manufacturer. Using a charger designed for another type of battery may be a cause of fire.
The electric tool must be operated exclusively with the battery indicated by the manufacturer. Using another battery may be a cause of fire or injuries.
When the battery is not used, it must be stored away from such metal objects as paper clips, coins, nails, screws or other small metal elements, which might short-circuit the terminals. Short-circuited terminals of the battery may cause burns or fire.
Under adverse circumstances liquid may leak from the battery; avoid any contact. In case of accidental contact with the liquid, rinse it with water. In case of eye contact, seek medical. The liquid leaking from the battery may cause irritation or burns.
During work when the tool may touch a hidden live conductor, the electric tool must be held by insulated handles. The installed bit in case of contact with a live conductor may conduct electricity to the metal elements of the tool, which may cause electric shock to the operator.
Repairs
The tool may be repaired only by authorised service centres, which must use solely original spare parts. It will guarantee a proper level of safety of operation of the electric tool.
ADDITIONAL SAFETY INSTRUCTIONS
The tool has been designed exclusively for polishing. Get acquainted with all the warnings, instructions, illustrations and specifications supplied along with the electric tool. If the instructions below are not observed, there is a risk of electric shock, fire and / or serious injuries.
It is prohibited to use the tool as a grinding, sanding and cut-off machine or in a way which does not comply with the manual. Using the tool for jobs it is not designed for implies a risk and may cause injuries.
Do not use accessories which have not been designed and are not recommended by the manufacturer. The fact that accessories may be installed in the tool does not mean work with them is safe.
The maximum rotational speed of the accessories must be higher than or equal to the maximum rotational speed of the tool. Accessories of a lower rotational speed than the speed of the tool may break during work.
The outer diameter and the thickness of accessories must fall within the range of dimensions indicated for the tool.
Accessories of incorrect dimensions cannot be properly protected and operated.
Threaded mounting of accessories must match the grinder spindle thread. The dimensions of the hole in which wheels, disks, flanges and other accessories are installed must comply with the dimensions of the spindle of the tool. Accessories in which the dimensions of the fixing hole do not comply with the dimensions of the spindle of the tool, will vibrate after start, which may preclude a proper control of the tool.
EN
Do not use damaged accessories. Before each use, make sure the accessories are not splintered, broken or excessively worn. If accessories are dropped make sure they are not damaged or install new accessories. Once accessories have been inspected and installed, all persons must remain away from the plane of rotation of the accessories, and start the tool for a minute with the maximum rotational speed. During the test damaged accessories will be destroyed.
Use individual protection means. Depending on the job, wear face protections or safety goggles. If it is required use dust masks, hearing protectors, gloves and aprons protecting from small fragments of the accessories or materials generated during work. Eye protection must stop flying pieces generated during work. The dust mask must filter dust generated during work. Excessive exposition to noise may lead to hearing impairment.
While realising tasks during which the disc may come into contact with a hidden live electric wire or a power supply cable hold the grinder by insulated handles. If the disc touches a live wire, the metal elements of the tool may cause electric shock to the operator of the tool.
Maintain a safe distance between the place of work and third persons. Persons who approach the place of work must use individual protection means. Chips generated during work or fragments of damaged accessories may be ejected beyond the direct vicinity of the place of work.
Place the power supply cord away from the rotating wheels. In case the operator loses the control over the tool, the cord may be cut or caught, and the hand or arm of the operator may be drawn into the rotating elements of the machine.
Never put down the tool until the rotating elements have stopped completely. The rotating elements may „catch“ the ground and impede the control of the tool.
Do not start the tool while carrying it. Accidental contact with the rotating elements may cause drawing clothes and contact of the tool with the body of the operator.
Clean the ventilating holes of the tool regularly. The ventilator of the motor pulls the dust generated during work into the tool.
Excessive accumulation of metal particles contained in the dust increase the risk of electric shock.
Do not operate the tool in the vicinity of inflammable materials. The sparks generated during work may cause a fire.
Do not use accessories which require cooling with liquids. Water or cooling liquid may cause an electric shock.
Warnings related to the possibility of the tool rebounding towards the operator
Rebounding of the tool towards the operator is caused by a sudden reaction to blocked or seized discs or polishing belts or another accessory, which causes a sudden stop of the rotating accessory and a turn of the electric tool opposite to the direction of rotation.
For example, if the grinding disc is seized by the object being processed, the edge of the disc, which is at the point of seizure may get deeper into the surface of the material, and thus get ejected.
The disc may also move towards or away from the operator, depending on the direction of movement of the grinding wheel at the place of seizure. Grinding wheels may also break.
Rebounding of the tool towards the operator is caused by incorrect operation and / or inobservance of the indications contained in the operating manual. It may be prevented if the following recommendations are followed.
Hold the tool firmly and adopt an adequate position of the body and the hands, which will permit you resist the force generated when the tool rebounds. Always use the additional handle, if it has been supplied with the tool, which will ensure a maximum control when the tool rebounds or turns inadvertently during start. The operator is able to control the turning or rebound of the tool, if adequate safety measures have been taken.
Do not ever place hands close to the rotating elements of the tool. The rotating elements may, in case the machine rebounds, get into contact with the hand.
Do not remain within the area into which the tool will move in case of rebound. A rebound will propel the tool in the direction opposite to the rotation of the grinding disk, where it is seized.
Be particularly careful during work close to corners, sharp edges, etc. Avoid flicking up and seizure of the grinding disk.
During work on corners or edges there is an increased risk of seizure of the grinding disk, which may imply a loss of control over the tool or rebound of the tool.
Do not use disks with cutting chains or disk saws. The edges cause frequent rebounds, which may lead to a loss of control over the tool.
Warnings related to polising operations
Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece.
Warnings related to grinding with abrasive paper
Do not use discs with abrasive papers of an excessive size. While selecting the grinding wheel, follow the guidelines of the manufacturer. Abrasive paper which significantly exceeds the size of the disc may cause injuries and increases the risk of seizure, tearing or rebounding towards the operator.
PREPARING THE MACHINE FOR OPERATION
Warning! Before installation, replacement or removal of accessories, make sure that the battery is disconnected from the tool and that the switch is locked.
EN
Safety recommendations for battery loading
Attention! Before loading may start make sure the body of the charger, the cable and the plug are not broken or damaged. It is prohibited to use a damaged loading dock and charger! For the purpose of loading batteries only the charging dock and the charger provided may be used. Using another charger may be a cause of fire or damage the tool. Batteries may be charged only in a dry room, protected from unauthorised persons, particularly children. Do not use the charging dock and the charger without permanent supervision of an adult! If it is necessary to leave the room where loading is taking place, it is required to disconnect the charger from the mains, removing the charger from the mains socket. In case when smoke comes out of the charger, or a strange smell is emitted, etc., it is required to immediately remove the plug of the charger from the mains socket!
The drill and automatic return screwdriver is provided with an unloaded battery, so before work may commence, it is required to charge it following the procedure below, using the charger and charging dock provided. Li-ION batteries do not show the so called “memory effect”, so it is allowed to charge them at any moment. However, it is recommended to discharge them during normal work, and then load them to their full capacity. If due to the nature of the task it is not possible to do so each time, then it is required to do it at least from time to time. Under no circumstances is it allowed to discharge the batteries short-circuiting the electrodes, since this would cause irreversible damage! It is also prohibited to check the load of the batteries, short-circuiting the electrodes for sparking.
Storage of the battery
In order to prolong the life of the battery, it is required to provide adequate storage conditions. The batteries can go through approximately 500 „loading - discharging” cycles. The battery must be stored between 0 and 30°C, at the relative humidity of 50%. In order to store the battery for a prolonged period, it is required to charge it to approximately 70% of its capacity. In case of prolonged storage, it is required to recharge the battery once a year. Do not permit excessive discharging of the battery, since this would reduce its life and may cause irreversible damage.
During storage, the battery will be gradually unloading due to leakage conductance. The process of automatic unloading depends on the temperature of storage, since the higher the temperature, the fastest the process. In case of incorrect storage of batteries, there is a danger of electrolyte leakage. In case of leakage, it is required to protect the leakage with neutralizing agent. In case of contact of electrolyte with the eyes, it is required to rinse the eyes abundantly, and then immediately seek medical assistance. It is prohibited to use a tool with a damaged battery.
In case the battery is completely worn out, it is required to deposit it at a special point dedicated to disposal of such waste.
Transport of the batteries
Lithium-ion batteries are in accordance with legal regulations treated as dangerous waste. The user of the tool may transport the tool with the battery or only batteries by land. Then no additional conditions must be complied with. In transport is realised by third parties (for example dispatch through courier service), then it is required to proceed in accordance with regulations for transport of dangerous materials. Before shipment, contact an authorised person.
It is prohibited to transport damaged batteries. During transport the battery must be removed from the tool, and the exposed contacts protected, e.g. with insulating tape. Protect the batteries so that they do not move inside the package during transport. It is also required comply with the national regulations for transport of dangerous materials.
Charging the Battery
Caution! Disconnect the charger plug from the mains before charging. In addition, clean the battery and battery clamps of dirt and dust with a soft, dry cloth or brush.
Disconnect the battery from the tool.

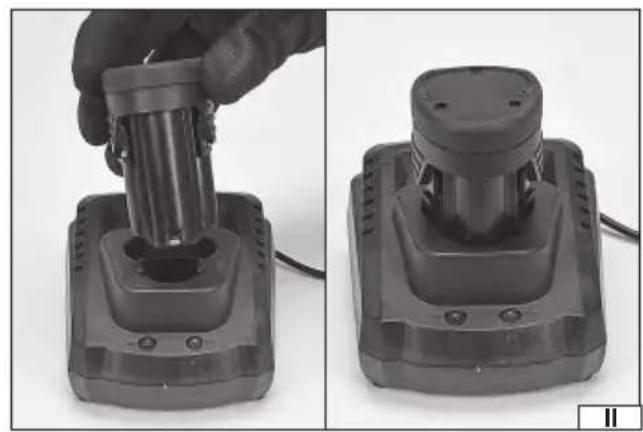

Slide the battery into the charger socket (II).
Plug the charger into a mains socket.
The red LED will light up, which indicates the charging process.
When charging is complete, the red LED will turn off and the green LED will light up to indicate that the battery is fully charged. Pull the charger plug out of the mains socket.
Pull the battery out of the charging station by pressing the battery clamp button.
Caution! If the green LED lights up when the charger is connected to the mains, the battery is fully charged. In this case, the charger will not start the charging process.
The tool has a built-in charge indicator. The LEDs will light up by pressing the power switch, the more of them come on, the more charged the battery is. If the LEDs do not light up when the button is pressed, the battery is discharged.

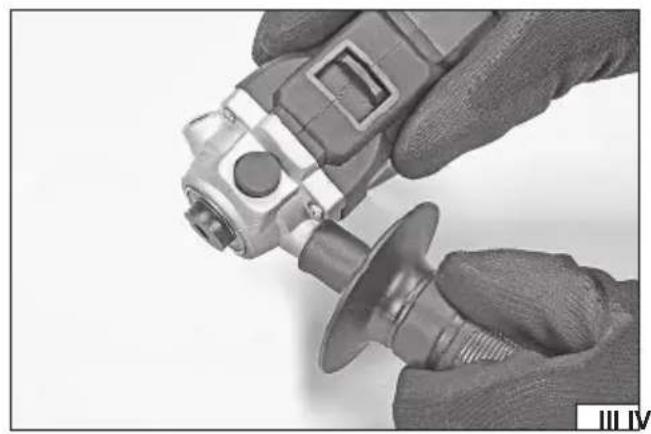

Installation of additional handle (III)
Screw the handle into one of the holes on the sides of the tool. During operation, periodically check the degree of tightness of the handle, which can come loose as a result of vibrations.
EN

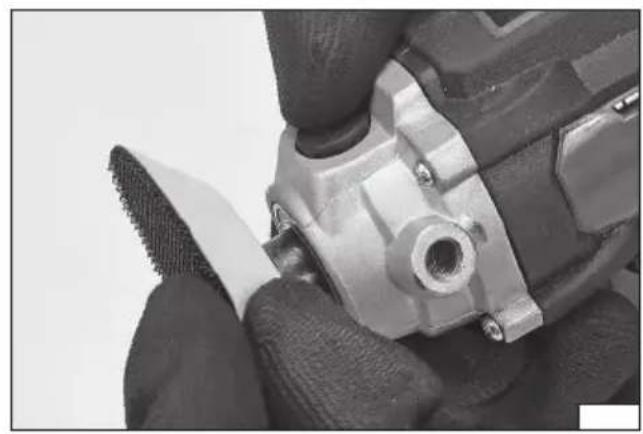

Installation and removal of the grinding disc
Screw the disc pin into the tool holder as far as it will go. Next, press and hold the pin lock button, turn the disc until the pin is locked, then tighten the disc (IV) firmly and securely.
Tighten the disc with your hands, do not use any tools.
Removal of the disc should begin with locking the pin, then loosening the disc and unscrewing the disc pin completely from the tool holder.
Caution! The thread size is specified in the technical data table and is an inch size thread. Discs with M8 threaded pin will not fit into the tool holder and attempting to screw them in may result in damage to the thread.

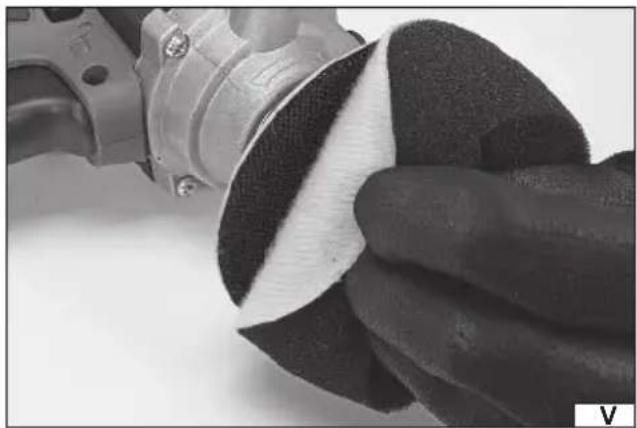

Installation of polishing pads (V)
The polishing disc has a Velcro, which allows the attachment of polishing pads, covers and polishing sponges with a special surface which can be attached to the Velcro of the disc. The pads should be attached concentrically, do not allow the surface of the Velcro disc to come into contact with the polished surface. This can damage both the disc and the polished surface.
TOOL USE
Make sure the battery has been disconnected from the tool.
Check the polishing disc for damage. If any cracks, scratches or other damage are visible, replace the disc with a new one free of these defects. It is forbidden to work with damaged discs!
Install the additional handle and the polishing disc.
Select the type of polishing pad appropriate for the type of work.
Wear eye protection, hearing protection and work gloves.
Check that the switch is in the „off" position and is locked - it cannot be pressed.

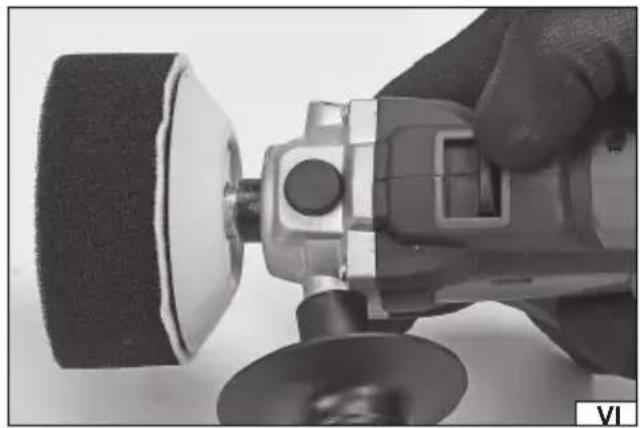

Set the torque speed range (VI) using the switch.
Connect the battery to the tool.

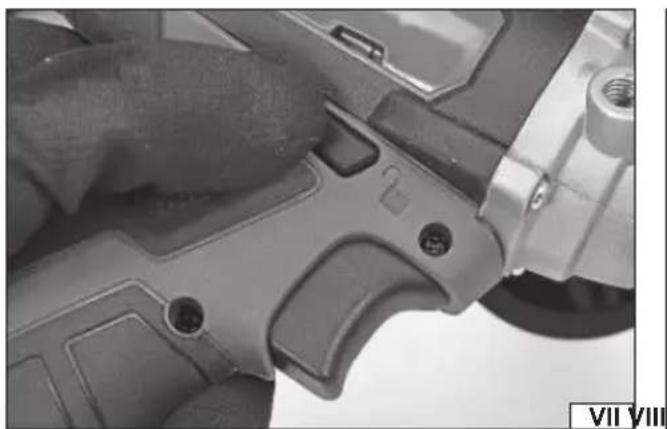

Adopt an appropriate posture to ensure balance, unlock the switch by moving the lock switch (VII), the lock button should be aligned with the housing on the side marked with an open padlock symbol, and then press the switch to start the tool. The switch cannot be locked in the on position. The deeper the switch is pressed, the higher the torque speed.

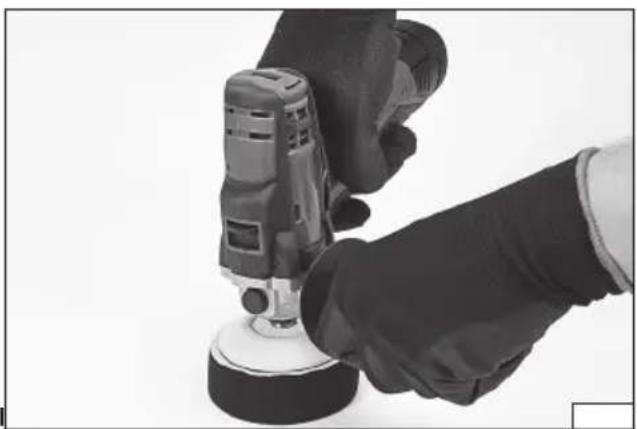

Start work by gently applying the side surface of the pad to the workpiece (VIII). Do not exert too much pressure on the workpiece during operation. Move the tool to and fro with smooth movements. Observe the effects and adjust the torque speed and pressure of the polishing disc. If polishing agents are used, read the documentation provided with them before starting work.
Do not overload the polisher, the temperature of the external surface must never exceed 60 °C .
After finishing work, turn off the tool, lock the switch by moving the switch lock (VII), the lock button should be aligned with the housing on the side marked with a locked padlock symbol, unplug the power cord from the mains socket and carry out an inspection.
After releasing the switch, the disc will keep spinning for some time. Do not put the polisher away until the disc has come to a complete standstill.
Torque speed adjustment
Lower revolutions should be used for the initial application of polishing paste, after its distribution on the polished surface, the revolutions should be increased. Use high torque for dry polishing.
Additional notes
The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.
Caution! The vibration emission during tool operation may differ from the declared value, depending on the way the tool is used.
Caution! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.
MAINTENANCE AND OVERHAUL
ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.
PRODUKTBESCHREIBUNG
CARACTÉRISTIQUES DU PRODUIT
EN IEC 62841-2-3:2021 + A11:2021
EN IEC 55014-1:2021
EN IEC 55014-2:2021
DECLARATION OF CONFORMITY
1224/YT-82903/EC/2024
We declare and guarantee with full responsibility that the following products:
Cordless polisher 12 V d.c.; 0-2800/0-8300 min ^-1 ; 75 mm; item no. YT-82903
meet requirements of the following European Standards / Technical Specifications:
EN 62841-1:2015 + A11:2022
EN IEC 62841-2-3:2021 + A11:2021
EN IEC 55014-1:2021
EN IEC 55014-2:2021
and fulfill requirements of the following European Directives:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
Agnieszka Rędziak
(Place and date of issue)
V-CE PREZES ZARZADU
JAN SZMIDT
(Name and signature of authorized person)
TOYA S.A.
EN IEC 62841-2-3:2021 + A11:2021
EN IEC 55014-1:2021
EN IEC 55014-2:2021
