USER MANUAL Rotak 18V-32 BOSCH
Français......Page 28


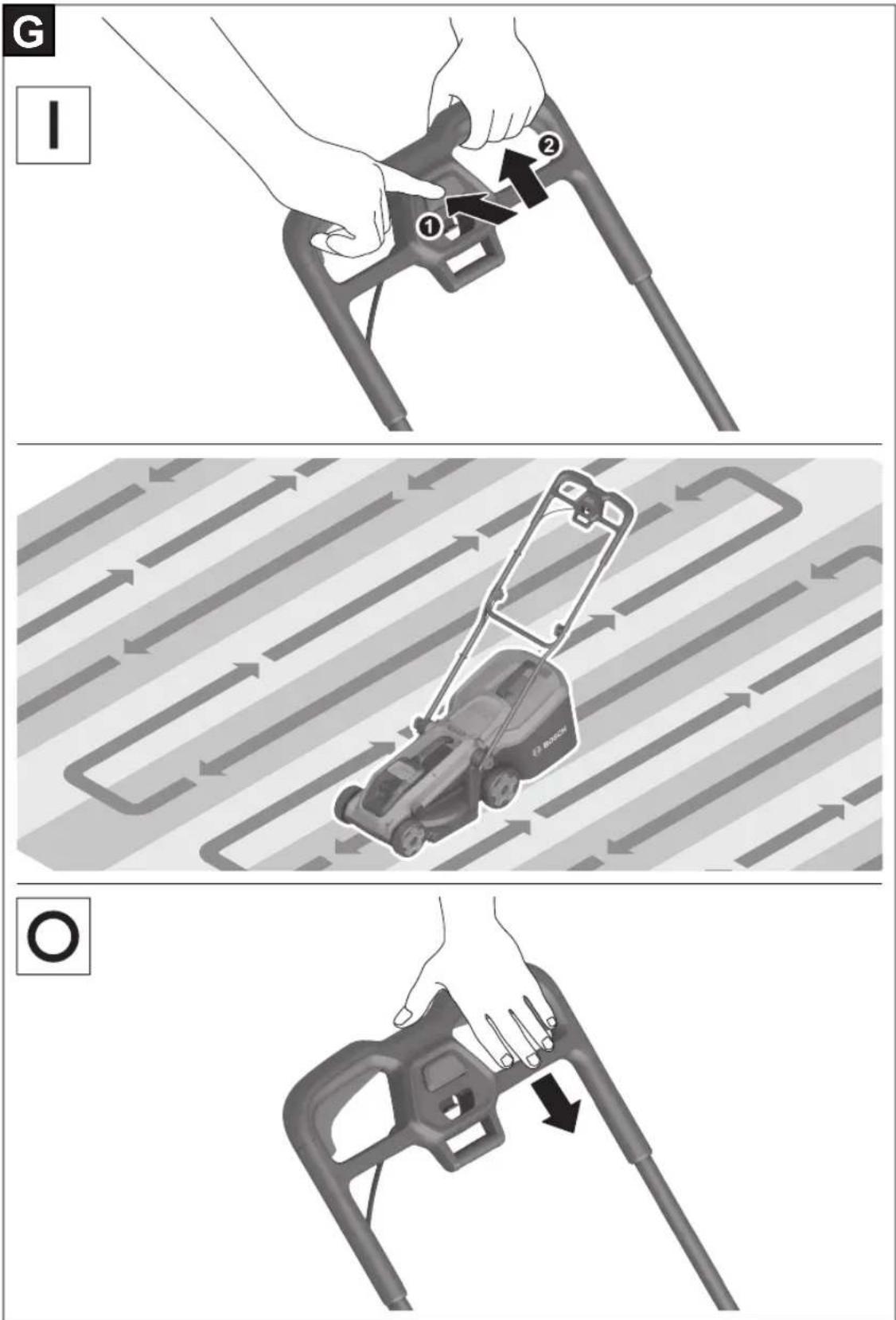

G I ① ② O
ROTAK18V-34 ROTAK18V-34


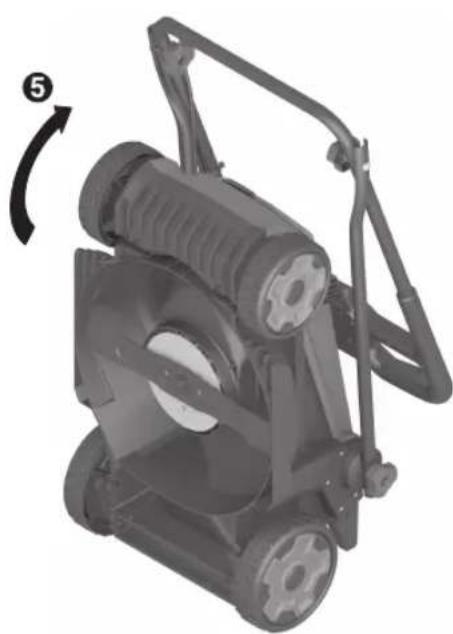

Mechanical device with a numbered arrow indicating rotation (no text or symbols present)


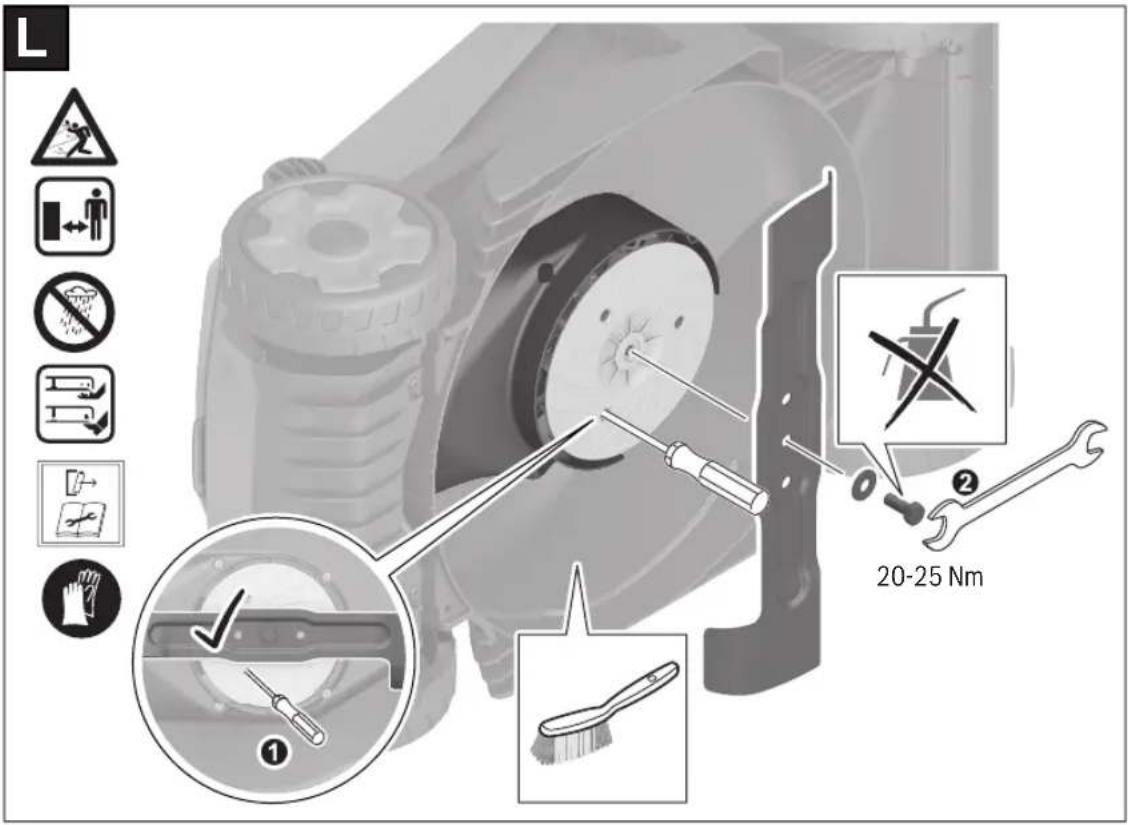

L 20-25 Nm


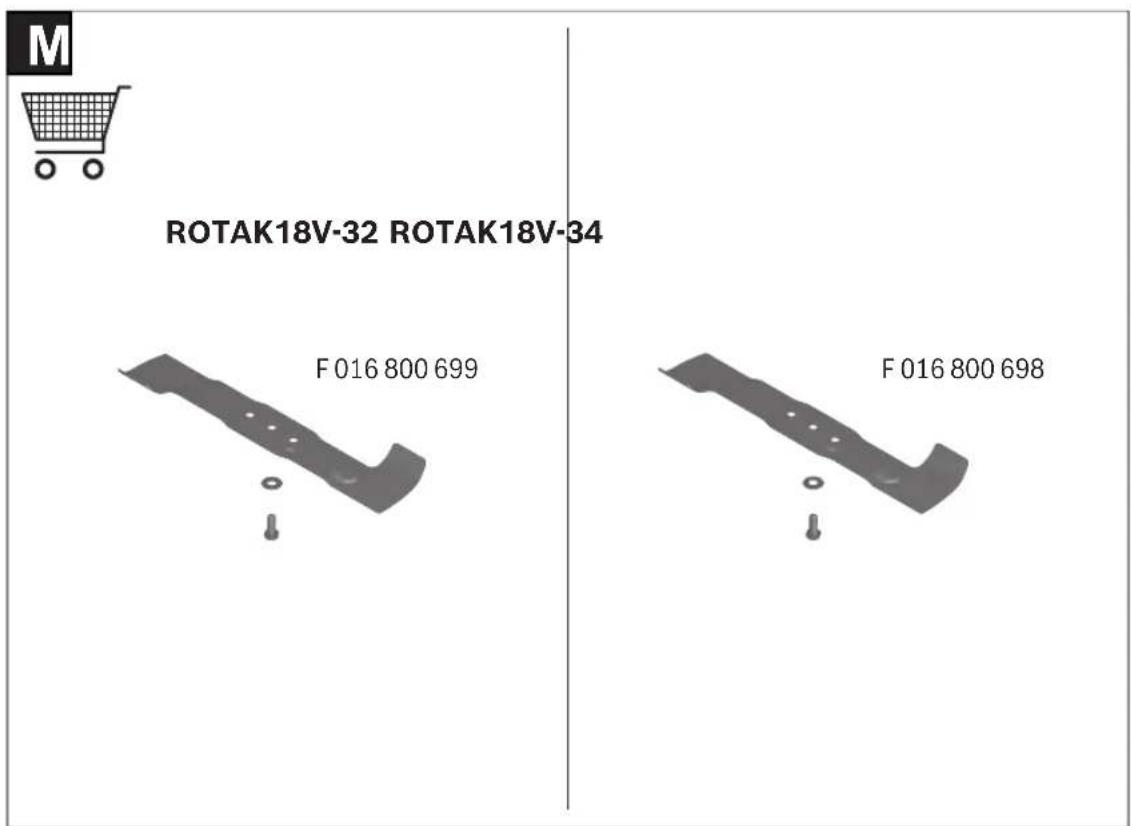

ROTAK18V-32 ROTAK18V-34 F 016 800 699 F 016 800 698Deutsch
Sicherheitshinweise
Explanation of symbols - lawnmower
General hazard safety alert.
Read instruction manual.
Make sure that bystanders are not injured by foreign objects being thrown away.
WARNING: Keep bystanders away.
WARNING: Keep hands and feet away from the blades.
WARNING: Disconnect battery before maintenance.
Not applicable.
Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.
Do not expose to rain.
Not applicable.
Not applicable.
Do not use a high-pressure washer or a garden hose to clean the machine.
Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the machine is in operation. Thoroughly check the working area and
remove any stones, sticks, wires, bones and foreign objects. When using the machine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass.
General Power Tool Safety Warnings
WARNING
Read all safety warnings, instructions, illustrations and specifica-
tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Personal safety
▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection
22 | English
used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac-
count the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
Service
▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
Lawnmower safety warnings
▶ Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
▶ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
▶ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones,
and other foreign objects. Thrown objects can cause personal injury.
Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
▶ Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
▶ Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
▶ Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
▶ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
▶ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
▶ Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
▶ Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
▶ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
▶ Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.
Additional safety warnings
This tool contains magnets – keep away from implants and other medical devices, e.g. pacemaker or insulin pumps, magnetic storage media and magnetically sensitive devices. The magnet generates a field that can impair the function of the devices or lead to irreversible data loss.
When adjusting the machine, make sure not to pinch your fingers between the moving blades and fixed parts of the machine.
▶ Check the product for damage if it hits a hard object or in case of excessive vibration.
▶ Always allow the product to cool down before storing.
▶ Empty the grassbox before storing.
Operation
▶ We would advise you to wear ear protection for your own convenience.
▶ Wait until the blades stop if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.
▶ Do not tilt the machine when starting or switching on the motor.
▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.
▶ When folding handles to storage position be mindful of cable positions to avoid damaging or pinching the cables.
ROTAK18V-32:
When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor.
ROTAK18V-34:
▶ Tool does not start when handles are folded in storage position.
▶ If you store the lawnmower in a horizontal position, ensure that the rechargeable batteries have been removed.
▶ Only lift the garden tool with the carrying handle. Use the carrying handle with care.
▶ Do not modify the product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.
Removing the Battery
- Whenever you leave the garden tool.
- Before clearing a blockage.
- Before checking, cleaning or working on the garden tool.
- After striking a foreign object; inspect the product for damage and change the blade as necessary.
- If the product starts to vibrate abnormally (check immediately).
- Before storing the tool.
Recommendations for Optimal Handling of the Battery Pack
▶ Do not open the battery. There is a risk of short-circuiting.
24 | English
Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.
When not using the machine detach the battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause bridging of the terminals. Shorting the battery terminals together may cause burns or a fire.
In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Do not short-circuit the battery. There is a risk of explosion.
▶ Occasionally clean the air inlet vents of the battery using a soft, clean and dry brush.
▶ Charge the machine only with the supplied battery charger.
Symbols
The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.
Symbol Meaning
Movement direction
Symbol Meaning
| Reaction direction | |
 | Wear protective gloves |
| [SC08] | Weight |
 | Switching on |
 | Switching off |
 | Permitted action |
 | Prohibited action |
 | Audible noise |
 | Accessories/Spare Parts |
Product Description and Specifications
Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
Please observe the illustrations at the beginning of this operating manual.
Intended Use
The garden product is intended for domestic lawn mowing. The garden product is not intended for hedge cutting, trimming, shredding, etc.
The garden product is intended for lawn mowing at ground level.
Technical Data
| Lawnmower ROTAK18V-32 ROTAK18V-34 | ||
| Article number | 3 600 HB9 P.. 3 600 HB9 N.. | |
| Rated voltage V 18 18 | ||
| Cutting width cm 32 34 | ||
| Cutting height mm 25–65 25–65 | ||
| Volume, grass bag l 35 35 | ||
| Weight ^A) | kg 10.8 11.2 | |
| Serial number See type plate on garden tool See type plate on garden tool | ||
| Recommended ambient temperature during charging | °C 0 to +35 0 to +35 | |
| Permitted ambient temperature during operation ^B) and during storage | °C -5 to +50 -5 to +50 | |
Lawnmower ROTAK18V-32 ROTAK18V-34
| Recommended battery type PBA 18V...W-C | 4.0 Ah, 5.0 Ah, 6.0 Ah | PBA 18V...W-C4.0 Ah, 5.0 Ah, 6.0 Ah |
| Recommended chargers ^c) | AL18.. AL18.. | |
A) Without rechargeable battery (you can find the battery weight at www.bosch-diy.com)
B) Limited performance at temperatures < 0 °C
C) The following chargers are not compatible with the PBA rechargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV
Noise/Vibration information
Noise emission values determined according to EN IEC
62841-4-3.
ROTAK18V-32
Standard Cutting:
Typically, the A-weighted noise level of the power tool is: Sound pressure level 77 dB(A); sound power level 86 dB(A). Uncertainty K = 3 dB.
Wear hearing protection!
Mulching:
Typically, the A-weighted noise level of the power tool is: Sound pressure level 73 dB(A); sound power level 85 dB(A). Uncertainty K = 3 dB.
Wear hearing protection!
ROTAK18V-34
Standard Cutting:
Typically, the A-weighted noise level of the power tool is: Sound pressure level 82 dB(A); sound power level 91 dB(A). Uncertainty K = 3 dB.
Wear hearing protection!
Mulching:
Typically, the A-weighted noise level of the power tool is: Sound pressure level 78 dB(A); sound power level 89 dB(A). Uncertainty K = 3 dB.
Wear hearing protection!
Vibration values a_h (continuous vibrations), p_F (repeated shock vibrations) and uncertainty K determined according to EN IEC 62841-4-3.
ROTAK18V-32
$$ a _ {n} = 1. 4 \mathrm{m} / \mathrm{s} ^ {2} (K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2}), p _ {F} = 7 \mathrm{m} / \mathrm{s} ^ {2} (K = 1 \mathrm{m} / \mathrm{s} ^ {2}) $$
ROTAK18V-34
$$ a _ {n} = 1. 2 \mathrm{m} / \mathrm{s} ^ {2} (K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2}), p _ {F} = 9 \mathrm{m} / \mathrm{s} ^ {2} (K = 1 \mathrm{m} / \mathrm{s} ^ {2}) $$
The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one machine with another.
The declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.
The vibration and noise emissions during actual use of the machine can differ from the declared total value depending on the ways in which the machine is used; and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such
as the times when the machine is switched off and when it is running idle in addition to the trigger time).
Mounting and Operation
| Action Figure Page | ||
| Items included ^a | A | 3 |

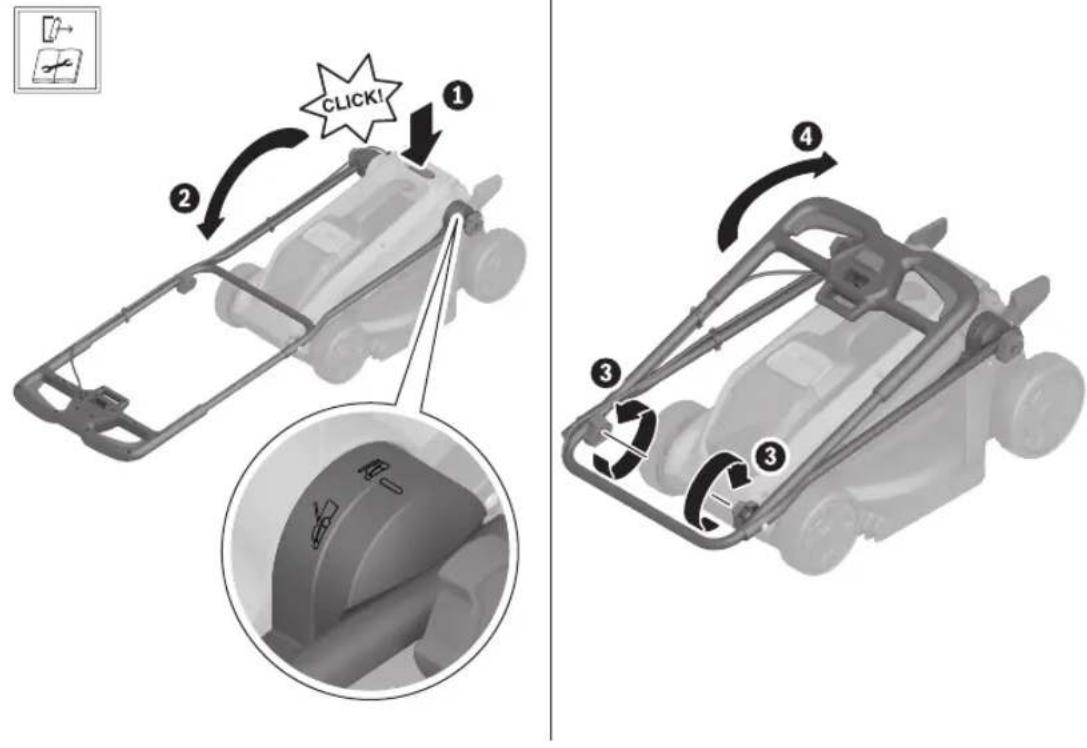

| Folding out and fitting the handle | B | 4 |
| Setting the working height | ||
| Remove mulch plug | C - D | 6 - 5 |

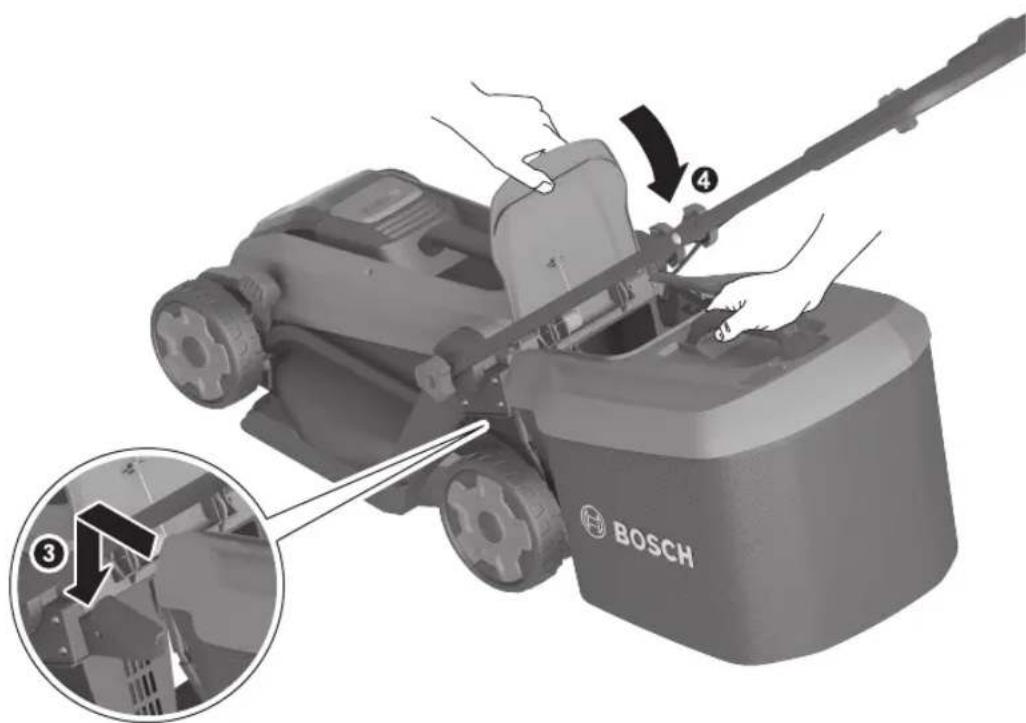

| Inserting/removing the grass bag | ||

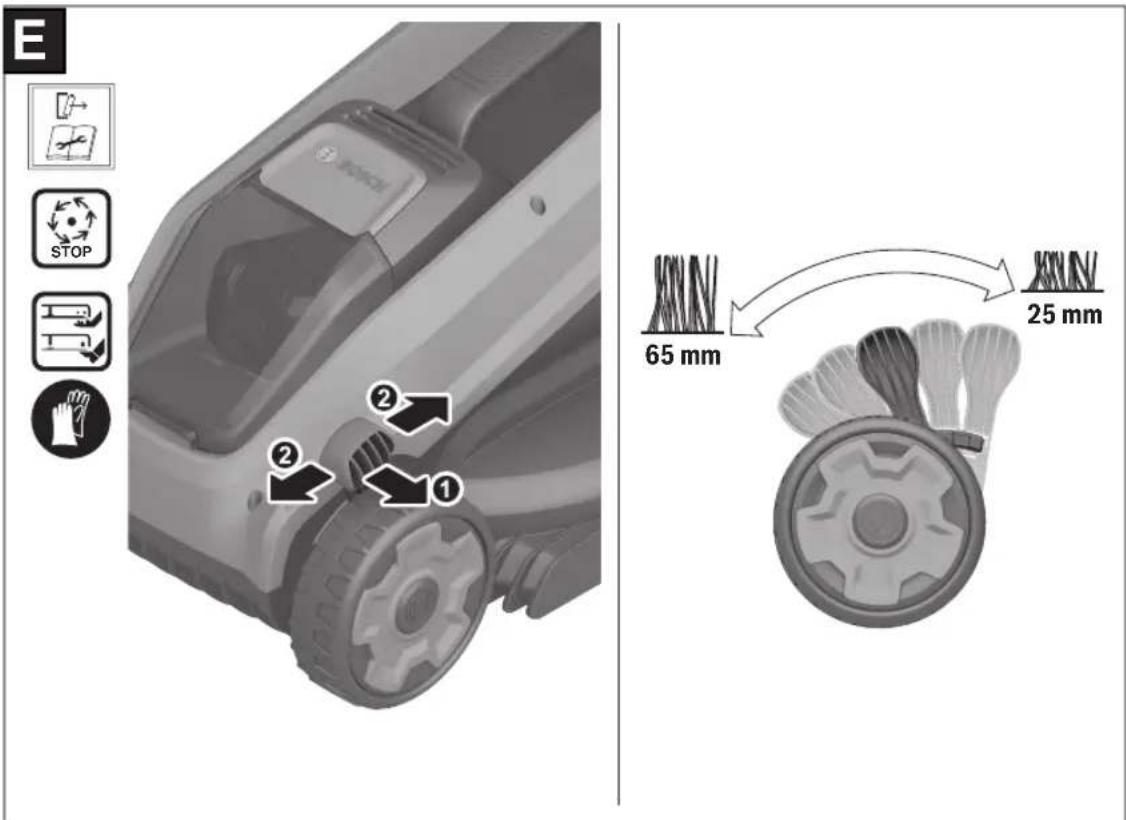

| Setting the cutting height | E | 7 |

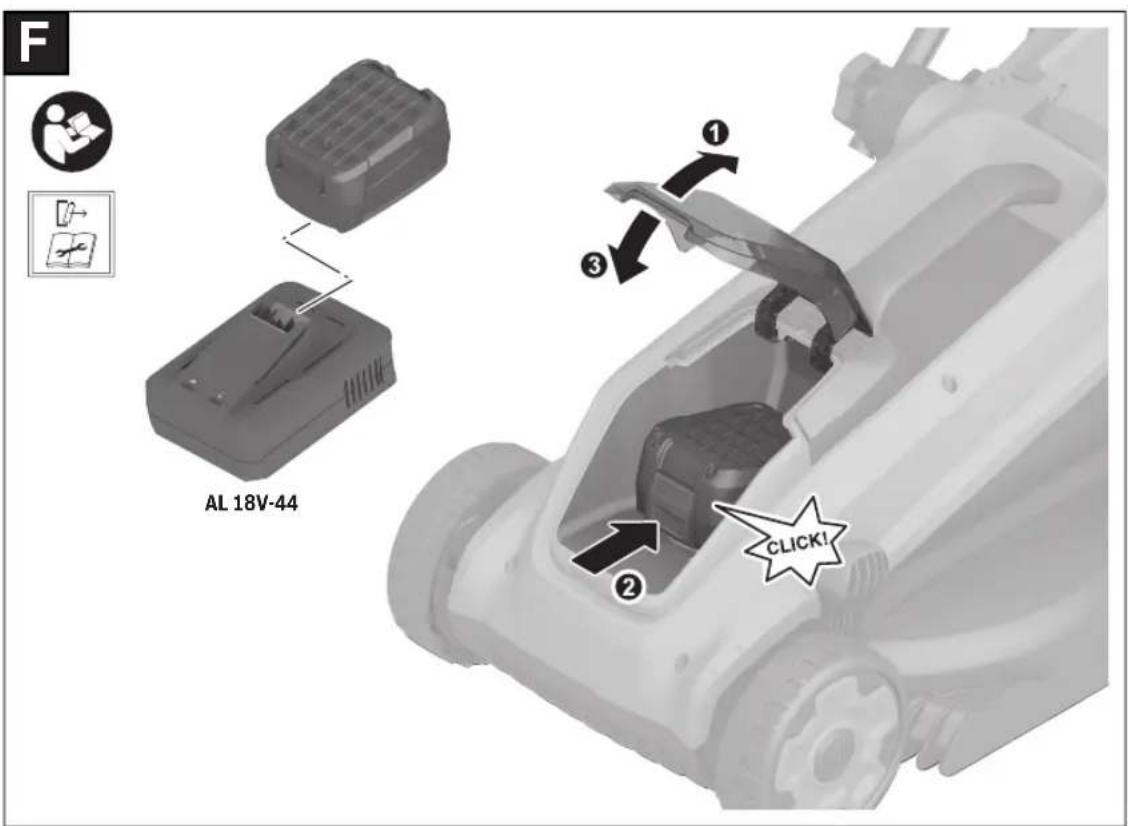

| Inserting rechargeable battery | F | 7 |
| Operation | G | 8 |
| - Switching on | ||
| - Mowing | ||
| - Switching off | ||

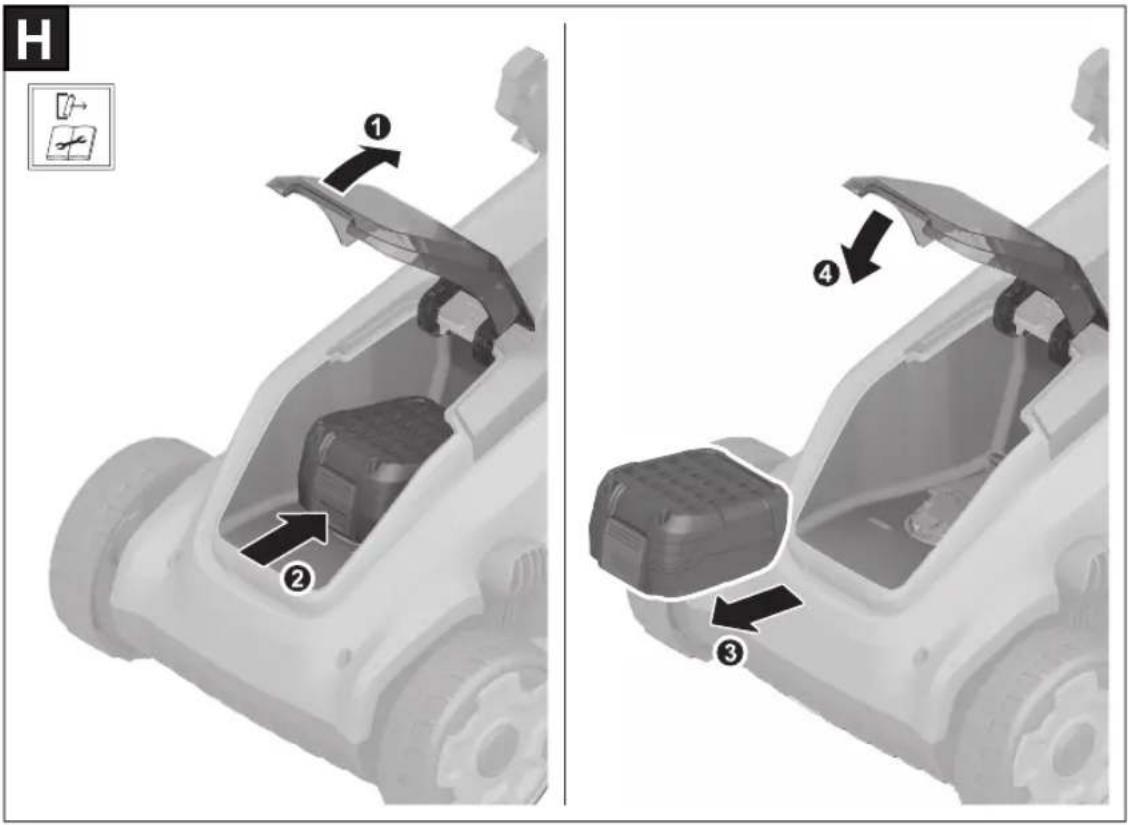

| Removing rechargeable battery | H | 9 |

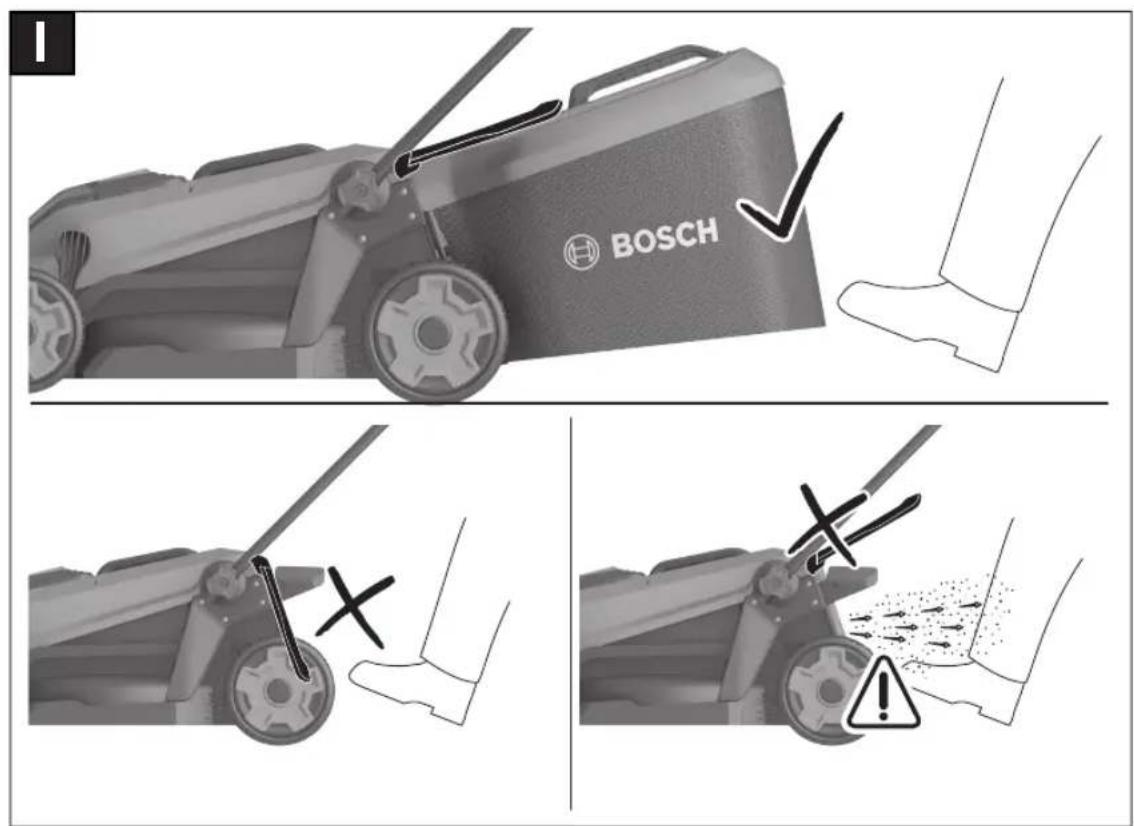

| "Mowing" working advice | I | 9 |

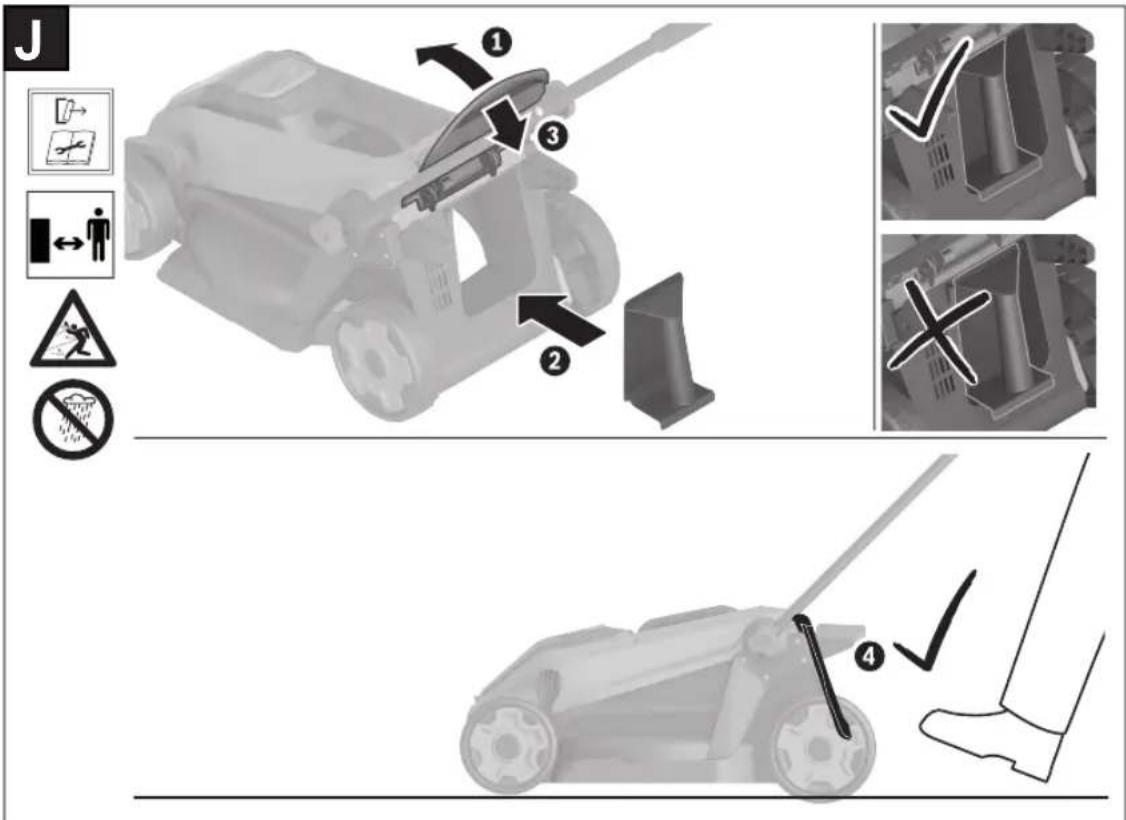

| "Mulching" working advice | J | 10 |

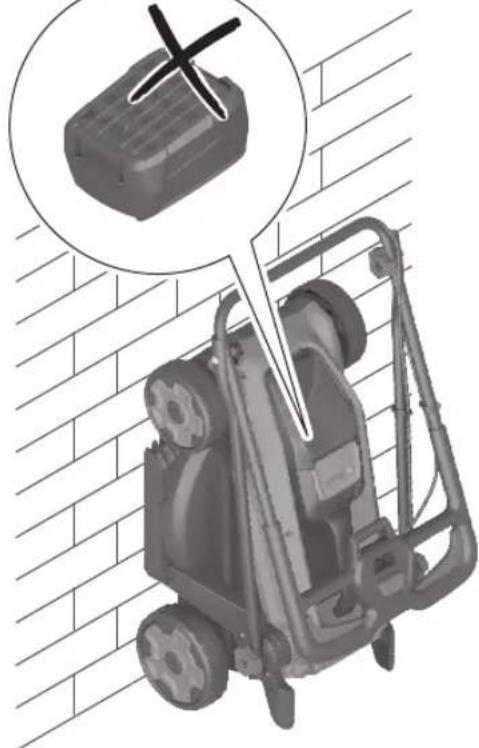

| Storage | K | 11 |
| Blade maintenance/blade replace-ment | L | 12 |
| Selecting accessories | M | 12 |
A) This accessory is not part of the standard scope of delivery.
Rechargeable battery
Bosch sells some cordless power tools without a rechargeable battery. You can tell whether a rechargeable battery is included with the power tool by looking at the packaging.
Charging the battery
▶ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.
Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.
26 | English
Inserting the Battery
Push the charged battery into the battery holder until it clicks into place.
Removing the Battery
To remove the rechargeable battery, press the battery release button and pull the battery out. Do not use force to do this.
Battery Charge Indicator on the Rechargeable Battery
Note: Not all battery types have a battery charge indicator.
The LEDs on the battery charge indicator on the rechargeable battery indicate the state of charge of the battery. For safety reasons, it is only possible to check the charging status when the power tool is at a standstill.
Press the button for the battery charge indicator on the rechargeable battery to show the state of charge. This is also possible when the rechargeable battery is removed.
| LEDs on rechargeable battery State of charge | |
| 4 × continuous green light ≈ 75–100 % | |
| 3 × continuous green light ≈ 50–75 % | |
| 2 × continuous green light ≈ 25–50 % | |
| 1 × continuous green light ≈ 5–25 % | |
| 1 × flashing green light ≈ 0–5 % | |
Recommendations for Optimal Handling of the Battery
Protect the battery against moisture and water.
Only store the battery within a temperature range of -20 to 50 °C. Do not leave the battery in your car in the summer, for example.
A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced.
Follow the instructions on correct disposal.
Starting Operation
For Your Safety
▶ Caution! Switch the garden tool off and remove the rechargeable battery before you perform maintenance or cleaning work. The same applies if the switch cable is damaged, cut or entangled.
The blade continues to rotate for a few seconds after the machine is switched off.
▶ Caution: Do not touch the rotating blade.
▶ Use only the chargers listed in the technical data. Only these battery chargers are matched to the lithium-ion batteries of your product.
Mulching Function
Remove the grass bag and slide the mulch adapter into the ejection opening. Close the ejection flap.
Remove the mulch adapter when you use the grass bag again.
The best time to mulch grass is late afternoon, when the grass is dry and the freshly mown area is not exposed to direct sunlight.
To achieve the best mulching performance, set the cutting height so that around a third of the grass blade length is removed, ideally no more than 10–20 mm at a time.
Working Advice
Cutting Capacity (Battery Operating Duration)
The cutting capacity (battery operating duration) depends on lawn properties, such as grass density, moisture content, grass length and height of cut.
Switching the garden tool on and off frequently during cutting will also reduce the cutting capacity (battery operating duration).
To improve the cutting capacity (battery operating duration), it is recommended to cut more frequently, increase the cutting height and walk at an appropriate pace.
The example below shows the connection between cutting height and cutting capacity with regard to three batteries.
Cutting conditions
Very thin, dry grass
| Cutting capacity | ROTAK18V-32 / ROTAK18V-34 |
| 4.0 Ah battery Up to 150/200 m | ^2 |
| 5.0 Ah battery Up to 200/250 m | ^2 |
| 6.0 Ah battery Up to 250/300 m | ^2 |
To increase the run time an additional battery can be purchased from an authorised customer service agent for Bosch garden products.
Troubleshooting
Problem Possible cause Corrective measure
Motor will not start Internal wiring of garden tool defective Contact Bosch customer service
Problem Possible cause Corrective measure
| Rechargeable battery discharged Charge the rechargeable battery | ||
| Rechargeable battery too hot/cold Allow the rechargeable battery to cool down/warm up | ||
| Grass too long Max. allowed grass height 15 cm on highest height-of-cut setting | ||
| The motor protection has been triggered Allow the motor to cool down and set a larger cutting height | ||
| Rechargeable battery not correctly inserted Insert correctly | ||
| Garden tool operates intermittently | Internal wiring of garden tool defective Contact Bosch customer service | |
| The motor protection has been triggered Allow the motor to cool down and set a larger cutting height | ||
| Garden tool leaves an irregular cutting pattern and/or motor working with difficulty | Cutting height too low Set a larger cutting height | |
| Blade blunt | Replace the blade (see figure L) | |
| Blockages possible Switch garden tool off and disengage isolator key | ||
| Check the underside of the garden tool and unclog if necessary (always wear gardening gloves) | ||
| Blade fitted the wrong way round Fit the blade the right way round | ||
| The blade does not rotate after the garden tool has been switched on | Blade obstructed by grass | Remove the rechargeable battery (see figure H) |
| Remove the blockage (always wear gardening gloves) | ||
| Blade nut/screw loose Tighten blade nut/screw (20–25 Nm) | ||
| Excessive vibrations/ noise | Blade nut/screw loose Tighten blade nut/screw (20–25 Nm) | |
| Blade damaged | Replace the blade (see figure L) | |
Maintenance and Service
Maintenance, Cleaning and Storage
Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the On/Off switch.
▶ For safe and proper working, always keep the product clean.
Do not place other objects on the garden product.
To ensure safe and efficient operation, always keep the product and the ventilation slots clean.
Never spray the product with water.
Never immerse the product in water.
Store the product in a secure, dry place, out of the reach of children.
Do not place other objects on the product.
Keep all nuts, bolts and screws tight to ensure safe working with the product.
Inspect the product and replace worn or damaged parts for safety.
Ensure replacement parts fitted are Bosch-approved.
When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor.
Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased risk of injury.
Battery Maintenance
Use the following procedures to enable optimum usage of the battery:
- Protect the battery against moisture and water.
- Store the machine and battery only within a temperature range between -20^ and 50^ . As an example, do not leave the battery in the car in summer.
- The battery must not be stored within the product but stored separately.
- Do not leave the battery in the product in direct sunlight.
- The ideal storage condition for the battery is 5 °C.
- Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
A significantly reduced working period after charging indicates that the battery is used and must be replaced.
After-Sales Service and Application Service
Great Britain
Tel. Service: (0344) 7360109
GB Importer:
Robert Bosch Ltd.
Broadwater Park
North Orbital Road
28 | Français
Uxbridge
UB9 5HJ
You can find the link to our service addresses and warranty conditions on the last page.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.
Disposal
Products, rechargeable batteries, accessories and packaging are to be recycled in an environmentally friendly manner.
Do not dispose of rechargeable batteries/batteries into household waste!
Only for EU countries:
According to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed must be collected separately and be disposed of in an environmentally friendly manner. According to European Directive 2006/66/EG rechargeable batteries that are defect or no longer usable must be collected separately and disposed of in an environmentally friendly manner.
If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.
Only for United Kingdom:
According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.
Français
Tlf. Service Center: 44898855
4,0 Ah, 5,0 Ah, 6,0 Ah
PBA 18V...W-C
4,0 Ah, 5,0 Ah, 6,0 Ah
4,0 Ah, 5,0 Ah, 6,0 Ah
4,0 Ah, 5,0 Ah, 6,0 Ah
A) Be akumuliatoriaus (akumuliatoriaus svorj rasite www.bosch-diy.com)
B) ribota galia, esant temperatūrai < 0 °C
C) Žemiau nurodyti krovikliai PBA akumuliatoriui netinka: AL 1814 CV, AL 1820 CV, AL 1860 CV
