USER MANUAL HG9611MCA Atag

important information

tip

conseil

Tipp

tip

uw gaskookplaat

deschrijving. 43

inleiding. 5

veiligheid

haar u op要去 letten. 6

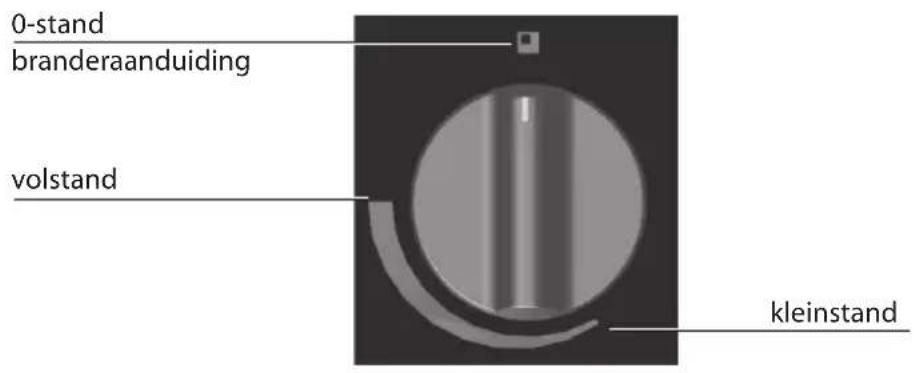

bediening

De HG61..MB, HG61..NB, HG71..MB, HG76..MB,

Wok HG96..MB, HG97..MB

bediening

Wok HG96..MB, HG97..MB

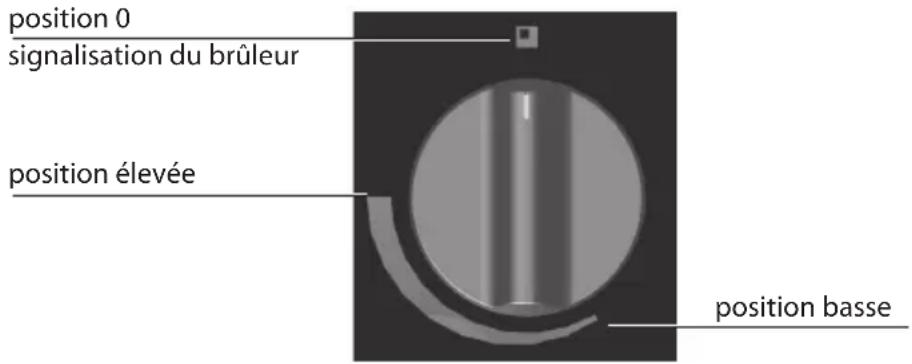

commande

Wok HG96..MB, HG97..MB

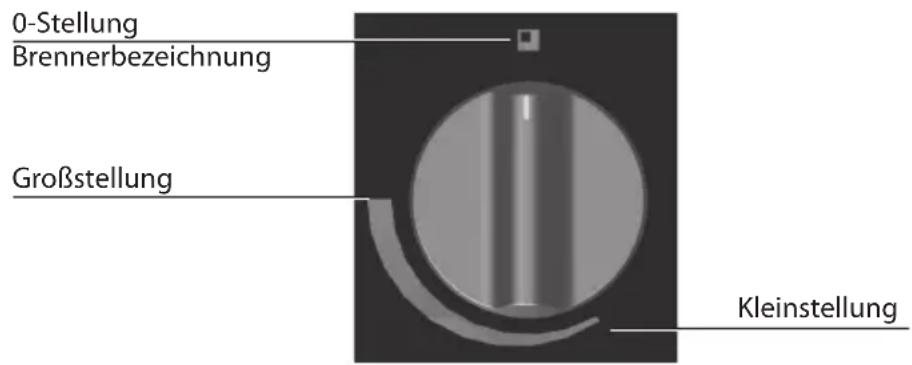

Bedienung

X >= 31 mm: Y = 0 mm: Z = 45 - X

Benötigter Freiraum

what you should pay attention to 90

controls

igniting and adjusting. 91

comfortable cooking

optimal use of the hob 92-93

maintenance

general 94-97

faults

table 98

environmental aspects

disposal of packaging and appliance 99

installation instructions

general 100-101

building in 102-112

gas information. 113

HG61..MB

HG61..NB

HG71.MB

HG76..MB

HG96.MB

HG96..SB

HG77.MB

HG97..MB

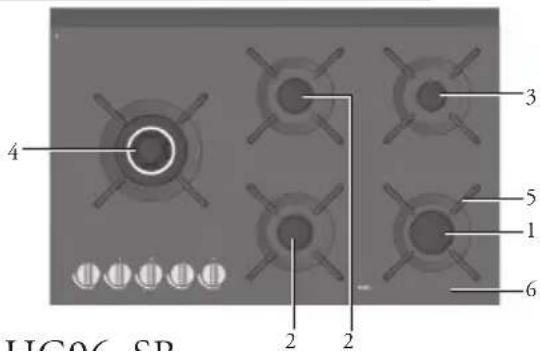

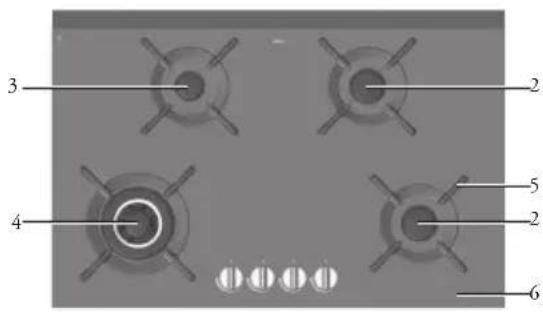

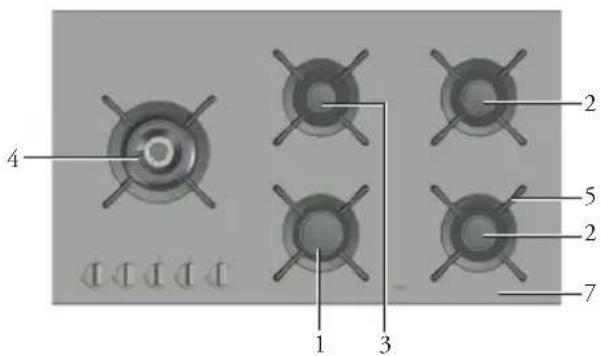

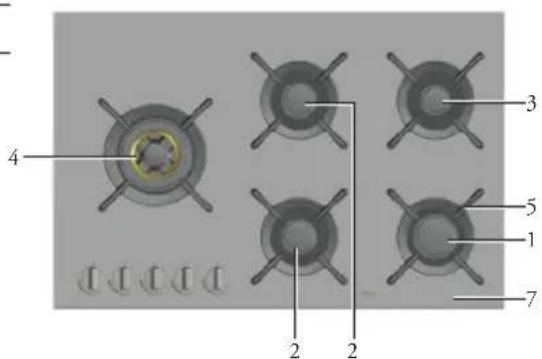

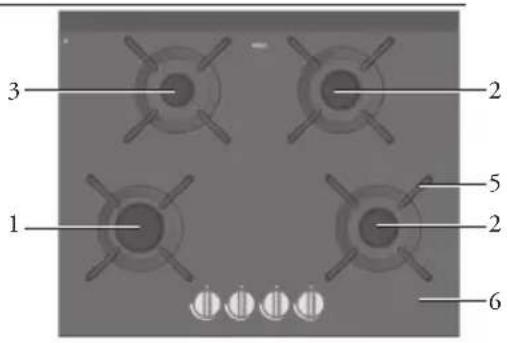

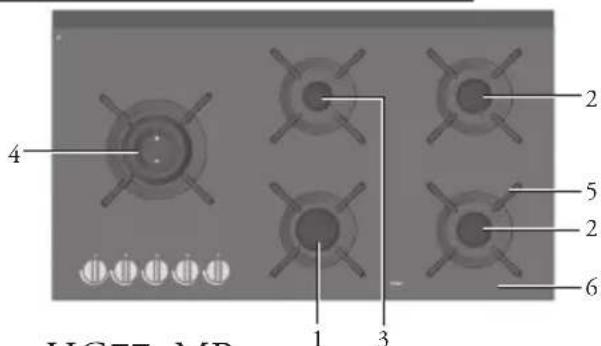

1. rapid burner 4. wok burner 7. Stainless steel plate
2. semi-rapid burner 5. pan supports
3. simmer burner 6. glass plate

KOOKKEUR

This ATAG gas hob has been designed for the real lover of cooking. The differences in burner capacity mean that you can cook any type of dish. Thanks to the integration of the spark ignition in the knobs, you can ignite and control the burners with one hand.

The gas hob combines high efficiency with a minimum of incompletely burned combustion gases. This gives you an appliance with short heating times, while also providing excellent simmering.

The HG61..MB, HG61..NB, HG71..MB, HG76..MB, HG96..MB, HG96..SB, HG77..MB and HG97..MB are fitted with a flame failure device, which ensures that the gas supply is shut off if the flame goes out during the cooking process.

This manual explains optimum use of the gas hob. In addition to information on operation, you will also find background information that may be useful to you when using this product.

Keep this manual carefully so that possible subsequent users can also benefit from it.

The manual also serves as reference material for service technicians. Please, therefore, stick the data card in the space provided, at the back of the manual. Where applicable, the data card supplied with a conversion kit should also be stuck here. The data cards contain all the information that the service technician will need in order to respond appropriately to your needs and questions.

Enjoy your cooking!

Read the separate safety instructions before using the device!

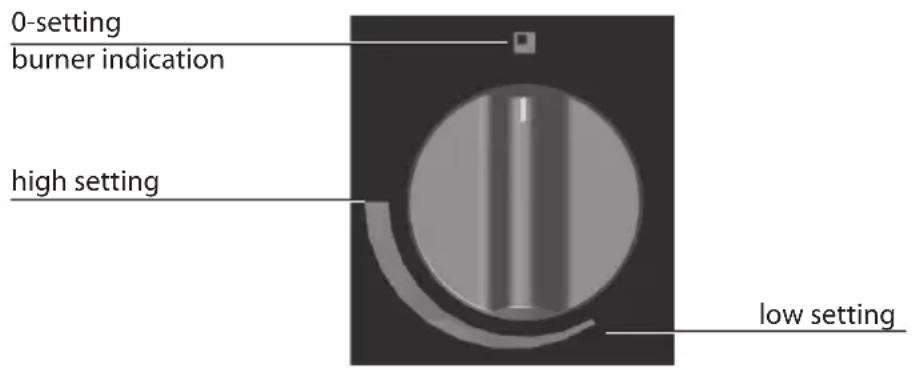

Each burner can be adjusted continuously between the full and low positions.

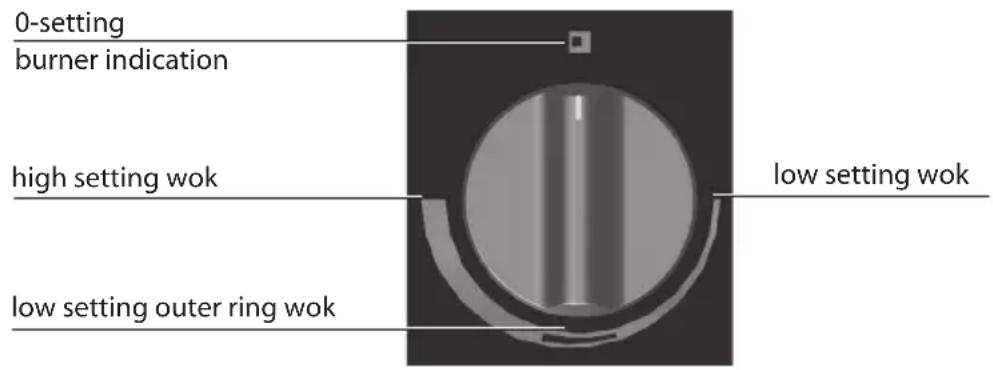

Wok HG96..MB, HG97..MB

controls

Press the control knob in and turn it anti-clockwise.

The burner ignites.

In the case of appliances with flame failure device you must hold the control knob pressed in for approximately 5 seconds to switch the flame failure device on.

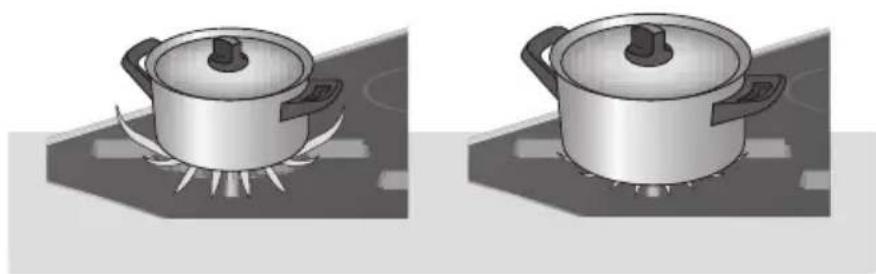

• Always ensure that the flames remain below the pan. If flames play around the pan, a lot of energy is lost. In addition, the handles can get too hot.

Do not use pans with a base diameter less than 12cm . Smaller pans will not be stable.

WRONG RIGHT

• When frying, stir-frying, heating through large quantities and deep-frying it is better to use the strong, super-strong or wok burner. Preparing sauces, simmering and boiling can be done best on the simmer burner. On its high setting this burner is large enough for cooking food right through.

For all other dishes use the normal burners.

• Cook with the lid on the pan. This way you save up to 50% energy.
• Use pans with a flat, clean, dry base. Pans with a flat base stand stably and pans with a clean base transfer the heat more effectively to the food.

wok burner

With the wok burner you can prepare dishes at a very high temperature. For this purpose it is important:

• to cut the ingredients into strips, slices or pieces before cooking;
  to use good-quality oil, such as olive, maize, sunflower or peanut oil when stir-frying. A small quantity is enough. Butter and margarine on the other hand will burn because of the high heat;
  to place the dishes with the longest cooking time in the pan first, so that at the end of the cooking time all ingredients are cooked al dente at the same time.

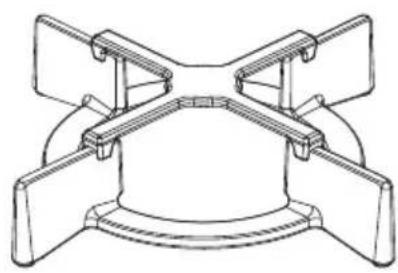

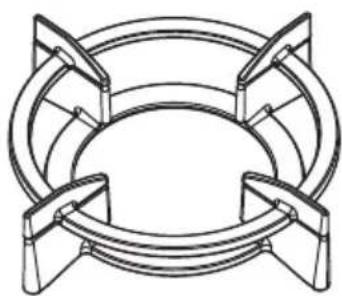

use of the wok auxiliary support

The auxiliary support supplied for the wok burner or available as an accessory provides additional stability in the case of a wok with a round base. Place the auxiliary support on the wok support as indicated in the illustration.

use of the reduction support

The reduction support supplied with the unit or available as an accessory enables you to use very small pans.

Your appliance has been manufactured from high-grade materials, which are easy for you to clean.

• Burner parts should not be cleaned in the dishwasher. The parts may be damaged by the dishwasher detergent!

Do not use too much water as this can penetrate into the burner or ventilation openings.

• Clean the spark plugs preferably with a cloth. Do this carefully. If too much pressure is applied, the distance from the point of the sparkplug to the burner may change, causing the burner to ignite poorly or not at all. The sparkplug will only operate correctly in a dry environment. If the plug is very dirty, you may clean the point with a tiny brush.

• Set the pan supports down vertically, without sliding them over the glass plate.

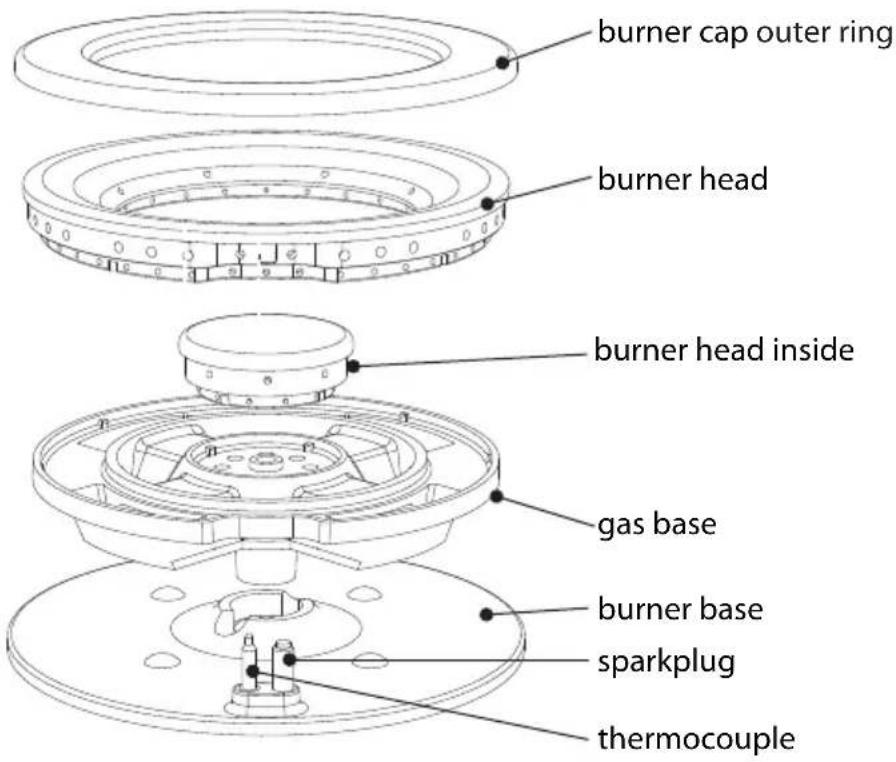

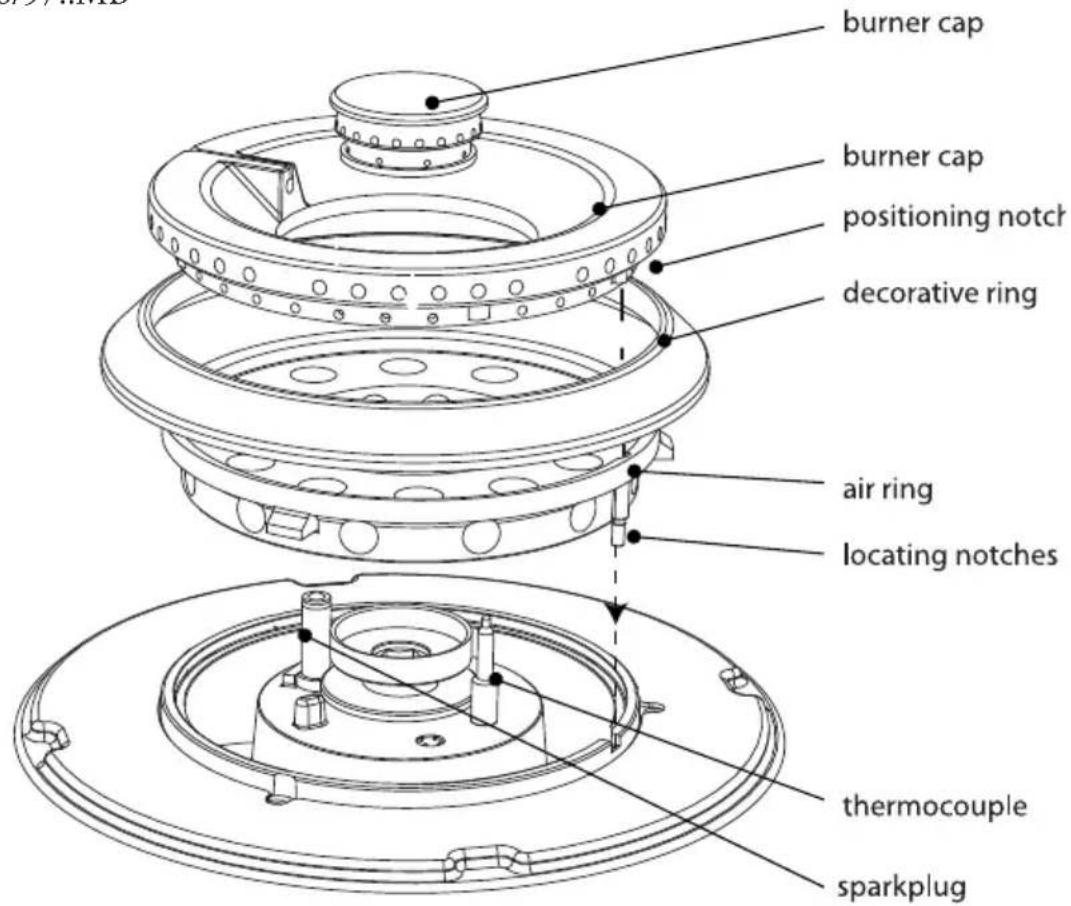

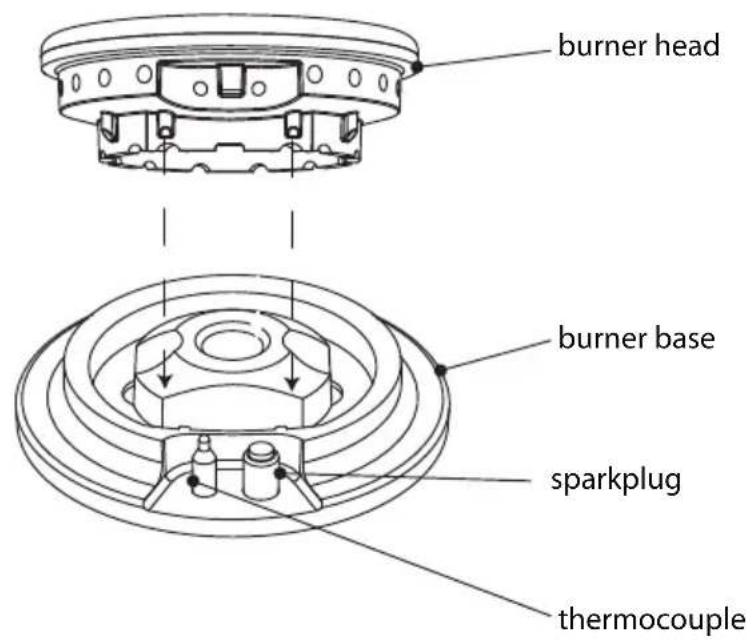

Assemble the burner parts using the guide ridges.

Wok HG61/71/76/

77.MB and

HG96..SB

Wok HG96/97..MB

general

• Regular cleaning immediately after use prevents over-cooked food being able to become ingrained and cause stubborn stains that are difficult to remove. Use a mild cleaning agent.
• Clean the control knobs, burners and pan supports first and then the glass plate. This avoids the glass plate getting dirty again during cleaning.

stubborn stains on enamel (pan supports, burner caps)

Remove with a non-abrasive cream or a soft sponge. Never use scouring powder, scouring pads, sharp objects or aggressive cleansing agents.

stubborn stains on the glass hob

Clean the glass hob with a cleansing agent intended specifically for ceramic hobs. Water stains or limescale are most easily cleaned using a non-abrasive limescale remover.

Stubborn stains on stainless steel (drip trays)

If spilled, acid fluids and sugary foodstuffs like red cabbage, beetroot, soy sauce, applesauce and rhubarb may cause the surface to discolour. Stubborn stains on stainless steel are best removed with a special cleaning agent. Always polish in the direction of the steel structure to avoid shine spots.

(This kind of damage is not covered by the warranty!)

If the above methods do not remove the stains, clean the plate with HG oven and grill cleaning agent. Remember to treat the entire drip tray in order to avoid discolouring. Also, as a follow-up treat the drip tray with a polish or maintenance agent for stainless steel. Please note that over the years the surface will slightly discolour.

cleaning removable burner components

The removable burner components (including wok) are best cleaned with a mild cleaning product and a soft cloth. In the case of obstinate stains you can soak the parts in hot suds.

Never use scouring powder, scouring pads, sharp objects or aggressive cleansing agents.

brass wok burner parts

A few parts of the work burner are made from brass. It is normal for the colour of the brass to change as a result of the high temperatures that occur when cooking with a wok.

Keradur burner bases

The burner bases have a unique Keradur surface coating. The special dirt-repelling lacquer has a ceramic filling which makes cleaning easier and substantially improves the durability of the burners. The burner bases are best cleaned with a mild cleaning product and a soft cloth.

If the appliance does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first by checking the points mentioned below:

fault	cause	solution
There is a smell of gas in the vicinity of the appliance.	- A burner is turned on but not lit.- The coupling on a bottled gas unit has come undone.	- Close the tap and wait for a few minutes before relighting.- Tighten the coupling.
A burner does not ignite.	- Plug not in socket.- Fuse defective/fuse in meter cabinet switched off.- Sparkplug dirty/damp.- Burner parts not correctly installed.- Burner parts dirty/damp.- Main gas tap closed.- Fault in the gas network.- Gas bottle or tank is empty.- Wrong type of gas used (where bottled gas is used).- Control knob not kept pressed in long enough or far enough.	- Push the plug into the socket.- Fit a new fuse or switch the automatic fuse back on.- Clean and dry the sparkplug.- Assemble the burner parts using the centring ridges.- Clean and dry the burner parts, making sure that the outflow holes are open.- Open the main gas tap.- Check with your gas supplier.- Connect a new gas bottle or have the tank filled.- Check that the gas used is suitable for the appliance.- Keep the control knob pressed in far enough between full and low.
The burner does not burn evenly.	- Burner parts incorrectly installed.- Burner parts dirty or damp.- Wrong type of gas used (where bottled gas is used).	- Assemble the burner parts using the centring ridges.- Clean and dry the burner parts, making sure that the outflow holes are open.- Check that the gas used is suitable for the appliance.
The burner goes out after igniting.	- Control knob not kept pressed in long enough (appliances with flame failure device).	- Keep the control knob pressed in for at least 5 seconds.

In case of faults phone the service department. See the guarantee certificate or consult the internet site www.hps.nl.

This appliance should only be connected up by a registered installer!

In the manufacturing of this appliance use has been made of durable materials.

The appliance packaging is recyclable. The following may have been used:

• cardboard;
  paper;
  polythene film (PE);
  CFC-free polystyrene (PS hard foam);
  polypropylene tape (PP).

Dispose of these materials in a responsible manner and in accordance with government regulations.

On the data plate is put the symbol of a crossed-out wheeled dustbin:

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

The fitting of the appliance should only be carried out by a registered Corgi gas fitter.

please note

The type of gas and the country for which the appliance has been designed are indicated on the ratings plate.

This is a category 3 appliance.

gas connection

The gas connection must comply with national and local regulations.

We recommend that the hob be connected by means of a fixed pipe. Connection using a specially designed safety hose is also permitted.

Behind an oven use must be made of a pipe made entirely out of metal.

please note

A safety hose may not be bent and must not come into contact with moving parts of kitchen units.

In all cases the connection tap for the appliance must be positioned such that it is easily accessible.

Before using the appliance for the first time check the connections using water and washing-up liquid to ensure that there are no gas leaks.

electrical connection (solely for appliances with a spark switch)

230V - 50Hz - 0.6VA

The electrical connection must comply with national and local regulations.

Wall socket and plug must be accessible at all times.

If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3mm is installed in the supply cable.

please note

This appliance must be earthed.

If the connecting cable is damaged, it may only be replaced by the manufacturer, the manufacturer's service organisation or equivalently qualified persons, in order to avoid dangerous situations.

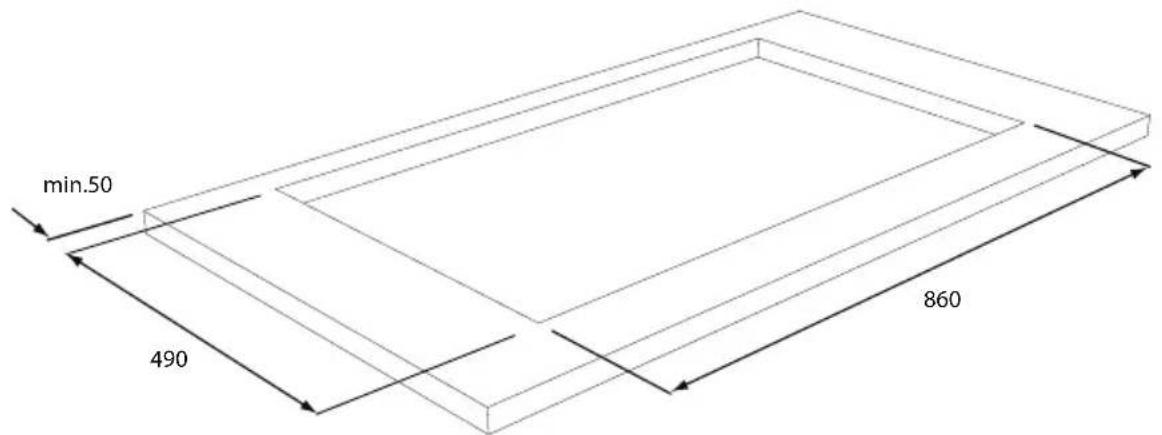

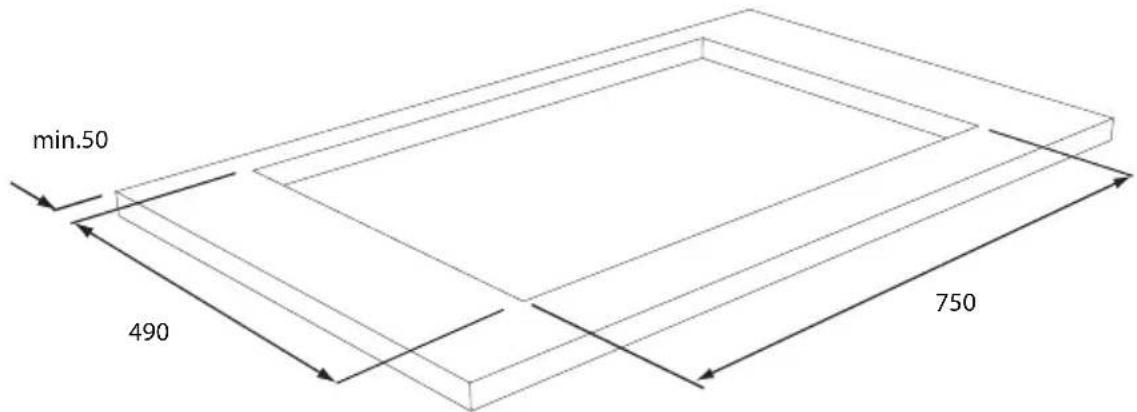

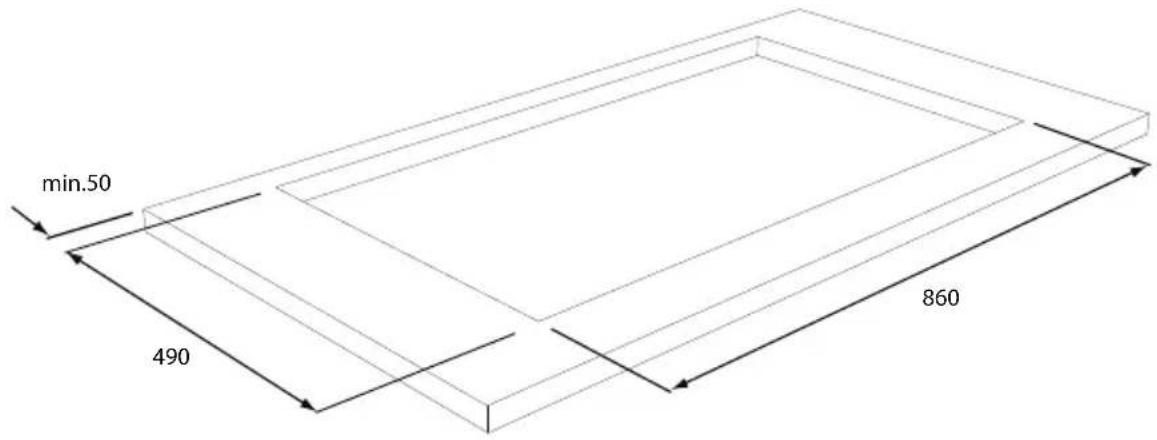

cut opening in worktop

Saw the opening in the worktop. This should be done very accurately (building in dimensions).

If the woodtop is made of treated wood, then coat the sawn surfaces of the top with sealing varnish, to prevent moisture causing the top to swell.

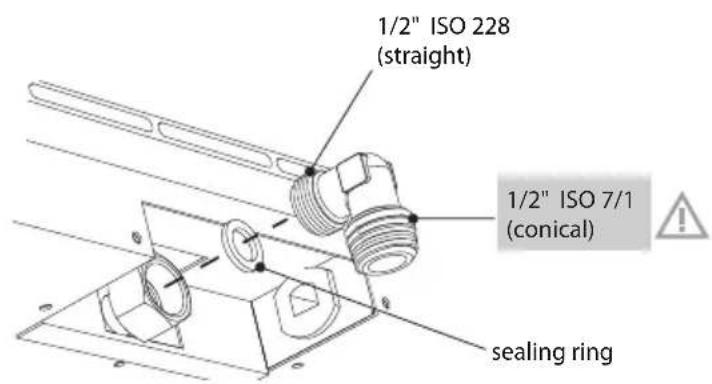

preparing the hob

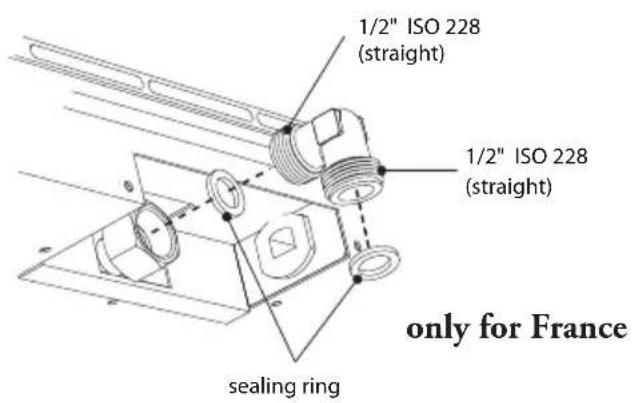

Fit the elbow supplied on the appliance's gas connection.

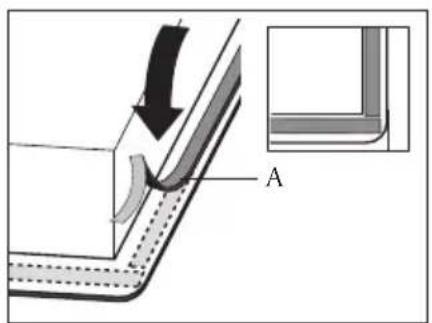

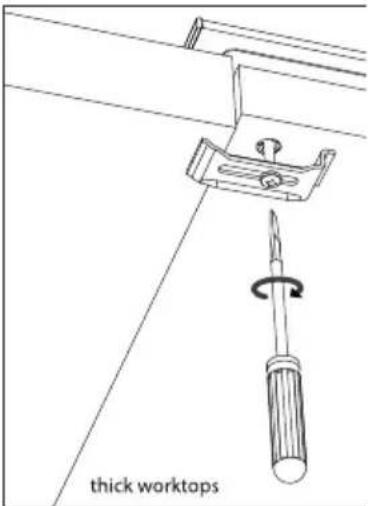

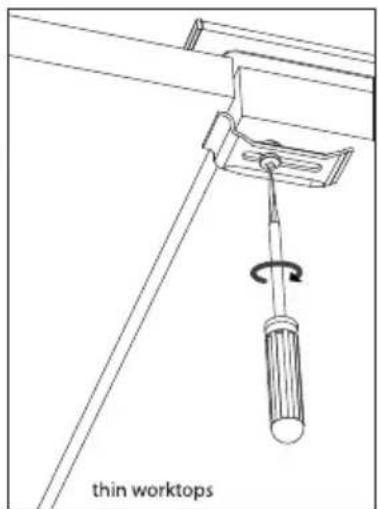

installation sequence for a glass appliance

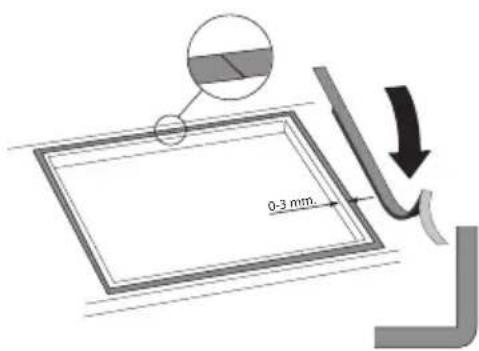

Remove the protective foil of the sealing strip (A) and attach the sealing strip in the groove of the aluminium profiles or the edge of the glass plate. Do not attach the sealing strip through the corner. Instead, cut 4 pieces that fit tightly together in the corners.

installation sequence for a stainless steel appliance HG77..M and HG97..M

Remove the protective foil from the sealing tape and apply the tape around the cut-out in the worktop. Start at the rear side of the appliance and tape the sealing strip along the corners. Make sure that the ends of the sealing strip fit tightly together.

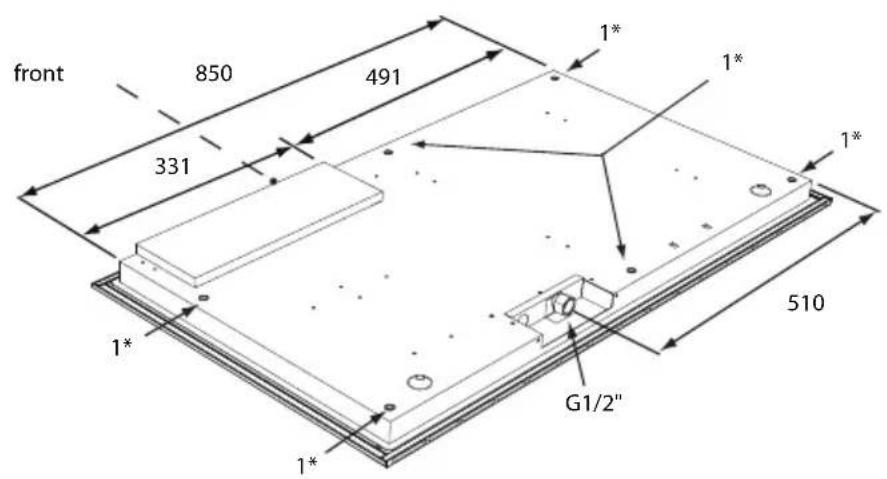

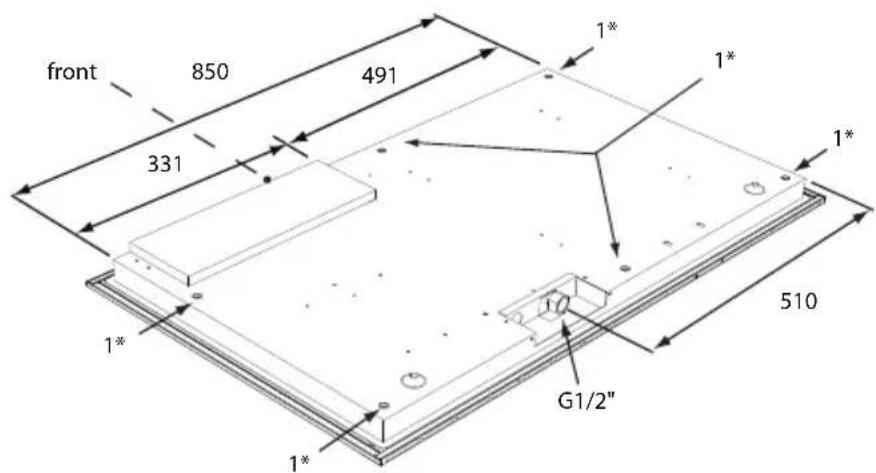

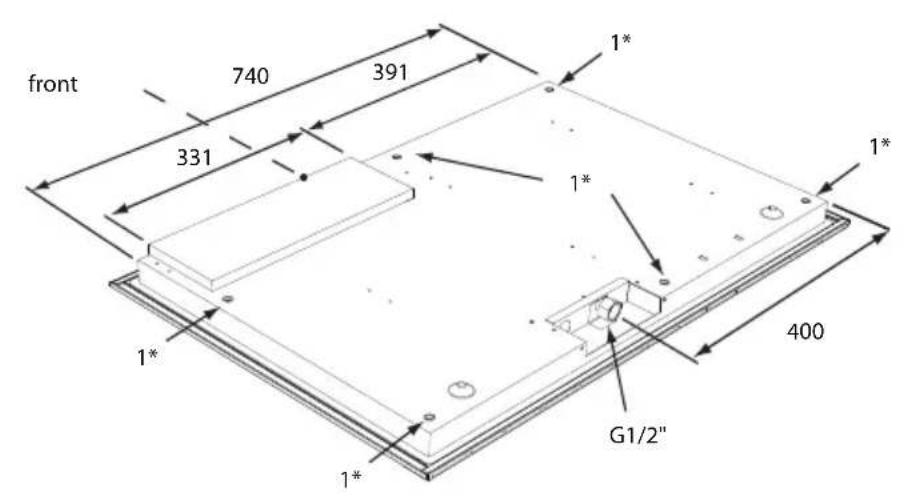

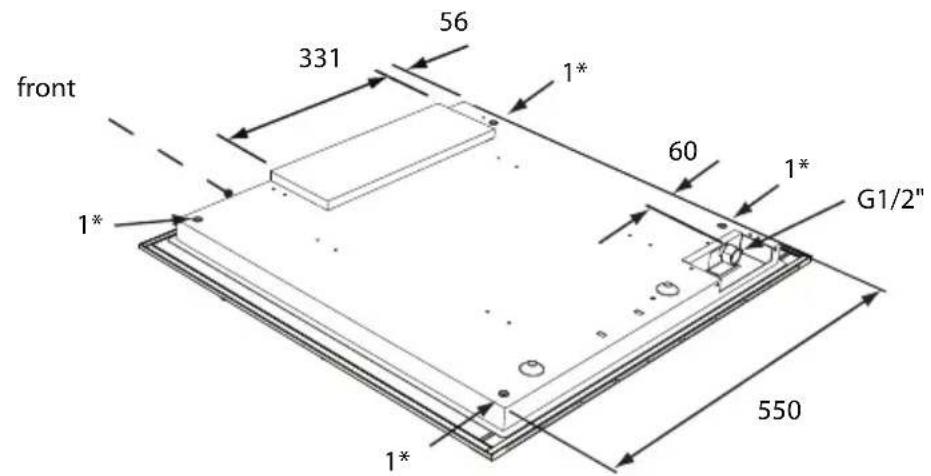

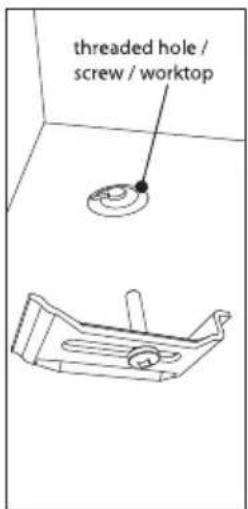

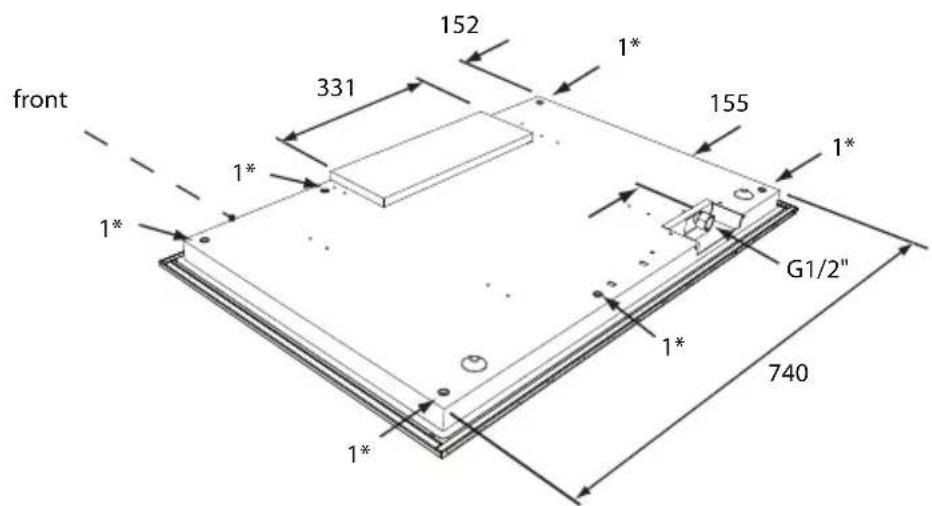

attachment points for mounting brackets

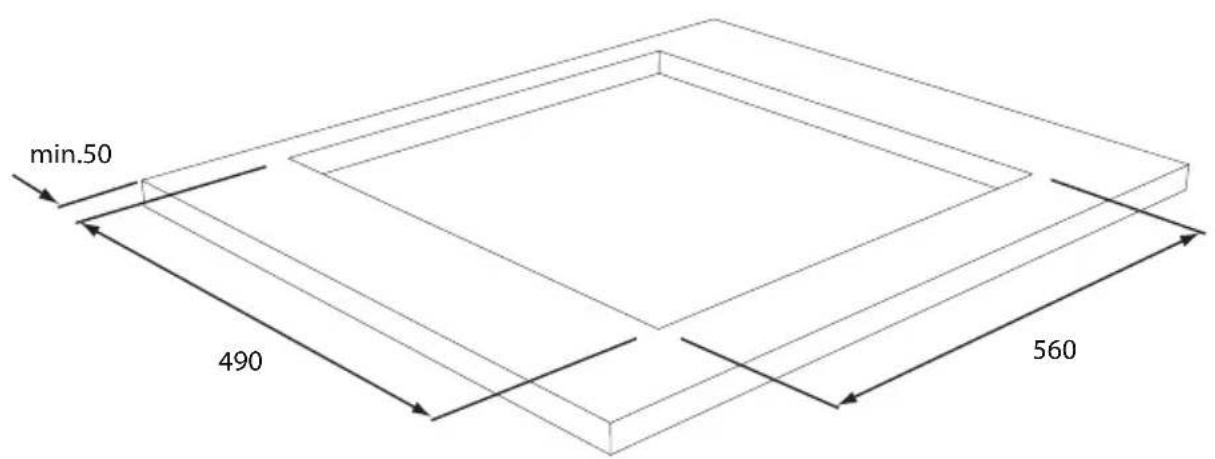

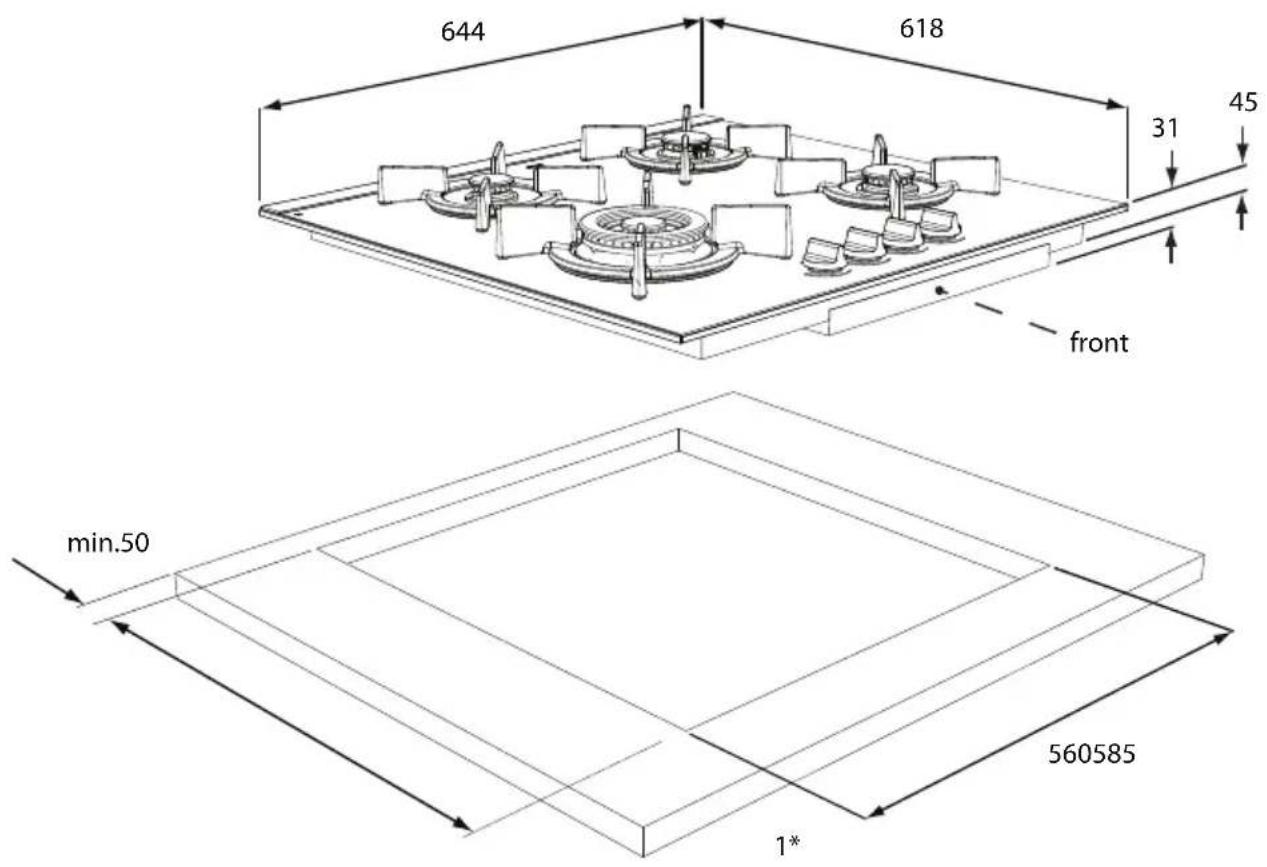

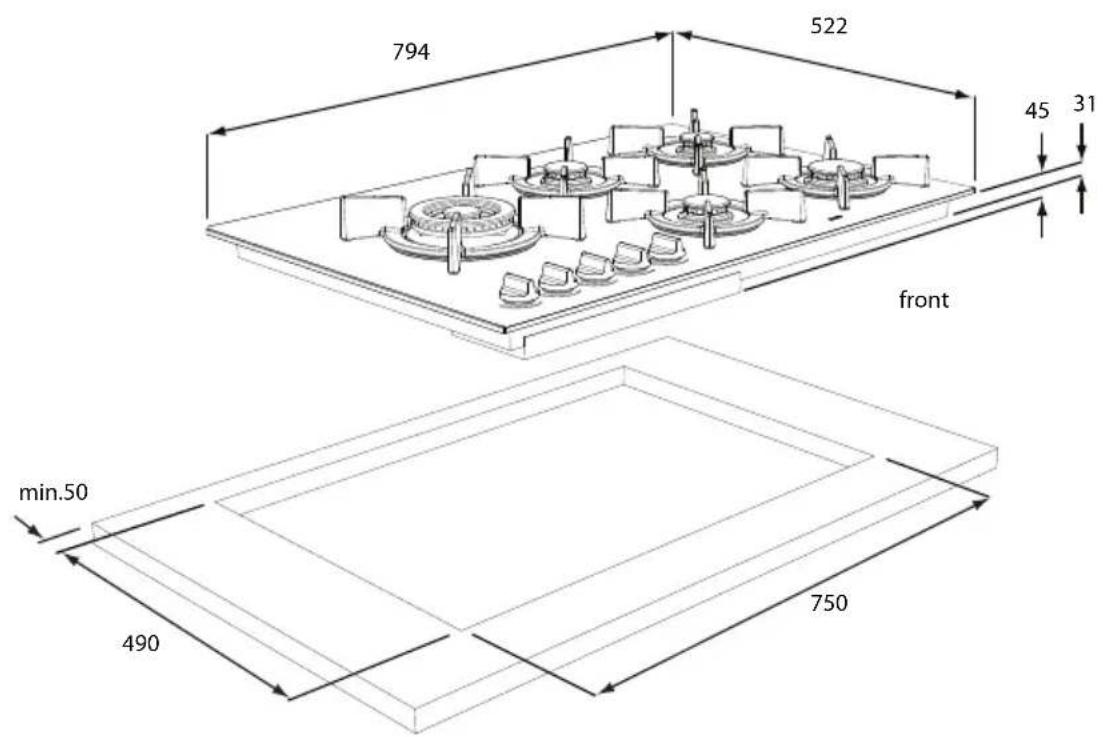

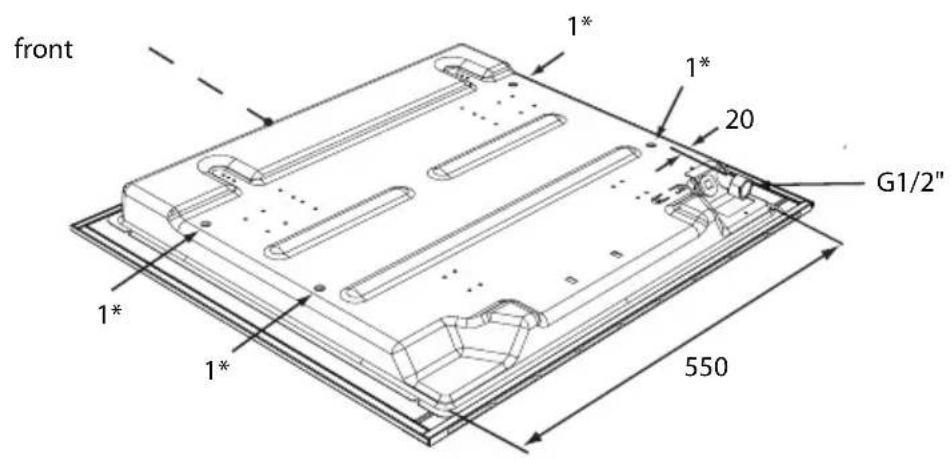

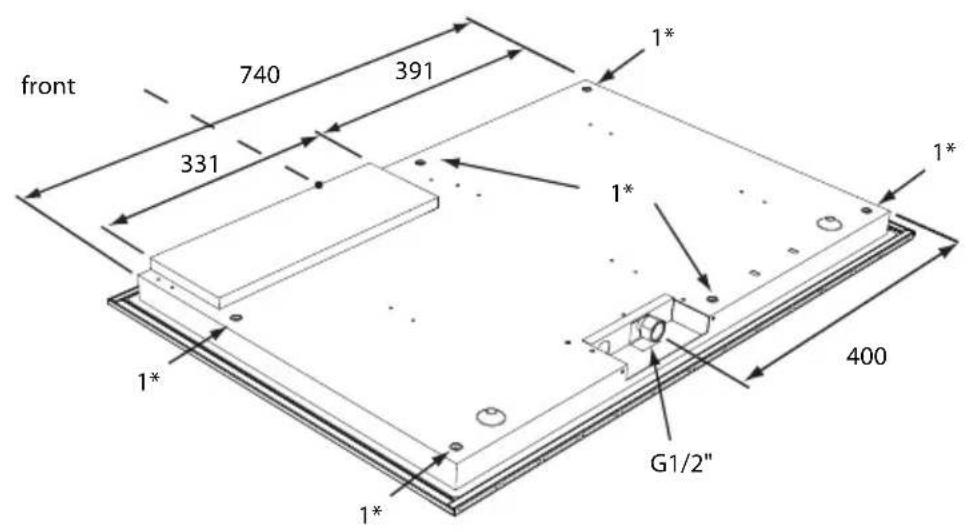

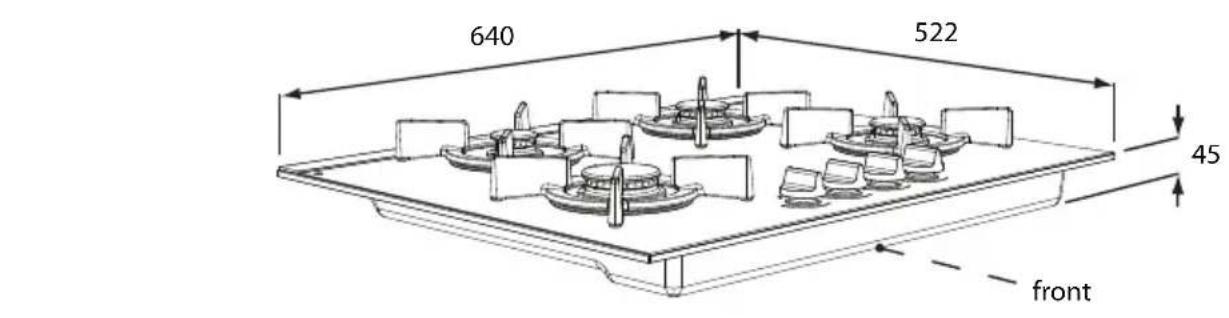

building in dimensions HG61..M

1^* ) attachment point for mounting bracket

building in dimensions HG61..N

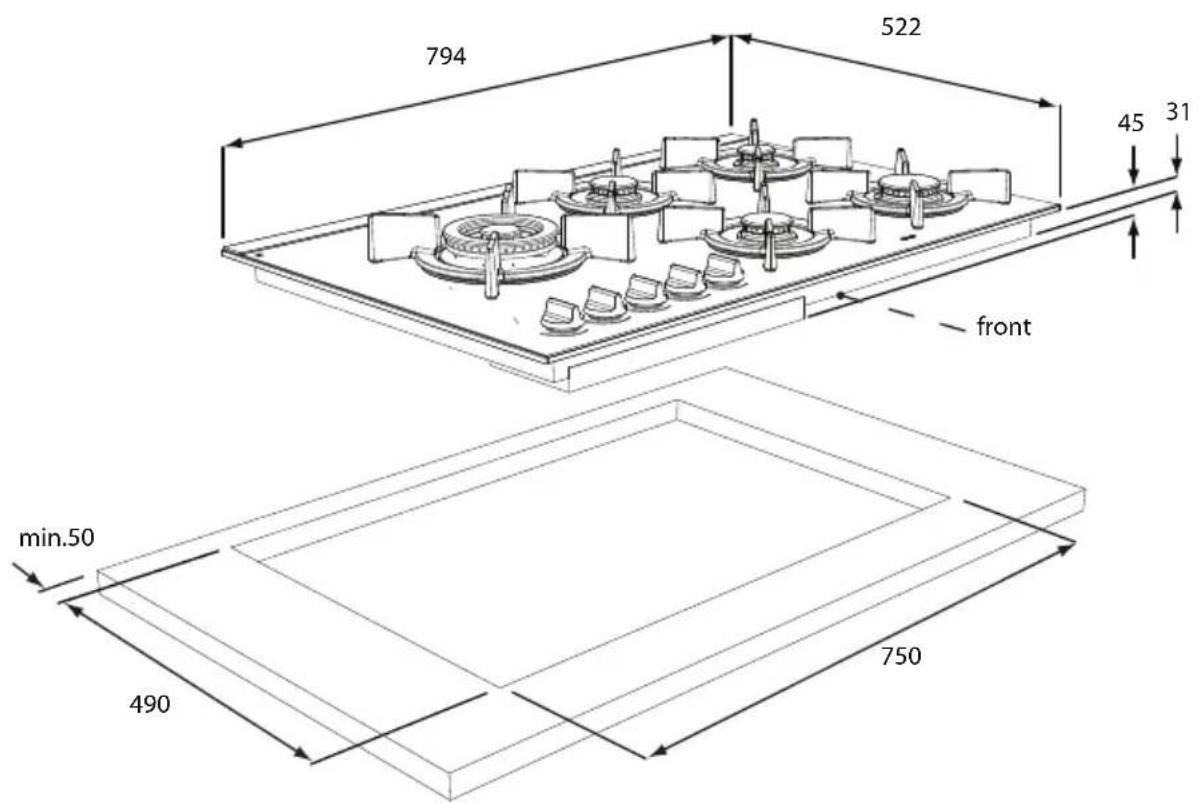

building in dimensions HG71..M

building in dimensions HG76..M

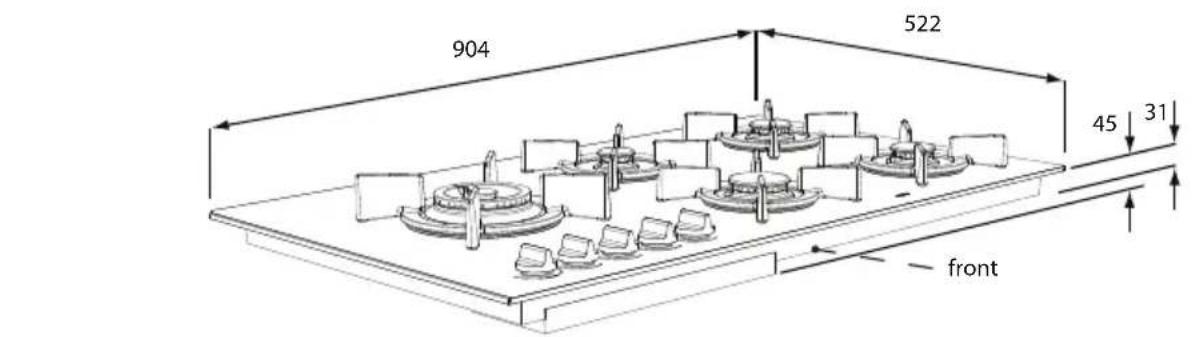

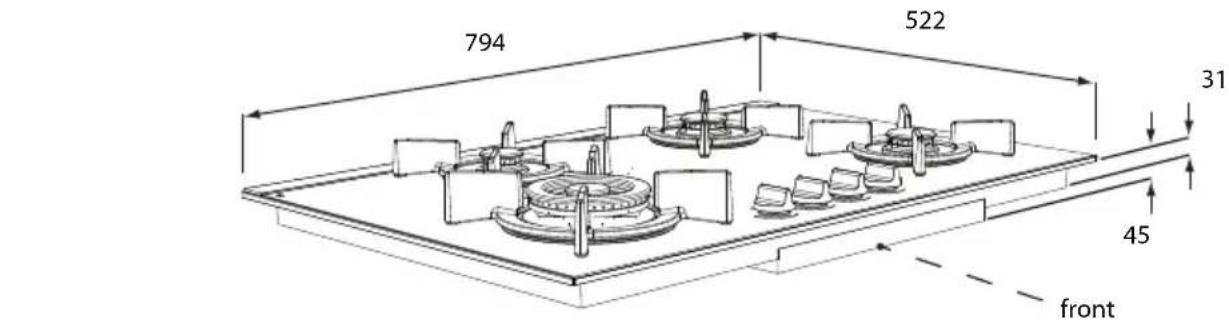

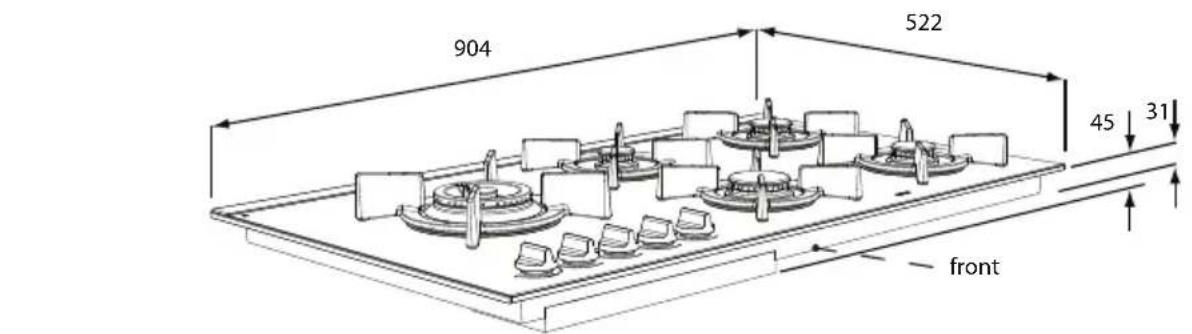

building in dimensions HG96..M/S

building in dimensions HG77..M

building in dimensions HG97..M

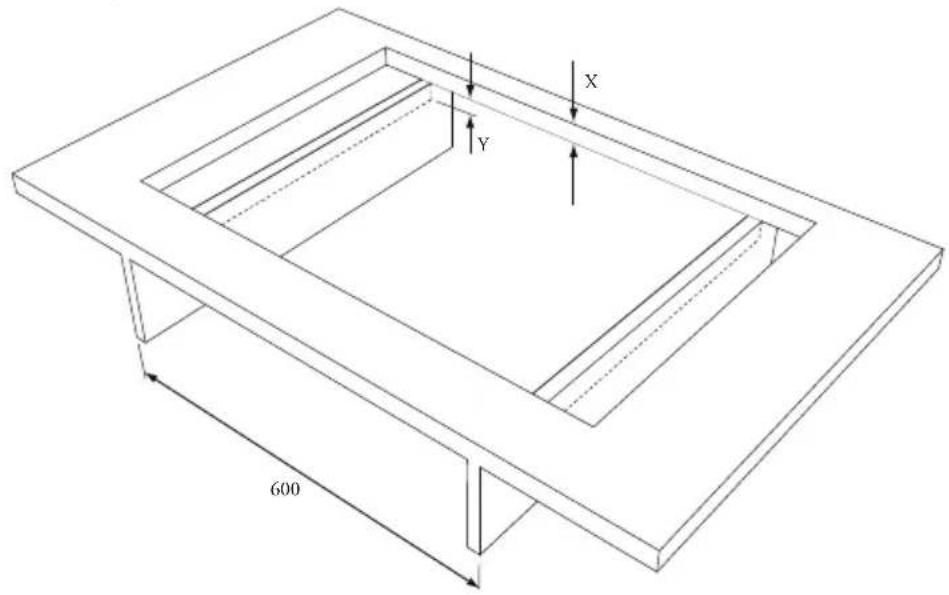

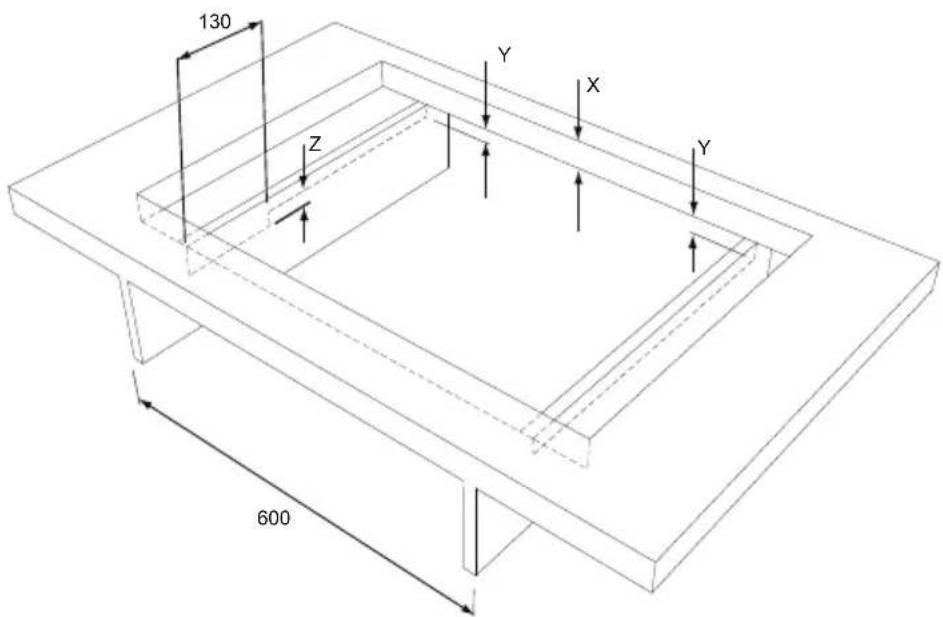

fitted-unit situations for HG71/76/77/96/97 in 60 cm cabinet

fitted-unit dimensions for HG7111m in 60 cm corpus

X<31mm：Y=31mm-X

X >= 31 mm : Y = 0 mm

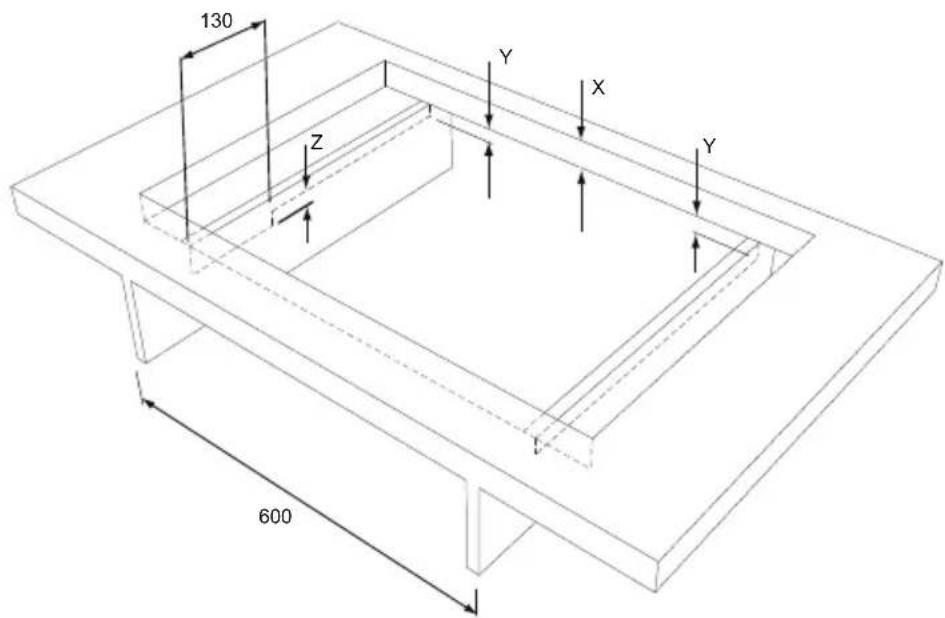

fitted-unit dimensions for HG76/77/96/97..MB and HG96..SB in 60 cm corpus

X<31mm：Y=31mm-X：Z=45-X-Y

X >= 31 mm: Y = 0 mm: Z = 45 - X

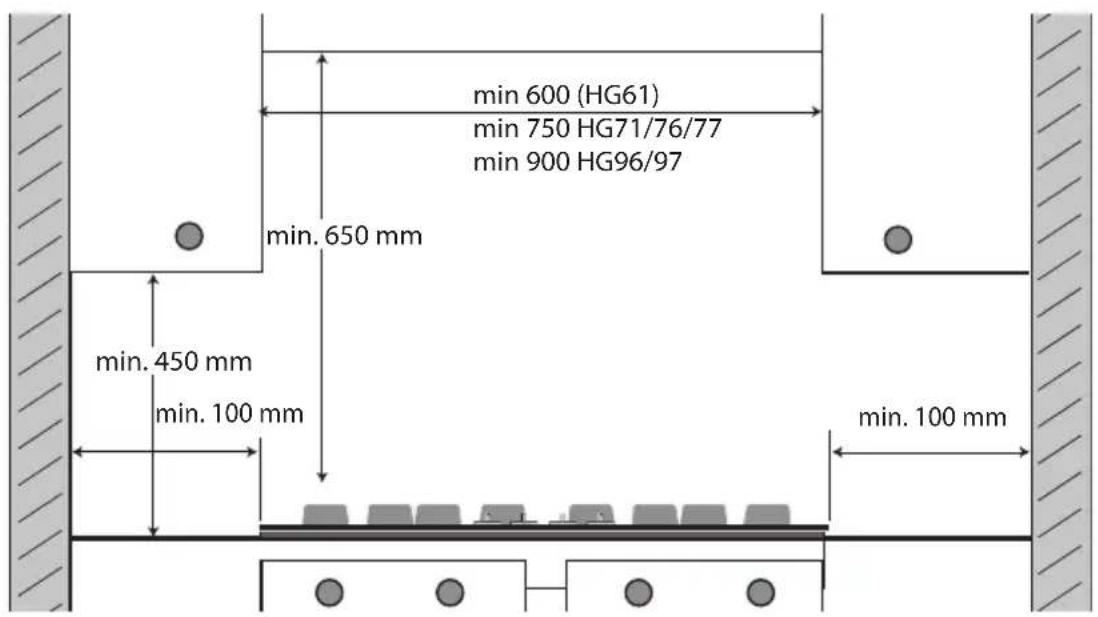

space to be left free around the appliance

A hob generates heat. Leave a sufficient distance between the appliance and non heat-resistant materials. Take care also with materials that may discolour (such as stainless steel).

The gas hob may only be built in next to one vertical wall.

please note

The bottom of the hob becomes hot. Do not place combustible items in a drawer if the drawer is fitted directly below the hob.

install appliance and make connections

Place the appliance in the worktop and secure it using the mounting brackets and screws supplied.

Connect to the gas supply.

Check with soap suds that the connection is gastight.

Connect the appliance to mains electricity.

	G25/25 mbar	G20/20 mbar	G25/20 mbar	G30/29 mbar	G31/29 mbar	G31/37 mbar	G30/50 mbar	G31/50 mbar
burner type (kW) (kW) (kW)		(kW / g/h) (kW / g/h) (kW / g/h) (kW / g/h) (kW / g/h)
simmer 1.00	1.00 0.90 0.90	65 0.79 / 57	0.90 / 65 1.00 / 72	0.88 / 63
normal	2.00	2.00	1.80	1.60 / 115	1.41 / 101	1.60 / 115	2.00 / 144	1.76 / 127
strong	3.00	3.00	2.70	2.30 / 166	2.02 / 146	2.30 / 166	2.70 / 194	2.38 / 171
wok	4.50	4.50	4.50	3.50 / 252	3.08 / 222	3.50 / 252	4.00 / 288	3.52 / 253
wok HG96/97..M	5.70	5.70	5.00	5.00 / 396	4.85 / 350	5.50 / 396	5.50 / 396	4.75 / 342

setting up the appliance for other gas types (except HG96/HG97..M)

This appliance has been set up for natural gas. The appliance can be set up for other gas types and pressures by means of a conversion kit. You can order the kit from the sales and service organisation. The conversion instructions are supplied with the kit.

plak hier het toestel-identificatieplaatje placez ici la plaque d'identification de l'appareil kleben Sie hier das Gerätotypenschild ein stick the appliance identification card here

Ditplaatje bevindt zich aan de bovenzijde van het toestel.
Cette plaque se trouve sur le dessus de l'appareil.
Dieses Schild befindet sich an der Oberseite des Gerätes.
This card is located on the top of the appliance.

plak hier het ombouw-identificatieplaatje (indien van toepassing)
placez ici la plaque d'identification relative à la conversion (en cas d'application)
kleben Sie hier das Umbautypenschild ein (wenn zutreffend)
stick the conversion identification card here (where applicable)

Dit plaatje bevindt zich in de ombouwset (indien van toepassing).
Cette plaque se trouve dans le jeu de conversion (en cas d'application).
Dieses Schild befindet sich im Umbausatz (wenn zutreffend).
This card is supplied with the conversion kit (where applicable).
