USER MANUAL H1088 Emos

DC 12 V/1 A AC 100-240 V 50/60 Hz DC 12 V Lock DC 12 V + - Electric Lock ≤ 3 A DC powered

2

GB | Audio Door Phone Set

Safety instructions and warnings

Read the instructions before using the device.

Observe the safety instructions in this manual.

Electrical risk:

• Improper installation or use can cause electric shock or fire.
• Read the instructions before installation and take into account the specific characteristics of the space and location where the product will be installed.
• Do not open, disassemble, modify or alter the device unless specifically instructed to do so in the instructions.
• Any unauthorized opening or repair will result in the loss of all liability, replacement rights and warranties.
  • Always use only the original power cord.
• The product can only be supplied with a voltage that corresponds to the information on the product label.
• Only a qualified technician may service this product to reduce the risk of electric shock.
• Disconnect the product from the power supply before cleaning.
• The product must not be used by persons (including children) whose physical, sensory or mental abilities or lack of experience and knowledge prevent them from using the product safely without supervision or instruction.

- Cleaning and user maintenance must not be carried out by unsupervised children.

- Do not immerse the product in water or other liquids.

Risk of fire:

- Do not use the product if any part is damaged or defective. Replace the damaged or defective product immediately.

Risk of suffocation:

- Do not let children play with the packaging material. Keep the packaging material out of the reach of children.

Risk of tripping:

- The power cord and the product must always be positioned so that it does not interfere with normal walking areas.

Risk of damage to the product:

• Use the product only as described in this document.
• Prevent the product from falling and protect it from impact.
• Do not use aggressive chemical cleaning agents when cleaning the product.
• Supervise children so that they do not play with the product.

Contents of the package

1× Indoor unit with bracket

1× outdoor unit with rain screen

Power adapter

Installation material

Instructions

Technical Specifications

Indoor unit:

Power: AC 100–240 VAC 50/60 Hz

Communication: 433 MHz

Volume: 75 dB (A)

Range: 200 m (in the open)

Outdoor unit:

Power: DC 12 V/1 A

Communication: 433 MHz

Degree of protection: IP44

Description (see Figure 1)

1 - Indoor unit

2 - Outdoor unit

3 - Speaker

4 - Microphone

5 - Lock control button

6 - Volume adjustment button (High/Medium/Low)

7 - LED indicator

8 - Bell button

9 - Port for power cable

10 - Port for lock connection

11 - Coding button

Commissioning procedure

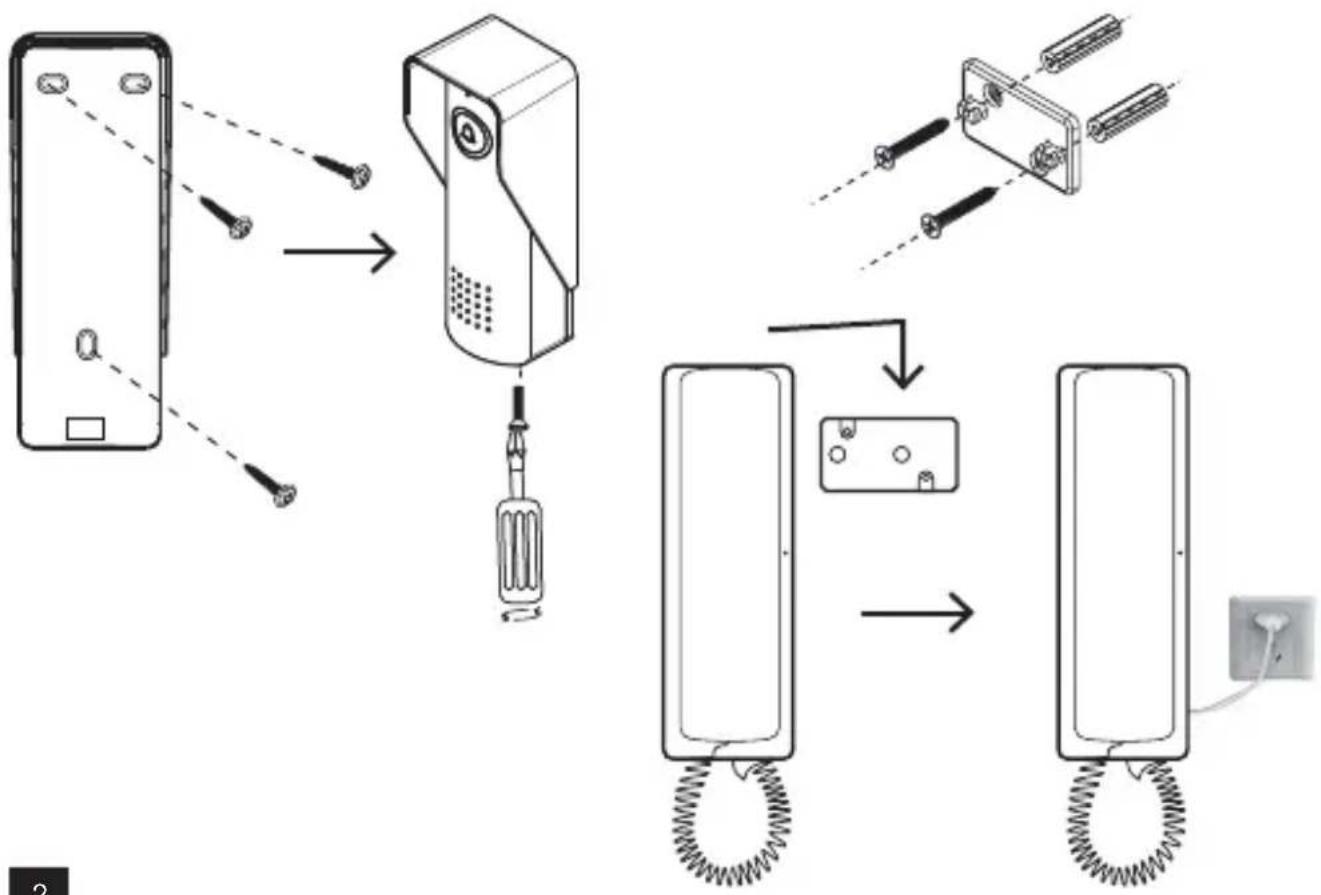

1. Mount the outdoor and indoor units on the wall according to the diagrams above (see Fig. 2). It is recommended to place the unit at a height of 1.4 to 1.6 m from the floor.
2. Connect the outdoor unit according to the diagram (see Figure 1). Plug the indoor unit into the socket using the integrated cable.

Controls

Communication

The visitor presses the bell button (8) on the outdoor unit. The indoor unit starts to ring. The call is answered by lifting the handset from the cradle.

You can open the entrance for a visitor by pressing the lock control button (5). The lock switch can only be operated during an active call.

Adding additional units

Up to 10 indoor and outdoor units can be added to the basic set. Adding additional indoor units allows subsequent communication between the units (intercom). To start coding the units, hold down the

coding button on any unit. The outdoor unit has a dedicated encoder button on its rear side. On the indoor unit, the lock control button provides this function.

Procedure:

1. On any unit (indoor or outdoor), hold the code button for 3 seconds. When you hear the „Di-Di“ tones, release the button and the unit will enter code send mode (indicator will flash).
2. On the second unit (indoor or outdoor), press and hold the code button for 3 seconds. When you hear the „Di-Di“ tones, release the button and the unit will enter code receiving mode. When pairing is complete, you will hear „Di-Di“ tones and the unit will automatically stop pairing. (Repeat this procedure to code additional units.)
3. Once all the required units have been paired, press the coding button on the first unit again to complete the process.
4. To initiate a call between indoor units, press the lock control button (5) when there is no active call.
