USER MANUAL NeoExpert SVC296749NEBL GORENJE

Black vacuum cleaner with adjustable arm and base, no visible text or symbols on the device itself

SI Navodila za uporabo....15

Technical diagram showing 13 numbered components of a vacuum cleaner, including pump, brush, and cleaning tools.

Technical diagram illustrating the step-by-step assembly of a handheld device, showing sequential steps from lifting to mounting.

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing how to install components from a single device to a multi-stage assembly.

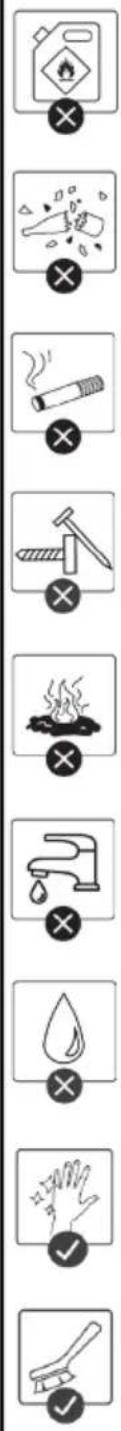

Safety compliance icons with Chinese labels, including hazard symbols, fire extinguisher, and hand gesture indicators

Technical diagram showing two robotic devices with labeled components and a 2-4h time indicator, including a battery icon and cable connection.

Diagram illustrating the process of a device's battery charging and discharging, showing battery release, battery discharging, and battery recycling steps.

BOOST ≥ 10 min AUTO ≥ 25 min ECO ≥ 60 min AUTO 2-4h ON/OFF

Splošna opozorila

When using the vacuum cleaner always observe the following basic safety precautions: Carefully read this instruction manual and only use the appliance in accordance with the instructions herein. Before using the appliance for the first time, remove all protective film or plastics. // Never leave the appliance unattended during use. // Before using the appliance, carefully assemble all of its parts. // Only use the appliance indoors and in dry areas. // Only use the appliance with the parts recommended by the manufacturer. // Do not use the appliance if it has been dropped, if it is damaged, if it has been kept outdoors, or if it has been dropped or immersed in a liquid. // Regular cleaning can extend the appliance's useful life. // Make sure your hair, loose parts of your garments, fingers or other parts of the body do not come into contact with the vents or moving parts of the appliance. // The appliance complies with all required standards regarding electricity, and radio interference regulations. // The appliance is not intended to be used by children and persons with impaired physical or mental abilities. This appliance may be used by children aged 8 years and more, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way, and they understand the hazards involved. Keep children under supervision while they are using the appliance and make sure they do not play with it. // Children should not perform any cleaning or maintenance tasks on the appliance, unless they are older than 8 years, and they do so under supervision. // Switch off the appliance after use.

Danger

Do not immerse the main unit/appliance housing or the charging base in water or any other liquid and do not rinse them under running water.

Special warnings

Before connecting the appliance or the charging base with the power cord to the power mains, make sure the indicated voltage matches the voltage of the power mains in your home. // Do not used a damaged vacuum cleaner or a damaged charging base (or adapter – depending on your vacuum cleaner model). // If the charging base (or adapter) is damaged, replace it only with an original spare part in order to avoid danger. // A transformer is integrated into the adapter. Removal and replacement of adapter with another one are not allowed as this may lead to a dangerous situation. // Only charge the vacuum cleaner with the supplied adapter and charging base. The adapter may heat up during charging. This is a normal occurrence. (Depending on your model, if it has an adapter.) // Switch off the appliance during charging. // Never use the vacuum cleaner without filters or filtering unit in place. // The exhaust vents may not be blocked during vacuum cleaning. // Only use the appliance for household purposes and indoors. // Keep the suction vents clean and free in order to ensure optimum and unimpeded suction power of the appliance. It is highly recommended to regularly clean the open parts of the suction hose, and to remove dust, hair, or anything else that may block the airflow. // Before cleaning the support or the charging base, unplug it from the power socket. // Never use the vacuum cleaner to clean up embers or filings, cigarette butts, matches, liquids (e.g. water, carpet cleaning foam), or sharp or pointed objects (broken glass

etc.). // Keep the suction tube or the open part of the appliance away from your face and body. // Never use the appliance to vacuum construction material (such as fine sand, lime, cement powder, toner dust etc.). This can cause damage to the appliance.

Problems and solution

Problem	Possible reason	Solution
Not working.	The battery is dead.The handy VC is not assembled correctly.	Charge.Assemble the handy VC correctly.
Suction power has decreased.	The dust cup is full.Block in filter.Block in the air inlet tunnel or on the roller of electrical brush.	Pour out the dust.Clean or change filter.Clean the electrical brush.
The VC is not charging.	The charger is not connected on socket.The connector of charger is not connected to the hole of base body.The handy VC is not assembled to the body.	Connect the charger on socket.Connect the charger with base body of VC.Assemble the handy VC on body.
Use very short time after charging.	Not enough charging time.The battery is aging.	Charge according to instruction.Change the battery.

Environment

not throw away the appliance with the normal household waste at the end of its life. Hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (the phone number is in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

Note: The warranty on the battery of vacuum cleaner is 12 months.

For personal use only!

For easier transport, some appliance parts are separately and securely placed in the main packaging unit. // Before first use, read and follow the assembly and safety instructions. // The appliance is intended for dry vacuuming in a home environment and for household use.

PARTS

1 Housing with motor
2 Battery
3 Vacuum hose
4 Motorised floor brush for vacuuming all surfaces
5 2-in-1 brush
6 Narrow nozzle
7 Motorised brush for textile surfaces
8 Flexible hose
9 Pet grooming brush
10 Motorised soft roller floor brush for vacuuming hard floor surfaces
11 Bristle brush for cleaning delicate items
12 Battery
13 Smart multipurpose station (2 parts)

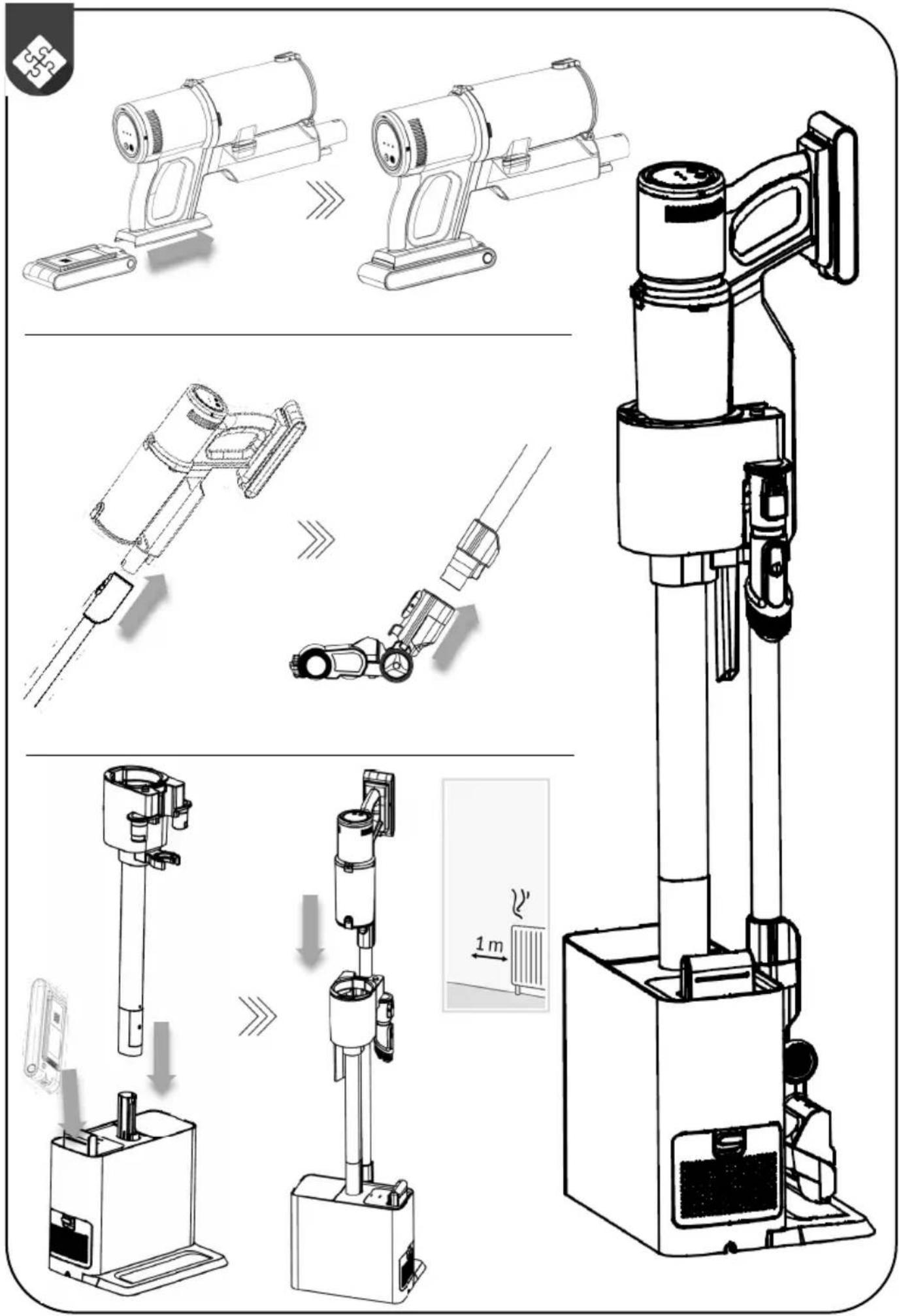

ASSEMBLY

If the vacuum cleaner's battery is not yet installed in the housing, insert it properly. To do so, follow the illustrated instructions in the battery section. // Connect the upper part of the hose to the motor unit, and the lower part to the floor brush. The installation is correct when the appliance is secured in the slots (it clicks into place at all settings). // Due to its sensitivity, we recommend not leaving the appliance without supporting it against something. // The latch on the brush allows for a short-term freestanding installation, but it is necessary to be extremely careful, as the vacuum cleaner can fall and be damaged at any moment.

Assemble the smart multipurpose station according to the illustrated instructions. // assemble the upper and lower parts. // Store the basic attachments on the designated pins so they are always accessible when you need them. // There is a dust bag lid on the side at the top of the lower part. // On the other side there is additional battery storage, which allows you to use the vacuum cleaner for longer periods. // Insert the additional battery into the slot. The battery is charged automatically. // If the battery on the vacuum cleaner runs out, simply replace it. // Place the vacuum cleaner on the multipurpose station. // The smart multipurpose station must be at least 1 metre away from any heat sources.

Note: At the station, the battery inserted into the vacuum cleaner is charged as a priority, followed by the battery inserted into the lower part of the station.

USE

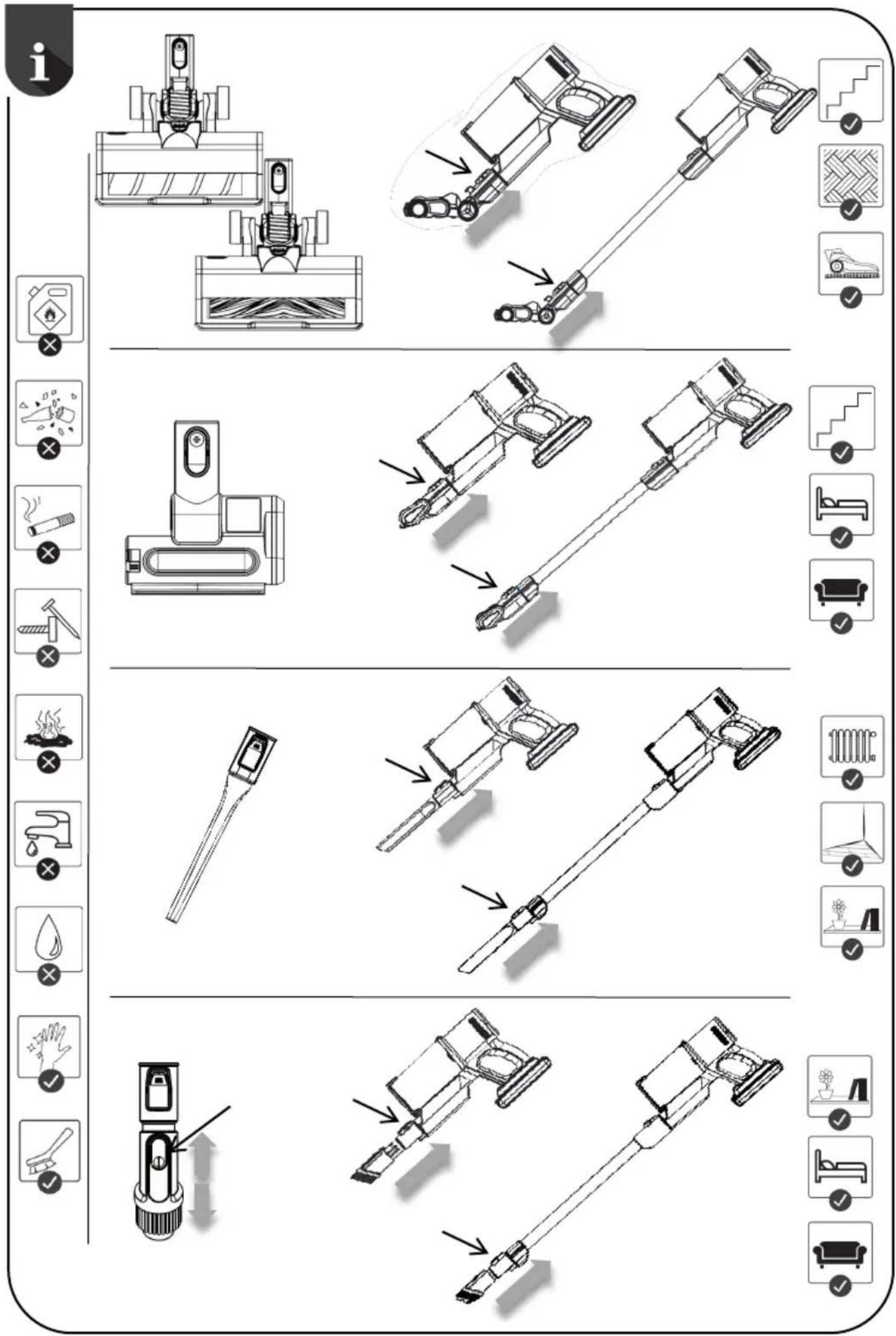

The vacuum cleaner is not intended for vacuuming liquids, glass, ashes, fire, or sharp objects, which could all damage the appliance. // Each included attachment is intended for different uses. The attachments provide versatility in the cleaning of your home.

• The motorised floor brush is used for vacuuming all types of floor surfaces (vacuuming dry floors). Avoid carpets with long fibres, as they can get tangled in the brush roller and damage the vacuum cleaner. The brush is adapted for both the handheld unit and the fixed hose. // The roller is designed so that hair and other debris gathers towards the centre of the brush during vacuuming. This reduces the risk of the roller getting damaged. // For even easier use and subsequent cleaning, a comb is added to the inner part of the brush, which collects long hair in real time and removes it from the brush.
• The narrow nozzle is designed for vacuuming narrower, hard-to-reach areas (corners, sofas, cobwebs, spaces behind radiators, etc.).
• The 2-in-1 brush attachment with bristles (suitable for door and window frames, drawers, etc.).
• The smaller motorised brush is designed for cleaning textile surfaces.

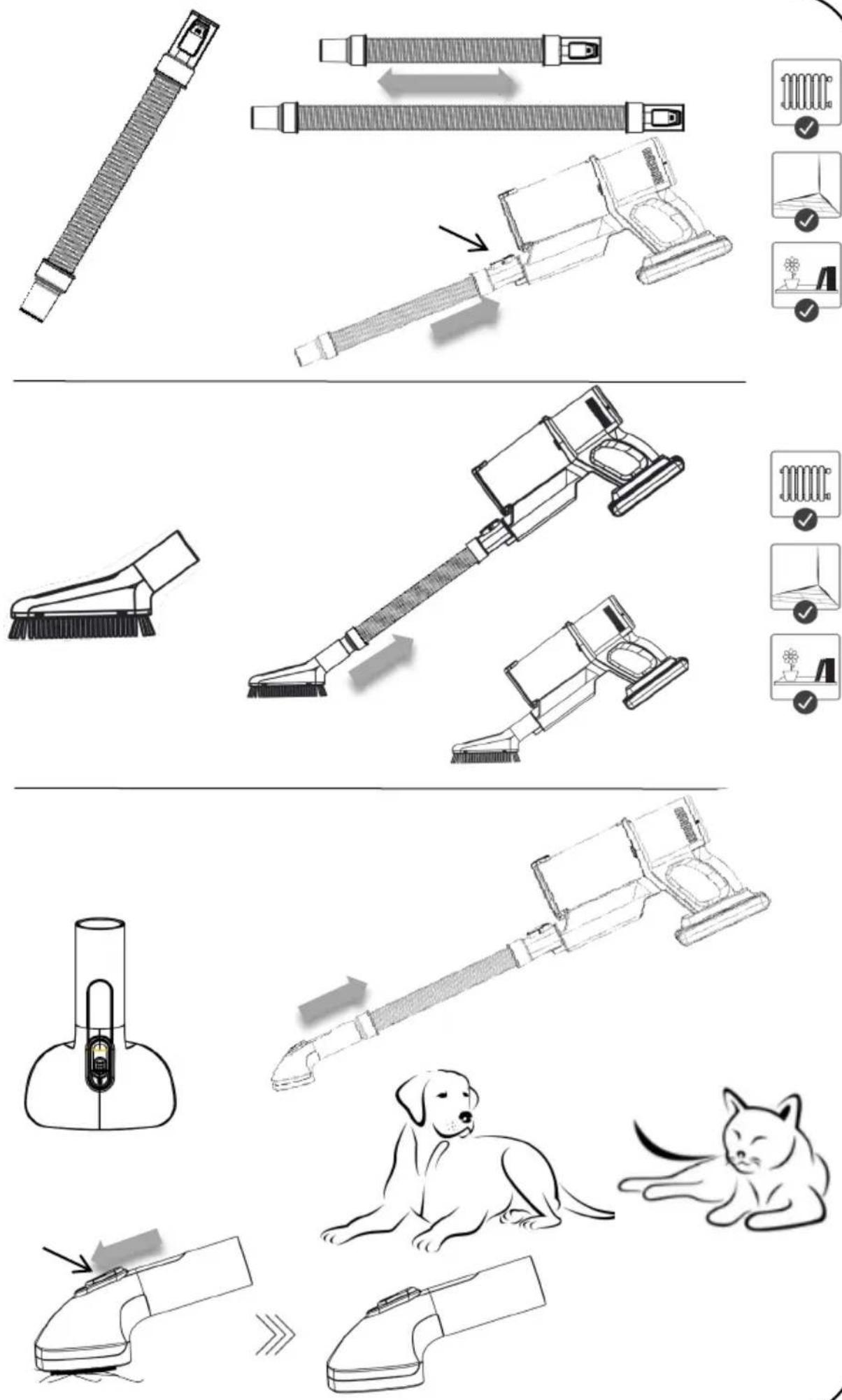

• Flexible hose
  Attach the flexible hose to the vacuum's motor unit. // The hose can be stretched and used for various vacuuming purposes, making sure that the motor unit is safely placed when used so that it does not fall to the floor. // Only certain attachments can be used with this hose.
• Pet grooming brush. // Attach the brush to the flexible hose. // The button on the brush allows easier removal of hair. // When the button is pressed, the bristles on the underside retract and the vacuum cleaner sucks up the hair.
• Bristle brush for cleaning more delicate items (suitable for door and window frames, drawers, etc.).
• If you have purchased a vacuum cleaner with an additional large motorised brush with a soft roller, we recommend it for vacuuming hard floor surfaces. // For even easier use and subsequent cleaning, a comb is added to the inner part of the brush, which collects long hair in real time and removes it from the brush.

Smart multipurpose station

The smart multipurpose station is designed for storing accessories, emptying the dust container, and charging the vacuum cleaner. // When you place the vacuum cleaner on the smart multipurpose station, it will start charging after a few seconds. // When the dust container is full, place it on the station press the button on the upper part where the vacuum cleaner is placed on the station and the station will automatically empty the container. // After cleaning, the vacuum cleaner is ready for further use

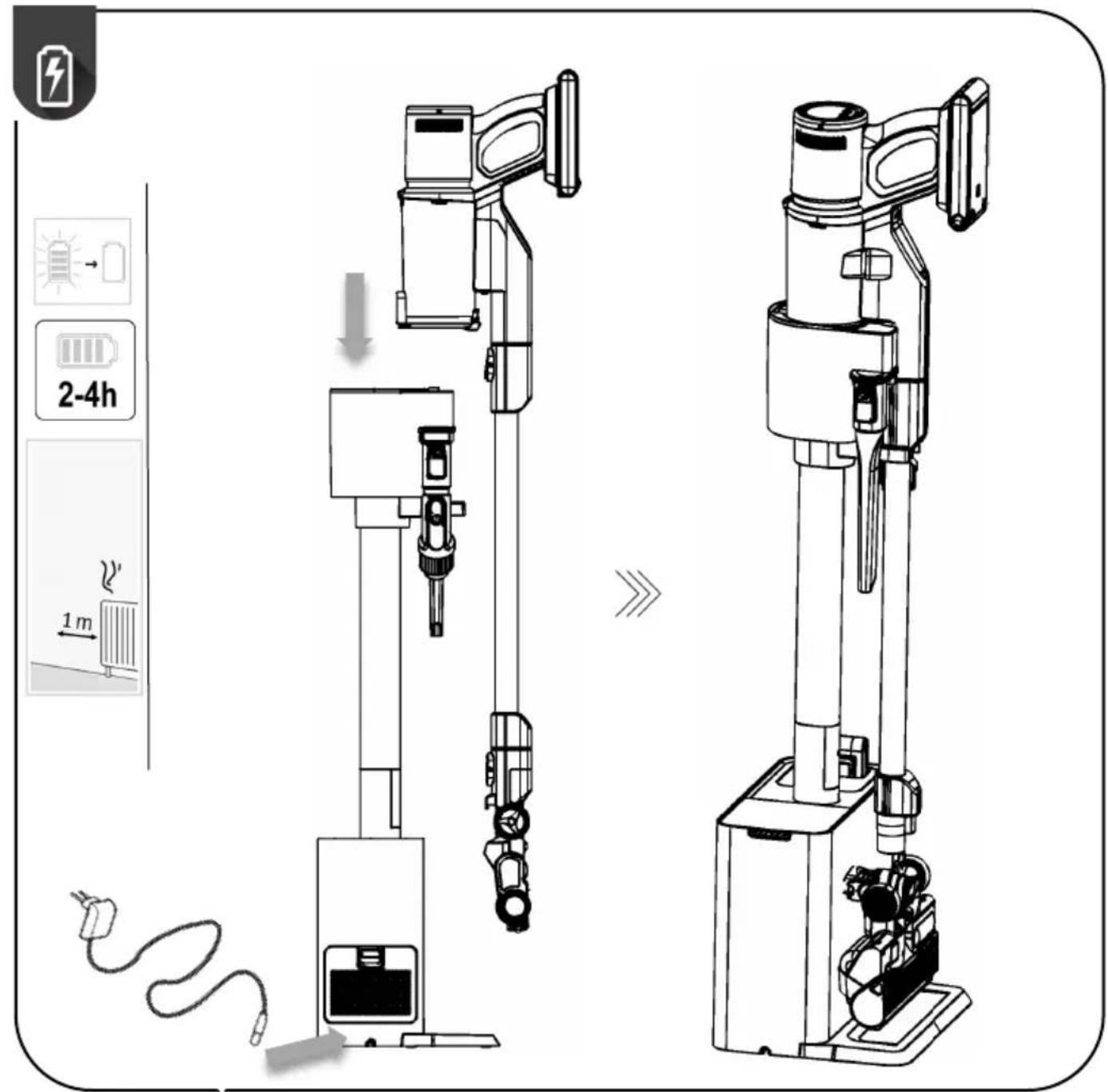

CHARGING

The adapter for the vacuum cleaner charging cable is included in the pack. // Charge the vacuum cleaner at least 1 metre away from any heat sources. // The appliance cannot be switched on while charging. // The vacuum cleaner can be charged on the wall bracket or independently.

Follow the illustrated instructions for mounting the adapter in the wall bracket. // Pull the front lower part out of the upper part. Insert the charging pin into the hole and insert the lower part of the bracket back. // Mount the wall bracket high enough so that the vacuum cleaner has good contact with the adapter when charging. // The vacuum cleaner can be charged on the handheld unit or independently of the vacuum cleaner. // Press the button on the battery and pull it out of the handheld unit.

When the battery is charged, all the lights will be illuminated, and in the case of a digital display, the charge percentage is displayed with numbers. The lights are off when in use, and in the case of a digital display, the remaining charge is displayed as a percentage value (depending on the model you have purchased)

The smart multipurpose station comes with a built-in supply cord. // Plug it into the electrical outlet at least 1 metre away from any heating surfaces. // Connect the cable directly to the mains; do not use splitters or extension cords. // The smart multipurpose station is designed exclusively for this model and cannot be used with other models that have a different design. // During charging, the vacuum cleaner's display shows the battery's charge percentage. // The device cannot be switched on while charging.

Note: At the station, the battery inserted into the vacuum cleaner is charged as a priority, followed by the battery inserted into the lower part of the station.

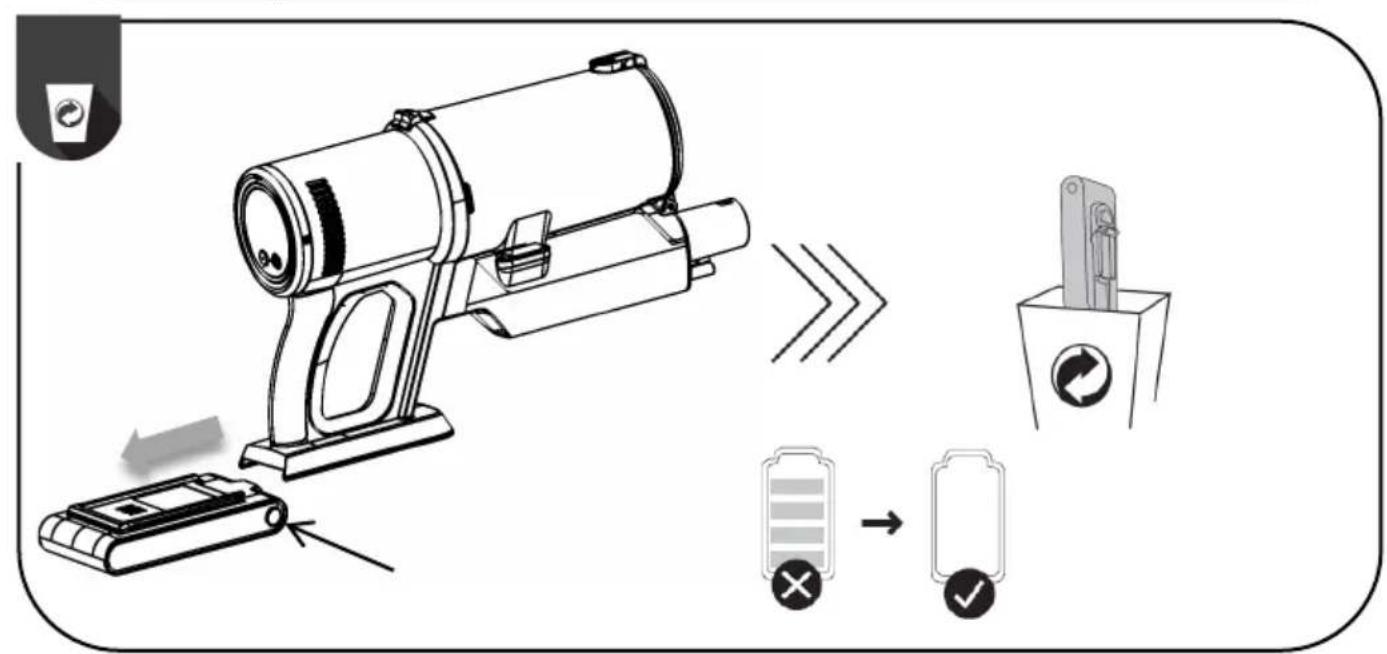

APPLIANCE DISPOSAL

If you want to replace the appliance or no longer need it, please also consider environmental protection. Before disposing of the vacuum cleaner, the battery must be removed. // For safe removal of the battery, ensure that the battery is completely discharged. If the appliance does not have a removable battery, please follow the instructions in the pictorial booklet. // Follow the illustrated instructions to properly dispose of the battery.

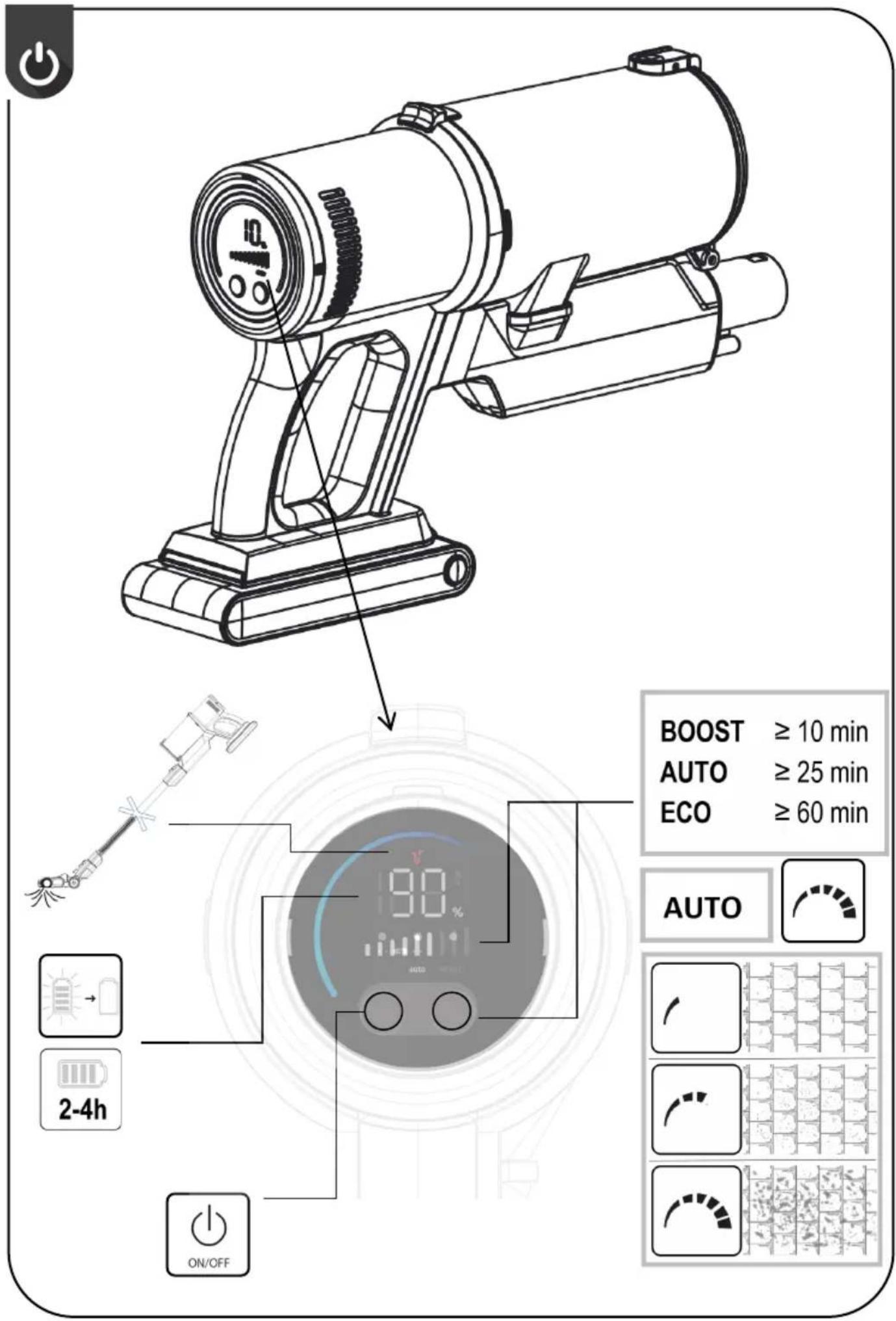

OPERATION

The display shows various functions:

• By pressing the button on the left, you turn on and off the vacuum cleaner.
• By pressing the button on the right, you change the level of suction power.
• When selecting the power, the display shows the remaining vacuuming time before the battery runs out. //

The vacuum cleaner has multiple selectable speeds:

ECO (battery-saving mode, maximum runtime on a single charge),

BOOST (short runtime on a single charge, highest suction power),

The AUTO function activates immediately after switching on the vacuum cleaner (the AUTO function allows the vacuum cleaner to adjust the speed and power of the vacuum cleaner depending on the floor or on the amount of dirt)

• The appliance has a digital battery charge display. During use or while charging, it digitally displays the battery level.
• Icon on the display indicating a full dust container. The full container icon lights up when the vacuum cleaner detects that there is no more airflow. When this icon lights up, the vacuum cleaner turns off to prevent damage to the appliance. Remove any foreign objects from the brush, hose, or container. After removing the foreign object, the light will no longer be illuminated when you switch the vacuum cleaner back on.

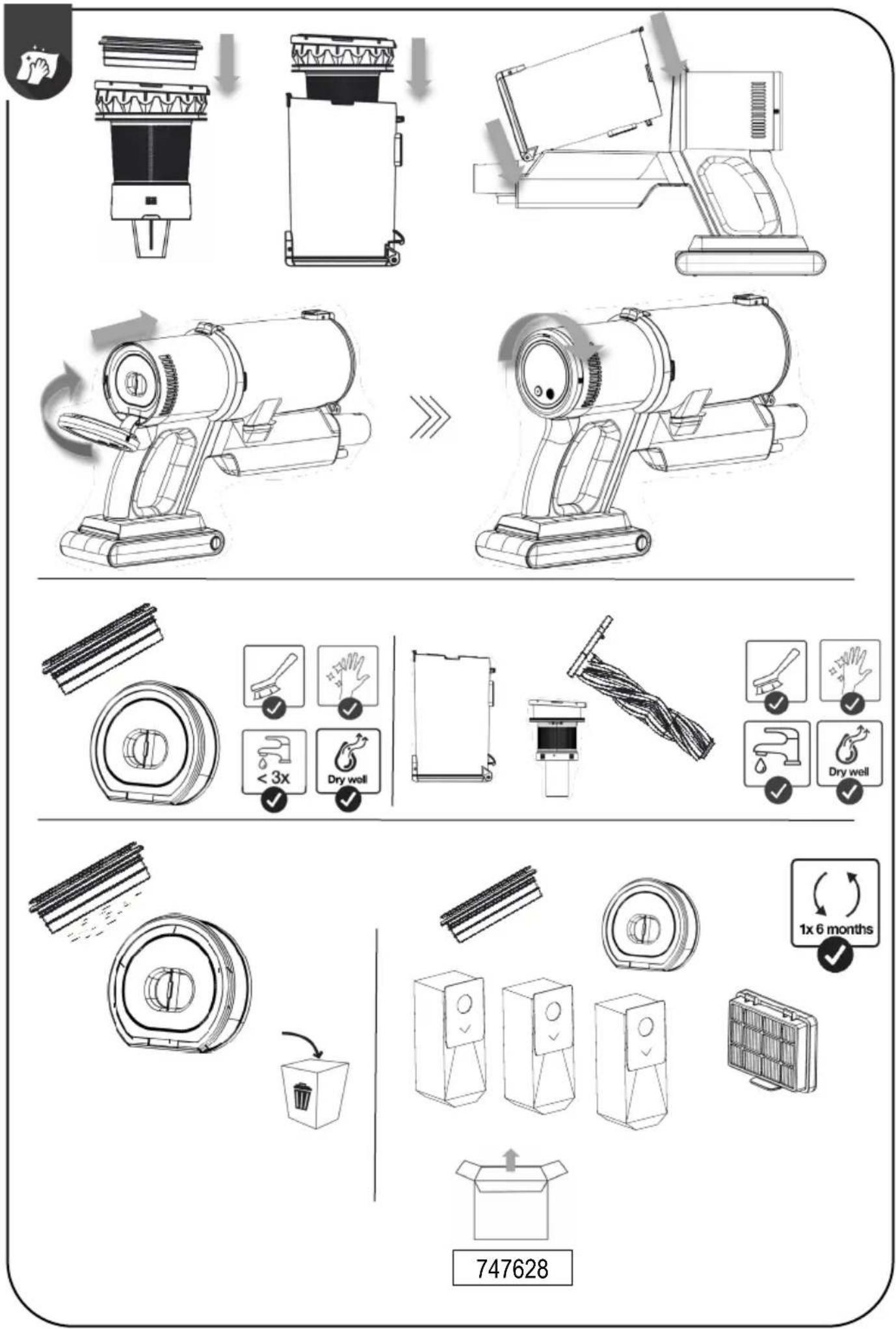

DUST CONTAINER AND FILTERS

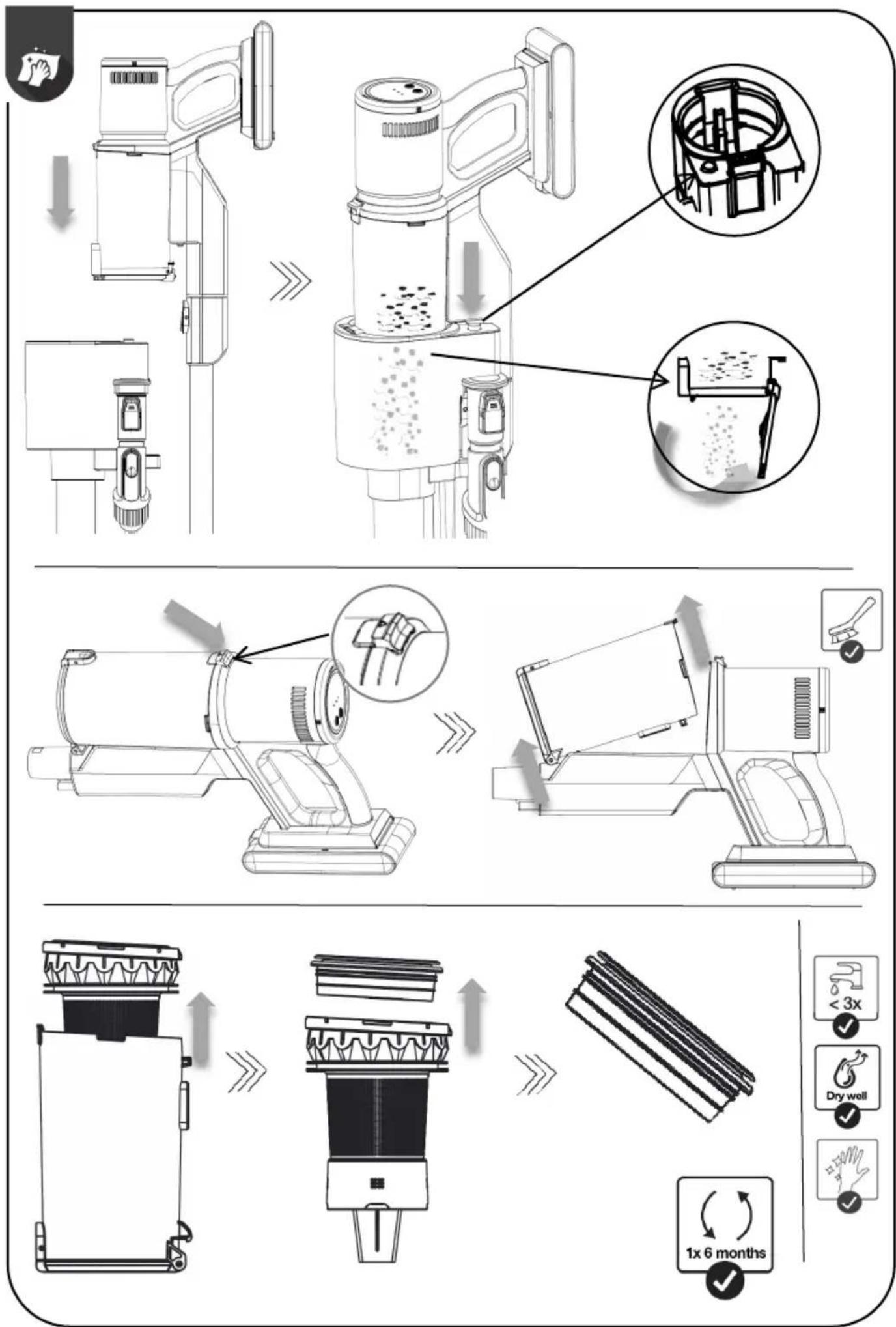

Emptying the dust container and cleaning the inlet filter

Removing the container from the vacuum cleaner's motor unit:

Remove the hose from the motor unit. // To clean the dust container, press the button on the front of the dust container. // First, lift the dust container at the part where the opening button is located. // Pull the filter ring out of the container. // Pull the handle on the filter to safely remove it from the ring. // You can wipe, shake out, or rinse the container and filter ring with lukewarm water, but be careful, as improper handling may damage parts of the vacuum cleaner. // Shake and gently brush the filter to remove all the dirt that has accumulated during vacuuming. // The filter can be rinsed with lukewarm water and gently squeezed. // The filter contains a microfilter and can be damaged if not used properly. // Before reuse, it must be thoroughly dried (for at least 24 hours before using again). Before reassembling the dust container, check that all components are completely dry. Moist parts can cause damage to the vacuum cleaner. // To install the internal components of the dust container, reassemble the vacuum cleaner in the reverse order used for disassembly. // When fitting the dust container, make sure to first attach it at the lower part, where you will find a small connector for this purpose, and then secure it back onto the motor unit at an angle. // It has been installed correctly when you hear a slight click. // Never vacuum without the dust filter inserted.

Cleaning the outlet filter

Rotate the display anti-clockwise. // When the display lid opens, be careful not to damage the display, as this will mean the vacuum cleaner will no longer work. // Remove the filter from the internal part of the motor unit. // The filter can be wiped or shaken out. Not suitable for washing // Ensure that all parts are completely dry before reinstalling the dust container on the appliance. // To install the internal parts of the dust container, reassemble the vacuum cleaner. // Never vacuum without the dust filter inserted. // Follow the illustrated instructions for detailed instructions.

REPLACING THE FILTER

If you notice that the filter is damaged, replace it immediately. With regular use, it is recommended to replace the filter every 6 months to ensure the longest lifespan for the vacuum cleaner.

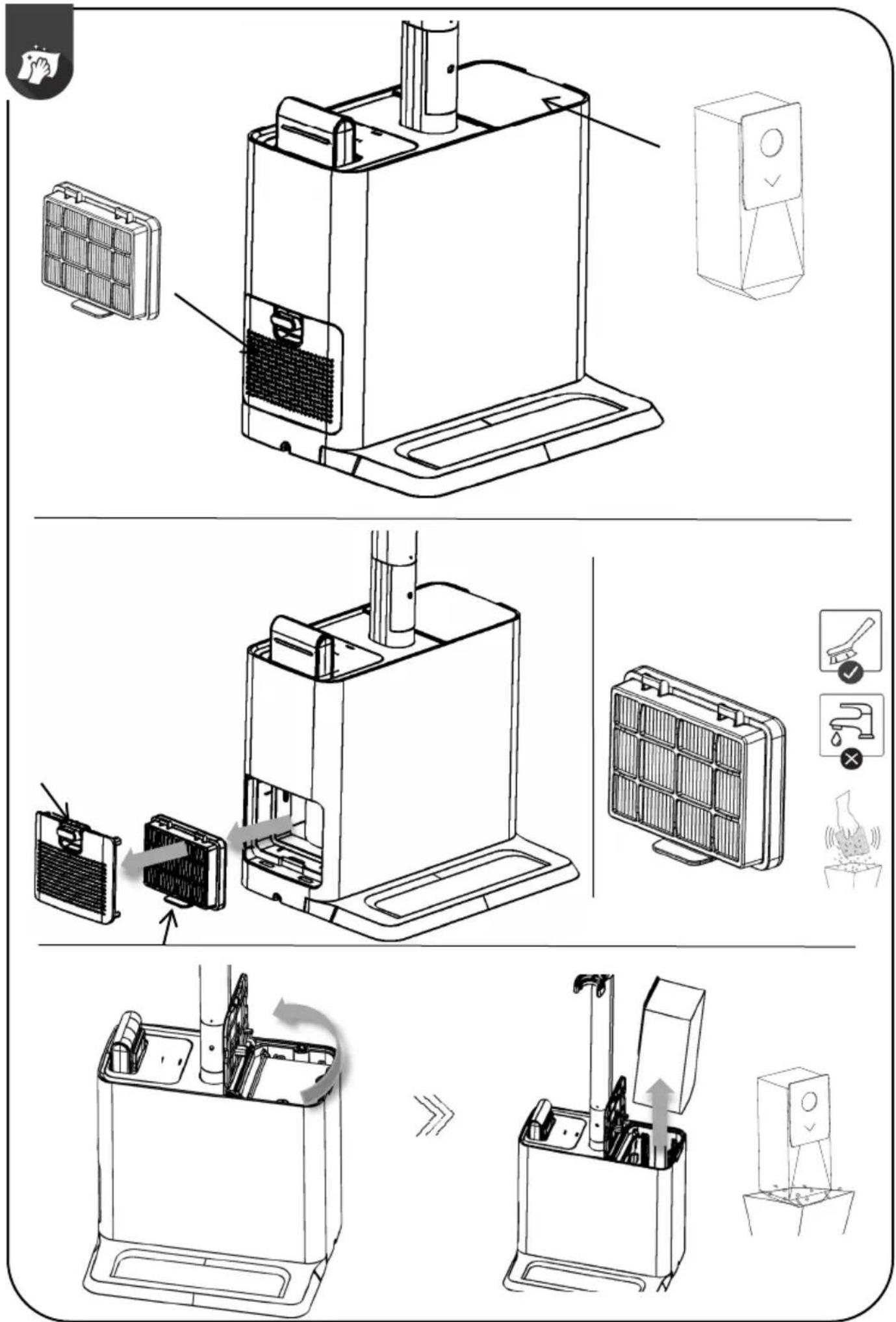

Smart multipurpose station;

Place the vacuum cleaner on the station after cleaning. By pressing the button on the side of the station where the vacuum cleaner is mounted on the station, the process of dust container cleaning begins. It takes a few moments. // The bottom part of the dust container lid on the vacuum cleaner opens and empties. // If additional cleaning of the container is required, press the button on the station again and the process will repeat. // After the process is complete, the vacuum cleaner is ready for use again. If the bottom lid of the container does not close automatically, close it manually as you remove the vacuum cleaner. // The lower part of the station has a space for the bag, where the dust from the container is collected. // Pull the bag out of the slots and dispose of it. // If you run out of dust bags, the bag box code is printed on the inside of the compartment, which you can use to purchase bags and filters in-store or order online. // On the side where the space for the bag is located, there is also an external filter, which is recommended to be replaced. // Replacement is recommended when you have used all the included bags from the set and replaced them with new ones. This will help achieve the maximum lifespan for the vacuum cleaner and station.

FLOOR BRUSH

On the back of the brush, there is a button that you press to pull the roller out of the brush. The roller is designed so that hair and other debris gathers towards the centre of the brush during vacuuming. This reduces the risk of the roller getting damaged. // Since most of the hair collects in the centre of the roller, it will be easier to clean. // Wipe the underside of the housing with a cloth. // Clean the brush's suction hose. // Tap the roller on the brush to loosen debris, and carefully cut away tangled dirt and hair using scissors along the designated groove. // Do not pull on hair or threads, as this could damage the bristles on the roller. // // Reinsert the roller into the brush. // The roller is correctly installed when you hear a soft click and the side pin is securely fastened to the brush housing.

SMALL MOTORISED BRUSH

On the side of the brush, there is a small button that you twist to release and slide the brush out of the slot. // Tap the roller on the brush to loosen any debris, and carefully cut away tangled dirt and hair that has accumulated on the brush using scissors. // Do not pull on hair or threads, as this could damage the bristles on the roller. // // Reinsert the roller into the brush. // The roller is correctly positioned when a slight click is heard. Then, turn the button to securely attach the roller to the brush housing.

TROUBLESHOOTING

Abnormality	Possible Cause	Treatment
Electric floor brush does not work	- Large trash rolled in (packaging film, etc.)- Rolling brush entangled in hair, etc.	- Remove hairs wrapped around rolling brush- Remove trash
Running time becomes shorter	- Battery ages- Too high or too low use ambient temperature- Battery not fully charged	- Contact the seller or after-sales service personnel to purchase a new battery- Use in a proper environment- Charge the vacuum cleaner
Suction loss	- Excessive dust in dust cup- Dust cup cotton filter clogged- Floor brush or accessory suction inlets clogged- Not fully dried after washing	- Clean up trash in time- Clean cotton filter- Remove blockage- Dry the washed parts in a cool place for use
Unable to charge	- Too low or too high ambient temperature when charging	- • Charge the vacuum cleaner in an environment with proper temperature ( 5^ - 40^ )
Battery leakage	- Battery not used for a long time	- • Replace the battery
The inlet of the base station is blocked	- There is dust or plenty of waste inside the base station suction inlet	- For details on cleaning the base station suction inlet, refer to "Cleaning the Base Station
