Rider - Toys Chipolino - Free user manual and instructions

Product type	Scooter
Brand	Chipolino
Model	Rider
Category	Toys
Recommended age	8 years and up
Maximum load	100 kg
Main features	Foldable, height-adjustable handlebar, rear brake and hand brake, footrest
Safety	Mandatory protective equipment (helmet, elbow pads, knee pads, wrist guards); use under adult supervision; check tightness before use
Maintenance	Clean with a soft damp cloth; do not use aggressive detergents; lubricate rotating parts regularly
Storage	In a clean, dry place, away from direct sunlight, rain, and humidity
Spare parts	Use only original parts; contact an authorized service center
Assembly	By an adult only
Frame material	Not specified (usually steel or aluminum)

Frequently Asked Questions - Rider Chipolino

From what age can the Chipolino Rider scooter be used?

The scooter is recommended for children aged 8 years and up. It requires balance skills and should be used under adult supervision.

What is the maximum weight supported by the scooter?

The maximum user weight is 100 kg. Do not exceed this limit to avoid any risk of damage or injury.

Is it mandatory to wear protective equipment?

Yes, it is mandatory to wear a helmet, elbow pads, knee pads, and wrist guards to reduce the risk of injury in case of a fall.

How to fold the scooter?

To fold the scooter, press the fold/unfold button located on the folding mechanism (5), then lower the handlebar until you hear a click indicating that the scooter is locked in the folded position.

How to adjust the handlebar height?

Loosen the handlebar locking mechanism (3), press the pin A, then slide the handlebar up or down to the desired height. The pin must snap into a hole with a click. Retighten the mechanism.

How to use the brake?

The scooter has two brakes: a rear wheel brake operated by gradually pressing with the foot, and a hand brake operated by gently squeezing the lever. Avoid braking suddenly to prevent wheel lock.

How to maintain the scooter?

Clean it with a soft damp cloth and mild detergent. Do not use abrasive products. Regularly lubricate the rotating parts. Store it in a clean, dry place.

Can I use the scooter on the road?

Use the scooter on flat, dry, and clean surfaces, away from traffic. Follow local traffic rules. Avoid busy streets and uneven terrain.

What to do if the scooter has a problem?

Contact an authorized service center for advice or to have the product repaired. Use only spare parts provided by the manufacturer.

Can I replace the handlebar grips?

Yes, the grips are removable. To install them, push each grip until the pin appears through the hole, then cover it with the provided protective cap. Ensure they are securely attached.

USER MANUAL Rider Chipolino

Black and white photo of a RIDER scooter with visible branding and wheels (no text or symbols on the scooter body)

IMPORTANT! KEEP FOR FUTURE REFERENCE:

READ CAREFULLY!

TO ENSURE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS,

INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL!

ATTENTION! WARNINGS!

• CAUTION! READ AND FOLLOW THE INSTRUCTIONS AND RECOMMENDATIONS IN THE INSTRUCTION MANUAL to avoid the risk of injury as a result of collision, falling or loss of control!
• ATTENTION! ALWAYS WEAR PERSONAL PROTECTIVE EQUIPMENT (helmet, elbow, knee and wrist pads) WHEN USING THE SCOOTER! It is recommended to wear clothing with reflective elements, long sleeves and trousers.
• ATTENTION! BEFORE USING THE SCOOTER, YOU MUST CHECK AND FAMILIARISE YOURSELF WITH THE TRAFFIC LAWS FOR THE REGION IN WHICH YOU ARE LOCATED AND COMPLY WITH THEM.
• ATTENTION! BEFORE USING THE SCOOTER, FAMILIARISE YOUR CHILD WITH HOW TO USE IT AND THE SAFETY RULES. Using the scooter requires special skills and must be used with caution to avoid falls and collisions. USE IN THE PRESENCE AND UNDER THE DIRECT SUPERVISION OF AN ADULT!
• WARNING! MAKE SURE THAT THE CHILD HAS LEARNED HOW TO USE THE SCOOTER CORRECTLY AND SAFELY!
• WARNING! THE PRODUCT IS SUITABLE FOR USERS WITH A MAXIMUM WEIGHT OF 100 KG! DO NOT OVERLOAD!
• WARNING! ALWAYS CHECK BEFORE USE THAT THE HANDLEBAR IS SECURELY FASTENED TO THE BASE AND THAT ALL NUTS AND BOLTS ARE TIGHTENED. NUTS AND BOLTS ARE TIGHTENED PROPERLY. MAKE SURE THAT ALL LOCKING DEVICES ARE ENGAGED!
• CAUTION! USE THE PRODUCT ONLY FOR ITS INTENDED PURPOSE.
• WARNING! THIS SCOOTER IS NOT INTENDED FOR AGGRESSIVE RIDING, TRICKS AND JUMPS, JUMPING OVER OBSTACLES OR RIDING ON ROUGH TERRAIN AND IN POOR WEATHER CONDITIONS!
  • ALWAYS WEAR APPROPRIATE FOOTWEAR!
  • DO NOT USE THE SCOOTER IN THE EVENING (IN THE DARK OR AT DUSK)!
• Choose suitable surfaces for riding (flat, dry, clean and, where possible, away from other traffic).
  • DO NOT use the product on busy streets, streets with traffic, uneven and wet surfaces!
• The product should ONLY be assembled and disassembled by an adult!
  • DO NOT allow children under 3 years of age to be present before you have completely assembled the scooter to avoid access to small and disassembled parts!
• DO NOT attach additional straps and accessories to the product to avoid the risk of suffocation!
  • DO NOT place objects or luggage on the handlebars to avoid the risk of losing balance!
• The handlebars must be held with both hands to ensure stable and safe handling.
• When storing and transporting, DO NOT place items or heavy objects on the product to avoid damaging the structure.
• DO NOT use another vehicle to pull the scooter!
• The brake heats up during prolonged use. Do NOT touch it after braking.

ATTENTION! WARNINGS!

• Use away from rivers, pools, stairs or obstacles!
  • DO NOTmake any changes or modifications to the construction of the SCOOTER! If necessary, contact the dealer or an authorised service centre for consultation and repair.
• DO NOTuse spare parts and other components that are not supplied by the manufacturer! The manufacturer is not responsible for safety if spare parts other than the original ones for the approved type or recommended by him are used.
• Keep plastic packaging away from children to avoid the risk of suffocation!

PRODUCT FEATURES

This product is suitable for users over 8 years of age and with a maximum weight of 100 kg. (Class A.)

ASSEMBLY INSTRUCTIONS

FOLLOW THE INSTRUCTIONS AND SEQUENCE FOR ASSEMBLY AND USE OF THE PRODUCT AS DESCRIBED IN THE TEXT AND ILLUSTRATIONS IN THE INSTRUCTIONS.

WARNING! CHECK THE SECURITY OF THE FASTENING AFTER COMPLETING EACH OPERATION! WARNING! THE TOY MUST BE USED WITH EXTRA CARE, AS IT REQUIRES BALANCING SKILLS. THIS WILL PREVENT FALLS OR COLLISIONS THAT COULD CAUSE INJURY TO THE CHILD AND OTHER PERSONS.

MAIN PARTS

1 – Handlebar; 2 – Steering wheel; 3 – Height adjustment clamp; 4 - Handlebar tube; 5 - Folding mechanism; 6 - Front wheel; 7 - Base; 8 - Rear wheel brake; 9 – Handlebar brake; 10 - Footrest.

1. UNFOLDING/FOLDING THE SCOOTER

Unfolding: Press the folding/unfolding button and turn the handlebar upwards until it locks into a vertical position and you hear a „click“.

Folding: Press the folding/unfolding button and move the handlebars down until the scooter folds and you hear a „click“ sound.

2. INSTALLING THE HANDLEBARS

Place the handles on both sides of the handlebar (a). Press each handle (b) until the pin appears through the hole and you hear a locking sound. Cover the pins with the protective cap (c).

IMPORTANT! Make sure that the handles are securely fastened!

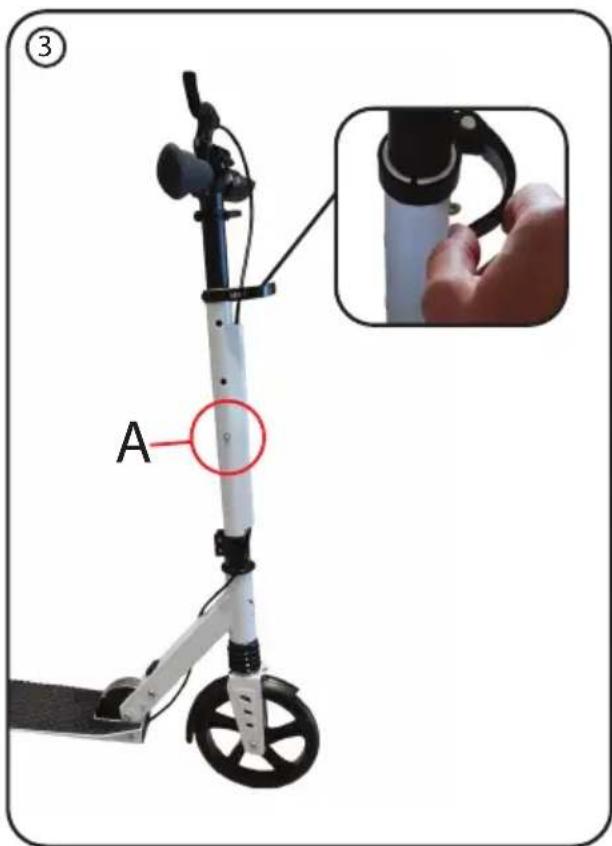

3. ADJUSTING THE HANDLEBAR HEIGHT

To adjust the handlebar, loosen the handlebar locking mechanism (3). Press pin A and move the handlebar up or down to the desired height until you hear a click and the pin engages in the corresponding hole.

Tighten the handlebar locking mechanism.

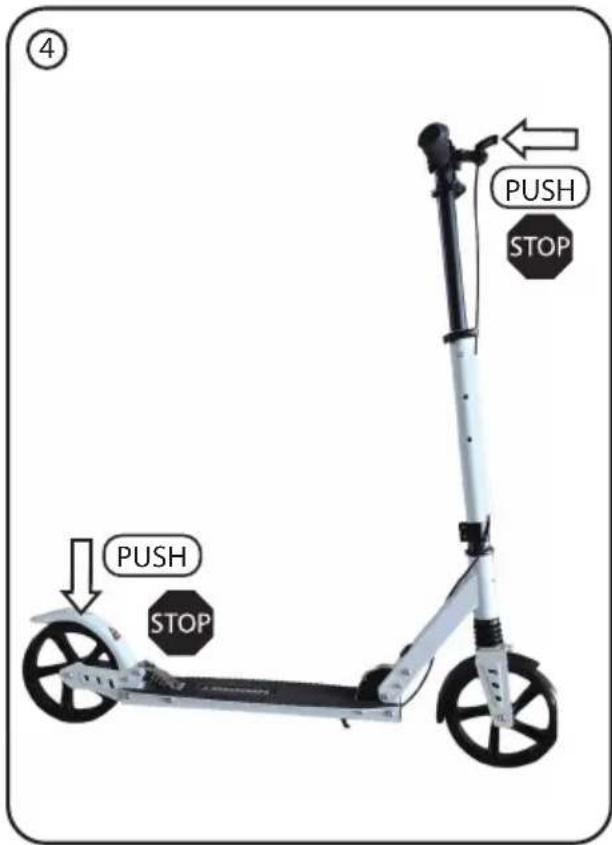

4. USING THE BRAKES

Rear wheel brake- When you want to slow down or stop, slide one foot back and gradually press the brake.

Note: While pressing the brake, you must hold the handlebars with both hands.

Handlebar brake- To slow down or stop, gently squeeze the brake lever with your whole hand.

CAUTION: Avoid pressing the lever sharply to prevent the wheels from locking.

INSTRUCTIONS FOR SAFE USE

ATTENTION! CHECK THE SECURITY OF THE FASTENING AFTER COMPLETING EACH OPERATION! WARNING! THIS PRODUCT MUST BE USED WITH EXTRA CAUTION AS IT REQUIRES BALANCING SKILLS. THIS WILL PREVENT FALLS OR COLLISIONS THAT COULD CAUSE INJURY TO BOTH THE RIDER AND OTHER PERSONS.

When using the scooter for the first time, start on the spot without other traffic participants or learn with the guidance and assistance of another person.

CAUTION! SUDDEN MOVEMENTS OR TWISTING OF THE BODY MAY LEAD TO LOSS OF BALANCE AND CONTROL OVER THE SCOOTER!

IMPORTANT! Before you start riding the scooter, learn how to balance on it!

• Grasp the handles with both hands, place one foot on the base and the other on the ground.
• Look around carefully and make sure that the area around you (where you will be riding the scooter) is free of people and objects.
• Push off with one foot to start the scooter moving.
• Repeat the above action (pushing off with your foot) to keep moving.
• Turn the handlebars to the left or right to make a left or right turn.
• To stop or slow down, gradually press the brake above the rear wheel with the heel of one foot or place the foot you are pushing off with on the ground.

IMPORTANT! If you lean too far to the left or right, you may tip the scooter over and fall!

IMPORTANT! The brake heats up during use! Do not touch the brake and rear wheel immediately after braking!

IMPORTANT! Teach your child how to ride the scooter and make sure they have mastered the controls before letting them ride!

PREVENTION AND MAINTENANCE INSTRUCTIONS

• Periodically check the condition of the individual parts.
• Do not pour liquids on the product. Clean with a soft cloth dampened with water or a neutral liquid detergent.
  • Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or alcohol.
• Lubricate the rotating parts regularly.
• Do not use on sandy terrain.
• Store the product in a clean and dry place. Do not expose to direct environmental influences such as sun, rain, moisture or sudden temperature changes!
• Always dry the product thoroughly before storing it or using it again. Mould may form if the product is stored in a damp environment.
• If you encounter any problems related to normal use, please contact an authorised service center for advice or repair.
