USER MANUAL Zig Zag Chipolino
FOLLOW ALL WARNINGS, INSTRUCTIONS AND
RECOMMENDATIONS GIVEN IN THIS USER MANUAL!
IMPORTANT! MAJOR WARNINGS!
CAUTION! TO BE USED ONLY UNDER DIRECT ADULT SUPERVISION DUE TO THE RISK OF FALLING!
CAUTION! THIS TOY HAS NO BRAKES!
✿ CAUTION! THE TOY IS NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OLD!
✿ CAUTION! TO BE USED BY CHILDREN AGED 3 YEARS AND OLDER, WITH A MAXIMUM CHILD WEIGHT OF 25 KG.
CAUTION! DO NOT USE FOR CHILDREN OVER 25 KG TO AVOID THE RISK OF OVERLOADING THE TOY'S STRUCTURE!
CAUTION! BEFORE USING THE TOY, TEACH THE CHILD HOW TO USE IT CORRECTLY AND EXPLAIN SAFETY RULES.
✿ CAUTION! THE CHILD MUST WEAR A HELMET, KNEE AND ELBOW PROTECTORS, AND SHOES WHILE USING THE TOY!
CAUTION! USE THE TOY ONLY AS INTENDED.
CAUTION! USE THE TOY ONLY DURING THE DAY AND ON EVEN, SECURED PLAYGROUNDS, AT A SAFE DISTANCE FROM STREETS AND TRAFFIC LANES USED BY VEHICLES.
CAUTION! KEEP AWAY FROM FIRE AND OTHER SOURCES OF HEAT!
❖ The TOY must be assembled ONLY by an adult!
DO NOT allow children under 3 years old near the TOY before it is fully assembled, to avoid access to small or disassembled parts!
This TOY is intended for ONLY one child!
DO NOT allow children to push the toy!
This TOY is NOT suitable for running or sliding!
DO NOT use the TOY if any parts are missing or damaged.
DO NOT allow the child to stand on the seat to avoid injuries.
The child must wear shoes while using the TOY!
DO NOT attach extra strings or accessories to the TOY to avoid the risk of suffocation!
DO NOT place objects or luggage on the handlebar to avoid the risk of imbalance, damage, or the TOY tipping over!
When storing or transporting, DO NOT place items or heavy objects on the TOY to avoid damage to its structure.
DO NOT use other transport means to move the TOY by pulling it!
DO NOT allow the child using the TOY, or children nearby, to touch the wheels or insert objects into them!
Use away from rivers, pools, stairs, or obstacles!
DO NOT make changes or modifications to the TOY's structure! If necessary, contact the retailer or authorized service for advice or repairs.
DO NOT use spare parts or components not provided by the manufacturer! The manufacturer does not take responsibility for safety if parts other than the original or approved types are used.
- Keep nylon packaging away from children to avoid the risk of suffocation!
PRODUCT FEATURES
The TOY is intended for children older than 3 years with weight not more than 25 kg.
KIDS BALANCE TOY ON WHEELS is a bicycle without pedals, which develops in your child sense of orientation and speed in a safe way. This creates a feeling of balance and safety because the child's feet are in contact with the ground at all times. While riding the bike, the child learns to balance and exercises different moves (turn left and right), learns to control speed depending on its abilities.
MAIN PARTS
- Steering bar - 1 pc
- Frame - 1 pc
- Wheel - 2 pcs
- Bushing - 4 pcs
- Screws - 2 pcs
- Protective tube - 1 pc
- Allen wrench - 2 pcs
Please make sure all parts are available in the package.
ASSEMBLY AND USE GUIDE
CAUTION! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE, WHICH YOU WILL FIND IN THE TEXT AND FIGURES.
CAUTION! CHECK FIXING IS SECURE AFTER COMPLETING EACH OPERATION!
CAUTION! TIGHTEN THE BRACKETS WELL. IF THEY ARE LOOSE, THE PRODUCT MAY FALL APART AND THE CHILD MAY BE INJURED.
Required tools: Allen wrench (included in the set).
- Remove the protective cover (a) at steering bar tube.
- Place the protective tube (6) at steering bar.

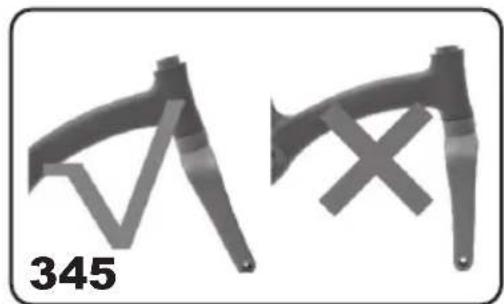

- CAUTION! During assembly of steering bar the frame must be with bended part inwards as show in the figure.
- Place the steering bar into the slot at frame.
- Insert screw and tighten with the allen wrench (7) to fix the steering bar.
CAUTION! Make sure that screw is tightened and handle bar is strongly fixed to fork and frame!
- Thread the axis of front wheel (b) through one of the shoulders of fork, place bushing, wheel, bushing again and after that thread the axis through the other shoulder of fork. At the end fix with the screws at both sides by using the allen wrenches (7).
Note: Assemble the rear wheel following the same order of actions.

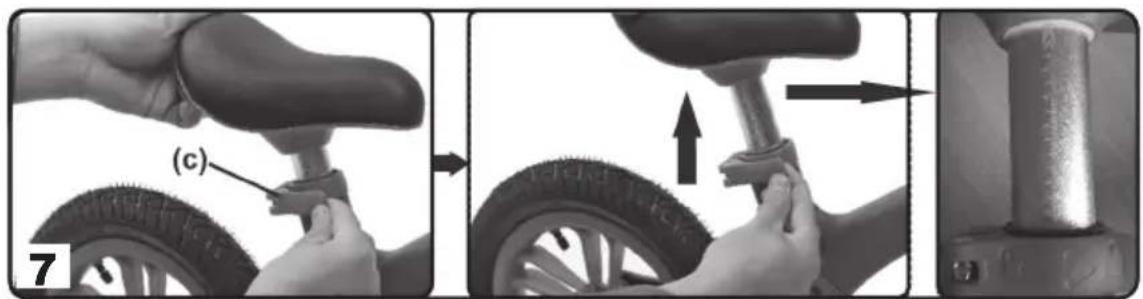

- Pull outside the lever (c). Set the saddle in suitable for the child height so that its narrow part to be located in direction above the tube of frame without being aside. Fix the suitable height by rotate and set the lever (c) inwards.
CAUTION! Adjust the height of the saddle by obeying the markings for the depth (markings must be visible from 0 up to 5).

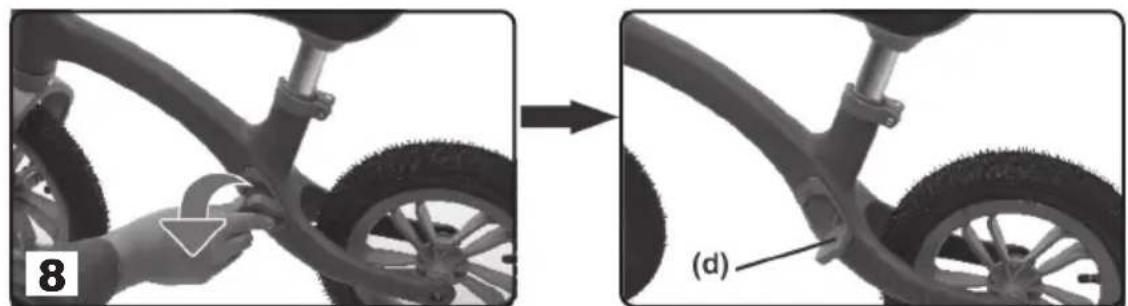

- Foot holders (d) – pull the foot holder out, so child can use it to rest his/her foot during riding.
CAUTION! Toy must be used with high attention, as it requires balance skills. This way you will avoid falling or impacts that can lead to injuries of child and/or other people.
CHOOSING THE OPTIMAL POSITION OF THE SEAT
The child must be comfortably seated, not leaning forward to the handle bar and its feet must be in full contact with the ground.
IMPORTANT! For beginners we recommend initially to use the lowest position of the seat!
HELMET, KNEE AND ELBOW PROTECTORS, AND SHOES
The helmet must be steady on the head, not tilted back or in position in which it does not protect the forehead.
CARE AND MAINTENANCE
Periodically check the good working order of all parts.
Do not wet the TOY. Clean with a soft damp towel and a neutral liquid soap.
Do not use aggressive detergents containing abrasive particles, ammonia, bleach or spirit.
◆ Regularly oil the moving parts.
Do not use on sandy surfaces.
Do not store the TOY in areas with hot air or close to heat sources, because it will deform.
- Store the TOY in a clean and dry place. Do not subject to direct environmental influence – sun, rain, moisture or harsh temperature changes!
Always dry the TOY or let it dry before storing or using it again. Mildew may appear if you store the product moist.
In case of problems related to the normal exploitation, contact the authorized service for advice or repair.
Materials used: plastic and metal.
