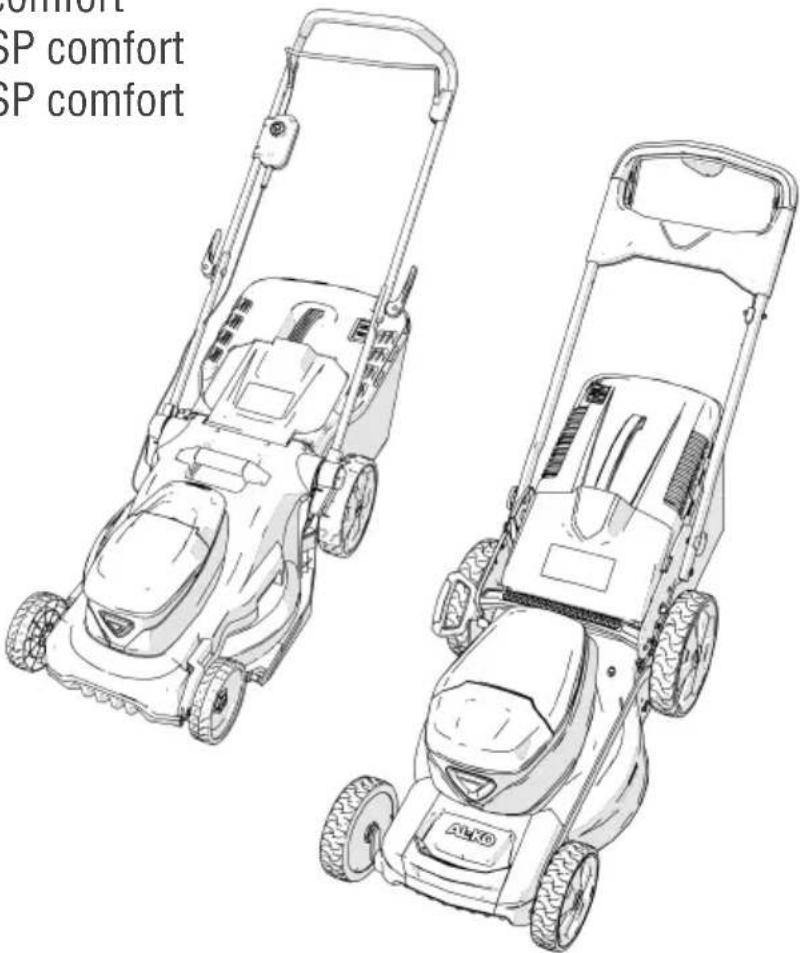

USER MANUAL 38.6 Li Comfort AL-KO

34.6 Li comfort
38.6 Li comfort
43.6 Li comfort
46.6 Li SP comfort
51.6 Li SP comfort

ALKO 18V/36V 1 BATTERY 2 VOLTAGES

SP comfort SP comfort

Inhaltsverzeichnis

Deutsch 16

English....36

Nederlands 55

Français....74

Español 95

Italiano 115

Slovenščina 135

Hrvatski....154

Српски....173

Polski....193

Česky 214

Slovenská 233

Magyar 252

Dansk 272

Svensk....291

Norsk 309

Suomi 327

Eesti 345

Lietuvių 363

Latviešu 382

Român 402

български 421

Русский 443

Україна....466

© 2026

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

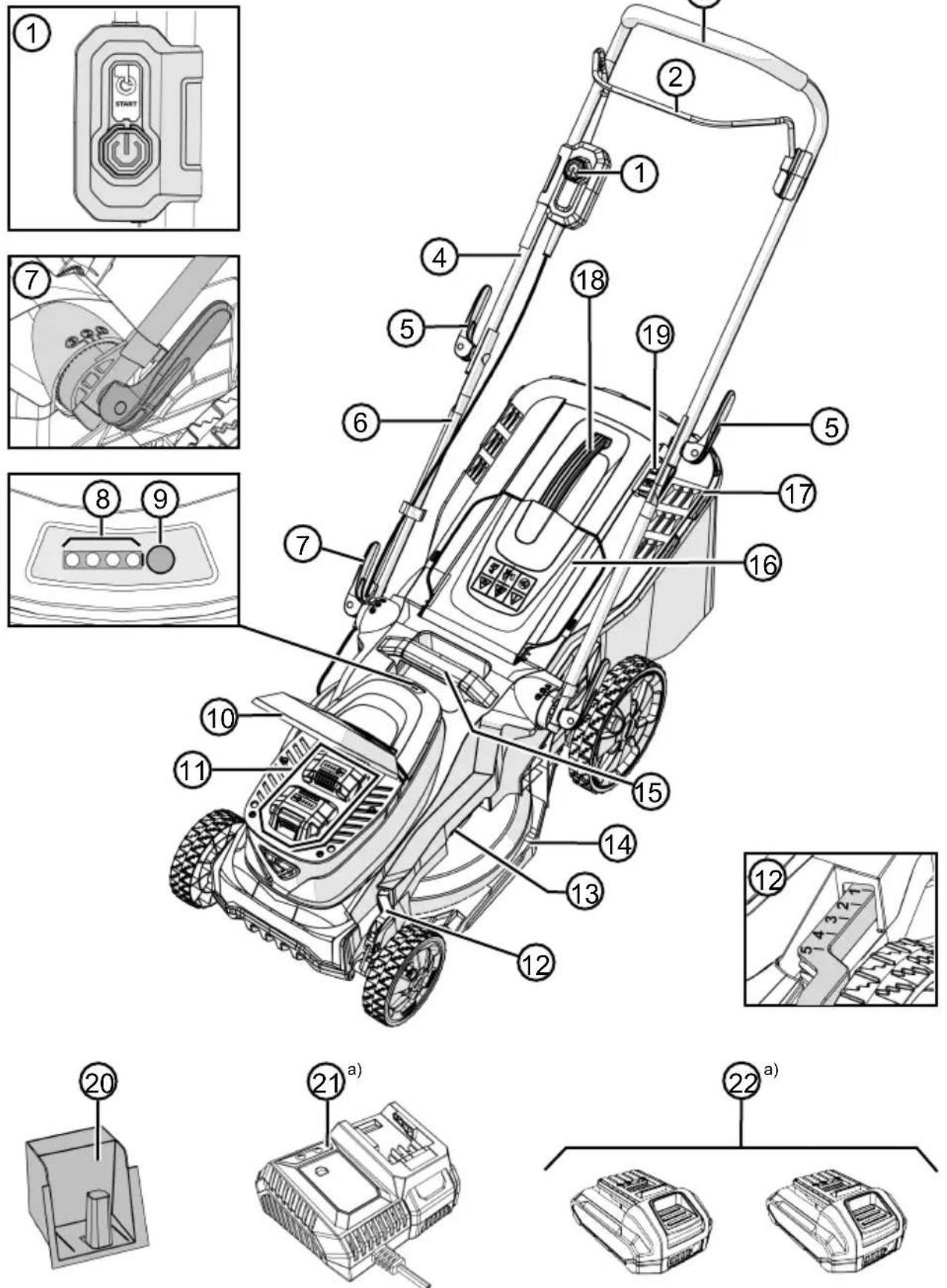

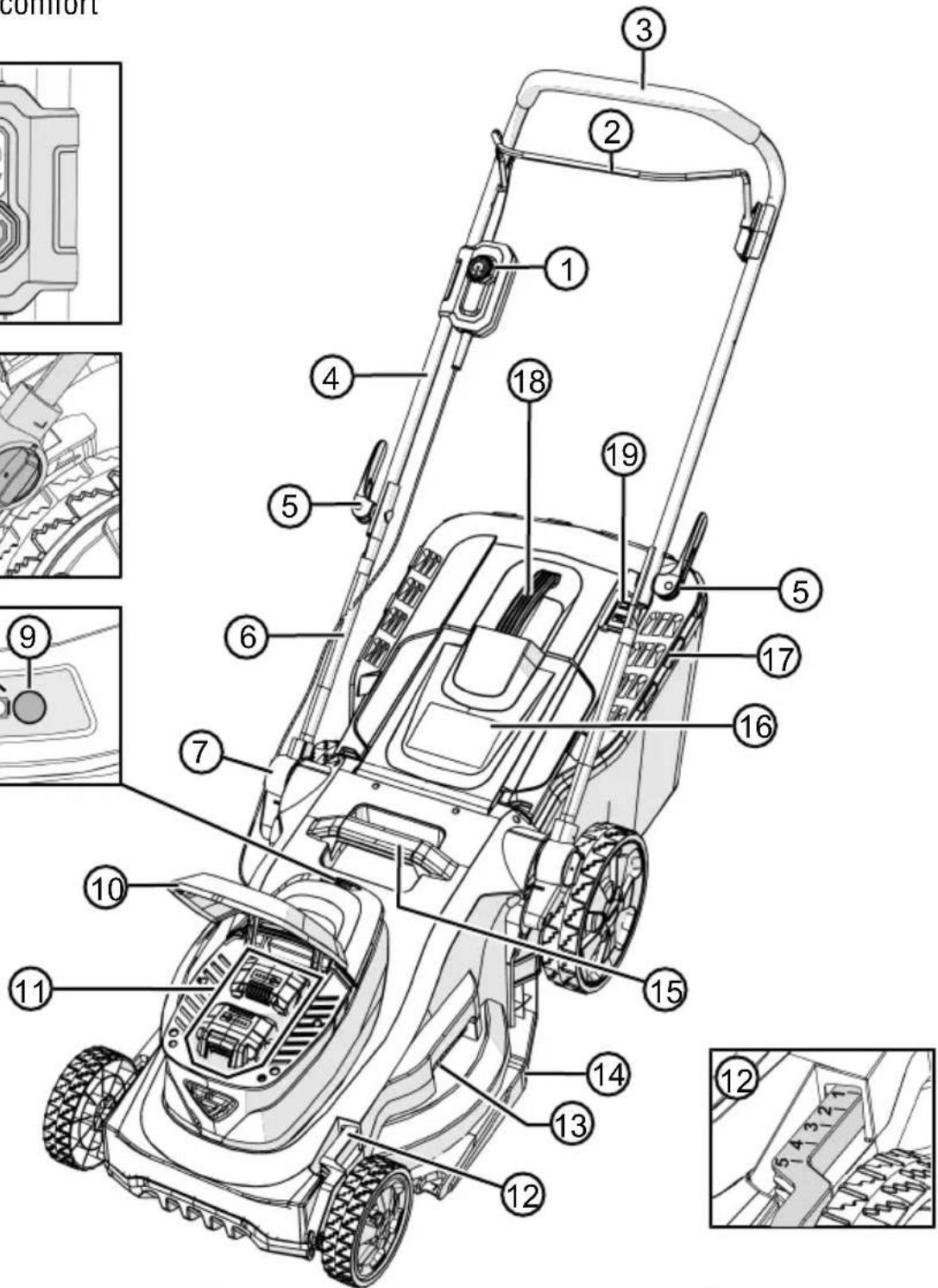

01 * 34.6 Li comfort

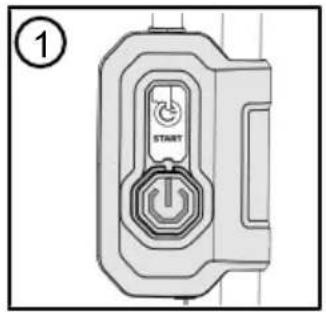

1 START

Mechanical assembly diagram showing gear and cam mechanism (no text or labels)

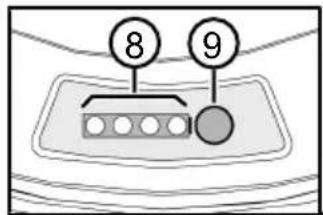

8 9

Technical diagram of a lawn mower with numbered parts for identification and assembly reference.

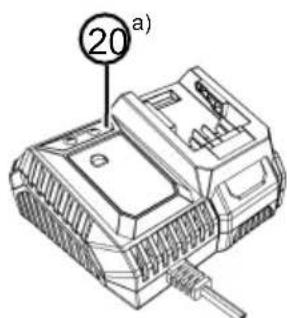

20 a)

②₁ᵃ)

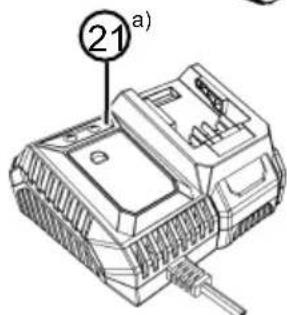

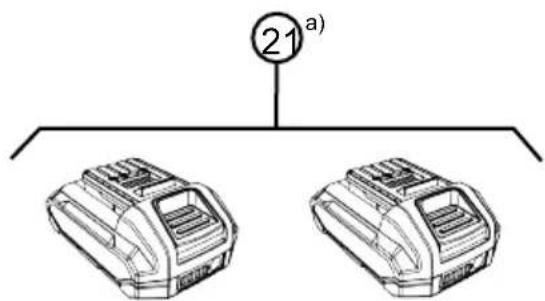

a) In complete set

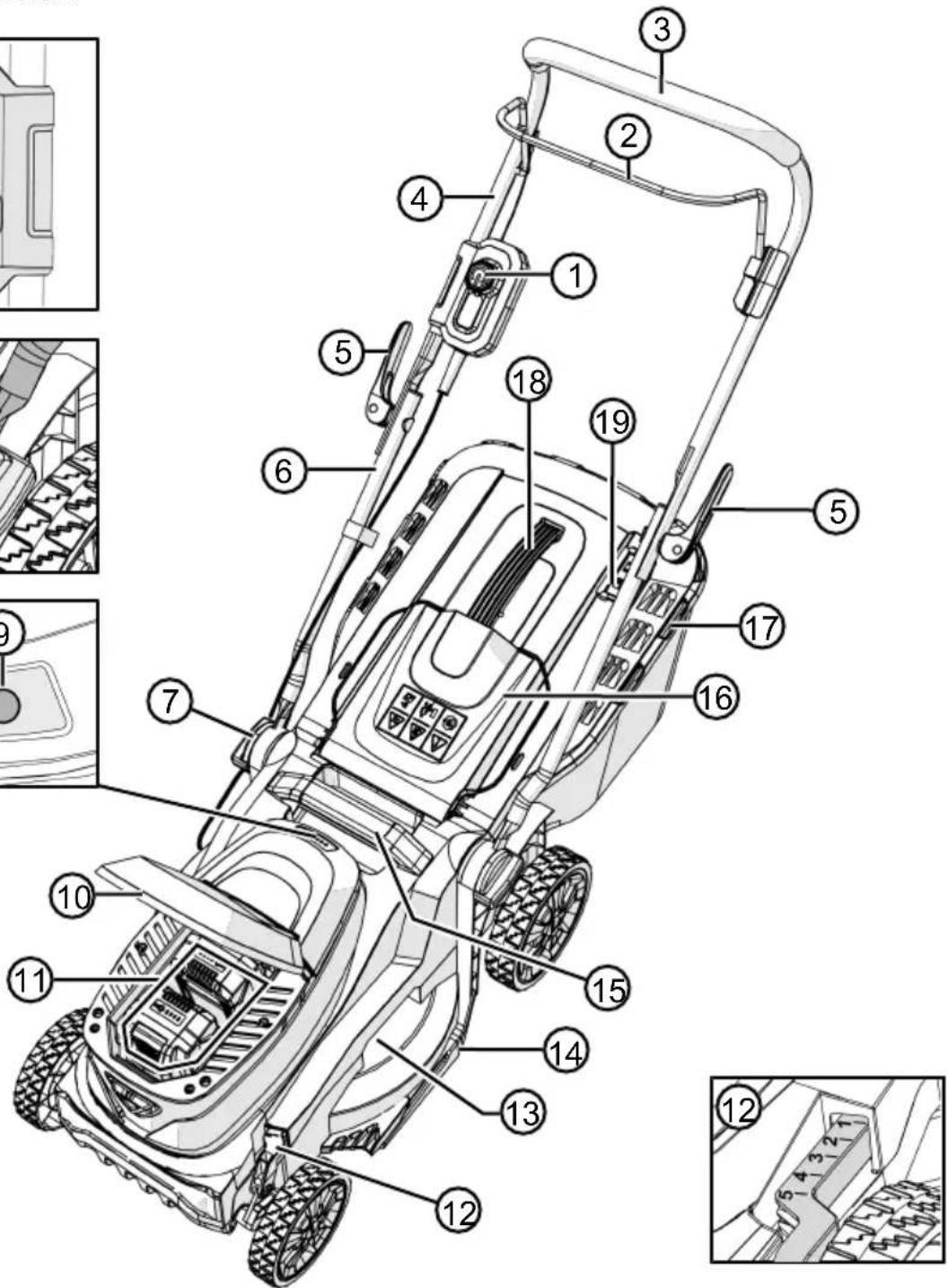

02 ** 38.6 Li comfort

Technical diagram of a lawn mower with numbered parts and exploded view, including control panel and component layout.

a) In complete set

03 ** 43.6 Li comfort

1 START

Mechanical assembly diagram showing gear and shaft components (no text or labels)

8 9

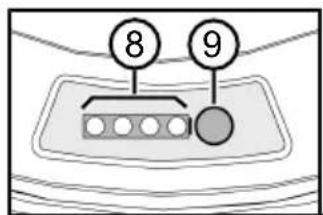

Comfort 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

3D diagram of a mechanical component with a cylindrical part and a circular marker labeled '20' (no text or symbols beyond the number)

②a)

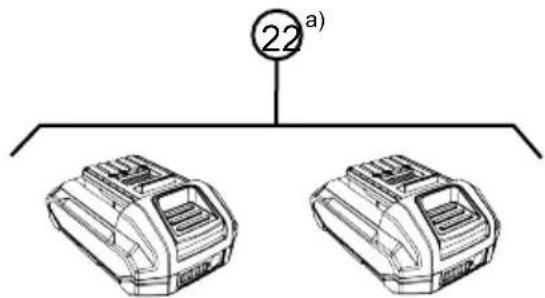

22 a)

a) In complete set

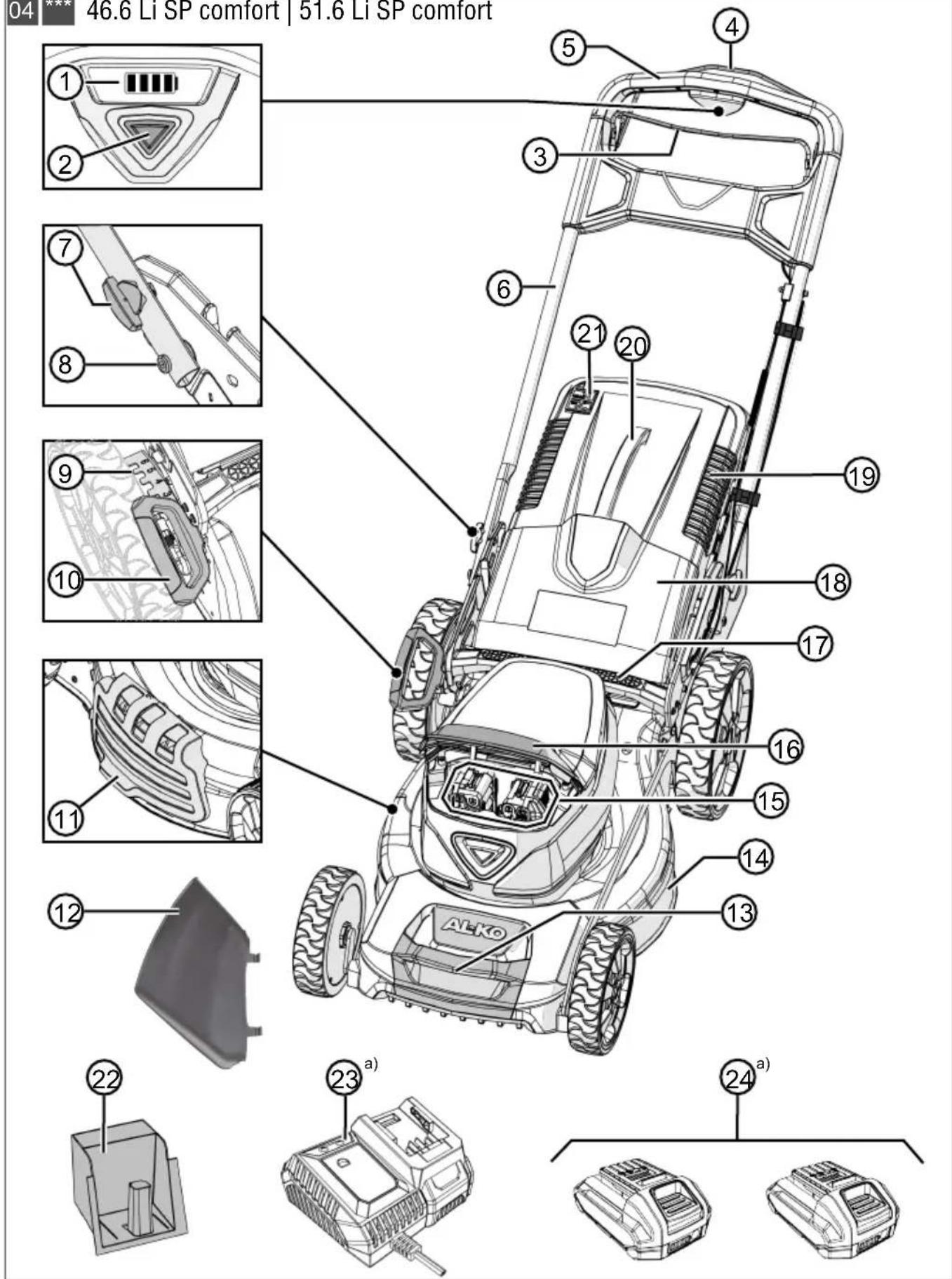

04 *** 46.6 Li SP comfort | 51.6 Li SP comfort

04 *** 46.6 Li SP comfort | 51.6 Li SP comfort ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑰ ⑱ ⑲ ⑳ ⑰ ⑱ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑱ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸ ⑹ ⑺ ⑲ ⑳ ⑸

a) In complete set

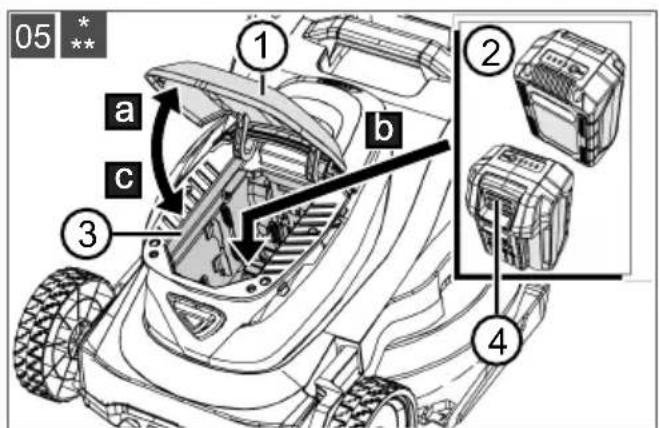

05 * a b c ① ② ③ ④

* 34.6 Li comfort ** 38.6 Li comfort|43.6 Li comfort

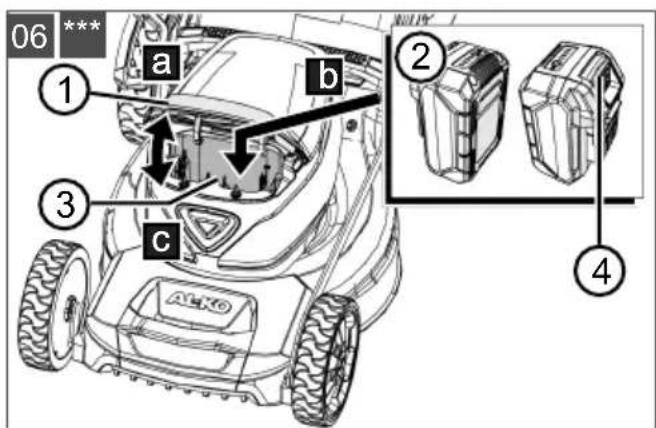

06 *** 1 a b 2 3 c 4

*** 46.6 Li SP comfort | 51.6 Li SP comfort

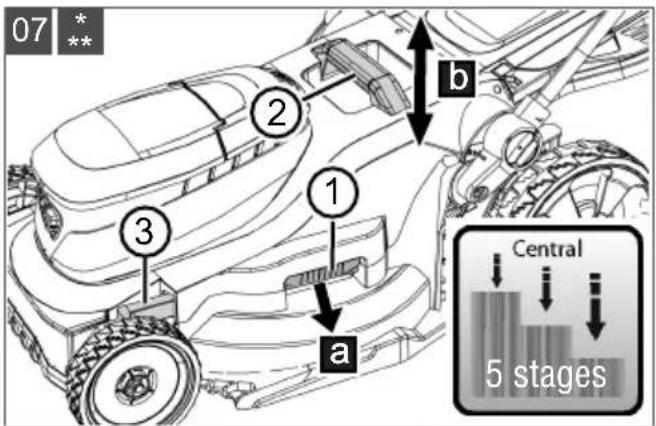

07 * 2 1 3 a b Central 5 stages

* 34.6 Li comfort ** 38.6 Li comfort|43.6 Li comfort

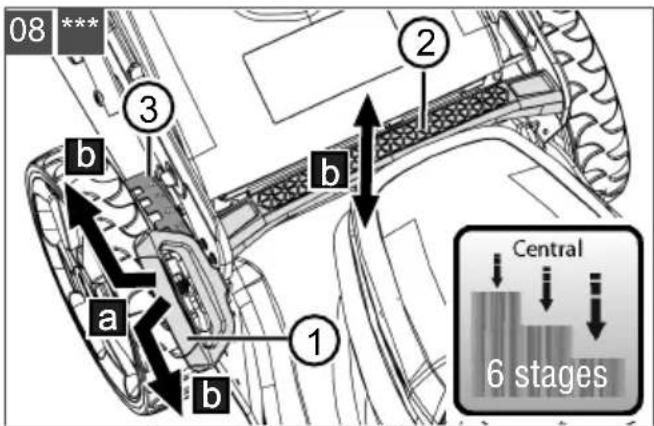

08 *** ③ ② b b a 1 Central 6 stages

*** 46.6 Li SP comfort | 51.6 Li SP comfort

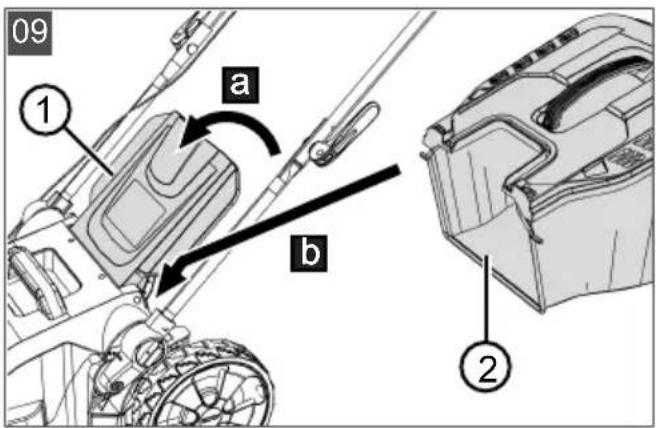

09 ① a b ②

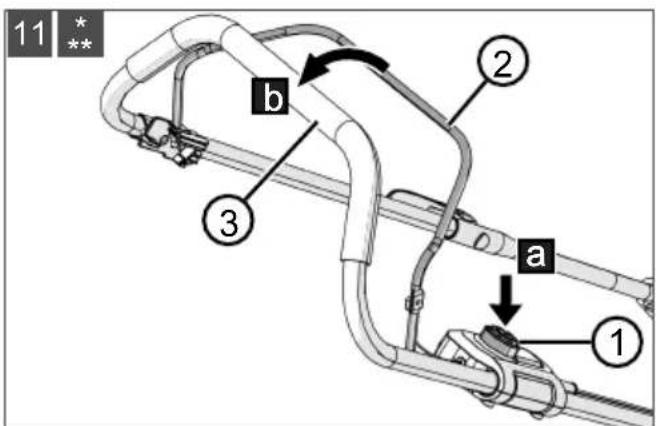

11 * ** b ② ③ a ①

* 34.6 Li comfort ** 38.6 Li comfort|43.6 Li comfort

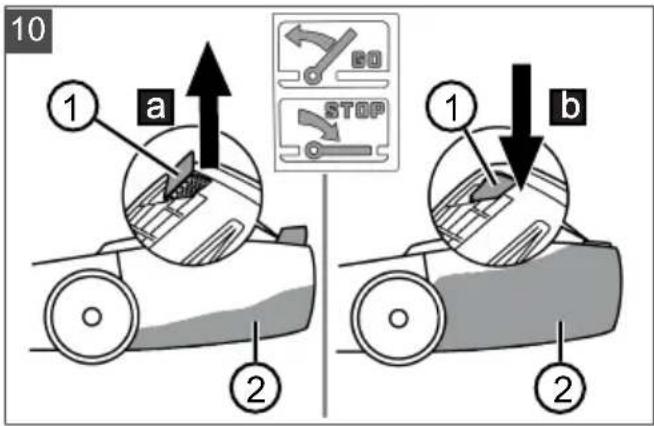

10 a b 1 2 STOP ① ②

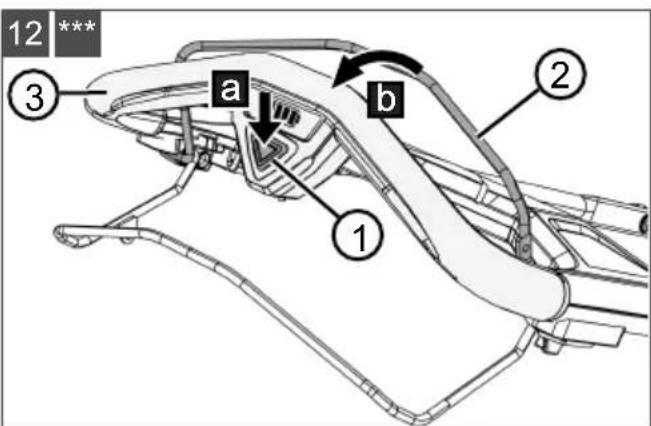

12 *** a b ① ② ③

*** 46.6 Li SP comfort | 51.6 Li SP comfort

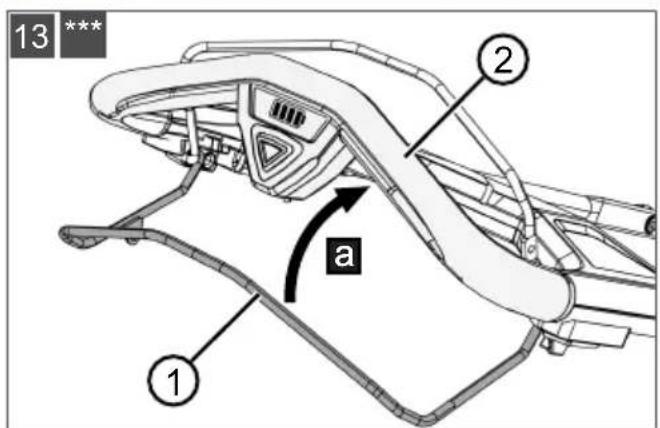

13 *** ① ② a

*** 46.6 Li SP comfort | 51.6 Li SP comfort

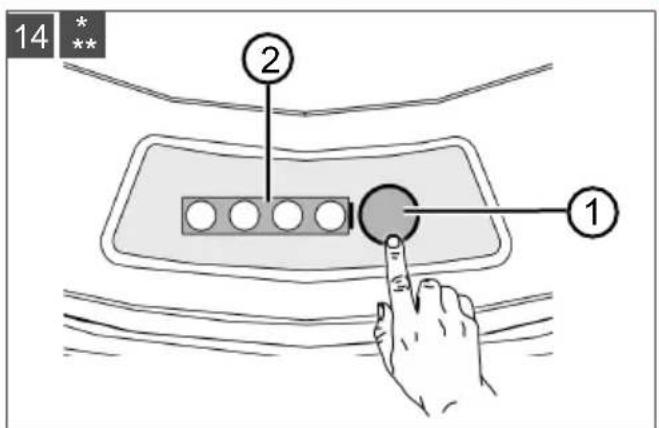

14 * ② ①

* 34.6 Li comfort ** 38.6 Li comfort|43.6 Li comfort

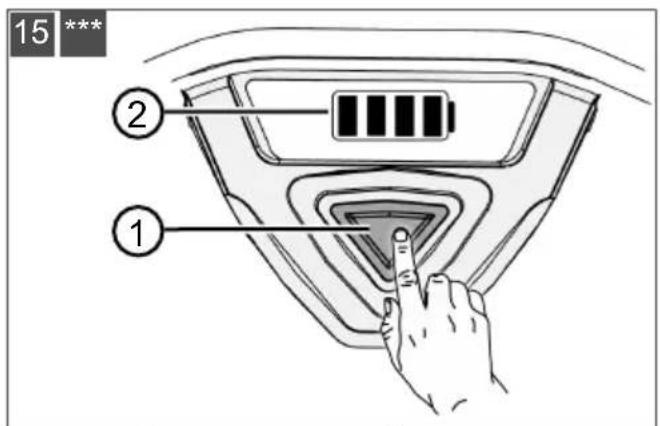

15 *** ② ①

***46.6 Li SP comfort | 51.6 Li SP comfort ** 38.6 Li comfort

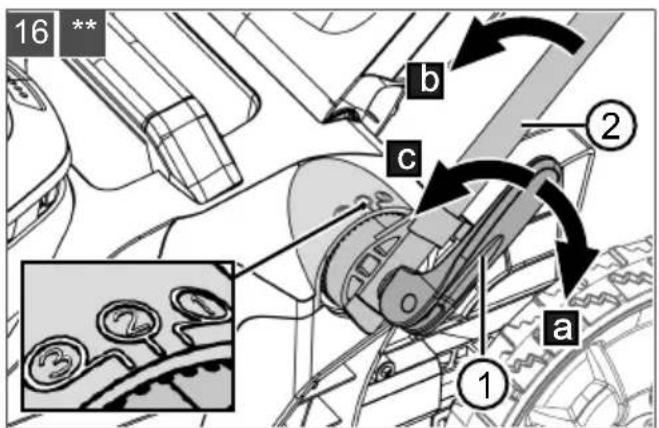

16 ** b c ② a ①

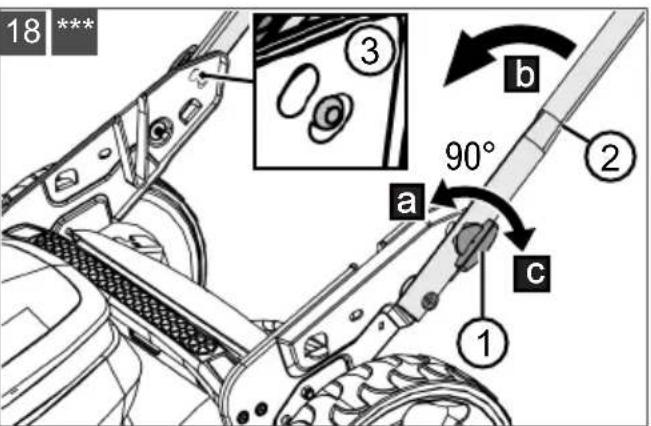

18 *** ③ b 90° a c 1 2

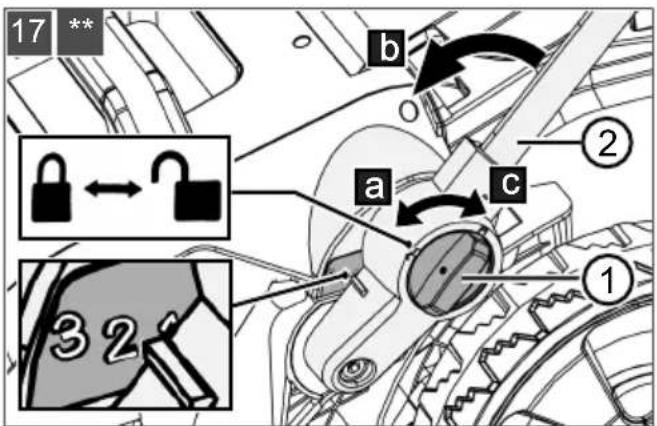

17 ** b a c ① ② ③ ②

** 43.6 Li comfort *** 46.6 Li SP comfort | 51.6 Li SP comfort

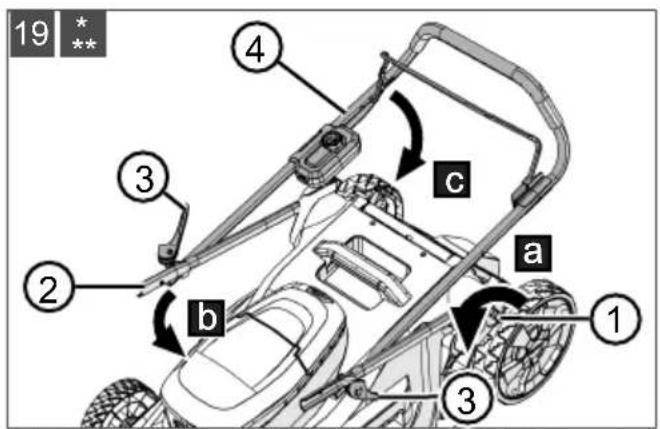

19 * 2 3 4 b c a 1 3

* 34.6 Li comfort ** 38.6 Li comfort|43.6 Li comfort

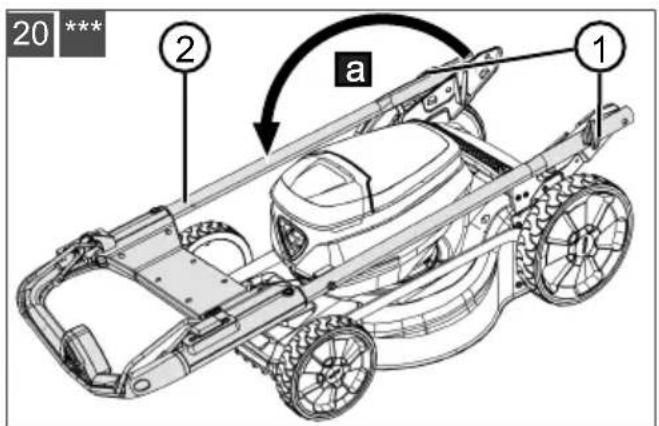

20 *** ② a ①

*** 46.6 Li SP comfort | 51.6 Li SP comfort

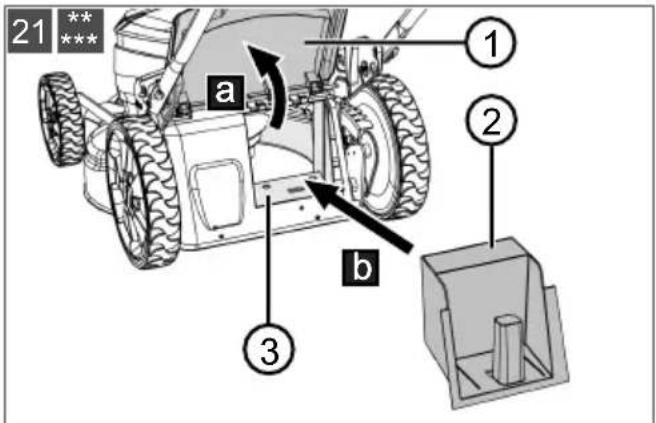

21 ** ***

** 38.6 Li comfort|43.6 Li comfort

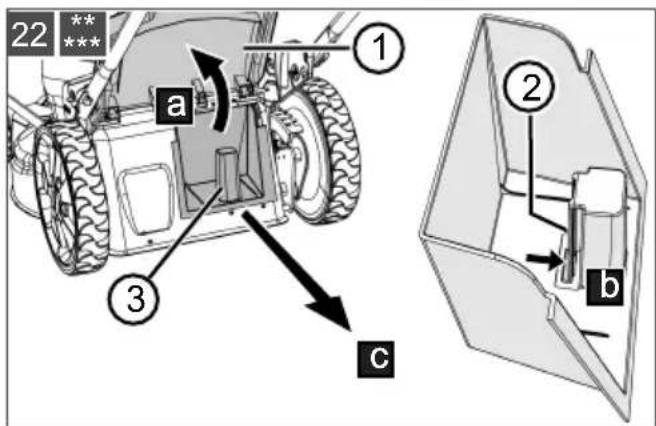

22 ** *** a ① ③ c ② b

*** 46.6 Li SP comfort | 51.6 Li SP comfort

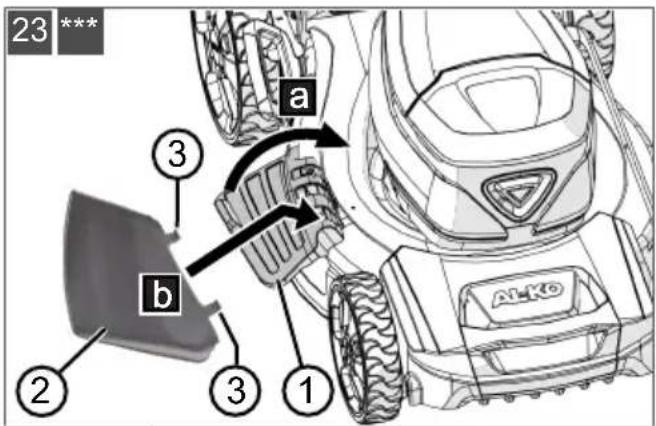

23 *** a b ③ ② ③ ① ALKO

*** 46.6 Li SP comfort | 51.6 Li SP comfort

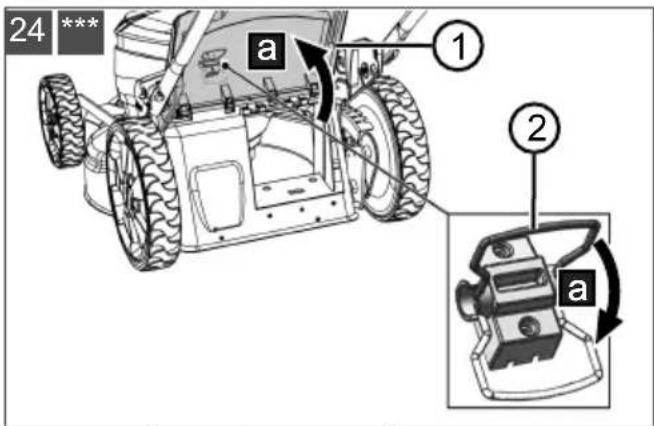

24 *** a ① ② a

*** 46.6 Li SP comfort | 51.6 Li SP comfort

Installation
34.6 Li comfort

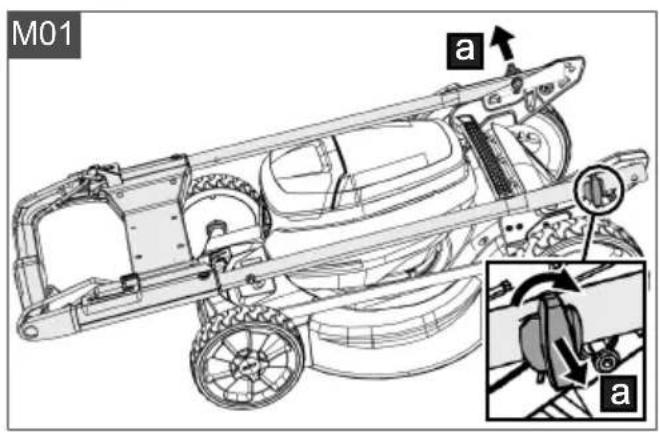

M01 a a

M02 a b

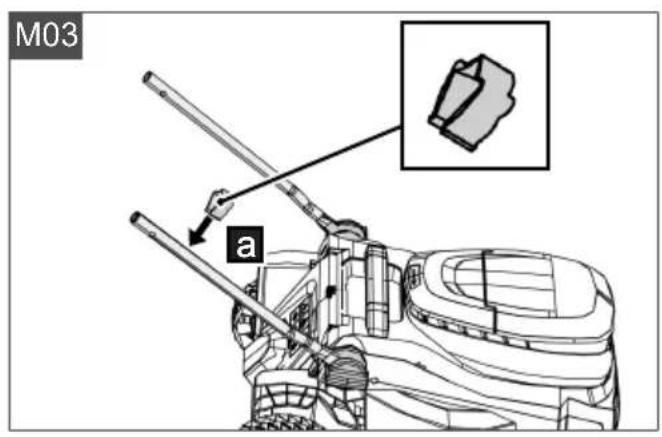

M03 a

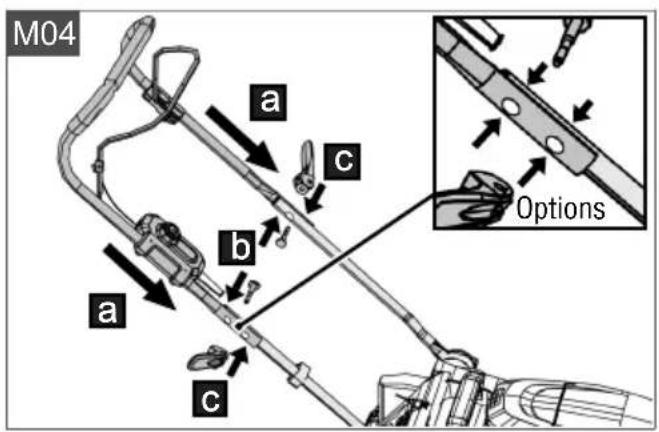

M04 a c b a c Options

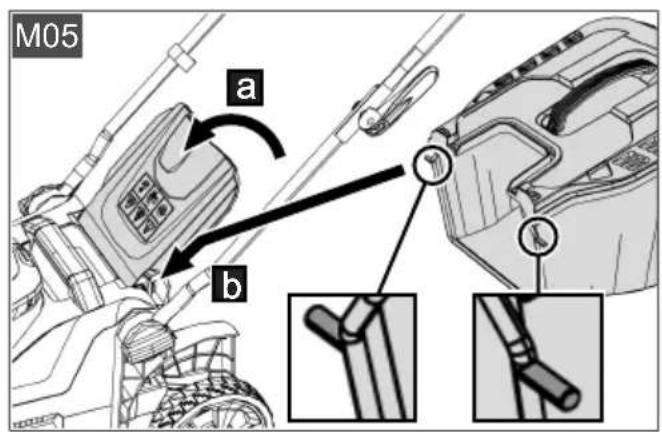

M05 a b

Installation
38.6 Li comfort

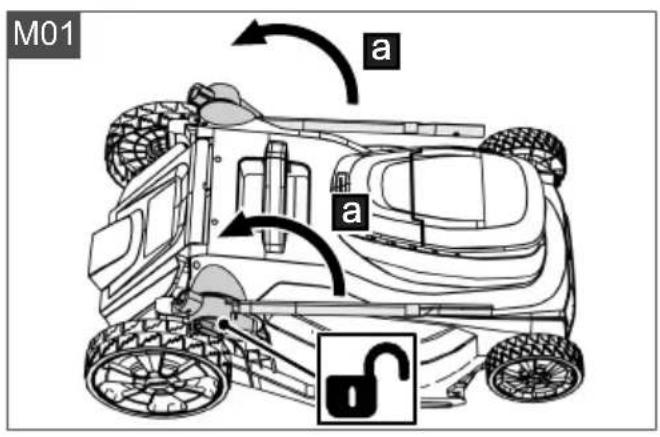

M01 a a

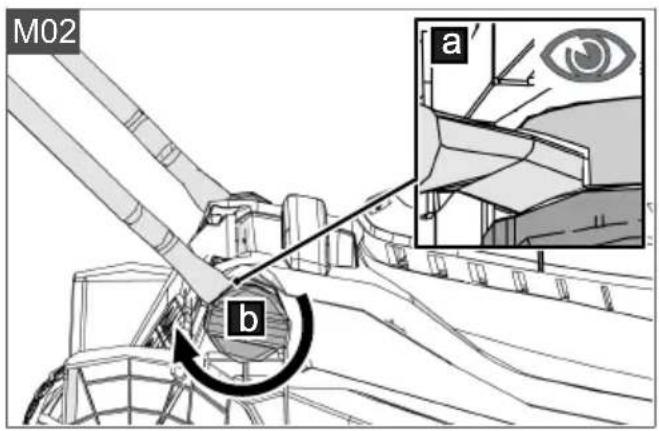

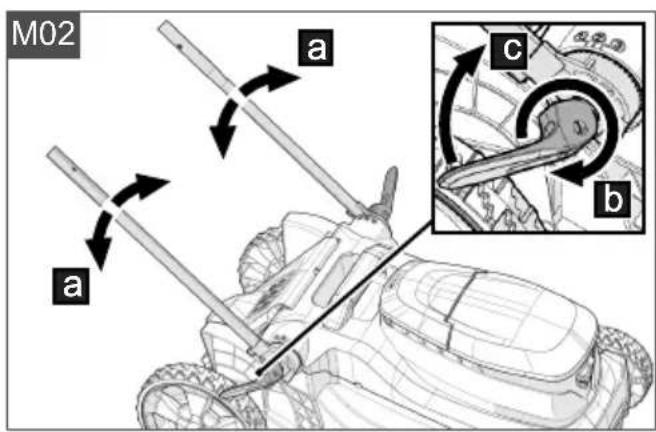

M02 a a c b

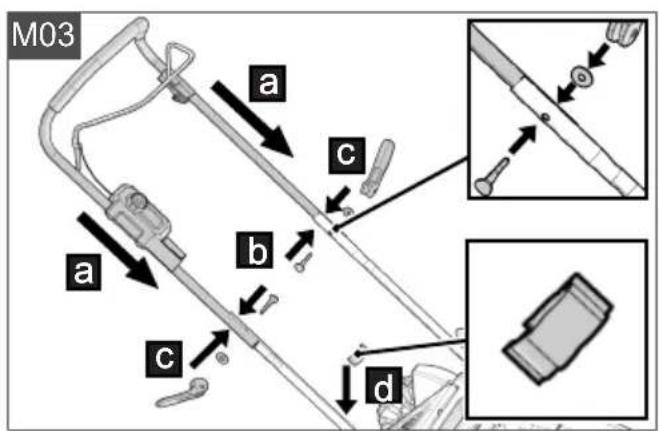

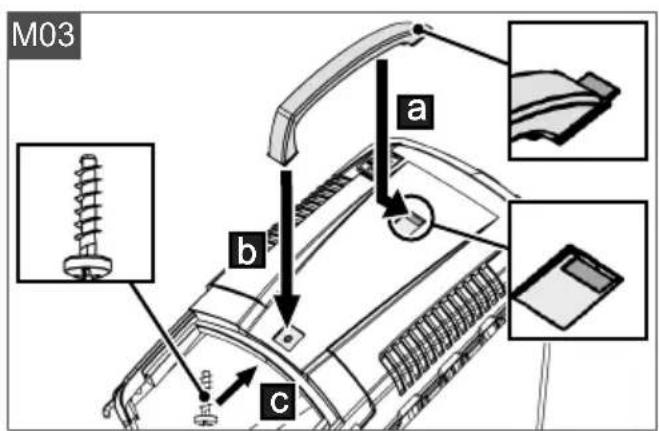

M03 a b c d

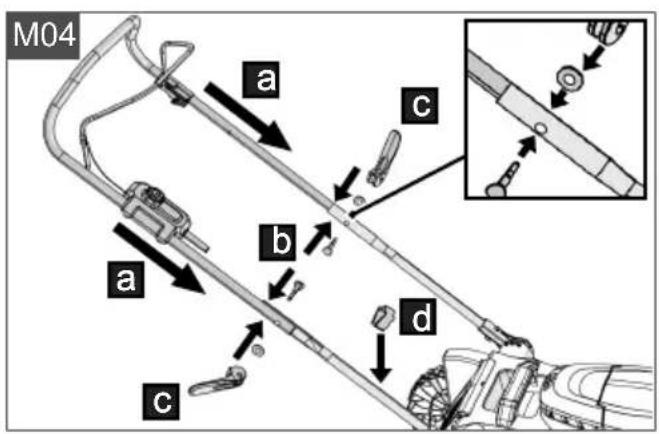

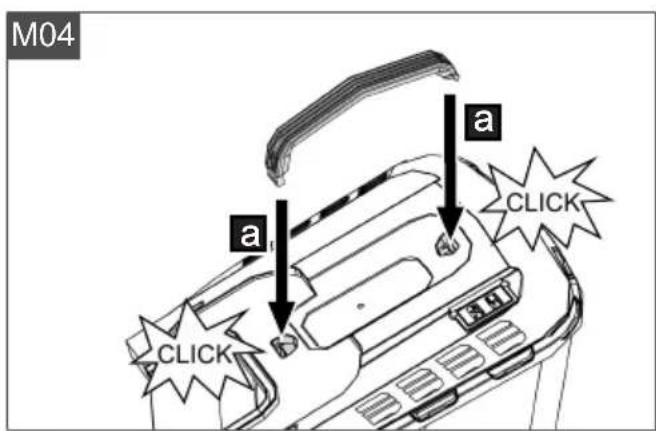

M04 a a CLICK CLICK

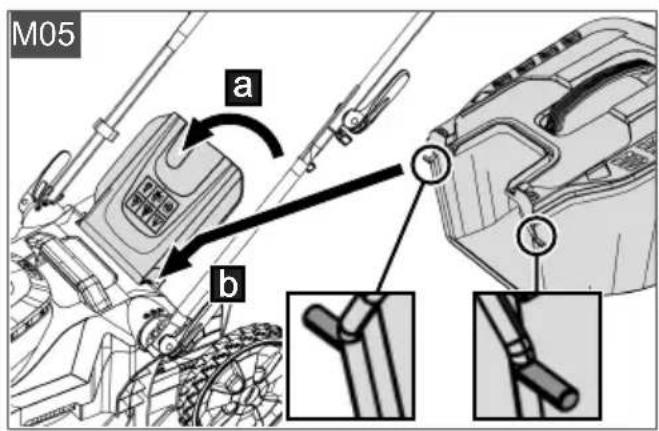

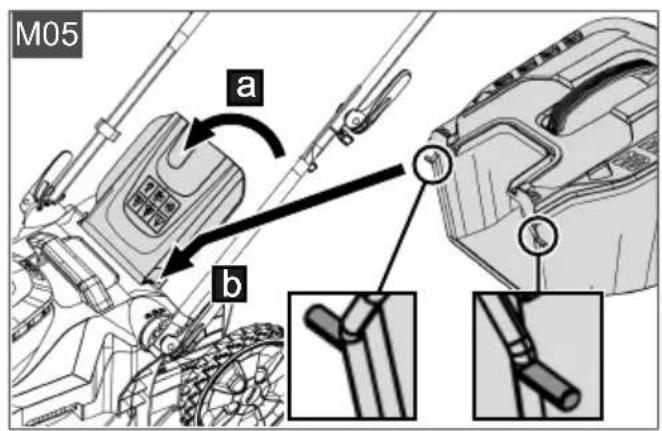

M05 a b

Installation

43.6 Li comfort

M01 a a

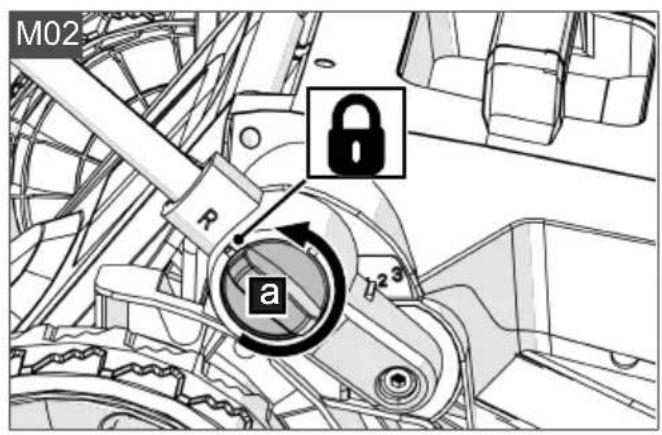

M02 R a 11²³

M03 a

M04 a b c d a c

M05 a b

Installation

46.6 Li SP comfort \$1.6 Li SP comfort

M01 a a

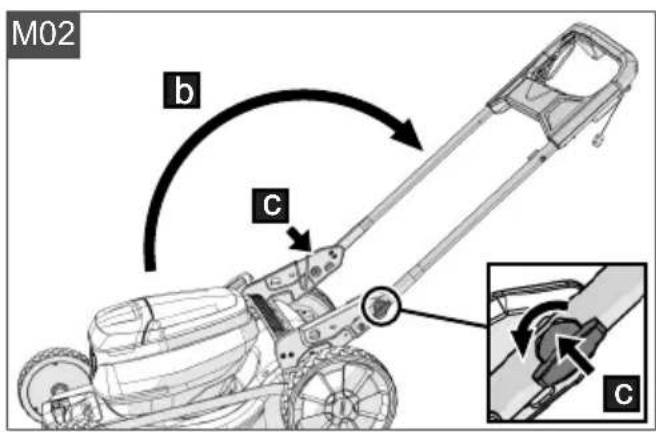

M02 b c c

M03 a b c

a b

	34.6 Li comfort	38.6 Li comfort	43.6 Li comfort	46.6 Li SP comfort	51.6 Li SP comfort
	114170	114171	114172	114173	114174
Order number	Lawn mower 2 batteries Charger2x 2,5 Ah batteries	Lawn mower 2 batteries Charger2x 4,0 Ah batteries	Lawn mower 2 batteries Charger2x 5,0 Ah batteries	Lawn mower 2 batteries Charger2x 5,0 Ah batteries	Lawn mower 2 batteries Charger2x 8,0 Ah batteries
	+ double charger C300.6 Li (order no. 114132)
Order number	Lawn mower 114164	Lawn mower 114165	Lawn mower 114166	Lawn mower 114167	Lawn mower 114168
Battery	Lithium-Ion batteries18 V: 2,0 Ah | 2,5 Ah18/36 V: 4,0/2,0 Ah | 5,0/2,5 Ah | 8,0/4,0 Ah
Working width	34 cm 38 cm 43 cm 46 cm 51 cm
Acreage performance	400 m^2	500 m^2	650 m^2	800 m^2	800 m^2
Gross weight of machine without battery	11,1 kg 13,0 kg 15,2 kg 30,2 kg 30,7 kg
Volume of grass box	35 | 40 | 50 | 60 | 60 |
Working height	25 – 75 mm
Stages of working height	5(central)			6(central)
Cutting blade	114186Order number	114187Order number	114188Order number	114189Order number	114190Order number
Wheel drive	- - - X X
Mulching insert	- X X X X
Side discharge unit	- - - X X
Working temperature range	0 °C - 35 °C
Storage temperature range	0 °C - 50 °C
Sound pressure level	L_pA = 77,1 dB(A), K = 3 dB(A)^*	L_pA = 74,3 dB(A), K = 3 dB(A)^*	L_pA = 75,0 dB(A), K = 3 dB(A)^*	L_pA = 76,4 dB(A), K = 3 dB(A)^*	L_pA = 78,9 dB(A), K = 3 dB(A)^*
Sound power level	L_xx = 88,6 dB(A), K = 1,79 dB(A)^*	L_xx = 87,8 dB(A), K = 1,89 dB(A)^*	L_xx = 88,9 dB(A), K = 1,86 dB(A)^*	L_xx = 89,7 dB(A), K = 1,79 dB(A)^*	L_xx = 92,5 dB(A), K = 1,99 dB(A)^*
Vibration value	a_h < 0,780 m/s^2, K = 1,5 m/s^2^*	a_h < 1,008 m/s^2, K = 1,5 m/s^2^*	a_h < 0,696 m/s^2, K = 1,5 m/s^2^*	a_h < 1,341 m/s^2, K = 1,5 m/s^2^*	a_h < 1,564 m/s^2, K = 1,5 m/s^2^*

*: Refer to technical data section.
x: available, -: not available

46.6 Li SP comfort \$1.6 Li SP comfort

5 INBETRIEBNAHME

5.1 Akkus laden

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

1 Safety instructions.... 37

1.1 General electrical machine safety warnings 37

1.1.1 Work area safety 37

1.1.2 Electrical safety 37

1.1.3 Personal safety.... 37

1.1.4 Battery machine use and care..... 38

1.1.5 Service 38

1.2 Lawnmower safety warnings ...... 38

1.3 Safety notes for rechargeable battery and charger.... 39

2 About these operating instructions...... 39

2.1 Symbols on the title page 39

2.2 Legends and signal words.... 39

3 Product description 39

3.1 Designated use.... 40

3.2 Possible foreseeable misuse...... 40

3.3 Residual risks 40

3.4 Safety and protective devices...... 40

3.5 Symbols on the appliance...... 40

3.5.1 Safety signs.... 40

3.5.2 Operating signs 41

3.6 Product overviews 41

3.6.1 Product overview (01)*...... 41

3.6.2 Product overview (02, 03)**...... 42

3.6.3 Product overview (04)*** 42

4 Installation.... 43

5 Start-up 43

5.1 Charging the batteries 43

5.2 Inserting and removing the batteries (05, 06) 43

5.3 Switching the power supply on and off (05, 06) 43

6 Operation 44

6.1 Setting the cutting height 44

6.1.1 Setting the cutting height (07)*.... 44

6.1.2 Setting the cutting height (08)**... 44

6.2 Mowing with grass catcher (09, 10) ... 44

6.3 Starting and stopping the mower mechanism (11, 12) .... 45

6.4 Starting and stopping the wheel drive (13) ^** 45

6.5 Checking the battery charge status (14, 15).... 45

6.6 Adjusting the handlebar to your body size.... 45

6.6.1 Adjusting the handlebar (16)**..... 45

6.6.2 Adjusting the handlebar (17)**..... 46

6.6.3 Adjusting the handlebar (18)*** ... 46

6.7 Folding the handlebar in and out...... 46

6.7.1 Folding the handlebar in and out (19) ^ , ^* 46

6.7.2 Folding the handlebar in and out (20)*** 46

6.8 Mulching with mulching insert (21, 22) ^ , ^* 46

6.9 Mowing with side discharge unit (23) ^*** 47

6.10 Mowing without grass catcher (24)*** 47

7 Work instructions 47

8 Maintenance and care 48

8.1 Regular maintenance work 48

8.2 Cleaning the appliance and mower mechanism.... 48

8.3 Checking and renewing the cutting blade 48

8.4 Repair work 48

9 Help in case of malfunction 49

9.1 Correcting appliance and handling faults.... 49

9.2 Error codes and troubleshooting ..... 50

10 Transport 51

10.1 Transporting the appliance.... 51

10.2 Transport.... 51

11 Storage 51

11.1 Storing the rechargeable battery lawnmower .... 51

11.2 Storing the rechargeable battery and charging unit 52
12 Disposal 52
13 Technical data.... 53
14 After-Sales/Service 53
15 Information on the Declaration of Confor- mity.... 53
16 Warranty.... 54

1 SAFETY INSTRUCTIONS

1.1 General electrical machine safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

■ Save all warnings and instructions for future reference.

The term "machine" in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.

1.1.1 Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.

1.1.2 Electrical safety

■ Machine plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not operate the lawnmower in rain or wet conditions. This may increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of an extension cord suitable for outdoor use reduces the risk of electric shock.
  If operating a machine in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1.1.3 Personal safety

■ Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.
■ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine. Carrying machines with your finger on the switch or energising machines that have the switch on invites accidents.
■ Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
■ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly

used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.

1.1.4 Battery machine use and care

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use machines only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

- Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

- Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

■ Follow all charging instructions and do not charge the battery pack or machine outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

1.1.5 Service

■ Have your machine serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the machine is maintained.
■ Never service damaged battery packs. Service of battery packs should only be per-

formed by the manufacturer or authorized service providers.

1.2 Lawnmower safety warnings

Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
■ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
■ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
- Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
- Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
- Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
■ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
■ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
- Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
- Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
■ When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and ex-

ercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.

■ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
- Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
■ When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.
■ Always allow the product to cool down before storing.
■ Empty the grassbox before storing.
- When adjusting the machine, make sure not to pinch your fingers between the moving blades and fixed parts of the machine.

1.3 Safety notes for rechargeable battery and charger

■ Remove the battery from the appliance before charging.
- Insert the battery into the appliance with the correct polarity.
■ Remove the battery from the appliance before putting it into storage for an extended period.
- Do not short-circuit the terminals of the appliance or battery.

Operating instructions

Please observe the safety instructions for the battery and charger in the separate operating instructions:

■ Operating instructions 443998: Batteries
■ Operating instructions 443999: Chargers

2 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
- Keep these operating instructions in a safe place at all times so that they can be consult-

ed if you need any information about the ap- pliance.

■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

2.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully prior to starting operation. This is essential for safe working and trouble-free handling.

Operating instructions

Handle Li Ion rechargeable batteries with care! In particular, observe the notes on transport, storage and disposal in these operating instructions!

This product conforms to the applicable European Directives, and a conformity evaluation procedure for these Directives has been carried out.

2.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.
WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

i NOTE Special instructions for ease of understanding and handling.

3 PRODUCT DESCRIPTION

This documentation describes several appliance models. Identify your model based on the product

images and the description of the different options.

All batteries (Bxxx Li) and chargers (Cxxx Li) from the system can be used.

IMPORTANT! Danger of damage to the appliance and battery. If the appliance is operated with unsuitable batteries, both the device and the batteries may be damaged.

- Operate the appliance only with the specified rechargeable batteries.

NOTE Further information can be found in the operating instructions for the batteries and chargers from the system ALV018V/36V 1BATTERY /2 VOLTAGES

3.1 Designated use

This machine is intended for the non-commercial mowing of lawns, and must only be used on dry grass.

Any use not in accordance with this designated use shall be regarded as misuse. Only work with the appliance when it is fully assembled.

This appliance is intended solely for use in non-commercial applications. Any other use as well as unauthorised conversions or modifications are regarded as contrary to the intended use and will result in voiding of the warranty as well as loss of conformity; the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.

3.2 Possible foreseeable misuse

The tool is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.

• Do not use the appliance in the rain or on wet grass.
  There must be no foreign objects on the area to be mowed, e.g. stones, pieces of wood, bottles.
  ■ Installed safety devices must not be removed or bypassed, e.g. by tying the operator presence control to the handlebar.

3.3 Residual risks

Even during correct use of the appliance, there is always a certain residual risk that cannot be excluded. Depending on the use, the following potential risks can be derived from the type and construction of the appliance:

■ Throwing out of cuttings, soil and small stones.

■ Inhalation of cuttings particles if no breathing protection is worn.
■ Lacerations from reaching into the rotating cutting blade.

3.4 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

Operator presence control

The appliance is equipped with an operator presence control. In an emergency, simply release the operator presence control. The motor and mower mechanism are stopped.

Start button (on the handlebar)

To be able to switch on the motor using the operator presence control, the start button must be pressed beforehand.

Baffle

The baffle offers protection against e.g. material particles and stones which can be flung out.

3.5 Symbols on the appliance

3.5.1 Safety signs

Symbol Meaning

Pay special attention when handling this appliance!

Read the operating instructions before starting operation!

Risk of objects being thrown out!

Keep bystanders out of the danger area!

Risk of injury! Keep your hands and feet away from the blade system!

Symbol Meaning

If not used, or before starting maintenance and repair work: Switch off the appliance and remove the battery from the appliance!

Not applicable; used only with electric lawnmowers. ^a)

Do not mow on steep slopes! ^a)

Do not use the appliance in the rain or store it outdoors! ^a)

The cutting blade continues running for a short while after the appliance has been switched off. Touch the cutting blade only when all parts of the appliance have come to a stop! ^a)

a) 46.6 Li SP comfort, 51.6 Li SP comfort

3.5.2 Operating signs

Symbol Meaning

Lawnmower operating at 36V with two 18V batteries.

Press the Start button to start the lawnmower. ^a)

Procedure for starting the lawn-mower (see chapter 6.3 "Starting and stopping the mower mechanism (11, 12)", page 45) ^b)

Fill level indicator on the grass catcher:

Fill level indicator is at the top (GO): Continue working!

Fill level indicator is at the bottom (STOP): Stop working and empty the grass catcher!

Symbol Meaning

Operating symbol for twist knob on the handlebar: ^c)

- Padlock closed: Fix the handlebar in the selected position.

- Padlock open: Loosen the handlebar for adjustment.

Steps for adjusting the height of the handlebar (2-step) ^c)

The third step is used for folding down the handlebar.

In the event of danger: Release the operator presence control immediately to stop the lawnmower.

a) 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

b) 46.6 Li SP comfort, 51.6 Li SP comfort

c) 38.6 Li comfort, 43.6 Li comfort

3.6 Product overviews

3.6.1 Product overview (01)\*

*: 34.6 Li comfort

No. Component

1 Start button
2 Operator presence control
	Handlebar:
3	■ Handle surface
4	■ Upper brace
5	■ Swivel joint with quick-release lever
6	■ Lower brace

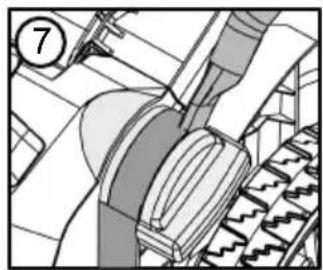

7	■ Swivel joint with locking knob
	Charge status display for batteries:
8	■ LEDs
9	■ Button for checking the charge sta-tus
10 Battery compartment cover
11 Battery compartment
	Central cutting height adjustment:
12	■ Display of cutting height (5-step)
13	■ Release lever

No. Component

14 Mower deck with cutting blade
15 Carrying handle
16 Baffle
	Grass catcher:
17	■ Housing of grass catcher
18	■ Handle of grass catcher
19	■ Fill level indicator of grass catcher
20a)	Charger a)
21a)	Batteries (2x)a)

a) In complete set

3.6.2 Product overview (02, 03)\*\*

**: 38.6 Li comfort, 43.6 Li comfort

No. Component

1 Start button
2 Operator presence control
	Handlebar:
3	■ Handle surface
4	■ Upper brace
5	■ Swivel joint with quick-release lever
6	■ Lower brace

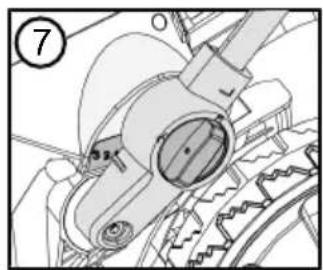

7	■ 2-step height adjustment:38.6 Li comfort: Swivel joint with quick-release lever,43.6 Li comfort: Spring pin with twist knobThe third step is used for folding down the handlebar.
	Charge status display for batteries:
8	■ LEDs
9	■ Button for checking the battery charge status
10 Battery compartment cover
11 Battery compartment
	Central cutting height adjustment:
12	■ Display of cutting height (5-step)
13	■ Release lever

No. Component

14 Mower deck with cutting blade
15 Carrying handle
16 Baffle
	Grass catcher:
17	■ Housing of grass catcher
18	■ Handle of grass catcher
19	■ Fill level indicator of grass catcher
20 Mulching insert
21^a)	Charger ^a)
22^a)	Batteries (2x)^a)

a) In complete set

3.6.3 Product overview (04)\*\*\*

***: 46.6 Li SP comfort, 51.6 Li SP comfort

No. Component

	Cockpit with:
1	■ Charge status display for batteries
2	■ Button with double function:1. Start button,2. Battery charge status check
3 Operator presence control
4 Engagement bar for wheel drive
	Handlebar:
5	■ Handle surface
6	■ Column
7	■ Spring pin with twist knob (2-step)The third step is used for folding down the handlebar.
8	■ Handlebar column swivel joint
	Central cutting height adjustment:
9	■ Display of cutting height (6-step)
10	■ Adjustment lever
11 Side discharge flap
12 Side discharge insert
13 Front carrying handle
14 Mower deck with cutting blade

No. Component

15 Battery compartment

16 Battery compartment cover

17 Rear carrying handle

18 Baffle

Grass catcher:

19 ■ Housing of grass catcher

20 ■ Handle of grass catcher

21 ■ Fill level indicator of grass catcher

22 Mulching insert

23 a) Charger a)

24 a) Batteries (2x) a)

a) In complete set

4 INSTALLATION

WARNING! Danger if assembly is not carried out completely! Use of an incompletely assembled appliance can result in serious injury.

■ Operate the appliance only when it is fully assembled!
- Do not insert the batteries into the appliance until it is fully assembled!

Follow the assembly steps applicable to your model in the illustration section:

Installation

34.6 Li comfort

Installation

38.6 Li comfort

Installation

43.6 Li comfort

Installation

46.6 Li SP comfort \$1.6 Li SP comfort

5 START-UP

5.1 Charging the batteries

The rechargeable batteries are partially charged. Fully charge the rechargeable batteries prior to initial use. The rechargeable batteries can be charged in any charge status. Interrupting charging does not damage the rechargeable batteries.

NOTE For detailed information, heed the separate operating instructions for the rechargeable batteries and for the charger.

5.2 Inserting and removing the batteries (05, 06)

The lawnmower functions only when both batteries are installed.

IMPORTANT! Risk of damage to the batteries. If the batteries are left in the appliance after use, they could be damaged.

Take the batteries out of the appliance immediately after use and store in a frost-protected area.
■ Install the batteries in the appliance only immediately before starting work.

Inserting the batteries

1. Open (05/a, 06/a) battery compartment cover (05/1, 06/1).
2. Push batteries (05/2, 06/2) into battery compartment (05/3, 06/3) from above until they engage (05/b, 06/b).
3. Close (05/c, 06/c) the battery compartment cover.

Removing the batteries

1. Press and hold release button (05/4, 06/4) on the battery.
2. Pull out the battery.

5.3 Switching the power supply on and off (05, 06)

WARNING! Risk of injury. Unintentional switching on can lead to serious injuries.

■ Each time before work breaks and maintenance work: Remove the batteries.

Switching on the power supply

1. Open (05/a, 06/a) battery compartment cover (05/1, 06/1).
2. Insert the batteries: see chapter 5.2 "Inserting and removing the batteries (05, 06)", page 43.
3. Close (05/c, 06/c) the battery compartment cover.
4. Switch on the appliance: see chapter 6.3 "Starting and stopping the mower mechanism (11, 12)", page 45.

Switching off the power supply

1. Pull out the batteries: see chapter 5.2 "Inserting and removing the batteries (05, 06)", page 43.
2. Immediately after use, remove the batteries from the appliance, charge and store in a frost-protected area. Insert the batteries into the appliance only immediately before the next use.

6 OPERATION

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Before switching on, check that all safety and protective devices are in place and functioning correctly!

WARNING! Risk of injury from abnormal operating conditions. Stop the lawn mower immediately. Remove the batteries. Then check that all moving parts have come to a complete standstill:

■ After a collision with a foreign object: Inspect the lawn mower for damage and repair it. Only then switch the lawn mower back on and put it into operation.
If the lawn mower vibrates abnormally: Inspect it for damage immediately. Repair or replace damaged parts. Look for loose parts and secure them again.

IMPORTANT! Hazard to damage the appliance. If the cutting blade jams, the motor may be overloaded.

■ Clean the mower mechanism after each use.
■ Set a higher cutting length.
- Cut taller grass and thicker vegetation gradually.

6.1 Setting the cutting height

CAUTION! Danger of lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Only adjust the cutting height when the motor is switched off and the mower mechanism is stationary.

6.1.1 Setting the cutting height (07)\*

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

1. Pull (07/a) release lever (07/1).

2. Pull the lawnmower up or push it down (07/b) at carrying handle (07/2). Read off the desired cutting height on the scale (07/3).

3. Release the release lever.

6.1.2 Setting the cutting height (08)\*\*

**: 46.6 Li SP comfort, 51.6 Li SP comfort

1. Pull adjustment lever (08/1) outwards to disengage it (08/a) and hold.

For a short lawn: Push the adjustment lever in the direction of the front wheel (08/b).
For a longer lawn: Push the adjustment lever in the direction of the grass catcher (08/b).
- Read off the desired cutting height on the scale (08/3).

1. Release the adjustment lever so that it engages at the required level.

6.2 Mowing with grass catcher (09, 10)

The appliance can be operated with and without a grass catcher.

Hooking in the grass catcher

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.
2. Raise baffle (09/1) (09/a).
3. Hook the grass catcher (09/2) into the holders (09/b).
4. Release the baffle.

Checking the fill level

The fill level indicator (10/1) is pressed upwards by the air stream when mowing (10/a). If the grass catcher (10/2) is full, the fill-level indicator is in contact with the grass catcher (10/b). The grass catcher must be emptied.

Unhooking and emptying the grass catcher

CAUTION! Danger of lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Only remove the grass catcher when the mower mechanism has stopped.

NOTE When emptying the grass collector, also clean the discharge holes of the fill level indicator so they keep functioning properly.

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.

2. Raise the baffle (09/1).

3. Lift the grass catcher (09/2) out of the holders and take off to the rear.

4. Empty the grass catcher.
5. Clean the air outlet holes of the fill level indicator.
6. Hook in the grass catcher (see above).

6.3 Starting and stopping the mower mechanism (11, 12)

Start the mower mechanism on level ground and not in long grass. The ground must be free of foreign objects such as stones, etc. Do not lift or tilt the appliance to start it.

IMPORTANT! Risk of damage to the appliance. The motor and mower mechanism can be damaged by repeatedly switching on and off.

■ Switch the motor on only when the mower mechanism has stopped.

i NOTE Permitted operating position: You stand behind the lawnmower and hold the handlebar with both hands.

Starting the mower mechanism

1. If you have not already done so: Switch on the power supply (see chapter 5.3 "Switching the power supply on and off (05, 06)", page 43).
2. Press the Start button (11/1, 12/1) and keep it pressed (11/a, 12/a).
3. Pull (11/a, 12/a) operator presence control (11/2, 12/2) towards handlebar (11/3, 12/3). Motor and mower mechanism are started.
4. Release the start button and keep holding the operator presence control.

NOTE The operator presence control does not lock in place. Hold it tight against the handlebar during the entire working period.

Stopping the mower mechanism

1. Release the operator presence control. It automatically returns to its starting position.
2. Wait for the mower mechanism to come to a standstill.
3. Switch off the power supply (see chapter 5.3 "Switching the power supply on and off (05, 06)", page 43).

CAUTION! Danger of cuts and lacerations. Danger of lacerations when reaching into the running mower mechanism.
■ Wait until the mower mechanism has come to a standstill.
■ Before all maintenance and care work: Switch off the appliance and wait until the mower mechanism has come to a standstill. Remove the battery.

6.4 Starting and stopping the wheel drive (13)\*\*

**: 46.6 Li SP comfort, 51.6 Li SP comfort

NOTE Wheel drive can only be engaged when the engine is running.

Engaging wheel drive

1. Switch on the appliance and start the motor (see chapter 6.3 "Starting and stopping the mower mechanism (11, 12)", page 45).
2. Press the engagement bar for the wheel drive (13/1) against the handlebar (13/2) and hold (13/a). The engagement bar for wheel drive does not engage.

Disengaging wheel drive

1. Release the engagement bar for wheel drive. It automatically moves to its initial position.

6.5 Checking the battery charge status (14, 15)

1. Press button (14/1, 15/1) briefly.
   ⇒ The LEDS (14/2, 15/2) light up or flash, depending on the battery charge status:

LEDs (green) Battery charge status

4 LEDs are lit. Battery fully charged.
3 LEDs are lit. Battery 75% charged.
2 LEDs are lit. Battery 50% charged.
1 LED is lit. Battery 25% charged.
4 LEDs flash. Battery flat.

NOTE The LEDs also signal error codes (see chapter 9.2 "Error codes and troubleshooting", page 50).

6.6 Adjusting the handlebar to your body size

6.6.1 Adjusting the handlebar (16)\*\*

**: 38.6 Li comfort

1. On both sides: Open (16/a) quick-release lever (16/1).
2. Turn handlebar (16/2) to the position 1 or 2 (16/b).
   Note: The third step is used for folding down the handlebar.
3. On both sides: Close (16/c) the quick-release lever.

6.6.2 Adjusting the handlebar (17)\*\*

**: 43.6 Li comfort

1. On both sides: Turn (17/a) twist knob (17/1) to the open padlock symbol.
2. Turn handlebar (17/2) to the position 1 or 2 (17/b).
   Note: The third step is used for folding down the handlebar.
3. On both sides: Turn (17/c) the twist knob to the closed padlock symbol.

6.6.3 Adjusting the handlebar (18)\*\*\*

***: 46.6 Li SP comfort, 51.6 Li SP comfort

1. On both sides: Turn (18/a) twist knob (18/1) by 90°.
2. Turn (18/b) handlebar (18/2) to one of the two positions (18/3).
3. On both sides: Turn (18/c) the twist knob back by 90°.

6.7 Folding the handlebar in and out

After folding in the handlebar, the appliance can be turned onto its side to allow the mower mechanism to be easily cleaned. Folding in the handlebar saves space when storing the appliance.

CAUTION! Danger of crushing. Fingers or other parts of the body can be crushed between the loose parts of the handlebar.

■ Hold the loose parts of the handlebar tightly.
- Do not hold any fingers or other parts of the body between the loose parts.

6.7.1 Folding the handlebar in and out (19)\*, \*\*

*: 34.6 Li comfort

**: 38.6 Li comfort, 43.6 Li comfort

Folding in the handlebar

1. On both sides: Loosen (19/a) handlebar fastener (19/1) on the housing until the handlebar can be turned forwards.

2. Fold (19/b) handlebar (19/2) completely to the front.

3. On both sides: Loosen upper quick-release levers (19/3).

4. Fold down (19/c) upper handlebar (19/4).

Folding out the handlebar

Proceed in the reverse order.

6.7.2 Folding the handlebar in and out (20)\*\*\*

***: 46.6 Li SP comfort, 51.6 Li SP comfort

Folding in the handlebar

1. On both sides: Turn twist knob (20/1) by 90°.
2. Fold (20/a) handlebar (20/2) completely to the front.

Folding out the handlebar

Proceed in the reverse order.

6.8 Mulching with mulching insert (21, 22)\*\*, \*\*\*

**: 38.6 Li comfort, 43.6 Li comfort
***: 46.6 Li SP comfort, 51.6 Li SP comfort
When mulching, the cuttings are not collected but remain on the lawn. The mulch protects the ground from drying out and supplies it with nutrients. The best results are achieved through regularly cutting back by approx. 2 cm. Only new grass with soft leaf tissue rots quickly.

Grass height before mulching: max. 8 cm
■ Grass height after mulching: min. 4 cm

i NOTE Adjust the stepping speed of the mulching, do not go too quickly.

Installing mulching insert (21)

CAUTION! Danger of cuts and lacerations. Danger of lacerations when reaching into the running mower mechanism.

■ Switch off the appliance before inserting or removing the mulching insert.

IMPORTANT! Danger of damage to the appliance. If the mulching insert does not engage, the mulching insert and mower mechanism can be damaged.

■ Make sure that the locking mechanism engages.

1. Switch off the appliance (see chapter 5.3 "Switching the power supply on and off (05, 06)", page 43).

2. Unhook the grass catcher (see chapter 6.2 "Mowing with grass catcher (09, 10)", page 44).

3. Raise baffle (21/1) (21/a).

4. Push (21/b) mulching insert (21/2) into discharge chute (21/3) until the lock engages.

Removing mulching insert (22)

1. Switch off the appliance.
2. Raise baffle (22/1) (22/a).
3. Release (22/b) lock (22/2) of the mulching insert by gripping handle (22/3) firmly.
4. Pull out the mulching insert (22/c).

6.9 Mowing with side discharge unit (23)\*\*\*

***: 46.6 Li SP comfort, 51.6 Li SP comfort

CAUTION! Danger of cuts and lacera-

tions. Danger of lacerations when reaching into the running mower mechanism.

■ Only install or remove the side discharge insert when the motor and mower mechanism have come to a standstill.

Installing the side discharge insert

1. Switch off the appliance and pull out the battery.
2. Remove the grass catcher.
3. Fold out (23/a) cover flap (23/1) for the side discharge and hold it.
4. Push in (23/b) side discharge insert (23/2) and hook lugs (23/3) under the top of the side discharge.
5. Slowly close the cover flap. The cover flap prevents the side discharge insert from falling out.
6. Insert the battery and switch on the appliance again.

Removing the side discharge insert

1. Switch off the appliance and pull out the battery.
2. Fold out the cover flap for the side discharge and hold it.
3. Unhook and pull out the side discharge insert.
4. Close the cover flap.
5. Insert the battery and switch on the appliance again.

6.10 Mowing without grass catcher (24)\*\*\*

***: 46.6 Li SP comfort, 51.6 Li SP comfort

The appliance can also be operated without grass catcher. The baffle must be opened slightly so that the discharge channel does not clog.

1. Make sure that the appliance is switched off and the mower mechanism has come to a standstill.
2. Raise baffle (24/1) (24/a).
3. Pull up (24/b) baffle prop (24/2) until it engages.
4. Release the baffle.

7 WORK INSTRUCTIONS

Observe the safety instructions!

NOTE Comply with the local regulations as when a lawnmower may be operated.

• Watch out for objects in the grass and remove them from the working area.
  ■ Mow only when visibility is good.
  ■ Mow only with a sharp cutting blade.
  ■ Steer the appliance only by the handlebar.
  ■ Move the appliance only at walking speed.
  ■ Always move the appliance across the slope. Do not mow up or down the slope, or on slopes with a gradient of more than 10^ . Exercise particular care when changing the working direction.

Cutting performance or operating time of the batteries

The cutting performance or the area that can be mowed depends on the characteristics of the lawn. Factors such as the length of the grass, the grass density, the selected cutting height and wet grass affect the cutting performance.
An optimum operating time is achieved by frequent mowing and keeping the grass short.
■ Frequently switching the lawnmower on and off during mowing reduces the cutting performance as do non-fully charged batteries.
Engaging wheel drive ^a) reduces the cutting performance and the operating time of the batteries.
To optimise the cutting performance, we recommend that you mow the lawn frequently, set a high cutting height and move the appliance at walking speed.

NOTE Additional batteries can be purchased prolong the operating time.

a) 46.6 Li SP comfort, 51.6 Li SP comfort

Tips for mowing

• Maintain a constant cutting height of 3–5 cm; do not mow the lawn to less than half its original height.
• Do not overload the lawnmower! If the engine speed drops noticeably because of long, thick grass, increase the cutting height and mow in several passes.
  Wind and sun can dry out the lawn after mowing, so it is better to mow in the late afternoon.

8 MAINTENANCE AND CARE

⚠️ DANGER! Risk of injury or death due to improper maintenance. Maintenance work carried out by unqualified persons and the use of non-approved spare parts, as well as removing or modifying safety devices can result in serious injuries and even death during operation of the appliance.

• Do not remove or deactivate any safety installations.
  ■ Use only approved OEM spare parts.
  ■ Ensure through regular and proper maintenance that the appliance is in a clean and functional condition at all times.

WARNING! Danger of cuts and lacerations. Danger of cuts and lacerations when reaching into sharp-edged, moving appliance parts and into cutting tools.

Before maintenance, care and cleaning work, always switch off the appliance. Remove the safety key, and remove the batteries!
■ Always wear protective gloves during maintenance, care and cleaning work.

WARNING! Risk of injury during maintenance work. Improper maintenance can result in serious injury and damage to the appliance.

■ Have repairs to the appliance carried out only by qualified companies.

8.1 Regular maintenance work

■ Make sure that all nuts, bolts and screws are tightened and the appliance is in a safe working condition.
- Check the grass collector regularly for correct operation and wear.

8.2 Cleaning the appliance and mower mechanism

IMPORTANT! Danger from water. Water in the appliance causes short-circuits and destroys electrical components.

■ Do not spray the appliance with water.
■ Only use a broom or a brush for cleaning.

1. Stop the motor.
2. Pull out the batteries.
3. Unhook the grass catcher.
4. Tilt the appliance and clean the mower mechanism.

8.3 Checking and renewing the cutting blade

WARNING! Severe injuries due to blade parts being flung out. A worn, cracked or damaged cutting blade can break, and its parts can become dangerous projectiles.

■ Regularly check the cutting blade for damage.
- Do not use the lawnmower if the cutting blade is worn or damaged.
- Have blunt or damaged cutting blades sharpened or replaced only by one of the manufacturer's service centres or an authorised specialist company.
- When servicing the cutting blade, note that the cutting blade can move even when the power source is switched off.
■ Be careful when adjusting the machine to avoid trapping fingers between the moving cutting blades and fixed parts of the machine.
■ To avoid vibrations, the cutting blade and blade bolt must always be replaced together.
■ Resharpened cutting blades must be balanced. Unbalanced cutting blades cause strong vibrations that can damage the mower.

8.4 Repair work

WARNING! Risk of injury during repair work. Improper repairs can lead to serious injuries and damage to the appliance.

■ Have repair work performed by the manufacturer's service centres and authorised specialist companies only!

In the following cases, contact one of the manufacturer's service centres:

■ Motor no longer starts.
■ Appliance has run onto an obstacle.
■ Cutting blade and/or motor shaft are bent.

■ Appliance vibrates and does not run smoothly.
■ Battery has leaked or is damaged.

9 HELP IN CASE OF MALFUNCTION

CAUTION! Risk of injury. Sharp-edged

and moving appliance parts can lead to injury.

■ Always wear protective gloves during maintenance, care and cleaning work!

9.1 Correcting appliance and handling faults

NOTE For malfunctions that are not listed in table or that you cannot resolve yourself, ease contact our customer service.

Malfunction Cause Remedy
Motor does not start. Batteries are missing or not seated correctly.		Insert the batteries correctly.
	Batteries are flat. Charge the batteries.
	Cutting blade is blocked. 1. Thoroughly clean cutting blade and mower deck. The cutting blade must rotate freely.2. Start the lawn mower on short grass.
	Cables or switches are defective.	Do not operate the appliance! Contact one of the manufacturer's service centres.
Motor loses power. Batteries are flat. Charge the batteries.
	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
	Too much grass in the discharge channel or mower deck.	1. Thoroughly clean cutting blade and mower deck.2. Start the lawn mower on short grass.
Motor stops during mowing.	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
	Motor is overloaded. Switch off the lawn mower, set down on level ground or short grass and restart.
Grass catcher is not filled sufficiently.	Grass is wet. Allow the lawn to dry.
	Grass catcher is clogged. Clean the grid of the grass catcher.
	Too much grass in the discharge channel or mower deck.	■ Thoroughly clean cutting blade and mower deck.■ Set the cutting height higher.
	Cutting blade is blunt. Have the cutting blade sharpened at one of the manufacturer's service centres.
Grass falls out of the mower deck.	Grass catcher is full. Empty the grass catcher and clean the discharge channel.
Battery operating hours drop significantly.	Cutting height is too low. Set the cutting height higher.
	Grass is too long or too wet.	■ Allow the grass to dry.■ Set the cutting height higher.
Malfunction Cause Remedy
	Mowing speed is too high.	■ Reduce the mowing speed.■ Clean the discharge channel and mower deck. The cutting blade must rotate freely.
	Grass catcher is full. Empty the grass catcher and clean the discharge channel.
	The service life of the batteries has expired.	Replace the batteries. Use only genuine accessories from the manufacturer.
Batteries cannot be charged.	Battery contacts are soiled. Clean the battery contacts with a non-metallic object and spray with a contact spray.Caution: Do not short-circuit the battery contacts with a metallic object!
	Batteries or charger defective. Order replacement parts from the manufacturer.
	Batteries are too hot. Allow the batteries to cool down.

9.2 Error codes and troubleshooting

Faults are indicated by different flashing signals of the 4 green LEDs:

Error code Cause Remedy
Flashing 2x Appliance is overloaded.		■ Set the cutting height higher.■ Drive more slowly.■ Take a short break.■ Mow the grass in several passes.
Flashing 4x Temperature too high or too low at:■ Appliance■ Batteries■ Control unit		Appliance and batteries:1. Switch off.2. Allow to cool down or warm up.3. Switch on and use within the operating temperature range.
Flashing 6x	■ Electric voltage or current too low■ Appliance and batteries too hot	■ Check the battery charge status. Charge if too low.■ Switch off the appliance and batteries and allow to cool down.
Flashing 10x Other faults	Contact one of the manufacturer's service centres or your dealer.

10 TRANSPORT

10.1 Transporting the appliance

IMPORTANT! Risk of damage to the mower mechanism. At the lowest cutting height, the mower mechanism can be damaged by driving over steps, edges or kerbs.

■ Set the cutting height to the highest level for transport.

1. Stop the mower mechanism and wait until it has come to a standstill.
2. Set the highest cutting height.

Transporting the appliance between two working areas

■ Move the appliance to the working area with the mower mechanism set to the highest cutting height.
- Engage the wheel drive ^a) for easier manoeuvring.
■ Use the handles to carry the appliance (see chapter 3.6 "Product overviews", page 41).
a) 46.6 Li SP comfort, 51.6 Li SP comfort

Transporting the appliance in a vehicle

■ Remove the battery.
■ Fold down the handlebar.
- Secure the appliance in the vehicle against falling over and slipping.
■ Protect the appliance against collisions with loose objects.
■ Do not place objects on the appliance.

10.2 Transport

Perform the following measures before transporting the appliance:

1. Switch off the appliance.
2. Remove the battery from the appliance.
3. Pack the battery properly (see below).

i NOTE The nominal energy of the rechargeable battery is more than 100 Wh. Therefore, observe the following transport instructions.

The Li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:

The rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes.

■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification.

In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law. In the case of non-compliance, severe penalties can be imposed on the sender and possibly the transporter.

Additional notes on transport and shipment

■ Only transport or send the li-ion rechargeable battery in an undamaged condition.
For transporting the rechargeable battery, only use the original cardboard box or a suitable hazardous goods cardboard box (not required for rechargeable batteries with a nominal energy less than 100 Wh).
■ Tape off exposed rechargeable battery contacts to avoid a short circuit.
- Secure the rechargeable battery against shifting in the packaging to avoid damage to the rechargeable battery.
■ Ensure the correct marking and documentation of the shipment for transport or shipping (e.g. by parcel service or freight forwarding).
- Check in advance that transport with the selected service provider is possible and indicate the shipment.

We recommend involving a hazardous goods specialist in preparation of the shipment. Also heed any further national regulations.

11 STORAGE

■ Thoroughly clean the appliance after each use and – if present – attach all covers.
■ Perform the required maintenance works.
■ Store the appliance in a dry, lockable place out of the reach of children.

11.1 Storing the rechargeable battery lawnmower

CAUTION! Risk of injury during storage. There is a risk of injury from sharp parts on the stored appliance.

■ Store the appliance out of the reach of children and unauthorised persons.
■ Always remove the battery before storing the appliance.

1. Switch off the appliance.
2. Pull out the battery.
3. Empty the grass catcher and clean the discharge channel.

4. Thoroughly clean the appliance.

5. Allow the motor and the whole appliance to cool down.

6. Apply a thin coat of oil or silicon to all metal parts for corrosion protection.

7. Fold down the handlebar.

8. Store the appliance in a dry, clean location protected from frost.

■ Cover with a breathable tarpaulin to protect against dust.
- Do not use plastic film in order to avoid the accumulation of moisture.
NOTE! Storage temperature of the lawnmower: see Technical data.

11.2 Storing the rechargeable battery and charging unit

⚠️ DANGER! Danger of explosion and fire! Persons will be fatally or severely injured if the rechargeable battery explodes because it was stored in front of naked flames or heat sources.

■ Store the rechargeable battery in cool and dry conditions, but not in front of naked flames or heat sources.

i NOTE When charging, the rechargeable battery is protected from overcharging due to automatic detection of the charge status and thus can remain connected to the charging unit for some time, but not permanently.

NOTE Heed the separate operating instructions for the rechargeable battery and for the charging unit.

■ Store the battery in a dry, frost-free place at an ambient temperature between 0°C and 25°C and with a charge status of approx. 40 - 60%.
- Do not store the battery in the vicinity of metallic objects or of objects containing acid to avoid the risk of short-circuit.

12 DISPOSAL

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, chargers that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Information on the German Electrical and Electronic Equipment Act

■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately!

■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.

The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish. Electrical and electronic appliances can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) if dealers are obliged to take them back or offer this voluntarily.

These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

Information on the German Battery Act (BattG)

■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.

For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or assembly instructions.

- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. Return is limited to the handover of customary household quantities.

Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.

The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish.

In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:

■ Hg: battery contains more than 0.0005% mercury
Cd: battery contains more than 0.002% cadmium
Pb: battery contains more than 0.004% lead Rechargeable batteries and batteries can be handed in at the following places at no charge:

■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)

These statements apply only to batteries and rechargeable batteries sold in the countries of the European Union that are subject to European Directive (EU) 2023/1542. Different provisions may apply to the disposal of batteries and rechargeable batteries in countries outside the European Union.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

13 TECHNICAL DATA

Technical data: see table of technical data at the beginning of these operating instructions.

* Notes on vibration emission and noise emission values:

The vibration emission and noise emission values given were measured according to a standardised test method and can be used to compare one machine with another.
The vibration emission and noise emission values given can also be used for an initial assessment of the exposure (vibration exposure level).
The vibration emission and noise emission values may differ from the given values during actual use of the machine, depending on how the machine is used.
- Observe the safety precautions in the Safety chapter. Try to keep the vibration load as low as possible. Exemplary measures for reducing the vibration load are the wearing of gloves when using the machine and limitation of the working time. All parts of the operating cycle must be taken into account (e.g. times when the machine is switched off and those in which it is switched on but is running without load).

14 AFTER-SALES/SERVICE

In the event of questions about warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. This can be found on the Internet at: www.alko-garden.com/service-contacts

Further information on spare parts can be found at:

www.alko-garden.com/spareparts

15 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

16 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box xxxxxx(x) on the spare parts card

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

3 PRODUCTOMSCHRIJVING

46.6 Li SP comfort \$1.6 Li SP comfort

5 INGEBRUIKNAME

5.1 Accu's opladen

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

c) 38.6 Li comfort, 43.6 Li comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 MISE EN SERVICE

5.1 Charger les batteries

c) 38.6 Li comfort, 43.6 Li comfort

Installation 34.6 Li comfort

Installation 38.6 Li comfort

Installation 43.6 Li comfort

Installation 46.6 Li SP comfort \$1.6 Li SP comfort

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

c) 38.6 Li comfort, 43.6 Li comfort

Installation 34.6 Li comfort

Installation 38.6 Li comfort

Installation 43.6 Li comfort

Installation 46.6 Li SP comfort \$1.6 Li SP comfort

5 MESSA IN FUNZIONE

5.1 Ricarica delle batterie

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 ZAGON

5.1 Polnjenje akumulatorskih baterij

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

14 SERVISNA SLUŽBA/SERVIS

46.6 Li SP comfort \$1.6 Li SP comfort

5 STAVLJANJE U POGON

5.1 Punjenje akumulatora

**: 46.6 Li SP comfort, 51.6 Li SP comfort

1. Polugu za podešavanje (08/1) za deblokadu gurnite prema van (08/a) i držite.

Kod niže trave: Pomaknite polugu za po- dešavanje prema prednjem kotaču (08/ b).
Kod više trave: Pomaknite polugu za podešavanje prema košari za sakupljanje trave (08/b).
Očitajte željenu visinu košnje na skali (08/3).

1. Otpustite polugu za podešavanje tako da se uglavi u željenom stupnju.

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 ПУШТАЊЕ У ПОГОН

5.1 Пуњење батерија

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 URUCHOMIENIE

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 UVEDENÍ DO PROVOZU

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 UVEDENIE DO PREVÁDZKY

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

1. Potiahnite (07/a) odblokovaciu páku (07/1).

2. Rukoväťou (07/2) kosačku zdvíhajte smerom nahor alebo tlačte nadol (07/b). Pritom požadovanú výšku kosenia odčítajte na stupnici (07/3).

3. Uvol'nite odblokovaciu páku.

**: 46.6 Li SP comfort, 51.6 Li SP comfort

1. Na odblokovanie potiahnite nastavovaciu páku (08/1) smerom von (08/a) a podržte ju.

**: 46.6 Li SP comfort, 51.6 Li SP comfort

i UPOZORNENIE Pohon kolies je možné pri-pojit' len, ak motor beží.

Pripojenie pohonu kolies

46.6 Li SP comfort \$1.6 Li SP comfort

5 ÜZEMBE HELYEZÉS

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 IBRUGTAGNING

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

i BEMAERK Hjuldrevet kan kun tilkobles, mens motoren er i gang.

c) 38.6 Li comfort, 43.6 Li comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 START

5.1 Ladda batterier

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 IGANGSETTING

5.1 Lade batteripakkene

Batteriene er delvis ladet. Lad opp batteriene helt før første gangs bruk. Batteriene kan lades i enhver ladetilstand. Avbrutt lading skader ikke batteriene.

**: 46.6 Li SP comfort, 51.6 Li SP comfort

1. Dra justeringsspaken (08/1) til opplåsing litt ut (08/a) og hold den der.

**: 46.6 Li SP comfort, 51.6 Li SP comfort

8 VEDLIKEHOLD OG PLEIE

46.6 Li SP comfort \$1.6 Li SP comfort

5 KÄYTTÖÖNOTTO

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 KASUTUSELEVÖTT

5.1 Akude laadimine

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 PALEIDIMAS

**: 46.6 Li SP comfort, 51.6 Li SP comfort

c) 38.6 Li comfort, 43.6 Li comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 EKSPLUATĀCIJAS SĀKŠANA

5.1 Akumulatoru uzlāde

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

5 PUNEREA ÎN FUNCTIUNE

Introducerea accumulatorilor

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

*: 34.6 Li comfort, 38.6 Li comfort, 43.6 Li comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

46.6 Li SP comfort \$1.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

**: 46.6 Li SP comfort, 51.6 Li SP comfort

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone]

[e-mail] | www.alko-garden.uk
