Black&Water 2150 - Grill plate CECOTEC - Free user manual and instructions

USER MANUAL Black&Water 2150 CECOTEC

Exterior view of a black rectangular flat-screen grater with control knob (no text or symbols visible)

Safety instructions 6

1. Parts and components 25

2. Before use 25

3. Operation 25

4. Cleaning and maintenance 26

5. Technical specifications 26

6. Disposal of old electrical appliances 27

7. Technical support and warranty 27

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions should be closely followed when using the appliance.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• To reduce the risk of electric shock, this appliance has been equipped with a grounded plug. If the plug does not fit fully into the wall outlet, contact a qualified electrician. Do not modify the plug in any way, nor use a power adapter.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• WARNING: Never immerse the appliance in water. Do not reach into the water!
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• WARNING: Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Do not twist, bend, strain, or damage the power cord. Protect it from sharp edges and heat sources. Do not let it touch hot surfaces. Do not let the cord hang over the edge of the working surface or counter top.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cord, to disconnect it from the outlet.

• This product is designed only for household use. It is not suitable for commercial or industrial use. Do not use outdoors.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.
• Keep this appliance and its power cord out of reach of children under the age of 8.
• Place the appliance on a dry, stable, flat, heat-resistant surface.
• Do not use the appliance under the following circumstances:
• On or near a gas or electric hob, in heated ovens, or near open flames.
• On soft surfaces (such as carpets) or where it may tip over during use.
• Outdoors or in areas with high humidity levels.

• Near or below flammable materials (such as curtains, cloths, wall hangings, tea towels, etc.) or under wall cabinets.

• To ensure the correct operating of the device, cleaning and maintenance tasks must be carried out according to this instruction manual. Turn off and unplug the appliance before moving and cleaning it. Allow it to completely cool down before cleaning or storing it.

• Cleaning and user maintenance must not be carried out by

children unless they are over 8 years old and are under supervision.

• The temperature of accessible surfaces may be high while in use and could cause burns. Do not touch hot surfaces while in use or immediately after. Use its handles.
• Store the appliance and its instruction manual in a safe and dry place when not in use.
• No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

• This product includes a safety package to protect it during transport. Unpack the appliance and keep the original packaging and materials in a safe place.
• It will help prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Clean the cooking plate with a wet sponge or cloth.
• Dry them with a cloth or paper towel.
• For optimal results, spray or wipe the griddle with some oil.

Note

You may notice a slight burning smell or smoke when using the sandwich maker for the first time, caused by the excess of lubricants from the manufacturing process. This does not affect the safety of your appliance.

3. OPERATION

1. Before using your electric grill, clean the cooking surface. If necessary, use a wet cloth with a little bit of detergent.
2. Make sure the electric grill is properly plugged.
3. Select the desired temperature with the temperature control knob; it will take a few minutes to reach the temperature. The light indicator will turn on.
4. When the light signal turns off, the electric grill has reached the desired temperature and is ready to cook.
5. While in use, the signal light will turn off and on. That means that the thermostat is working to reach the desired temperature, or that the temperature has been reached and, therefore, the thermostat stops working.
6. Cooking time will vary depending on the type of food to be cooked.

ENGLISH

1. When the food is ready, turn off the appliance and remove the food with a wooden or silicone spatula, as a metal spatula could damage the product.
2. When you have finished using the grill, please unplug the appliance from the mains supply and from the temperature knob.

Warning

The electric grill will get very hot; avoid contact once you have finished cooking. Let it cool down for a few minutes.

4. CLEANING AND MAINTENANCE

• Let the grill cool down before cleaning it.
• Unplug the temperature control knob.
• Let it dry.
• Assemble all components and use again.

- Clean the electric grill with a sponge and soap. Do not submerge the temperature control knob or the power cord in water.

5. TECHNICAL SPECIFICATIONS

Product: 03204

Product reference: Black & Water 2150

Rated power: 1820 - 2150 W

Voltage and frequency: 220 V-240 V, 50 Hz

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU and 2006/66/CE on Waste Electrical and Electronic Equipment (WEEE) specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your

obligation to dispose of the appliance correctly.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

ENGLISH

7. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• If the product has been disassembled, modified, or repaired by persons not authorised by the Cecotec official Technical Support Service.
• Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defect of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts, designs, photographs and illustrations in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Made in China | Designed in Spain

6. RECYKLING URZĄDZEŃ ELEKTRYCZNYCH I ELEKTRONICZNYCH

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

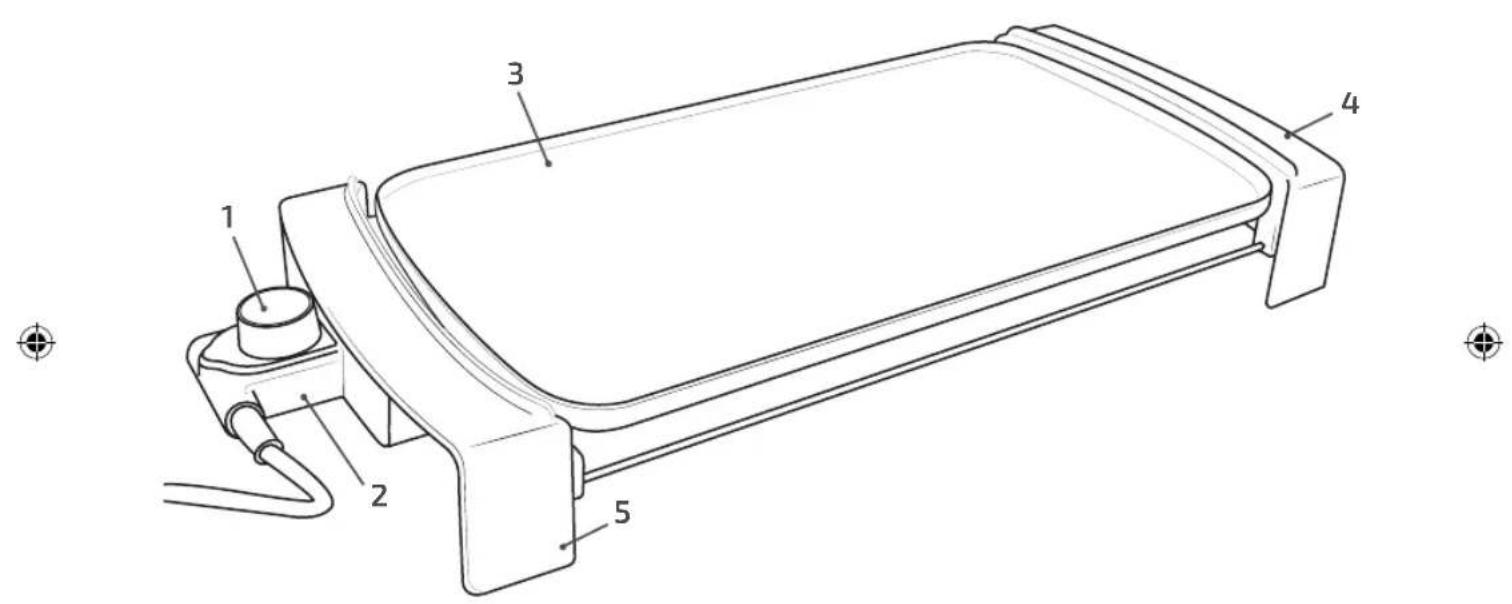

Technical diagram of a rectangular device with numbered components labeled 1 to 5

Fig./Img./Abb./Afb./Rys./Obr.1

www.cecotec.es

Quart de Poblet, Valencia (Spain)

IC01210913
