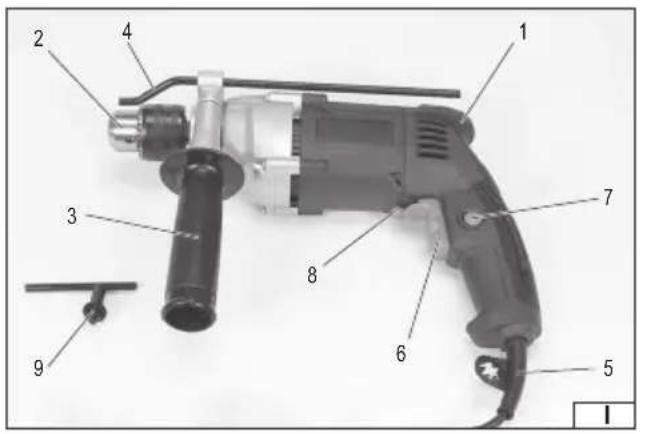

1. drive body with handle
2. self-centering drill chuck
3. additional handle
4. drilling depth limiter
5. power cord with plug
6. electric switch with speed control
7. switch lock
8. direction of rotation switch
9. drill chuck key

DE

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

A metal drill is an ordinary power tool, class II insulation, designed for drilling holes in metals using appropriate drills with a cylindrical grip. The drill has the function of smooth regulation of the spindle speed and changing the direction of rotation. It can also be used to screw in and unscrew screws using screwdriver tips available on the market. Correct, reliable and safe operation of the tool depends on proper use, therefore:

Before using the tool, read the entire manual and keep it.

The supplier is not liable for any damage resulting from failure to comply with the safety regulations and recommendations of this manual.

DRILL EQUIPMENT

The factory packaging should contain:

• drill
• additional handle
• drilling depth limiter
• drill chuck key

Note! The tool is not equipped with drills!

TECHNICAL PARAMETERS

Parameter Unit of measurement Value
Catalogue number YT-82048
Mains voltage [V~] 220 - 240
Network frequency [Hz] 50/60
Rated power [W] 650
Rated speed [min]	^-1 0 - 1600
Max drilling diameter in steel [mm] 20
Tool holder size [mm] 13
Mass	[kg]	1.9
Noise level
- sound pressure L_pA + K	[dB (A)]	75.0 ± 5.0
- sound power L_kA + K	[dB (A)]	83.0 ± 5.0
Insulation class		II
Vibration level: main/additional handle	[m/s2]	6.5 ± 1.5 / 5.0 ± 1.5
Degree of protection		IPX0

The declared noise emission value has been measured using a standard test method and can be used to compare one tool with another. The declared noise emission value can be used in a preliminary exposure assessment.

The declared vibration total value has been measured using a standard test method and can be used to compare one tool with another. The declared vibration total value can be used in a preliminary assessment of exposure.

Note! Vibration emission during tool operation may differ from the declared value depending on how the tool is used.

Note! Safety measures to protect the operator must be defined that are based on an assessment of exposure in the actual conditions of use (including all parts of the operating cycle, such as times when the tool is switched off or idle and activation time).

GENERAL POWER TOOL SAFETY WARNINGS

Warning! Please read all safety warnings, illustrations and specifications provided with this power tool. Failure to follow them may result in electric shock, fire or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" used in the warnings refers to all corded and cordless electric power tools.

Workplace safety

Keep your work area clean and well lit. Clutter and poor lighting can cause accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or fumes.

Power tools create sparks which may ignite the dust or fumes.

Do not allow children or bystanders into the work area. Loss of concentration can cause loss of control.

EN

Electrical safety

The plug on the electric cord must match the outlet. Do not modify the plug in any way. Do not use any plug adapters with grounded power tools. An unmodified plug that matches the outlet reduces the risk of electric shock.

Avoid body contact with grounded surfaces such as pipes, radiators, and refrigerators. Grounding your body increases the risk of electric shock.

Do not expose power tools to precipitation or moisture. Water or moisture entering a power tool will increase the risk of electric shock.

Do not overload the power cord. Do not use the power cord to carry, pull, or disconnect the plug from the wall outlet.

Keep the power cord away from heat, oil, sharp edges, and moving parts. A damaged or entangled power cord increases the risk of electric shock.

When working outdoors, use extension cords designed for outdoor use. Using an extension cord designed for outdoor use reduces the risk of electric shock.

If using a power tool in a damp environment is unavoidable, a residual current device (RCD) should be used as protection against supply voltage. The use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol or medication. Even a moment of inattention while operating a power tool can result in serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, non-skid safety shoes, hard hats, and hearing protection reduces the risk of serious personal injury.

Prevent accidental starting. Ensure that the power switch is in the “off” position before connecting to power source and/or battery pack, picking up or carrying the power tool. Carrying a power tool with your finger on the switch or energizing a power tool that has the switch in the “on” position can result in serious injury.

Remove any wrench or key that is used to adjust the power tool before turning it on. A wrench or key left attached to a rotating part of the power tool may result in serious injury.

Do not overreach or overextend. Maintain proper posture and balance at all times. This will make it easier to control the power tool in the event of unexpected situations while working.

Dress appropriately. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts of the power tool. Loose clothing, jewelry, or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction or dust collection facilities, ensure that these are connected and used correctly. The use of dust extraction reduces the risk of dust-related hazards.

Don't let the experience gained from frequent use of the tool cause you to become careless and ignore safety rules.

Careless action can cause serious injuries in a split second.

Use and care of power tools

Do not overload the power tool. Use the correct power tool for the selected application. The correct power tool will provide better and safer work when used for the designed load.

Do not use a power tool if the power switch does not turn it on and off. A tool that cannot be controlled with the power switch is dangerous and must be repaired.

Disconnect the plug from the power outlet and/or remove the battery pack if detachable from the power tool before making any adjustments, changing accessories, or storing the tool. Such precautions will prevent the power tool from being switched on accidentally.

Store the tool out of the reach of children, do not allow persons unfamiliar with the power tool or these instructions to use the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. Any damage should be repaired before using the power tool. Many accidents are caused by poorly maintained tools.

Cutting tools should be kept clean and sharp. Properly maintained cutting tools with sharp edges are less likely to bind and are easier to control during operation.

Use power tools, accessories and attachments etc. in accordance with these instructions, taking into account the type and conditions of work. Use of tools for work other than those designed may result in a hazardous situation.

Keep handles and gripping surfaces dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow safe operation and control of the tool in hazardous situations.

Repairs

Have your power tool repaired only by authorized service centers, using only original spare parts. This will ensure proper safety of your power tool.

EN

DRILL SAFETY WARNINGS

Safety instructions for all activities

Wear hearing protection when hammer drilling. Exposure to noise can cause hearing loss.

Use auxiliary handles. Loss of control can result in personal injury.

Hold the tool properly before use. This tool produces high torque and without proper grip during operation, loss of control may cause personal injury.

Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own wire. The cutting tool contacting a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.

Safety Instructions When Using Long Drill Bits

Never operate at a higher RPM than the maximum RPM of the drill. At higher speeds, the drill is likely to bend if allowed to rotate freely without contact with the workpiece, causing personal injury.

Always start at low speed and when the tip of the drill bit is in contact with the workpiece. At higher speeds the drill bit will likely bend if allowed to rotate freely without contact with the workpiece, causing personal injury.

Apply pressure only in the direction of the drill axis and do not apply excessive pressure. The drill may bend, causing breakage or loss of control, causing personal injury.

INSTALLATION OF EQUIPMENT ELEMENTS

CAUTION! Accessories may only be mounted when the power supply is disconnected. Pull the tool cable plug out of the power socket!

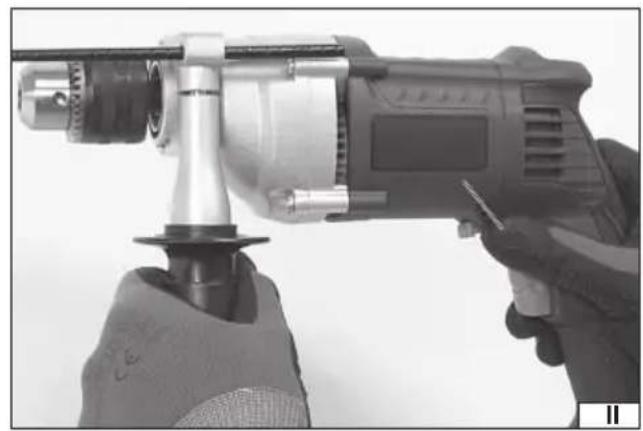

Installing the additional handle (II)

Attach the drill chuck clamp to the drill body, select the grip position in such a way as to ensure the safest work. The grip position should be selected so that it is possible to fully counteract the torque directed against the direction of rotation of the drill chuck. Such a torque is generated during normal work, but it reaches its highest value when the drill is jammed in the drilled material. Secure the grip position by firmly and securely tightening the additional grip handle.

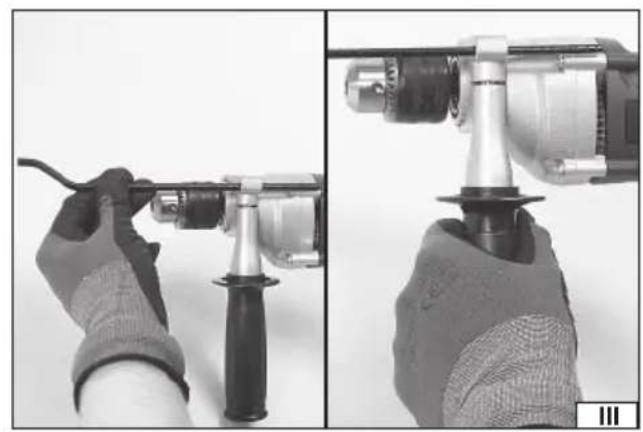

Installing the drilling depth limiter (III)

Insert the limiter rod through the hole in the additional handle clamp. The limiter position should be secured by tightening the additional handle clamp.

PREPARING FOR WORK

Before starting work, check that the housing body and the connecting cable with the plug are not damaged. If any damage is found, further work is prohibited.

Attention! All activities related to mounting and replacing working tools, mounting covers and guides, adjustments, etc. should be carried out with the power supply voltage of the drill switched off, therefore before starting these activities: Unplug the tool cable from the mains socket!

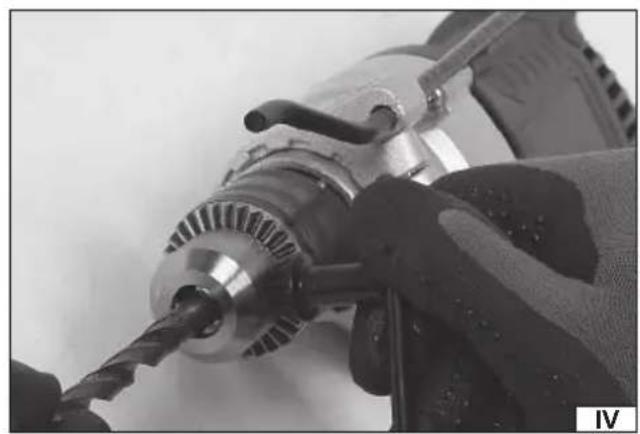

Fixing drills in the drill chuck (IV)

Be sure to select the appropriate cylindrical shank drill for the job.

Insert the drill into the holder and tighten each of the 3 holes with a key so that it is securely and tightly fastened in the holder. Then remove the key from the mounting hole.

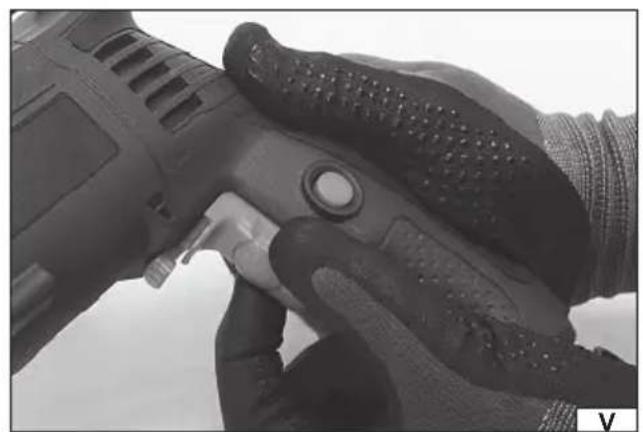

Speed control (V)

The drill is equipped with smooth speed control. The speed control knob is used. Turning the knob in the direction marked with the „+” symbol increases the speed, turning it in the opposite direction decreases the speed. Turning the knob regulates the range of the switch movement, which translates into the maximum speed value. Gradual pressing of the switch speeds up the engine speed.

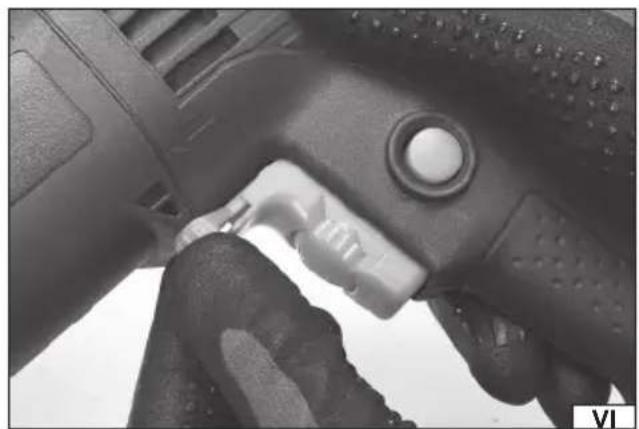

Setting the direction of rotation (VI)

Set the direction of rotation switch to the R (clockwise) or L (anti-clockwise) position.

Attention! The direction of rotation can only be changed when the supply voltage is disconnected!

Preparatory activities for work

Before starting work:

Secure the workpiece in a vice or with clamps.

EN

Use tools that are appropriate for the job at hand. Keep them sharp and in good condition.

Put on work clothes and eye and hearing protection.

Insert the drill plug into the electrical outlet.

Hold the drill with both hands on the handle and the additional handle

Adopt a confi dent and stable stance.

Turn on the drill by pressing the electric switch with your finger

Caution! If you notice any suspicious noises, crackling sounds, a suspicious smell, etc., immediately turn off the drill and remove the plug from the power outlet.

USING THE TOOL

Using right or left rotation direction

Use clockwise rotation when drilling with commonly used right-handed drills.

Use left-hand rotation when a right-hand drill becomes jammed in the material or when removing screws.

When removing screws, use minimum rotation speed.

Using the switch lock

It is recommended to use the switch lock for long-term drilling (e.g. when drilling in concrete, masonry, etc.). To do this, with the switch pressed, press the lock button with your thumb and release the switch.

To deactivate the lock, simply press the electric switch.

Drilling in metals

Always securely clamp the workpiece.

In the case of thin sheet metal, it is recommended to place a piece of wood under it to avoid unwanted bends, etc. Then mark the places where the holes are to be made with a center punch and start drilling. Use drills for steel. When drilling in white cast iron, it is recommended to use carbide-tipped drills. When drilling larger holes, it is recommended to make a smaller pilot hole first. When drilling in steel, use machine oil to cool the drill. For aluminum, use turpentine or paraffin as a coolant.

When drilling brass, copper or cast iron, do not use coolants. To cool, remove the drill bit from the material frequently to allow it to cool.

Using a drill to screw or unscrew screws

A drill with speed control and a direction of rotation switch can also be used for screwing in and out screws. For this purpose, it is recommended:

- using the lowest possible rotational speed,

- using appropriate tips.

The bits can be mounted directly in the drill chuck or using a special magnetic holder.

To unscrew the screw, change the direction of rotation of the switch to left rotation (L).

Using attachments

Drills with variable direction of rotation should not be used to drive work attachments.

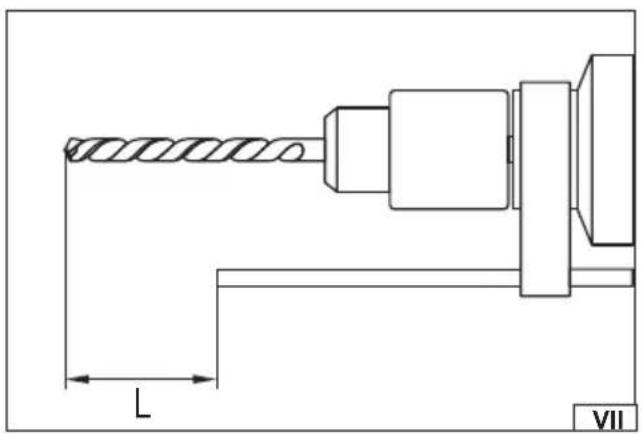

Drilling with depth gauge (VII)

The stop can be used to facilitate drilling blind holes in metal. Determine the required depth of the hole. Attach the appropriate drill to the holder and mark on it – e.g. with a marker – the distance “L” corresponding to the depth of the hole, counted from the working end of the drill. Set the depth stop so that its end matches the distance marked on the drill. Make sure that the stop is securely fastened and will not move during operation. Start drilling – once the set depth is reached, the face of the stop will rest on the surface of the material near the hole. Then stop drilling and withdraw the drill.

Additional notes

While working, do not exert too much pressure on the material being processed and do not make sudden movements so as not to damage the working tool and the drill.

Take regular breaks while working.

The tool must not be overloaded – the temperature of the external surfaces must never exceed 60 °C.

After finishing work, turn off the drill, unplug the tool from the power outlet and perform maintenance and inspection.

MAINTENANCE AND INSPECTIONS

NOTE! Before starting any adjustments, maintenance or servicing, unplug the tool from the power outlet. After finishing work, check the technical condition of the power tool by visually inspecting it and assessing: the body and handle, the electric cable with the plug and bending protection, the operation of the electric switch, the patency of the ventilation slots, the sparking of the brush-

EN

es, the noise level of the bearings and gears, the start-up and the smoothness of the operation. During the warranty period, the user may not add any power tools or replace any components or parts, as this will void the warranty. Any irregularities observed during the inspection or during work are a signal to carry out repairs at a service point. After finishing work, the housing, ventilation slots, switches, additional handle and covers should be cleaned, for example, with an air jet (with a pressure of no more than 0.3 MPa), a brush or a dry cloth without using any chemicals or cleaning fluids. Clean the tools and handles with a dry, clean cloth.
