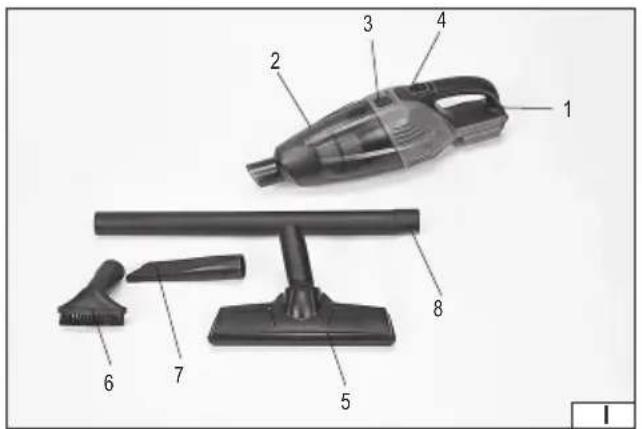

- vacuum cleaner
- dust container
- container lock button
- power switch
- wide nozzle
- narrow suction nozzle
- crevice nozzle
- extension pipe
DE
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
PRODUCT CHARACTERISTICS
This vacuum cleaner can be used for minor housekeeping and workshop cleaning work. Thanks to its small size and battery power supply, it can also be used for cleaning vehicles. The vacuum cleaner is equipped with a replaceable air filter. The correct, reliable, and safe operation of the device depends on its proper use, therefore:
Read this entire instructions manual before the first use of the device and keep it for future reference.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this instructions manual.
ACCESSORIES
The product is supplied with suction nozzle and an extension pipe. Power supply battery and battery charger are not supplied.
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. YT-85680 | ||
| Rated voltage [V DC] 18 | ||
| Generated vacuum [kPa] 3.8 | ||
| Container capacity [l] 0.5 | ||
| Weight [kg] 1 | ||
| Insulation class III | ||
| Battery type Li-Ion |
SAFETY INSTRUCTIONS
WARNING! Read all of the following instructions. Failure to do so may result in electrocution, fire, or personal injury.
FOLLOW THE INSTRUCTIONS BELOW
Do not use the device in an explosive environment containing flammable liquids, gases, or vapours.
Do not place the device near any heat or fire sources.
Connect the device only to the power network with the voltage and frequency indicated on the nameplate of the device.
After each use, disconnect the battery from the device.
The device is intended for indoor use only. Do not expose the device to any precipitation or moisture. If water and moisture enters the device, it will significantly increase the risk of electric shock. Do not immerse the device in water or any other liquid.
Do not obstruct the vent holes and make sure they are clear. Obstructed and/or clogged vent holes may cause the device to overheat. This can damage the device and cause fire or electric shock.
If you notice any damage to any part of the device, you must discontinue using it. In this case, the device must be taken to an authorised service centre or replaced by yourself, if this is permitted by the user's manual.
Turn off the device and unplug the power cord from the wall socket before you start any work on replacing, cleaning, or adjusting.
EN
Switch off the device before replacing the accessories and remove the battery from the device. This device may be used by children of at least 8 years of age and by persons with reduced physical, mental abilities and persons with no experience or knowledge of the device, if supervised or instructed on its safe use so that the risks associated with it were understandable. Children should not play with the device. Unattended children should not be allowed to perform the cleaning and maintenance of the device.
The vacuum cleaner is designed for dry running. It is forbidden to draw in water, wet ash or other wet waste. This may result in electric shock, which may endanger the health and life of the user and others.
Never draw in hot, glowing or burning objects. This can lead to fire or explosion and expose the user to serious injury or death. The maximum temperature of suctioned waste must not exceed 40 °C .
Before each use, check the condition of the device, including the battery and accessories. If any faults are noticed, do not use the device.
Make sure that the battery has been disconnected from the device before carrying out maintenance work on the device.
Keep the device out of reach of unauthorized persons, especially children. Make sure that the device is out of the reach of unauthorized persons, especially children also during operation.
DEVICE OPERATION
Warning! Turn off the device and remove the battery during all equipment assembly and disassembly activities.
Device assembly and disassembly

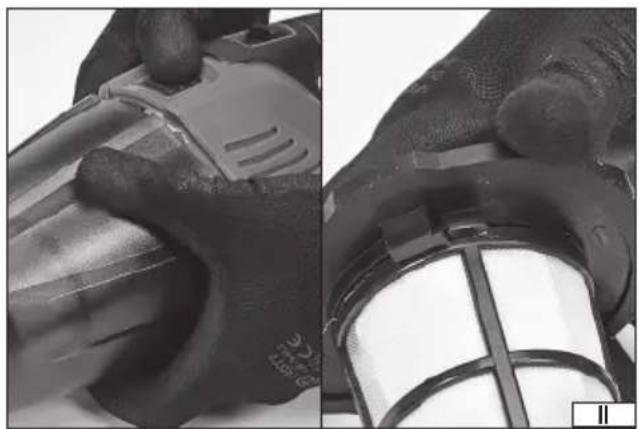

Grasp the vacuum cleaner in such a manner that one hand lies on the vacuum cleaner housing and the other on the dust container. Press and hold the lock button and then disconnect the container from the housing (II). Remove the filter from the inside of the container and disconnect it from the base by slightly rotating the base against the filter housing (II).
Clean the container and filter according to the instructions specified in the "Vacuum cleaner maintenance" section.

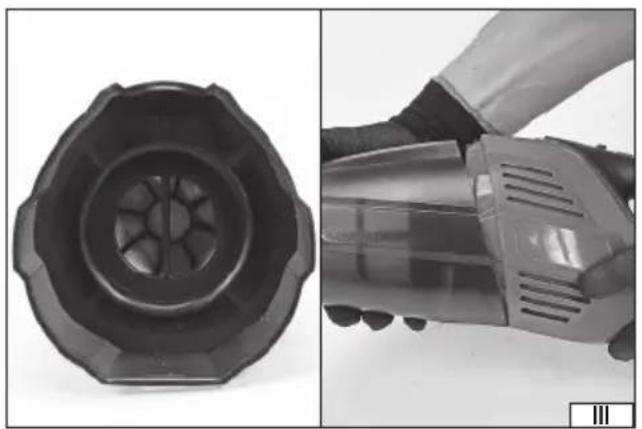

Install the filter mounted on the base in the dust container in such a manner that the shape of the base matches the shape of the inside of the container (III). Then, resting the bottom edge of the dust container against the vacuum cleaner housing, attach the container to the housing. A correctly installed container has its edge flush with the vacuum cleaner along its entire circumference and cannot be removed other than by pressing the lock button.

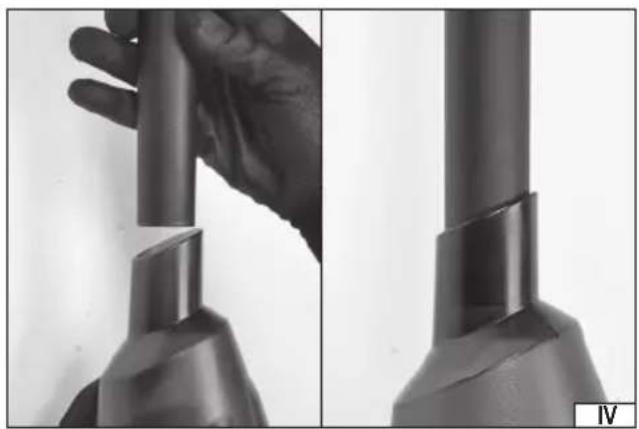

Install one of the supplied suction nozzles in the opening at the front of the dust container (IV). The suction nozzles can also be mounted on the extension pipe. The mounting diameter of the suction nozzles and both ends of the extension pipe is such as to allow only for correct assembly.
Connecting the battery
Only the following 18V Li-Ion YATO batteries can be used to power the device: YT-82842, YT-82843, YT-82844, YT-828461, YT-828462, YT-828463, YT-828464 and YT-828465, which can only be charged with YATO YT-82848, YT-82849, YT-828498, YT-828499, YT-828500, YT-828501, YT-828502, YT-828503 or YT-828504 chargers. It is forbidden to use other batteries with a different rated voltage and not matching the device battery socket. It is forbidden to modify the socket or battery to make them match.

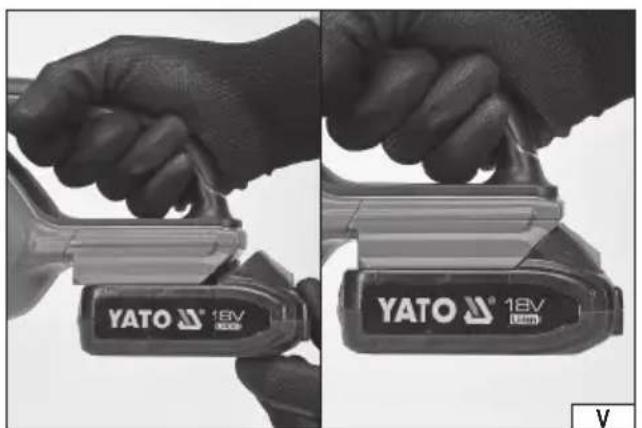

Slide the charged battery into the guides of the battery socket so that the battery latch holds it in place (V). Check whether the battery does not slide out of the device socket by itself.
Working with a vacuum cleaner
Warning! It is forbidden to use a vacuum cleaner to vacuum hot ashes. The temperature of waste suctioned by the vacuum cleaner must not exceed 40 degrees Celsius. C.
Make sure that all preparatory work has been carried out correctly.

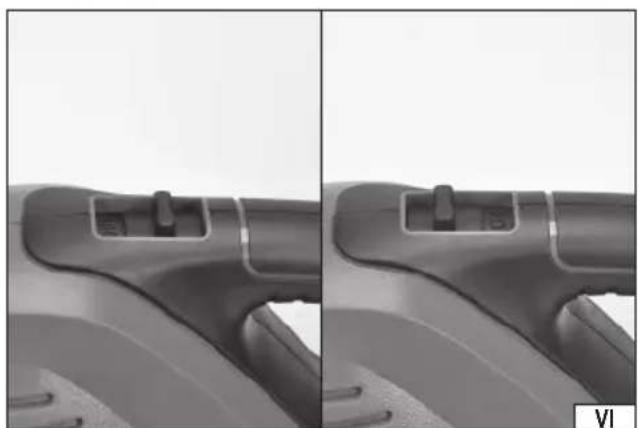

Grasp the vacuum cleaner by the handle and with your thumb move the switch towards the front of the device so that the ON symbol becomes visible on the power switch (VI). The vacuum cleaner will start and you can begin working. It is not necessary to
EN
hold the power switch during operation.
After finishing work, move the switch towards the back of the device so that the OFF symbol becomes visible on the switch. This will stop the vacuum cleaner operation.
Disconnect the battery from the device, and proceed with maintenance activities.
Warning! If suspicious vibrations, a drop in thrust force or noisier motor operation are observed during operation, this may mean that the container is full or that the pipe or suction nozzle is clogged. In this case, switch off the vacuum cleaner and disconnect the battery immediately. Then empty the container and check the permeability of the pipe and suction nozzle. Unclog if necessary. If unclogging is not possible, replace the parts with new ones before continuing work.
Maintenance of the vacuum cleaner
Warning! Make sure that the battery has been disconnected from the device before carrying out any maintenance work.
After each use of the vacuum cleaner, check the container and air filter as described in the section entitled “Preparing for operation”. Clean the vacuum cleaner from the outside and the filter with a stream of compressed air of not more than 0,3 MPa. Special attention should be paid to the permeability of ventilation openings, both inlet and outlet openings. Clean them with a stream of compressed air of not more than 0,3 MPa, if needed. Do not use sharp, metal objects for cleaning the ventilation openings. Do not immerse the vacuum cleaner in water to clean it. Remove larger dirt from the housing with a soft cloth.
