Vevor P8038 - Heat press
📄 224 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice Vevor P8038 - page 3
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Professional heat press for heat transfer on T-shirts, mugs, plates, etc.
Brand Vevor
Model P8038
Heating plate size 38 x 38 cm (15 x 15 inches)
Temperature range 0 - 232 °C (32 - 450 °F)
Time range 0 - 999 seconds
Power supply voltage 120 V ~ 60 Hz
Power 1200 W
Weight Approximately 15 kg (not specified exactly)
Machine dimensions (approx.) 45 x 40 x 50 cm (not specified exactly)
Frame material Robust steel with heat-resistant paint
Plate coating Non-stick Teflon
Press type Manual lever rotary press
Pressure adjustment Adjustment knob to regulate pressure force
Control panel Digital screen with MODE, +, -, START buttons
Main functions Heat transfer for clothing, mugs, tiles, metals, etc.
Safety Overload protector (circuit breaker), mandatory grounding, thermal cut-off
Maintenance and cleaning Clean with a damp cloth after complete cooling; do not immerse in water
Spare parts and repairability Heating plate, power cord, protection fuse accessible; screws for accessory change
Included accessories Mug press (optional), protective pad, screwdriver
Compliance CE, FCC (Class B)
Warranty Electronic warranty on Vevor website
General information Use on a flat, non-flammable surface; unplug when moving or installing accessories

Frequently Asked Questions - P8038 Vevor

How to change the temperature unit from Fahrenheit to Celsius?
Turn on the machine, then simultaneously press the + and - buttons for about 5 seconds. When PAE is displayed, press MODE to see FC and switch between F and C.
How to set the temperature and press time?
Press MODE once to set temperature, twice to set time. Use + and - to adjust. The device automatically exits setting mode after 5 seconds of inactivity.
What to do if the transfer is discolored or light?
This may be due to insufficient temperature, incorrect pressure, or too short time. Gradually increase temperature or time, and check pressure.
How to adjust the press pressure?
Turn the pressure knob clockwise to increase pressure, counterclockwise to decrease. For a basic adjustment, close the press on a piece of paper: the paper should be held firmly without tearing.
Why is my image blurry?
Too long a pressing time can blur the image. Reduce the time. Uneven heat or pressure distribution can also cause this issue. Adjust pressure and check the plate.
Can I use the press for mugs or plates?
Yes, the press comes with interchangeable accessories. Replace the pressure plate by unscrewing the fixing screws, then install the appropriate accessory (mug press, etc.).
Recommended temperatures: mugs 230-330°F, plates 230-355°F.
How to start the pressing cycle?
After setting temperature and time, press the START button (or the countdown start button). The machine heats up and starts the countdown. Once finished, a beep sounds.
What to do if the overload protector trips?
The overload protector is a circuit breaker. If it trips, unplug the machine, let it cool, then press the protector button to reset. Avoid overloading the circuit.
How to maintain the heating plate?
Let the plate cool completely, then clean it with a soft, damp cloth. Do not use abrasive products. Never immerse the machine in water.
How to replace the power cord?
The power cord is type X (special attachment). If damaged, it must be replaced by an approved cord or assembly provided by the manufacturer or service agent. Contact Vevor support.

User questions about P8038 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Heat press in PDF format for free! Find your manual P8038 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. P8038 by Vevor.

USER MANUAL P8038 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEAT PRESS MACHINE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HEAT PRESS MACHINE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SymbolSymbol Description
Vevor P8038 - NEED HELP? CONTACT US! - 1Warning: To reduce the risk of injury, the user must read instructions manual carefully.
Vevor P8038 - NEED HELP? CONTACT US! - 2This symbol, placed before a safety comment, indicates a k precaution, warning, or danger. Ignoring this warning may le an accident. To reduce the risk of injury, fire, or electrocuti please always follow the recommendations shown below.
Vevor P8038 - NEED HELP? CONTACT US! - 3CORRECT DISPOSAL: This product is subject to the provision of European Dire 2012/ 19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the pro and all accessories marked with this symbol. Products ma as such may not be discarded with normal domestic was must be taken to a collection point for recycling electrical electronic devices.

WARNING

  1. Warnings must be followed carefully to avoid body injury. Improper use may result in electric shock, fire, personal injury, and other damage:

1) Keep unplugged when moving the machine.

2) Keep unplugged when installing accessories.

3) Place on a flat and stable platform and operate under ventilated conditions.

4) Wear special protective equipment when operating the machine.

5) Do not use this machine in a hazardous location.

6) Do not use the machine when it is not working properly.

7) Do not disassemble or repair this machine.

8) Do not use an unsuitable AC outlet.

9) Do not touch the heating plate when the machine is heating.

10) Do not use in a humid environment or come into contact with water. Do not allow liquid to infiltrate the machine to prevent fire or electric shock caused by short circuit. 11) Do not use a power supply that does not meet the rated voltage. The

supply that does not meet the specified voltage may cause fire or electric shock.

12) Ensure that the machine is grounded to avoid harm to the body. 13) Do not touch the rotating rod or bearing parts with your fingers during use to avoid injuries. 14) If the machine is not used for a long time, unplug the power from the socket. 15) Do not use the machine during thunderstorms or lightning to avoid damage. 16) Place the machine smoothly on a flame-retardant table and keep it away from flammable and explosive items. 17) Stop using it if the machine smokes, emits a peculiar smell, or becomes noisy or shows other abnormal conditions. 18) This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

19) Type X attachment: If the supply cord is damaged, it must be replaced with a special cord or assembly available from the manufacturer or its service agent. 20) To avoid a hazard due to inadvertent resetting of the thermal circuit, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

Vevor P8038 - WARNING - 1

Please turn off the power when plugging or unplugging the connector.

Close-up of a metallic connector with black cap and metal fittings, shown from side to side (no text or symbols visible)

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

  • Reorient or relocate the receiving antenna.
  • Increase the distance between the product and receiver.
  • Connect the product to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for assistance.

SPECIFICATION

ModelTL-LZ5000TL-LZ5001
Heat Size12x15inch(29×38cm)15x15inch(38×38cm)
Temperature Range32-450°F(0-232°C)32-450°F(0-232°C)
Time Range0-999 Seconds0-999 Seconds
Voltage120V~ 60Hz220-240V~50Hz120V~ 60Hz220-240V~50Hz
Power900W1250W1200W1250W

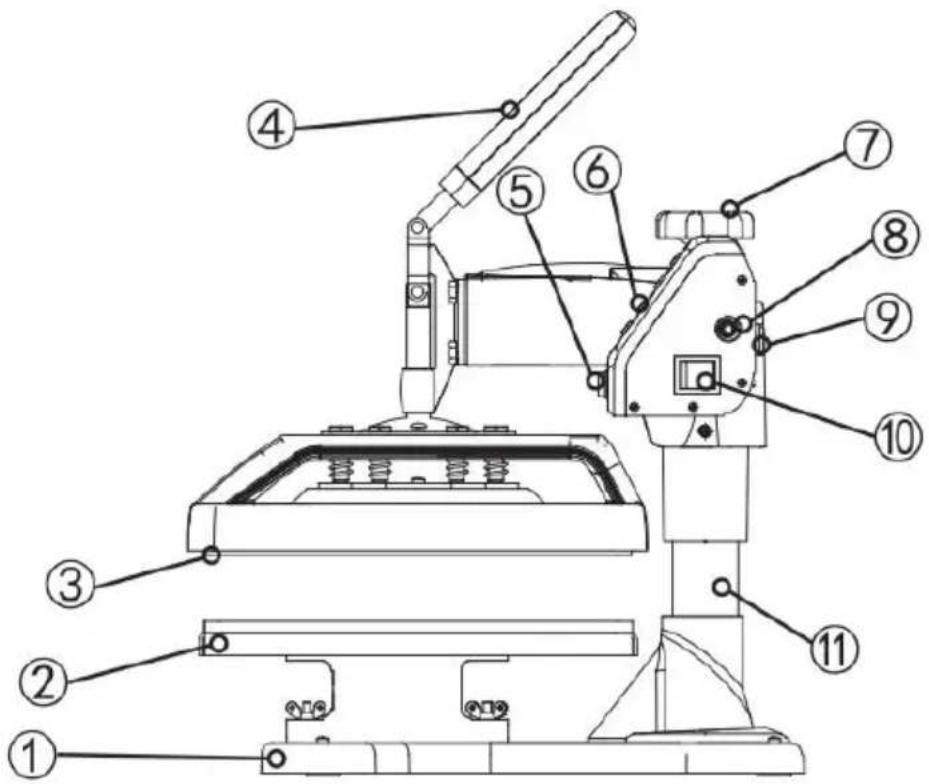

OVERVIEW OF YOUR HEAT PRESSTechnical diagram of a mechanical device with numbered components for identification

NumberPart nameNumberPart name
1Pedestal7Lift knob
2Placement8Overload protector
3Heating plate9Power socket
4Handle10Power switch
5Aviation connector11Column
6Button12
  • The Pressure Adjustment Knob controls the amount of force that will be used to push the transferred image into the fibers of the garment. Clockwise increases pressure. Counterclockwise decreases it.
  • The Control Panel on the right upper face of the casing is where you will set the time and temperature requirements of your project. These will vary depending on the vinyl and transfer paper used.
  • The handle opens & closes the top & bottom Heated Platens of the revolving head.
  • The overload protector is a breaker. It will pop out when there is an overload of electricity.

Press it in to reset.

- The Power switch must be set to the on position and the Cord must be connected before pressing.

SPARE PART

  1. Turn the pressure knob counterclockwise a few times to lower pressure on platens.
  2. Place a piece of paper onto the bottom of the platen.
  3. Close the revolve press using the handle. 4. Pull on the paper.
  4. If the paper moves at all, turn the knob clockwise and try again. 6. Try again and repeat until the paper doesn't move at all. This is your "Medium" pressure.

From the "Medium" setting, high pressure will be clockwise one to two turns. Low pressure will be counterclockwise one to two turns. (The number of turns will depend on the thickness of the garment.)

SETTING TEMPERATURE & TIME

Vevor P8038 - SETTING TEMPERATURE & TIME - 1

PLUS

Vevor P8038 - SETTING TEMPERATURE & TIME - 2

MINUS

Vevor P8038 - SETTING TEMPERATURE & TIME - 3

SETUP

Vevor P8038 - SETTING TEMPERATURE & TIME - 4

START

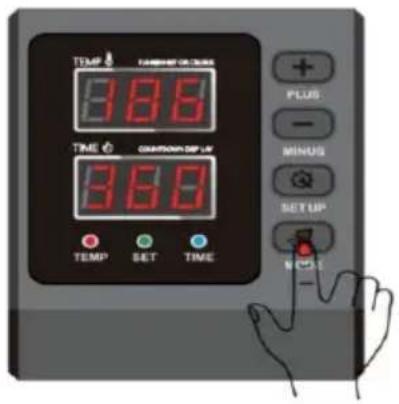

TEMP 386 TIME 360 TEMP SET TIME PLUS - MINUS SET UP NOT

1. How to turn on/off and how to start?

Press the switch button on the side of the temperature control box to turn it on. Countdown start button: press once to start the countdown; press again to reset.

2. How to set the temperature/time?

Press once to set the temperature, press twice to set the time, and press again to exit. (It will automatically exit the temperature/time setup state if there is no operation within 5 seconds.)

  1. How to set the temperature/time to increase or decrease?
  2. Set the time/temperature increase — Set the time/temperature decrease
  3. How to change the temperature unit from °C to °F?

In the power-on state, press "+" and "-" at the same time to change the temperature unit between ℃ and ℉.

Vevor P8038 - How to set the temperature/time? - 1

  1. Tips: The maximum set temperature of this machine is 232°C and the longest time is 999 seconds.

ASSEMBLY & USE STEPS

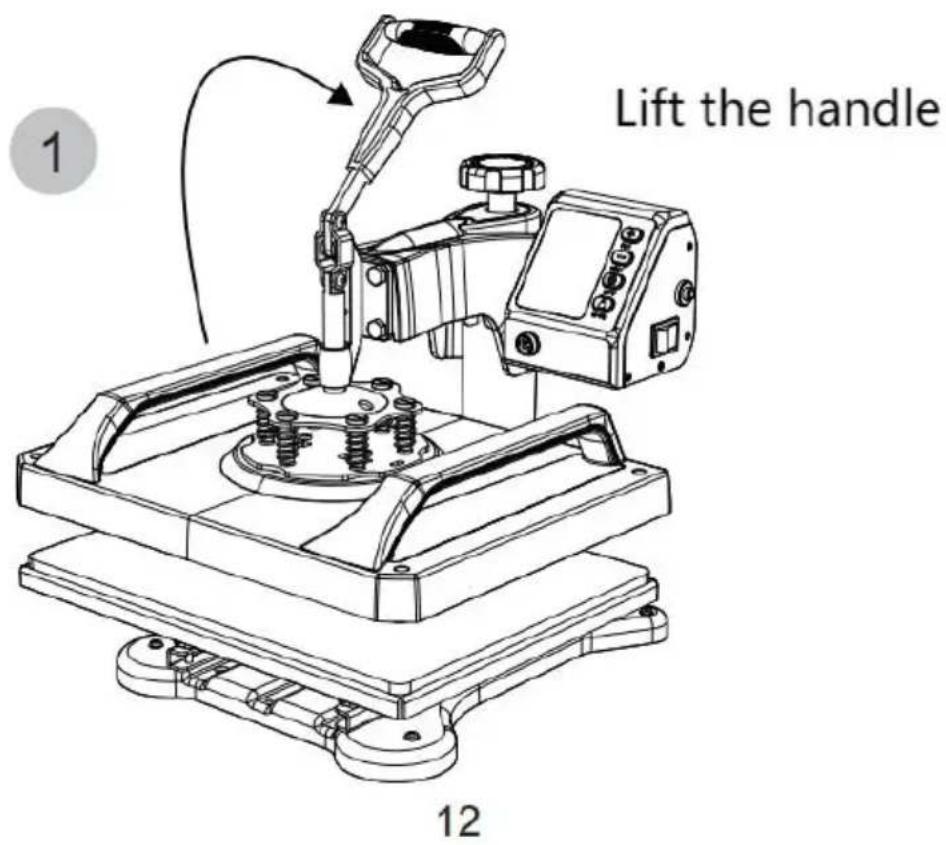

1. Lift the handle 12

Illustration of a robotic arm operating on a platform with an arrow indicating rotation (no text or symbols present)

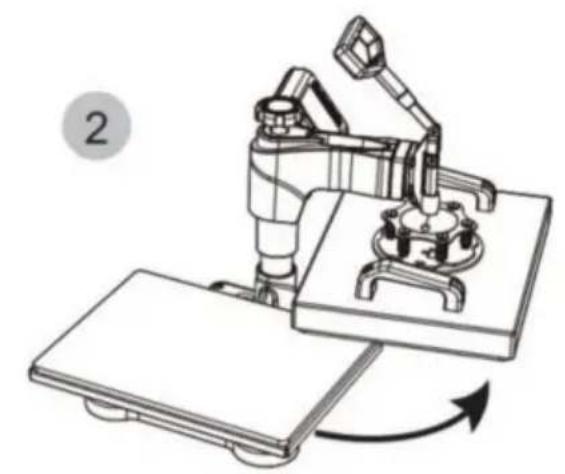

Rotate the heating platen to one side

Illustration of a robotic arm operating on a machine with a t-shirt, showing motion direction (no text or symbols)

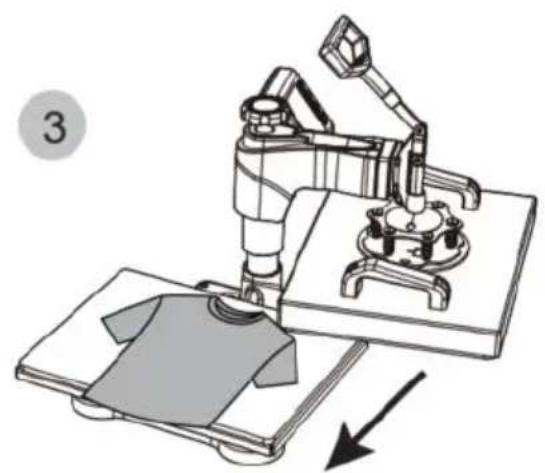

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

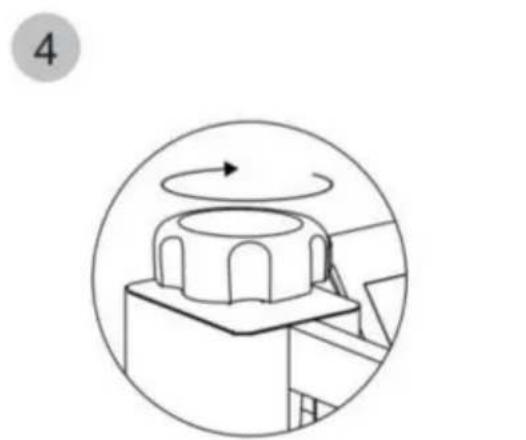

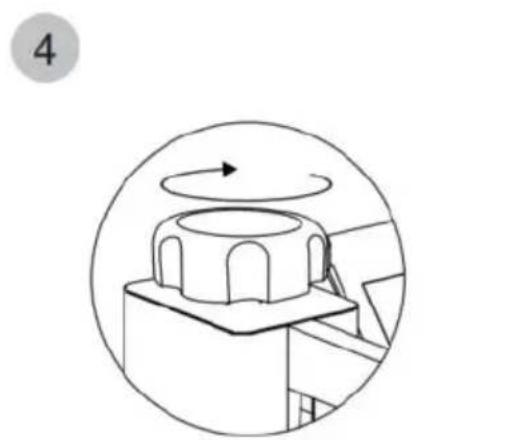

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with a rotating arm and base mount (no text or symbols)

1. Preparation before Using:

1.1 Check the connection between the power plug and the electrical socket of the electric cabinet.

Be sure to operate with safe ground wire!!!

1.2 The heat press element must be securely plugged into the machine before you switch the machine on. Plug your electrical cord into the machine. Plug the electrical socket into the wall plug. Turn the on/off switch on.

2. Set the required temperature:

Set the temperature and time according to the table below and get the corresponding temperature and timing settings. (Temperature is measured in degrees Fahrenheit.)

Press objectInitial TemperatureHighest TemperatureProper Heating Time(S)
Mugs23033040
Tiles23033040
Metal board23033040
Plate230355150
T-shirt230355Sublimation paper :30-50s
T-shirt Paper:10-20s

A. Initial Temperature Setting (Range: 200-450°F)

Press the “MODE” button ONCE, see the “set light” turning red. Then press the “plus/minus key” to set the initial heating temperature.

B. Highest Temperature Setting (Range: 93-232°C)

Press the “MODE” button for THE SECOND TIME; see the “temperature light” turning red. Then press the “plus or minus key” to set the highest heating temperature.

C. Proper Heating Time Setting (Range: 0-999 sec.)

Press the “MODE” button for THE THIRD TIME; see the “time light” turning red. Then press the “plus or minus key” to set the proper heating time.

After turning on the hot stamping machine, press the + and - buttons simultaneously for about five seconds. When PAE is displayed, press the MODE key to display (F-C), and change F to C in the time display gear, so Fahrenheit is converted to Celsius.

3. Finish the Setting and Stand by to Work

Press the “MODE” button for THE FOURTH TIME; finish the setting. The set is on, and the temperature will continue to rise. When the set maximum temperature is reached, the countdown starts. After the countdown ends, the

“BEEF” sound will be emitted, the indicator light will turn off, and operation is complete, and the machine stands by to work.

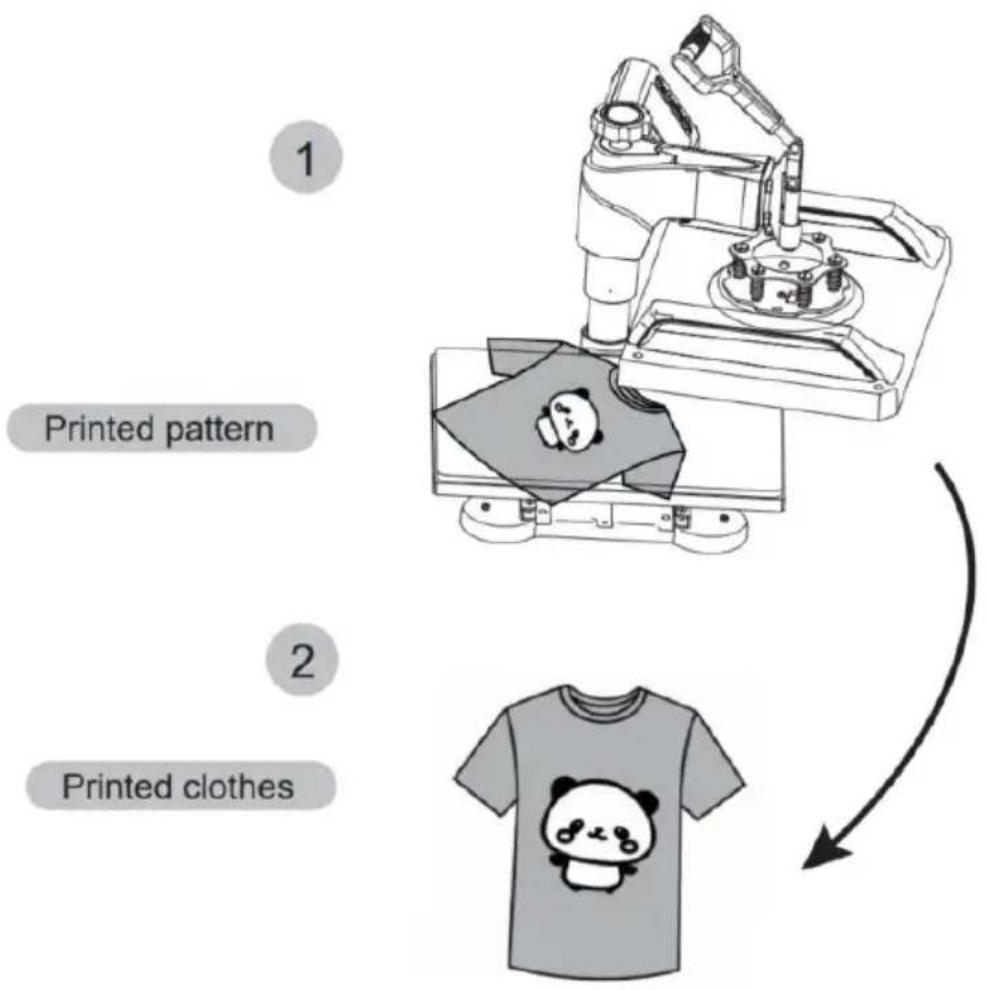

1. Printed pattern 2. Printed clothes

Vevor P8038 - Finish the Setting and Stand by to Work - 2

Turn off the power and pull out the mat. It is recommended to wear heat-resistant gloves when removing clothes or remove them after 2 minutes. Be careful of hot heat.

Use a Phillips screwdriver to unscrew the screws in the two holes on the plate to replace the accessories.

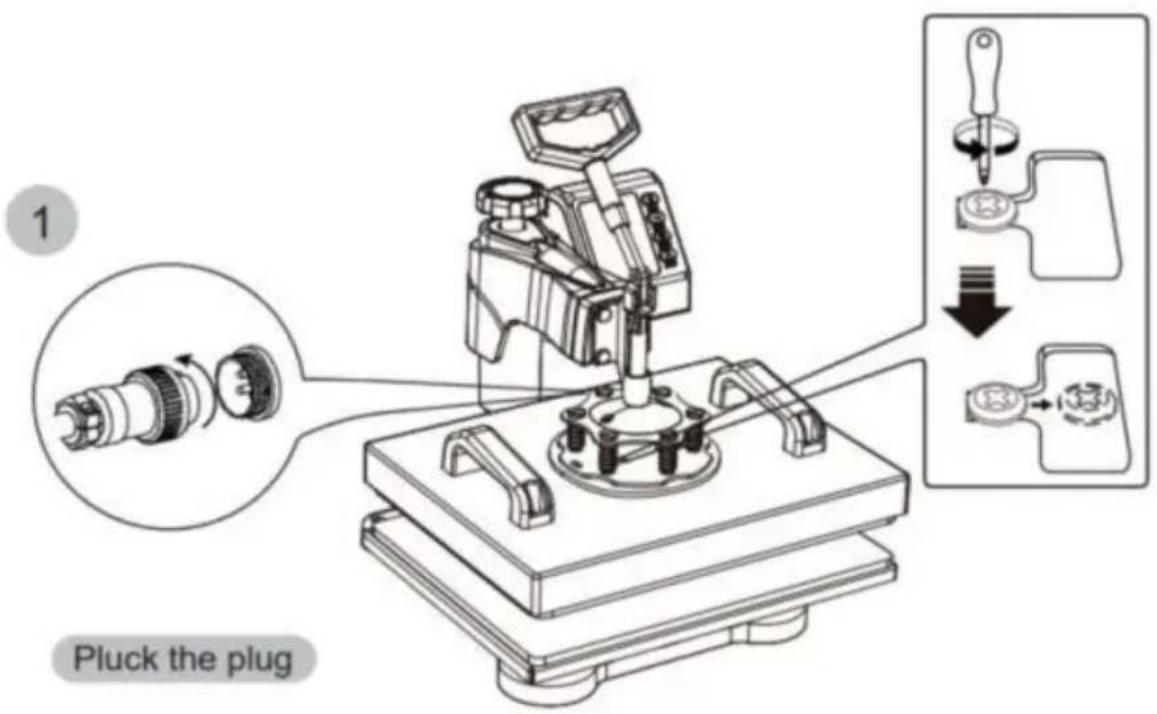

1. Pluck the plug

Technical line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

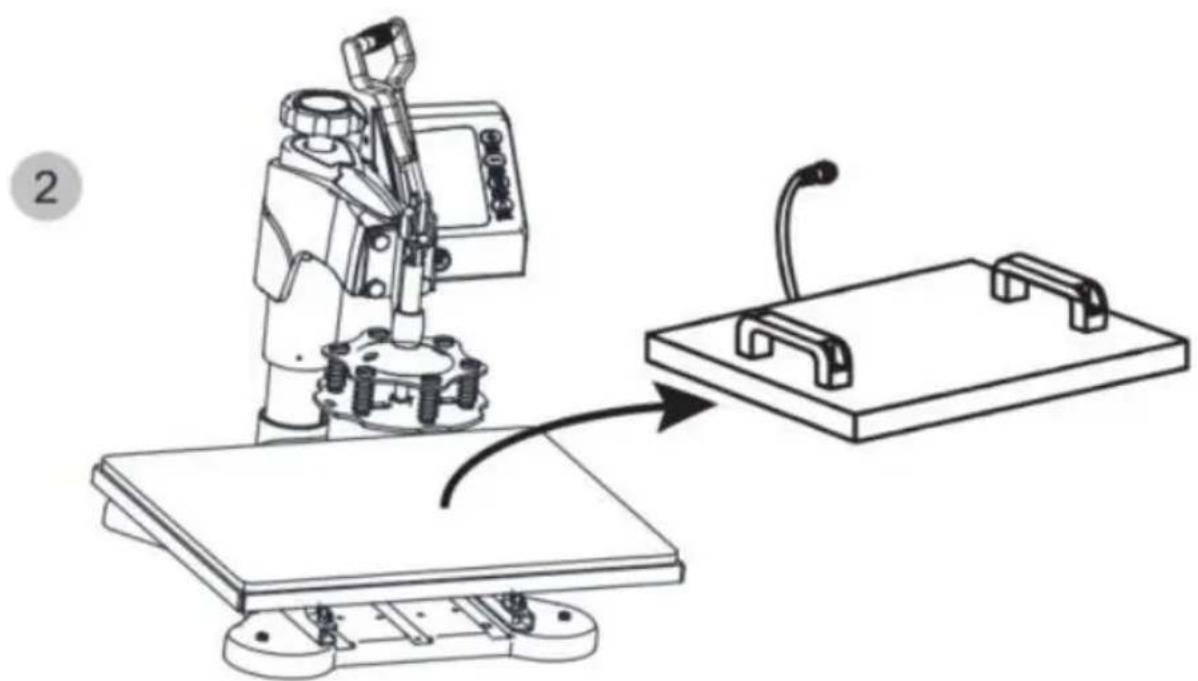

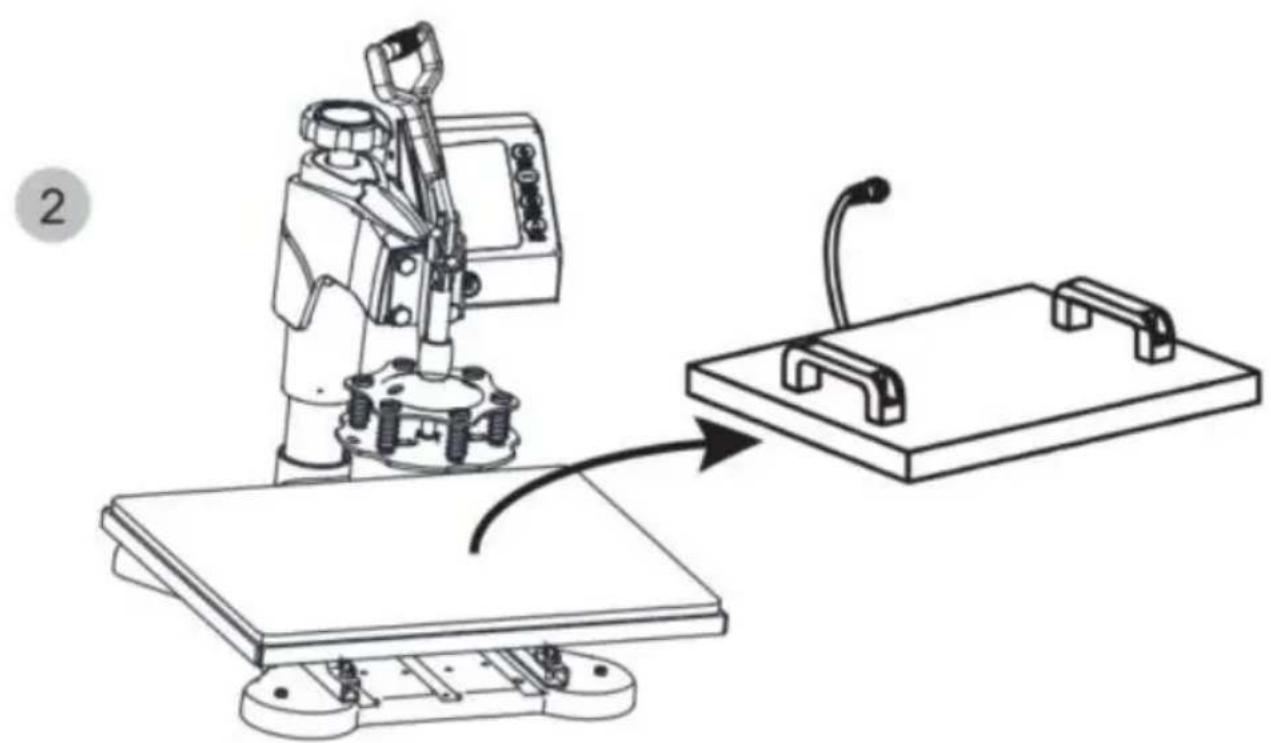

Rotate the heat transfer board to the side.

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves)

Choose the right size plate press.

P+Q

Combination

P

Separate

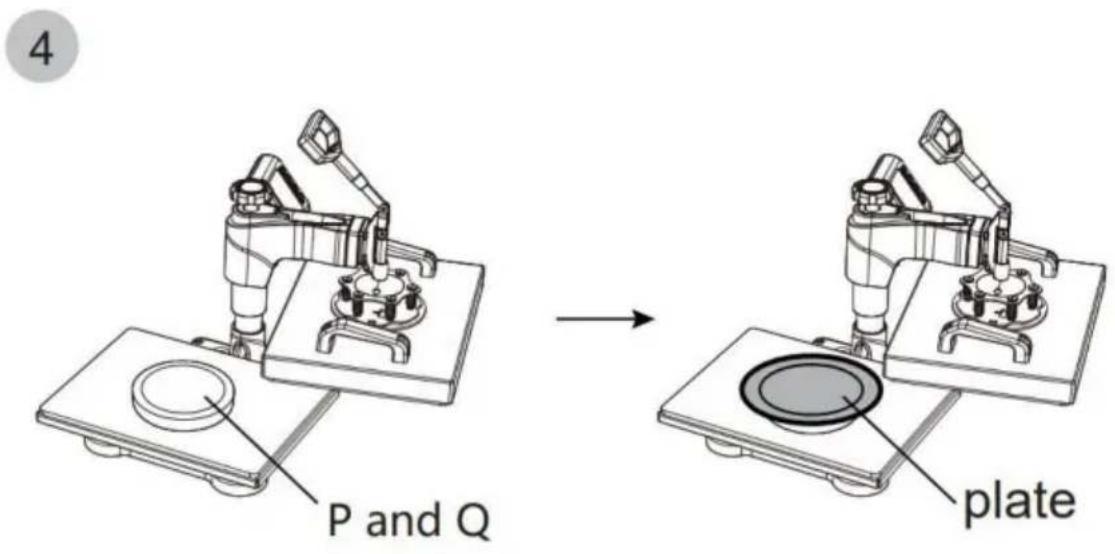

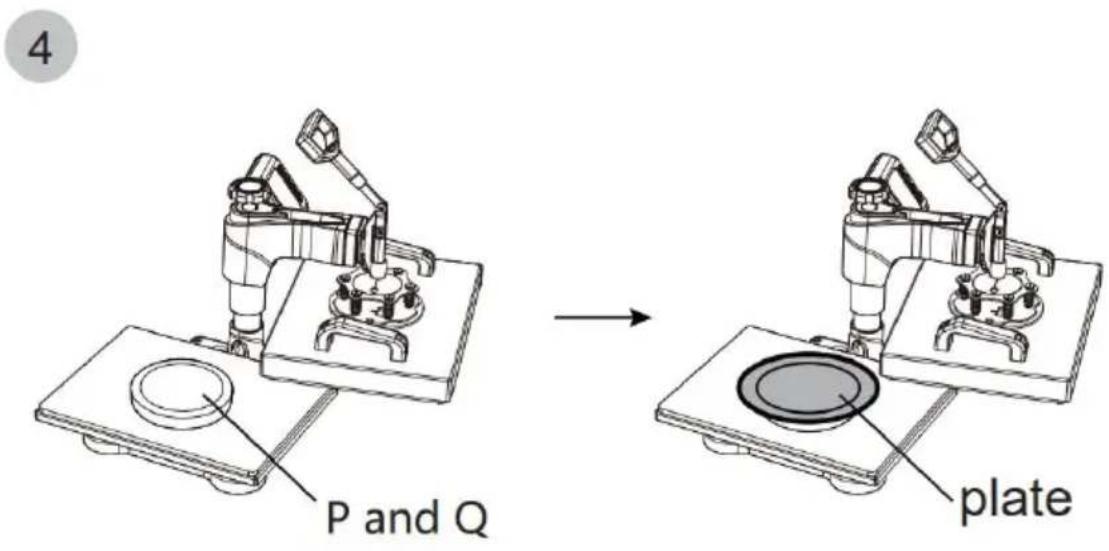

4 P and Q plate

Cute cartoon panda inside concentric circles with stars (no text or symbols)

Patterned plate

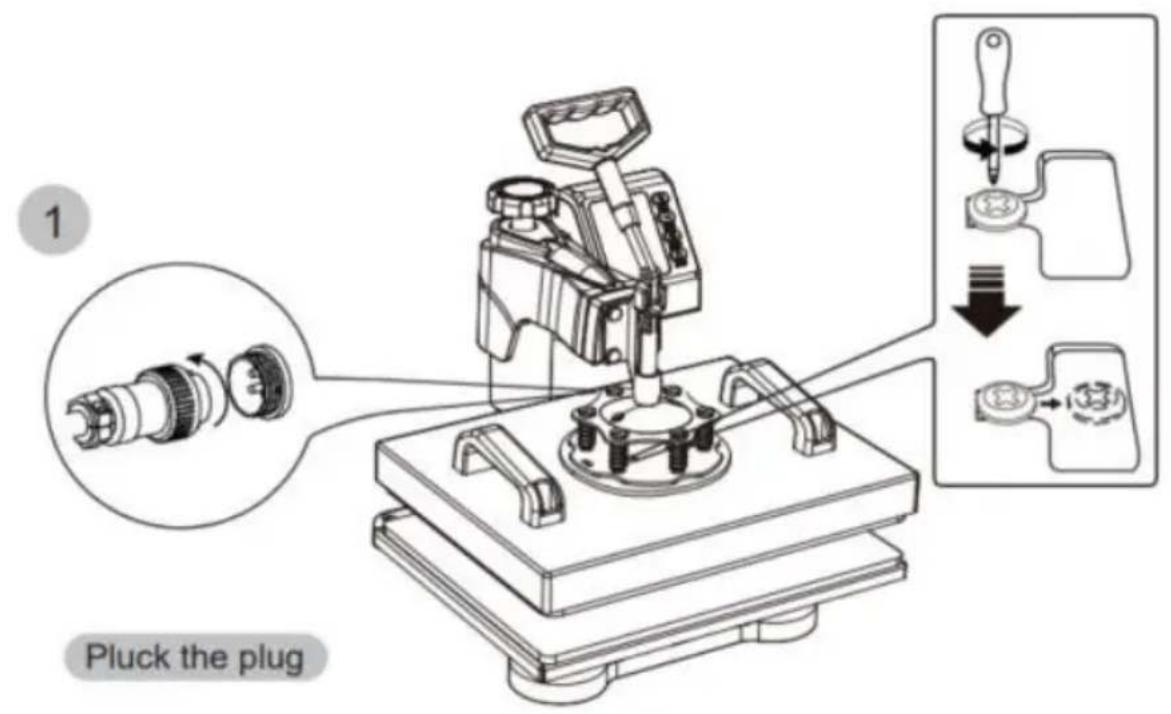

1 Pluck the plug

Line drawing of a robotic machine operating a workbench with a device, showing no text or symbols present.

Rotate the heat transfer board to the side.

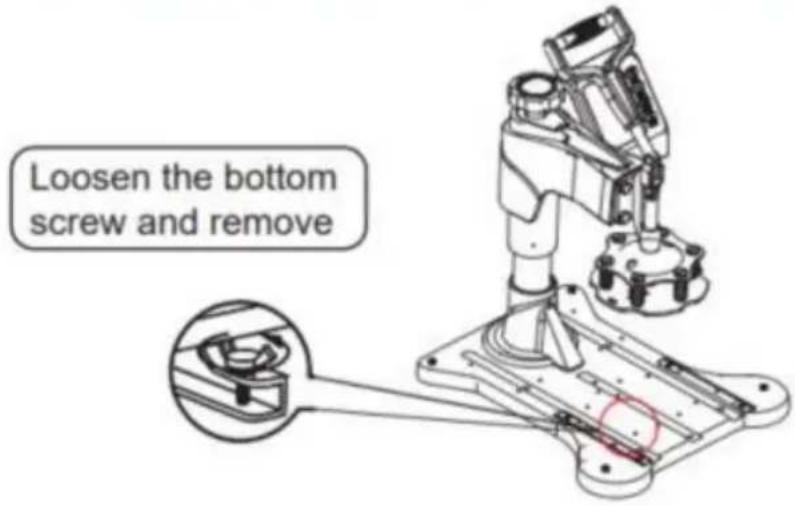

3. Unscrew the four butterfly screws at the bottom.Loosen the bottom screw and remove

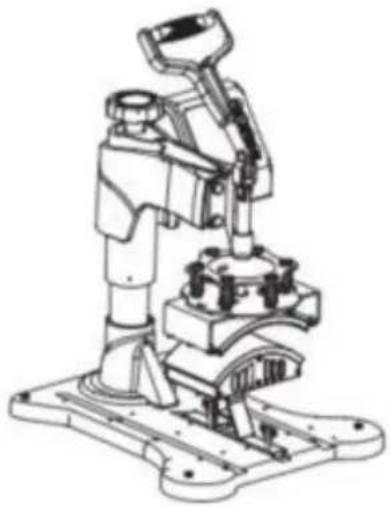

Lift the cushion up 4.Technical line drawing of a robotic arm with articulated joints and mounting base (no text or symbols)

5.Simple line drawing of a mechanical clamp or bracket with no text or symbols

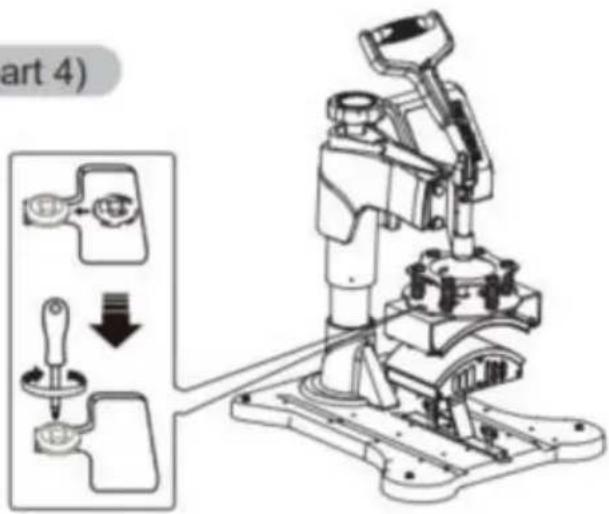

Install the backing pad (part 4) 6.(art 4)

Use the screwdriver 4 to tighten the 2 screws just removed and put the cap on.

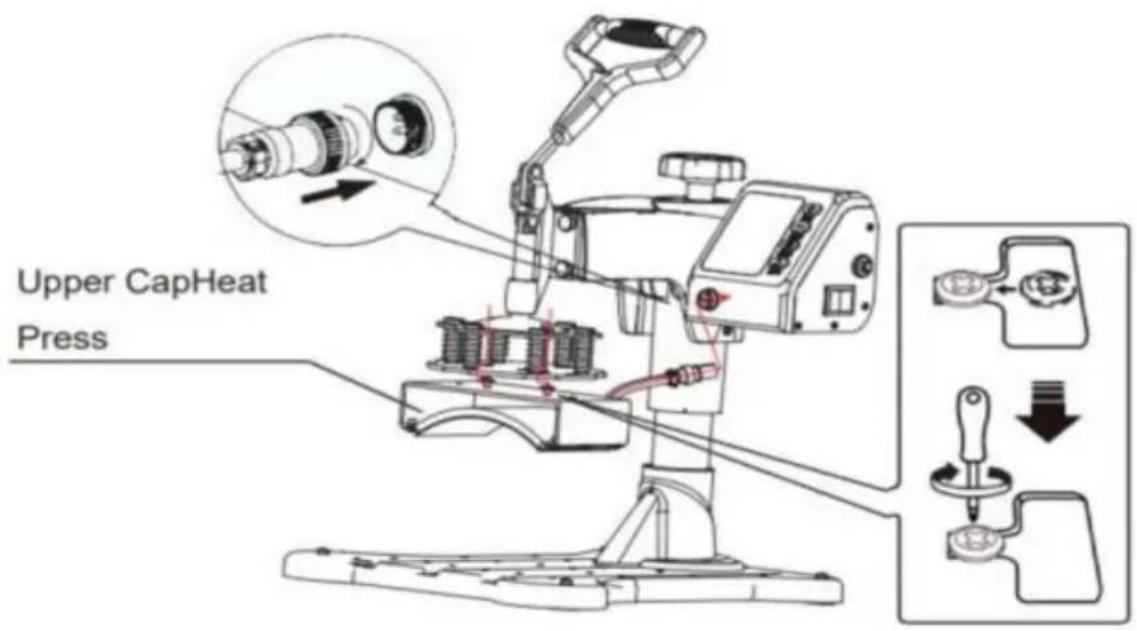

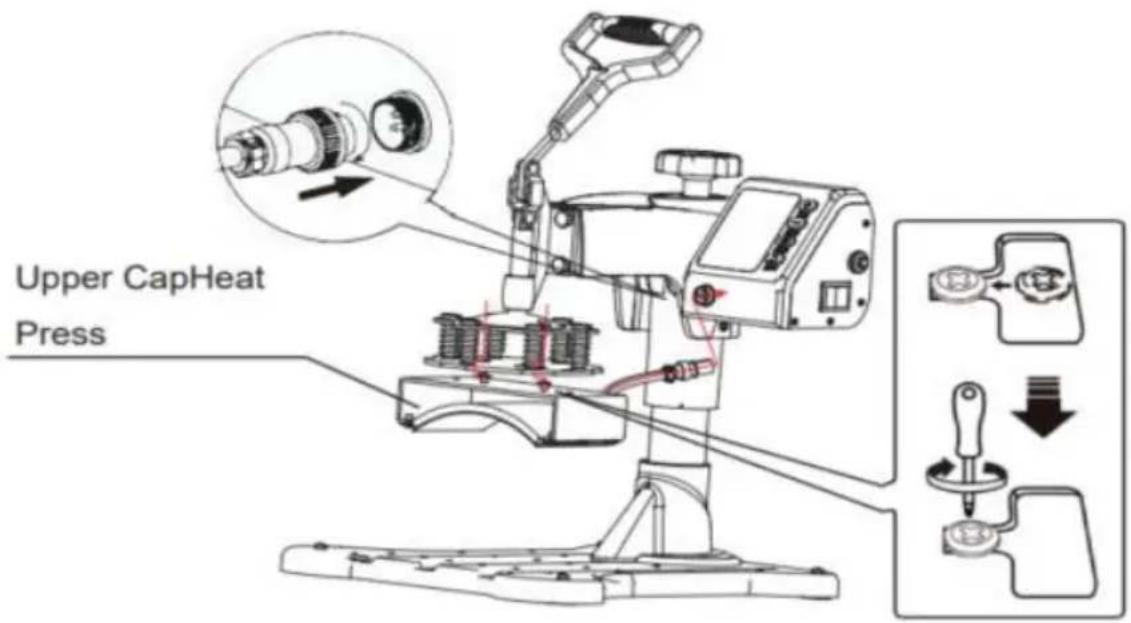

Upper CapHeat Press

  1. Take 2 cup head screws and lock them into the hole in the middle of the press. Do not lock the cup head screws, leave 5-7mm, then clip the cup head screw into the slot along the indicated route and lock it with a screwdriver. The male head of the cap press plug into the female head of the controller, tighten nut.

Illustration of a cartoon panda hat with a dashed outline, labeled 'Shaped hat' below (no other text or symbols)

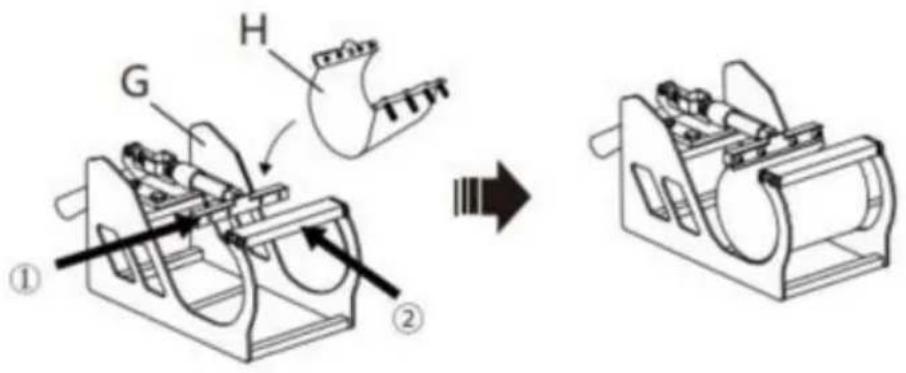

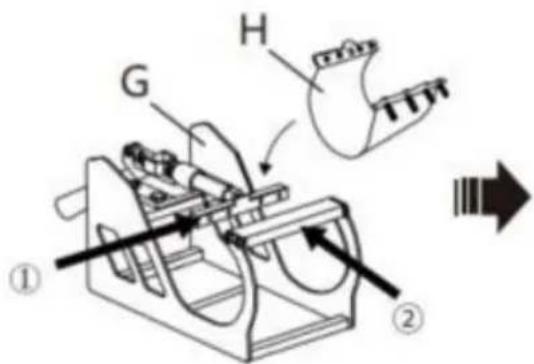

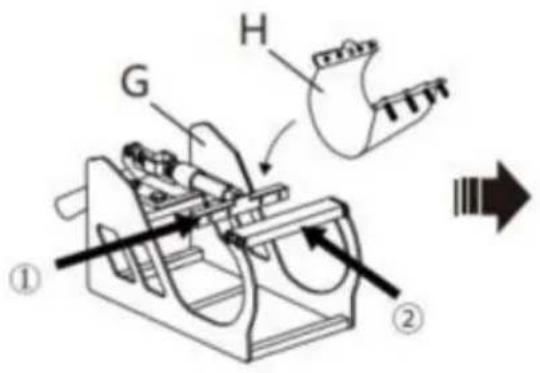

1.G H ① ②

Line drawing of a mechanical device with gears and housing (no text or symbols)

Install H to Part G.

Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side.

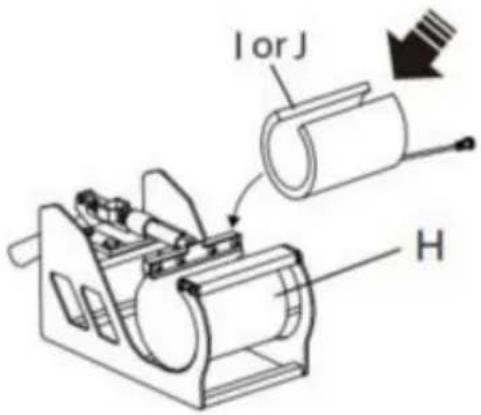

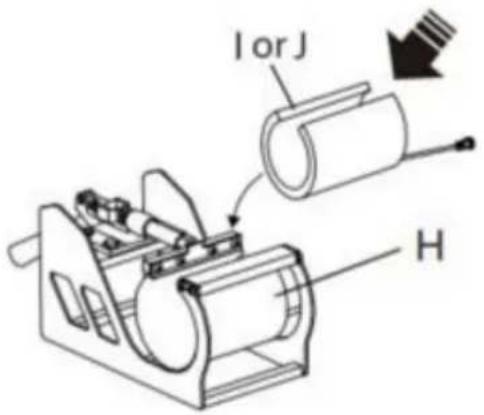

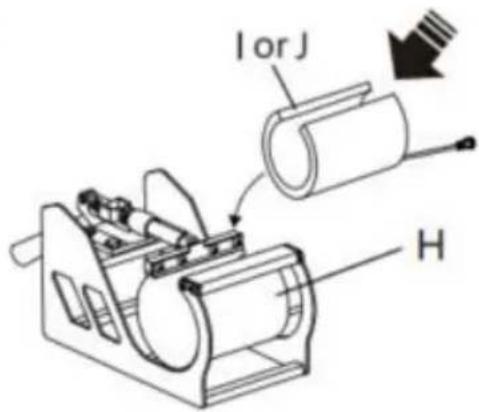

Select the appropriate size backing coaster (Part I or J). Put the cup in Part H.

I or J H

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness.

Vevor P8038 - Finish the Setting and Stand by to Work - 22

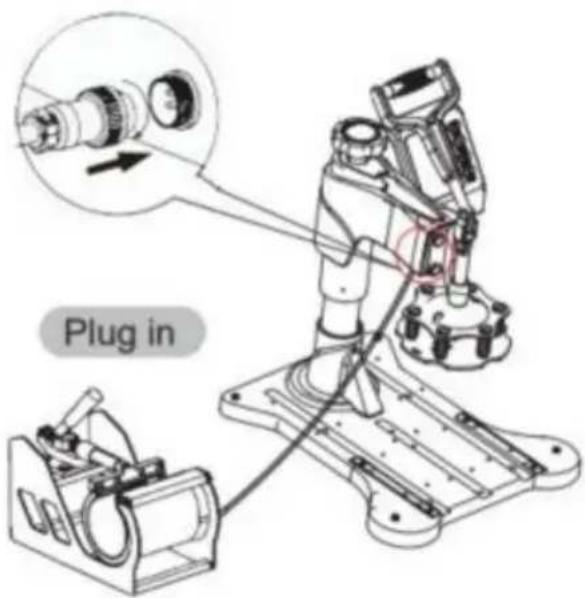

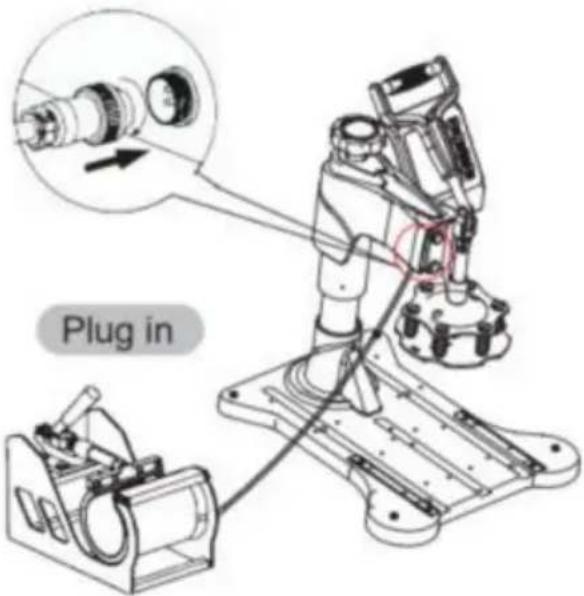

Plug in

Shaped cup.

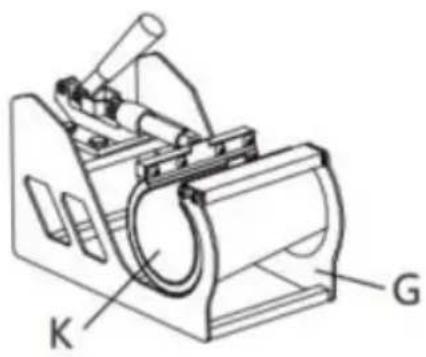

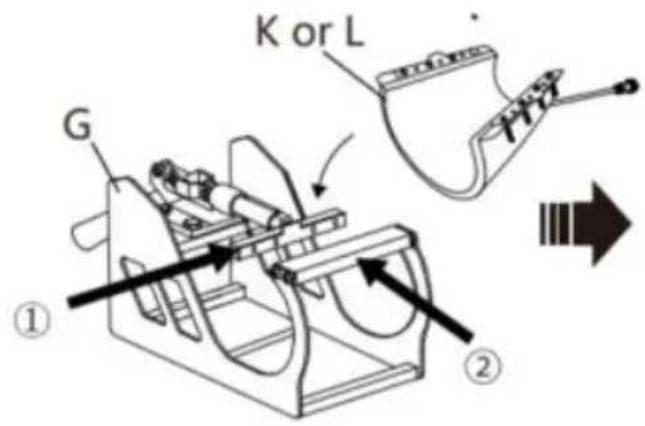

1G K or L ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side.)

Put the cup in Part G.

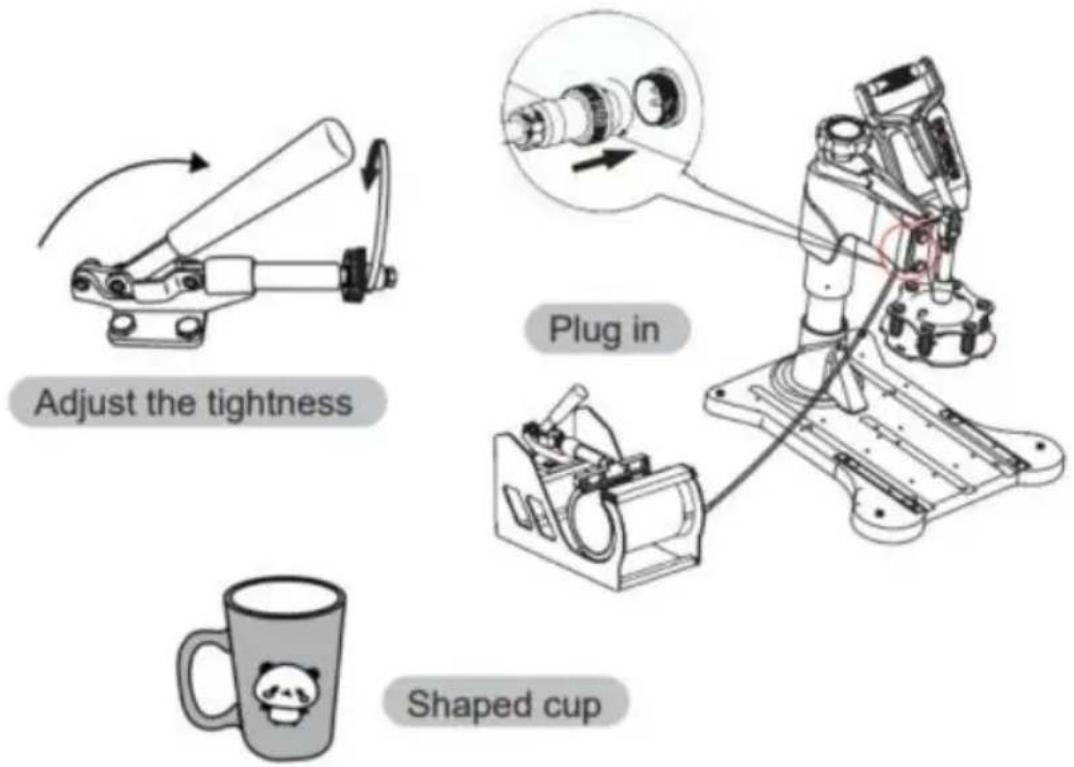

2Adjust the tightness Plug in Shaped cup

Use a Phillips screwdriver to unscrew the screws in the two holes on the plate to replace the accessories.

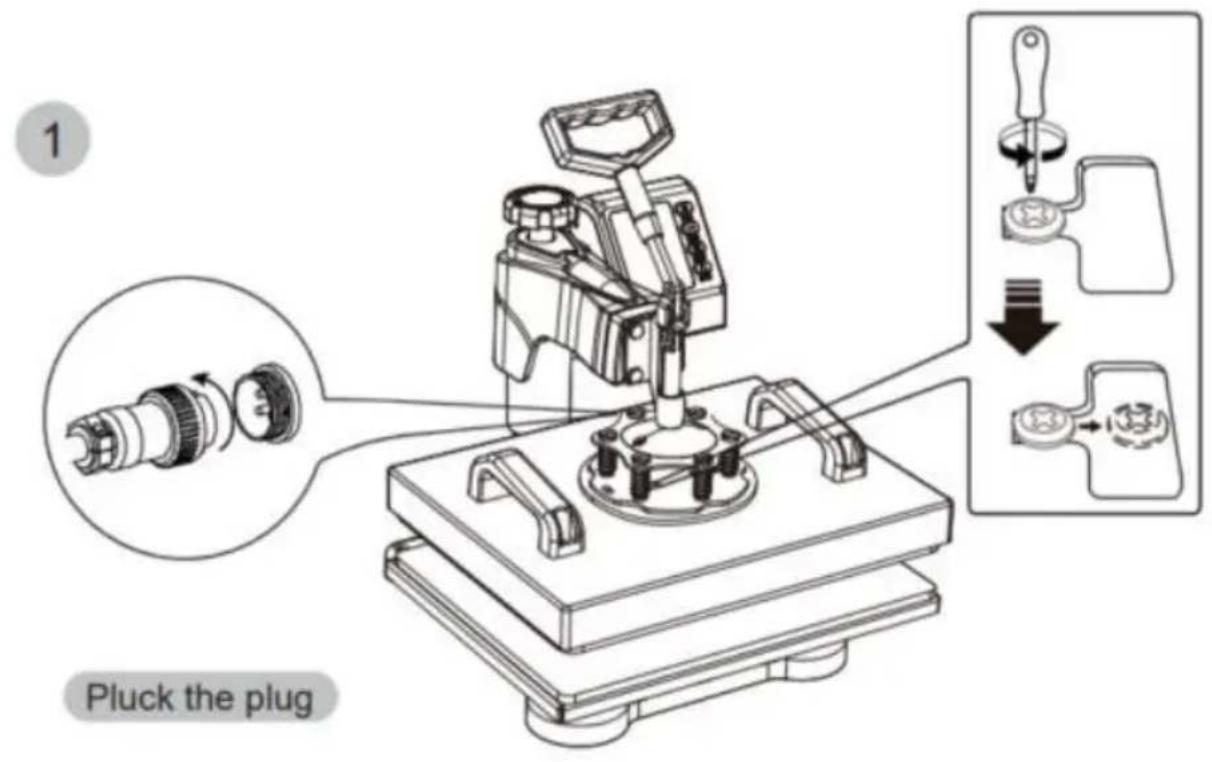

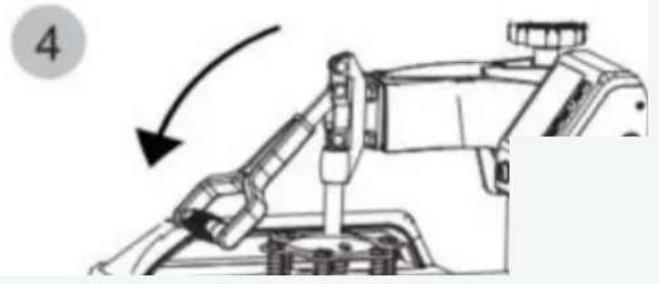

1 Pluck the plug

Line drawing of a robotic machine operating a workbench with a microplate, showing motion direction (no text or symbols)

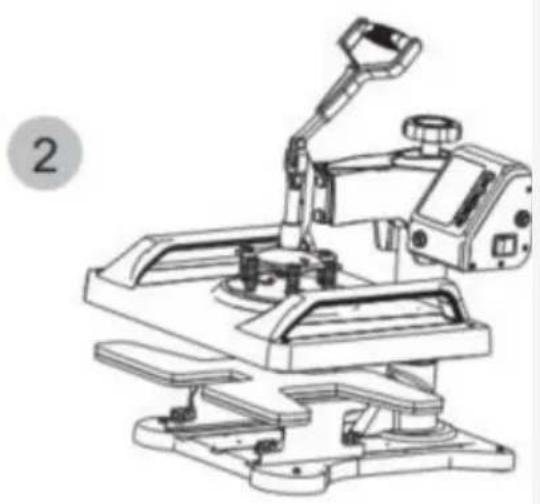

Rotate the heat transfer board to the side.

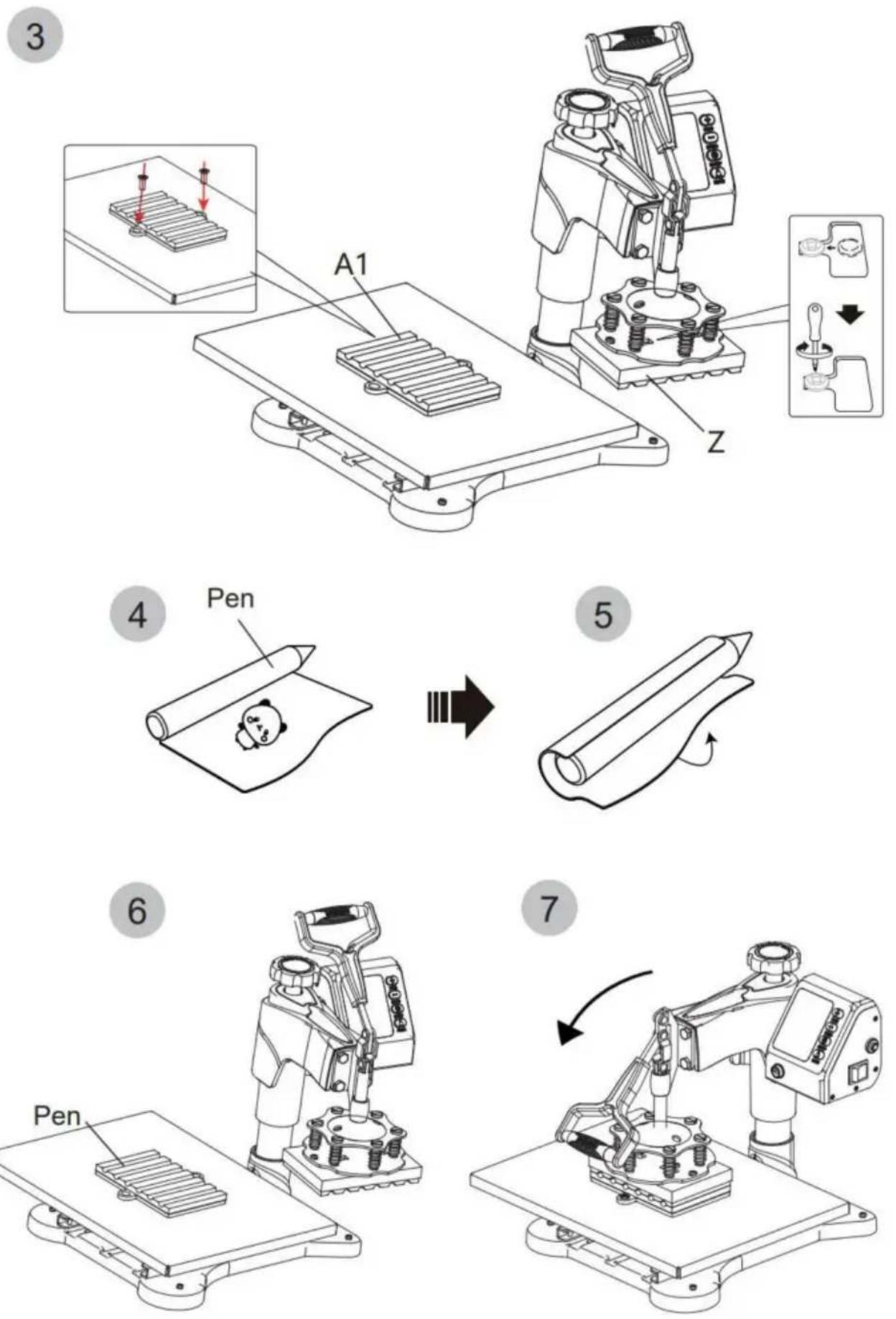

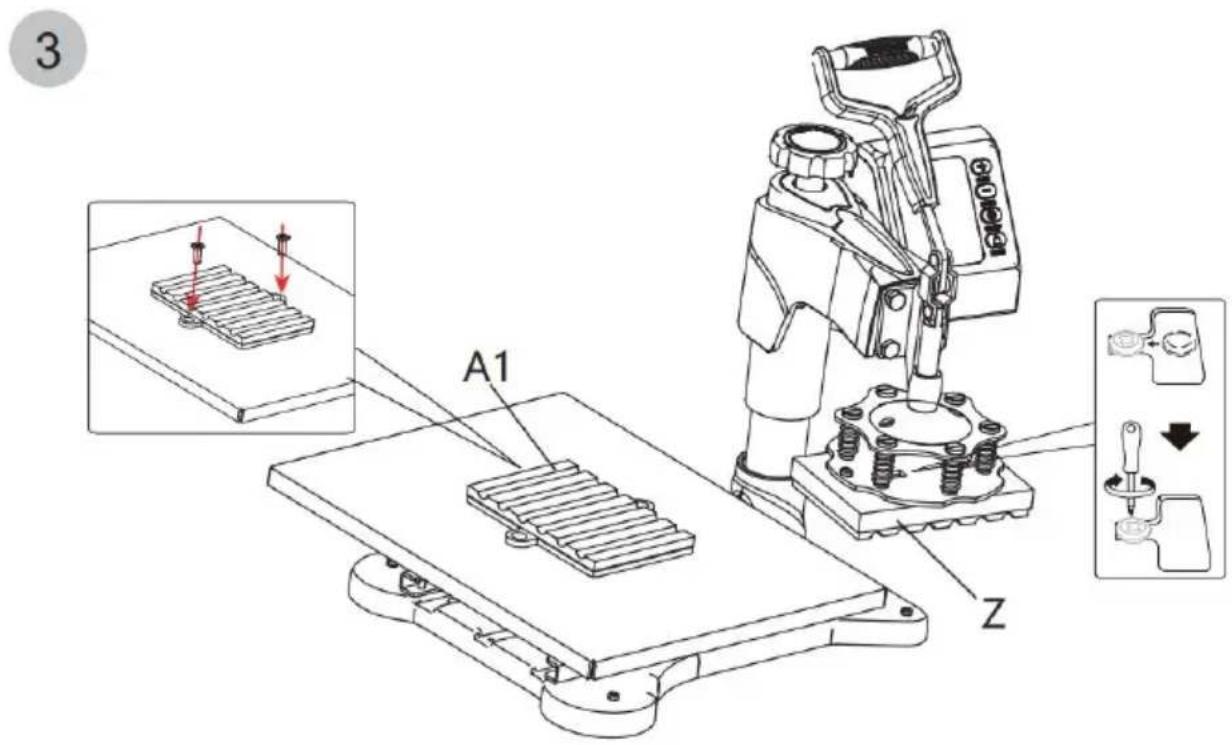

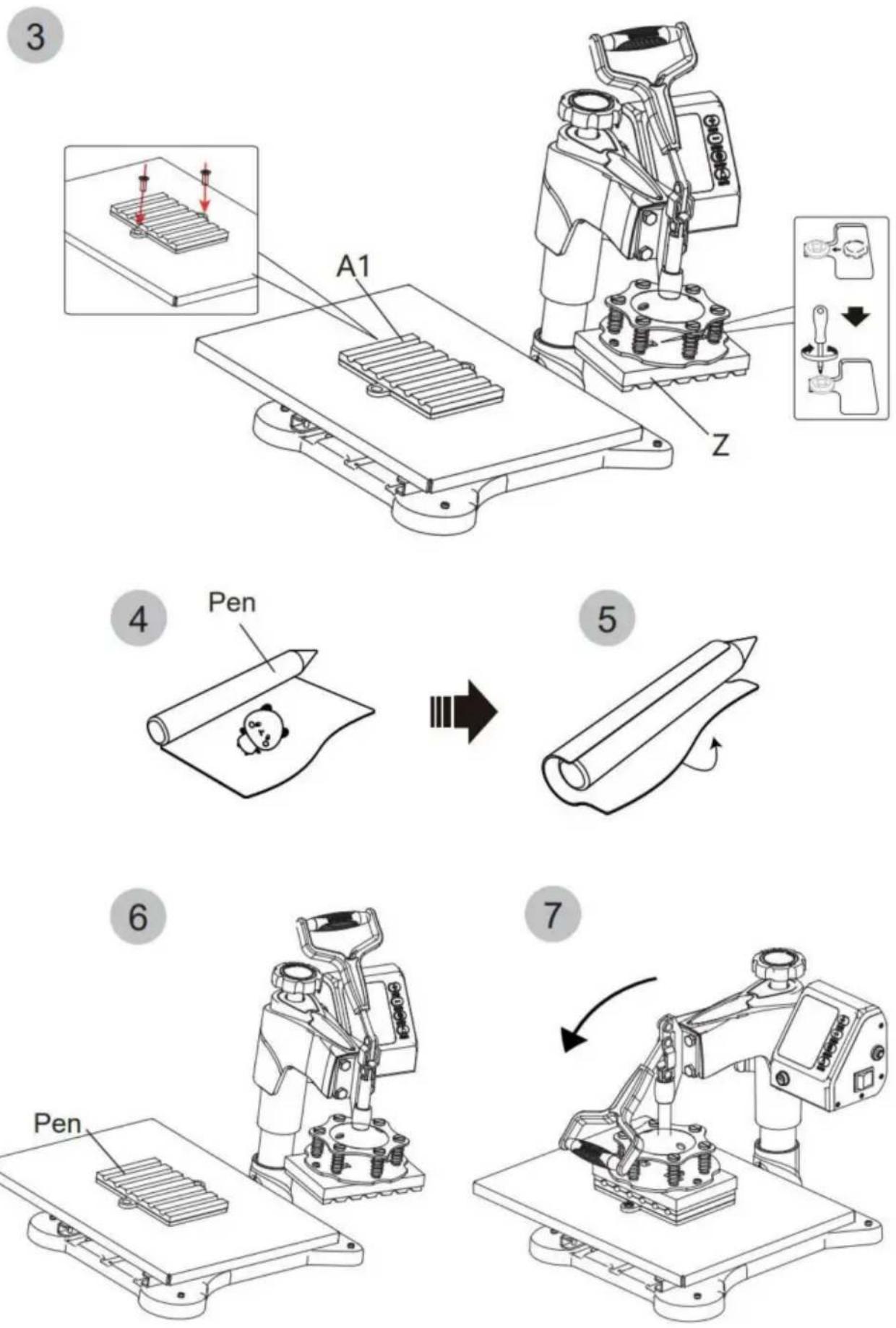

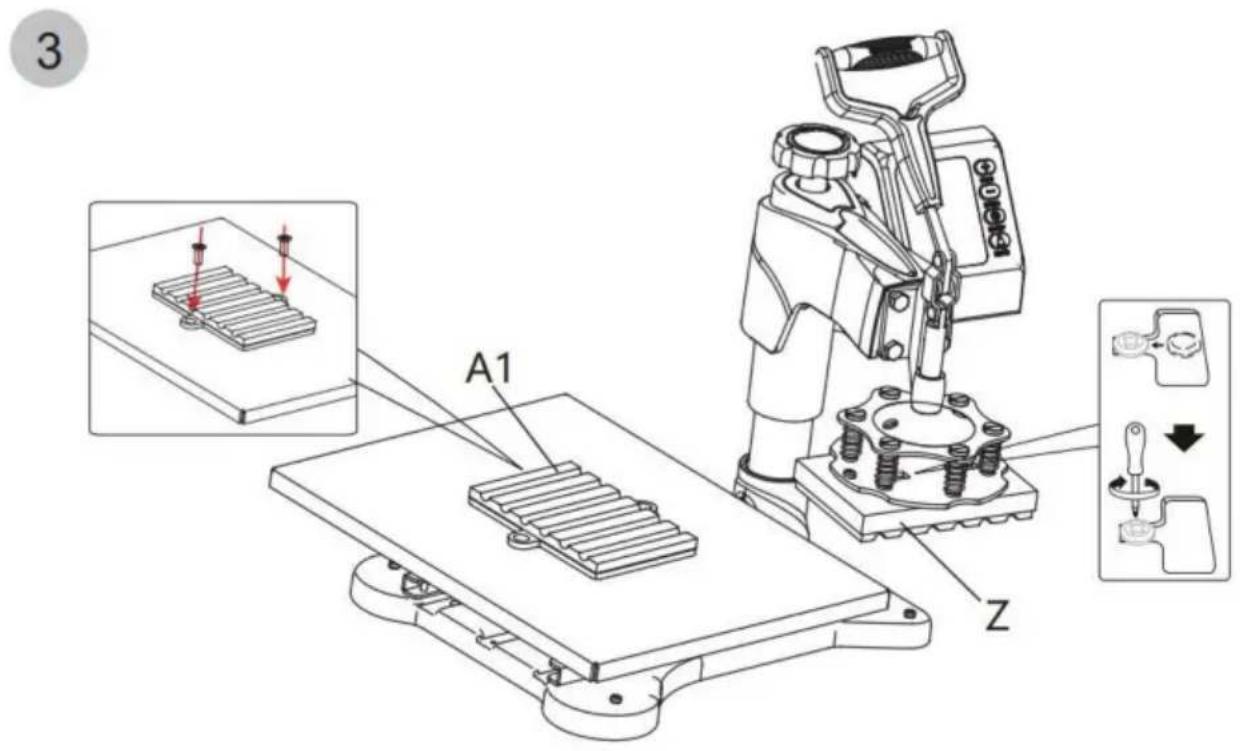

3 A1 Z

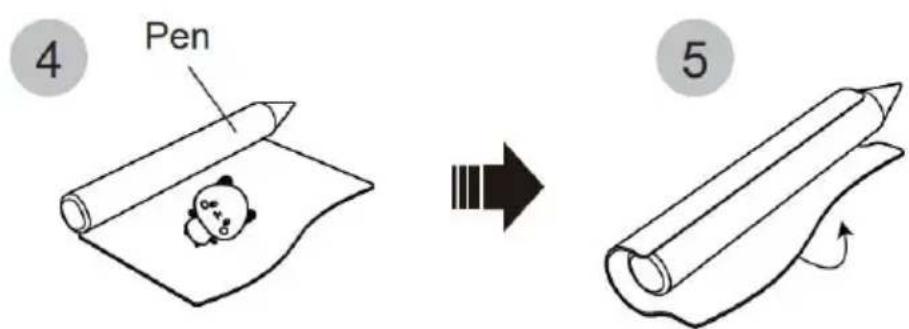

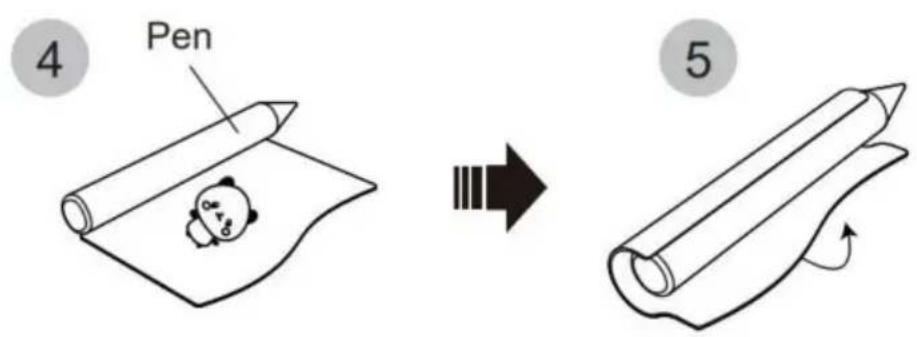

4 Pen → 5

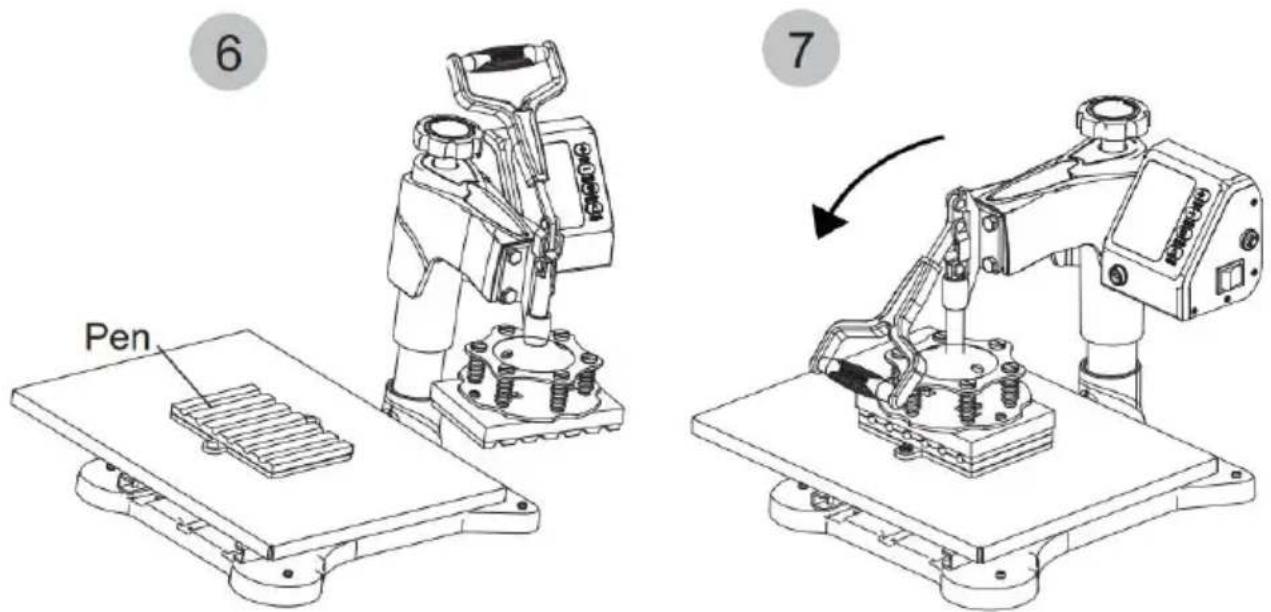

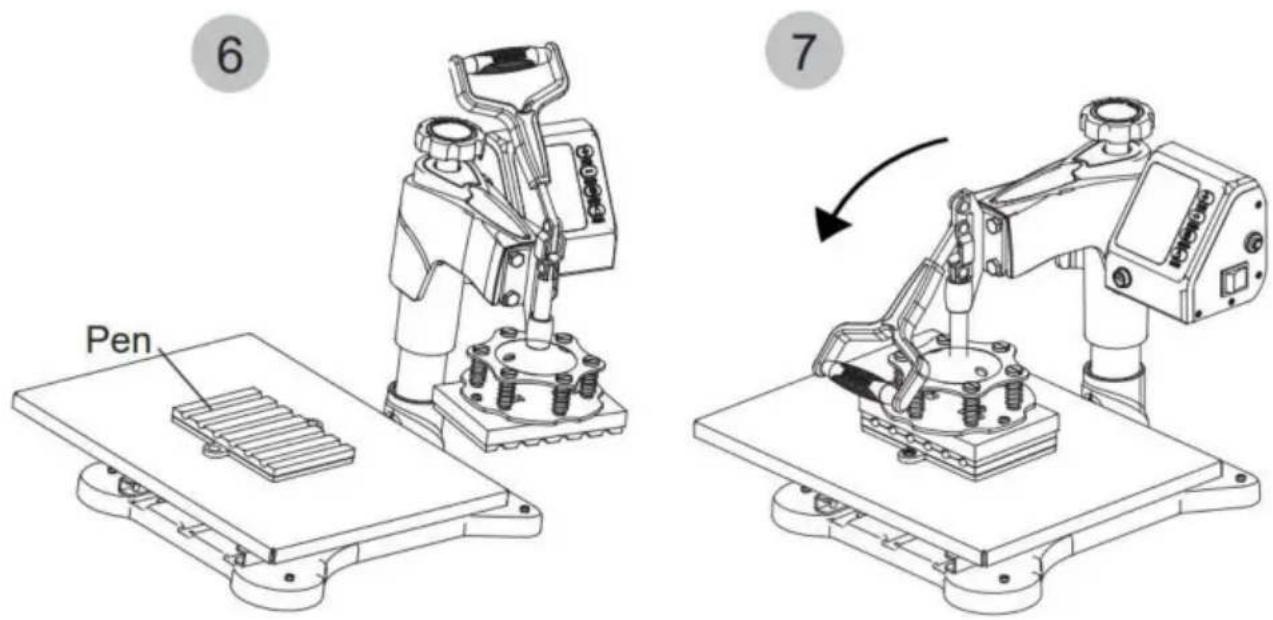

Pen 6 7

Vevor P8038 - Finish the Setting and Stand by to Work - 32

TREATMENT OF QUALITY DEFECTS IN TRANSFER

  1. Light Color or Faded Image: Insufficient Temperature / Incorrect Pressure / Insufficient Time.
  2. Fuzzy Image: Pressing time is too long.
  3. Part of the Pattern Blurred: The heat is not being distributed correctly through the heating plate, so the working time can be increased appropriately. It may be the cause of uneven pressure distribution, which can be set on four board regulators. Please note that the four board regulators have been set up before they leave the factory and should not need to be adjusted normally.
  4. Dim Pattern: Too much pressure or temperature.
  5. Scarred Pattern: Transfer time is too long.
  6. Different Pattern Colors: incorrect pressure or poor quality of transfer paper.
  7. Scorched Pattern: High temperature or poor ink.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

FCC INFORMATION

Illustration of a robotic arm operating on a platform with an arrow indicating rotation (no text or symbols present)

Rotate the heating platen to one side

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols)

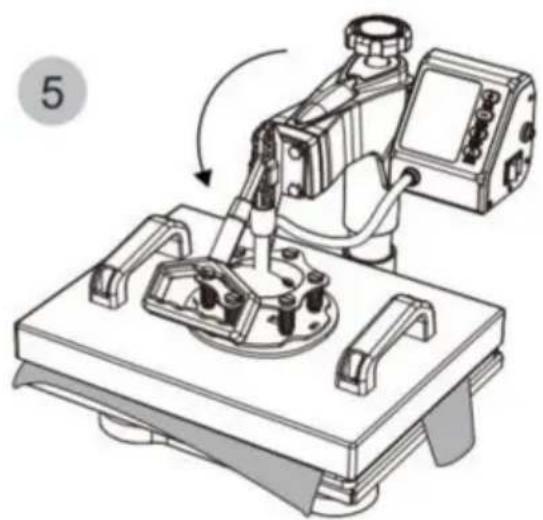

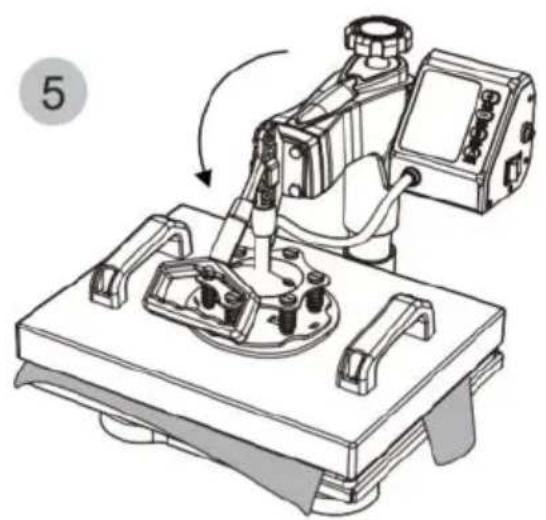

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

INTELLIGENT TEMPERATURE REGULATOR

1 Pluck the plug

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

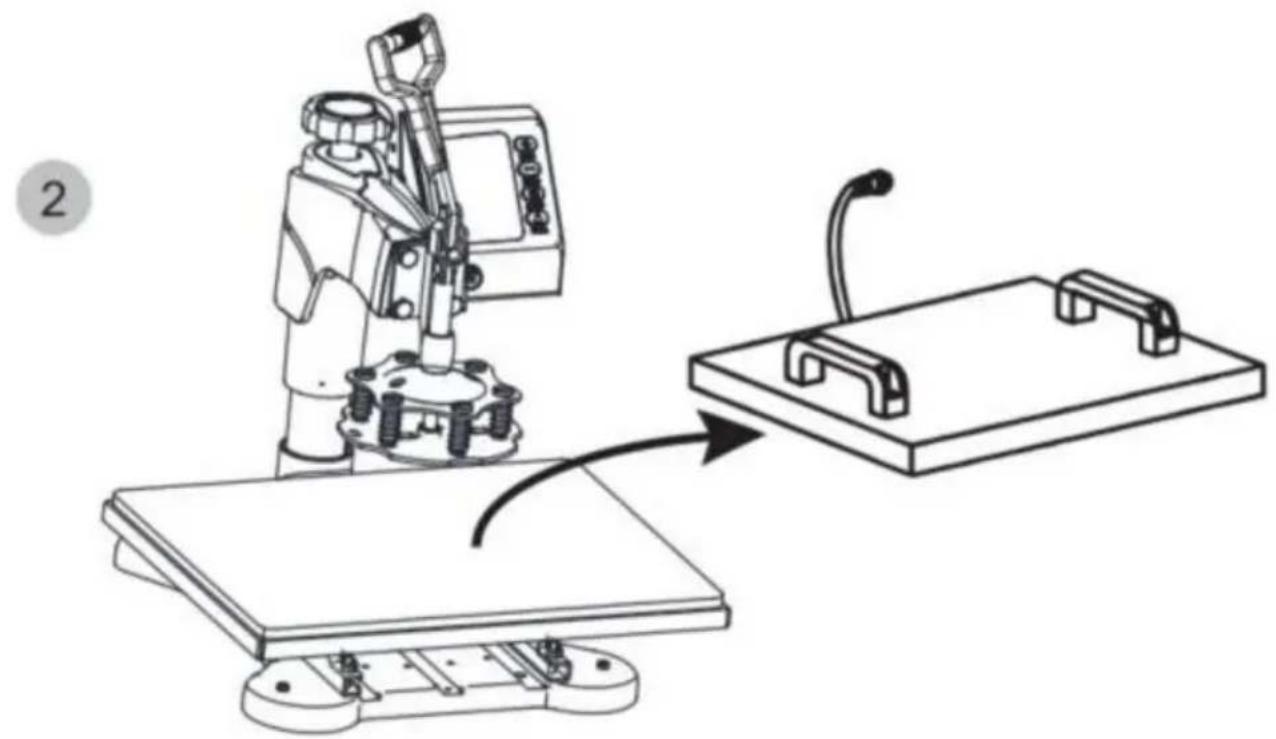

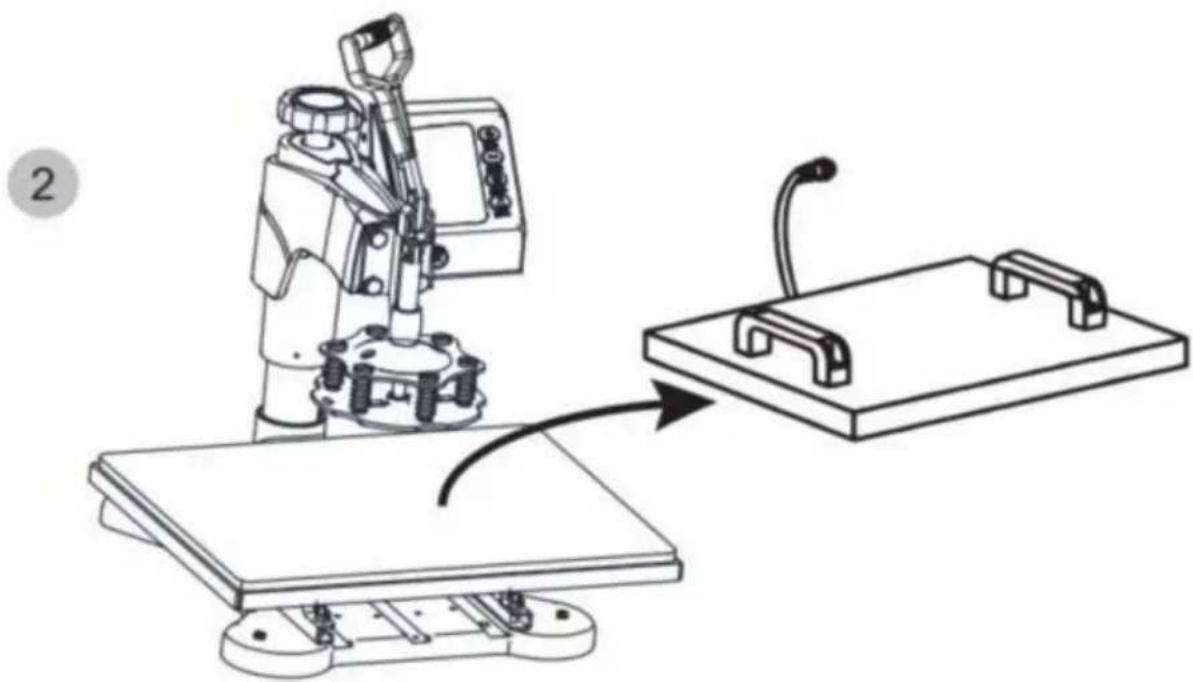

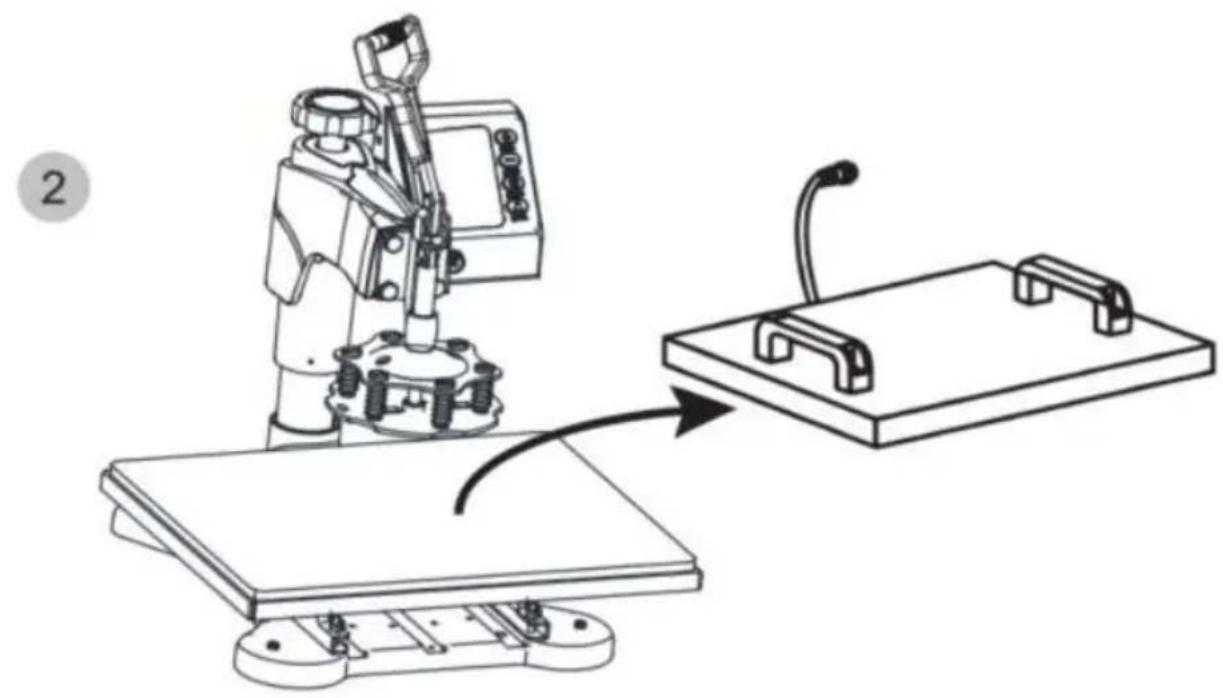

Rotate the heat transfer board to the side

REPLACE WITH A PLATE PRESS

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves)

Choose the right size Plate Press.

P+Q

combination

P

separate

4 P and Q plate

Cute cartoon panda inside a circular frame with stars and swirls (no text or symbols)

Patterned plate

REPLACING THE SUPPORT PAD

1 Pluck the plug

Line drawing of a robotic machine operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side.

3. Unscrew the four butterfly screws at the bottom.Loosen the bottom screw and remove

4. Lift the cushion up.Technical line drawing of a robotic device with articulated arms and mounting base (no text or symbols)

5.Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols)

6. Install the backing pad (part 4).(art 4)

Use the screwdriver to tighten the 2 screws just removed and put the cap on.

Upper cap heat press

REPLACING THE COASTER

1.Technical diagram showing mechanical assembly with labeled components (G, H) and directional arrow indicating transformation or assembly.

Install H to Part G.

Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side.

Select the appropriate size backing coaster.

Put the cup in Part H.

I or J H

2.Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Vevor P8038 - REPLACING THE COASTER - 4

Plug in

Shaped cup

1K or L G ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Put the cup in Part G

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Plug in

Shaped cupVevor P8038 - REPLACING THE COASTER - 10

REPLACE THE OVEN PEN

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

Vevor P8038 - REPLACE THE OVEN PEN - 2

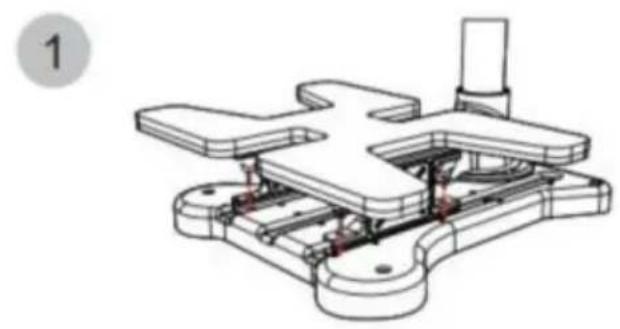

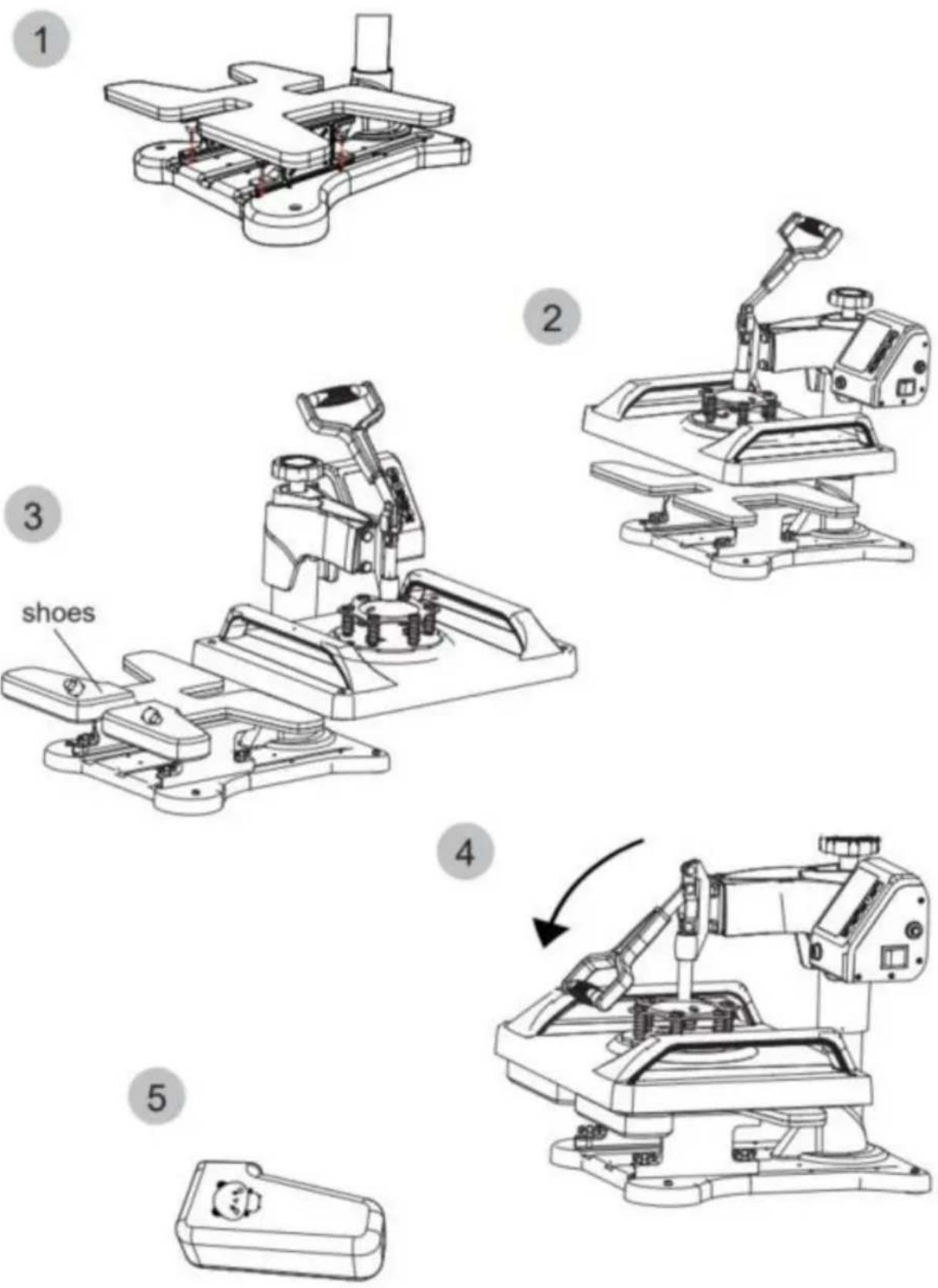

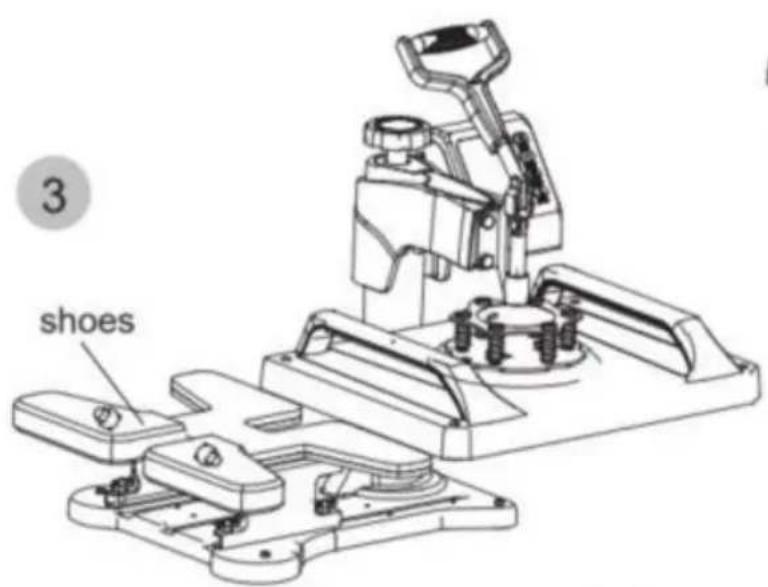

REPLACE THE OVEN SHOES

Vevor P8038 - REPLACE THE OVEN SHOES - 1

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD

New South Wales 2122 Australia

C/O YH Consulting Limited Office 147, Centurion House,

Via Roma, 101, 00186 Rome, Italy

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

FCC INFORMATION

A Phillips screwdriver can be turned into a slotted screwdriver by rotating it 180 degrees

Illustration of a robotic arm operating on a platform with a rotating arrow indicating rotation (no text or symbols).

Rotate the heating platen to one side

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols).

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols).

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with rotating arm and base plate (no text or symbols).

INTELLIGENT TEMPERATURE CONTROLLER

OPERATION METHOD

1. Pluck the plug.

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols).

Rotate the heat transfer board to the side

CONVERT TO PLATE PRESS

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves).

Choose the right size Plate Press.

P+Q

combination

P

separate

4. P and Q plate.

Cute cartoon panda inside concentric circles with sparkles (no text or symbols).

Patterned plate

REPLACING THE BACKING PAD

1. Pluck the plug.

Line drawing of a robotic machine operating a workbench with a device, showing no text or symbols present.

Rotate the heat transfer board to the side

3. Unscrew the four butterfly screws at the bottom.Loosen the bottom screw and remove.

Lift the cushion up 4Technical line drawing of a robotic device with articulated arms and mounting base (no text or symbols).

5Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols).

Install the backing pad (part 4) 6Art 4.

Use the screwdriver 4 to tighten the 2 screws just removed and put the cap on

Upper cap: heat press.

REPLACING THE COASTER

1Technical diagram showing mechanical assembly with labeled components (G, H) and directional arrow indicating transformation or assembly.

Install H to Part G.

(Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Select the appropriate size backing coaster

(Part I or J) Put the cup in Part H.

I or J, H.

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols).

Adjust the tightness

Vevor P8038 - REPLACING THE COASTER - 4

Plug in.

Shaped cup

1K or L, G, ①, ②.

K, G.

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Put the cup in Part G

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols).

Adjust the tightness

Plug in.

Shaped cupVevor P8038 - REPLACING THE COASTER - 10

REPLACING THE ROASTING NEEDLE

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

3 A1 Z

4 Pen → 5

6 Pen 7

REPLACING THE ROASTING SHOE

Vevor P8038 - REPLACING THE ROASTING SHOE - 1

HANDLING QUALITY DEFECTS IN TRANSFER

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

FCC INFORMATION

Illustration of a robotic arm operating on a platform with a rotating arrow indicating rotation (no text or symbols)

Rotate the heating platen to one side.

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols)

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Rotate this switch to adjust pressure.Technical line drawing of a mechanical device with rotating arm and base mount (no text or symbols)

1 Pluck the plug

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side.

Choose the right size plate press.

P+Q

Combination

P

Separate

4 P and Q plate

Cute cartoon panda inside a circular frame with stars and swirls (no text or symbols)

Patterned plate

Line drawing of a robotic machine operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side.

3. Unscrew the four butterfly screws at the bottom.Loosen the bottom screw and remove

Lift the cushion up 4.Technical line drawing of a robotic arm with articulated joints and mounting base (no text or symbols)

5Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols)

Install the backing pad (part 4).(art 4)

Use the screwdriver to tighten the 2 screws just removed and put the cap on.

Upper CapHeat Press

1G H ① ②

Line drawing of a mechanical device with rollers and housing (no text or symbols)

Install H to Part G.

Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side.

Select the appropriate size backing coaster (Part I or J). Put the cup in Part H.

I or J H

2Mechanical linkage diagram showing a lever mechanism with no text or symbols

Adjust the tightness.

Plug in

Shaped cup.Vevor P8038 - FCC INFORMATION - 22

1K or L G ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Put the cup in Part G.

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Plug in

Shaped cupVevor P8038 - FCC INFORMATION - 27

REPLACE THE BACKSTITCH

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

Vevor P8038 - REPLACE THE BACKSTITCH - 2

Replace the baking shoes

Vevor P8038 - Replace the baking shoes - 1

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

FCC INFORMATION

A Phillips screwdriver can be turned into a slotted screwdriver by rotating it 180 degrees

1PC

UNBCDEFGH.LJKM
Célibataire
5 en 1
6 en 1
6 en 1
8 en 1
10 en 1
11 en 1

HOW TO CALIBRATE YOUR NEW HEAT PRESS

Illustration of a robotic arm operating on a platform with a rotating arrow indicating rotation (no text or symbols)

Rotate the heating platen to one side

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols)

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with rotating arm and base plate (no text or symbols)

INTELLIGENT TEMPERATURE CONTROLLER

OPERATING MODE

1 Pluck the plug

Line drawing of a robotic arm operating a workbench with a device, showing a process step (no text or symbols present)

Rotate the heat transfer board to the side

REPLACE WITH A PLATE PRESS

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves)

Choose the right size Plate Press.

P+Q

combination

P

separate

4 P and Q plate

Cute cartoon panda inside concentric circles with sparkles (no text or symbols)

Patterned plate

REPLACE THE SUPPORT PROTECTION MAT

1 Pluck the plug

Line drawing of a robotic machine operating a workbench with a device, showing no text or symbols present.

Rotate the heat transfer board to the side

3 Unscrew the four butterfly screws at the bottomLoosen the bottom screw and remove

Lift the cushion up 4Technical line drawing of a robotic arm with articulated joints and mounting base (no text or symbols)

5Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols)

Install the backing pad (part 4) 6Art 4

Use the screwdriver 4 to tighten the 2 screws just removed and put the cap on

Upper CapHeat Press

1Technical diagram showing mechanical assembly with labeled components (G, H) and directional arrow indicating transformation or assembly.

Install H to Part G.

(Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Select the appropriate size backing coaster

(Part I or J) Put the cup in Part H.

I or J H

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Vevor P8038 - REPLACE WITH A PLATE PRESS - 16

Plug in

Shaped cup

1K or L G ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Put the cup in Part G

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Plug in

Shaped cup1. Pluck the plug

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

Vevor P8038 - REPLACE WITH A PLATE PRESS - 24

Vevor P8038 - REPLACE WITH A PLATE PRESS - 25

TREATMENT OF QUALITY DEFECTS IN TRANSFER

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

FCC INFORMATION

Illustration of a robotic arm operating on a platform with a rotating arrow indicating rotation (no text or symbols).

Rotate the heating platen to one side

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols).

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols).

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with rotating arm and base mount (no text or symbols).

1. Pluck the plug.

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols).

Rotate the heat transfer board to the side

REPLACE WITH A PLATE PRESS

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves).

Choose the right size Plate Press.

P+Q

combination

P

separate

4. P and Q plate.

Cute cartoon panda inside a circular frame with stars and swirls (no text or symbols).

Patterned plate

REPLACE BACK COVER MAT

1. Pluck the plug.

Line drawing of a robotic machine operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

3 Unscrew the four butterfly screws at bottom.Loosen the bottom screw and remove

Lift the cushion up 4Technical line drawing of a robotic arm with articulated joints and mounting base (no text or symbols)

5Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols)

Install the backing pad (part 4) 6Art 4

Use the screwdriver 4 to tighten the 2 screws just removed and put the cap on

Upper Cap Heat Press

REPLACE BACK SUPPORT

1Technical diagram showing mechanical assembly with labeled components (G, H) and directional arrow indicating transformation or assembly.

Install H to Part G.

Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side.

Select the appropriate size backing coaster.

(Part I or J) Put the cup in Part H.

I or J H

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness.

Vevor P8038 - REPLACE BACK SUPPORT - 4

Plug in

Shaped cup.

1K or L G ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side.)

Put the cup in Part G.

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness.

Plug in

Shaped cup.Vevor P8038 - REPLACE BACK SUPPORT - 10

REPLACE BAKING PAN

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols).

Rotate the heat transfer board to the side.

Vevor P8038 - REPLACE BAKING PAN - 2

Replace the brake shoes

Vevor P8038 - Replace the brake shoes - 1

HANDLING OF QUALITY DEFECTS UPON DELIVERY

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

FCC INFORMATION

Illustration of a robotic arm operating on a platform with a rotating arrow indicating rotation (no text or symbols).

Rotate the heating platen to one side

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols).

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols).

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with rotating arm and base mount (no text or symbols).

INTELLIGENT TEMPERATURE CONTROL OPERATING METHOD

1. Pluck the plug

Line drawing of a robotic arm operating a CNC machine, with an arrow indicating the process (no text or symbols present).

Rotate the heat transfer board to the side

CHANGE TO A PLATE PRESS

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves).

Choose the right size Plate Press.

P+Q

combination

P

separate

4 P and Q plate

Cute cartoon panda inside a circular frame with stars and swirls (no text or symbols)

Patterned plate

CHANGE MAT FOR BREWING PURCHASE

1 Pluck the plug

Line drawing of a robotic machine operating a workbench with a device, showing no text or symbols present.

Rotate the heat transfer board to the side

3 Unscrew the four butterfly screws at bottomLoosen the bottom screw and remove

Lift the cushion up 4Technical line drawing of a robotic arm with articulated joints and mounting base (no text or symbols)

5Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols)

Install the backing pad (part 4) 6(art 4)

Use the screwdriver 4 to tighten the 2 screws just removed and put the cap on

Upper CapHeat Press

CHANGE BACKGROUND

1G H ① ②

Line drawing of a mechanical device with cylindrical components and a base frame (no text or symbols)

Install H to Part G.

(Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Select the appropriate size backing coaster

(Part I or J) Put the cup in Part H.

I or J H

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Vevor P8038 - CHANGE BACKGROUND - 5

Plug in

Shaped cup

1K or L G ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Put the cup in Part G

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Plug in

Shaped cupVevor P8038 - CHANGE BACKGROUND - 11

BYT BAKNINGSPENNA

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

Vevor P8038 - BYT BAKNINGSPENNA - 2

BYTA BAKSKOR

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with no visible text or symbols

shoes 3

Diagram of a mechanical assembly with an arrow indicating motion direction (no text or symbols present)

Simple line drawing of a rectangular object with a small circular feature on top (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

BEHANDLING AV KVALITETSFEL VID ÖVERFÖRING

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a robotic arm operating on a platform with a rotating arrow indicating rotation (no text or symbols).

Rotate the heating platen to one side

Illustration of a robotic arm operating on a platform with a T-shirt, showing motion direction (no text or symbols).

Pull out the lower panel, place the clothes flat on the platen, and place the pattern on the clothes.

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols).

Rotate this switch to adjust pressureTechnical line drawing of a mechanical device with rotating arm and base mount (no text or symbols).

1. Pluck the plug.

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols).

Rotate the heat transfer board to the side

SUSTITUIR CON UNA PRENSA DE PLACA

Simple line drawing of two rings with a number 3 in the top-left corner (no text or symbols on the rings themselves).

Choose the right size Plate Press.

P+Q

combination

P

separate

4. P and Q plate.

Cute cartoon panda inside concentric circles with sparkles (no text or symbols).

Patterned plate

REPLACEMENT OF THE BACKREST COVER CARPET

1. Pluck the plug.

Line drawing of a robotic machine operating a workbench with a device, showing motion direction (no text or symbols)

Rotate the heat transfer board to the side

3 Unscrew the four butterfly screws at the bottom.Loosen the bottom screw and remove

Lift the cushion up 4Technical line drawing of a robotic arm with articulated joints and mounting base (no text or symbols)

5Simple line drawing of a mechanical clamp or bracket with pins and a handle (no text or symbols)

Install the backing pad (part 4) 6(art 4)

Use the screwdriver 4 to tighten the 2 screws just removed and put the cap on

Upper Cap Heat Press

1Technical diagram showing mechanical assembly with labeled components (G, H) and directional arrow indicating transformation or assembly.

Install H to Part G.

(Tighten the screws on both sides.

We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Select the appropriate size backing coaster

(Part I or J) Put the cup in Part H.

I or J H

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Vevor P8038 - SUSTITUIR CON UNA PRENSA DE PLACA - 16

Plug in

Shaped cup

1K or L G ① ②

K G

And install K or L to Part G. (Tighten the screws on both sides. We suggest to tighten the screws on the ① side first, and then tighten the screws on the ② side)

Put the cup in Part G

2Mechanical linkage mechanism diagram showing a lever and pivot (no text or symbols)

Adjust the tightness

Plug in

Shaped cup1. Pluck the plug

Line drawing of a robotic arm operating a workbench with a device, showing motion direction (no text or symbols).

Rotate the heat transfer board to the side

Vevor P8038 - SUSTITUIR CON UNA PRENSA DE PLACA - 24

Vevor P8038 - SUSTITUIR CON UNA PRENSA DE PLACA - 25

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : P8038

Category : Heat press
