USER MANUAL Swing BabyGO

MANUEL D'INSTRUCTIONS

IMPORTANT : KEEP FOR FUTURE REFERENCE. READ CAREFULLY.

IMPORTANT : À CONSERVER POUR RÉFÉRENCE FUTURE. LIRE ATTENTIVEMENT.

BELANGRIJK: BEWAAR VOOR TOEKOMSTIGE REFERENTIE. LEES AANDACHTIG.

EN 12790-1:2023

BabyGo Baby Products GmbH

Am Bahndamm 1-3

Line drawing of a baby car seat with no text or symbols

SWING

Seite 04 - 17

DEUTSCH

Page 18 - 31

ENGLISH

Page 32 - 45

FRANCE

Pagina 46 - 59

NEDERLANDS

babyGO

babyGO

Line drawing of a baby car seat with adjustable arms and seatbelt (no text or symbols)

Three technical line drawings of a car seat assembly, showing front, side, and top views with no text or symbols.

Line drawing of a device with a handle and a separate view showing internal components (no text or symbols)

Diagram of a helicopter with attached electrical plug and valve (no text or symbols)

ACHTUNG:

Line drawing of a baby car seat with adjustable arms and a control panel (no text or symbols)

EN INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the baby rocker.

Please read and follow all instructions before using the baby rocker.

WARNING! Read the Instruction carefully before use and keep them for future reference.

SWING

IMPORTANT

READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

THIS PRODUCT COMPLIES WITH STANDARD EN12790-1:2023 Never leave the child unattended.

• Use for babies aged 0-6 months with maximum weight 9kg.
• Do not use the product if any parts are broken, torn or missing and use only spare parts approved by the manufacturer.
  • Always use harness. Do not move or lift this product with the baby inside it.
• Never leave the child unattended. Do not let children play with this product.
• Stop using product when child attempts to climb out or reaches 9kg.
• It is dangerous to place this product on an elevated surface. Always use on a flat, level floor.
• To avoid injury ensure that children are kept away when unfolding and folding this product.
• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. In the vicinity of the product.
• Never let the child sleep in this product. This product does not replace a cot or a crib. Should the child fall asleep, then it should be placed in a suitable cot or crib.
• Do not use the product without the seat cushion.
• Discontinue using your product should it become damaged or

babyGO

broken.

• Do not place the swing near windows or walls, where strings, curtains or other objects may be used by the child to climb out of the swing seat, and to prevent the risk of suffocation or choking.
• Do not place the swing near windows or walls, to prevent the child from affecting the stability of the swing, making it topple over, by pushing with his feet against the wall.
• Stop using the product when the child starts trying to sit up.
• Never use this product on an elevated surface (e.g., a table).
• Never use the toy bar to carry the product.
• Do not move or lift this product with the baby inside it.
• Transformers used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used.
  • The product shall only be used with the recommended transformer.

FOR SAFE BATTERY USE

• Keep the batteries out of children's reach.
• Only the recommended batteries or equivalent are to be used, volts and size.
• Batteries are inserted with the correct polarity.
• Remove exhausted batteries from the product.
• Do not short-circuit supply terminals.
• Rechargeable batteries are to be removed before being charged.
• Rechargeable batteries are only to be charged under adult supervision. Non-rechargeable batteries are not to be recharged.
• Any battery may leak battery acid if mixed with a different battery type, if inserted incorrectly (put in backwards) or if all batteries are not replaced or recharged at the same time. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
• Any battery may leak battery acid or explode if disposed of in fire or an attempt is made to charge a battery not intended to be recharged.
• Never recharge a cell of one type in a recharger made for a cell of another type.
• Dispose of leaky batteries immediately. Leaky batteries can cause

SWING

skin burns or other personal injury. When discarding batteries, be sure to dispose of them in the proper manner, according to your state and local regulations.

• Always remove batteries if the product is not going to be used for a month or more. Batteries left in the unit may leak and cause damage.
• Recommended type batteries - alkaline disposables, size AA (LR6-1.5V). Never mix battery types. Change batteries when the product ceases to operate satisfactorily.

babyGO

SWING

MAINTENANCE

MAINTENANCE

This product requires regular maintenance to keep it in good working order. Regularly check all parts of the product to ensure that they are operating correctly and for signs of wear or damage. Only replacement parts supplied or recommended by the manufacturer should be used.

CLEANING

Refer to care label on the product for cleaning instructions for fabrics. Clean metal or plastic components with mild detergent and warm water. Never use abrasive, ammonia based, bleach based or spirit type cleaners. Ensure the product is fully dry before use or storage.

WARRANTY

The warranty period starts from the date of purchase and is valid for a period of 12 months. The warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer. If the retailer can not solve the problem, he must return the product, complete with a clear description of the complaint and a validated purchase receipt to the manufacturer. Exchanger or return can not be demanded. Repairs do not constitute an extension to the warranty term. The manufacturer is not liable for any damages other than those on products supplied.

No warranty is given if:

• The product is not supplied complete with the validated purchase receipt to the manufacturer.
- Defects are caused by misuse or maintenance which differ from that indicated in the instruction manual.
• Repairs are carried out by third parties.
• Defects are caused by neglect.
- Damage or removal of any serial number is found.
- If there is normal wear and tear which may be expected from everyday use.
• The stated warranty terms and conditions have not been satisfied.

babyGO

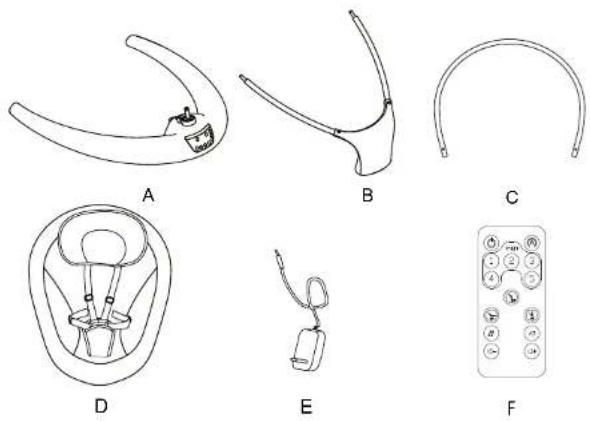

PARTS INSTALLATION

A. Bottom frame

D. Seatpad

B. Seat frame

E. Adapter

C. Seat back connection fube

F. Remote

SWING

click OK

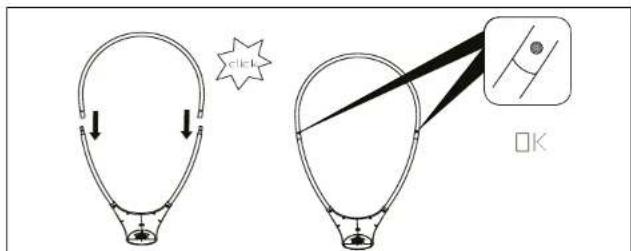

1. Install the seat frame with seat back connection tube, as above picture, make seat back convection tube insert hole of seat frame until a _click".

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

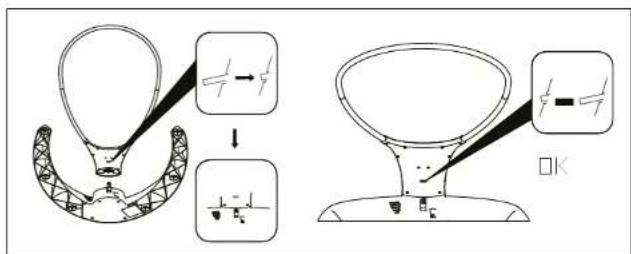

1. Press the button behind the seat assembly to retractable state first, then insert the seat assembly into the bottom seat, and the installation is completed after the button automatically springs back.

babyGO

Three technical line drawings of a car seat assembly, showing front, side, and top views with no text or symbols.

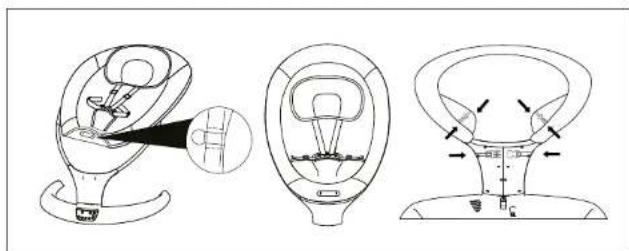

1. Place the fabric cover onto the backrest tube from top to bottom (to ensure that the fabric cover is properly installed, you can tighten fabric cover with moderate force). Then fix the plastic chips of the front fabric cover into the slots of the base part, and push them upwards. Lastly invert the seat and fasten all the fasteners on both sides and bottom side of the faric cover.

USE

Line drawing of a lamp and its base with a device, showing the process from base to top (no text or symbols)

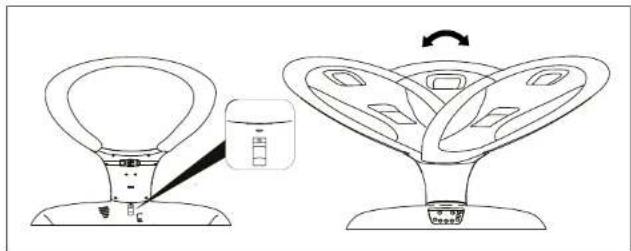

Stop button: the arrow is pushed up to the top until the shaking state, and the arrow is pushed down to the swaying state.

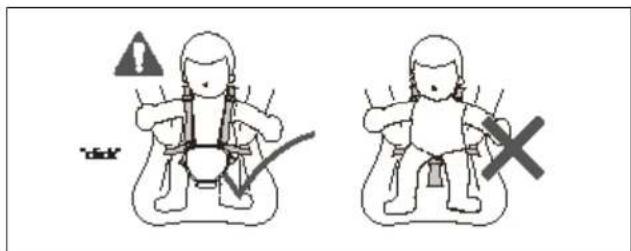

SEAT BELT

"check"

To avoid serious injury from falling or sliding out, always use seat belt when using swing.

babyGO

USE ADAPTER

Diagram of a fan with a sensor connected to a power plug (no text or symbols)

ATTENTION:

• Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off.
• Transformers used with the infant swing are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used.
• Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.
• Keep this cord out of the reach of children.
• Use only power AC adapter supplied by manufacturer.

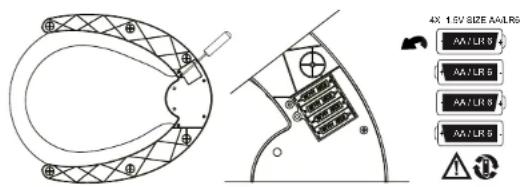

USE BATTERY (NOT INCLUDED)

4X 1.5V SIZE A/LR5 AA/LR5 AA/LR5 AA/LR5 AA/LR5 AA/LR5

ATTENTION:

• Loosen the screw in the battery compartment door with a screwdriver (not included) and remove the battery compartment door.
• Insert four AA (LR6) alkaline batteries into the battery compartment.
• Replace the battery compartment door and tighten the screws.
• Note: Low battery power may cause product movement to slow, sound and lights to become faint or product to turn off all together. If this should happen, use the AC adaptor as a power source or replace the batteries. Replace the batteries with four alkline AA (LR6) batteries.
• If this product begins to operate erratically, you may need to reset the electronics. Turn the power off and then back on.

Install batteries if you need to use this swing away from an outlet. We recommend using Alkaline batteries for longer battery life.

SWING

babyGO

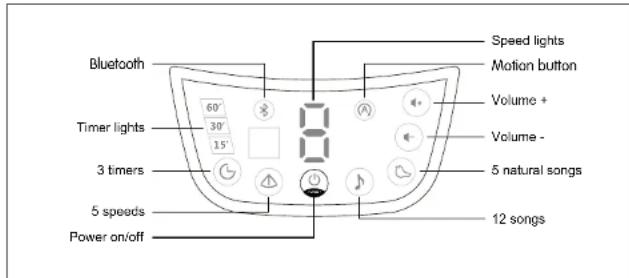

SWING CONTROL PLATE INSTRUCTIONS

Bluetooth Timer lights 3 timers 5 speeds Power on/off 60° 30° 15° Speed lights Motion button Volume + Volume - 5 natural songs 12 songs

Power on/off: Press button, the swing connects with power, and power light turns red.
Speed button: 5 speeds, each speed has a speed light. press the button to start from 1st speed, press again for 2nd speed.
Timer button: 3 timers, 15 mins, 30 mins, and 60 mins. press button to move to the next timer. each timer has a timer light.
Natural song button: 5 natural songs, press the button to start from one song, press again to move to next one.
Song button: 12 songs totally, press button to start from one melody, press again to move to next one.
Volume +/-, press this buttons to adjust the volume of songs.
Motion button: After baby fall asleep you can select this function, motion detector starts swinging when the baby shakes from crying.
The system will automatically shut down and stop after working for 2 hours. When needed again, please open power switch and restart the product.
*Open the phone Bluetooth function, search for „Maribel“ for pairing, hear „ding dong“ that pairing success.

SWING

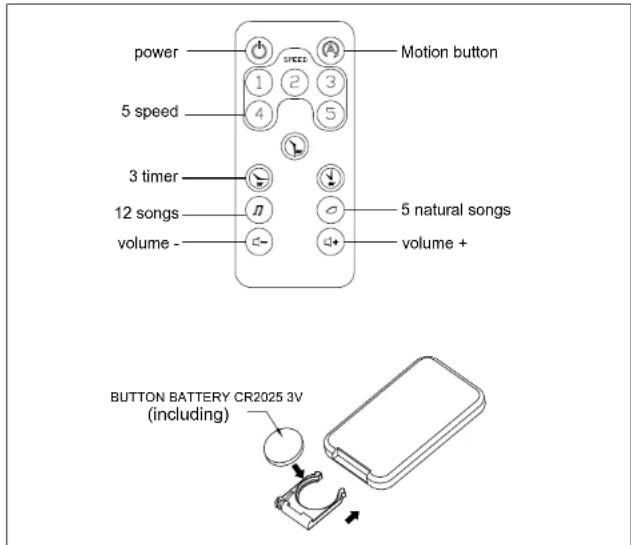

REMOTE CONTROL FUNCTION

power Motion button 5 speed 1 2 3 4 5 3 timer 12 songs 5 natural songs volume - volume + BUTTON BATTERY CR2025 3V (including)

babyGO

Line drawing of a baby car seat with adjustable arms and a control panel (no text or symbols)

FR MODE D'EMPLOI

Chers parents,

Medical diagram illustrating a procedure with stethoscope insertion and magnified view of the right side of the needle.

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

Three technical line drawings of a car seat assembly, showing front, side, and top views with no visible text or symbols.

Diagram showing a device being processed into a fan-shaped device with a rotating arrow (no text or symbols)

Diagram of a fan with attached electrical outlet and plug, showing no text or symbols

ATTENTION :

Line drawing of a baby car seat with adjustable arms and seatbelt (no text or symbols)

NL HANDLEIDING

Beste ouders,

Medical diagram illustrating a stethoscope procedure with directional arrows and a magnified view showing the right angle.

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

Technical diagram showing three stages of a car seat replacement device with labeled parts and directional arrows

Diagram showing a device interacting with a lamp-like device, both without any text or symbols

Diagram of a fan or propeller device connected to a power outlet and plug (no text or symbols present)

WAARSCHUWING:

4X 1.5V SIZE A4/LR5 A4/LR5 A4/LR5 A4/LR5 A4/LR5 A4/LR5

LET OP:
