CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH 3

INFORMATION ON THIS USER MANUAL 3

INTENDED USE 3

DEFINITIONS AND SYMBOL EXPLANATIONS 3

SAFETY INSTRUCTIONS 4

PACKAGING CONTENT 7

CONNECTIONS AND OPERATING ELEMENTS 7

CARE, MAINTENANCE AND REPAIR 11

TECHNICAL DATA 12

DISPOSAL 13

MANUFACTURER'S DECLARATIONS 14

DEUTSCH 15

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  ■ Always keep the user manual within reach.
  If you sell or pass on the device, please ensure you also hand over this manual.

INTENDED USE

This product is a device for event technology, studios, TV and broadcasting.

This product has been developed for professional use in the field of event technology, studios, TV and broadcasting. It is not suitable for household use!

Temporary operation! The product is intended for temporary use only and should not be used for permanent operation or installation.

Furthermore, this product is intended only for qualified users with specialist knowledge of event technology, studios, TV and broadcasting.

Use of the product outside the specified technical data and operating conditions is considered improper use.

Liability for damage and third-party damage to persons and property resulting from improper use is excluded.

The product is not suitable for:

■ Persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.
■ Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately dangerous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.

3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.

4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause an electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards due to high volume levels.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information about the product's operation.

This symbol indicates a device that may only be used in dry rooms.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device or make any modifications to it.
2. If your device stops working properly, or if liquids or objects get inside it, or it is damaged in any other way, switch it off immediately and disconnect it from the power supply. This device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device must not be used if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the mains cable or mains adapter of the device is damaged, the device must not be put into operation.
4. Permanently attached mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.
2. Ensure that the voltage and frequency of the mains match the values specified on the device. If the device has a voltage selector switch, do not turn the device on until this has been set correctly. Use only suitable mains cables.
3. To disconnect the device completely from the power supply, unplug the mains cable or mains adapter from the socket. It is not enough to press the on/off switch on the device. Additionally, any connected amplifier must also be disconnected from the device.
4. Ensure that the fuse used corresponds to the type printed on the device.
5. Ensure that suitable measures have been taken against overvoltage (for example, lightning strikes).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in power cables with original cables only.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger of falling! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and prescribed by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, ensure that all cables are routed to avoid damage or accidents, e.g. due to trip hazards.
5. Always observe the specified minimum distance to normally flammable materials! If this is not explicitly stated, the minimum distance is 0.3 metres.

CAUTION:

1. Moving components, such as mounting brackets, pose a jamming hazard.

ATTENTION:

1. Do not install or use the device in the vicinity of radiators, heat accumulators, furnaces, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place any ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. For transport, use the original packaging or packaging provided by the manufacturer.
5. Avoid exposing the device to shaking or impacts.
6. Observe the specified IP rating and ambient conditions, such as temperature and humidity.
7. Devices can be continuously further developed. In case of discrepancies between the user manual and the device labelling regarding operating conditions, performance, or other device properties, the information provided on the device always takes precedence.
8. The device is not suitable for tropical climate zones or for operation over 2000 m above sea level.
9. Unless explicitly stated, the device is not suitable for operation under marine conditions.

PLEASE NOTE:

For conversion or retrofit kits or accessories provided by the manufacturer, please follow the enclosed instructions carefully.

CAUTION: HIGH VOLUME AUDIO PRODUCTS!

This device is designed for professional use. The commercial operation of this device is subject to the applicable national regulations and guidelines for accident prevention.

Hearing damage due to high volume and continuous exposure: use of this product may generate high sound pressure levels (SPLs) that may cause hearing damage. Avoid exposure to high volumes.

ATTENTION:

Connecting signal cables and operating switches (for example, switching phantom power on and off) can cause significant interference noise. Ensure that input channels (mixer, audio interface, effects device, etc.) are muted while making connections and operating switches. Otherwise, noise levels may cause damage.

PLEASE NOTE:

Strong magnetic fields can cause humming. For this reason, do not position the device near strong magnetic fields (for example, a mains transformer).

NOTES FOR PORTABLE INDOOR DEVICES

1. Temporary operation! Event equipment is generally designed for temporary use only.
2. Continuous operation or permanent installation can impair the device's functioning and cause premature ageing.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material. Please verify the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is incomplete or damaged.

The packaging content for the product includes:

■ 1 × MONICON L G2 monitor controller
1 × mains adapter
■ Safety and compliance information (user manual as a download via QR code)

CONNECTIONS AND OPERATING ELEMENTS

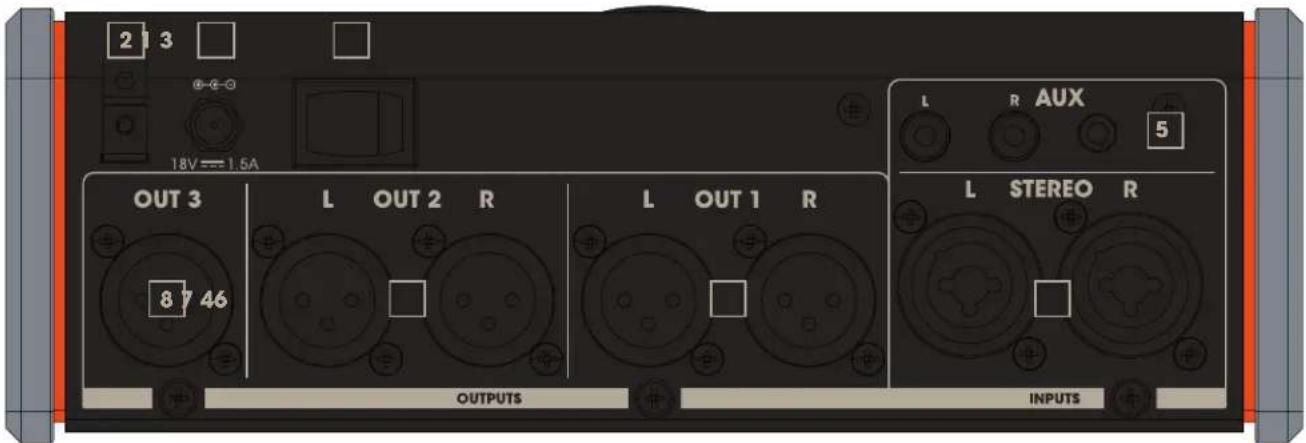

2 3 18V=1.5A OUT 3 8 7 46 L OUT 2 R OUTPUTS L OUT 1 R L R AUX 5 L STEREO R INPUTS

PLEASE NOTE:

The monitor controller can also be operated passively, i.e. without a power supply. All inputs and outputs, except OUT 3, AUX / Bluetooth® and the headphone output, can be used as usual. The display LEDs will not function in this case.

1 POWER IN

Low-voltage socket for powering the device. Please use only the mains adapter supplied.

2 CABLE STRAIN RELIEF

Use the strain relief for the flexible cable of the mains adapter to protect the low-voltage socket of the device and the low-voltage plug of the mains adapter from damage and to prevent the plug from being pulled out accidentally.

3 POWER ON / OFF

On-off switch for power supply to the device.

4 STEREO INPUT L / R

Stereo input with two balanced XLR / 6.35 mm TRS jack combo sockets. Use a high-quality stereo cable to connect an audio interface, studio mixer or similar to the stereo input. Ensure the correct channel assignment (OUTPUT L → INPUT L, OUTPUT R → INPUT R).

5 AUX INPUT L / R

Unbalanced stereo input with two RCA sockets and one 3.5 mm stereo mini jack socket. Do not use the inputs simultaneously. Use a high-quality stereo cable to connect an audio interface, studio mixer, or similar to the stereo input. Ensure the correct channel assignment (OUTPUT L → INPUT L, OUTPUT R → INPUT R).

6 OUT 1 L / R

Separately switchable stereo line output with two balanced XLRm sockets. Use a high-quality stereo cable to connect the stereo output to active studio monitors or a studio power amplifier. Ensure the correct channel assignment (OUTPUT L → INPUT L, OUTPUT R → INPUT R).

7 OUT 2 L / R

Separately switchable stereo line output with two balanced XLRm sockets. Use a high-quality stereo cable to connect the stereo output to active studio monitors or a studio power amplifier. Ensure the correct channel assignment (OUTPUT L → INPUT L, OUTPUT R → INPUT R).

8 OUT 3

Separately switchable mono line output with one balanced XLRm socket. Use a high-quality audio cable to connect the mono output to an active studio subwoofer or a studio power amplifier.

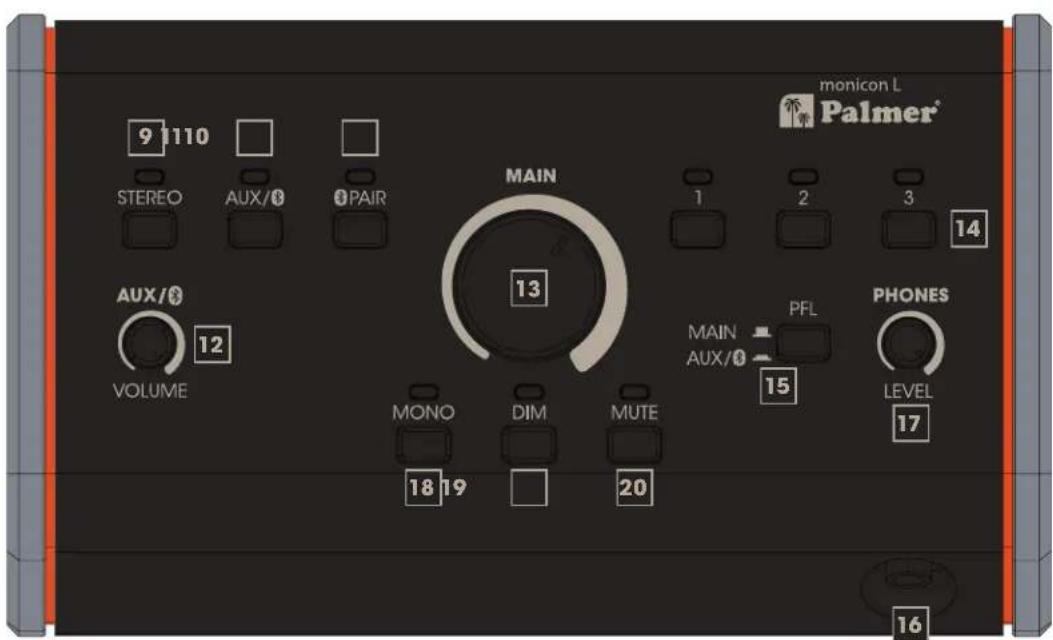

monicon L Palmer® 9 110 STEREO AUX/8 3PAIR MAIN 13 1 2 3 14 AUX/8 VOLUME 12 MONO DIM MUTE 15 PFL PHONES AUX/8 LEVEL 17 18 19 20 16

9 STEREO

Switch for switching the STEREO INPUT L / R signal input on and off. When the input is switched on, the corresponding display LED lights up.

10 AUX / BLUETOOTH®

Switch to switch the AUX signal input and Bluetooth ^® on and off. When the input is switched on, the corresponding display LED lights up. The AUX input and Bluetooth ^® can be used simultaneously.

11 BLUETOOTH® PAIR

Button to start the pairing process with a Bluetooth-enabled smart device (smartphone, tablet). Press and hold the button for approx. 2 seconds until the blue Bluetooth LED flashes. The Bluetooth unit now remains ready for pairing for approx. 120 seconds. Activate Bluetooth on your smart device and search for available devices on the user interface. Select the "Monicon L" entry and use it to pair your smart device with the Bluetooth unit of the monitor controller. If successfully paired, the Bluetooth LED will light up permanently, and audio playback can begin.

12 VOLUME AUX / BLUETOOTH®

Volume control for the line inputs and the Bluetooth unit. The volume control is located in the signal path before the MAIN volume control. The AUX inputs and the Bluetooth unit can be used simultaneously if required.

13 MAIN

Volume control for adjusting the listening volume.

14 1-2-3

Switch for switching the line outputs OUT 1, 2 and 3 on and off. When an output is switched on, the corresponding display LED lights up. All outputs can be used simultaneously.

15 PFL MAIN & AUX / BLUETOOTH®

Switch for switching the signal source for the PHONES headphone output.

Switch not pressed: MAIN signal source.

Switch pressed: AUX / Bluetooth ^® signal source.

16 PHONES

Stereo headphone output with a 6.35 mm TRS jack socket.

17 PHONES LEVEL

Volume control for the headphone output (left stop = output muted, right stop = maximum volume). The headphone signal is tapped before the MAIN volume control and is therefore independent of it.

CAUTION: Using the headphone output can produce high sound pressure levels (SPL) that may cause hearing damage. Avoid exposure to high volumes!

18 MONO

This function can be used to acoustically check the mono compatibility of a stereo signal, for example. The output signal of the stereo line outputs OUT 1 and OUT 2 is summed to mono when the Mono function is activated.

Switch not pressed: Stereo signal not summed.

Switch pressed: Stereo signal is summed to mono.

When the function is activated, the corresponding display LED lights up.

19 DIM

This function can be used to reduce the level of the output signal by approx. 12 dB. The headphone output remains unaffected.

Switch not pressed: No level reduction.

Switch pressed: Level reduction by approx. 12 dB.

When the function is activated, the corresponding display LED lights up.

20 MUTE

This function can be used to mute all the controller's line outputs. The headphone output remains unaffected.

Switch not pressed: Outputs not muted

Switch pressed: Outputs muted

When the function is activated, the corresponding display LED lights up.

CARE, MAINTENANCE AND REPAIR

To ensure the long-term proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The care and maintenance requirements depend on the intensity of use and the environment.

We recommend a visual inspection before each operation. Furthermore, we recommend carrying out all applicable maintenance measures specified below at least once every 500 operating hours, or at the latest, after one year, if the device is not used frequently. Warranty claims may be limited should defects result from inadequate service and maintenance.

WARNING:

Before carrying out any care or maintenance, the power supply - and, if possible, all device connections - must be disconnected.

PLEASE NOTE:

Improper care can lead to impairment or even destruction of the device.

1. Housing surfaces must be cleaned with a clean, damp cloth. Ensure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, ensure that damage to the device is prevented (for example, fans must be blocked in this case).
3. Cables and connectors must be cleaned regularly to remove dust and dirt.
4. Generally, no cleaning, disinfection, or abrasive agents may be used, as they can damage the surface finish. Solvents in particular, such as alcohol, can impair the function of housing seals.
5. Devices must generally be stored dry and protected from dust and dirt.

MAINTENANCE AND REPAIR (BY QUALIFIED PERSONNEL ONLY)

DANGER:

There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE:

There are no user-serviceable assemblies in the device.

PLEASE NOTE:

Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE:

Improperly performed maintenance work may affect warranty claims.

TECHNICAL DATA

Item number PMONICONLG2
Product type	Studio equipment
Type	Monitor controller
No. of outputs	2 × Stereo1 × Mono
Output connectors	XLR
Maximum output level, XLR	+20 dBu (balanced)
Maximum output power of headphone output	2 × 100 mW
Minimum output impedance of headphone output	2 × 10 Ohm
Output impedance, XLR	600 Ohm
No. of inputs	3 × Stereo
Input connectors	XLR/Jack Combo;AUX and Bluetooth
Maximum input level, XLR	+20 dBu
Input impedance, XLR	20 kOhm (balanced), 10 kOhm (unbalanced)
Maximum input level, cinch/RCA	+15 dBu
Input impedance, cinch/RCA	10 kOhm
Frequency response, XLR	20 Hz - 20 kHz (+/- 0.2 dB)
Harmonic distortion (THD), XLR	0.001%
Signal-to-noise ratio (SNR), XLR	112 dB (A-weighted) @ +4 dBu
Dynamic range (DR AES17), XLR	115 dB
CMRR, XLR	Better than 55 dB
Crosstalk, XLR	-79 dB (max. measured with volume control)
Bluetooth version	Bluetooth 5.3
Maximum damping	111 dB (attenuator + mute), 82 dB (attenuator)
Controls	MONO/STEREO switch, MUTE switchDIM switchMAIN volume controlAUX/BT volume controlHeadphones volume controlPFL MODE switchSTEREO IN switchAUX/BT IN switchBluetooth pairing switch3 × Output 1, 2, 3 switches
Display indicators	1 × blue LED, Bluetooth pairing1 × red LED, MUTE7 × orange LEDs
Power supply	Ext. plug-in power supply

Item number PMONICONLG2

Operating voltage	18 V DC, 1.5 A
Ambient temperature (in operation)	0°C - 40°C
Relative air humidity	< 80%, non-condensing
Housing material	Upper part: plastic; lower part: metal
Housing colour	Black
Housing type	Desktop unit
Dimensions (W × H × D)	218 × 76 × 124 mm
Weight	910 g
Accessories included	Mains adapter, 18 V DC, 1.5 A

DISPOSAL

PACKAGING:

1. Packaging can be recycled via the usual disposal channels.
2. Please separate the packaging according to the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can get information on environmentally friendly disposal options from the product seller or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu-Anspach / e-mail [e-mail] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

EC CONFORMITY

Adam Hall GmbH hereby confirms that this product meets the following guidelines (where applicable):

■ Low-Voltage Directive (2014/35/EU)
■ EMC Directive (2014/30/EU)
RoHS (2011/65/EU)
■ RED (2014/53/EU)

EC DECLARATION OF CONFORMITY

Declarations of conformity for products subject to the LVD, EMC, and RoHS Directives can be requested from [e-mail].

Declarations of conformity for products subject to the RED Directive can be downloaded at www.adamhall.com/compliance/.

DEUTSCH

2 3 18V=1.5A OUT 3 8 7 46 L OUT 2 R OUTPUTS L OUT 1 R L R AUX 5 L STEREO R INPUTS

HINWEIS:

15 PFL MAIN & AUX / BLUETOOTH®

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf

2 3 18V=1.5A OUT 3 8 7 46 L OUT 2 R OUTPUTS L OUT 1 R L R AUX 5 L STEREO R INPUTS

À NOTER :

15 PFL MAIN & AUX / BLUETOOTH®

DÉCLARATION DE CONFORMITÉ CE

2 3 18V=1.5A OUT 3 8 7 46 L OUT 2 R OUTPUTS L OUT 1 R L R AUX 5 L STEREO R INPUTS

NOTA:

12 VOLUME AUX/BLUETOOTH®

15 PFL MAIN & AUX/BLUETOOTH®

2 3 18V=1.5A OUT 3 8 7 46 L OUT 2 R OUTPUTS L OUT 1 R L R AUX 5 L STEREO R INPUTS

UWAGA:

15 PFL MAIN & AUX / BLUETOOTH®

DEKLARACJA ZGODNOŚCI WE

2 3 18V=1.5A OUT 3 8 7 46 L OUT 2 R OUTPUTS L OUT 1 R L R AUX 5 L STEREO R INPUTS

NOTA BENE

15 PFL, MAIN e AUX / BLUETOOTH®

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-PALMER_DE_EN_ES_FR.pdf
