USER MANUAL Spectra 1031332780 American Standard

American Standard is devoted to making life, in the heart of your home, better every day...

...so, thank you for inviting us in! With the very best in kitchen and bathroom products, we are here to help make your life happier, healthier and simpler. Our commitment to quality, innovation and performance has made us part of your everyday routine for nearly 150 years, and we look forward to being a part of your life for many years to come.

Learn more at www.AmericanStandard.com

REGISTER YOUR WARRANTY

Try the easy-scan QR code to quickly enter your information or find your product's detailed warranty here:

www.AmericanStandard.com/warranty

QR code image containing encoded data, no visible human-readable text

Registering allows you to keep your product information safe, and us the ability to contact you in the event of a product recall or any news about your purchase.

And if ever you have a question or need help...?

Call us at 1-855-815-0004

M985190 EN (9/23)

103133XXXO

OWNERS MANUAL

Spectra Versa™ Diverter Replacement

103133XXX0

For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher

Line drawing of a mechanical pipe fitting with flanged ends and a central cylindrical component (no text or symbols)

INSIDE THE BOX

Image shown may vary from product purchased.

Line drawing of a diverter pipe fitting with no text or symbols

RECOMMENDED TOOLS

Installation steps will indicate which tools should be used with associated letter

Level

Adjustable Wrench

INSTALLATION INSTRUCTIONS

1

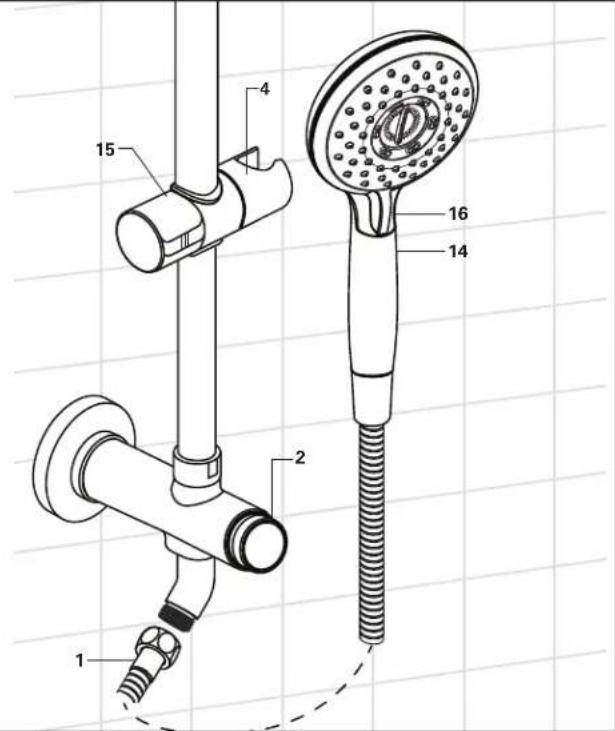

PREPARE THE SHOWER BAR FOR REMOVAL

1. Unthread the hand shower HOSE (1) from the DIVERTER (2).
2. Optional: Remove the shower head so that the detached shower bar is more manageable.

Technical diagram of a showerhead assembly with numbered parts for identification

B

2

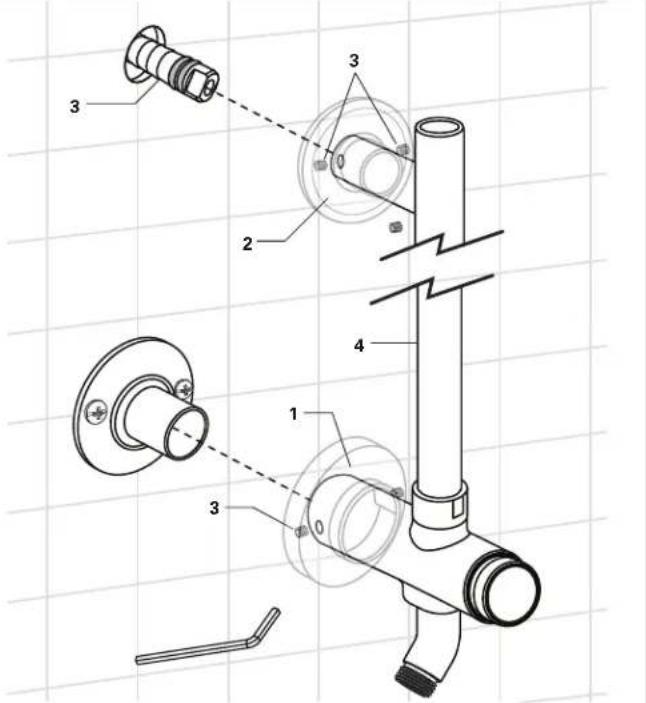

REMOVE THE SHOWER BAR FROM THE WALL

1. Slide top and bottom ESCUTCHEON (1) and (2) forward so that the SET SCREWS (3) are accessible.
2. Unthread SET SCREWS (3).
3. Pull the SHOWER BAR (4) off the wall.

Technical diagram of a mechanical assembly with numbered components, likely a valve or pump component.

C

3

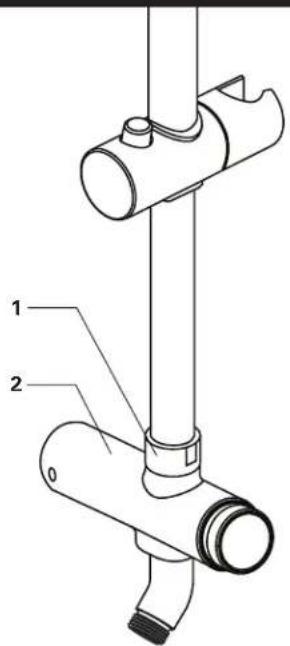

REPLACE OLD DIVERTER

1. Unthread DIVERTER NUT (1) and remove the OLD DIVERTER (2).
2. Thread the NEW DIVERTER (3) on to the shower bar.
3. Reverse the steps in this document to reinstall the shower bar on to the wall.

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

1 2 0

TELL US WHAT YOU THINK!

Please leave us a product review or story at AmericanStandard.com/reviews

Find installation videos at

youtube.com/americanstandard

Register your warranty and sign up for an idea-filled newsletter at

AmericanStandard-us.com/support/warranty

PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION IMPORTANT:

Registration of the sink must be completed for this warranty to become effective. Your registration will make it easier to contact you in the event of a product recall.*

INSTRUCTIONS: Register your sink at www.americanstandard.com. Please save your proof of purchase (sale receipt). If you need assistance or do not have access to our website, please contact American Standard Customer Care at: [phone]. An American Standard representative will assist in completing the warranty registration.

*In California, your warranty rights remain intact even if you do not complete the registration process.

SHARE YOUR NEW PRODUCT!

Tag us @american_standard on Instagram

and show us how your new product looks.

WANT MORE INFO?

For questions or help call us at 855-815-0004,

or visit AmericanStandard.com

UNITED STATES

American Standard Brands 865 Centennial Ave.

Piscataway, New Jersey 08854 Attention: Director of Customer Care

For residents of the United States, warrantyinformation may also be obtained by calling the following toll free number: [phone] www.AmericanStandard.co

CANADA

LIXIL Canada, Inc.

5900 Avebury Rd.

Mississauga, Ontario Canada L5R 3M3

Toll Free: [phone]

AmericanStandard.ca/support/warranty

MEXICO

American Standard B&K Mexico S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 800-839-1200

AmericanStandard.com.mx/garantia

M985190 EN (9/23)

103133XXXO

PART OF

American Standard

www.AmericanStandard.ca/support/warranty

QR code image containing encoded data, no visible human-readable text

Line drawing of a mechanical pipe fitting with flanged ends and a central hub (no text or symbols)

CONTENU DE LA BOÎTE

Technical diagram of a showerhead with numbered parts for identification

2

RETIRER LA BARRE DE DOUCHE DU MUR

Technical diagram of a mechanical assembly with numbered components, likely a valve or pump component.

3

REMPLACER L'ANCIEN INVERSEUR

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

1 2 0

FAITES-NOUS PART DE VOS COMMENTAIRES!

AmericanStandard.com/reviews

www.AmericanStandard.ca/support/warranty

VEUILLEZ REMPLIR L'ENREGISTREMENT DE GARANTIE AMERICAN STANDARD ET SAUVEGARDER CETTE INFORMATION SUR LA GARANTIE.

American Standard Brands

865 Centennial Ave.

Piscataway, New Jersey 08854

AmericanStandard.ca/support/

warranty

AU MEXIQUE

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Sans frais: 800-839-1200

AmericanStandard.com.mx/garantia

M985190 FR (9/23)

103133XXXO

PART OF

American Standard

QR code image containing encoded data, no visible human-readable text

Line drawing of a mechanical pipe fitting with flanged ends and a central cylindrical component (no text or symbols)

DENTRO DE LA CAJA

Line drawing of a Desviador valve component (no text or symbols on the diagram itself)

Technical diagram of a showerhead assembly with numbered parts for identification

B

2

QUITE LA BARRA DE DUCHA DE LA PARED

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

C

3

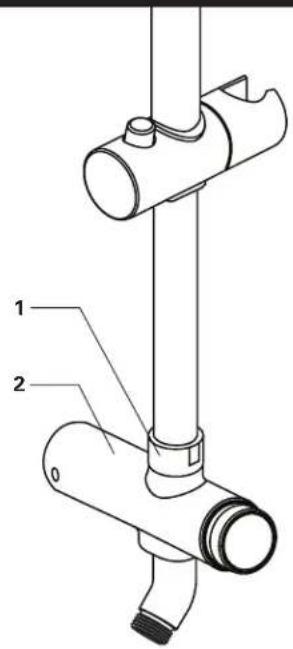

REEMPLACE EL DESVIADOR ANTIGUO

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

1 2
