USER MANUAL Edgemere 608BA002.020 American Standard

INSTALLATION INSTRUCTIONS CARE AND MAINTENANCE

Edgemere® 2-piece Toilet Elongated and Round Front Models 204AA, 204BA Series

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE! NOTE: Pictures may not exactly define contour of china and components.

TANK 4519A and 4519B

Line drawing of a two-hole toilet with lid and handle (no text or symbols)

EZ-INSTALL KIT INCLUDED WITH TANK

Tank To Bowl Gasket

Technical line drawing of a cylindrical mechanical component with two inset views showing internal features (no text or symbols)

Attachment Handle with 2 Nuts

2 Plastic Washers

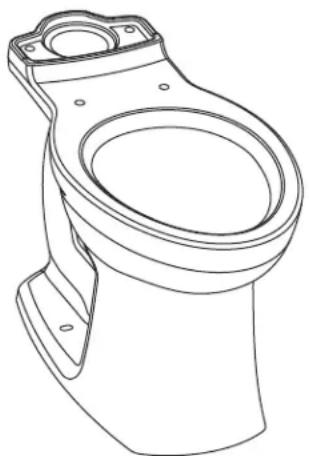

BOWL 3519A ELONGATED / BOWL 3519B ROUND FRONT

Line drawing of a standard toilet with handle and mounting bracket (no text or symbols)

EZ-INSTALL KIT INCLUDED WITH BOWL

T-Bolts with Retainer (2)

Bolt Caps (2)

Bowl-To-Floor Knobs (2)

SOLD SEPARATELY

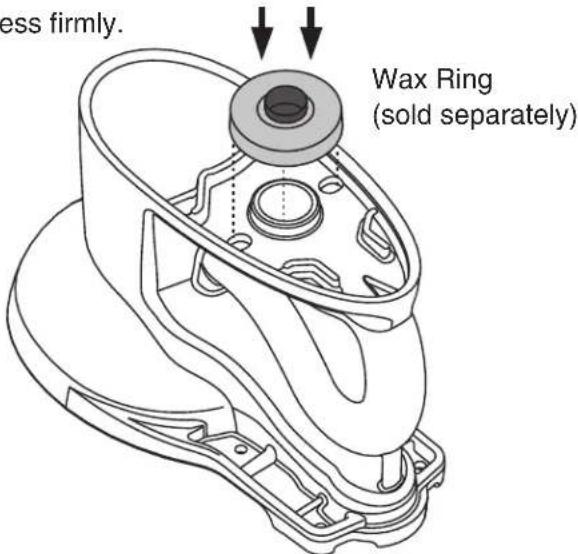

Wax Ring

Water Supply Line

Line drawing of a standard oval toilet with lid and side brackets (no text or symbols)

Slow Close Toilet Seat

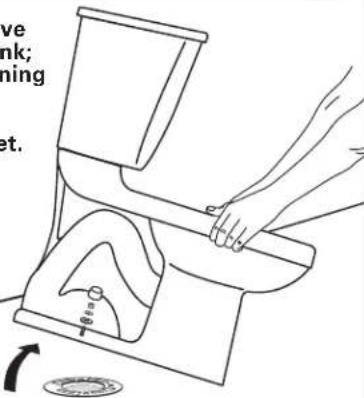

Before You Start:		If Removing An Existing Toilet
Turn Off Water Supply		Flush to remove water from tap sponge remain water from bowl before removing toilet		Clean Flange Caution: If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gases.
Recommended fitting type for back-to-back installations.			BACK-TO-BACK INSTALLATIONDepending upon your plumbing and venting conditions, the flow from the toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.

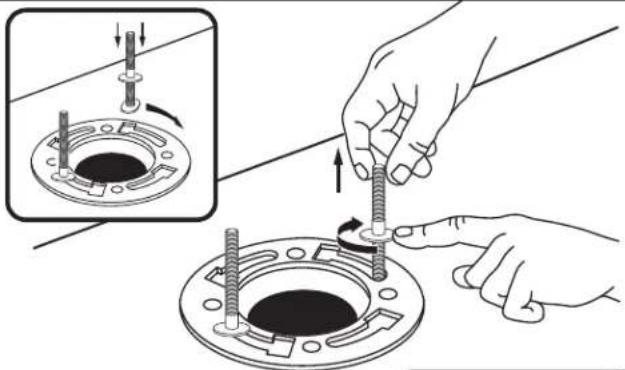

1	NOTE: 1/4" EZ-BOLTS INCLUDED.IF 5/16" BOLTS ARE REQUIRED,PURCHASE SEPARATELY.		2	Pr

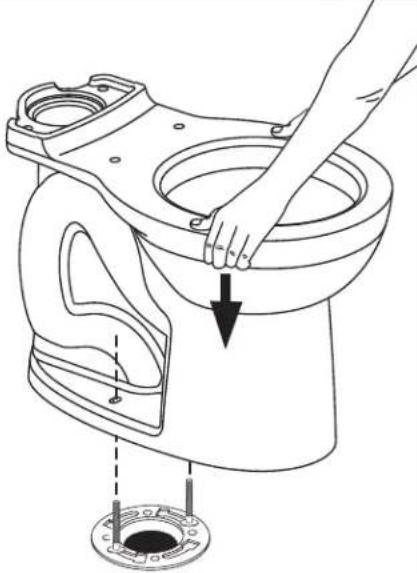

3	Apply weight evenly.Do not move after placement. Water tight seal may break.		4	[SSD7]Hand tighten only. Do not overtighten.

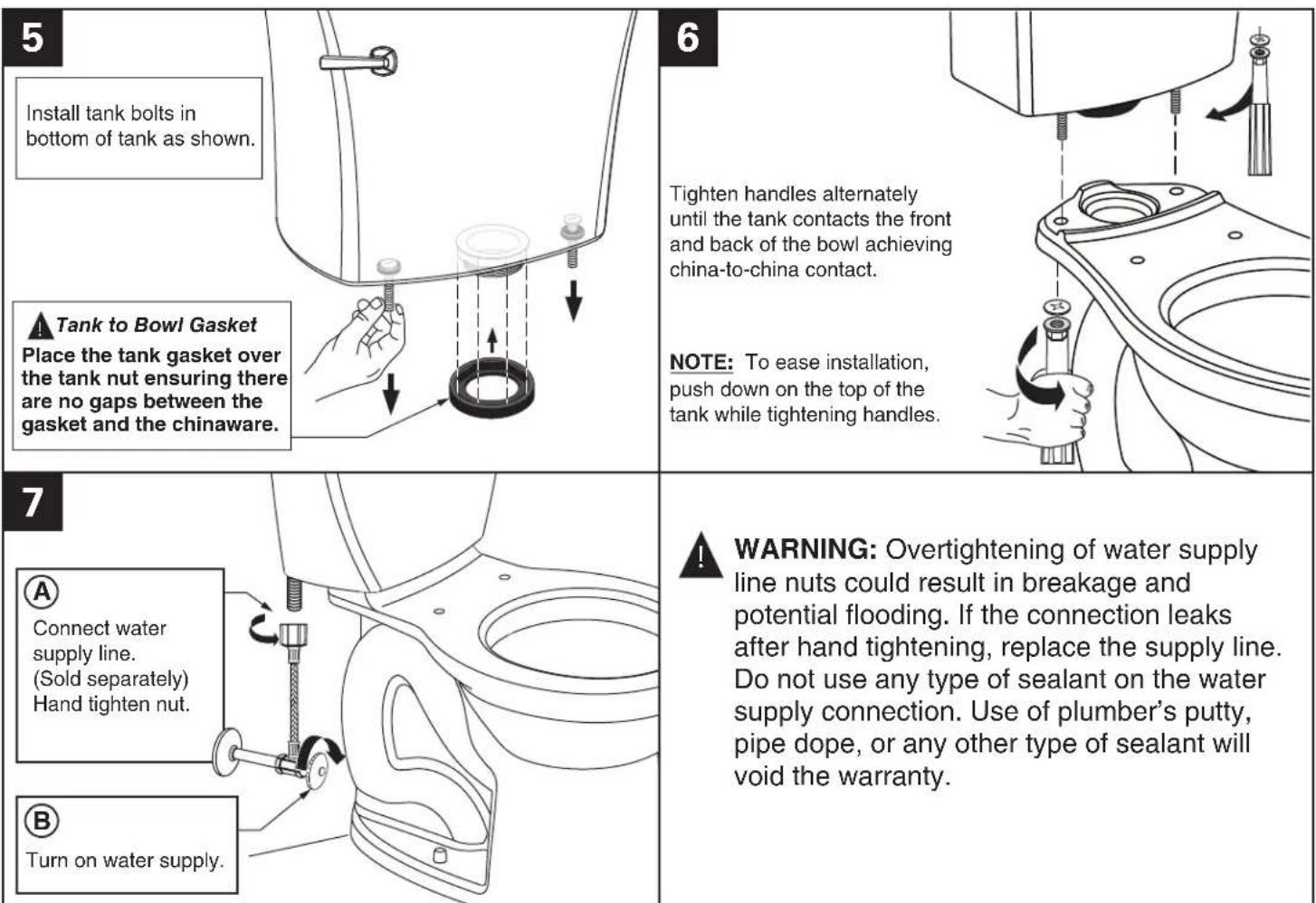

5 Install tank bolts in bottom of tank as shown. 6 Tighten handles alternately until the tank contacts the front and back of the bowl achieving china-to-china contact. NOTE: To ease installation, push down on the top of the tank while tightening handles. 7 A Connect water supply line. (Sold separately) Hand tighten nut. B Turn on water supply. 7 WARNING: Overtightening of water supply line nuts could result in breakage and potential flooding. If the connection leaks after hand tightening, replace the supply line. Do not use any type of sealant on the water supply connection. Use of plumber's putty, pipe dope, or any other type of sealant will void the warranty.

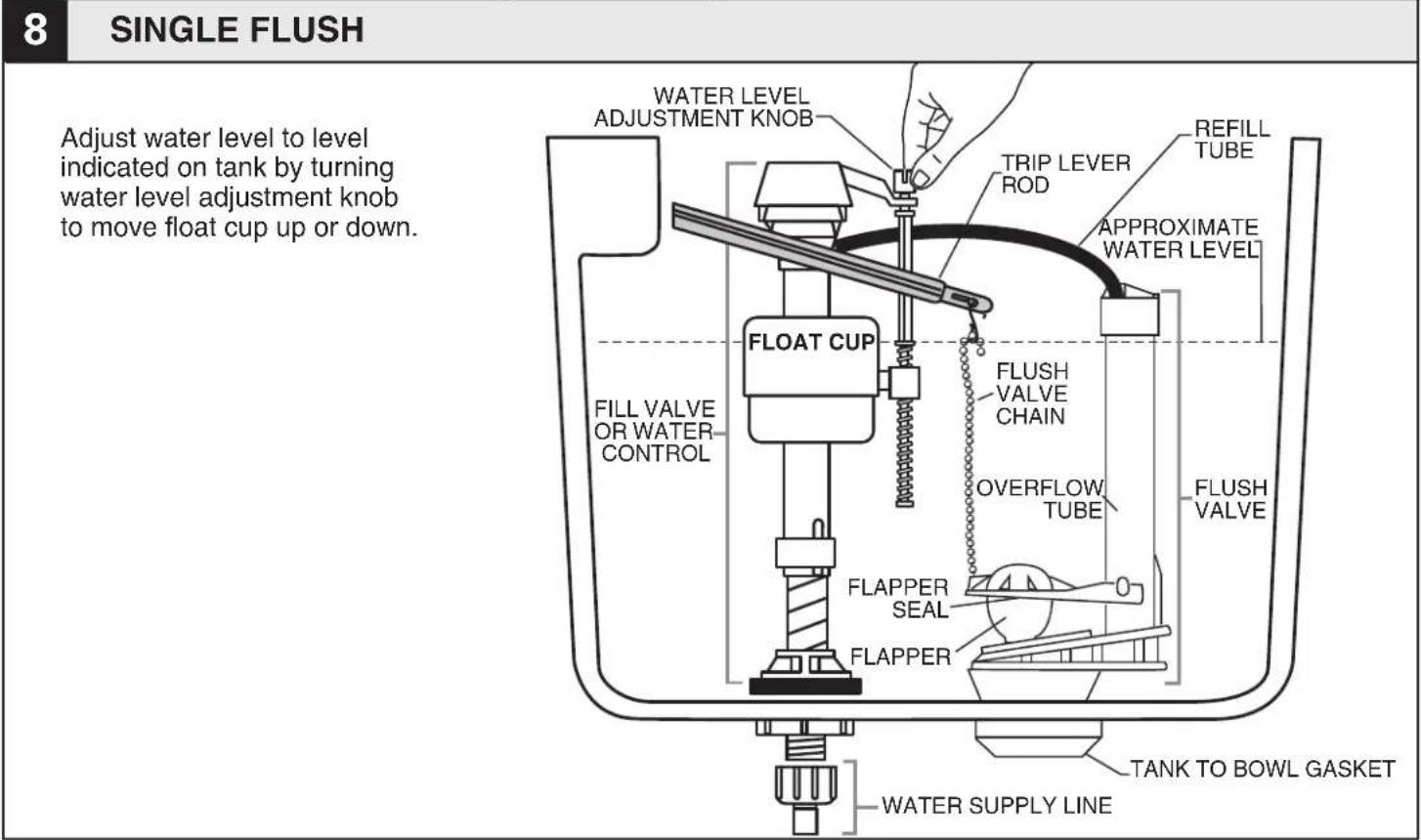

8 SINGLE FLUSH Adjust water level to level indicated on tank by turning water level adjustment knob to move float cup up or down. WATER LEVEL ADJUSTMENT KNOB REFILL TUBE TRIP LEVER ROD APPROXIMATE WATER LEVEL FLOAT CUP FILL VALVE OR WATER CONTROL FLUSH VALVE CHAIN OVERFLOW TUBE FLUSH VALVE FLAPPER SEAL FLAPPER TANK TO BOWL GASKET WATER SUPPLY LINE

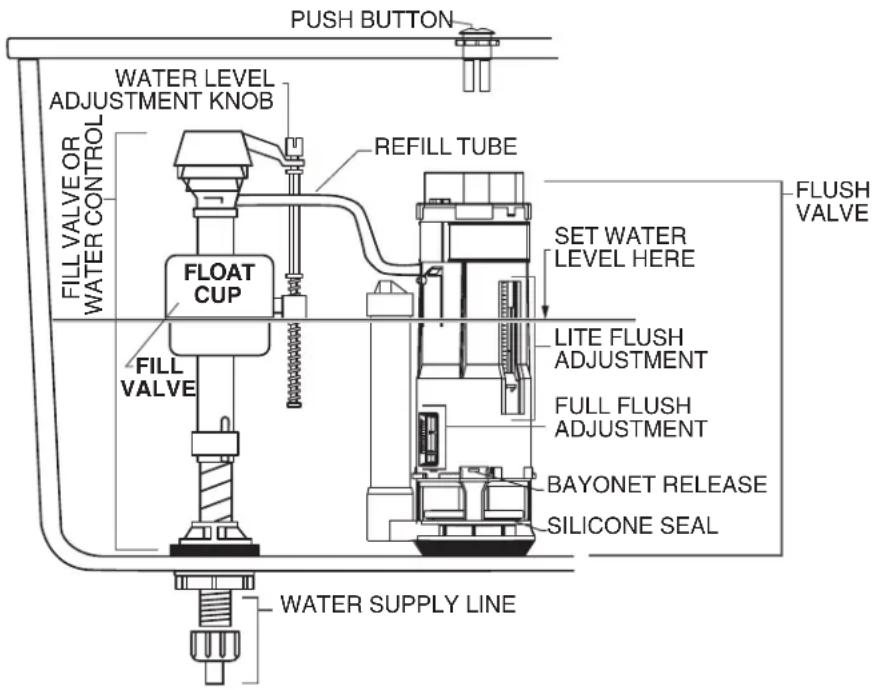

9 DUAL FLUSH

PUSH BUTTON WATER LEVEL ADJUSTMENT KNOB REFILL TUBE FILL VALVE OR WATER CONTROL FLOAT CUP FILL VALVE SET WATER LEVEL HERE LITE FLUSH ADJUSTMENT FULL FLUSH ADJUSTMENT BAYONET RELEASE SILICONE SEAL WATER SUPPLY LINE FLUSH VALVE

ADJUSTMENTS

a. Adjust water level. Water level should be adjusted to level indicated on tank by adjusting float cup using water level adjustment knob.

NOTE:

• To remove Flush Valve, apply slight downward pressure and twist it until the flush valve disengages from the bayonet.
• To reinstall Flush Valve, reverse the above procedure.

FLUSH BUTTONS ON TANK

Pressing both buttons at once will flush the low flush amount of 1.0 gal/flush or 3.8 L/flush. The Lite Flush Button (with 3 dots) should line up over the blue actuator on the flush tower in the tank. The Full Flush Button (with 9 dots) should line up over the white actuator on the flush tower in the tank.

Lite Flush Button (with 3 dots) for liquid waste.

1.0 gal/flush
3.8 L/flush

TIPS:

If the bowl still does not flush properly after following the steps outlined in the troubleshooting guide, remove the tank lid and push one of the flush buttons on top of the flush valve in the tank. If the flush appears to be normal, you will need to adjust the length of the threaded rods for the push buttons mounted on the tank lid with the settings as follows:

1. Turn the lid upside down.
2. Loosen the black plastic lock nut.
3. Adjust the white threaded rod one turn counterclockwise.
4. Re-tighten the black plastic lock nut.

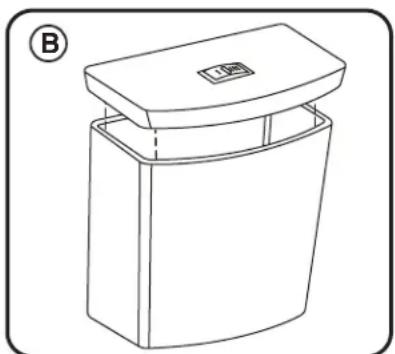

5. Put lid back on tank and test the flush. If it is still not flushing properly, repeat steps 1 through 4 until the problem is resolved.
6. If one counterclockwise turn is too much and causes the flush valve to stay open, adjust 1/2 turn clockwise and return to step 4.

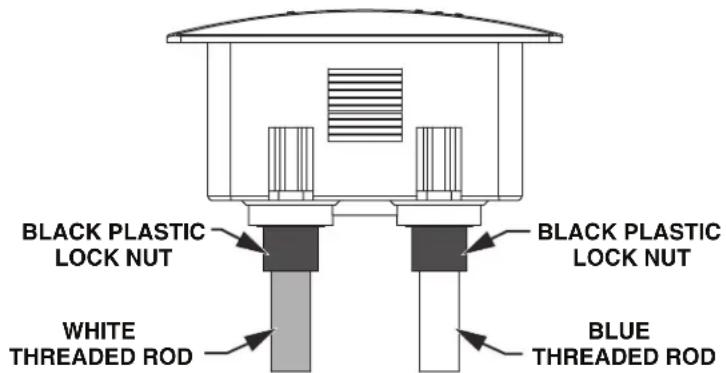

BLACK PLASTIC LOCK NUT WHITE THREADED ROD BLACK PLASTIC LOCK NUT BLUE THREADED ROD

Line drawing of a trash bin with lid and base, no text or symbols present

* for SINGLE FLUSH Models ONLY* See Step 8 For Diagram		TROUBLESHOOTING GUIDE		** for DUAL FLUSH Models ONLY** See Step 9 For Diagram
Problem Possible Cause Corrective Action
Does not flush	a. Water supply valve closed.b. Supply line blocked.*c. Flush valve chain too loose or disconnected.**c. Push button requires adjustment.d. Sand or debris lodged in water control.		a. Open valve and allow water to fill tank.b. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble.*c. Readjust chain length as required.**c. Adjust rods per step 9d. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:www.americanstandard-us.com/enews/fluidmasterguide.pdf
Poor or sluggish flush	a. Bowl water level too low.b. Supply valve partly closed.c. Partially clogged trapway and/or drain pipe and/or vent.d. Supply pressure too low.		a. Check that refill tube is connected to water control and inserted into overflow tube without being kinked or damaged.b. Open supply valve fully. Be sure that proper supply tube size is used.c. Remove obstruction. Consult a plumber if necessary.d. Normal supply pressure must be at least 20 psi.
Toilet leaks	a. Poor supply line connection.b. Poor bowl to tank/floor connection.		a. Review Step 7 of installation procedure.b. Review Step 1 through 6 of installation procedure.
Toilet does not shut off	a. Flapper/Flush Valve seal leaking or deformed.b. Sand or debris lodged in water control.*c. Flush valve chain too tight, holding flapper open.		a. Clean debris from seal surface. Replace Flapper/Flush Valve seal as needed. See web for more info.b. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:www.americanstandard-us.com/enews/fluidmasterguide.pdf*c. Readjust chain length as needed.
Toilet bowl rocks after installation	a. Wax ring not fully compressed.b. Floor not level.		a. Retighten bowl-to-floor knobs.b. Use toilet shims and /or place a bead of caulk around the base of the toilet.

CARE AND CLEANING

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid detergents, disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on your toilet seat. Some bathroom chemicals and cosmetics may damage the seat's finish.

WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.

In the United States:

American Standard Brands

865 Centennial Ave

Piscataway, New Jersey 08854

Attention: Director of Customer Care

For residents of the United States, warranty information may also be obtained by calling the following toll free number: [phone]

www.americanstandard.com

In Canada:

AS Canada, ULC

5900 Avebury Rd.

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.americanstandard.ca

In Mexico:

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 800-839-1200

www.americanstandard.com.mx
