USER MANUAL Estate 240AA704.020 American Standard

American Standard is devoted to making life, in the heart of your home, better every day...

...so, thank you for inviting us in! With the very best in kitchen and bathroom products, we are here to help make your life happier, healthier and simpler. Our commitment to quality, innovation and performance has made us part of your everyday routine for nearly 150 years, and we look forward to being a part of your life for many years to come.

Learn more at www.AmericanStandard.com

REGISTER WARRANTY

Try the easy-scan QR code to quickly enter your information or find your product's detailed warranty here:

QR code image containing encoded data, no visible human-readable text

AmericanStandard-us.com/support/warranty

Registering allows you to keep your product information safe, and us the ability to contact you in the event of a product recall or any news about your purchase.

And if ever you have a question or need help...?

Call us at 1-855-815-0004

7301555-100 Rev. 8 (12/23)

226AA104/226AA105/240AA704/2988813

2988101/2989813/2989101/3075000MX

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

7301555-100R8

OWNERS MANUAL

Two Piece with Chair Height Skirted Toilet with Seat

White ceramic toilet with open lid and side panel, no visible text or symbols

INSTALLATION INSTRUCTIONS

Thank you for selecting American Standard – the benchmark of fine quality for over 150 years. To ensure this product is installed properly, please read these instructions carefully before you begin. Certain installations may require professional help.

INSTALLATION PREPARATION

- Please unpack carefully and identify all parts needed for installation by using the Box Contents page as a reference. Inspect the product and report any damages or missing parts immediately to customer care by calling 855-815-0004. Follow the prompts for consumer/bathing. Local building codes vary by location. Observe all local plumbing and building codes.

NOTE: Take extra care in handling the surfaces. Use only non-abrasive cloths avoid scratching.

• Wear protective equipment during installation to avoid injury.
• Please keep these instructions for after care and customer service details.

Image shown may vary from product purchased.

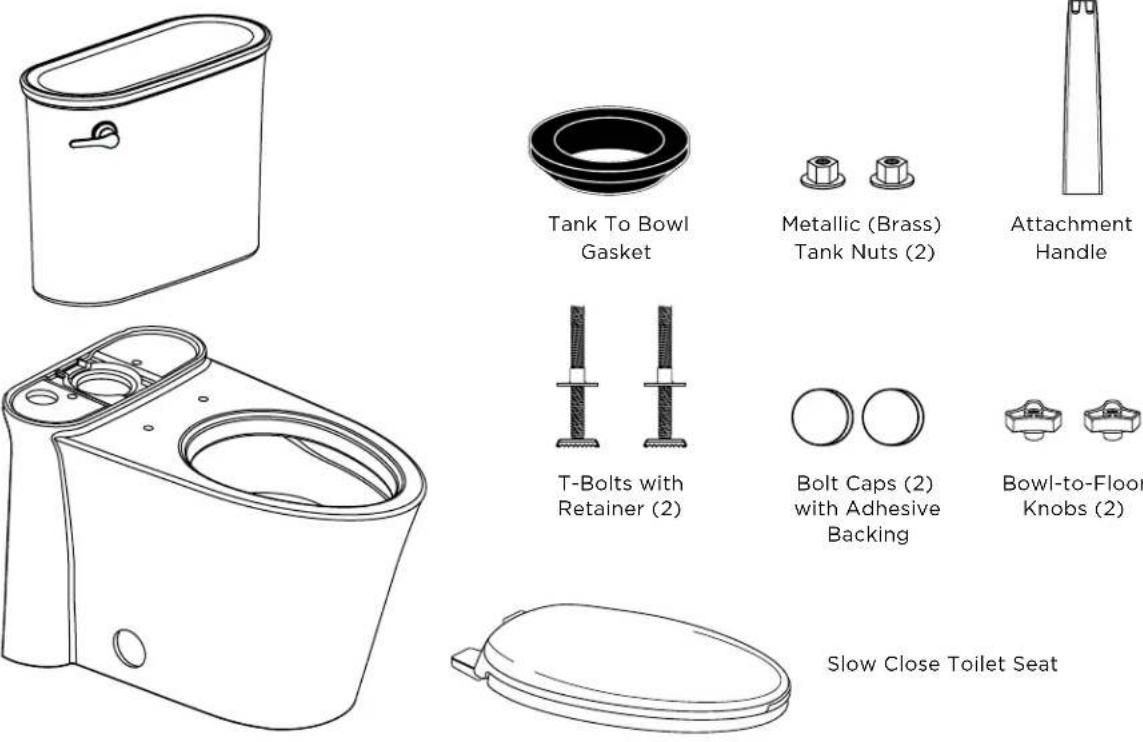

INSIDE THE BOX

For seat installation, see instructions included with seat.

SOLD SEPARATELY

Water Supply Line

Wax Ring

Wax Ring and Seat included with select models. See particular product specifications for full details.

BEFORE INSTALLING YOUR TOILET

please see your product spec page to verify the dimensions and water supply connections. Visit our website where you can search by Model number for the product spec page at: http://www.americanstandard-us.com

Image shown may vary from product purchased.

7301555-100 Rev. 8 (12/23)

IF REMOVING AN EXISTING TOILET

1 23 off water supply

Line drawing of hands operating a mechanical device with a valve and shaft (no text or symbols)

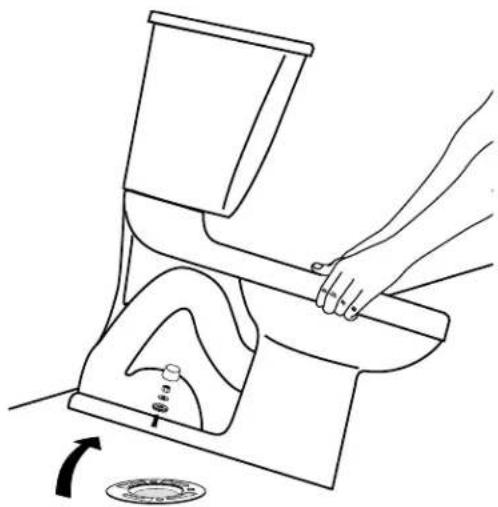

tank; sponge remaining water from bowl before removing toilet

Line drawing of a toilet with hand pressing down and rotating around the sink (no text or symbols)

Clean flangeFlush to remove

CAUTION

If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gasses.

INSTALLATION INSTRUCTIONS

BACK-TO-BACK INSTALLATION

Depending upon your plumbing and venting conditions, the flow from this toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.

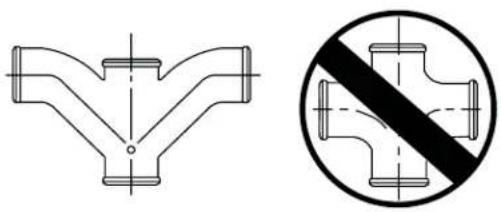

Technical drawing of a Y-shaped pipe fitting with a circular prohibition symbol (no text or labels)

Recommended fitting type for back-to-back installations.

1

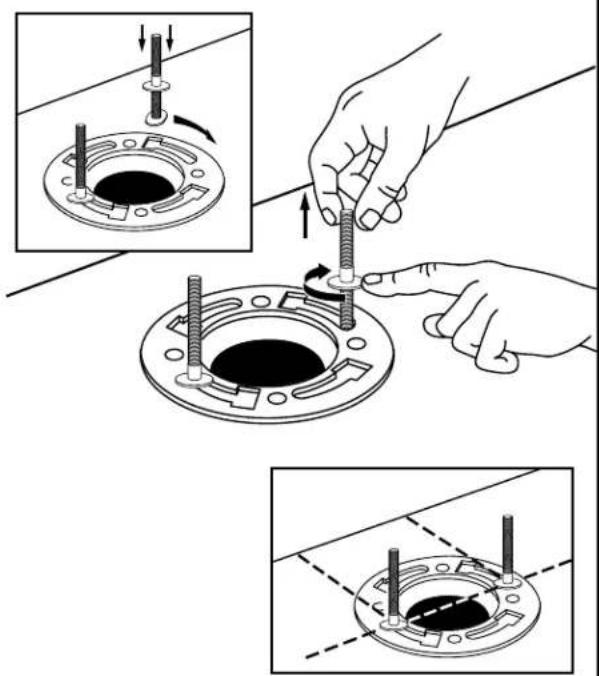

SECURE FLANGE ATTACH WAX F

Technical illustration showing three steps of a mechanical assembly: fastening, fastening with arrows, and fastening with dashed lines (no text or symbols)

2

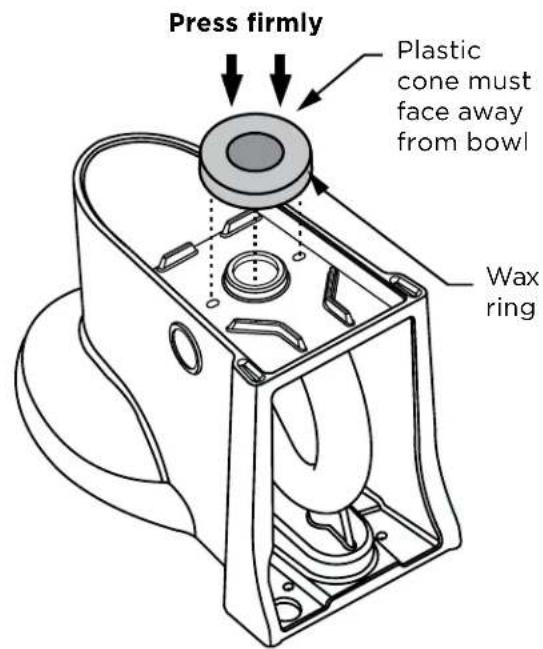

Press firmly Plastic cone must face away from bowl Wax ring

3

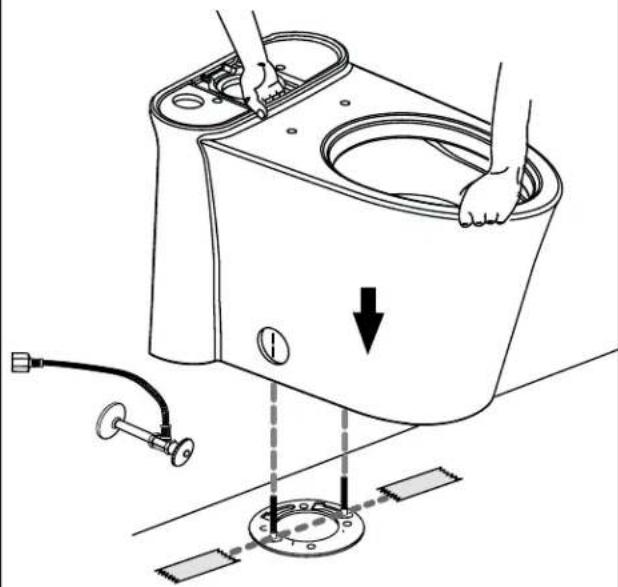

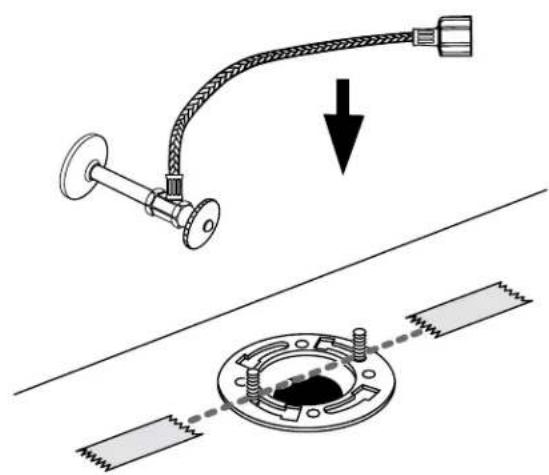

TIP: Place 2 pieces of masking tape on floor (as shown) to help with alignment in step 4.

Technical diagram showing a cable being inserted into a pipe with a magnified inset of the flange (no text or symbols present)

4
ATTACH BOWL TO FLOOR KNOBS
Apply weight evenly. Do not move after placement. Water tight seal may break.

Diagram of a washing machine with hands operating the cup and valve, showing structural components (no text or labels)

7301555-100 Rev. 8 (12/23)

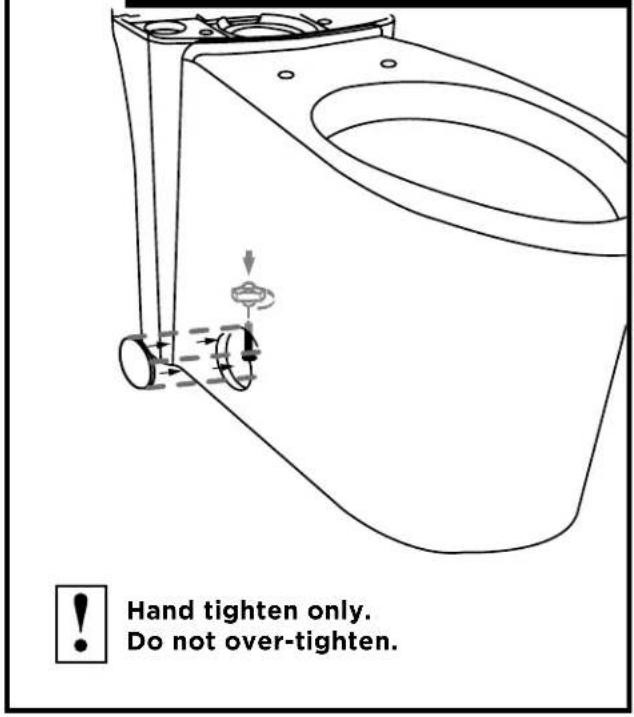

5

Hand tighten only. Do not over-tighten.

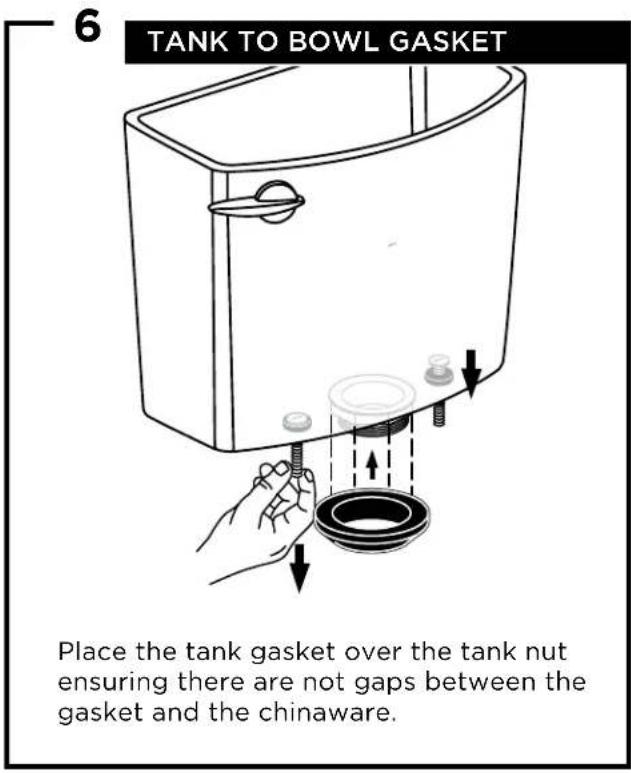

6 TANK TO BOWL GASKET Place the tank gasket over the tank nut ensuring there are not gaps between the gasket and the chinaware.

7

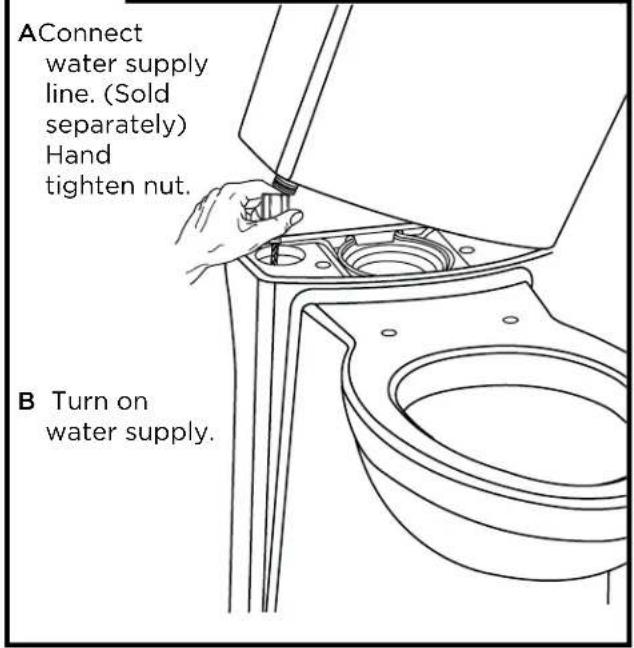

AConnect water supply line. (Sold separately) Hand tighten nut. B Turn on water supply.

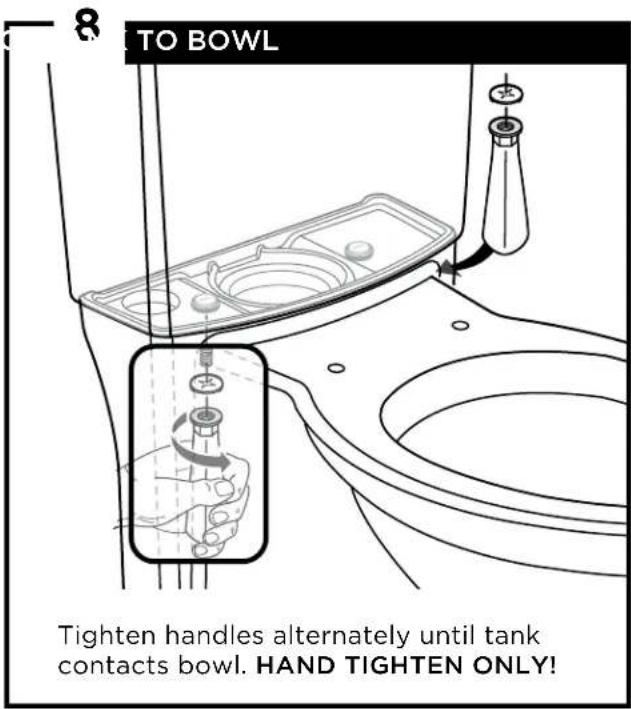

8 TO BOWL Tighten handles alternately until tank contacts bowl. HAND TIGHTEN ONLY!

WARNING: Over-tightening of water supply line nuts could result in breakage and potential flooding.

If the connection leaks after hand tightening, replace the supply line. If the connection continues to leak with the new supply line, replace the fill valve. Do not use plumber's putty, pipe dope or any other sealant on the water supply connection. Use of plumber's putty, pipe dope, or any other type of sealant will void the warranty.

WARNING: Do not use plumber's putty, pipe dope, or any other sealant on the water supply connection to this tank. If the connection leaks after hand tightening, replace the supply line. If the connection continues to leak with the new supply line, replace the fill valve.

Warranty is void if any type of sealant is used on the water supply connection.

9

Before continuing, determine the type of water supply connecation you have from the chart below and use the appropriate assembly parts required to properly reconnect the water supply. DO NOT use plumber's putty to seal these fittings.

METAL / COPPER FLARED TUBING

LOCK NUT CONE WASHER COUPLING NUT WATER SHUT-OFF

These parts must be used as illustrated to insure water-tight connection. Use of existing coupling nut may result in water leakage. Water supply tube or pipe must extend at least 1/2" inside threaded shank of valve (does not apply to flanged tubing).

METAL FLANGED TUBING

LOCK NUT EXISTING WASHER EXISTING COUPLING NUT WATER SHUT-OFF

Use existing coupling nut and washer.

METAL SPIRAL TUBING

LOCK NUT EXISTING CONE WASHER COUPLING NUT WATER SHUT-OFF

Use existing spiral cone washer. Fluidmaster cone washer may not seal completely on spiral type supply line.

VINYL / BRAIDED CONNECTOR

LOCK NUT COUPLING NUT WATER SHUT-OFF

Captive cone washers already included. No additional washers needed.

Technical line drawing of a mechanical device with no visible text or symbols

CAUTION: DO NOT USE CONE WASHER WITH PLASTIC SUPPLY LINE.

With correct washers in place (see Step 9), tighten COUPLING NUT 1/4 turn beyond hand tight.

DO NOT OVERTIGHTEN.

CAUTION: Overtightening of LOCK NUT or COUPLING NUT could result in breakage and potential flooding.

Turn on water supply.

If equipped, adjust water level to level indicated on tank by turning water level adjustment knob to move float cup up or down.

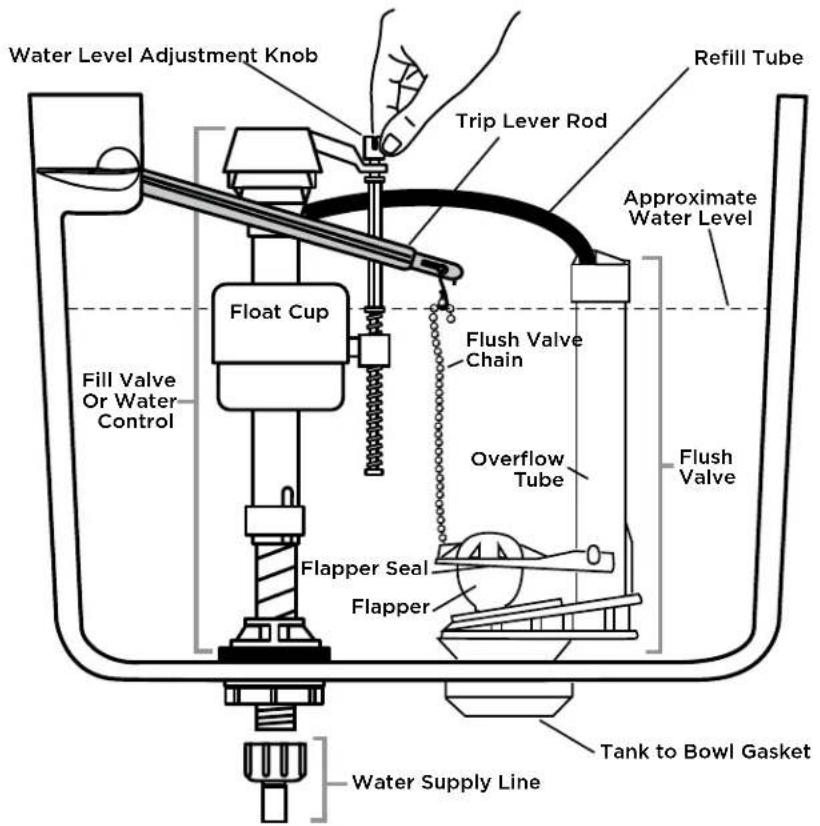

Water Level Adjustment Knob Trip Lever Rod Refill Tube Approximate Water Level Float Cup Flush Valve Chain Flush Valve Overflow Tube Flapper Seal Flapper Tank to Bowl Gasket Water Supply Line Fill Valve Or Water Control

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE	CAUSE CORRECTIVE ACTION
Does not flush	a. Water supply valve closedb. Supply line blockedc. Flush valve chain too loose or disconnectedd. Sand or debris lodged in water control	a. Open valve and allow water to fill tankb. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemblec. Readjust chain length as requiredd. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/fluidmaster-guide.pdf
Poor or sluggish flush	a. Bowl water level too lowb. Supply valve partly closedc. Partially clogged trapway and/or drain pipe and/ or ventd. Supply pressure too low	a. Check that refill tube is connected to water control and inserted into overflow tube without being kinked or damagedb. Open supply valve fully. Be sure that proper supply tube size is usedc. Remove obstruction. Consult a plumber if necessary d. Normal supply pressure must be at least 20 psi
Toilet leaks	a. Poor supply line connection.b. Poor bowl to tank/floor connection.	a. Review Step 8 of installation procedure.b. Review Step 1 through 6 of installation procedure.
Toilet does not shut off	a. Flapper seal leaking or deformedb. Sand or debris lodged in water controlc. Flush valve chain too tight, holding flapper open	a. Clean debris from seal surface. Replace flapper seal as needed. See web for more info.b. Shut off water supply. Replace flush valve.c. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/fluidmasterguide.pdf

CARE AND CLEANING

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.

7301555-100 Rev. 8 (12/23)

TELL US WHAT YOU THINK!

Please leave us a product review or story at AmericanStandard.com/reviews

Find installation videos at

youtube.com/americanstandard

Register your warranty and sign up for an idea-filled newsletter at

AmericanStandard-us.com/support/warranty

PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION IMPORTANT:

Registration of the toilet must be completed for this warranty to become effective. Your registration will make it easier to contact you in the event of a product recall.*

INSTRUCTIONS: Register your toilet at www.AmericanStandard.com. Please save your proof of purchase (sale receipt). If you need assistance or do not have access to our website, please contact American Standard Customer Care at: [phone]. An American Standard representative will assist in completing the warranty registration.

*In California, your warranty rights remain intact even if you do not complete the registration process.

SHARE YOUR NEW PRODUCT!

Tag us @american_standard on Instagram

and show us how your new product looks.

WANT MORE INFO?

For questions or help call us at 855-815-0004,

or visit AmericanStandard.com

UNITED STATES

American Standard Brands 865 Centennial Ave.

Piscataway, New Jersey 08854 Attention: Director of Customer Care

For residents of the United States, warrantyinformation may also be obtained by calling the following toll free number: [phone] www.AmericanStandard.com

CANADA

LIXIL Canada, Inc.

5900 Avebury Rd.

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.AmericanStandard.ca

MEXICO

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 800-839-1200

www.AmericanStandard.com.mx

7301555-100 Rev. 8 (12/23)

PART OF

American Standard

www.AmericanStandard.ca/support/warranty

QR code image containing encoded data, no visible human-readable text

White ceramic toilet with a single lid, shown from front and side (no text or symbols visible)

CONSIGNES D'INSTALLATION

Simple line drawing of a rectangular container with a handle and lid (no text or symbols)

Line drawing of a microwave oven or washing machine (no text or symbols)

Line drawing of a standard oval-shaped toilet or sink (no text or symbols)

Illustration of hands operating a mechanical device with a valve and shaft (no text or symbols)

Line drawing of a toilet with hands operating the seat, showing a rotary press mechanism (no text or symbols)

Pure technical line drawing of a Y-shaped pipe fitting without any text, labels, or symbols

Prohibition sign of a T-shaped pipe fitting with a diagonal line crossing through it (no text or symbols)

Technical illustration showing three steps of a mechanical assembly: fastening, fastening with arrows, and fastening with dashed lines (no text or symbols)

Technical diagram showing a pipe fitting with a coiled cable and a flanged circular component (no text or symbols)

Technical line drawing of a washing machine with hands operating the cup and base, showing no text or symbols

7301555-100 FR Rev. 8 (12/23)

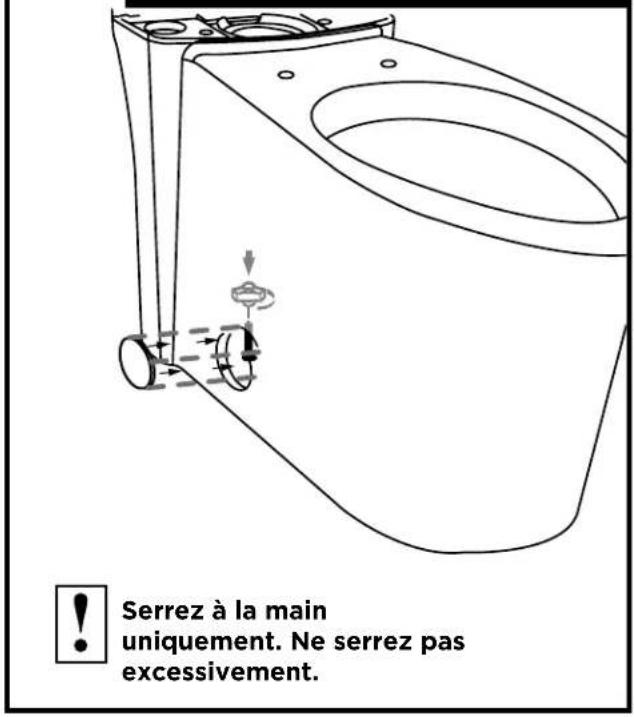

5

Technical line drawing of a mechanical device with no visible text or symbols

MISE EN GARDE : NE PAS UTILISER LA RONDELLE CONIQUE AVEC LA CONDUITE D'ALIMENTATION EN PLASTIQUE.

PROBLÈME CAUSE POSSIBLE MESURE CORRECTIVE

AmericanStandard.com/reviews

www.AmericanStandard.ca/support/warranty

VEUILLEZ REMPLIR L'ENREGISTREMENT DE GARANTIE AMERICAN STANDARD ET SAUVEGARDER CETTE INFORMATION SUR LA GARANTIE.

American Standard Brands

865 Centennial Ave.

Piscataway, New Jersey 08854

www.AmericanStandard.ca

AU MEXIQUE

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Sans frais: 800-839-1200

www.AmericanStandard.com.mx

7301555-100 FR Rev. 8 (12/23)

PART OF

American Standard

QR code image containing encoded data, no visible human-readable text

www.AmericanStandard.com.mx/garantia

7301555-100 SP Rev. 8 (12/23)

226AA104/226AA105/240AA704/2988813

2988101/2989813/2989101/3075000MX

7301555-100R8

White modern toilet with open lid and side panel, no visible text or symbols

7301555-100 SP Rev. 8 (12/23)

7301555-100 SP Rev. 8 (12/23)

PARA RETIRAR UN INODORO VIEJO EXISTENTE

Illustration of hands operating a mechanical device with a valve and shaft (no text or symbols)

Line drawing of a hand pressing down on a toilet with a circular dial indicator (no text or symbols)

Technical line drawing of a Y-shaped pipe fitting with cross-sectional view and no text or symbols

7301555-100 SP Rev. 8 (12/23)

Technical illustration showing three steps of a mechanical assembly: fastening, rotating, and fastening with bolted components (no text or symbols present)

2

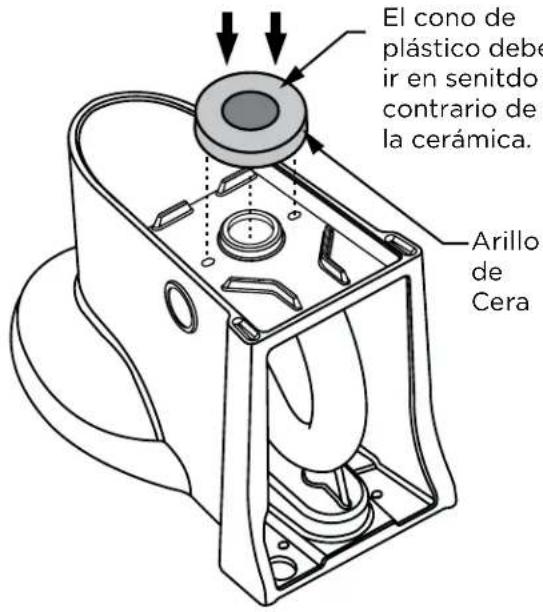

FIJAR EL ANILLO DE CERA
Presionar Firmemente

Technical diagram showing a pipe fitting with a coiled cable and a circular component with bolted ends, connected by dashed lines (no text or symbols)

Line drawing of a washing machine with hands operating the cup and valve, showing structural components (no text or symbols)

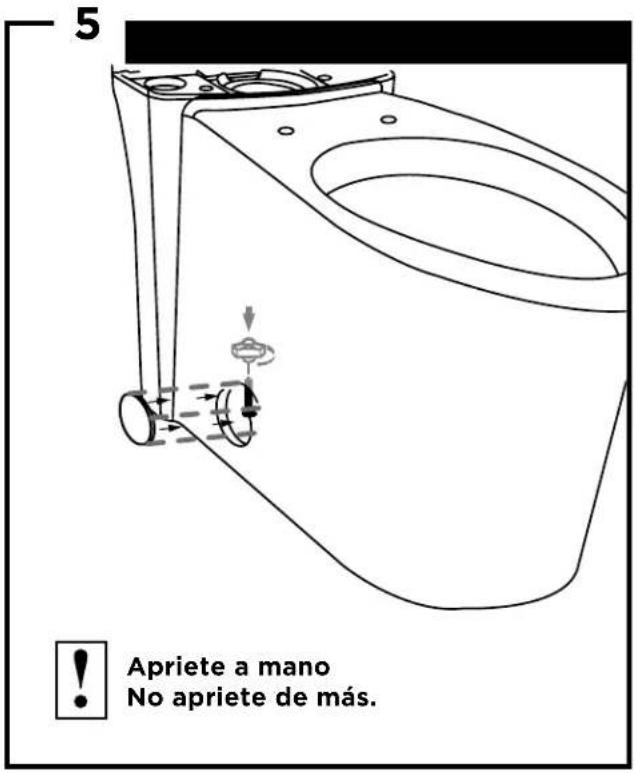

7301555-100 SP Rev. 8 (12/23)

Technical line drawing of a mechanical device with no visible text or symbols

7301555-100 SP Rev. 8 (12/23)

10

PROBLEMA CAUSA POSIBLE MEDIDA CORRECTIVA

7301555-100 SP Rev. 8 (12/23)

AmericanStandard.com/reviews

American Standard Brands 865 Centennial Ave.

Piscataway, New Jersey 08854

www.AmericanStandard.ca

EN MÉXICO

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

www.AmericanStandard.com.mx

7301555-100 SP Rev. 8 (12/23)

PART OF
