USER MANUAL Cadet 609AA001.020 American Standard

INSTALLATION INSTRUCTIONS CARE AND MAINTENANCE

Cadet® PRO 2-piece Toilet

Elongated and Round Front

Models 215AA, 215BA, 215AB, 215BB, 215FA, 215FC, 215CA, 215DA, 215CB, 215DB Series

American Standard

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: Pictures may not exactly define contour of china and components.

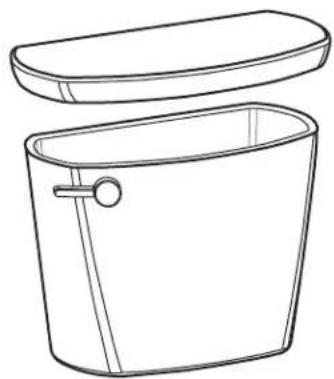

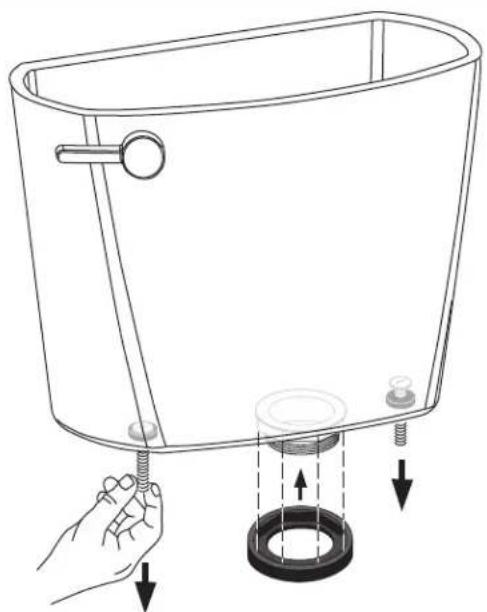

TANK 4188A and 4188B

Line drawing of a two-hole toilet with lid and handle (no text or symbols)

EZ-INSTALL KIT INCLUDED WITH TANK

Tank To Bowl Gasket

Attachment Handles with Nuts (2)

Plastic Washers (2)

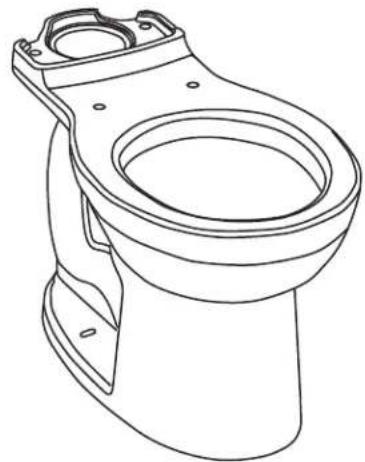

BOWL 3517A, 3517C, 3517F ELONGATED BOWL 3517B, 3517D ROUND FRONT

Line drawing of a standard toilet with handle and vent, no text or symbols present

EZ-INSTALL KIT INCLUDED WITH BOWL

T-Bolts with Retainer (2)

Bolt Caps (2)

Bowl-To-Floor Knobs (2)

Also includes Standard Bolt Caps (2)

SOLD SEPARATELY

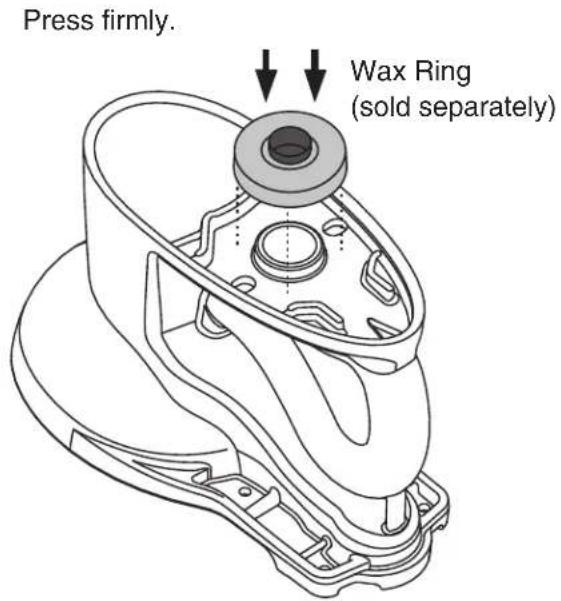

Wax Ring

Water Supply Line

Line drawing of a standard oval toilet with lid and handle (no text or symbols)

Slow Close Toilet Seat

BEFORE YOU START:
Turn Off Water Supply	Flush to remove water from tank;sponge remaining water from bowlbefore removing toilet.	Clean Flange Caution: If leaving floor flange open for more than 1-2 hours,cover flange to prevent escaping sewer gases.
Recommended fitting type for back-to-back installations.	BACK-TO-BACK INSTALLATIONDepending upon your plumbing and venting conditions, the flow from the toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.
INSTALLATION INSTRUCTIONS:
1	2

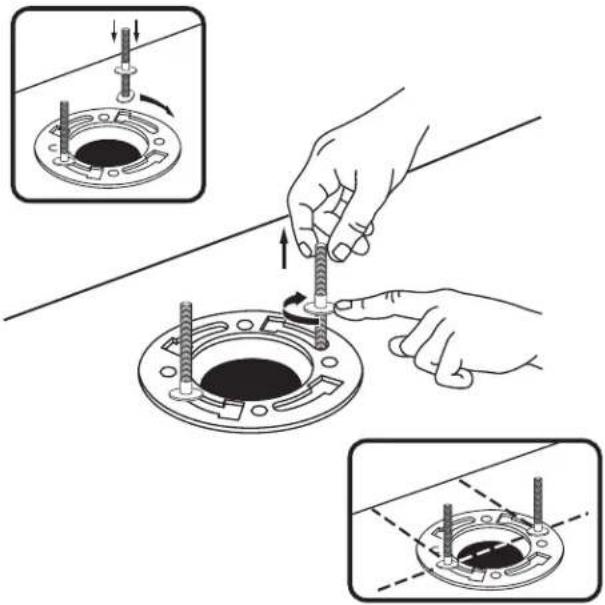

NOTE: 1/4" EZ-BOLTS INCLUDED.IF 5/16" BOLTS ARE REQUIRED, PURCHASE SEPARATELY.

BACK-TO-BACK INSTALLATION

INSTALLATION INSTRUCTIONS:

1

NOTE: 1/4" EZ-BOLTS INCLUDED.

IF 5/16" BOLTS ARE REQUIRED, PURCHASE SEPARATELY

2

3

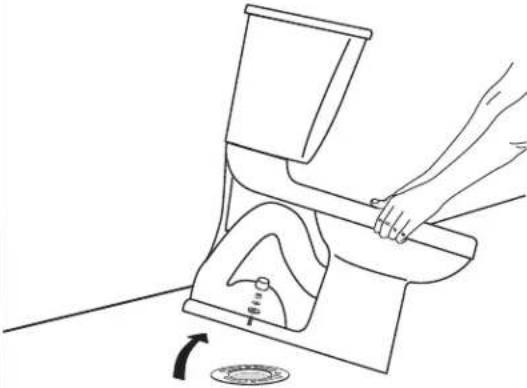

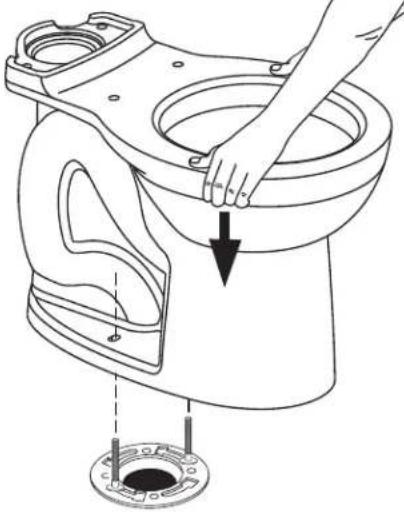

Apply weight evenly. Do not move after placement. Water tight seal may break.

Technical line drawing of a toilet with hand and base, showing mounting bracket and mounting flange (no text or symbols)

4

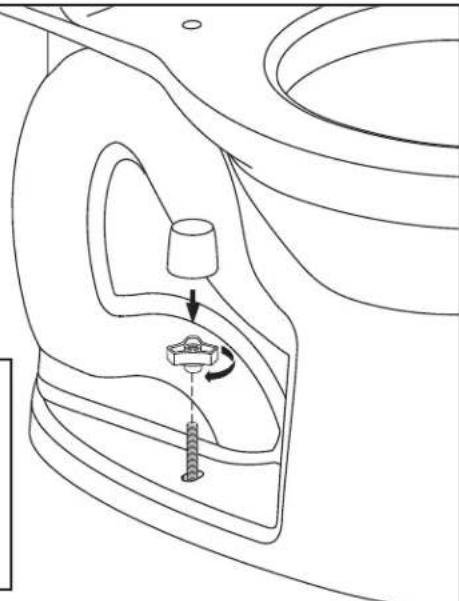

Hand tighten only. Do not overtighten.

NOTE: 1/4" EZ-BOLT AND CAP SHOWN.

IF 5/16" BOLT USE STANDARD DISK AND CAP INCLUDED.

Line drawing of a toilet sink with a screw and valve, showing mechanical assembly (no text or symbols)

5

Line drawing of a hand holding a small water dispenser with a circular base and two arrows indicating force application (no text or symbols)

6

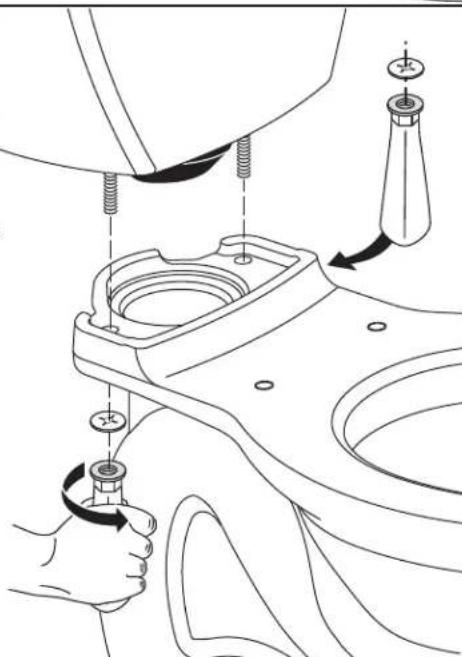

Tighten handles alternately until the tank contacts the front and back of the bowl achieving china-to-china contact.

NOTE: To ease installation, push down on the top of the tank while tightening handles.

Line drawing of a car interior with hands holding tools and fasteners (no text or symbols)

7

A

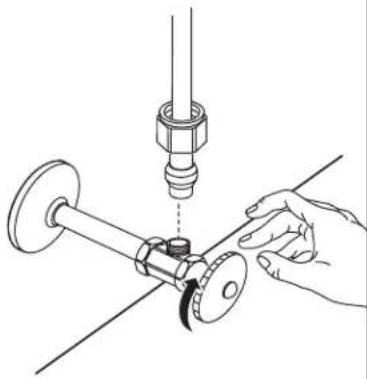

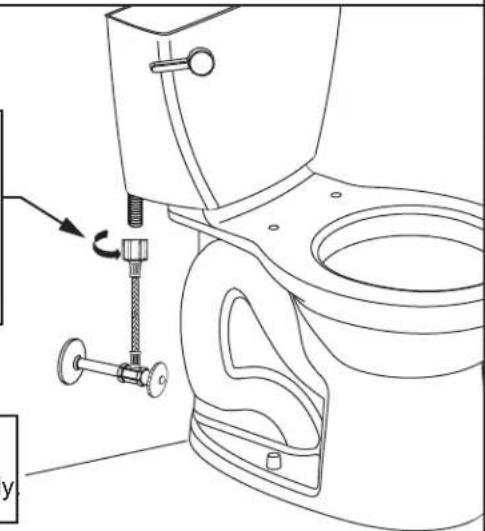

Connect water supply line. (Sold separately) Hand tighten nut.

B

Turn on water supply

Line drawing of a toilet with attached fixtures and a screwdriver inserted (no text or symbols)

!

WARNING: Overtightening of water supply line nuts could result in breakage and potential flooding. If the connection leaks after hand tightening, replace the supply line. Do not use any type of sealant on the water supply connection. Use of plumber's putty, pipe dope, or any other type of sealant will void the warranty.

8

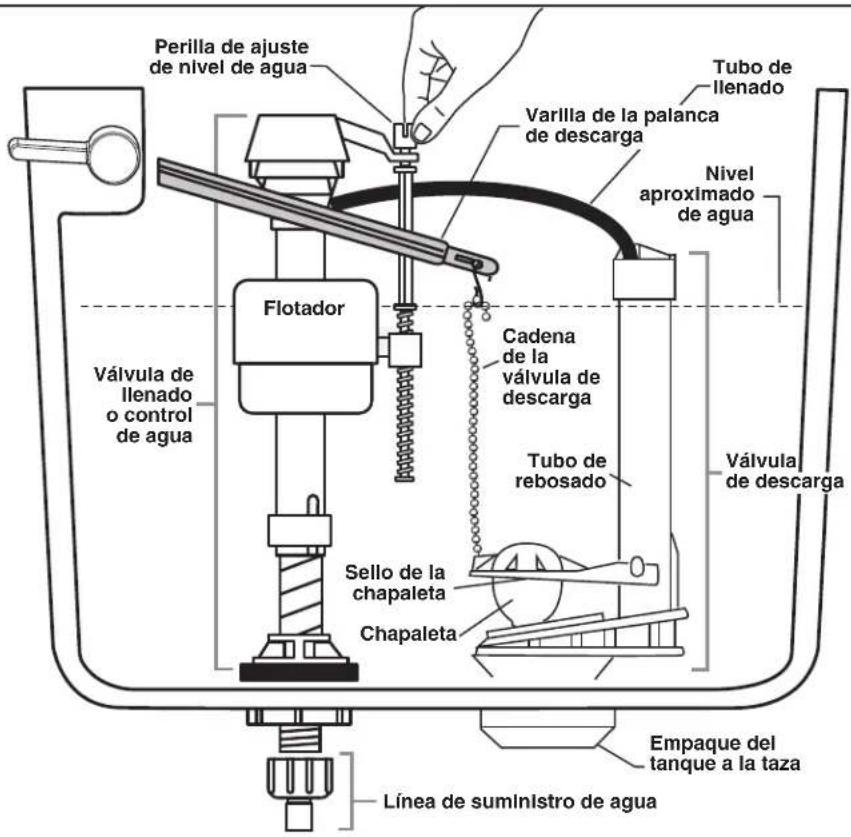

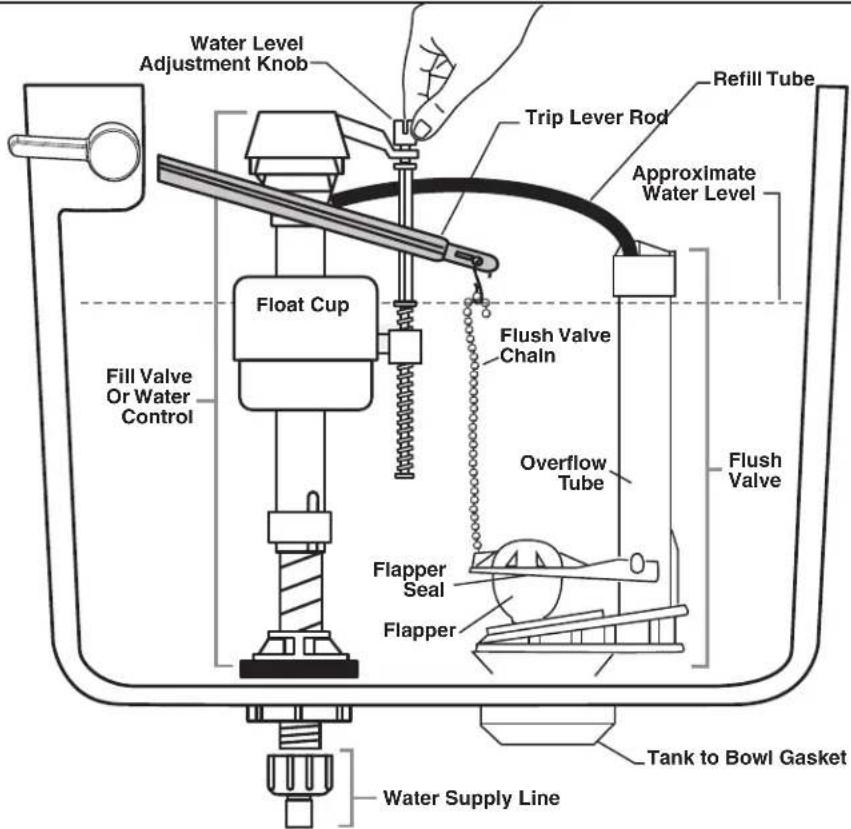

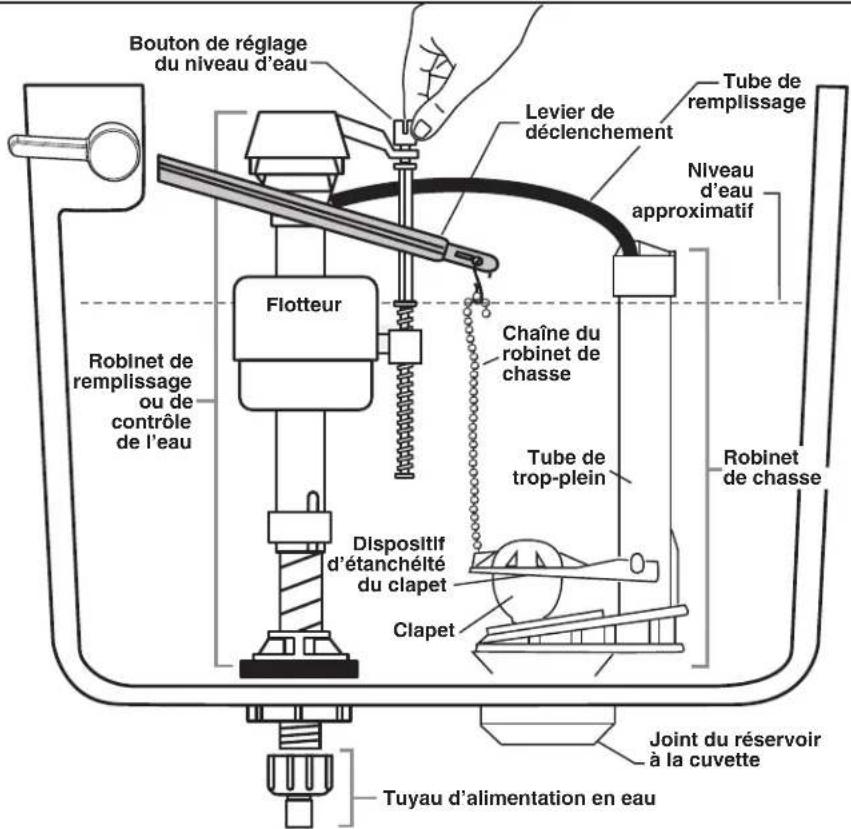

Adjust water level to level indicated on tank by turning water level adjustment knob to move float cup up or down.

Line drawing of a toilet with lid and handle (no text or symbols)

Water Level Adjustment Knob Trip Lever Rod Approximate Water Level Refill Tube Float Cup Flush Valve Chain Flush Valve Or Water Control Flapper Seal Flapper Overflow Tube Tank to Bowl Gasket Water Supply Line

CARE AND CLEANING

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth.

WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage.

American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.

TROUBLESHOOTING GUIDE - See Step 8 For Diagram

Problem Possible Cause Corrective Action
Does not flush	a. Water supply valve closed.b. Supply line blocked.c. Flush valve chain too loose or disconnected.d. Sand or debris lodged in water control.	a. Open valve and allow water to fill tank.b. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble.c. Readjust chain length as required.d. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/fluidmasterguide.pdf
Poor or sluggish flush	a. Bowl water level too low.b. Supply valve partly closed.c. Partially clogged trapway and/or drain pipe and/or vent.d. Supply pressure too low.	a. Check that refill tube is connected to water control and inserted into overflow tube without being kinked or damaged.b. Open supply valve fully. Be sure that proper supply tube size is used.c. Remove obstruction. Consult a plumber if necessary.d. Normal supply pressure must be at least 20 psi.
Toilet leaks	a. Poor supply line connection.b. Poor bowl to tank/floor connection.	a. Review Step 7 of installation procedure.b. Review Step 1 through 6 of installation procedure.
Toilet does not shut off	a. Flapper seal leaking or deformed.b. Sand or debris lodged in water control.c. Flush valve chain too tight, holding flapper open.	a. Clean debris from seal surface. Replace flapper seal as needed. See web for more info.b. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at: www.americanstandard-us.com/enews/fluidmasterguide.pdfc. Readjust chain length as needed.
Toilet bowl rocks after installation	a. Wax ring not fully compressed.b. Floor not level.	a. Retighten bowl-to-floor knobs.b. Use toilet shims and /or place a bead of caulk around the base of the toilet.

In the United States:

American Standard Brands

1 Centennial Ave

Piscataway, New Jersey 08854

Attention: Director of Customer Care

For residents of the United States, warranty

information may also be obtained by calling

the following toll free number: [phone]

www.americanstandard.com

In Canada:

LIXIL Canada, ULC

5900 Avebury Rd

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.americanstandard.ca

In Mexico:

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 01-800-839-1200

www.americanstandard.com.mx

INSTRUCTIONS D'INSTALLATION ET D'ENTRETIEN

American Standard

Cadet® Toilette 2 pièces PRO

Line drawing of a two-hole toilet with lid and handle (no text or symbols)

Line drawing of a standard toilet with handle and vent, no text or symbols present

Line drawing of a standard oval toilet with handle and lid (no text or symbols)

Line drawing of a toilet with hand and foot, showing internal components and a circular base (no text or symbols)

4

Technical line drawing of a mechanical assembly with a cylindrical component and threaded fastener (no text or symbols)

5

Line drawing of a hand holding a small cylindrical object with arrows indicating force or movement (no text or symbols)

6

Diagram showing a hand holding a screwdriver on a toilet sink, with Chinese text labels indicating parts of the device.

7

A

Line drawing of a toilet with attached fixtures and a screwdriver inserted (no text or symbols)

!

Line drawing of a toilet with lid and handle (no text or symbols)

American Standard Brands

Centennial Ave

Piscataway, New Jersey 08854

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexique

Sans frais : 01-800-839-1200

www.americanstandard.com.mx

Line drawing of a two-hole toilet with lid and handle (no text or symbols)

Line drawing of a standard toilet with handle and vent, no text or symbols present

Line drawing of a standard oval toilet with handle and lid (no text or symbols)

Line drawing of a toilet with hand holding lid and base plate, showing mechanical assembly (no text or symbols)

4

Apriete a mano solamente. No apriete excesivamente.

Line drawing of a mechanical assembly with a piston and rotating component (no text or symbols)

5

Line drawing of a hand holding a small cylindrical object with arrows indicating force or movement (no text or symbols)

6

Line drawing of a car interior with hands adjusting parts, no text or symbols present

7

A

Line drawing of a toilet with a screwdriver inserted, showing the handle and seat (no text or symbols)

!

Line drawing of a toilet with lid and handle (no text or symbols)

American Standard Brands

1 Centennial Ave

Piscataway, New Jersey 08854

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

www.americanstandard.com.mx
