8043A60G

OWNERS MANUAL

AquaWash™ Essentials Manual Bidet Seat

Model # 8043A60G

INSTALLATION INSTRUCTIONS

Thank you for selecting American Standard – the benchmark of fine quality for over 150 years. To ensure this product is installed properly, please read these instructions carefully before you begin. Certain installations may require professional help.

Inspect your product thoroughly before installing. Take extra care in handling surfaces of the bidet seat and use only non-abrasive cloths to avoid scratching. Report any damages or missing parts immediately to customer care by calling 855-815-0004. Follow the prompts for consumer/bathing. Local building codes vary by location.

• Observe all local plumbing and building codes.
• Wear protective equipment during installation to avoid injury.
• Please keep these instructions for after care and customer service details.

CAUTION

• The water pressure limit is from 0.07 to 0.6 MPa (10-87PSI). Please use as instructed.
• The water shut-off valve should be near to where the product can be installed and dismantled.

760422-100 (6/23)

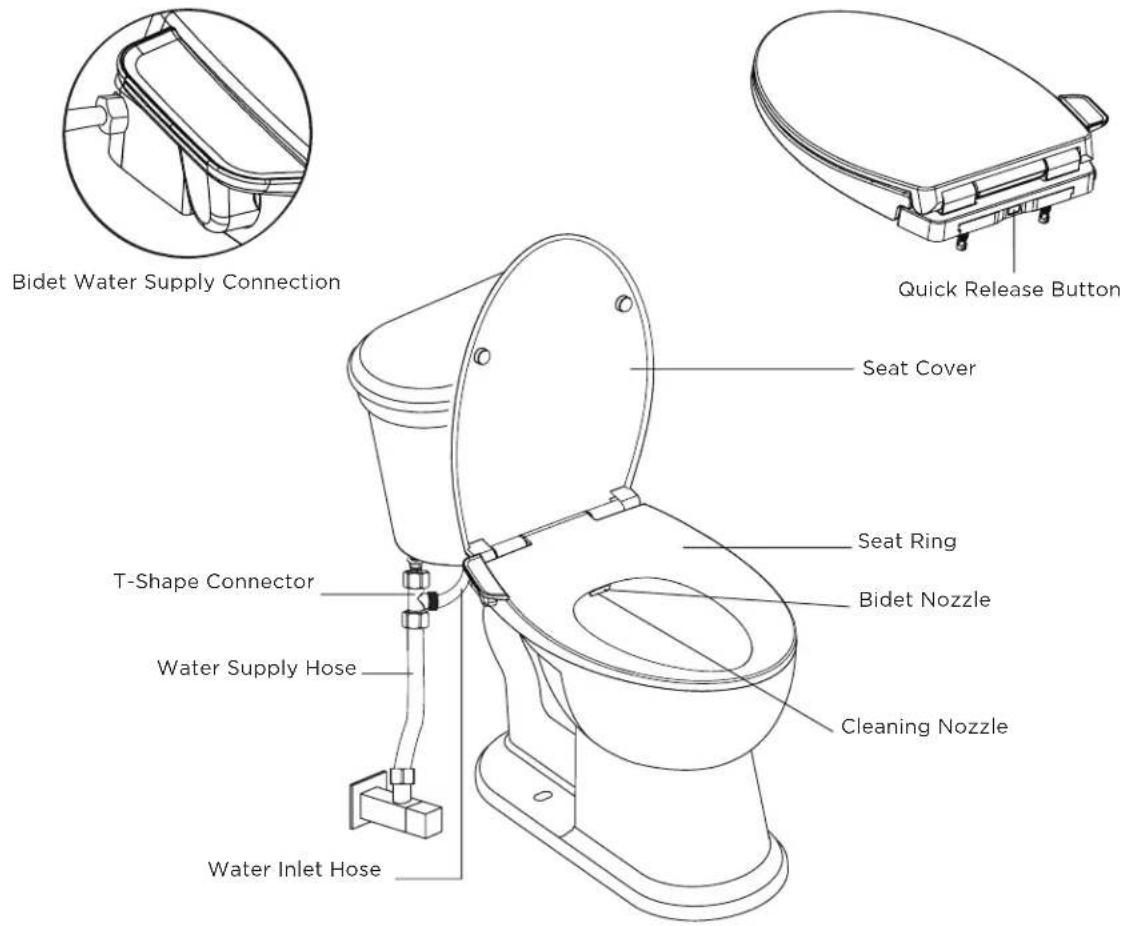

NAME OF PARTS

Bidet Water Supply Connection T-Shape Connector Water Supply Hose Water Inlet Hose Seat Cover Seat Ring Bidet Nozzle Cleaning Nozzle Quick Release Button

INSIDE THE BOX

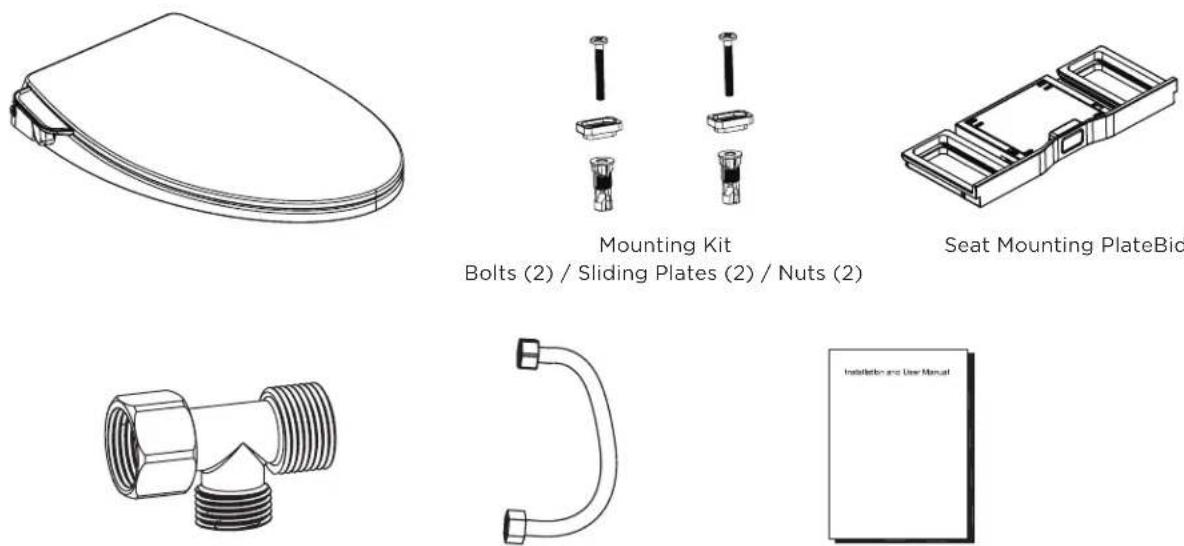

Mounting Kit Bolts (2) / Sliding Plates (2) / Nuts (2) Seat Mounting PlateBid Installation and User Manual

T-Shaped Adapter Water Inlet Hose Installation User Manual

760422-100 (6/23)

1

PRODUCT INSTALLATION PROCEDURES

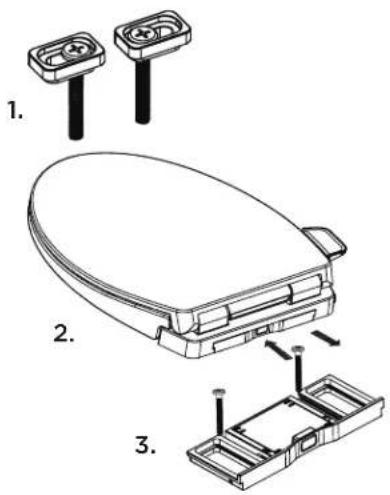

1. Insert the bolts in sliding plates.
2. Press the release button and remove the seat mounting plate.
3. Insert bolts with sliding plates into the Seat Mounting Plate.

Technical diagram of a toilet with three labeled components and exploded views

2

INSTALLATION PROCEDURES

1. Install the nuts into the holes in the toilet bowl.

Line drawing of a toilet with arrows indicating movement or positioning (no text or symbols)

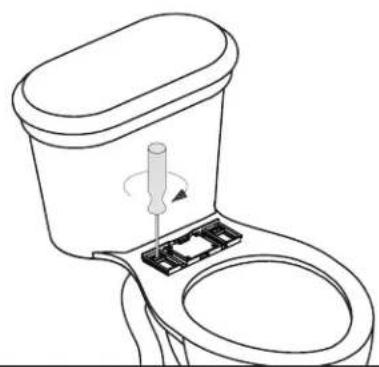

1. Screw the bolts into the nuts. Do not fully tighten.

Line drawing of a toilet with a screwdriver inserted into the cup (no text or symbols)

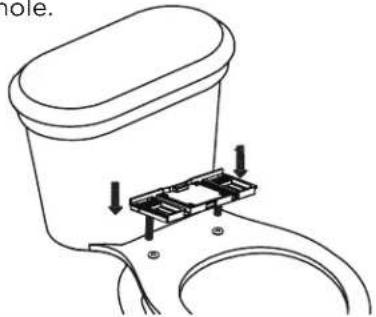

1. Place the Mounting plate with bolts and sliding plates onto the toilet bowl. Align the bolts and sliding plate with the seat post hole.

hole.

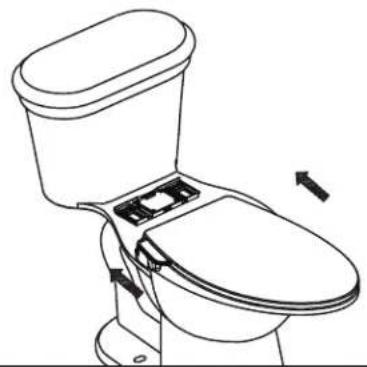

1. After mounting the mounting plate, slide the bidet seat fully into position until it clicks into place.

Line drawing of a toilet with seat and door, showing internal components and directional arrows (no text or symbols)

2

INSTALLATION PROCEDURES — CONTINUED

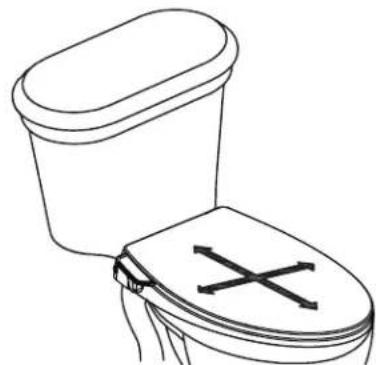

1. Adjust the bidet seat evenly over the toilet bowl.

Line drawing of a toilet with a lid and seat, showing no text or symbols

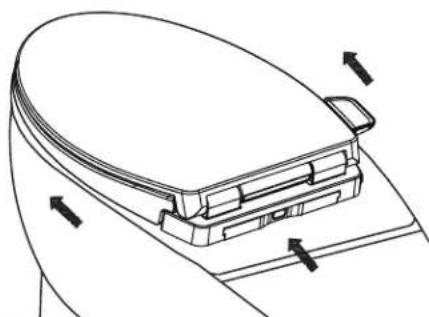

1. Press the quick release button to release the seat.

Line drawing of a toilet seat with directional arrows indicating movement (no text or symbols)

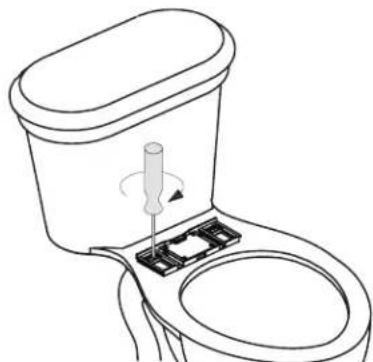

1. Fully tighten the bolts once the bidet seat is in correct position.

Line drawing of a toilet with a screwdriver inserted into the sink (no text or symbols)

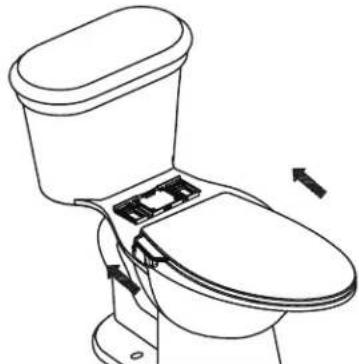

1. Reinstall the bidet seat until it fully clicks into position.

Line drawing of a toilet with seat and door panel, showing internal components and directional arrows (no text or symbols)

3

CONNECTING WATER HOSE

1. Shuting off the water valve and detach water pipe from the water tank. Connect the T-shaped connector to the water tank and the water valve. Make sure that rubber packing is inserted in between shut-off valve and T-shaped connector.

T-shaped Connector

Water pipe from the water tank

Water Shut OFF Valve

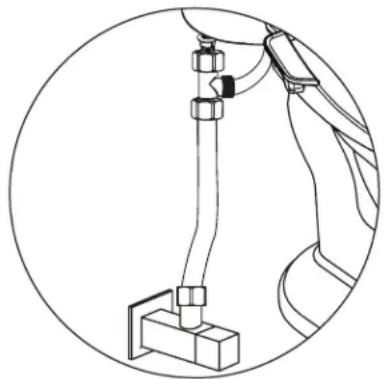

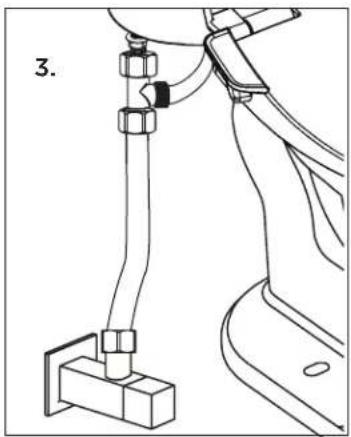

1. Reconnect water supply hose with T-shaped connector, and fully tighten.

Technical line drawing of a mechanical assembly with no visible text or symbols

CAUTION

• Do not lift the product with the seat cover and seat open.
• Cannot use with the hot water which temperature is higher than 104^ F. This may cause a mechanical trouble.

760422-100 (6/23)

4

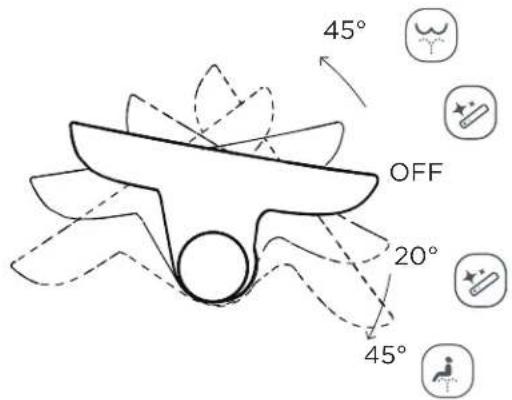

OPERATION

45° OFF 20° 45°

4 separate positions

20° 20° 20°

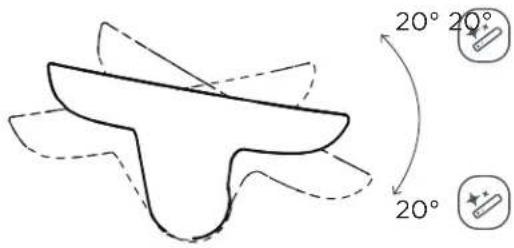

20° upwards or 20° downwards: for nozzle self-cleaning.

45° 45°

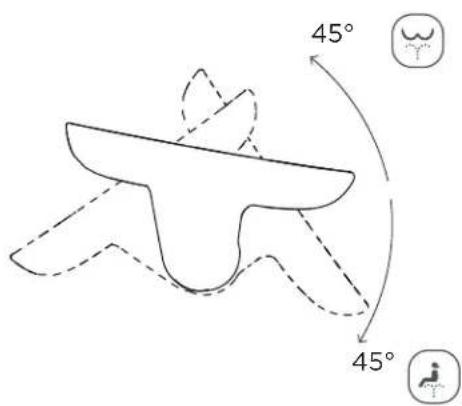

45° upwards - Back Cleansing 45° upwards - Front Cleansing

OFF

0^-OFF

CARE AND CLEANING

1. CLEANING SEAT AND LID

Use a smooth sponge/cloth with a mild cleanser to clean the product. Do not use the following: hydrogen chloride detergent, paint thinner, benzene, abrasive paper, polishing agent, fragrances and insecticide, etc.

2. CLEAN THE NOZZLE

Pull out the nozzle softly and use smooth cloth/sponge or toothbrush with a mild cleanser to clean the nozzle.

3. TO RELEASE THE WHOLE BIDET SEAT

Press the button, pull the seat forward.

DO NOT USE HARSH CHEMICALS ON TUB SURFACE

Do not use wire brushes, knives or sharp objects to remove stains, cigarette tar deposits, or other surface blemishes. Abrasive cleaners or powders must not be used, since they will dull the surface.

Do not wax areas where you walk or stand.

Do not allow nail polish remover, acetone, dry cleaning fluid, paint remover or other solvents to come into contact with the surface.

Clean the surrounding surface immediately after using caustic drain cleaners.

Burning cigarettes will damage the surface.

Should damage to the fixture occur, repairs can be made quickly and easily. Your distributor or builder can provide details.

SPIC AND SPAN ^* is a registered trademark of The Spic And Span Company

LESTOIL ^* is a registered trademark of the Clorox Company

LYSOL ^1 is a registered trademark of Reckitt Benckiser

WINDEX® is a registered trademark of S.C. Johnson & Son, Inc

MR. CLEAN* is a registered trademark of Agile Pursuits Franchising, Inc.

DOW' is a registered trademark of Dow Chemical Company

PRODUCT MAINTENANCE

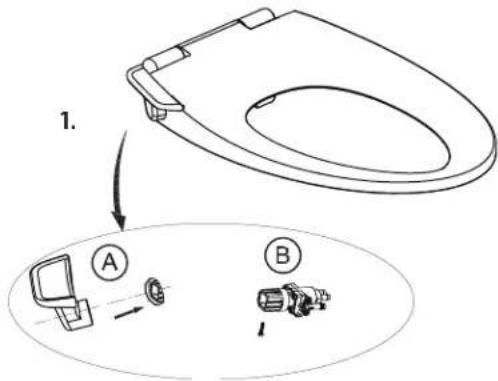

1. LEVER REPLACEMENT

As per figure A, remove the old lever along the axis direction.

As per figure B, insert the new lever rib into the corresponding control valve slot. The installation is completed with a "click" sound.

2. NOZZLE TIP REPLACEMENT

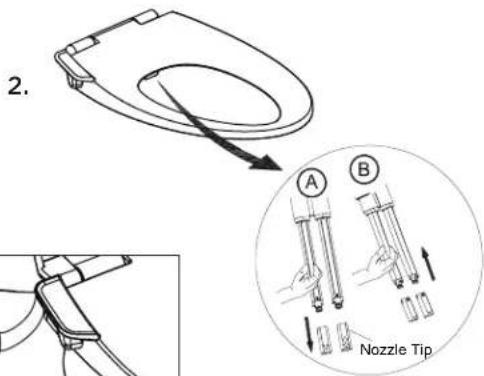

As per figure A, pull out the nozzle and remove the nozzle tip along the axis direction as per figure B, insert the new nozzle tip into the nozzle along the corresponding slot.

3. WATER HOSE LEAKAGE

If water leakage is detected from the water hose, re-tighten the hose connection.

1. A B I

2. A B Nozzle Tip

Technical line drawing of a mechanical assembly with no visible text or symbols

TROUBLESHOOTING GUIDE

STATUS CAUSE SOLUTION

Water flow to pressure is too low during Cleansing/Bidet	a. Low water pressure of the unit	a. Adjust the water pressure volume by the leverb. Assure the nozzle tips are clean
	a. Low water pressure of water supply	a. Check if the water pressure is above 10 psi b. Fully open the shut-off valvec. Check if there are any kinks on the water supply hose
No water comes out during Cleansing/Bidet	a. Water shut-off valve is turned off/b. Filter net of T-shaped connector is stuckc. Nozzle tip is stuckd. External water pressure is low	a. Turn on the water shut-off valveb. Clean the filter net of T-shaped connectorc. Take off and clean the nozzle tipd. Increase external water pressure
Water dripping into the bowl when using the unit	a. External water pressure is too high	a. The maximum water pressure of the unit is 0.6 MPa

CAUTION

Do not disassemble, repair or modify the unit

SPECIFICATIONS

CLASSIFICATION DESCRIPTION

Model No.	8043A60G
Back Cleansing water flow volume	0.4 - 1.4 L/min
Front Cleansing water flow volume	0.4 - 1.4 L/min
Backflow Prevention Backflow Prevention
Water Supply Direct from water pipes
Water Pressure Range	Static pressure: 0.07-0.6 MPa, Dynamic pressure:above 0.05Mpa
Dimensions 494 mm x 394 mm x 74 mm
Weight 2 kg

TO REQUEST SERVICE

• Please recheck the user's manual
• If failure or damage occurs after referring the manual, stop using the product and contact the retailer or local service center.

760422-100 (6/23)

TELL US WHAT YOU THINK!

Please leave us a product review or story at AmericanStandard.com/reviews

Find installation videos at

youtube.com/americanstandard

Register your warranty and sign up for an idea-filled newsletter at

AmericanStandard-us.com/support/warranty

PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND SAVE THIS WARRANTY INFORMATION IMPORTANT:

Registration of the sink must be completed for this warranty to become effective. Your registration will make it easier to contact you in the event of a product recall.*

INSTRUCTIONS: Register your sink at www.americanstandard.com. Please save your proof of purchase (sale receipt). If you need assistance or do not have access to our website, please contact American Standard Customer Care at: [phone]. An American Standard representative will assist in completing the warranty registration.

*In California, your warranty rights remain intact even if you do not complete the registration process.

SHARE YOUR NEW PRODUCT!

Tag us @american_standard on Instagram

and show us how your new product looks.

WANT MORE INFO?

For questions or help call us at 855-815-0004,

or visit AmericanStandard.com

UNITED STATES

American Standard Brands 865 Centennial Ave.

Piscataway, New Jersey 08854 Attention: Director of Customer Care

For residents of the United States, warrantyinformation may also be obtained by calling the following toll free number: [phone] www.AmericanStandard.com

CANADA

LIXIL Canada, Inc.

5900 Avebury Rd.

Mississauga, Ontario

Canada L5R 3M3

Toll Free: [phone]

www.AmericanStandard.ca

MEXICO

American Standard B&K Mexico

S. de R.L. de C.V.

Via Morelos #330

Col. Santa Clara

Ecatepec 55540 Edo. Mexico

Toll Free: 800-839-1200

www.AmericanStandard.com.mx

760422-100 (6/23)
