USER MANUAL Lyntier K-10341 KOHLER

Line drawing of a double faucet with two handles and a small sink, no text or symbols present

Mproduct numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Tools and Materials

Plumbers Putty

Adjustable Wrench

1/8" Hex Wrench

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
□ Carefully inspect the waste and supply tubing for any sign of damage.
☐ For new installations, install the faucet and drain to the lavatory before installing the lavatory.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

Cap Plug Setscrew Threaded Stud Flange Faucet Body Escutcheon Mounting Hole Mounting Nut Washer Lift Rod Holder Washer Nuts Coupling Nuts

1. Install the Faucet and Lift Rod Holder

Install the Lift Rod Holder

IMPORTANT! The lift rod holder and lift rod must be installed before the faucet. Once the faucet is installed, it would be difficult to install the lift rod components without damaging the lift rod.

□ Apply plumbers putty or other sealant to the underside of the lift rod holder flange.
☐ Insert the lift rod holder through the mounting hole.
□ Secure the lift rod holder with the mounting nut.
□ With a damp cloth, wipe any excess putty or sealant.
☐ Insert the lift rod into the lift rod holder.

Assemble the Faucet

NOTE: If your faucet is already assembled, continue to "Install the Faucet."

□ Remove the plug from the faucet body and the cap from the spout. Discard the plug and cap.

Install the Faucet and Lift Rod Holder (cont.)

☐ Insert the spout into the faucet body and press down firmly to engage the seal.
□ Position the spout.
☐ Using the provided setscrew and wrench, secure the spout to the faucet body.

Install the Faucet

□ Clean the lavatory surface to remove any grease, oil, or debris.
□ Apply plumbers putty or other sealant to the underside of each escutcheon according to the putty manufacturer's instructions.
□ Slide an escutcheon over each of the threaded studs.
☐ Insert the threaded studs through the mounting holes.
□ Slide a washer onto each of the threaded studs.
☐ Thread a nut onto each threaded stud to secure the faucet to the mounting surface. Securely wrench tighten the nuts.
□ With a damp cloth, wipe any excess putty or sealant from around the escutcheons.

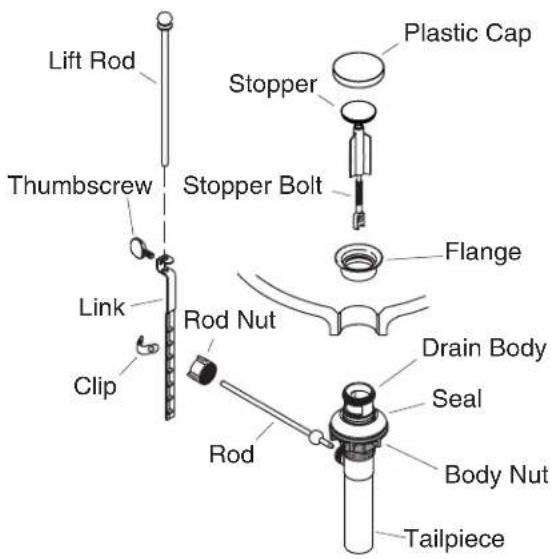

Lift Rod Thumbscrew Link Clip Rod Nut Stopper Bolt Stopper Plastic Cap Flange Drain Body Seal Body Nut Tailpiece Rod

2. Install the Drain

□ Remove the plastic cap from the drain assembly.
□ Remove the stopper from the flange.
□ Remove the flange from the drain body.
☐ Thread the body nut down the drain body.
□ Slide the seal down to the body nut.
□ From underneath the lavatory, insert the drain body through the drain hole.
□ Apply plumbers putty to the underside of the flange.
☐ Thread the flange onto the top of the drain body.
☐ Thread the body nut up the drain body until the seal is compressed against the underside of the lavatory.
□ Wipe away any excess plumbers putty from around the flange.
□ Remove the rod nut from the drain body.
□ Remove the clip from the rod.

Install the Drain (cont.)

☐ Insert the short end of the rod into the seal hole and under the stopper. Loosely secure in place with the rod nut.
□ Push the rod down to open the drain.
☐ Insert the stopper into the drain assembly.
☐ Remove and adjust the stopper so it lifts approximately 3/8"(1 cm) when opened. To adjust, hold the stopper bolt and turn the stopper counterclockwise to raise and clockwise to lower.
□ Reinstall the stopper.
☐ ForVandal-ResistantInstallations: Remove the rod nut. While the stopper is in place, insert the end of the rod through the hole in the stopper bolt. Secure the rod with the rod nut.
☐ ForAllOtherInstallations: Tighten the rod nut to secure the rod.
- Identify the best hole in the link to allow full operation of the rod and the lift rod.
□ Align the link hole with the rod and slide the clip and the link onto the rod with the thumbscrew facing the back of the lavatory.
☐ To move the link to the proper position, squeeze the clip and slide it along the rod.
☐ Align the link with the faucet lift rod and push the lift rod through the hole in the link. If required, loosen the thumbscrew on the link.
☐ Verify that the lift rod knob rests on the escutcheon when the drain is in the full open position.
□ Tighten the thumbscrew to secure the lift rod position.

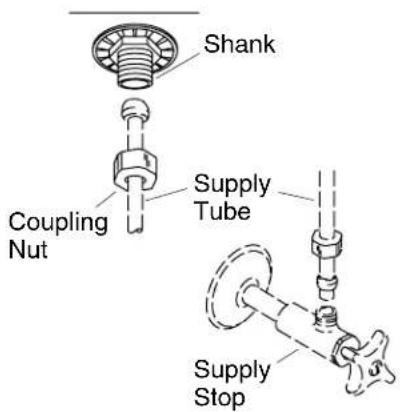

Shank Coupling Nut Supply Tube Supply Stop

3. Supply Connections

□ If the lavatory is not installed, install it at this time according to the lavatory manufacturer's instructions.
□ Connect the faucet supply shanks to the supply lines with the coupling nut. (Left is hot - right is cold.) Securely tighten the coupling nuts.
□ Tighten all connections.

4. Installation Checkout

□ Connect the P-trap.
□ Make sure all connections are tight.
□ Remove the aerator by turning it counterclockwise.
□ Open the drain.
☐ Turn on the main water supply and check for leaks. Adjust as needed.
☐ Open both hot and cold valves and run water through the spout for about a minute to remove debris. Check for leaks.
□ Close the hot and cold valves.
□ Remove any debris from the aerator and reinstall.
