Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and web site are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the water supplies.
□ Carefully inspect waste and supply tubing for any sign of damage and replace if necessary.
☐ For new installations, assemble the faucet on the sink before installing the sink.
☐ Before installation, unpack the new faucet and inspect it for damage. Return the faucet to the carton until you are ready to install it.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

1. Faucet Installation

NOTE: If your faucet does not have preassembled handles, the cold valve stem is marked for identification. Left is hot, right is cold.

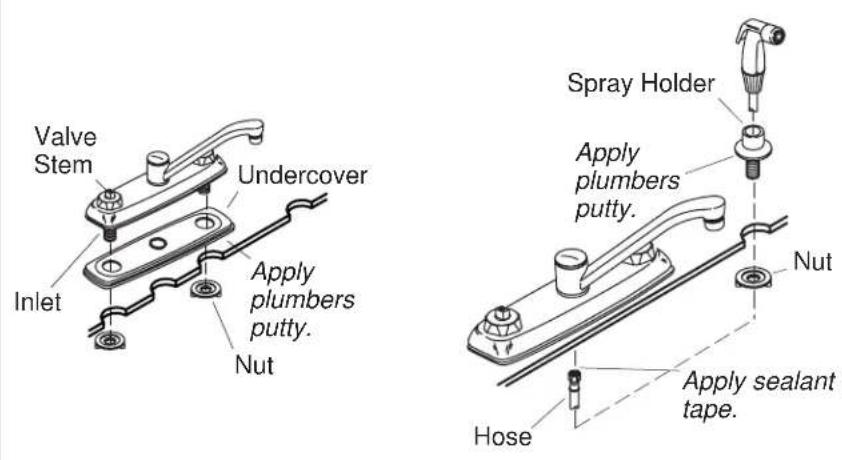

□ Place the undercover on the bottom of the faucet base.
□ Apply a bead of plumbers putty or other sealant to the underside of the undercover according to the putty or sealant manufacturer's instructions.
□ Center and align the faucet on the sink.
□ Securely hand tighten the nuts from underneath the sink.
□ Remove any excess putty or sealant.

2. Install the Handspray (optional)

□ Apply a bead of plumbers putty or other sealant to the underside of the spray holder according to the putty or sealant manufacturer's instructions.
☐ Insert the spray holder through the sink hole.
□ Hand tighten the nut to the spray holder from under the sink.
□ Remove any excess putty or sealant.
☐ Insert the handspray hose through the spray holder.
□ Attach the hose to the faucet base using thread sealant.

Compression Union Hot Cold

Aerator

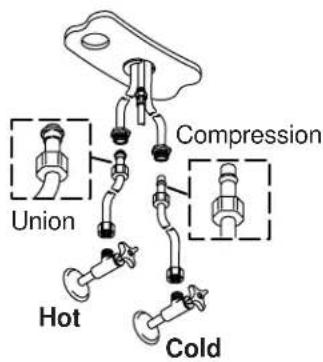

3. Install the Supplies

□ Connect the supply tubes to the faucet inlets and supply stops. Left is hot, right is cold.
□ Tighten all connections.

4. Installation Checkout

NOTE: If the faucet handles are not preassembled to the faucet, install them according to the instructions packed with the handles.

☐ Ensure that both faucet handles are turned off. Hot is clockwise close and cold is counterclockwise close.
☐ Turn on the hot and cold water supplies. Check for leaks.
□ Remove the aerator by turning it counterclockwise.
☐ Turn on the hot and cold faucet handles for one minute to flush debris from the faucet.
□ Close the hot and cold faucet handles.
☐ Reattach the aerator by turning it clockwise until hand tight.
