Revival K-16101 - Faucet KOHLER - Free user manual and instructions

Brand	Kohler
Model	Revival K-16101
Product Type	Small center-set lavatory faucet
Number of holes	3 holes (spout + two handles)
Hole spacing	Small spread (approximately 8 inches or 20 cm)
Material	Chrome-plated brass (chrome finish)
Spout height	Approximately 12.7 cm (5 inches)
Spout reach	Approximately 13.3 cm (5.25 inches)
Control type	Separate handles for hot and cold water
Compatible drain types	Style A (rod-operated) and Style B (pop-up)
Water flow rate	Maximum 1.2 GPM (4.5 L/min) depending on model
Recommended water pressure	20 to 80 psi (138 to 552 kPa)
Supply connection	1/2" NPT valve inlets (male thread)
Installation precautions	Follow local plumbing codes, shut off water before installation
Routine maintenance	Clean the aerator regularly, use a soft cloth
Warranty	Kohler limited lifetime warranty (parts and finish)
Repairability	Replacement parts available (cartridges, aerator, handles)
Included accessories	Spout, handles, escutcheon, drain, rods, adapters

Frequently Asked Questions - Revival K-16101 KOHLER

How to install the Revival K-16101 faucet?

Follow the steps in the manual: shut off water, insert the spout and escutcheon into the sink, secure the mounting plate, then install the escutcheon and handles. Tighten nuts by hand and check for leaks after turning on water.

What types of drain are compatible?

The faucet is compatible with Style A (rod-operated) and Style B (pop-up) drains. Follow the instructions corresponding to the drain supplied with your sink.

How to clean the aerator?

Unscrew the aerator from the spout by turning left. Clean debris under running water and reinstall. Run water afterwards to check flow.

The faucet leaks after installation. What to do?

Check that all nuts are properly tightened, O-rings are in place, and supply connections are sealed. If leak persists, contact Kohler for repair.

What are the exact dimensions of the faucet?

The spout height is approximately 12.7 cm and the reach approximately 13.3 cm. The mounting holes are spaced approximately 20 cm (small spread).

Can I install this faucet on a single-hole sink?

No, the Revival K-16101 is designed for a 3-hole sink (center spout plus two handles). For a single hole, use a single-lever model.

What is the warranty of this faucet?

Kohler offers a limited lifetime warranty on parts and finish. See Kohler website for details.

How to adjust the position of the handles?

Remove caps and handles, reposition the splined adapters on the valve stems until correct alignment, then retighten.

The drain does not close properly. How to adjust?

Adjust the lift rod: unscrew the lock nut, lengthen or shorten the rod so that the stopper rises about 1 cm in open position, then retighten.

Where to find replacement parts?

Replacement parts (cartridges, aerator, handles, seals) are available from Kohler or authorized dealers. Use model number K-16101.

USER MANUAL Revival K-16101 KOHLER

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Tools and Materials

Adjustable Wrench Plumbers Putty Sealant Tape

Assorted Screwdrivers

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
☐ If possible, install this faucet before installing the lavatory.
□ Inspect the supply tubing for damage. Replace as necessary.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

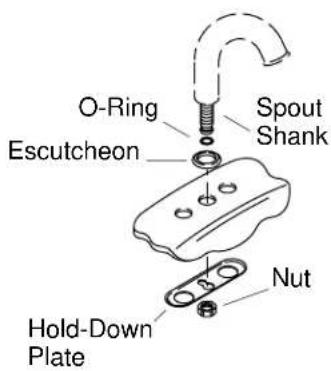

O-Ring Escutcheon Spout Shank Nut Hold-Down Plate

1. Spout Installation

☐ Slide the escutcheon on the spout shank so the gasket on the escutcheon faces down.
☐ Insert the spout and escutcheon through the lavatory hole.
☐ From under the lavatory, position the hold-down plate on the spout shank so the flat edges of the plate contact the lavatory surface.
□ Hold the spout in position and secure with the nut.
□ Wrench tighten the nut.

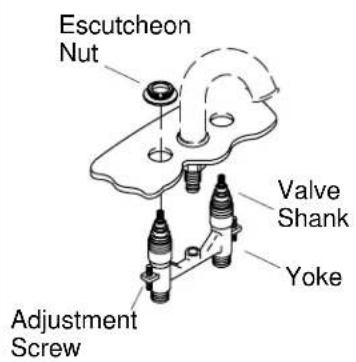

Escutcheon Nut Valve Shank Yoke Adjustment Screw

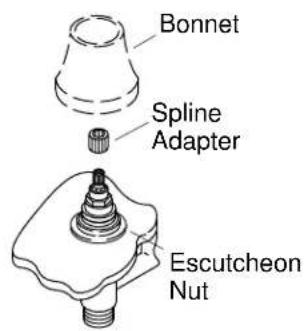

Bonnet Spline Adapter Escutcheon Nut

2. Faucet Installation

☐ Insert the yoke through the lavatory faucet holes so the cold valve (blue) is on the right.
□ Press to firmly seat the spout shank in the yoke.
□ Remove the escutcheon nuts from the bonnets, and thread them to the valve shanks. Securely hand-tighten.
☐ Thread the adjustment screws into the yoke, and tighten them evenly against the hold-down plate until secure.
□ Press the spline adaptors about halfway onto the valve stem splines.
☐ Loosely install the bonnets to the escutcheon nuts, and partially assemble the handles to the valve stems.
☐ Check the alignment of the handles. For further alignment, remove the handles and bonnets, and reposition the spline adapters on the valve stems until the handle alignment is correct.
□ Securely hand-tighten the bonnets onto the escutcheon nuts.
□ Assemble the handles, and install to the spline adapters with a screw and lockwasher.
□ Press the plug buttons into the handles.

Exploded view diagram of a mechanical assembly with no visible text or symbols

Style A Drain

Exploded view diagram of a mechanical assembly with no visible text or symbols

Style B Drain

3. Choose Drain Type

☐ Refer to the illustrations above to determine the drain style you received with your faucet.
□ Please follow the instructions for your drain style.

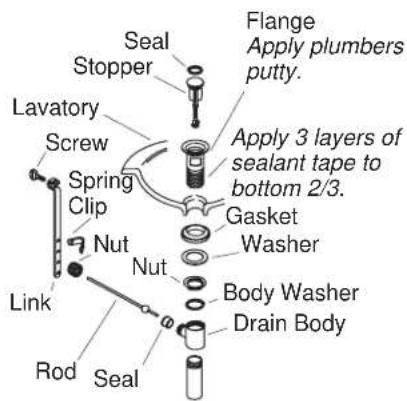

Flange Apply plumbers putty. Seal Stopper Lavatory Screw Spring Clip Nut Link Rod Seal Apply 3 layers of sealant tape to bottom 2/3. Gasket Washer Body Washer Drain Body

4. Drain Installation-Style A

□ Remove the protective material from the flange.
- Wrap the bottom 2/3 of the flange threads with three layers of sealant tape.
□ Apply a ring of plumbers putty or other sealant to the underside of the flange according to the putty manufacturer's instructions.
☐ Insert the flange into the fixture drain hole.
☐ Assemble the gasket (tapered side up) and washer to the flange and partially thread the nut to the flange. Do not fully tighten the nut at this time.
☐ Install the body washer and drain body with the seal hole facing the back of the fixture and securely tighten the nut. Use care to avoid scratching the finish.
□ Remove any excess putty or sealant.
☐ Insert the stopper into the flange.
☐ Insert the seal into the seal hole on the body.

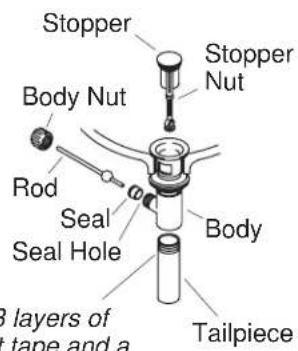

Stopper Body Nut Rod Seal Hole Slayers of tape and a Tailpiece Body Stopper Nut

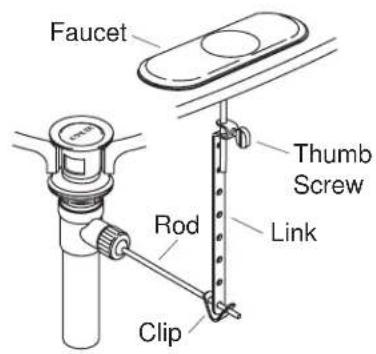

Faucet Thumb Screw Rod Link Clip

Apply 3 layers of sealant tape and a small bead of pipe sealant to threads.

5. Complete Drain Installation-Style A

☐ For regular installations, insert the short end of the rod into the body seal hole and under the stopper. For vandal-resistant installations, fit the rod through the hole in the stopper. Secure with the body nut.
☐ Remove and adjust the stopper so it lifts about 3/8" (1 cm) when opened. To adjust, loosen the stopper nut and shorten or lengthen the stopper as needed. Tighten the stopper nut.
□ Apply three layers of thread tape and a small bead of pipe sealant to the tailpiece threads.
☐ Thread the tailpiece to the body and tighten securely.
☐ Slide one end of the clip onto the rod. Slide the link onto the rod with the thumbscrew facing the back of the fixture.
□ Squeeze the other end of the clip, aligning the hole with the rod.
□ Move the link to the proper position by squeezing the clip and sliding it along the rod.
☐ Insert the lift rod into the hole in the faucet and then into the hole in the link.
☐ Tighten the thumbscrew onto the link so the lift rod knob extends above the lift rod hole.

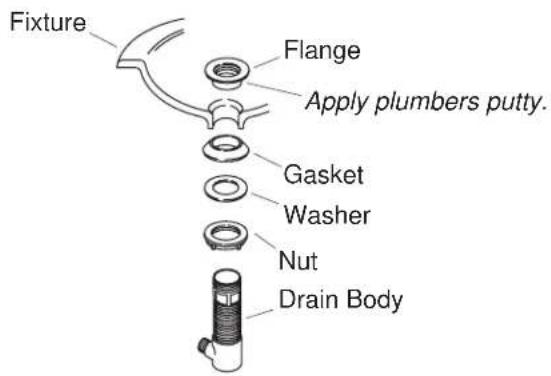

Fixture Flange Apply plumbers putty. Gasket Washer Nut Drain Body

6. Drain Installation-Style B

□ Remove the protective cover from the flange.
□ Apply a ring of plumbers putty or other sealant to the underside of the flange according to the putty manufacturer's instructions.
☐ Assemble the nut, flat washer, and tapered gasket (tapered side up) fully onto the body.
□ From the underside of the fixture, insert the drain body up into the drain hole.
□ From the top of the fixture, securely hand tighten the flange onto the drain body.
☐ Make sure the drain body seal hole is facing the back of the fixture, and securely tighten the nut.
□ Remove any excess putty or sealant.

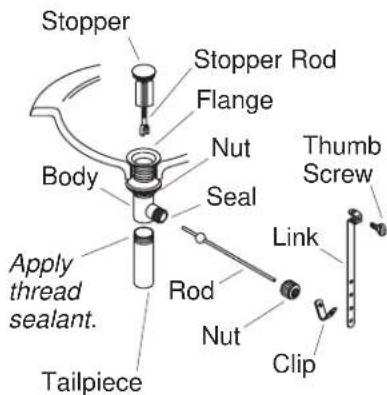

Stopper Flange Stopper Rod Nut Seal Body Apply thread sealant. Tailpiece Rod Nut Clip Link Thumb Screw

7. Complete Drain Installation-Style B

□ Press the seal into the seal hole on the body.
☐ Insert the stopper into the flange.
☐ For regular installations, insert the short end of the rod into the body seal hole and under the stopper. For vandal-resistant installations, fit the rod through the hole in the stopper. Hand tighten the body nut.
☐ Remove and adjust the stopper as needed so it lifts about 3/8" (1 cm) when opened. To adjust, rotate the threaded stopper rod in or out as needed. Retighten the stopper nut.
□ Apply thread sealant tape to the tailpiece threads, and thread the tailpiece to the body. Tighten the tailpiece securely.
☐ Slide one end of the clip onto the rod. Slide the link onto the rod with the thumbscrew facing the back of the fixture.
☐ Squeeze the other end of the clip, aligning the hole with the rod. Move the link to the proper position by squeezing the clip and sliding it along the rod.
☐ Insert the lift rod into the hole in the faucet and then into the hole in the link.
☐ Tighten the thumbscrew onto the link so the lift rod knob extends 1/2" (1.3 cm) above the lift rod hole.

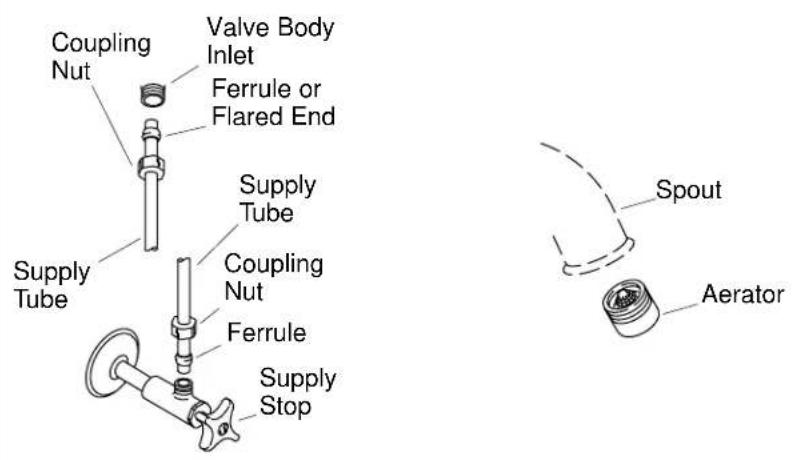

8. Supply Connections

□ Connect the supply tubes to the valve inlets and supply stops. (Left is hot - right is cold.)
□ Wrench-tighten all connections.

9. Installation Checkout

□ Connect the tailpiece and P-trap.
□ Ensure that all connections are tight.
□ Remove the aerator by turning it counterclockwise.
☐ Turn on the main water supply and check for leaks. Repair as needed.
☐ Open both hot and cold valves and run water through the spout for about a minute to remove debris. Check for leaks. Turn valves off.
□ Remove any debris from aerator and reinstall.
