USER MANUAL Swash Thinline LS1800 Brondell

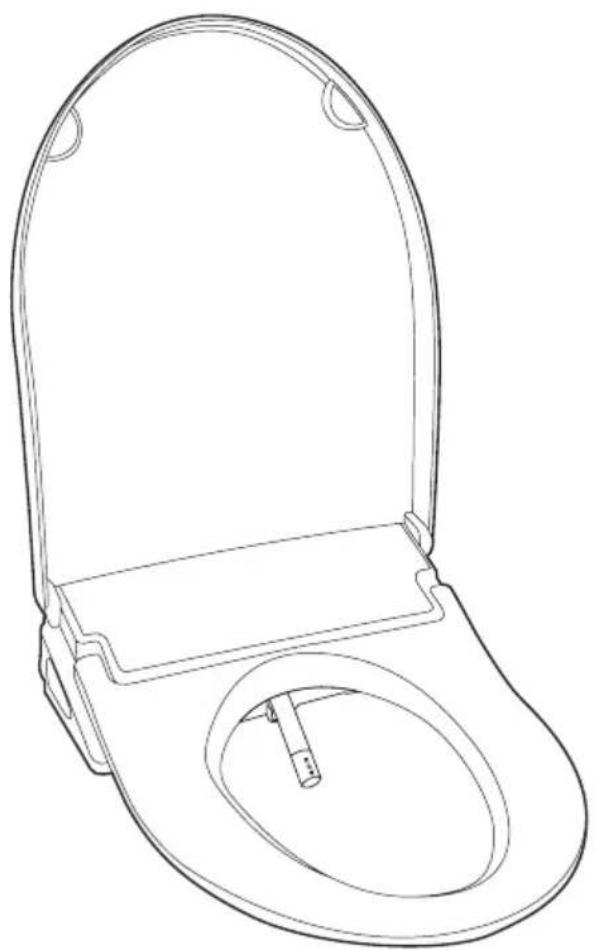

Swash LS1800 Luxury Bidet Toilet Seat with Remote Control

Models LS1800-EW/LS1800-RW

Line drawing of a standard toilet with lid and seat (no text or symbols)

Contents

This manual contains important safety information. Before operating the bidet, please read this manual thoroughly, and retain it for future reference.

SAFETY INFORMATION

3 Important Safeguards

PRODUCT INFORMATION

7 Product Features
8 Product Dimensions
9 Product Parts

PRODUCT INSTALLATION

10 Installation Parts
11 Before Installation
12 Swash Installation

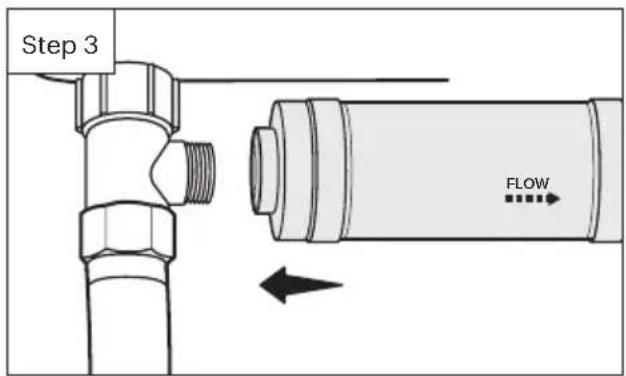

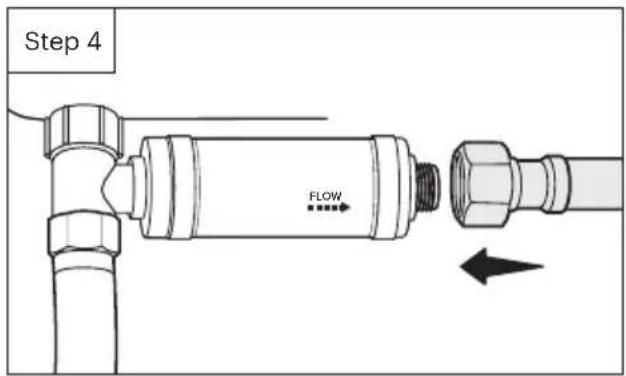

15 External Bidet Filter Installation

PRODUCT OPERATION

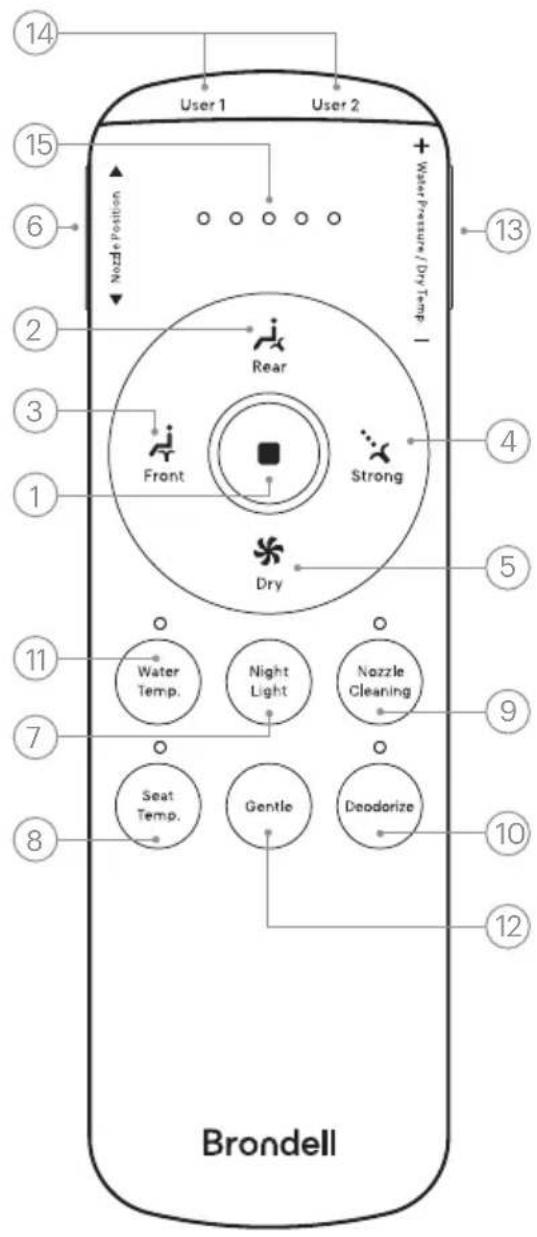

16 Remote Control

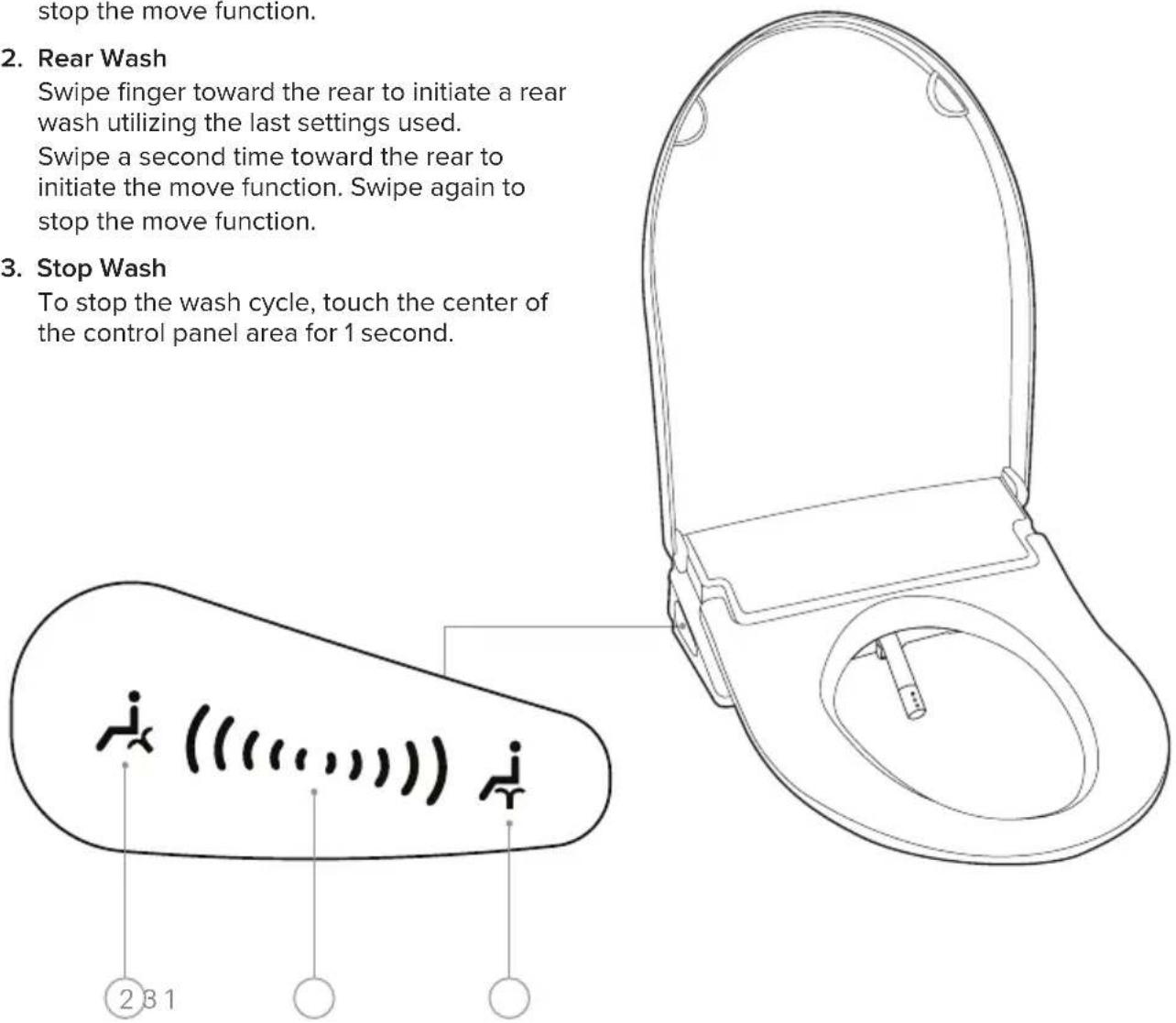

18 Auxiliary Control Panel
19 Using the Swash: Getting Started
20 Special Mode Operations
21 Special Mode Operation: Memory Functions
22 Expert Mode Operations Level 1
24 Expert Mode Operations Level 2

MAINTENANCE

26 Seat Cleaning, Removal, and Nozzle Cleaning
27 Mesh Filter and Carbon Deodorizer Cartridge
28 Product Storage

TECHNICAL INFORMATION

29 Troubleshooting
32 Product Specifications
33 Regulatory and Safety Notices
34 Warranty
35 Contact Information

TRANSLATIONS

36 Spanish
70 French

READ ALL INSTRUCTIONS BEFORE USING

BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY.

! DANGER !

Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage, or product damage.

Do not use a damaged power plug or plug into a loose electric outlet.

Do not move the product by pulling the power cord.

Do not handle the product or power plug with wet hands.

Do not forcefully bend the power cord or place heavy objects on it to prevent it from being damaged or deformed.

Do not connect and pull out the power plug or cord repeatedly.

Unplug the product before cleaning, repairing, inspecting, or replacing parts.

Remove any dust or water from the power plug prior to plugging in.

Do not plug the product into an electrical outlet or power strip that is being used by too many other products. Use an electrical outlet adequate for the wattage of the product rated for a minimum of 15 amps.

If the power cord is damaged, do not attempt to repair, modify, or replace the cord yourself. Contact the Brondell Service Center toll free at 888-542-3355 or email us through our website.

If the product produces a strange noise, a burning smell, or emits smoke, unplug it immediately from the electrical outlet and contact Brondell. Failure to do so may result in electric shock or fire.

Do not insert any wires or sharp objects into any product gaps. This may result in electric shock, fire, or product damage.

Do not place an electronic or gas heater near the product or dispose of any burning materials such as a lit cigarette in the toilet. This may result in fire or product deformation. Do not place any containers filled with water or other liquids, food, metallic objects, or any flammable material on top of the product. If foreign material enters the product, this may result in electric shock or fire.

READ ALL INSTRUCTIONS BEFORE USING

BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY.

! DANGER !

Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage, or product damage.

Do not use the product in locations exposed to excessive moisture and do not splash water onto the product.

While cleaning the bathroom, pull the power plug out of the electrical outlet and exercise caution to ensure that water or cleaning supplies do not splash onto the bidet. Failure to do so may result in electric shock or fire.

If foreign material enters the product, pull the power plug out of the electrical outlet, turn off the main water valve, and call the Brondell Service Center.

Do not disassemble, repair, or modify the product yourself.

Do not use the product while wet from bathing or showering.

Do not place or store the product where it can fall or be pulled into a tub or sink.

Do not place in or drop the product into water or any other liquid.

Do not reach for the product if it has fallen into water. Unplug the product immediately and call the Brondell Service Center.

Do not use the product if it is not working properly. Please unplug the product immediately, close the main water supply valve, and call the Brondell Service Center at 888-542-3355. Failure to do so may result in electric shock, fire, or flooding.

WARNING

Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage, or product damage.

Do not plug in, operate, or store the unit in locations where flammable or combustible materials are used or kept.

Do not use industrial water, or gray water for the supply, as this may cause skin damage or disease.

Turn off the main water supply valve when cleaning.

For children and seniors who may have difficulties with adjusting temperatures or those with sensitive skin or impaired heat sensitivity, set the temperature of the wash spray and seat to “low” or “off” to prevent burning.

Close supervision is necessary when this product is used by children, seniors, or persons requiring general assistance.

Do not press the buttons using excessive force.

Do not stand on top of or place any heavy objects onto the seat cover.

Use this product for its intended use only, as described in this manual. Do not use any attachments that are not recommended by Brondell.

READ ALL INSTRUCTIONS BEFORE USING

BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY.

WARNING

Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage, or product damage.

Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact the Brondell Service Center for examination and repair.

Keep the cord away from heated surfaces and heating vents.

Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep the air openings free of lint, hair, etc.

Never drop or insert any object into any opening or hose.

Do not use the product outdoors or operate where aerosol (spray) products are being used, or a room where the product could be exposed to oxygen.

Connect the product to a properly grounded outlet only. Refer to the Grounding Instructions in the next pages of the manual.

CAUTION

Failure to observe the following warnings may result in electric shock, fire, personal injury, property damage, or product damage.

Do not connect the main water supply to the hot water pipe or supply (only connect to the cold water supply).

After the installation, make sure to check all water supply connections for leaks. Rubber washers should be in place for the water connection hoses & T-valve.

Do not open/close the seat or seat cover with excessive force.

Exercise caution that urine does not come into contact with the product - failure to do so may result in bad odors or malfunction.

If the product will not be used for a long period of time, unplug the power cord, close the main water supply valve, and drain any water in the water tank.

Do not pull out the bidet hose using excessive force.

Do not use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid detergent on or near the product. This may result in corrosion to the metal parts or discoloration or scratches to the bidet body.

This appliance is not intended for use by persons (including children and seniors) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Important Safeguards

READ ALL INSTRUCTIONS BEFORE USING

BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY.

ATTENTION

For those with certain medical or mobility issues in the bathroom, we recommend our Swash 1400 or Swash 1000 bidet seats, as their mounting systems are engineered for the most secure transitions from wheelchairs or walkers.

DANGER

Improper use of the grounding plug can result in a risk of electric shock.

If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with green insulation (either with or without a yellow stripe) is the grounding wire.

Check with a qualified electrician if the grounding instructions are not completely understood, or if there is doubt if the product is properly grounded.

GROUNDING AND GFCI OUTLET INSTRUCTIONS

This product should only be used with a grounded GFCI (Ground Fault Circuit Interrupter) outlet and a grounded three-prong electrical cord as shown to the right. In the event of an electrical short circuit, using a grounded GFCI outlet reduces the risk of electric shock.

This product is equipped with a grounded cord and is for use on a nominal 120V circuit only (minimum 15 amps) and must be plugged into an outlet that is properly grounded with a GFCI breaker as shown. Replace or repair a damaged cord immediately.

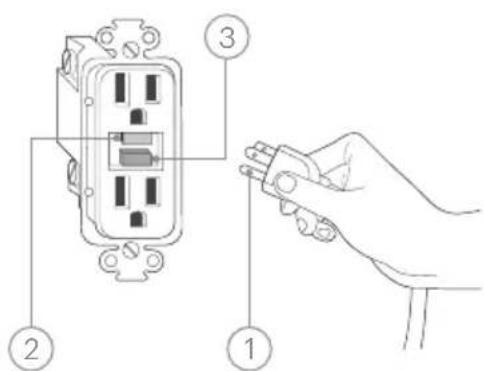

1. Grounding Pin
2. Test Button
3. Reset Button

Diagram showing a hand inserting a plug into an electrical socket, with numbered labels pointing to each component.

Stainless steel nozzle

Stainless steel resists soiling and contamination for enhanced hygiene

Rear and front warm water wash

Adjustable temperature, position, pressure, and oscillation settings

Strong wash

Concentrated stream with adjustable pressure, position, temperature, and oscillation settings

Nozzle positioning

Adjustable, 5-position nozzle ensures a comfortable and complete wash

Ceramic water heating system

Instant ceramic heating system provides an endless warm water stream for washes

Adjustable water temperature and pressure

Front, rear, and strong wash modes have 4 available water temperature settings and 5 water pressure settings

Warm air dryer

Adjustable, 5-level temperature setting for a hands-free drying experience and toilet paper reduction/elimination

Nozzle oscillation

Move function provides a massaging, oscillating cleanse during the wash cycle, ensuring a thorough and comfortable wash

Gentle wash

Activates a preset wash cycle at the softest setting for a gentle clean, followed by a drying cycle

Deodorizer

Activated charcoal deodorizing filter eliminates odors at the source

Ergonomic heated seat

Provides 4 temperature settings for comfort (off/low/medium/high)

Multicolored, illuminating nightlight

Select a preferred nightlight color to help ensure safer evening bathroom visits

Gentle-close seat and lid

Gentle-close seat and lid eliminates slamming and pinched fingers

Sittable lid

Sturdy, sittable lid can support up to 264 pounds

Quick-release seat

Quick-release button for easy removal and cleaning of the seat and toilet

Nozzle cleaning

Activate for automatic or manual nozzle cleaning

Programmable user memory

Set water pressure, oscillation, water temperature, nozzle positioning, and seat temperature for two users

Eco mode

Automatically lowers the seat temperature for energy saving when activated

Expert mode custom settings

Personalize and change the running time of wash and dry cycles

Product Dimensions

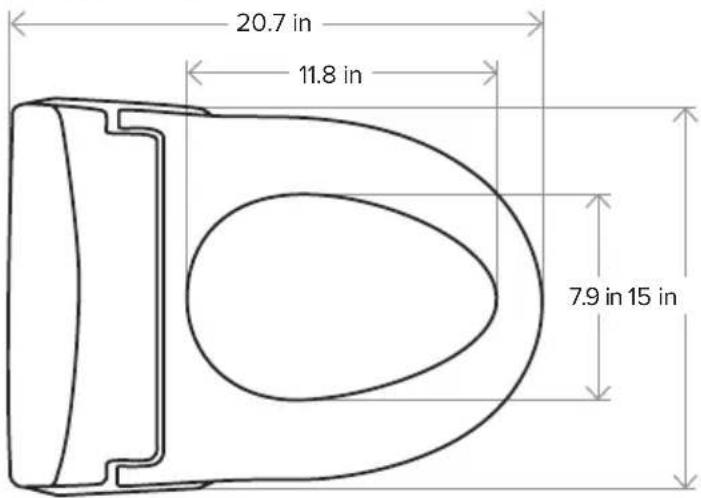

Elongated Top View

20.7 in 11.8 in 7.9 in 15 in

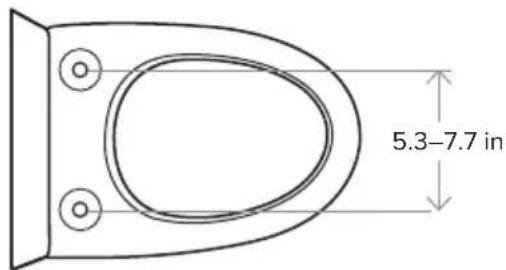

Required Distance Between Mounting Holes

5.3-7.7 in

Round Top View

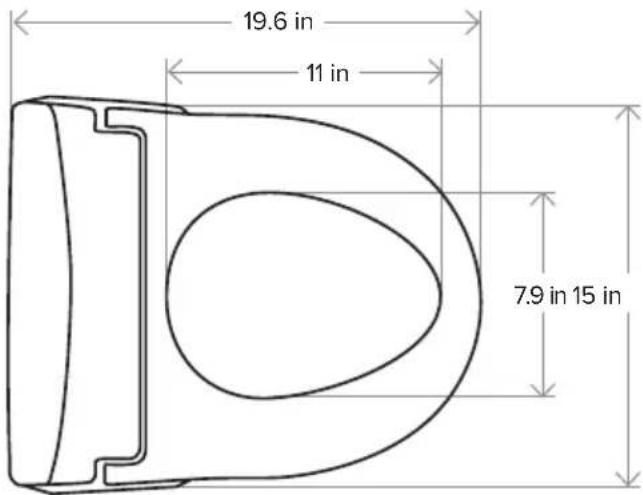

19.6 in 11 in 7.9 in 15 in

PRODUCT INFORMATION

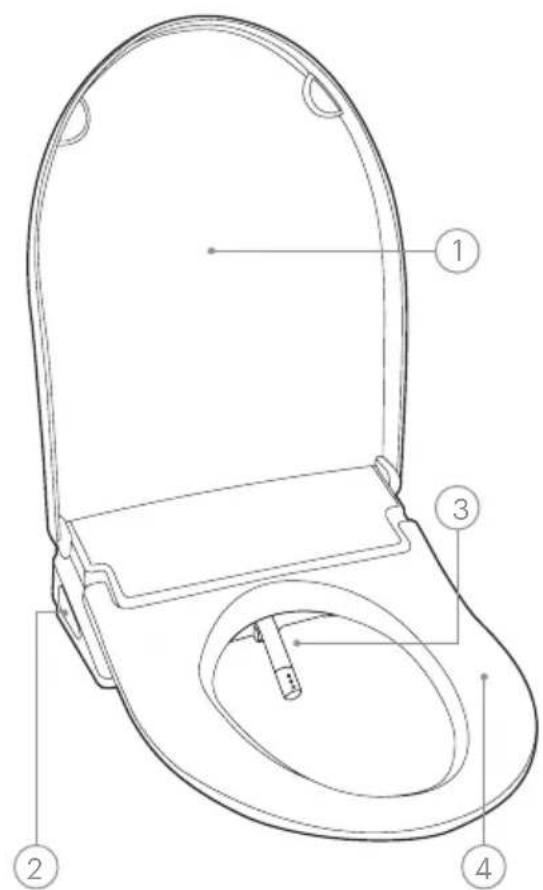

Product Parts

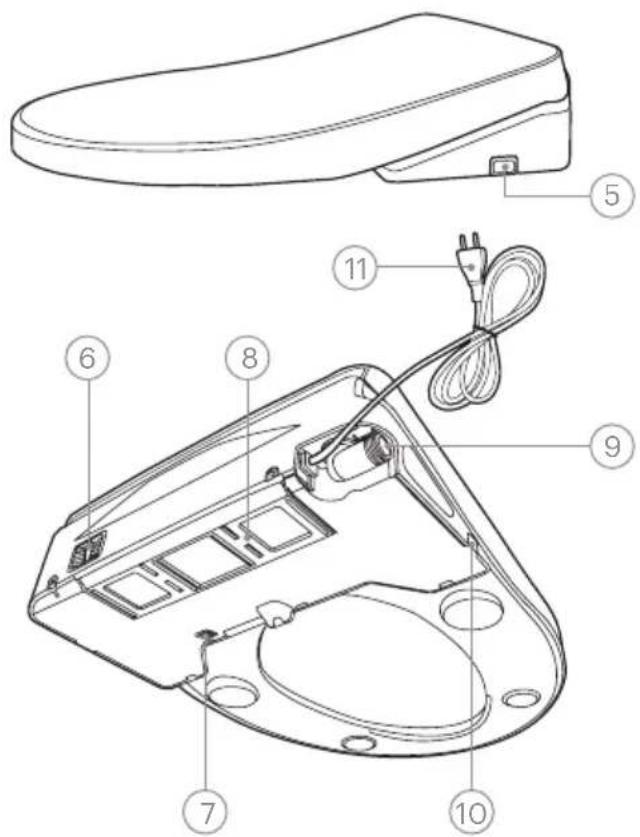

1. Lid
2. Auxiliary control panel
3. Nozzle assembly
4. Seat sensor area
5. Quick-release button

6. Deodorizer cover & outlet

7. Deodorizer inlet

8. Mounting plate
9. Water inlet with mesh filter
10. Nightlight
11. Power cord

Technical diagram of a toilet with numbered parts labeled 1, 2, 3, and 4

Technical diagram of a device with numbered parts, including an open base and cable installation details.

PRODUCT INSTALLATION

Installation Parts

1. Metal mounting bolt (2)
2. Rubber anchor (2)
3. T-valve connector with rubber washer
4. Deodorizer cover
5. Carbon deodorizer cartridge

6. Bidet hose

7. Adjustable brackets (2)

8. Mounting plate
9. Remote control
10. Remote control wall mount
11. AAA batteries (3)

O

O

O

4

5

621 3

O

8

⑨10

Simple line drawing of a rectangular object with a small square cutout on top (no text or symbols)

O

117

CAUTION

Do not plug the product in while the unit is upside down.

This may cause damage to the internal components.

Watch our installation video

Installation for all Swash products can be found online at brondell.com

Check bolt spread

This bidet seat can only be installed on toilets with a bolt hole spread of 5.3–7.7 in. (see Product Dimensions on page 8 for more information).

Check for a concealed toilet fill valve

Many modern toilets have sleek designs intended to cover and camouflage plumbing connections, which make a standard Swash installation difficult or impossible. For this, we recommend using our Alternate Swash Bidet Seat T-valve, found on brondell.com.

Check water supply line

Check the line that connects the toilet tank to the water shut off valve. If it is a rigid pipe, you may need to purchase a flexible hose to replace it before installing the Swash. The length of the hose and the size of the connectors will vary.

Residual moisture is normal

Every product is tested with pure water during production to ensure the highest quality and performance. It is normal to find a small amount of residual moisture on the product.

Tools

A Phillips head or standard screwdriver may be needed to remove the existing toilet seat and a standard wrench may be needed for tight water supply connections. Teflon tape can be helpful in creating a water-tight seal between plumbing connections.

Swash Installation

Please read these instructions carefully before installing the Swash. Failure to do so could result in flooding, leaking, or damage to the product.

NOTE: Steps may vary by type of seat and toilet

1. Existing toilet seat removal

a. Lift hinge covers and use a screwdriver to remove the mounting bolts.
b. Remove the toilet seat; keep for future use.

2. Turn off water supply valve and flush toilet

a. Turn water valve off to stop the flow of water. b. Flush toilet and hold down handle to completely empty tank. c. Disconnect water supply hose from toilet tank; do not disconnect from the water supply valve.

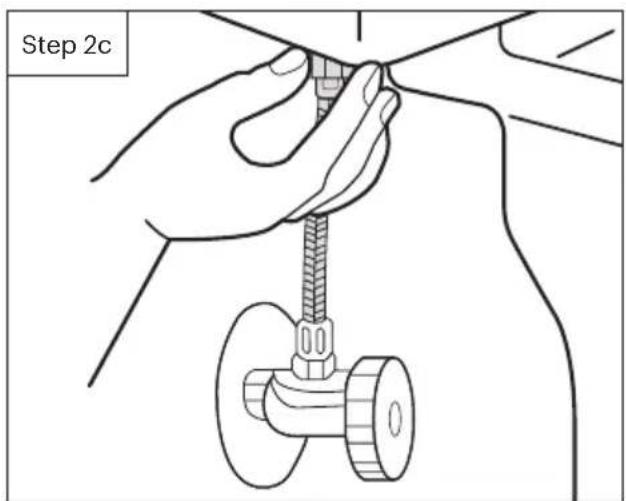

Step 2c

NOTES:

You may wish to place a container under the tank to catch excess water.

Do not continue without completing the above steps.

Failure to do so could result in flooding, leaking, or damage to the Swash.

3. Connect the top of the T-valve to the incoming water connection on the bottom of your toilet tank

NOTES:

The T-valve connects to the fill valve directly under your toilet tank—it does not connect at the wall.

Check to ensure the rubber washer sits flat inside of the T-valve.

Only connect to the cold toilet water supply line.

If your water supply line is rigid you may need to replace the water supply line before continuing.

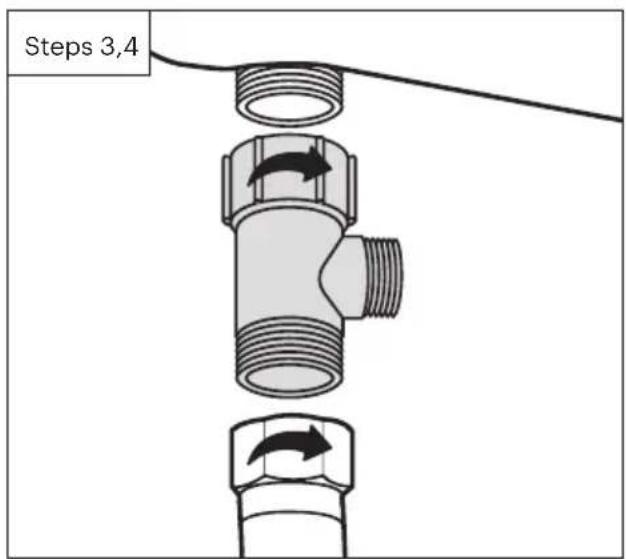

4. Connect the water supply line coming from the wall to the bottom of the T-valve

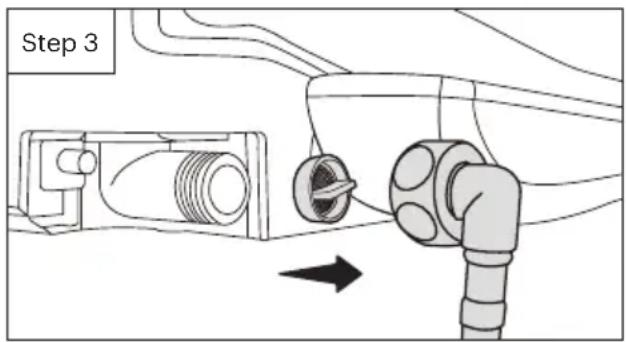

Steps 3,4

5. Installing mounting plate

a. Wet the rubber anchors with water, squeeze the sides of the anchors, and firmly press them all the way down into the mounting holes on top of the toilet.

TIP: Wetting the rubber anchors will allow for easier installation. The top of the anchors should be flat to the surface.

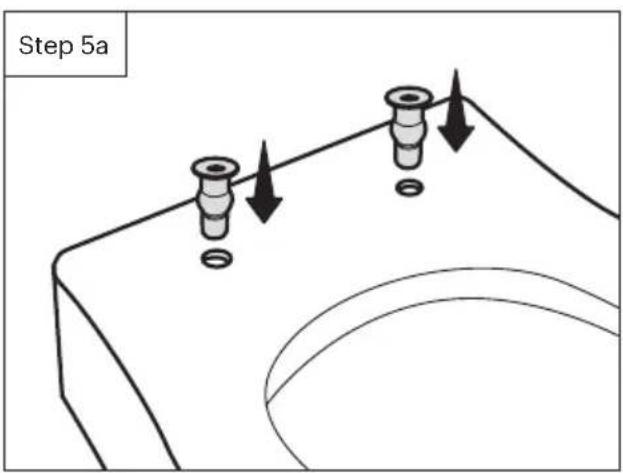

Step 5a

b. Place the mounting plate over the rubber anchors on the toilet.
c. Place the adjustable brackets flat side down on the mounting plate over the rubber anchors.

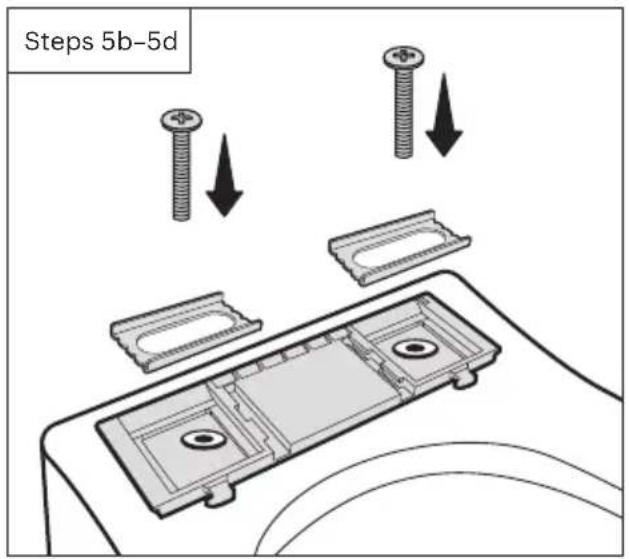

d. Insert the metal mounting bolts through the adjustable brackets and rubber anchors; use a Phillips screwdriver to screw in the mounting bolts and tighten.

Steps 5b-5d

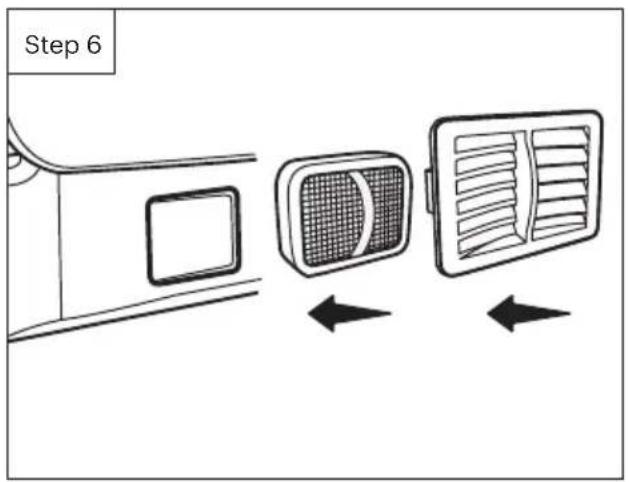

1. Insert the deodorizer cartridge into the back of the bidet body and attach the deodorizer cover until it snaps into place.

Step 6

Swash Installation (Cont'd)

7. Connect the bidet hose to the seat

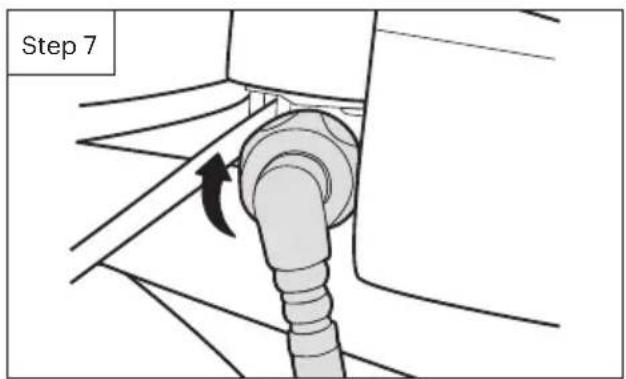

Connect the bidet hose to the water inlet and hand-tighten to secure; take care not to twist the bidet hose, excessively bend it, or strip the plastic screw threads when screwing the hose onto the bidet seat.

Step 7

8. Attach the bidet seat to the mounting plate

a. Set the bidet seat flat on the toilet bowl in front of the mounting plate. Slide seat forward onto plate until it clicks into place and is secure.

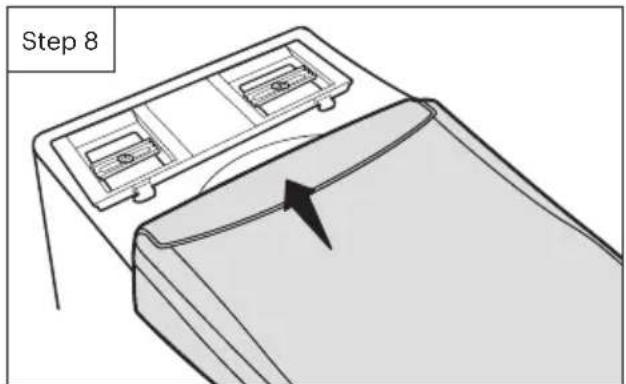

Step 8

b. If the seat does not align with the front edge of the toilet bowl, remove the seat by pressing the quick-release button located on the right side of the seat and slide it off the mounting plate.

c. Loosen the bolts and slide the mounting plate back or forth to readjust the placement; reinstall the seat and check the alignment to the edge of the toilet bowl (you may need to remove, readjust, and reinstall multiple times).

d. When the seat is lined up properly, tighten the bolts and reinstall the bidet seat.

9. Connect the open end of the bidet hose to the T-valve

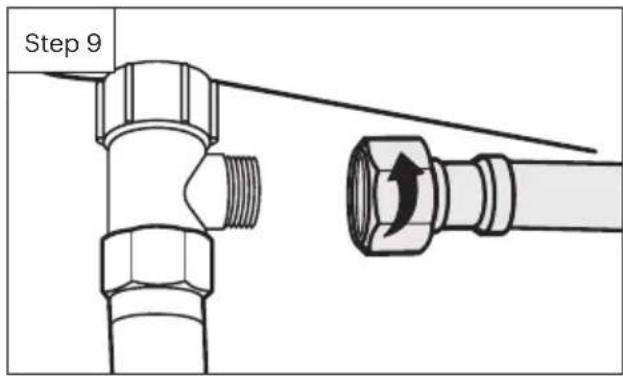

Step 9

10. Turn on the water supply

a. Open the main water supply valve slowly and check for leaks.
b. Wait 5 minutes, check again and, if there are no leaks, continue.

11. Plug the power cord into an electrical outlet; nozzle will extend and retract.

NOTES:

Make sure to only use a grounded GFCI (ground fault circuit interrupter) electrical outlet, as in the case of a short circuit, a grounded GFCI outlet may help prevent electric shock or injury.

If it is necessary to use an extension cord, only use those rated for a minimum of 15 amps with a 3-wire extension cord and a 3-blade grounding plug.

12. Pair the remote control

a. Insert 3 AAA batteries (included) into the remote within 5 minutes of plugging the seat into a GFCI outlet.
b. After inserting batteries, a blue light on the remote will turn on.
c. Press any button within 5 seconds before light turns off. A melody will play to confirm remote pairing.
d. Repeat the process if the remote did not pair.

13. Follow instructions on page 19 for using the bidet seat

External Bidet Filter Installation (optional, not included)

NOTE: Customers with hard water, well water, and softened water can extend the life of their bidet seat by purchasing and installing an external inline water filter to be used with the bidet seat. The bidet filter should be changed every 6 months and can be purchased online at brondell.com.

1. Turn off water supply valve and flush toilet

a. Turn water valve off to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.

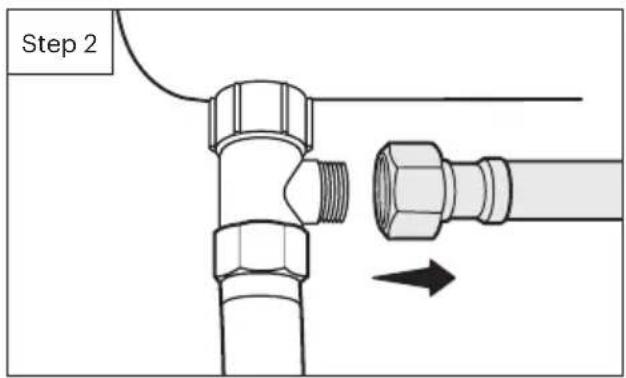

1. Disconnect the bidet hose from the T-valve

Step 2

1. Connect the female end of the Swash filter to the open T-valve connection

Step 3 FLOW

1. Connect the bidet hose to the male end of the Swash filter

Step 4 FLOW

1. Turn the toilet water supply valve back on

1. Battery Installation and Remote Pairing

a. Insert 3 AAA batteries (included) into the remote within 5 minutes of plugging the seat into a GFCI outlet.
b. After inserting batteries, a blue light on the remote will turn on.
c. Press any button within 5 seconds before light turns off. A melody will play to confirm remote pairing.
d. Repeat the process if the remote did not pair.

2. Mount remote (optional)

a. Locate a place in the bathroom to mount the remote so that it is visible and reachable from the toilet.
b. Peel the tape backing off the back of the remote mount; securely press the mount to the location to ensure it does not fall and damage the remote control.
c. Place the remote control into the mount.

14 User 1 User 2 15 6 Nozzle Position 2 Rear Front Strong 4 1 Dry 5 11 Water Temp. Night Light Nozzle Cleaning 7 Seat Temp. Gentle Deodorize 9 10 12 Brondell

1. Stop Button

Stops all wash and dry functions currently operating.

2. Rear Wash / Move Button

Press once to initiate a 2-minute rear wash. Press again to initiate nozzle oscillation (repetitive forward and backward nozzle movement).

3. Front Wash / Move Button

Press once to initiate a 2-minute front wash. Press again to initiate nozzle oscillation (repetitive forward and backward nozzle movement).

4. Strong Wash / Move Button

Press once to initiate a 2-minute strong wash. Press again to initiate nozzle oscillation (repetitive forward and backward nozzle movement).

5. Dry Button

Press once to initiate a 2-minute warm air dryer cycle.

6. Nozzle Position Side Button

Press the left side button up or down to adjust the nozzle position forward and backward during a wash cycle. The 5 LED indicator lights will indicate the different positions selected.

7. Nightlight Button

Press to turn the nightlight ON/OFF and to change the color of the nightlight.

8. Seat Temperature Button and Indicator

Press to adjust the seat temperature to 1 of 4 settings (green/low: 93.2°F, yellow/medium: 98.6°F, red/high: 104°F, and OFF). Settings will be saved for the next use.

9. Nozzle Cleaning Button

Press to initiate nozzle cleaning when not sitting on the seat, or when the seat sensor is deactivated. For more nozzle maintenance instructions, see page 26.

10. Deodorizer Button

Deodorizer is defaulted to automatically turn on when seated (indicator light is ON). Press button to turn the auto deodorizer off (indicator light is OFF). See page 20 for more instructions.

11. Water Temperature Button and Indicator

Press to adjust the water temperature to 1 of 4 settings (green/low: 93.2°F, yellow/medium: 98.6°F, red/high: 104°F, and OFF). Settings will be saved for the next use.

12. Gentle Wash Button

Press to initiate a gentle wash cycle followed by a dry cycle. See page 19 for more instructions.

13. Water Pressure and Dry Temperature Side Button and Indicators

Press the right-side button + or – to adjust the water pressure during a wash cycle. Press the same button + or – to adjust the dry temperature during a dry cycle. The 5 LED indicator lights will indicate the different positions selected. Settings will be saved for the next use.

14. Memory User 1 and User 2 Buttons

Press User 1 or User 2 to initiate preferred settings for a wash. User can set nozzle position, water pressure, oscillation, water temperature, and seat temperature settings to memory. See page 21 for more instructions.

15. Five LED Indicator Lights

Indicator lights for Level 1 to Level 5 from left to right indicate nozzle position, water pressure, and dryer temperature level settings when those buttons are pressed.

Auxiliary Control Panel

Basic functions such as rear wash and front wash can be used without the remote by utilizing the auxiliary touch control panel located on the side of the bidet seat.

1. Front Wash

Swipe finger toward the front to initiate a front wash utilizing the last settings used.

Swipe a second time toward the front to initiate the move function. Swipe again to stop the move function.

2. Rear Wash

Swipe finger toward the rear to initiate a rear wash utilizing the last settings used.

Swipe a second time toward the rear to initiate the move function. Swipe again to stop the move function.

3. Stop Wash

To stop the wash cycle, touch the center of the control panel area for 1 second.

stop the move function. 2. Rear Wash Swipe finger toward the rear to initiate a rear wash utilizing the last settings used. Swipe a second time toward the rear to initiate the move function. Swipe again to stop the move function. 3. Stop Wash To stop the wash cycle, touch the center of the control panel area for 1 second.

Using the Swash: Getting Started

NOTE: The seat has a built-in skin conductivity sensor. The wash functions will not work unless the sensor detects someone is seated. To override the seat sensor, see instructions on page 23.

Prepare for Wash

Sit on the seat to ensure skin-to-seat contact on the seat sensor.

Warm Water Wash

When ready to wash, press the Rear Wash, Front Wash, or Strong Wash button on the remote control once to initiate a wash. The nozzle will perform a self-cleaning rinse, extend into the toilet bowl, spray for 2 minutes, turn off automatically, retract, and self-clean once again.

1. To activate the move function during a wash, press the Rear Wash, Front Wash, or Strong Wash button a second time. This will initiate the nozzle to oscillate forward and backward, providing a wider wash spray range. Press again to stop the move function.
2. While washing, users can adjust the water temperature, pressure, and nozzle position settings. See page 17 for details.
3. To stop the wash before the 2-minute cycle ends, press the Stop button to discontinue water flow.

Warm Air Dryer Function

Press the Dry button to activate the warm air dryer. The dryer will run for 2 minutes and turn off automatically.

1. While the air dryer is operating, users can adjust the dryer temperature to a comfortable level using the Dry Temp + and – button on the right side of the remote control. The dry temperature will be reflected on the 5 LED indicator lights.

2. To stop the dryer before the 2-minute cycle ends, press the Stop button.

Gentle Wash

Auto settings within the gentle wash mode are 40% softer than standard wash modes. Gentle wash will begin a wash that includes:

• full nozzle extension
  • water pressure set to level 2
• front wash and oscillation for 1.5 minutes
• warm air dry cycle for 2-minutes set on level 2

NOTE: During a gentle wash cycle, water pressure and dryer settings may still be adjusted.

Special Mode Operations

Deodorizer

1. The deodorizer is defaulted to automatically turn on when seated. When the auto deodorizer is on, the deodorize indicator light is ON. After leaving the seat, it will automatically turn OFF after 1 minute.
2. To manually turn OFF the auto deodorizer, press the Deodorize button and the indicator light will turn OFF. The deodorizer will remain off until it is turned back on again by pressing the Deodorize button.

Nightlight

1. To change the nightlight color, press the Nightlight button repeatedly to cycle through and select your preferred color.
2. To turn OFF the nightlight, press and hold the Nightlight button for 3 seconds. It will beep twice to indicate it is off.
3. To turn ON the nightlight, press the Nightlight button for 1 second. It will beep once to indicate it is on.

Power ON/OFF

1. To power OFF and shut down the bidet seat, press and hold the Deodorize button for 3 seconds. The unit will make a tone and power OFF, shutting down the nightlight, seat heater, and water heater.
2. To power ON, press and hold the Deodorize button. The unit will make a tone and power ON.

Factory Default Reset

1. Factory reset can only be performed when the seat is not occupied.
2. To reset the bidet seat back to its factory default program settings, press the Stop button 4 times within 2 seconds to clear all current programming.
3. A tone will be heard to confirm that the bidet seat has been reset.

NOTE: Factory default reset only resets programming.

Special Mode Operation: Memory Functions

User Memory Settings

The Swash User 1 and User 2 memory functions allow you to program your preferred wash settings for rear, front, or strong wash cycles for two users. These settings include nozzle positioning, water pressure, water temperature, seat temperature, and move function. Follow the steps below to program and use the memory function.

Programming User 1 Memory Function

1. Sit on the seat and select your wash cycle (rear, front, strong). Adjust the nozzle position, water pressure, water temperature, seat temperature, and/or activate move function, to your preference.
2. Press the Stop button.
3. Press User 1 for 2 seconds. A beep will occur, and the yellow Deodorize LED light on the remote will blink to confirm programming is complete.
4. Repeat instructions for the next wash cycle you want to program.

Programming User 2 Memory Function

1. Sit on the seat and select your wash cycle (rear, front, strong). Adjust the nozzle position, water pressure, water temperature, seat temperature, and/or activate move function, to your preference.
2. Press the Stop button.
3. Press User 2 for 2 seconds. A beep will occur, and the yellow Deodorize LED button on the remote will blink to confirm the programming is complete.
4. Repeat instructions for the next wash cycle you want to program.

Using User 1 and User 2 Memory Function

1. Sit on the seat and select User 1 or User 2. The deodorize LED light will flash alerting you that user memory is activated.
2. Press Rear, Front, or Strong Wash button depending on which cycle was programmed.
3. The preset nozzle positioning, water pressure, water temperature, seat temperature, and move function (if selected) will be activated.
4. To stop user preset wash before the cycle ends, press Stop.
5. To exit user preset, press the same user button again and the deodorize LED light will turn off. This will revert to the previous settings.

NOTE: After leaving the seat without manually exiting, the seat will automatically revert to the previous settings.

Expert Mode Operations Level 1

Expert Mode Operations Level 1 allows the user to turn Eco Mode, Silent Mode, or Seat Sensor Override ON and OFF. Using the remote, follow steps 1–3 to enter, program, and exit Expert Mode Level 1.

1. Enter Expert Mode Level 1	2. ProgrammingExpert Modes
Press/hold STOP & Nozzle Cleaning for 2 seconds.Nozzle Cleaning LED starts blinking to indicate Expert Mode has been entered.	Eco ModeWhen Eco Mode is on, the bidet seat will automatically lower the seat temperature to reduce power consumption.		Silent ModeWhen Silent Mode is on, sounds will be disabled when using the remote control.
	To turn ON Eco Mode, press/hold STOP & Water Temp together.	To turn OFF Eco Mode, press/hold STOP & Water Temp together.	To turn ON Silent Mode, press/hold STOP & Water Pressure/ Dry Temp “-” together.	To turn OFF Silent Mode, press/hold STOP & Water Pressure/ Dry Temp “-” together.
	One beep will sound & yellow Deodorize light blinks to confirm.	Two beeps will sound & red Deodorize light blinks to confirm.	One beep will sound & yellow Deodorize light blinks to confirm.	Two beeps will sound & red Deodorize light blinks to confirm.

Seat Sensor Override

Seat Sensor Override bypasses the body sensor located in the seat and allows the wash and dry functions to operate without engaging skin to seat contact. Use with caution.

To turn ON Seat Sensor Override (deactivate seat sensor), press/ hold STOP & Seat Temp together.

To turn OFF Seat Sensor Override (activate seat sensor), press/ hold STOP & Seat Temp together.

One beep will sound & yellow Deodorize light blinks to confirm.

Two beeps will sound & red Deodorize light blinks to confirm.

3. Exit Expert Mode Level 1

Press/hold STOP & Nozzle Cleaning for 2 seconds.

Nozzle Cleaning LED stops blinking to indicate Special Mode has been exited.

Expert Mode Operations Level 2

Expert Mode Operations Level 2 allows for customizing and changing the cycle times for Rear Wash, Front Wash, Strong Wash, Warm Air Dryer, Gentle Wash, and Gentle Wash Dry Cycle.

Custom programming must be performed in Expert Mode status with the seat sensor overridden and turned off, and with the seat unoccupied.

Using the remote, follow steps 1-3 to enter, program, and exit Expert Mode Level 2.

1. Enter Expert Mode Level 2	2. Changing Cycle Times
1. Press/hold STOP & Nozzle Cleaning for 2 seconds.2. Nozzle Cleaning LED starts blinking to indicate Special Mode has been entered.3. Turn OFF seat sensor - place hand on right area of seat.4. Blue circle LED light on remote turns OFF = Seat Sensor OFF.	Rear Wash (default 2 min)	Front Wash (default 2 min)	Strong Wash (default 2 min)
	1. Press/hold Rear & Water Temp together.Rear + Water Temp.2. Water Temp light blinks.Water Temp.3. Continue to press Rear without releasing.Rear4. Press Water Temp to select new cycle time with LED light.OFF=1 minGreen=2 minYellow=3 minRed=5 minWater Temp.5. Release to set new time.	1. Press/hold Front & Water Temp together.Front + Water Temp.2. Water Temp light blinks.Water Temp.3. Continue to press Front without releasing.Front4. Press Water Temp to select new cycle time with LED light.OFF=1 minGreen=2 minYellow=3 minRed=5 minWater Temp.5. Release to set new time.	1. Press/hold Strong & Water Temp together.Strong + Water Temp.2. Water Temp light blinks.Water Temp.3. Continue to press Strong without releasing.Strong4. Press Water Temp to select new cycle time with LED light.OFF=1 minGreen=2 minYellow=3 minRed=5 minWater Temp.5. Release to set new time.

Warm Air Dryer (default 2 min)	Gentle Wash (default 1.5 min)	Gentle Wash Dry Cycle (default 2 min)
1. Press/hold Dry & Water Temp together.2. Water Temp light blinks.[Water Temp.]3. Continue to press Dry without releasing.[Dry]4. Press Water Temp to select new cycle time with LED light.OFF=1 minGreen=2 minYellow=3 minRed=5 min[Water Temp.]5. Release to set new time.	1. Press/hold Gentle & Water Temp together.2. Water Temp light blinks.3. Continue to press Gentle without releasing.4. Press Water Temp to select new cycle time with LED light.OFF=30 secGreen=1 minYellow=1.5 minRed=3 min5. Release to set new time.	1. Press/hold Gentle & Seat Temp together.2. Seat Temp light blinks.3. Continue to press Gentle without releasing.4. Press Seat Temp to select new cycle time with LED light.OFF=30 secGreen=1 minYellow=2 minRed=3 min5. Release to set new time.

Line drawing of a mechanical component with a circular inset detail (no text or symbols)

CAUTION

Unplug the Swash from the power source before cleaning or removing the seat.

Seat Cleaning and Removal

Use a soft, damp cloth and mild cleanser (such as dish soap, Simple Green or Windex) to wipe down the seat. DO NOT scrub or use harsh, abrasive products to clean the seat. DO NOT use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid detergent. This may result in corrosion to the metal parts or discoloration or scratches to the bidet body. For a more thorough cleaning, you may remove the bidet seat. To remove the seat, press the Quick Release button on the right side of the seat, and slide the seat forward off of the mounting plate and toilet.

NOTE: Be cautious of leaving home and beauty products in contact with the bidet seat, as irreversible discoloration can result. Most stains can be removed using a 1:1 mix of rubbing alcohol and water and a soft cloth or towel. However, some permanent stains are the result of substances left on the seat while the seat heater was activated. Be cautious of home and beauty products (including, but not limited to: various hair and air freshener sprays, lotions, body wash, skin tanners, body butters, and oils) that come into contact with the seat. Wash off any substances that come into contact with the seat as soon as possible. If necessary, replacement seat parts can be purchased through Brondell customer support.

Nozzle Cleaning

There are two ways to initiate nozzle cleaning:

NOTE: The nozzle cleaning function will not work if the seat is occupied, or if the seat sensor has been overridden.

1. Regular cleaning

a. Press the Nozzle Cleaning button on the control panel.
b. Nozzle will extend into the toilet bowl and self-clean 3 times with cold water.
c. Nozzle will retract when finished.
d. Pressing the Stop button at any time will cancel the nozzle cleaning process.

2. Intensive cleaning

a. Press the Nozzle Cleaning button for 3 seconds.
b. Nozzle will extend into the toilet bowl and will self-clean 10 times with hot water.
c. Nozzle will stop cleaning and will stay extended for 5 minutes to allow for manual cleaning.

d. Gently clean the nozzle manually with a soft cloth or toothbrush.

e. After 5 minutes, nozzle will perform a self-cleaning rinse 10 times before retracting.

Step 2d

f. Pressing the Stop button at any time will cancel the nozzle cleaning process.

g. Pressing the Nozzle Cleaning button during a self-clean will interrupt the process; resume self-cleaning by pressing the Nozzle Cleaning button again.

Mesh Filter and Carbon Deodorizer Cartridge

Cleaning the Mesh Filter

Cleaning intervals will differ depending on use and water quality. It is recommended to check the filter at least once per year.

1. Turn off the water supply and hold the toilet flush lever down until all water has drained from the tank.
2. Unplug the bidet seat, remove from the toilet, and disconnect the bidet hose. You may want to use a bucket to catch any dripping water from the bidet hose.
3. Remove the mesh filter from the water inlet with a pair of tweezers or needle-nosed pliers.

Step 3

1. Clean the filter with a toothbrush while running it under tap water to effectively remove any foreign substances or build-up.
2. Replace the mesh filter and carefully check that it is installed correctly. Improper installation may result in the product leaking water.
3. Reconnect the bidet hose and place the seat back onto the toilet. Plug the cord back in and turn the water supply back on.

Replacing the Carbon Deodorizer Cartridge

We recommend replacing the carbon deodorizer cartridge every 6 months.

Replacements are available for purchase at brondell.com.

1. Locate the deodorizer compartment. When facing the toilet, the compartment is located at the rear, right-hand side of the unit.
2. Remove the bidet seat from the toilet by pressing the quick-release button on the right side of the bidet seat.
3. Remove the compartment cover by pulling on the plastic tab.
4. Pull out the old deodorizer cartridge from the compartment and replace it with the new cartridge.
5. Replace the compartment cover back onto the bidet seat. Replace the seat onto the toilet.

MAINTENANCE

Product Storage

Short Term Non-Use

If the product will not be used for more than a few weeks, you can simply unplug it. You may also consider shutting the water supply off at the wall for extra precaution.

Long Term Non-Use

If the product will not be used for an extended time (longer than 4 months), you should unplug the unit, shut the water supply off at the wall, and remove the bidet seat from the toilet. To remove the bidet, press the quick-release button and slide the seat forward off of the mounting plate and toilet. Remove the bidet hose.

If the bidet appears to be operating abnormally, please review the troubleshooting tips before calling the Brondell Service Center, as most issues are easily resolved with a few simple steps. If you are unable to resolve the issue after checking the following items, please call the Service Center at 888-542-3355, Mon–Fri, 9am–5pm PST, or email us at [e-mail].

Check before continuing:

Make sure the bidet seat is connected to power and that the outlet is working properly.

Make sure you check & test the reset button on the GFCI outlet (Standard 120V GFCI outlet).

Make sure the main water supply valve is open.

Make sure the seat is not in standard or high-efficiency eco mode.

Confirm that there are no leaks from the hoses or water supply.

Make sure the mesh filter is clean and free of build-up or debris (see maintenance section on page 27).

After checking items above, refer to the following troubleshooting chart for additional solutions.

Problem Possible	Cause(s) Solution(s)
The bidet seat is not working	1. Bidet not plugged in2. Water supply valve not opened fully3. No power to bidet4. The incoming water is too hot5. Seat sensor is not activated	1. Make sure the bidet is plugged in2. Check that the water supply valve at the wall is fully open3. Check and reset GFCI outlet4. Ensure that the bidet seat is connected to the cold-water supply5. Adjust sitting position to fully cover the seat sensor
Product shuts off during use	1. Washing time exceeded the cycle time2. Power failure3. Seat sensor is not activated	1. Wash cycles run for 2 minutes. Press the wash button after the wash has finished to continue the wash cycle2. Check and reset GFCI outlet3. Adjust sitting position to fully cover the seat sensor
Nozzle does not function properly	1. Nozzle is dirty2. Clogged filter3. Water pressure is too low4. External bidet filter	1. Clean the nozzle (see page 26)2. Remove, clean, and reinstall mesh filter (see page 27)3. Check that water supply valve at wall is fully open4. If you have an external bidet filter, check and replace if necessary
Problem Possible Cause(s) Solution(s)
Low water flow or spray pressure	1. Clogged filter2. Water supply valve not opened fully3. Nozzle is dirty4. External bidet filter5. Pressure settings6. Bent connection hose	1. Remove, clean, and reinstall mesh filter (see maintenance section on page 27)2. Check that the water supply valve at wall is fully open3. Clean the nozzle (see page 26)4. If you have an external bidet filter, check and replace if necessary5. Increase the water pressure settings6. Check if connection hose is bent
Water temperature is low	Water comes out cold The water temperature level is turned off or set to low; adjust temperature on control panel
Wash features do not work or fail to spray	Seat sensor not activated Adjust sitting position to fully cover the seat sensor
Water (wash spray) not heated	Water temperature set to OFF	Make sure that the water temperature setting is ON
Water flows before or after use	Water coming from the nozzle	The water that comes out between the nozzle before or after a wash cycle is the self-clean cycle; this is not a malfunctionResidual water may drip into the bowl for several seconds after a wash cycle or self-clean cycle; this is not a malfunction
Water leaks from areas other than the nozzle	1. Water leaking from the T-valve2. Water leaking from the bidet hose connection3. Water leaking from under the seat4. Damaged mesh filter	1. Make sure that the rubber gasket is inserted correctly into the T-valve (flat side down with lip pointing up towards the toilet tank connection) and firmly tighten the connector2. Make sure that the bidet hose is correctly connected and tight, and check any rubber washers; do not over tighten3. Check if there is anything between the mesh filter and the bidet; remove, clean, and reinstall mesh filter4. Check if the mesh filter is damaged (see maintenance section on page 27)
Problem Possible Cause(s)	Solution(s)
Water temp lights blinking	Water supply not connected properly	Make sure that the bidet hose is correctly connected and tight, and that water supply shut off valve is open
Seat is not heated 1. Seat temperature set to OFF2. Eco Mode is ON		1. Make sure that the seat temperature setting is turned on2. Turn off Eco Mode
Wash or dryer works without sitting on the seat	Seat sensor override is turned on	Turn off seat sensor override
Remote does not work 1. Remote is not paired to seat2. Seat is not plugged in3. The batteries are dead		1. Make sure the remote is paired correctly (see pg. 16)2. Make sure the seat has power and is plugged into a GFCI outlet3. Insert 3 new AAA batteries

BRONDELL SWASH LS1800 LUXURY BIDET SEAT WITH REMOTE CONTROL
Model LS1800-EW, LS1800-RW
Power Voltage 120 V / 60 Hz
Max Power Consumption 1470 W
Supply Water Pressure 7.11 psi–106.7 psi / 0.05 MPa–0.74 MPa
Dimensions Elongated: 20.7 in x 15 in x	3.9 in / 52.6 cm x 38.1 cm x 9.9 cmRound: 19.6 in x 15 in x 3.9 in / 49.8 cm x 38.1 cm x 9.9 cm
Weight Elongated: 8.7 lbs / 3.9 kg	Round: 8.6 lbs / 3.9 kg
Incoming Water Temperature 50°F–89.6°F / 10°C–32°C
Mesh Filter 0.50 in / 1.27 cm (in diameter)
Seat Weight Limit 397 lbs / 180 kg
Lid Weight Limit 264 lbs / 120 kg
Certifications Electrical: UL, cUL, FCC	Plumbing: UPC, cUPC
WARM WATER WASHING DEVICE
Rear Wash, Front Wash Maximum .18 gal/min / 0.7 L/min
Strong Wash	Maximum .21 gal/min / 0.8 L/min
Default Cycle Time	2 minutes
Water Pressure Control	5 levels
Water Temperature Control	4 levels: OFF - Room Temp; Low - 93.2°F / 34°C;Medium - 98.6°F / 37°C; High - 104°F / 40°C
Max Heater Power Consumption	1400 W
Safety Devices	Thermal Fuse, Temperature Sensor, Bi-metal
HEATED SEAT
Seat Temperature Control	4 levels: OFF - Room Temp; Low - 93.2°F / 34°C;Medium - 98.6°F / 37°C; High - 104°F / 40°C
Max Heater Power Consumption	38W
Safety Devices	Thermal Fuse, Temperature Sensor

Note: The specifications listed above are subject to change without prior notice for reasons of improving the product performance.

Regulatory and Safety Notices

USA: Federal Communications Commission (FCC) Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference; and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

FCC Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device should be installed and operated with minimum 20 cm between the radiator and your body.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device meets the FCC and IC requirements for RF exposure in public or uncontrolled environments.

Canada: Industry Canada (IC) Statement

This device meets the IC requirements for RF exposure in public or uncontrolled environments. IC Notice to Users English/French in accordance with current issue of RSS GEN:

This device complies with Industry Canada license exempt RSS standard(s).

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

LS1800 Residential 3-Year Limited Warranty

• 100% Coverage of all parts and labor for the entire product (excluding consumable filters) for the first year from original date of purchase
• 75% Coverage of all parts and labor for the entire product (excluding consumable filters) for the second year from original date of purchase
• 50% Coverage of all parts and labor for the entire product (excluding consumable filters) for the third year from original date of purchase

LS1800 Commercial Warranty

The warranty period is 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high-use non-residential applications.

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.

2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first 3 years from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

4. Damage or loss which occurs during shipment.

5. Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
6. Damage or loss resulting from sediments or foreign matter contained in a water system.
7. Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.
8. Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine-related products.

9. Damage or loss resulting from electrical surges, electrical outages, lightning strikes, or other acts which are not the fault of Brondell, or which the product is not specified to tolerate.

10. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of purchase. To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355, Mon–Fri, 9am–5pm PST.

Brondell

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

[e-mail]

www.brondell.com

For questions, contact:

Brondell Customer Service: 1-888-542-3355

Monday – Friday, 9am – 5pm PST

Manufactured by

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

Made in Korea

Please retain receipt records for any warranty claims.

Diagram showing a hand inserting a plug into an electrical socket, with numbered labels pointing to the components.

Technical diagram of a toilet with numbered parts labeled 1, 2, 3, and 4

Technical diagram of a device with numbered parts, including an open base and cable installation details.

Simple line drawing of a rectangular object with a small square cutout on top (no text or symbols)

O

117

PRECAUCIÓN

Pasos 3, 4

Paso 3 FLOW

1. Conecte la manguera del bidé al extremo macho del filtro del asiento Swash.

Paso 4 FLOW

14 User 1 User 2 15 6 Nozzle Position 2 Rear Front Strong 4 1 Dry 5 11 Water Temp. Night Light Nozzle Cleaning 7 Seat Temp. Gentle Deodorize 9 10 12 Brondell

Line drawing of a standard toilet with open lid and sink (no text or symbols)

+ Water Pressure / Day Temp. 1

Un pitido

+ Water Pressure / Dry Temp. 1

Dos pitidos

Line drawing of a toilet sink with a magnified inset showing the handle (no text or symbols)

Line drawing of a mechanical component with a circular highlight (no text or symbols)

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

[e-mail]

www.brondell.com

INSTALLATION DU PRODUIT

Diagram showing a hand holding a socket connected to an electrical outlet, with numbered labels pointing to each component.

Technical diagram of a toilet with numbered parts labeled 1, 2, 3, and 4

Technical diagram of a device with numbered parts, including a base, cable, and internal components.

INSTALLATION DU PRODUIT

Simple line drawing of a rectangular object with a small square cutout on top (no text or symbols)

O

117

MISE EN GARDE

INSTALLATION DU PRODUIT

Installation du Swash

Line drawing of hands adjusting a mechanical component with a valve (no text or symbols)

REMARQUES :

Diagram of a pipe fitting with directional arrows indicating flow or movement (no text or symbols)

Technical diagram showing three mechanical components with downward arrows indicating motion or force, no text or symbols present.

Étape 3 FLOW

Étape 4 FLOW

14 User 1 User 2 15 6 Nozzle Position 2 Rear Front Strong 4 1 Dry 5 11 Water Temp. Night Light Nozzle Cleaning 7 Seat Temp. Gentle Deodorize 9 10 12 Brondell

1. Bouton Arrêt

3. Bouton Lavage avant/Oscillation

Line drawing of a standard toilet with open lid and sink (no text or symbols)

Line drawing of a toilet with a circular inset showing the handle (no text or symbols)

Line drawing of a toilet with a circular inset showing the handle (no text or symbols)

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

[e-mail]

www.brondell.com

Feels better already.
