USER MANUAL FreshSpa Thinline FSA-15 Brondell

FreshSpa Thinline Bidet Attachment with Adjustable Single Nozzle

Models FSA-15 / FSA-25

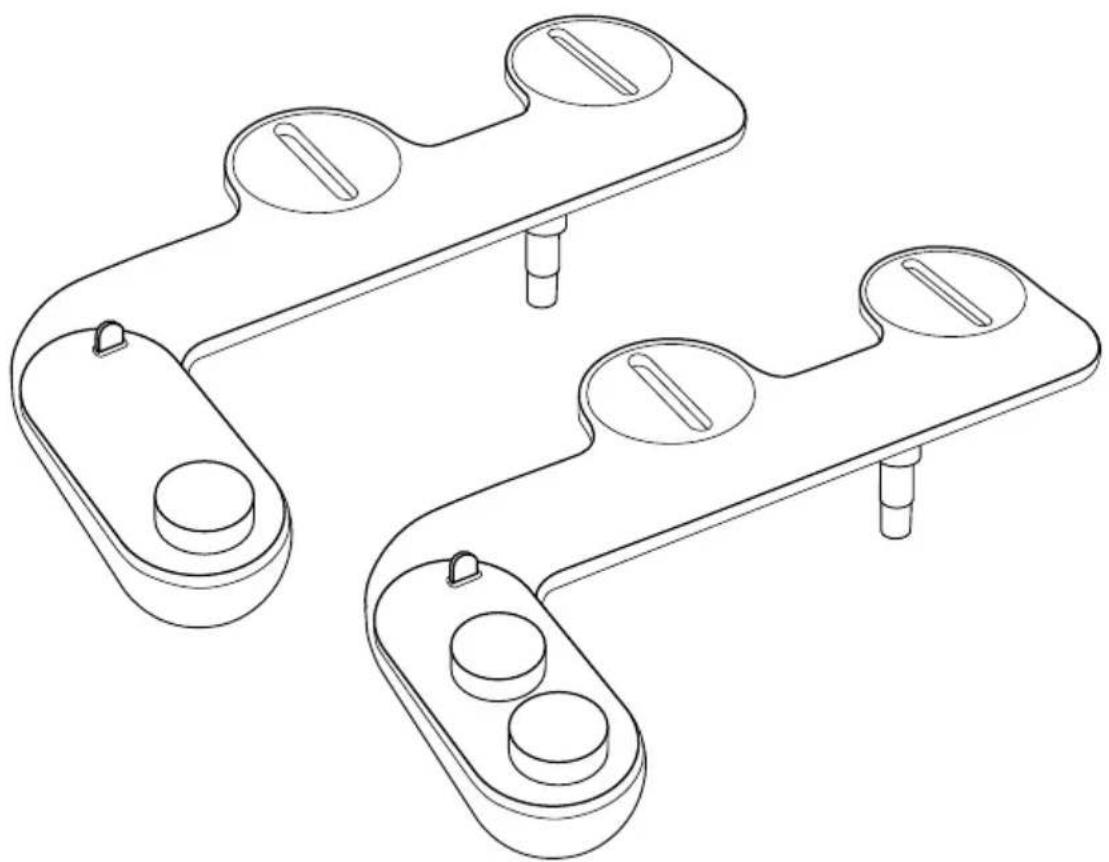

Line drawing of three identical mechanical components with circular cutouts and cylindrical pins (no text or symbols)

Contents

This manual contains important safety information. Before operating your FreshSpa, please read this manual thoroughly and retain it for future reference.

PRODUCT INFORMATION

3 Product Features
4 Product Dimensions
5 Product Parts

PRODUCT INSTALLATION

6 Before Installation
7 Installation
10 Installing the Bidet Attachment

PRODUCT OPERATION

12 Using the FreshSpa

TECHNICAL INFORMATION

14 Maintenance
15 Product Specifications
16 Warranty
17 Contact Information

TRANSLATIONS

18 Espanol
34 Francais

FSA-15 / FSA-25 FEATURES

High-quality ABS material with full body panel

Adjustable nozzle position for front and rear washes

Hygienic retractable nozzle

Self-cleaning nozzle feature

Ambient temperature bidet wash

Adjustable water pressure

High-quality metal 78 " T-Valve

Durable braided-metal cold water hose

No electricity or batteries required

Easy installation and adjustable toilet fit

All accessories included for standard installation

1-year warranty

FSA-25 DUAL TEMPERATURE FEATURES ONLY

Warm and cool water bidet washes

Adjustable water temperature

Durable high-temperature hot water flex tubing

High-quality metal 38 " T-Valve

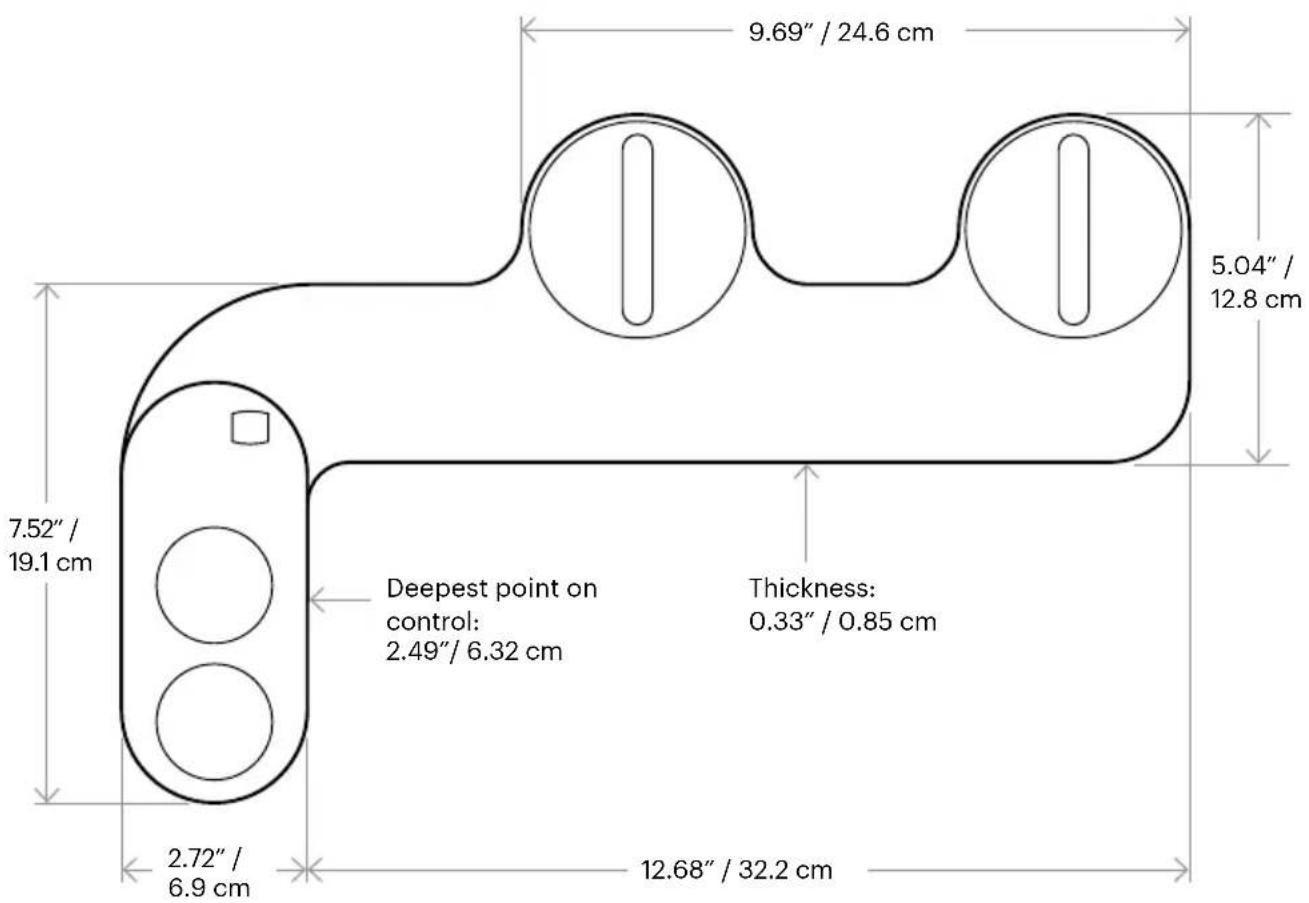

Product Dimensions

9.69" / 24.6 cm 5.04" / 12.8 cm 7.52" / 19.1 cm Deepest point on control: 2.49" / 6.32 cm Thickness: 0.33" / 0.85 cm 2.72" / 6.9 cm 12.68" / 32.2 cm

PRODUCT INFORMATION

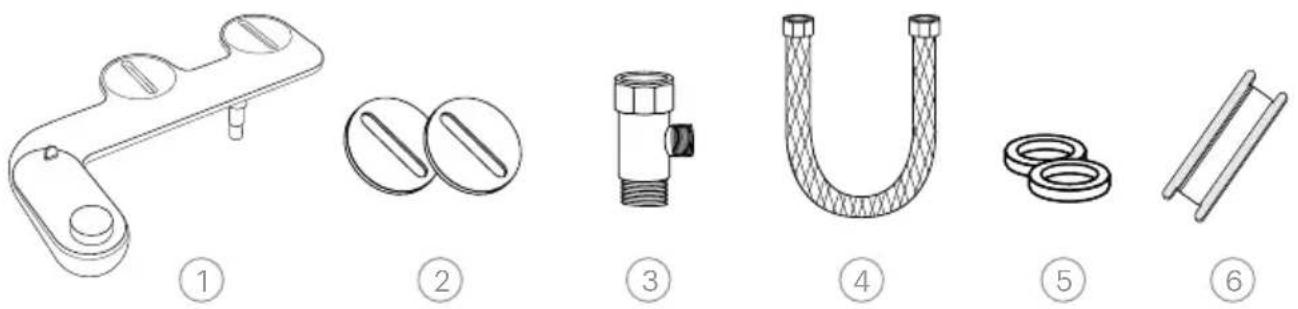

Product Parts

1. Bidet attachment
2. Adjustable mounting brackets
3. Cold water T-Valve connector (7/8" x 7/8" x 3/8")
4. Cold water braided-metal hose Hose length: 23.62"
5. Large rubber washers (2)
6. Teflon tape

FSA-25 Dual Temperature Only

1. Hot water 38 " T-valve with 14 " pressure connector and pressure cap
2. Hot water tubing pressure connector with pressure cap
3. 14 " hot water flex tubing Hose length: 78.74"
4. Small rubber washers (2)
5. Hot water supply cap

1

②

③

4

5

Before Installation

IMPORTANT:

Please be advised that the provided cold water T-Valve should be installed at the fill valve under the toilet tank. Do not disconnect from water supply valve on the wall.

NOTE: The hot water T-Valve will be installed at the hot water supply under your bathroom sink. If you do not have access to the fill valve under the toilet tank, visit us at www.brondell.com or contact us at 1-888-542-3355 for further assistance.

For FSA-25 Dual Temperature Model Only

Check the size of the hot water supply connection (most likely under the sink/washbasin). This should be a 38 " connection to properly fit and install the enclosed T-Valve.

NOTE: If the connection is a 12 " connection, you will need to purchase the following reducing adapter available online and at many plumbing hardware stores: Reducing Adapter, 12 " Female NPT x 38 " Male Compression

Check water supply line

Check the water supply line that connects the toilet tank fill valve to the water shut-off valve at the wall.

• If it is a rigid pipe, you will need to purchase a flexible water supply hose to replace it before installing the FreshSpa.
• The length of the hose may vary, and the top connection size should be 78 " ballcock to connect to the T-Valve that you will install under the toilet tank.
• The bottom connection will vary (most common are 3/8 and 1/2 female compression).

Installation

Pease read these instructions carefully before installing your FreshSpa. Failure to do so could result in flooding, leaking or damage to the product.

1. Existing toilet seat removal

a. Lift hinge covers and use flathead or Phillips-head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen the mounting bolts underneath the seat.

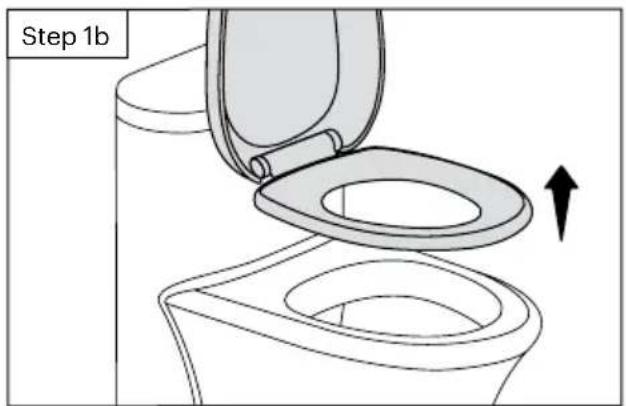

b. Remove the toilet seat, and set the seat, mounting bolts, and hardware aside.

Step 1b

2. Turn off water supply valve and flush toilet

a. Turn water supply valve off to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.

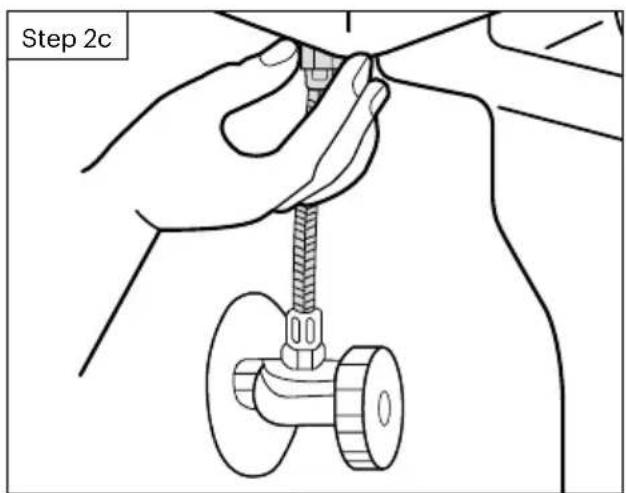

c. Disconnect water supply hose from toilet tank; do not disconnect from the water supply valve.

Step 2c

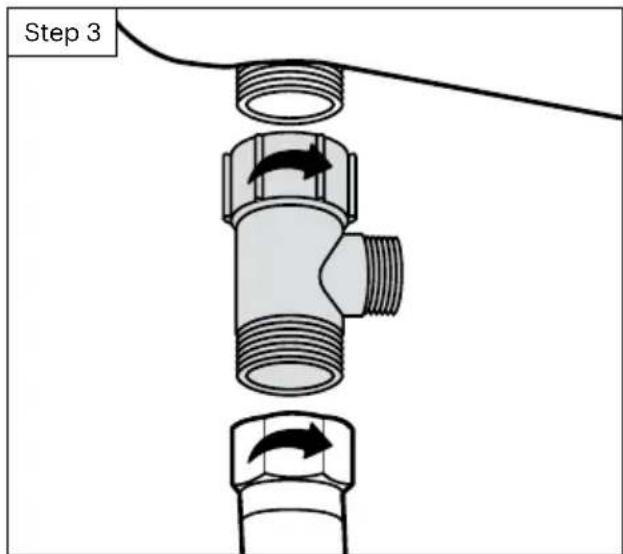

3. Connect cold water T-Valve to the toilet tank fill valve

a. Install the 78 " cold water T-Valve with one or both of the large rubber washers to the incoming water connection on the bottom of your toilet tank.
b. Connect the cold water supply line coming from the wall to the bottom of the T-Valve.

Step 3

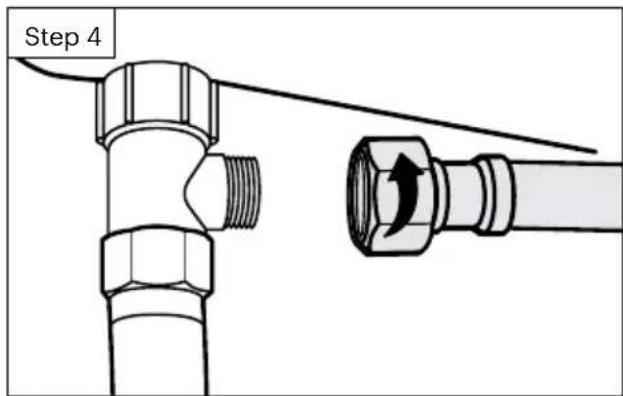

4. Connect bidet hose to T-Valve

Connect one end of the braided-metal cold water bidet hose to the remaining open side of the installed T-Valve.

Step 4

FOR AMBIENT TEMPERATURE MODEL, STOP HERE AND PROCEED TO "INSTALLING THE BIDET ATTACHMENT" ON PAGE 10. FOR DUAL TEMPERATURE MODEL, CONTINUE.

Installation (Cont'd)

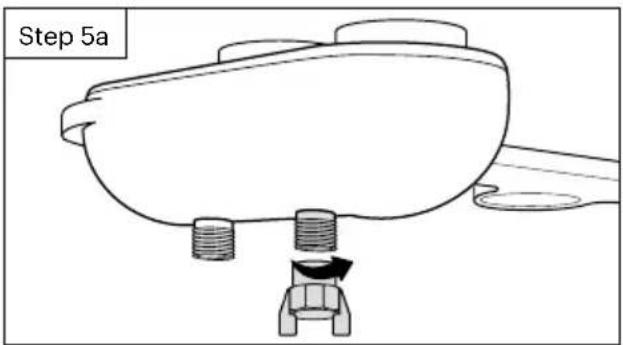

5. Install the hot water supply cap

a. If you are only connecting the cold water supply, then you must install the hot water supply cap (provided - see Page 5) over the hot water connection on your bidet (see diagram).
b. After installing hot water cap, proceed to "Installing the Bidet Attachment" on Page 10. If you wish to also connect your hot water supply, proceed to the next steps.

Step 5a

IMPORTANT: Failure to connect or cap the hot water supply will result in leaking during use.

6. Disconnect the hot water supply

a. Locate the hot water supply line in your bathroom under your sink/washbasin and turn the water supply valve all the way off.
b. Drain the hot water line by turning the sink tap on the hot setting until no more water comes out.

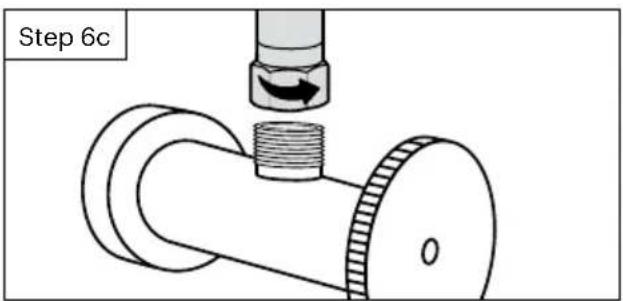

c. Disconnect hot water supply hose to sink from shut-off valve. You may have to use a 38 " compatible wrench or a similar tool (not supplied).

Step 6c

NOTE: There may be some residual water in the hose; use a small container or towel to catch any residual water.

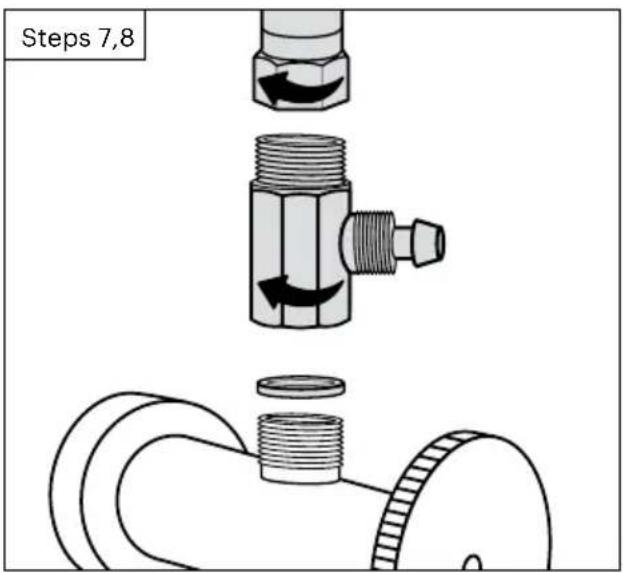

1. Install the hot water 38 " T-Valve and the small rubber washers as needed onto the hot water shut-off valve under the sink
2. Reconnect hot water supply line to open end (top) of T-Valve

Steps 7,8

1. If not already removed, unscrew the pressure cap covering the pressure connector on the T-Valve

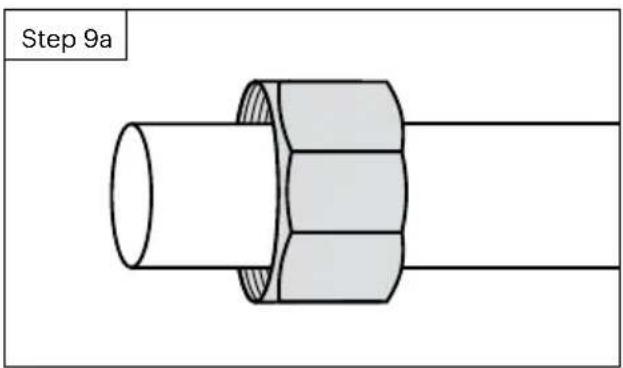

a. Slide the pressure cap over the open end of the of hot water flex tubing with the inside threads facing towards the open end.

Step 9a

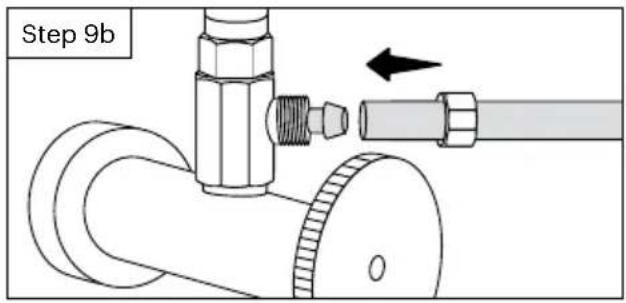

b. Push the hot water flex tubing over the pressure connector.

Step 9b

IMPORTANT: Be sure to slide the hot water flex tubing over the pressure connector until the tubing slides past the "lip" of the pressure connector and it cannot go any further.

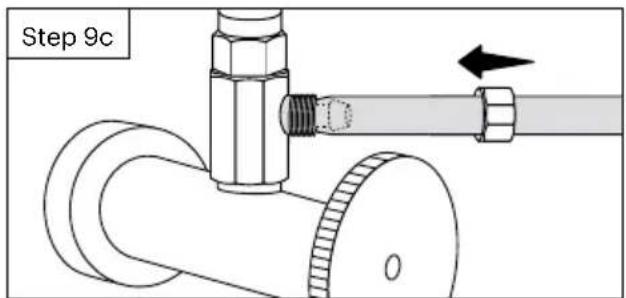

c. Slide the pressure cap down until the cap meets the pressure connector.

Step 9c

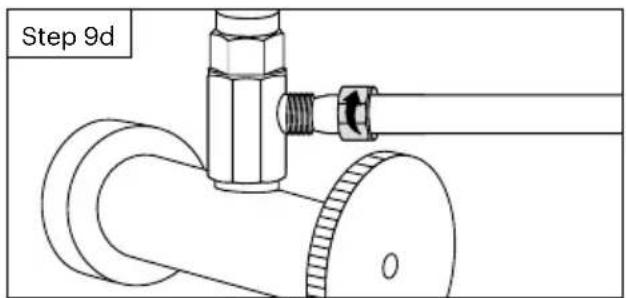

d. Screw the cap onto the T-Valve until secure and tight.

Step 9d

CAUTION: Do not overtighten the pressure cap. You will risk damaging the tubing.

Installing the Bidet Attachment

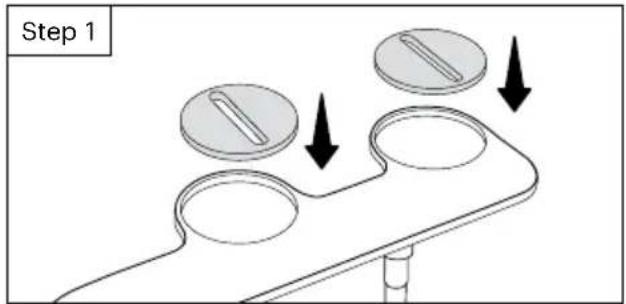

1. Install adjustable mounting brackets into the bidet attachment

Place circular mounting brackets into the circular openings of the bidet attachment.

Step 1

2. Install bidet attachment on toilet

a. Place the bidet attachment on the toilet with the nozzle close to the back of the toilet, leaving a slight gap between the toilet and the nozzles. This will vary by toilet.

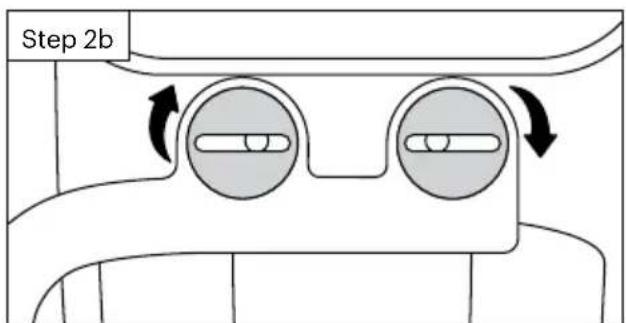

b. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to rotate the adjustable brackets accordingly to line up properly

Step 2b

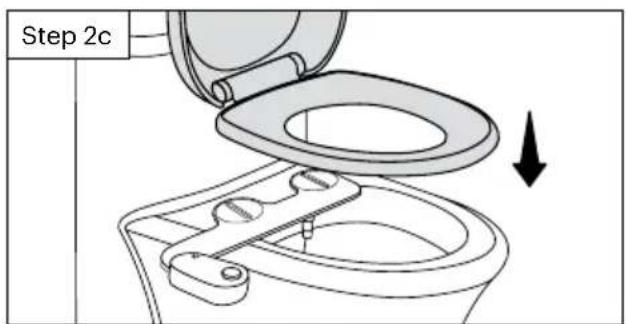

c. Replace the toilet seat on top of the bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.

Step 2c

d. Ensure the bidet control knob is in the off position and isn't turned to one of the operating positions to prevent water from accidentally spraying out of the toilet bowl.

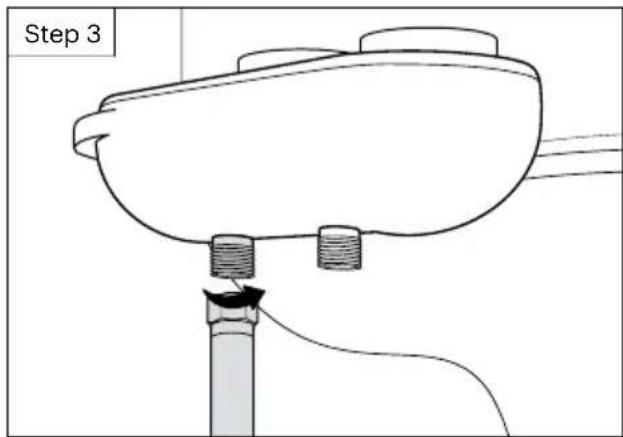

3. Connect bidet hose to bidet attachment

Connect the open end of bidet hose to the cold connection under the bidet attachment.

Step 3

NOTE: If you have already installed the hot water supply cap over the hot water supply on your FSA-25 Dual Temperature model, skip to Step 5 on Page 11. Otherwise, proceed to the next steps.

4. Connect hot water tube to bidet attachment (FSA-25 dual temperature model only)

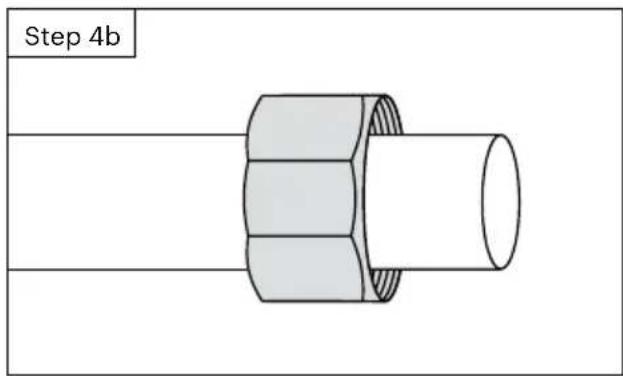

a. Take the hot water tubing pressure connector and remove the pressure cap. b. Slide the pressure cap over the open end of the of hot water flex tubing with the inside threads facing towards the open end.

Step 4b

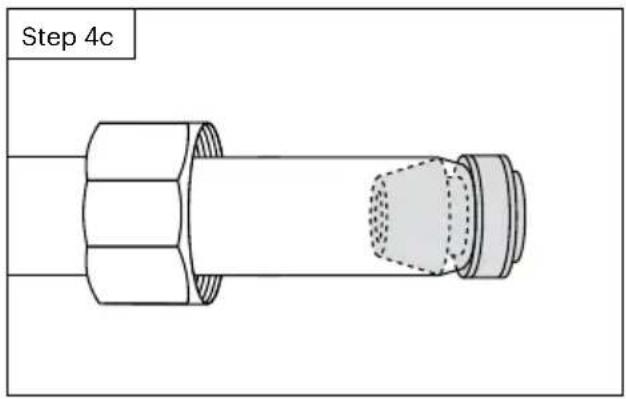

c. Push the pressure connector into the open end of the of hot water flex tubing with the washer facing out.

Step 4c

IMPORTANT: Be sure to slide the hot water flex tubing over the pressure connector until the tubing slides past the "lip" of the pressure connector and it cannot go any further.

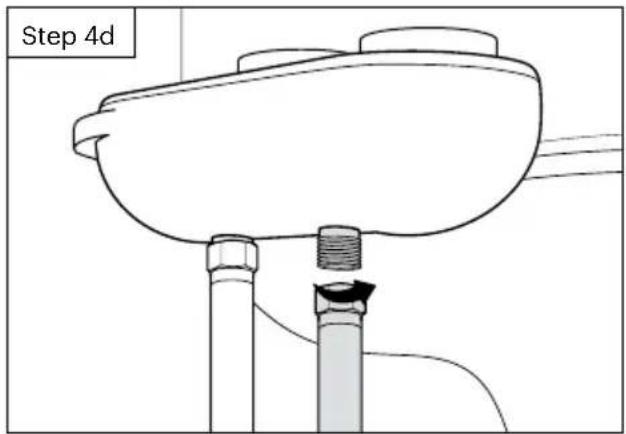

d. Hold the pressure connector up against the hot water inlet on the bidet attachment. Slide the pressure cap along the tubing and screw the cap onto the hot water inlet until the pressure connector is secure.

Step 4d

1. Turn on water supply and check for leaks

a. Open the main water supply valve slowly and check for leaks.
b. Wait 5-10 minutes, check again, and if there are no leaks, continue.

NOTE: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use plumber's tape for any leaking connections.

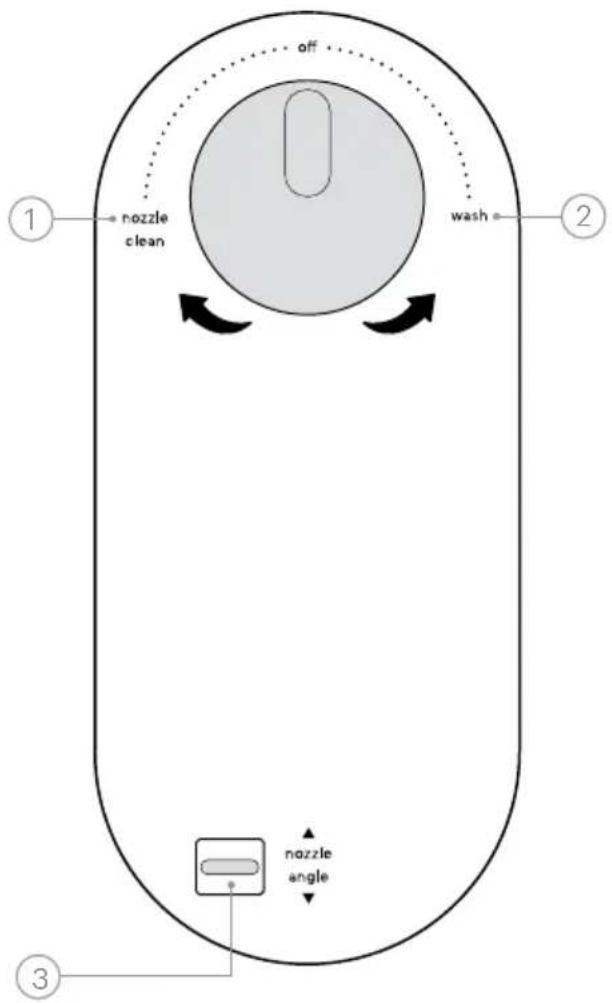

Using the FreshSpa

1. Self-cleaning nozzle feature

To clean the bidet nozzle, turn the control dial counter clockwise towards the "nozzle clean" position and water will wash over the nozzles.

2. Bidet wash

To engage a bidet wash setting, turn the dial clockwise towards the bidet wash zone.

• The further the dial is turned, the higher the water pressure will be.
  • To lower the water pressure, turn the dial back towards the center.

3. Adjustable nozzle position

Use the nozzle position lever to find the best angle for the ultimate cleanse.

• Moving the lever forwards will position the nozzle away from you.
• Moving the lever backwards will position the nozzle closer to you.

TIP: The nozzle position lever can be used during a wash to create an oscillation motion, providing a wider cleaning action.

1 nozzle clean off wash 2 nozzle angle 3

WARNING

Risk of scalding. High water temperature can cause severe burns.

Be sure to set the water temperature for your hot water heater at or below 120^ F ( 49^ C) and use extreme caution when mixing hot and cold water during use.

Brondell is not liable for any misuse of product or failure to use caution when connecting to hot water.

Warm water wash (FSA-25 dual temperature model only)

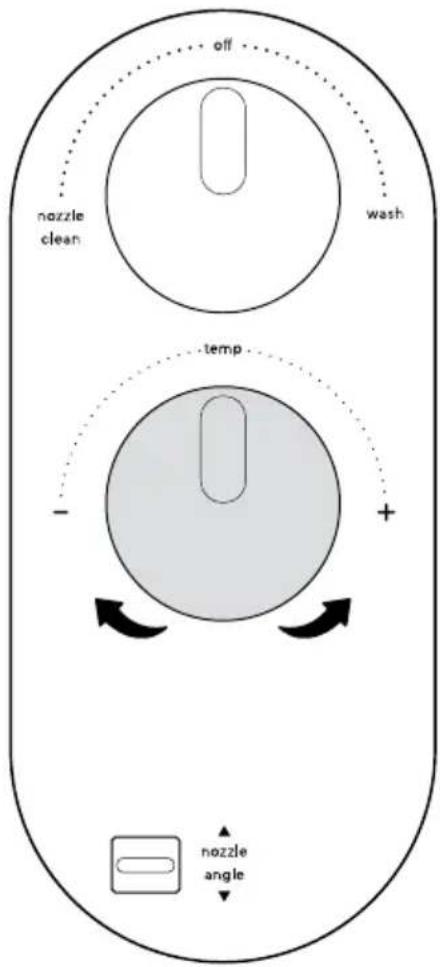

To adjust water temperature (when both hot and cold water are connected), slowly turn dial clockwise towards “+” until the desired temperature is reached.

NOTES:

There may be a delay in the warm water reaching the bidet attachment as the cold water in your pipes clears and is replaced with hot water (similar to the delay when you turn your faucet on).

If only connected to cold water, make sure that the temperature dial on the bidet attachment is turned as far as it can go towards the “-” setting for best pressure adjustability.

TIP: For a quick and easy way to get warm water to the bidet, run the "Nozzle Cleaning" function with the warm water turned on for a short time until the water heats up, then use as normal.

nozzle clean off wash temp - + nozzle angle

TECHNICAL INFORMATION

Maintenance

Manual nozzle cleaning

To manually clean the nozzle, use a toothbrush or soft cloth and mild detergent (such as dish soap).

Cleaning the bidet attachment

To clean the FreshSpa Adjustable Bidet Attachment, use a mild cleaner such as dish soap or a diluted mix of vinegar and water. Do not scrub or use harsh, abrasive products to clean the FreshSpa as they may scratch the product.

Short term non-use

If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall for extra precaution.

FRESHSPA THINLINE BIDET ATTACHMENT WITH ADJUSTABLE SINGLE NOZZLE
Models FSA-15, FSA-25
Supply Water Pressure 14.5 psi–116.03	psi / 0.1 MPa–0.8 MPa
Dimensions (L x W x H) 15.43" x 9.96" x	3.33" / 39.2 cm x 25.3 cm x 8.45 cm
Weight	FSA-15: 1.28 lb / 0.58 kgFSA-25: 1.71 lb / 0.78 kg
Product Thickness 0.33" / 0.85 cm
Incoming Water Temperature Range 32°F–158°F / 0°C–70°C
Flow Rate 0.39 g/min / 1.47 L/min

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

FSA-15 & FSA-25 Residential One-Year Limited

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

FSA-15 & FSA-25 Commercial Warranty

Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first 3 years from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

4. Damage or loss which occurs during shipment.

5. Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
6. Damage or loss resulting from sediments or foreign matter contained in a water system.
7. Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.
8. Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine-related products.

9. Damage or loss resulting from electrical surges, electrical outages, lightning strikes, or other acts which are not the fault of Brondell, or which the product is not specified to tolerate.

10. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355, Mon–Fri, 9am–5pm PST.

Brondell

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

[e-mail]

www.brondell.com

For questions, contact:

Brondell Customer Service: [phone]

Monday–Friday, 9am–5pm PST

Manufactured by

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

Made in China

Please retain receipt records for any warranty claims.

Índice

Technical line drawing of a mechanical bracket with two circular cutouts and a base (no text or symbols)

Two overlapping circles with diagonal lines, labeled with circled number 2 (no text or symbols on the circles)

Diagram of a U-shaped pipe with mesh pattern, labeled with number 4 (no text or symbols on the pipe itself)

Line drawing of a mechanical component with three cylindrical pins and a base, no text or symbols present

Diagram of a mechanical valve or fitting with threaded ports and directional arrow (no text or labels)

Simple line drawing of a mechanical component with no text or symbols

1 nozzle clean off wash 2 nozzle angle 3

ADVERTENCIA

nozzle clean off wash temp - + nozzle angle

Mantenimiento

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

[e-mail]

www.brondell.com

INFORMATIONS SUR LE PRODUIT

INSTALLATION DU PRODUIT

INFORMATIONS SUR LE PRODUIT

Technical line drawing of a mechanical bracket with two circular cutouts and a base (no text or symbols)

Two overlapping circles with diagonal lines, labeled with circled number 2 (no text or symbols on the circles)

Diagram of a U-shaped pipe with mesh pattern, labeled with number 4 (no text or symbols on the pipe itself)

Line drawing of a toilet with a lid and vent, showing a downward arrow indicating a change (no text or symbols)

Line drawing of a hand using a tool to adjust a mechanical component (no text or symbols present)

Line drawing of a mechanical component with threaded pins and a base, no text or symbols present

Diagram of a mechanical valve assembly with threaded ports and directional arrows indicating flow (no text or labels)

Simple line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

1 nozzle clean off wash 2 nozzle angle 3

! AVERTISSEMENT!

nozzle clean off wash temp - + nozzle angle

INFORMATIONS TECHNIQUES

Entretien

Nettoyage manuel de la buse

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

[e-mail]

www.brondell.com

Feels better already.
