Product Type	Non-electric bidet attachment for toilet
Brand	Brondell
Model	FreshSpa Comfort+ FSR-25 (Dual Temperature)
Product Dimensions	26.7 cm x 39 cm x 7.6 cm
Product Weight	0.36 kg
Water Supply	Cold and hot water (dual connection)
Required Water Pressure	20 psi – 100 psi (1.4 – 6.9 bar)
Main Material	High-quality ABS with full panel
Nozzle Type	Separate nozzles for front (feminine) and rear wash, retractable and self-cleaning
Wash Adjustment	Adjustable water pressure via rotary selector
Temperature Adjustment (Dual Model)	Adjustable temperature dial (cold to warm)
Valve Type	Metal T-valve with ceramic core, one-piece construction
Hoses Supplied	Braided metal cold water hose, flexible hot water hose
Installation	Easy, adjustable toilet attachment, all accessories included
Power Supply	None (no electricity or batteries needed)
Warranty	1 year parts and labor
Maintenance & Cleaning	Mild cleaner (like Simple Green or Windex), do not scrub or use abrasives
Safety	Burn risk: max temperature 49 °C, caution when mixing hot/cold water
Package Contents	Bidet attachment, mounting brackets, 2 T-valves (cold water 7/8 in, hot water 3/8 in), braided metal hose, flexible hot water hoses, washers, Teflon tape, caps
Usage	Front wash (counterclockwise), rear wash (clockwise), nozzle cleaning (center position)

Frequently Asked Questions - FreshSpa Comfort+ FSR-25 Brondell

How to install the FreshSpa Comfort+ FSR-25?

Installation requires removing the existing seat, shutting off the water supply, emptying the tank, then connecting the cold water T-valve under the tank. For the dual temperature model, also connect the hot water T-valve under the sink. Then attach the bidet plate, reassemble the seat, and connect the hoses. Follow the detailed steps in the manual.

How to use the different washes?

Turn the rotary selector counterclockwise for the front wash (feminine) or clockwise for the rear wash. The more you turn, the higher the pressure. The center position allows nozzle cleaning.

How to adjust the water temperature?

On the FSR-25 model, slowly turn the temperature dial towards "WARM" until you achieve the desired temperature. Ensure the water heater does not exceed 49 °C to avoid burns.

What to do if there is a water leak after installation?

Check all rubber washers and ensure all connections are tight. If necessary, use plumber's tape (Teflon) on the threads. Wait 5-10 minutes after turning on the water to confirm no leaks.

How to clean the bidet nozzles?

Activate the "Nozzle Cleaning" function for automatic rinsing. For thorough cleaning, gently pull on the nozzle head and use a toothbrush or soft cloth with mild detergent. You can also unscrew the nozzle caps to clean them separately.

Does the FreshSpa Comfort+ require electrical power?

No, this bidet attachment operates solely on water pressure (20 to 100 psi). No electricity or batteries are needed.

Can I install this bidet without connecting hot water?

Yes, the FSR-25 model can be used with only cold water. Install the supplied hot water supply cap on the bidet's hot water connection and set the temperature dial to "COOL".

What are the dimensions of the mounting plate?

The mounting plate measures approximately 25.4 cm wide and 34.2 cm deep. Total thickness is 5.3 cm at the front and 3.3 cm under the nozzles.

How to clean the bidet itself?

Use a mild cleaner like Simple Green spray or Windex. Do not scrub or use abrasive products to avoid scratching the ABS surface.

What is the warranty on the FreshSpa Comfort+ FSR-25?

Brondell offers a one-year warranty from the date of purchase, covering all parts and labor. It applies to the original purchaser under normal use. Keep your proof of purchase.

USER MANUAL FreshSpa Comfort+ FSR-25 Brondell

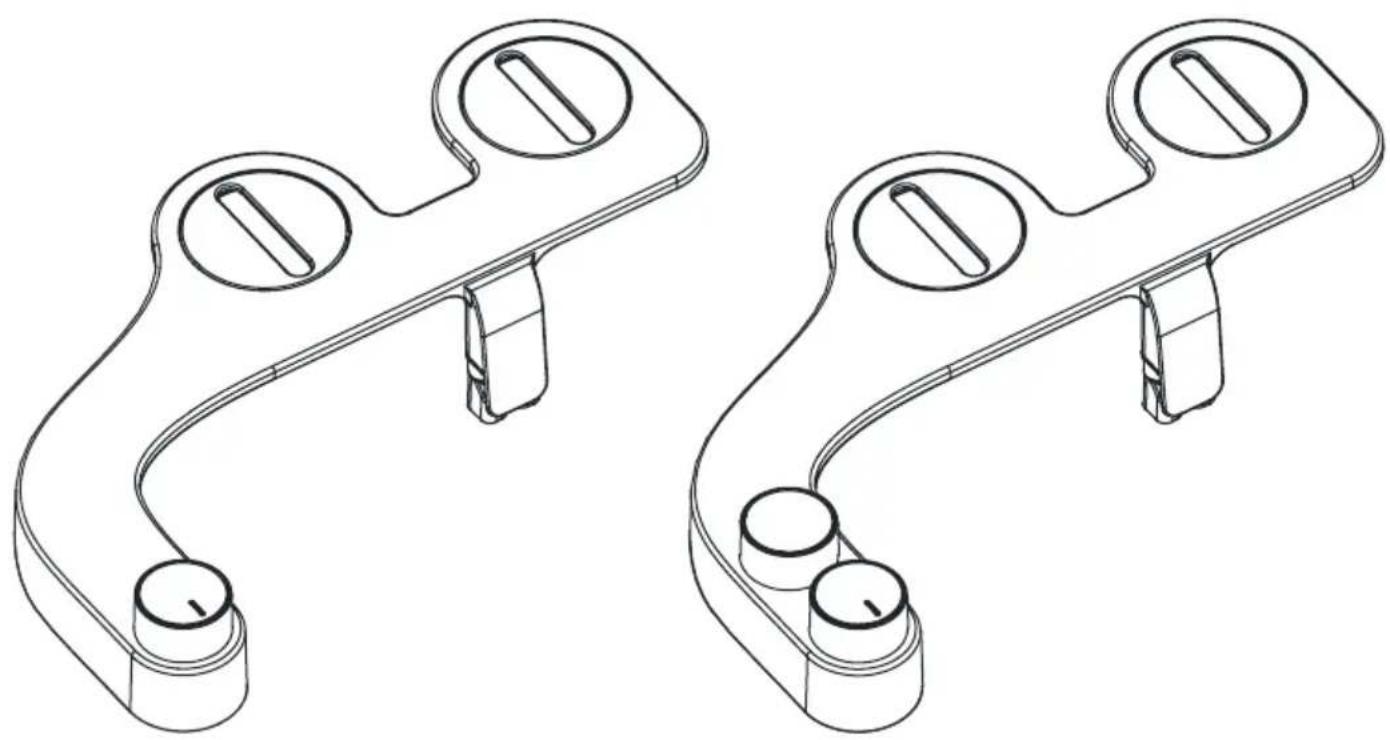

FSR-15 Ambient Temperature

FSR-25 Dual Temperature

Technical line drawing of two mechanical components with circular features and mounting brackets (no text or symbols)

Table of Contents

This manual contains important safety information. Before operating your FreshSpa Comfort+ bidet attachment, please read this manual thoroughly and retain it for future reference.

GENERAL INFORMATION

01 PRODUCT INFORMATION
01 Product Features
02 Product Dimensions
03 Product Parts

TECHNICAL INFORMATION

11 MAINTENANCE
12 PRODUCT SPECIFICATIONS
13 WARRANTY
14 CONTACT

PRODUCT INSTALLATION

04 PRODUCT INSTALLATION
04 Before Installation
05 Installation
06 Connecting the Hot Water Supply
07 Installing the Bidet Attachment

TRANSLATIONS

01 ENGLISH

15 SPANISH
30 FRENCH

PRODUCT OPERATION

09 PRODUCT OPERATION
09 Using the FreshSpa Comfort+

FSR-15 Ambient Temperature Features

Separate Front (feminine) and Rear wash nozzles

High-quality ABS material with full-body panel

Hygienic retractable nozzles

Self-cleaning nozzles

Adjustable water pressure

Ceramic-core internal valve with patented uni-body construction

High-quality metal 78 " T-valve

Durable braided metal cold water hose

No electricity or batteries required

Easy installation and adjustable toilet fit

All accessories included for standard installation

One-year warranty

FSR-25 Dual Temperature Features Only

Durable high-temperature hot water flex tubing

Warm and cool water bidet washes

Adjustable water temperature

High-quality metal 38 " T-valve

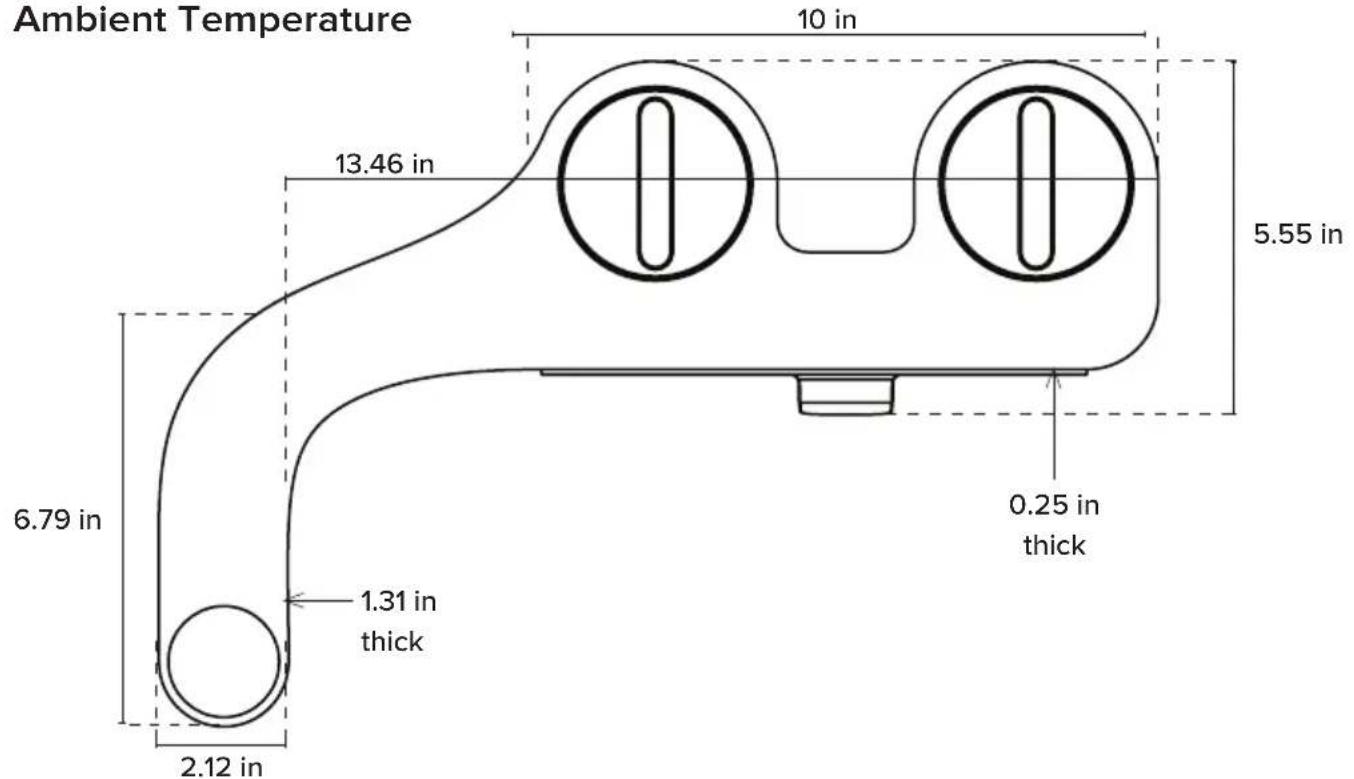

FreshSpa Comfort+ Ambient Temperature

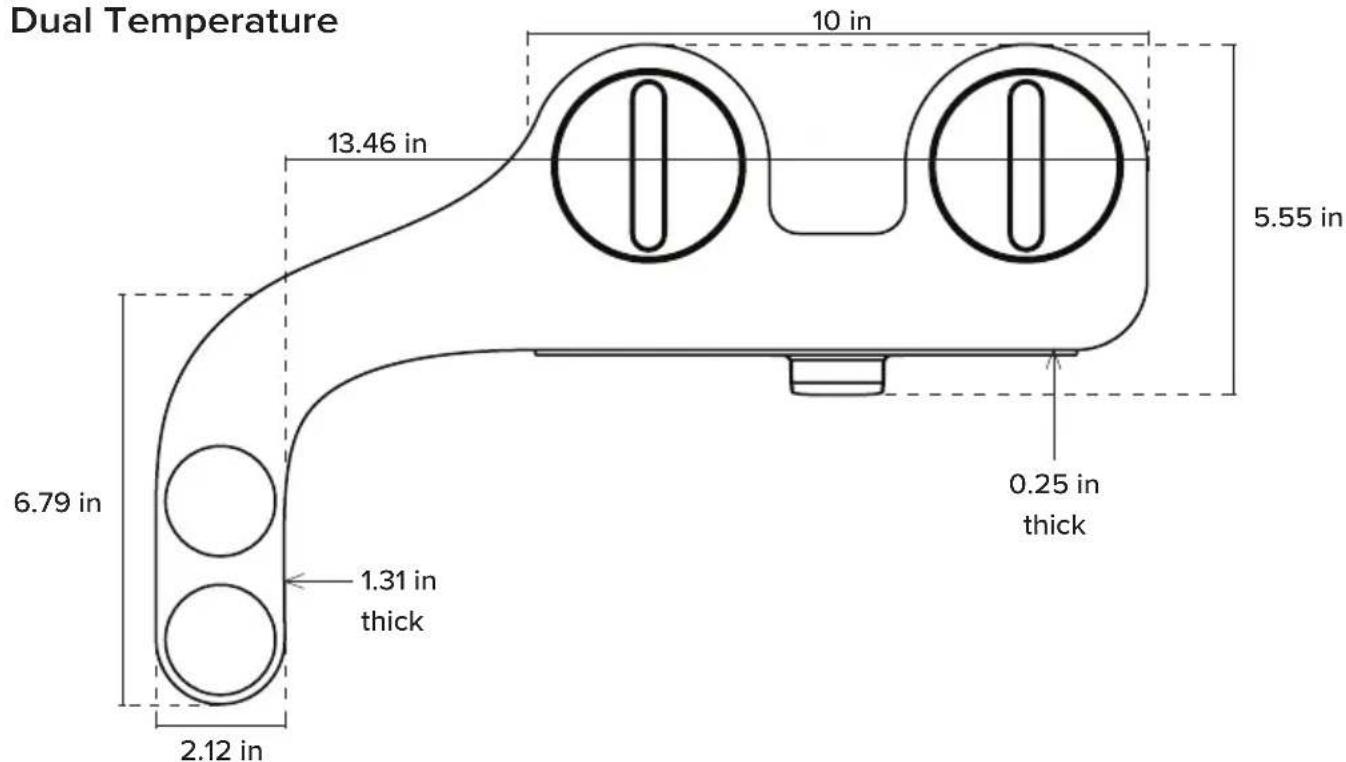

FreshSpa Comfort+ Dual Temperature

Dual Temperature 10 in 13.46 in 5.55 in 6.79 in 2.12 in 1.31 in thick 0.25 in thick

1. Bidet Attachment
2. Adjustable Mounting Brackets

3. Cold Water T-Valve Connector (7/8" x 7/8" x 3/8")

4. Cold Water Braided Metal Hose

5. Large Rubber Washers (2)

6. Teflon Tape

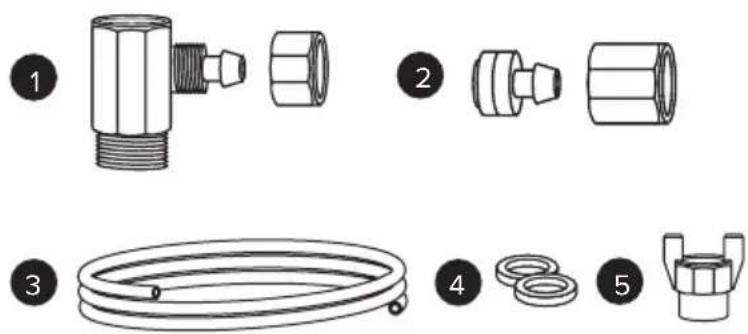

Dual Temperature Parts Only

1. Hot Water 38 " T-Valve with 14 " Pressure Connector and Pressure Cap
2. Hot Water Tubing Pressure Connector with Pressure Cap
3. 14 " Hot Water Flex Tubing
4. Small Rubber Washers (2)
5. Hot Water Supply Cap

PRODUCT INSTALLATION

Before Installation

IMPORTANT:

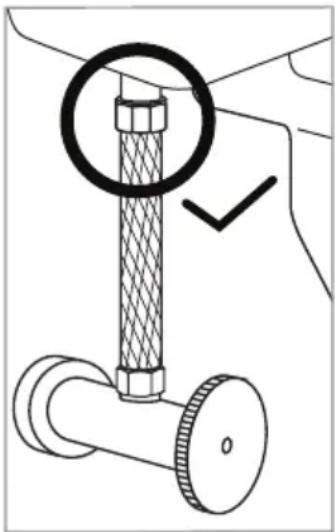

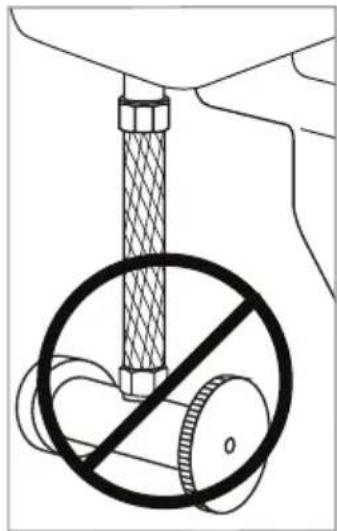

Please be advised that the provided Cold Water T-Valve should be installed at the fill valve under the toilet tank, and NOT at the cold water supply coming from the wall.

NOTE:

The Hot Water T-Valve will be installed at the hot water supply under your bathroom sink. If you do not have access to the fill valve under the toilet tank, visit us at www.brondell.com or contact us at 1-888-542-3355 for further assistance.

For FSR-25 Dual Temperature Model Only:

Check the size of the hot water supply connection (most likely under the sink/wash basin). This should be a 38 " connection to properly fit and install enclosed T-valve.

NOTE:

If the connection is a 12 " connection, you will need to purchase the following reducing adapter available online and at many plumbing hardware stores:

Reducing Adapter, 1/2" Female NPT x 3/8" Male Compression

Diagram of a hand holding a cylindrical object with a circular prohibition symbol (no text or labels)

Technical diagram of a pipe fitting with a circular component and a checkmark indicating a detail (no text or symbols present)

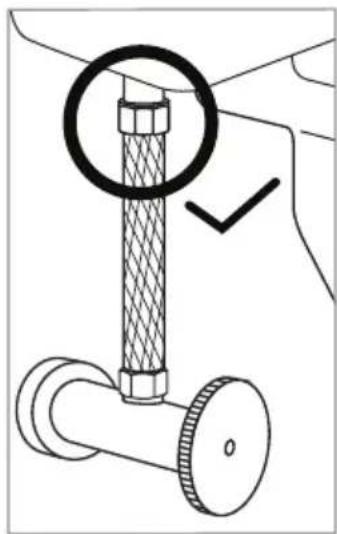

Check Water Supply Line

Check the water supply line that connects the toilet tank fill valve to the water shutoff valve at the wall. If it is a rigid pipe, you will need to purchase a flexible water supply hose to replace it before installing the FreshSpa Comfort+. The length of the hose may vary and the top connection size should be 78 " ballcock to connect to the T-valve that you will install under the toilet tank and the bottom connection will vary (most common are 38 " and 12 " female compression).

Installation

Please read these instructions carefully before installing your FreshSpa Comfort+. Failure to do so could result in flooding, leaking or damage to the product.

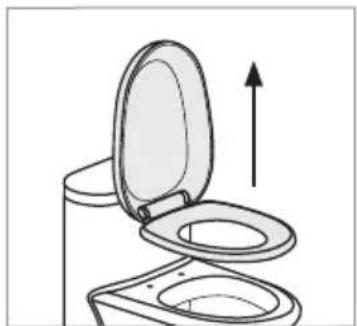

1. Existing toilet seat removal.

a. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat. b. Remove the toilet seat and set the seat, mounting bolts and hardware aside.

1. Turn off water supply valve and flush toilet.

a. Turn water supply valve off to stop the flow of water. b. Flush toilet and hold down handle to completely empty tank. c. Disconnect water supply hose from toilet tank. Do not disconnect from the water supply valve.

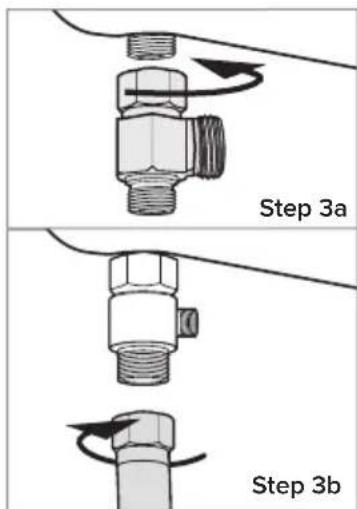

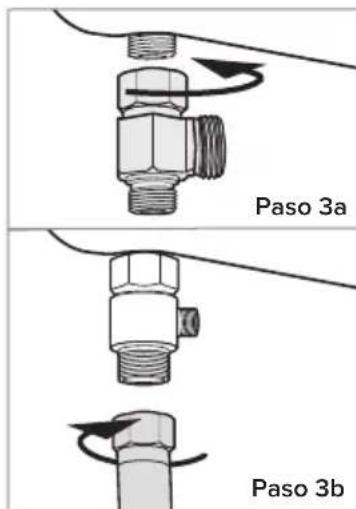

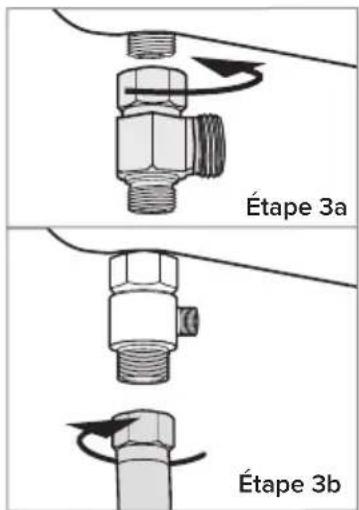

1. Connect cold water T-valve to the toilet tank fill valve.

a. Install the 78 " cold water T-valve with one or both of the Large Rubber Washers to the incoming water connection on the bottom of your toilet tank. b. Connect the cold water supply line coming from the wall to the bottom of the T-valve.

1. Connect bidet hose to T-valve.

Connect one end of the Braided Metal Cold Water Bidet Hose to the remaining open side of the installed T-valve.

FOR AMBIENT TEMPERATURE MODEL, STOP HERE AND PROCEED TO "INSTALLING THE BIDET ATTACHMENT" ON PAGE 7. FOR DUAL TEMPERATURE MODEL, CONTINUE.

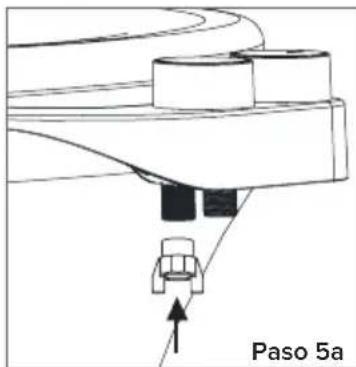

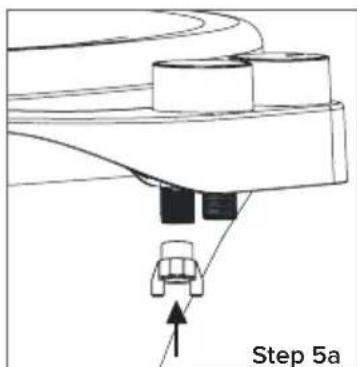

1. Install the Hot Water Supply Cap.

a. If you are only connecting the cold water supply, then you must install the Hot Water Supply Cap (provided - see Page 3) over the hot water connection on your Swash (see diagram). b. After installing hot water cap, proceed to "Installing the Bidet Attachment" on Page 7. If you wish to also connect your hot water supply, then proceed to "Connecting the Hot Water Supply".

IMPORTANT:

Failure to connect or cap the hot water supply will result in leaking during use.

Illustration of a toilet with an open lid and upward arrow indicating airflow or movement (no text or symbols)

Step 1b

Step 2c

Step 3a Step 3b

Diagram of a pipe connection with a cable and valve, labeled 'Step 4' (no text or symbols on the diagram itself)

Step 5a

PRODUCT INSTALLATION

Connecting the Hot Water Supply

1. Connect the hot water supply.

a. Locate the hot water supply line in your bathroom under your sink/washbasin and turn the water supply valve all the way off.
b. Drain the hot water line by turning the sink tap on the hot setting until no more water comes out.

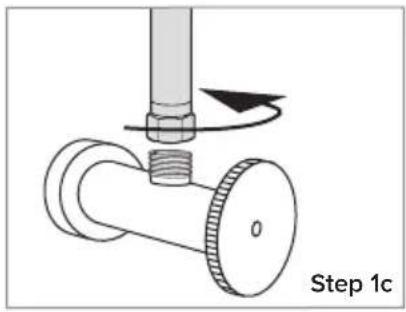

c. Disconnect hot water supply hose to sink from shut off valve. You may have to use a 38 " compatible wrench or a similar tool (not supplied).

NOTE:

There may be some residual water in the hose, use a small container or towel to catch any residual water.

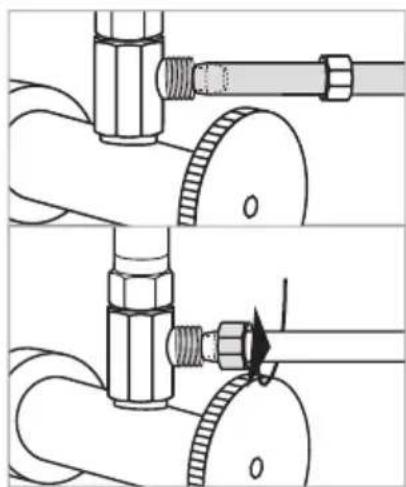

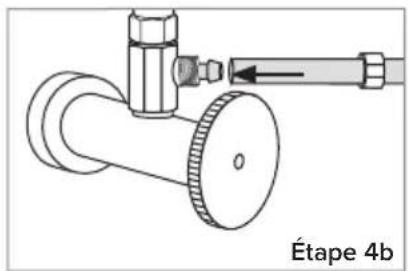

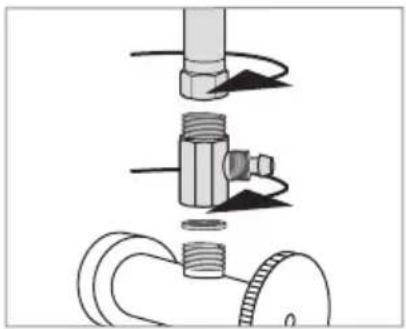

1. Install the Hot Water 38 " T-Valve and the Small Rubber Washers as needed onto the hot water shut off valve under the sink.
2. Reconnect hot water supply line to open end (top) of T-valve.

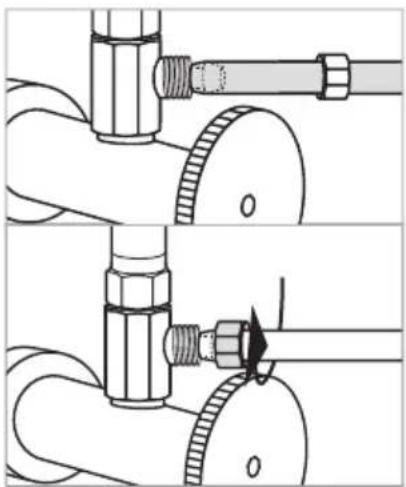

3. If it hasn't been removed already, unscrew the Pressure Cap covering the Pressure Connector on the T-valve.

a. Slide the pressure cap over the open end of the of Hot Water Flex Tubing with the inside threads facing towards the open end.

b. Push the hot water flex tubing over the pressure connector.

IMPORTANT:

Be sure to slide the hot water flex tubing over the pressure connector until the tubing slides past the "lip" of the pressure connector and it cannot go any further.
c. Slide the pressure cap down until the cap meets the pressure connector. Screw the cap onto the T-valve until secure and tight.

CAUTION:

Do not over-tighten the pressure cap. You will risk damaging the tubing.

Step 1c

Mechanical assembly diagram showing a valve being inserted into a bolt and then assembled into a flanged pipe (no text or symbols present)

Steps 2-3

Diagram of a mechanical component with hexagonal end caps, labeled Step 4a (no text or symbols on the diagram itself)

Technical line drawing of a mechanical valve assembly with a dial and adjustment lever (no text or symbols)

Technical illustration showing two mechanical assembly steps with no visible text or symbols

Step 4c

Installing the Bidet Attachment

1. Install Adjustable Mounting Brackets into the Bidet Attachment. Place circular mounting brackets into the circular openings of the bidet attachment.

2. Install bidet attachment on toilet.

a. Place bidet attachment on the toilet so the nozzle is as close to the back of the toilet bowl as it will go. This will vary by toilet.
b. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to rotate the adjustable brackets accordingly to line them up properly.

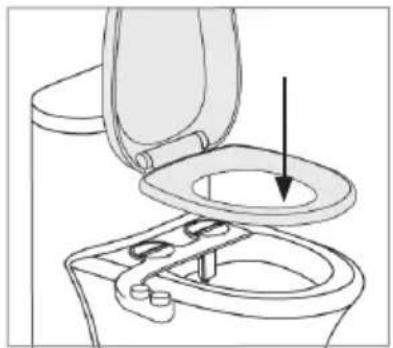

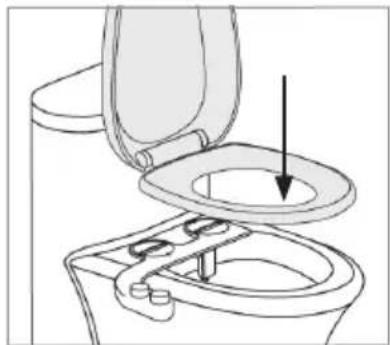

c. Replace the toilet seat on top of bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.

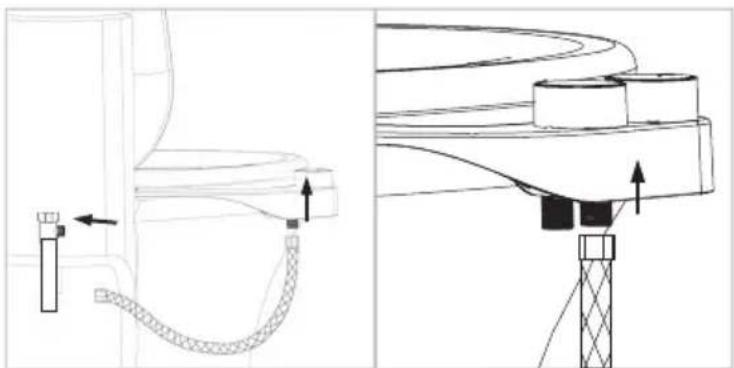

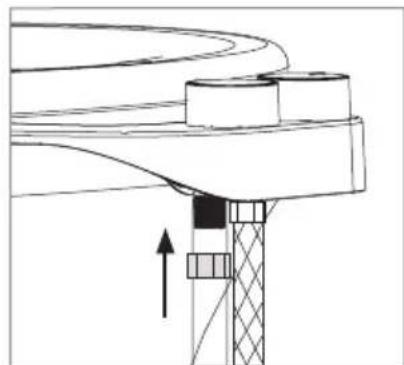

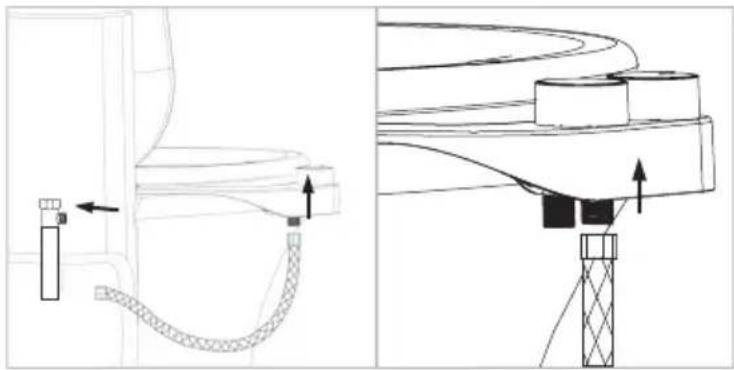

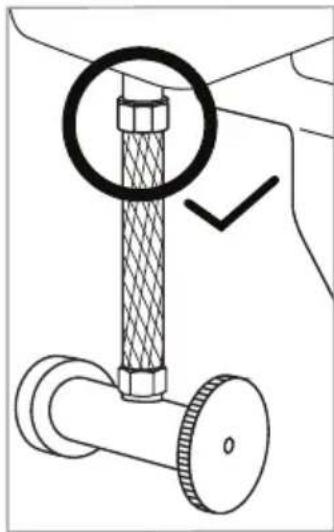

1. Connect bidet hose to bidet attachment.

Connect the open end of bidet hose to the cold connection under the bidet attachment.

NOTE:

If you have already installed the hot water supply cap over the hot water supply on your FRS-25 Dual Temperature model, skip to step 5 on page 8. Otherwise, continue with the installation at the top of page 8.

3D mechanical component diagram with circular features and a curved base (no text or symbols)

Step 1

Diagram of two circular components with directional arrows indicating rotation or movement (no text or symbols)

Step 2b

Line drawing of a toilet with a lid and sink, showing internal components (no text or symbols)

Step 2c

Technical line drawing of a toilet and ramp structure with directional arrows indicating assembly or installation (no text or symbols present)

Step 3

PRODUCT INSTALLATION

Installation

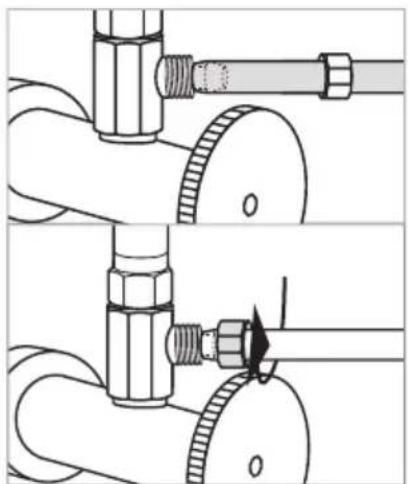

1. Connect hot water tube to bidet attachment (for dual temperature only).

a. Take the hot water tubing pressure connector and remove the pressure cap.

b. Slide the pressure cap over the open end of the of hot water flex tubing with the inside threads facing towards the open end.

c. Push the pressure connector into the open end of the of hot water flex tubing with the washer facing out.

IMPORTANT:

Be sure to slide the hot water flex tubing over the pressure connector until the tubing slides past the "lip" of the pressure connector and it cannot go any further.

d. Hold the pressure connector up against the hot water inlet on the bidet attachment. Slide the pressure cap along the tubing and screw the cap onto the hot water inlet until the pressure connector is secure.

1. Turn on water supply & check for leaks.

a. Open the main water supply valve slowly and check for leaks.

b. Wait 5-10 minutes, check again, and if there are no leaks, continue.

Pure technical line drawing of a mechanical component with no text or symbols

Step 4b

Technical line drawing of a mechanical component with hexagonal flanges and a central cylindrical feature (no text or symbols)

Step 4c

Pure mechanical diagram showing a curved structure with a vertical component and an upward arrow, no text or symbols present.

Step 4d

NOTE:

If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use plumbers tape for any leaking connections.

TIP:

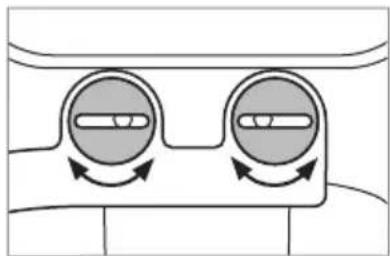

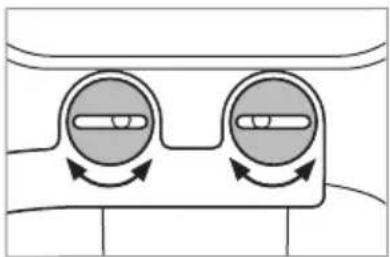

If spray direction is off-center after installation, unscrew the bolts, reposition the attachment slightly forward, and secure back in place. Depending on your preferences or body composition, the perfect position may require some readjustment.

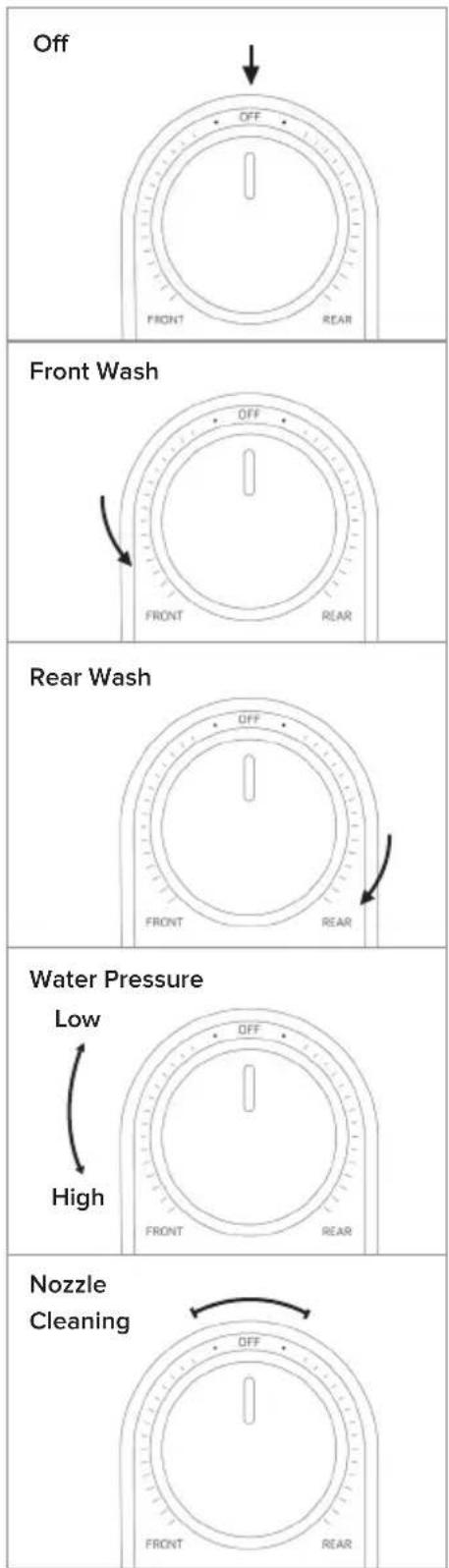

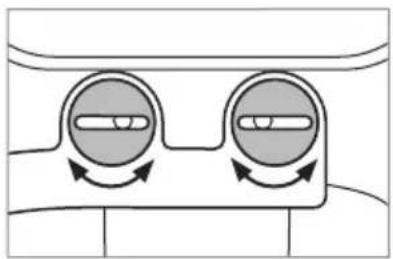

Using the FreshSpa Comfort+

To engage the front wash setting, turn the dial counterclockwise towards the "FRONT" wash zone.

• The further the dial is turned, the higher the water pressure will be.
• To lower the water pressure, turn the nozzle back towards the center.

To engage the rear wash setting, turn the dial clockwise toward the "REAR" wash zone.

• The further the dial is turned, the higher the water pressure will be.
• To lower the water pressure, turn the nozzle back towards the center.

To clean the bidet nozzle, turn the control dial towards the "Nozzle Cleaning" position and water will wash over the nozzles.

FreshSpa Comfort+ Dual Temperature Only:

To adjust water temperature (when both hot and cold water are connected), turn temperature dial slowly towards “WARM” until the desired temperature is reached.

NOTES:

There may be a delay in the warm water reaching the bidet attachment as the cold water in your pipes clears and is replaced with hot water (similar to the delay when you turn your faucet on).

If only connected to cold water, make sure that the temperature dial on the bidet attachment is turned as far as it can go towards the “COOL” setting for best pressure adjustability.

TIP:

For a quick and easy way to get warm water to the bidet, run the “Nozzle Cleaning” function with the warm water turned on for a short time until the water heats up, then use as normal.

COOL WARM

WARNING:

Risk of scalding. High water temperature can cause severe burns. Be sure to set the water temperature for your hot water heater at or below 120^ F ( 49^ C) and use extreme caution when mixing hot and cold water during use. Brondell is not liable for any misuse of product or failure to use caution when connecting to hot water.

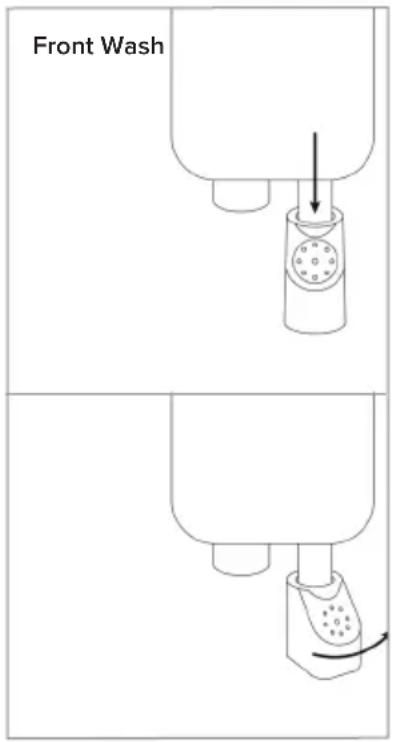

To clean the nozzles, gently pull down on the head of the nozzle, and use a toothbrush or soft cloth and mild detergent (such as dish soap).

More intensive nozzle cleaning can be performed by removing the spray heads:

For right nozzle (Front Wash), gently extend, hold, and twist right to remove the nozzle cap. To reinsert nozzle cap, hold with the spray holes facing right and gently push up until it's secured. Twist the cap left to lock in place with the nozzles facing forward.

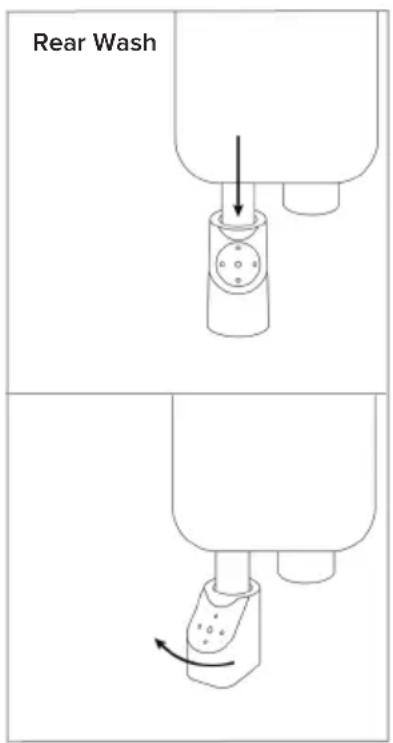

For left nozzle (Rear Wash), gently extend, hold, and twist left to remove the nozzle cap. To reinsert nozzle cap, hold with spray holes facing left and gently push up until it's secured. Twist the cap right to lock in place with the nozzles facing forward.

To clean the FreshSpa Comfort+, use a mild cleaner such as Simple Green or Windex spray. Do not scrub or use harsh, abrasive products to clean the FreshSpa Comfort+, as they may scratch the product.

Short Term Non-Use

If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall for extra precaution.

Front Wash

Rear Wash

FRESHSPA COMFORT+ BIDET ATTACHMENT

Models	FSR-15 Ambient Temp, FSR-25 Dual Temp
Supply Water Pressure	20 psi – 100 psi
Product Dimension	10.5 in x 15.5 in x 3 in
Product Weight	FSR-15: 0.6 lbsFSR-25: 0.8 lbs

NOTE: The specifications listed above are subject to change without prior notice for reasons of improving the product performance.

BRONDELL products are backed by some of the most comprehensive warranties in the industry. BRONDELL warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

FSR-15 & FSR-25 RESIDENTIAL ONE-YEAR LIMITED WARRANTY

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

FSR-15 & FSR-25 COMMERCIAL WARRANTY

Warranty period 1 year from original purchase date for all BRONDELL products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

EXCLUSIONS AND LIMITATIONS

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL'S obligations under this warranty are limited to repairs or replacement, at BRONDELL'S option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect.
3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products.

This warranty does NOT apply to:

• Damage or loss which occurs during shipment.
• Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
• Damage or loss resulting from sediments or foreign matter contained in a water system.
• Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.

• Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products.

• This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

HOW TO OBTAIN SERVICE

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest BRONDELL authorized service center along with the RMA number and proof of purchase. To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355, Mon–Fri, 9am–5pm PST.

brondell®

a healthy home experience

CONTACT:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Email: [e-mail]

Web: www.brondell.com

For questions, contact

Brondell Customer Service:

1-888-542-3355

Monday – Friday

9am – 5pm PST

MANUFACTURED BY:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Made in China

Please retain receipt records for any warranty claims.

Technical diagram showing exploded view of a mechanical assembly with labeled parts including threaded pipe, hose, and housing.

Diagram of a mechanical device with a circular component and a diagonal line indicating no movement or force (no text or symbols present)

Technical diagram of a mechanical valve assembly with a circular component and a checkmark indicating a detail (no text or symbols present)

Line drawing of a toilet with an open lid and upward arrow indicating airflow or movement (no text or symbols)

Paso 1b

Paso 2c

Paso 3a Paso 3b

Paso 4

Paso 5a

Mechanical assembly diagram showing a valve and fitting with no visible text or symbols

Pasos 2-3

Paso 4a

Technical line drawing of a mechanical valve assembly with a directional arrow, labeled 'Paso 4b' (no other text or symbols)

Technical illustration showing two mechanical assembly steps with no visible text or symbols

Paso 4c

3D mechanical component diagram with circular features and a central bracket (no text or symbols)

Paso 1

Diagram of two circular components with bidirectional arrows indicating rotation or movement (no text or symbols)

Paso 2b

Line drawing of a toilet with a lid and base, showing mechanical components (no text or symbols)

Paso 2c

IMPORTANTE:

Technical line drawing of a toilet and ramp structure with directional arrows indicating assembly or installation (no text or symbols present)

Paso 3

Technical line drawing of a mechanical component with hexagonal base and cylindrical shaft (no text or symbols)

Paso 4b

Technical line drawing of a bolt with hexagonal head and threaded end (no text or symbols)

Paso 4c

Pure mechanical diagram showing a curved structure with a vertical component and an upward arrow, no text or symbols present.

Paso 4d

FSR-15 & FSR-25 GARANTÍA COMERCIAL

a healthy home experience

CONTACTAR:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Email: [e-mail]

Web: www.brondell.com

INSTALLATION DU PRODUIT

Technical line drawings of various pipe fittings and components (no text or symbols)

Technical illustration of a mechanical component with threaded shaft and threaded fitting (no text or symbols)

Simple line drawing of a coiled spring or rope with a numbered label (3) beside it, no text or symbols present.

IMPORTANT:

Diagram of a mechanical device with a circular component and a diagonal line indicating no movement or force (no text or symbols present)

Technical diagram of a mechanical pipe fitting with a circular component and a checkmark indicating a detail (no text or symbols present)

Installation

Line drawing of a toilet with an open lid and upward arrow indicating airflow or movement (no text or symbols)

Étape 1b

Étape 2c

Mechanical assembly diagram showing a valve, bolt, and housing with no visible text or symbols

Étapes 2-3

Diagram of a cylindrical pipe fitting with hexagonal end caps, labeled 'Étape 4' (no other text or symbols)

Étape 4b

Technical illustration of a mechanical valve assembly with two views (top and bottom) showing pipe connection details (no text or symbols)

Étape 4c

INSTALLATION DU PRODUIT

3D mechanical component diagram with circular features and a central bracket (no text or symbols)

Étape 1

Diagram of two circular components with directional arrows indicating rotation or movement (no text or symbols)

Étape 2b

NOTE:

Line drawing of a toilet with a lid and sink, showing internal components (no text or symbols)

Étape 2c

Technical line drawing showing a toilet and ramp installation with directional arrows (no text or symbols)

Étape 3

INSTALLATION DU PRODUIT

Installation

Pure technical line drawing of a mechanical component with no text or symbols

Étape 4b

Technical line drawing of a mechanical component with hexagonal flanges and a central threaded section (no text or symbols)

Étape 4c

Pure mechanical diagram showing a curved structure with a vertical force arrow, no text or symbols present

Étape 4d

NOTE :

GARANTIE LIMITÉE D'UN AN RÉSIDENTIEL POUR LE FSR-15 & FSR-25

FSR-15 & FSR-25 GARANTIE COMMERCIALE

a healthy home experience

COORDONNÉES :

Brondell, Inc.

a healthy home experience

brondell.com
