Product Type	Three-stage countertop water filtration system
Brand	Brondell
Model	Cypress H630
Dimensions (L x W x H)	10.5 cm x 35 cm x 27.5 cm (4.1" x 13.8" x 10.8")
Net Weight	3 kg (6.6 lbs)
Operating Temperature	4.4°C to 37.8°C (40°F to 100°F)
Operating Pressure	0.14 MPa to 0.83 MPa (20 to 120 PSI)
Rated Flow	1.9 L/min (0.5 GPM)
Filtration Stages	3 stages: Composite Plus, Nanotrap, Carbon
Composite Plus Filter (HF-31)	Reduces particles (sand, rust); lifespan 6 months
Nanotrap Filter (HF-32)	Reduces microorganisms (bacteria, viruses, cysts); lifespan 12 months
Carbon Filter (HF-33)	Reduces chlorine, odors, turbidity; lifespan 6 months (150 gallons/570 L for VOCs, up to 5000 gallons/18930 L for aesthetic chlorine)
Installation	Countertop with faucet diverter (included) or under-sink with T-valve (optional)
Power Supply	None (operates without electricity)
Wastewater	None
Storage Tank	None
Technology	Patented Nanotrap, triple filtration
Certifications	Tested and certified by WQA to NSF/ANSI 42, 53 & 401
Warranty	1-year limited (parts and labor)
Maintenance	Periodic cleaning of spout and diverter; 10-minute flush after filter change
Safety	Do not use with microbiologically unsafe water without adequate disinfection; max pressure 120 PSI
Replacement Parts	Filters HF-31, HF-32, HF-33, connecting tool, diverter, T-valve (optional)
Repairability	Easy user filter replacement; customer support available

Frequently Asked Questions - Cypress H630 Brondell

How to install the Brondell Cypress H630 water filter on a standard faucet?

Installation takes less than 10 minutes. Remove the faucet aerator, attach the included diverter with its rubber washer, then connect the white hose to the back of the unit. Turn on the water and flush for 10 minutes before first use. See the manual for full details.

What is the lifespan of the filters and when should they be replaced?

The Composite Plus filter (HF-31) and carbon filter (HF-33) have a lifespan of 6 months. The Nanotrap filter (HF-32) lasts 12 months. The carbon filter capacity is 150 gallons for VOCs and up to 5,000 gallons for aesthetic chlorine. Regular replacement is essential to maintain performance.

What contaminants does the Brondell Cypress H630 remove?

The system reduces chlorine, particles, turbidity, cysts (99.98%), VOCs (99.8%), microplastics, microcystins, and various pharmaceuticals and pesticides (see the NSF/ANSI 42, 53 & 401 certified data sheet). It retains beneficial minerals.

Why is the filtered water cloudy after installation or filter change?

Cloudiness is normal during initial use due to air and carbon powder in new filters. Let the water run continuously for at least 10 minutes to flush the system. The water becomes clear after this flush.

Can I use this system with well water or untreated water?

No, the system is designed for water already treated to public system standards. Do not use with microbiologically unsafe water or water of unknown quality without adequate disinfection upstream or downstream of the system.

Does the Brondell Cypress H630 remove total dissolved solids (TDS)?

No, the system is not designed to remove beneficial dissolved minerals. Significant TDS reduction is not expected. It reduces harmful soluble contaminants that cheap TDS meters do not detect.

What to do if the filtered water flow decreases?

Check that the filters are not clogged and are replaced on time. Make sure water pressure is within the recommended range (20-120 PSI). A drop in temperature can also reduce flow. Replace filters if necessary.

How to clean the spout and diverter?

Unscrew the spout or diverter by turning clockwise, wash them under running water, wipe with a dry cloth, then screw back by turning counterclockwise. Clean periodically to prevent residue buildup.

Does the system require electricity or produce wastewater?

No, the Brondell Cypress H630 operates without electricity and produces no wastewater. It uses faucet water pressure to filter and has no storage tank.

What to do in case of a leak at the fittings?

Check that all hoses are fully inserted into the quick-connect fittings and that nuts are tightened. Inspect seals and connections. If the leak persists, contact Brondell customer service (1-888-542-3355) for a replacement.

USER MANUAL Cypress H630 Brondell

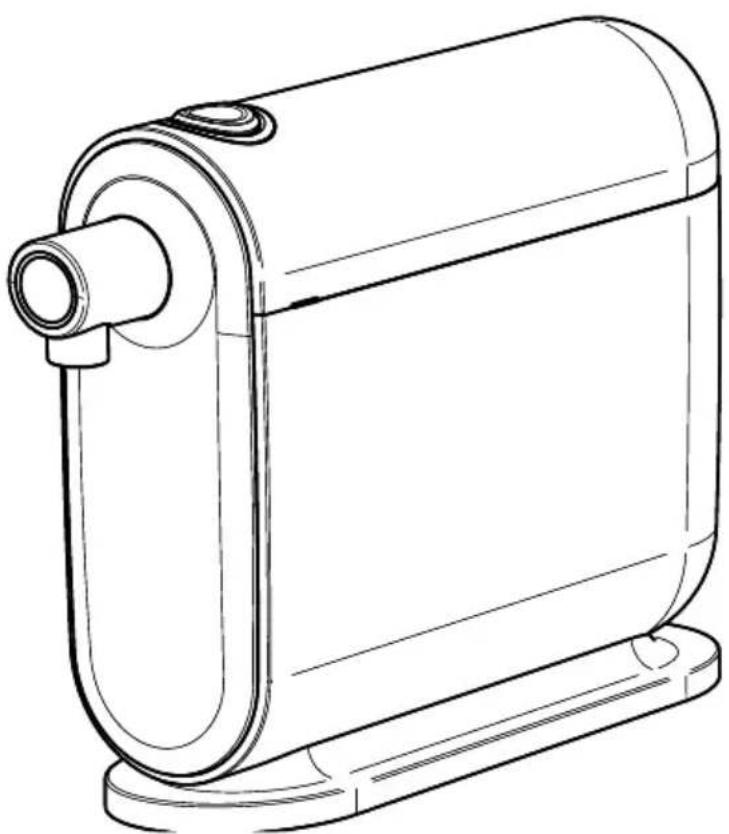

Cypress Three-Stage Countertop Water Filtration System

Model: H630

Technical line drawing of a cylindrical mechanical component with a flanged end and mounting base (no text or symbols)

Read this Owner's Manual for correct installation, use, and maintenance of this product. After reading and completing installation, keep this manual in a place that is easily accessible.

GENERAL INFO

03 Safety Information
04 Important note about TDS meters and testers

PRODUCT INFORMATION

05 Product Features
06 Product Components
07 Water Filtration Process

PRODUCT INSTALLATION

08 Preparing for Installation
09 Faucet Diverter Installation
10 Alternative T-Valve Installation
12 How to Use

MAINTENANCE

13 Cleaning
14 Filter Replacement

TECHNICAL INFORMATION

17 Troubleshooting
18 Product Specifications
19 Performance Data Sheet
23 Warranty
24 Contact Information

TRANSLATIONS

25 Spanish
48 French

SAFETY INFORMATION (IMPORTANT SAFEGUARDS)

READ ALL INSTRUCTIONS BEFORE USING

BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY.

WARNING: If not observed, serious physical injury or property damage may occur as a result.

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• Do not repair, disassemble, or modify.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

CAUTION: If not observed, minor injury or property damage may occur as a result.

• Use or place the unit on a level area and do not apply force to the unit.
• Periodical filter replacement is a prerequisite for obtaining clean water.
• Do not use filtered water for the water exchange of an aquarium or a fishbowl.
• The filtration system installation shall comply with state and local laws and regulations.
• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• The minimum allowable inlet water pressure is 20 psi and maximum allowable pressure is 120 psi. If the daytime pressure is over 80 psi, the nighttime pressure may exceed the maximum pressure.
• It is recommended to install product where the turbidity of the water supply is below 3NTU. Otherwise, the filter replacement cycle may be shortened.

IMPORTANT NOTE ABOUT "TDS METERS" AND TESTERS

When using a Total Dissolved Particle (TDS) reader to test water filtered by the Cypress Three-Stage Under Sink Water Filtration System, you may notice that levels of dissolved particles do not significantly decrease. This does not mean that the system is ineffective.

Cypress Three-Stage Countertop Water Filtration System is not designed to remove beneficial minerals from your drinking water. These minerals that occur naturally are a healthy part of your drinking water and should remain. The Cypress Three-Stage Countertop Water Filtration System is designed to dramatically reduce unwanted water-soluble contaminants, including industrial chemicals, pesticides, herbicides, turbidity, volatile organic compounds (VOCs), and microorganisms, most of which cannot be "read" with a TDS reader.

Since these unwanted components are water-soluble, they cannot be picked up by a simple TDS meter. Contrary to its name (Total Dissolved Solids or TDS Meter), these inexpensive products cannot detect most harmful water-soluble contaminants. There is a major misconception that low TDS readings mean healthy water and that is simply not always true.

The best method for testing the performance of a water filtration device is to have a nationally recognized independent organization, such as WQA (Water Quality Association) or NSF International, test and certify the products. The certified data is then available in a Performance Data Sheet, which you should request from the manufacturer. For more clarification of what the Cypress Cypress Three-Stage Countertop Water Filtration System does remove from your water, please see our Certified Performance Data Sheets on pages 19–22.

PRODUCT INFORMATION

Product Features

Advanced 3-Stage Filtration System

Cypress Three-Stage Countertop Water Filtration System provides powerful triple filtration performance utilizing patented Nanotrap technology.

Cost Savings Efficiency

Non-electric design, no wastewater or storage tanks, and long lasting filters all add up to significant cost savings over the life of the product.

One-Touch Water Dispensing

Simple intuitive one-touch controls for dispensing water.

Slim and Compact Design

Efficient and elegant countertop design takes up minimal space in the kitchen.

Quick and Easy Filter Replacement

Quick-connect water connections and provided filter change-out tool provide fast and easy maintenance

Easy, DIY Installation

Quickly and easily installs in less than 10 minutes with provided quick-connect faucet diverter.

PRODUCT INFORMATION

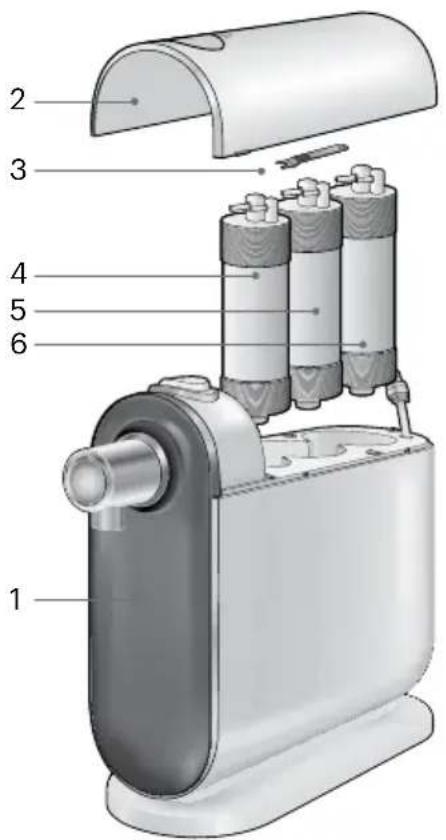

Product Components

1. Main body
2. Top cover
3. Connection tool
4. Carbon Block filter (HF-33)
5. Nanotrap filter (HF-32)
6. Composite Plus filter (HF-31)

Exploded view diagram of a mechanical device with numbered parts for identification

Accessories

1/4" tubing (White)

Diverter DiveDiveaterpactapter (Type 1)

(Type 2)

Alternative installation parts (not included).

T-Valve for under sink water supply installation

T-Valve fitting (available in 1/2" or 3/8")

Alternative installation parts are available for purchase online at brondell.com, or call us toll free: 1-888-542-3355

Cypress Three-Stage Countertop Water Filtration System

1. Composite plus filter (HF-31)

Two-stage filter reduces particulate materials such as sand, rust, and fine particles from the water supply. This first filter also acts as a pre-filter protecting the 2 following filter systems.

2. Nanotrap filter (HF-32)

Specialized filter reduces turbidity and additional particulate material.

3. Carbon block filter (HF-33)

Carbon Block filter reduces particulates, odors, and water contaminants such as chlorine and volatile organic compounds, improving the taste of the dispensed water.

* See performance data sheet for certified claims

① 2 3

Pure mechanical component diagram without any text, numbers, or symbols

Composite Plus Filter

经 经 纬

Nanotrap Filter

Carbon Block Filter

Preparing for Installation

Read Before You Install This Product

The following instructions describe how to remove the gray plug from the elbow joint that is connected at the back of your Cypress Water Filtration System.

NOTE: Use this technique when changing the filters as well.

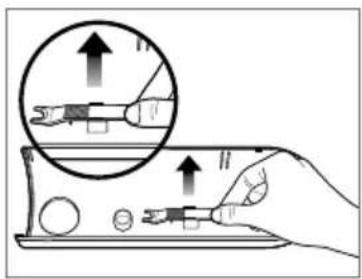

1. Remove the Quick Connect tool from the underside of the top cover.
2. Between the elbow and the gray plug is a thin white collar. Using the Quick Connect tool, push down on the ring toward the elbow

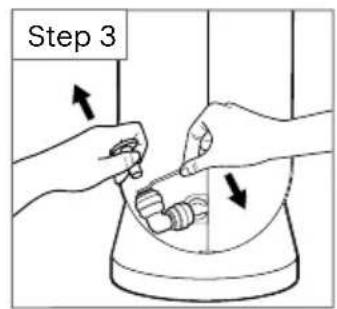

3. At the same time, pull the gray plug out in the opposite direction.

Step 1 Step 2

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Step 3

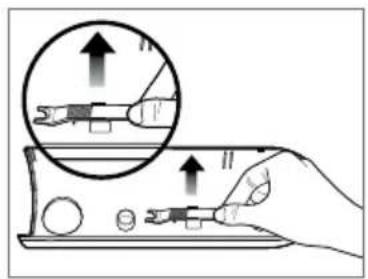

Prior to installation.

a. Remove top cover with both hands.

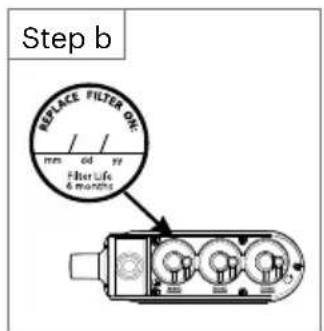

b. Write filter replacement date on filter change sticker found on top of each filter.

NOTE: Carbon Block (HF-33) and Composite Plus (HF-31) filters have a 6-month filter life & Nanotrap (HF-32) filter has a 1-year filter life.

Step a

Step b REPLACE FILTER ON mm cd yy Filter Life & months

Faucet Diverter Type (included)

Installing the faucet diverter.

1. Unscrew the original aerator (faucet spout tip) from your water faucet.
2. Connect the diverter (with rubber washer) to the water faucet by hand tightening using any of the provided diverter adapters for the best fit. If needed, use a wrench (spanner) or pliers, but be careful not to over tighten the connection.

Installing the tubing.

1. Remove the gray water inlet plug on the back of unit (see page 8).
2. Connect one end of the 1/4" tubing (white) to the water inlet on the water filter unit.
3. Connect the other end of the hose to the faucet diverter.

NOTE: Be sure to push the tubing firmly all the way into the quick connectors. Use the Connection Tool as needed.

1. Turn on the cold water faucet. Then, open the faucet diverter switch to the main water supply.

2. Press the button on top of the unit to dispense water (into your sink). Let it run for 10 minutes to flush the system and activate the filters.

NOTE: The initial flushed water contains carbon powder and air from the filter. During flushing of filter, sound will be heard as carbon powder and air is flushed out. This is not a malfunction, please use the product as usual after flushing the filter.

Make sure to flush water continuously for at least 10 minutes before initial use.

It is normal for the dispensed water to have significant white air bubbles suspended in the water for the first few days of use. This will go away over time as the air is flushed out of the system.

Step 1

Step 1

Step 2

Step 3

Step 4

Step 5

Alternative T-Valve Installation

Alternative T-Valve Installation

(for direct under sink water supply connection).

Parts sold separately on Brondell.com or by calling Brondell Customer Support.

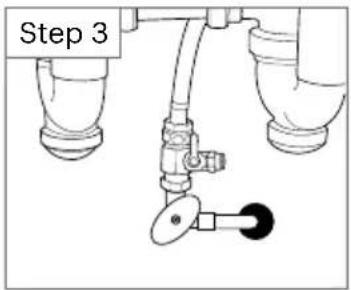

Installing the T-Valve type water supply fitting.

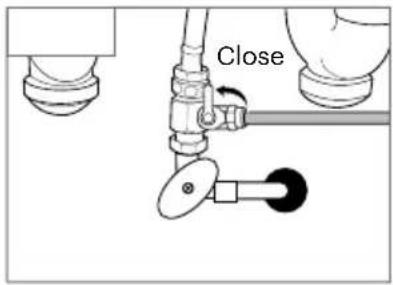

1. First, turn off the hot and cold water supply under the sink at the wall. Then, open (turn on) the faucets to drain water from the sink's water line.
2. Disconnect the cold water supply line from the supply valve under the sink at the wall.

The water supply T-Valve must be connected to the cold water supply only. Never connect to the hot water supply.

1. Connect the bottom of the T-Valve to the cold water supply at the wall and connect the faucet water supply hose to the top of the T-Valve as shown below. Use teflon tape (plumbers tape) on the threads if needed for a watertight seal.

NOTE: Use Connection Tool for all "quick-connect" water tube connections. To use: simply push down with the tool on the connection point as you pull out the tubing.

Step 1

Step 2

Step 3

Alternative T-Valve Installation (cont.)

Installing the T-Valve tubing.

1. Remove the gray water inlet plug on the back of the unit. (see page 8).
2. Connect one end of the 1/4" tubing (white) to the water inlet on the water filter unit.
3. Run the other end of the white hose under the sink and connect it to the open end of the installed T-Valve.

NOTE: Be sure to push the tubing firmly all the way into the quick connectors. Use the Connection Tool as needed.

1. Turn on the cold water faucet. Then, open the faucet diverter switch to supply main water.
2. After turning on the water supply, check all connections for any leaks. Wait 5 minutes and check once more for any signs of leaking prior to proceeding to next step.

Failure to properly install or check for leaks may cause damage to your property and Brondell will not be responsible for any damages.

1. Press the button on top of the unit to dispense water (into your sink). Let it run for 10 minutes to flush the system and activate the filters.

NOTE: The initial flushed water contains carbon powder and air from the filter. During flushing of filter, sound will be heard as carbon powder and air is flushed out. This is not a malfunction, please use the product as usual after flushing the filter.

Make sure to flush water continuously for at least 10 minutes before initial use.

Step 1

Step 2

Step 3

Step 4 OPEN

OPEN

Step 6

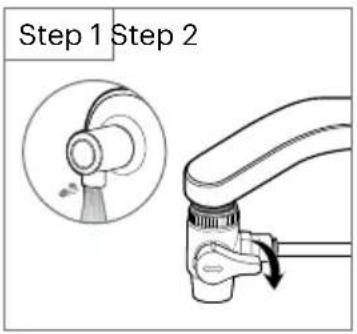

For diverter valve installation:

1. Turn the valve on the faucet diverter to the side to route the flow of water to the filter unit, then turn on cold water.
2. Turn the valve up to use faucet as usual.

Step 1 Step 2

Line drawing of a faucet handle with a valve and lever (no text or symbols)

NOTE: For the under sink T-Valve installation, the water should be permanently to the unit once you turn the valve to the "on" position.

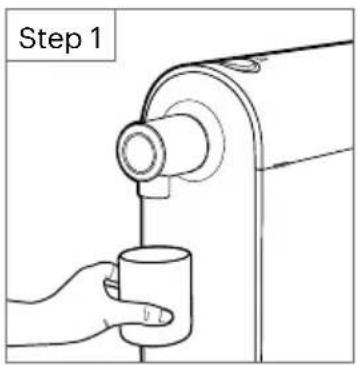

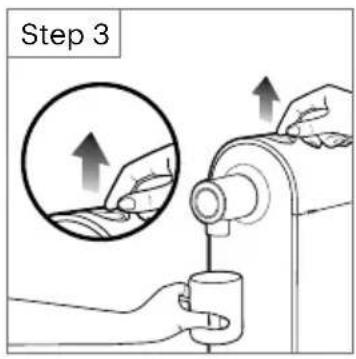

Drinking the filtered water:

1. Place a cup under the water spout.

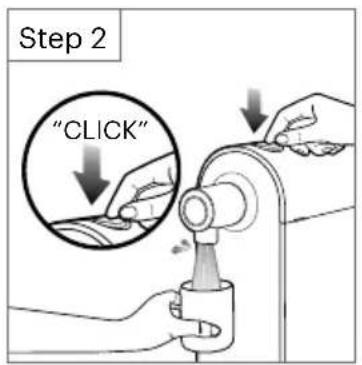

2. Press the button on top of the unit until a "CLICK" sound is heard. Once clicked, Cypress will provide continuous water flow.

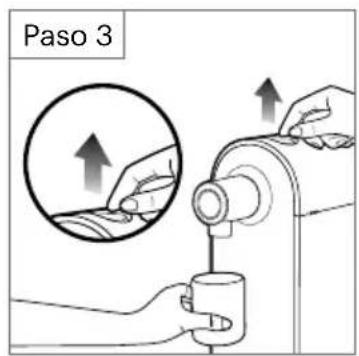

3. To stop the water flow, press the button again to return it to the initial position

Step 1

Step 2 "CLICK"

Step 3

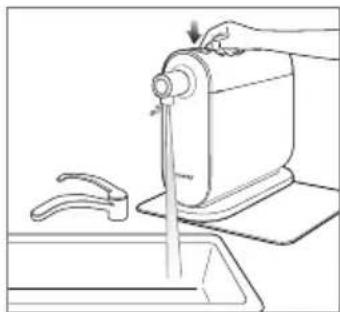

Filter flushing before first use and after filter changes.

Flush the filters and system with continuous water flow for at least 10 minutes before first time use or after changing any of the filters.

NOTE: The initial flushed water contains carbon powder and air from the filter. During flushing of filter, sound will be heard as carbon powder and air is flushed out. This is not a malfunction, please use the product as usual after flushing the filter.

Because of air in the water, initial flushed water may look murky.

Line drawing of a hand operating a sewing machine on a sink (no text or symbols)

Cleaning the water spout:

1. Hold the water spout and turn it clockwise to remove.
2. Wash the water spout under running water and wipe it with a dry cloth to remove moisture. Reattach by turning counterclockwise.

Step 1

Step 2

Step 2

Step 2

NOTE: Clean water spout periodically.

Cleaning the faucet diverter:

1. Hold the faucet diverter and turn it clockwise to remove.
2. Wash the faucet diverter under running water and wipe it with a dry cloth to remove moisture. Reattach by turning counterclockwise.

Step 1

Step 2

Step 2

Step 2

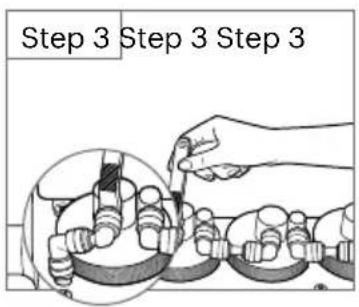

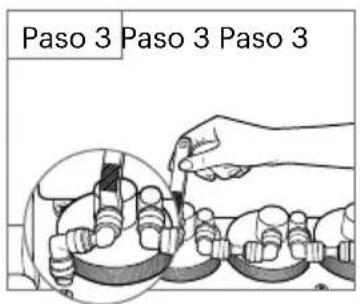

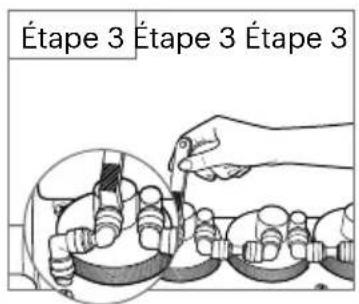

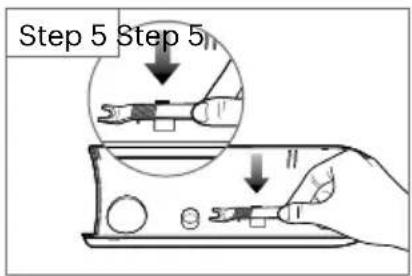

Filter Replacement

The filters are critical to the performance of the Cypress Three-Stage Countertop Water Filtration System. It is important to replace all of the filters on a regular basis. If any of the filters are overused beyond the recommended service life, the performance of the water filtration device can deteriorate. Do not miss the filter replacement cycle or use non-compatible filters, as this can affect system performance or damage the system.

*Install high turbidity water filter if your local area's water turbidity is high.

Model number	Filter Filter capacity		Recommended replacement
HF-31 Composite Plus Filter n/a 6 months
HF-32 Nanotrap filter n/a 12 months
HF-33 Carbon Block Filter		150 gallons (Chlorine independently tested up to 5,000 gallons)	6 months

* The filter replacement cycle may be reduced for areas with poor water quality or greater use.
* The period for the filter exchange is based on .5 gallons average use per day.

How to replace the filters:

1. Close the faucet diverter or alternative installation T-Valve and press the button to remove any water from inside the filter.

Step 1 Step 1 Step 1 Close

Close

Alternative T-Valve installation

Line drawing of a hand operating a kitchen electric shaver on a sink (no text or symbols)

1. Remove the top cover with both hands and take out the connection tool from inside of the top cover.

Step 2 Step 2

Diagram showing hand tool application with magnified view of tool tip and adjustment arrows

1. Remove the old filters using the Quick Connect tool to disconnect all connections (see diagram to the right for detail on using the Quick Connect tool).

Remove the old filters from the main body and insert the new filters. Reconnect all of the conections.

Mechanical assembly diagram showing a connector and shaft with directional arrows indicating motion (no text or symbols)

Step 3 Step 3 Step 3

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical assembly with a hand pressing a component (no text or symbols visible)

Filter Replacement

NOTE: Place each new filter in correct order during filter replacement. (Check the color and name of each filter.)

Use a cleaning tool to remove any foreign materials or moisture inside of the filter case.

1. Write the filter replacement date on the filter change sticker found on top of each new filter.

NOTE: Carbon Block (HF-33) and Composite Plus (HF-31) filters have a 6-month filter life, and the Nanotrop (HF-32) has a 12-month filter life.

1. Place the connection tool back in place and replace the top cover.

Step 5 Step 5

Illustration of hands performing a manual task with a magnified inset showing hand positioning (no text or symbols)

After replacing the filters, please remember to flush filter for 10 minutes before use.

In most cases, problems with your Cypress Three-Stage Countertop Water Filtration System can be resolved with a little troubleshooting by checking each of the items below. If you cannot resolve the problem you are having after troubleshooting, please call Brondell Customer Support toll free: 888-542-3355 or visit brondell.com/support.

Problem Possible Cause Solution
No water comes out.	There is a supension of water supply or the faucet diverter/T-Valve is closed.	Open the supply valve and/or the faucet diverter/T-Valve.
	The filter lifespan is expired. Replace the filters.
	The faucet is out of order. Consult a plumber.
The button on top of unit is not working	The water pressure is too high (over 120 psi).	Consult a plumber.
Condensation appears on the product main body.	The temperature or humidity is too high.	This is natural. Continue to use as normal.
Low volume of filtered water.	It is time to replace the filters. Replace the filters.
	The water supply valve is closed. Open the water supply valve.
	The temperature of the water has dropped dramatically.	As the water temperature decreases, the amount of filtered water decreases.
Poor aftertaste or bad smell from the water.	The system is being used infrequently; the filters have dried out.	Flush the filters for 10 minutes. If the water still smells or tastes bad, replace the filters.
Water is not clear. Check the filters for damage.		Replace the filters. Contact Brondell Customer Support for further information if needed.
Water leakage at diverter.	The tubing has not been pushed into the connectors.	The tubing needs to be pushed completely onto the connectors. Tighten the nuts firmly.
	The nuts have not been properly tightened.
	The connections at the faucet or T-Valve are loose.	Tighten all of the connections between the faucet and the diverter.
	You are using an old faucet.	Turn off the main water valve, then check for leakage. Change the faucet if leakage continues to occur.
	The internal seal is damaged.	Contact Brondell Customer Support to order a new diverter valve.
Product Name Cypress Three-Stage Countertop Water Filtration System
Model H630
Filters	Composite Plus (HF-31) / Nanotrap (HF-32) / Carbon Block (HF-33)
Dimensions (L x W x H) 4.1" x 13.8" x 10.8" / 10.5 cm x 35 cm x 27.5 cm
Working Temperature 40 °F	-100 °F (4.4 °C–37.8 °C)
Working Pressure 20–120 PSI (0.14 MPa–0.83 MPa)
Filter flow rate 0.5 GPM (1.9 LPM)
Net Weight 6.6 lbs (3 kg)

Water flow diagram for the Cypress Three-Stage Countertop Water Filtration System (H630)

This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 401 for the reduction of the substances listed below and NSF/ANSI/CAN 372 for lead free compliance. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, and 401.

Substance		Minimum percent reduction	Influent challenge concentration (mg/L unless specified)	Maximum permissible product water concentration or minimum allowable percent reduction (mg/L unless specified)
NSF/ANSI 42 Aesthetic Effects	Chlorine, Taste & Odor	99.0% 2.00 ± 10%	>50% Reduction
	Nominal Particulate, Class I particles 0.5 to < 1μm	99.0%	at least 10,000 particles/mL	>85% Reduction
NSF/ANSI 53 Health Effects	Cyst	99.98%	minimum 50,000/L	99.95%
	Turbidity 96.6%	11 ± 1 NTU 0.5 NTU
	VOC Surrogate Test 99.8%	0.300 ± 10%	>95% Reduction
NSF/ANSI 401 Emerging Contaminants	Microplastics particles 0.5 to < 1μm	99.0%	at least 10,000 particles/mL	>85% Reduction
	Microcystin 99.5%	0.004 ± 10%	0.0003
	Meprobamate	96.6%	0.0004 ± 20%	0.00006
	Phenytoin	94.3%	0.0002 ± 20%	0.00003
	Atenolol	94.5%	0.0002 ± 20%	0.00003
	Carbamazepine	96.3%	0.0014 ± 20%	0.0002
	TCEP	99.6%	0.005 ± 20%	0.0007
	TCPP	99.8%	0.005 ± 20%	0.0007
	DEET	99.3%	0.0014 ± 20%	0.0002
	Metolachlor	99.7%	0.0014 ± 20%	0.0002
	Trimethoprim	95.8%	0.00014 ± 20%	0.00002
	Ibuprofen	95.4%	0.0004 ± 40%	0.00006
	Naproxen	96.5%	0.00014 ± 20%	0.00002
	Estrone	96% 0.00014 ± 20%	0.00002
	Bisphenol A (BPA)	94.7%	0.002 ± 20%	0.0003
	Linuron	92%	0.00014 ± 20%	0.00002
	Nonylphenol	92.7%	0.0014 ± 20%	0.0002

While testing was performed under laboratory conditions, actual performance may vary.

Rated Capacity	150 gallons (Chlorine independently tested up to 5,000 gallons)
Min-Max Operating Pressure:	20-120 psi (207 kPa-827 kPa)
Min-Max Feed Water Temperature	40 °F-100 °F (4.4 °C-37.8 °C)
Rated Service Flow	0.5 gpm (1.9 LPM)

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
• Refer to the owners manual for specific installation instructions, manufacturer's limited warranty, user responsibility, and parts and service availability.
• For parts and service availability, please contact Brondell Customer Support.
• The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality.
• Incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.
• WARNING: This system is for use on water supplies that have been treated to public water systems Standards. This system has been tested to demonstrate effective reduction of microcystins, however, in the event of a reported cyanotoxin event in your water supply, other cyanotoxins may be present in the drinking water which may not be effectively reduced by this system. In the event of a cyanotoxin notification, follow the recommendations of your drinking water authority.
• Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

Model of Filter Type Usable period
HF-31 Composite Plus Filter 6 months
HF-32 Nanotrap Filter 12 months
HF-33 Carbon Block Filter 6 months

Volatile Organic Chemicals (VOCs) included by surrogate testing*

Chemical	Drinking water regulatory level (MCL/MAC) mg/L	Influent challenge concentration2 mg/L	Chemical reduction percent	Maximum product water concentration mg/L
alachlor 0.002 0.05 > 98 0.001				3
atrazine 0.003 0.1 > 97 0.003				3
benzene 0.005 0.081 > 99 0.001				3
carbofuran	0.04	0.19	> 99	0.001^3
carbon tetrachloride	0.005	0.078	98	0.0018^4
chlorobenzene	0.1	0.077	> 99	0.001^3
chloropicrin	-	0.015	99	0.0002^3
2,4-D	0.07	0.11	98	0.0017^4
dibromochloropropane (DBCP)	0.0002	0.052	> 99	0.00002^3
o-dichlorobenzene	0.6	0.08	> 99	0.001^3
p-dichlorobenzene	0.075	0.04	> 98	0.001^3
1,2-dichloroethane	0.005 0.088	95	5	0.0048^5
1,1-dichloroethylene	0.007	0.083	> 99	0.001^3
cis-1,2-dichloroethylene	0.07	0.17	> 99	0.0005^3
trans-1,2-dichloroethylene	0.1	0.086	> 99	0.001^3
1,2-dichloropropane	0.005	0.08	> 99	0.001^3
cis-1,3-dichloropropylene	-	0.079	> 99	0.001^3
dinoseb	0.007	0.17	99	0.0002^4
endrin	0.002	0.053	99	0.00059^4
ethylbenzene	0.7	0.088	>99	0.001^3
ethylene dilbromide (EDB)	0.00005	0.044	> 99	0.00002^3
haloacetonitriles (HAN)
bromochloroacetonitrile	-	0.022	98	0.0005^3
dibromoacetonitrile	-	0.024	98	0.0006^3
dichloroacetonitrile	-	0.0096	98	0.0002^3
trichloroacetoritrile	-	0.015	98	0.0003^3
haloketones (HK):
1,1-dichloro-2-propanone	-	0.0072	99	0.0001^3
1,1,1-trichloro-2-propanone	-	0.0082	96	0.0003^3
heptachlor (H-34,Heptox)	0.0004	0.08	> 99	0.0004
Chemical	Drinking water regulatory level ^1 (MCL/MAC) mg/L	Influent challenge concentration ^2 mg/L	Chemical reduction percent	Maximum product water concentration mg/L
heptachlor epoxide 0.0002 0.0107		6	98 0.0002	6
hexachlorobutadiene	-	0.044	>98	0.001^3
hexachlorocyclopentadiene 0.05 0.06 >99 0.0000002				3
lindane 0.0002 0.055 >99 0.00001				3
methoxychlor	0.04	0.05	>99	0.0001^3
pentachlorophenol	0.001	0.096	>99	0.001^3
simazine	0.004	0.12	>97	0.004^3
styrene	0.1	0.15	>99	0.0005^3
1,1,2,2-tetrachloroethane	-	0.081	>99	0.001^3
tetrachloroethylene	0.005	0.081	>99	0.001^3
toluene	1	0.078	>99	0.001^3
2,4,5-TP (silvex)	0.05	0.27	99	0.0016^4
tribromoacetic acid	-	0.042	>98	0.001^3
1,2,4-trichlorobenzene	0.07	0.16	>99	0.0005^3
1,1,1-trichloroethane	0.2	0.084	95	0.0046^4
1,1,2-trichloroethane	0.005	0.15	>99	0.0005^3
trihalomethanes (includes):
chloroform (surrogate chemical) bromoform bromodichloromethane chlorodibromomethane	0.080	0.300	95	0.015
xylenes (total)	10	0.070	>99	0.001^3

* Chloroform was used as the surrogate chemical for VOC reduction claims

1 These harmonized values were agreed upon by representatives of USEPA and Health Canada for the purpose of evaluating products to the requirements of this Standard.

2 Influent challenge levels are average influent concentrations determined in surrogate qualification testing.

3 Maximum product water level was not observed but was set at the detection limit of the analysis.

4 Maximum product water level is set at a value determined in surrogate qualification testing.

5 Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough point as determined in surrogate qualification testing.

6 The surrogate test results for heptachlor epoxide demonstrated a 98% reduction. These data were used to calculate an upper occurrence concentration which would produce a maximum product water level at the MCL.

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that the water filtration system shall be free from defects in material and workmanship under normal use and service.

Cypress Three-Stage Countertop Water Filtration System

100% coverage of all parts and labor for the entire product for the first year from original date of purchase. This does not apply, however, to consumable filters.

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.

2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first full year from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or reinstallation of products. This warranty does NOT apply to:

4. Damage or loss which occurs during shipment.

5. Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
6. Damage or loss resulting from sediments or foreign matter contained in a water system.
7. Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.
8. Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products

9. Damage or loss resulting from acts which are not the fault of Brondell or which the Product is not specified to tolerate.

10. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of

the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355 or visit brondell.com/support.

Brondell®

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

www.brondell.com

For questions and additional resources, contact:

Brondell Customer Support

1-888-542-3355

www.brondell.com/support

Manufactured By

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

Made in Korea

Please retain receipt records for any warranty claims.

Pure diagram of a cylindrical mechanical component with no text, numbers, or symbols

Filtro Composite Plus

65 65 45

Filtro Nanotrap

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Paso 3

Line drawing of a faucet handle with a valve and lever (no text or symbols)

Paso 2 "CLICK"

Paso 3

Line drawing of a hand using a sewing machine to lift water from a sink (no text or symbols)

Line drawing of a hand using a kitchen juicer to clean or wash the surface (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with an inset showing a magnified view of the process (no text or symbols present)

Diagram illustrating a hand holding a device with an inset showing a finger pressing a button, labeled with arrows and symbols.

Mechanical assembly diagram showing a connector and shaft with directional arrows indicating motion (no text or symbols)

Paso 3 Paso 3 Paso 3

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with a hand operating it, showing a cylindrical component being inserted (no text or symbols present)

Illustration of hands operating a pipe with a magnified inset showing hand positioning (no text or symbols)

C = Composite Plus (HF-31)

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

www.brondell.com

INSTALLATION DU PRODUIT

Exploded view diagram of a battery pack with numbered parts labeled 1 to 6

Accessories

Pure mechanical component diagram without any text, numbers, or symbols

Filtre Composite Plus

Filtre Nanotrap

Filtre Au Charbon

INSTALLATION DU PRODUIT

Illustration of a hand using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

Étape 3

Avant la pose.

Diagram showing a hand valve adjustment on a kitchen faucet, with a magnified inset illustrating the process (no text or symbols present)

Line drawing of a faucet handle with a valve and lever (no text or symbols)

Line drawing of a hand operating a sewing machine with a handle and base (no text or symbols)

Line drawing of a kitchen appliance with a hand operating it, showing a drain and sink (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with an inset showing a magnified view of the process (no text or symbols present)

Diagram illustrating a hand holding a device with an inset showing a close-up of the device's handle and its movement direction.

Mechanical assembly diagram showing a lever and shaft with directional arrows indicating motion (no text or symbols)

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Mechanical assembly diagram showing a hand operating a cylindrical component with a downward arrow indicating motion (no text or symbols present)

Illustration of hands operating a pipe with a magnified inset showing hand positioning (no text or symbols)

Feels better already.

Brondell, Inc.

PO Box 470085

San Francisco, CA

94147-0085

www.brondell.com

Feels better already.
